多年以后，当我历经风雨的洗礼，岁月的沉淀，我知道我想重新遇见那个它，那个在无数个日夜让我魂牵梦萦的Vue.js。它的出现，让世界与众不同。
示例HTML
<!DOCTYPE html>
<html>
<head>
<title>Vue.js</title>
<!-- Delete ".min" for console warnings in development -->
<script src="../../dist/vue.js"></script>
</head>
<body>
<div id="app">
{{ message }}
</div>
<script>
var app = new Vue({
el: '#app',
data: {
message: 'Hello Vue!'
},
created() {
this.message = '你好'
}
})
</script>
</body>
</html>
Vue构造器
文件instance/index.js通过mixin实现对Vue实例的方法挂载。
initMixin(Vue) // _init
stateMixin(Vue) // $data,$props,$set,$delete,$watch
eventsMixin(Vue) // $on,$once,$off,$emit
lifecycleMixin(Vue) // _update, $forceUpdate, $destroy
renderMixin(Vue) //installRenderHelpers(Vue.prototype), $nextTick, $render
// 直接挂在Vue构造器的方法
// Vue.config, Vue.util(内部使用)
// set/delete(与实例上的set/delete作用相同), nextTick, observable, options
// Vue.use, Vue.mixin, Vue.extend, Vue.component, Vue.directive, Vue.filter
// $isServer, $ssrContext, FunctionalRenderContext, version
initGlobalAPI(Vue)
初始化主流程
一言以蔽之，初始化生命周期，事件，渲染函数，注入状态，provide，并穿插调用生命周期钩子（有点webpack的意思了）。
Vue.prototype._init = function(options ? : Object) {
const vm: Component = this
// a flag to avoid this being observed
vm._isVue = true
// merge options
if (options && options._isComponent) {
// optimize internal component instantiation
// since dynamic options merging is pretty slow, and none of the
// internal component options needs special treatment.
initInternalComponent(vm, options)
} else {
vm.$options = mergeOptions(
resolveConstructorOptions(vm.constructor),
options || {},
vm
)
}
/* istanbul ignore else */
if (process.env.NODE_ENV !== 'production') {
initProxy(vm)
} else {
vm._renderProxy = vm
}
// expose real self
vm._self = vm
initLifecycle(vm)
initEvents(vm)
initRender(vm)
callHook(vm, 'beforeCreate')
initInjections(vm) // resolve injections before data/props
initState(vm)
initProvide(vm) // resolve provide after data/props
callHook(vm, 'created')
if (vm.$options.el) {
vm.$mount(vm.$options.el)
}
}
initRender
主要对$attrs和$listeners响应化处理，挂载一些渲染函数的实用方法在Vue实例上，以及插槽和作用域插槽的初始化工作。
function initRender(vm: Component) {
vm._vnode = null // the root of the child tree
vm._staticTrees = null // v-once cached trees
const options = vm.$options
const parentVnode = vm.$vnode = options._parentVnode // the placeholder node in parent tree
const renderContext = parentVnode && parentVnode.context
vm.$slots = resolveSlots(options._renderChildren, renderContext)
vm.$scopedSlots = emptyObject
// bind the createElement fn to this instance
// so that we get proper render context inside it.
// args order: tag, data, children, normalizationType, alwaysNormalize
// internal version is used by render functions compiled from templates
vm._c = (a, b, c, d) => createElement(vm, a, b, c, d, false)
// normalization is always applied for the public version, used in
// user-written render functions.
vm.$createElement = (a, b, c, d) => createElement(vm, a, b, c, d, true)
// $attrs & $listeners are exposed for easier HOC creation.
// they need to be reactive so that HOCs using them are always updated
const parentData = parentVnode && parentVnode.data
/* istanbul ignore else */
if (process.env.NODE_ENV !== 'production') {
defineReactive(vm, '$attrs', parentData && parentData.attrs || emptyObject, () => {
!isUpdatingChildComponent && warn(`$attrs is readonly.`, vm)
}, true)
defineReactive(vm, '$listeners', options._parentListeners || emptyObject, () => {
!isUpdatingChildComponent && warn(`$listeners is readonly.`, vm)
}, true)
} else {
defineReactive(vm, '$attrs', parentData && parentData.attrs || emptyObject, null, true)
defineReactive(vm, '$listeners', options._parentListeners || emptyObject, null, true)
}
}
initInjections
通过不断查找父组件的provide, 找到每一个inject到当前组件的属性值。然后响应化每一个inject的属性。
export function initInjections (vm: Component) {
const result = resolveInject(vm.$options.inject, vm)
if (result) {
toggleObserving(false)
Object.keys(result).forEach(key => {
/* istanbul ignore else */
if (process.env.NODE_ENV !== 'production') {
defineReactive(vm, key, result[key], () => {
warn(
`Avoid mutating an injected value directly since the changes will be ` +
`overwritten whenever the provided component re-renders. ` +
`injection being mutated: "${key}"`,
vm
)
})
} else {
defineReactive(vm, key, result[key])
}
})
toggleObserving(true)
}
}
initState
状态相关的computed, data, props, methods, watch初始化工作。
export function initState(vm: Component) {
vm._watchers = []
const opts = vm.$options
if (opts.props) initProps(vm, opts.props)
if (opts.methods) initMethods(vm, opts.methods)
if (opts.data) {
initData(vm)
} else {
observe(vm._data = {}, true /* asRootData */ )
}
if (opts.computed) initComputed(vm, opts.computed)
if (opts.watch && opts.watch !== nativeWatch) {
initWatch(vm, opts.watch)
}
}
initData
function initData(vm: Component) {
let data = vm.$options.data
// 初始化options会进行合并，初始下data为function
data = vm._data = typeof data === 'function' ?
getData(data, vm) :
data || {}
if (!isPlainObject(data)) {
data = {}
process.env.NODE_ENV !== 'production' && warn(
'data functions should return an object:\n' +
'https://vuejs.org/v2/guide/components.html#data-Must-Be-a-Function',
vm
)
}
// proxy data on instance
const keys = Object.keys(data)
const props = vm.$options.props
const methods = vm.$options.methods
let i = keys.length
while (i--) {
const key = keys[i]
if (process.env.NODE_ENV !== 'production') {
if (methods && hasOwn(methods, key)) {
warn(
`Method "${key}" has already been defined as a data property.`,
vm
)
}
}
if (props && hasOwn(props, key)) {
process.env.NODE_ENV !== 'production' && warn(
`The data property "${key}" is already declared as a prop. ` +
`Use prop default value instead.`,
vm
)
} else if (!isReserved(key)) {
// 非$或者_开头的data属性代理到_data，可从实例直接访问到data下的属性
// 会被代理到_data下的同名键
proxy(vm, `_data`, key)
}
}
// observe data
observe(data, true /* asRootData */ )
}
//成功被observe之后返回一个observer实例
// 如果已经存在一个observer实例，则直接返回，体现在value存在一个__ob__属性是observer实例
export function observe(value: any, asRootData: ? boolean): Observer | void {
if (!isObject(value) || value instanceof VNode) {
return
}
let ob: Observer | void
if (hasOwn(value, '__ob__') && value.__ob__ instanceof Observer) {
ob = value.__ob__
} else if (
shouldObserve &&
!isServerRendering() &&
(Array.isArray(value) || isPlainObject(value)) &&
Object.isExtensible(value) &&
!value._isVue
) {
// 转化为一个observer对象
ob = new Observer(value)
}
if (asRootData && ob) {
ob.vmCount++
}
return ob
}
export class Observer {
value: any;
dep: Dep;
vmCount: number; // number of vms that have this object as root $data
constructor(value: any) {
this.value = value
this.dep = new Dep()
this.vmCount = 0
// 每一个被observe的对象都有一个_ob_的标识，值为observer实例
def(value, '__ob__', this)
if (Array.isArray(value)) {
if (hasProto) {
protoAugment(value, arrayMethods)
} else {
copyAugment(value, arrayMethods, arrayKeys)
}
this.observeArray(value)
} else {
this.walk(value)
}
}
/**
* Walk through all properties and convert them into
* getter/setters. This method should only be called when
* value type is Object.
*/
// 将data上的属性转为getter，setter
// 从而获取值时收集依赖
// 当其值发生变化时，可以触发更新这个data值的所有依赖
walk(obj: Object) {
const keys = Object.keys(obj)
for (let i = 0; i < keys.length; i++) {
defineReactive(obj, keys[i])
}
}
/**
* Observe a list of Array items.
*/
observeArray(items: Array < any > ) {
for (let i = 0, l = items.length; i < l; i++) {
observe(items[i])
}
}
}
export function defineReactive(
obj: Object,
key: string,
val: any,
customSetter ? : ? Function,
shallow ? : boolean
) {
const dep = new Dep()
const property = Object.getOwnPropertyDescriptor(obj, key)
if (property && property.configurable === false) {
return
}
// cater for pre-defined getter/setters
const getter = property && property.get
const setter = property && property.set
if ((!getter || setter) && arguments.length === 2) {
val = obj[key]
}
let childOb = !shallow && observe(val)
Object.defineProperty(obj, key, {
enumerable: true,
configurable: true,
get: function reactiveGetter() {
const value = getter ? getter.call(obj) : val
if (Dep.target) {
dep.depend()
if (childOb) {
childOb.dep.depend()
if (Array.isArray(value)) {
dependArray(value)
}
}
}
return value
},
set: function reactiveSetter(newVal) {
const value = getter ? getter.call(obj) : val
/* eslint-disable no-self-compare */
if (newVal === value || (newVal !== newVal && value !== value)) {
return
}
/* eslint-enable no-self-compare */
if (process.env.NODE_ENV !== 'production' && customSetter) {
customSetter()
}
// #7981: for accessor properties without setter
if (getter && !setter) return
if (setter) {
setter.call(obj, newVal)
} else {
val = newVal
}
childOb = !shallow && observe(newVal)
dep.notify()
}
})
}
initProvide
与initInjections遥相呼应，将组件的provide的对象值挂在vue实例的_provided属性下供其子组件初始化inject的时候查找。
export function initProvide (vm: Component) {
const provide = vm.$options.provide
if (provide) {
vm._provided = typeof provide === 'function'
? provide.call(vm)
: provide
}
}
mount阶段
这部分代码是平台相关的，在entry-runtime-with-compiler文件中。
// 保存初始mount，对原有mount做扩展，可以视为组合模式的一种应用
const mount = Vue.prototype.$mount
Vue.prototype.$mount = function (
el?: string | Element,
hydrating?: boolean
): Component {
// 找到要挂载的HTMLElement元素
el = el && query(el)
// 不允许挂在body或者html元素上
/* istanbul ignore if */
if (el === document.body || el === document.documentElement) {
process.env.NODE_ENV !== 'production' && warn(
`Do not mount Vue to <html> or <body> - mount to normal elements instead.`
)
return this
}
const options = this.$options
// resolve template/el and convert to render function
if (!options.render) {
// 获取template，处理template的过程
let template = options.template
if (template) {
if (typeof template === 'string') {
if (template.charAt(0) === '#') {
template = idToTemplate(template)
/* istanbul ignore if */
if (process.env.NODE_ENV !== 'production' && !template) {
warn(
`Template element not found or is empty: ${options.template}`,
this
)
}
}
} else if (template.nodeType) {
template = template.innerHTML
} else {
if (process.env.NODE_ENV !== 'production') {
warn('invalid template option:' + template, this)
}
return this
}
} else if (el) {
template = getOuterHTML(el)
}
if (template) {
/* istanbul ignore if */
if (process.env.NODE_ENV !== 'production' && config.performance && mark) {
mark('compile')
}
// 生成渲染函数挂载在实例
const { render, staticRenderFns } = compileToFunctions(template, {
outputSourceRange: process.env.NODE_ENV !== 'production',
shouldDecodeNewlines,
shouldDecodeNewlinesForHref,
delimiters: options.delimiters,
comments: options.comments
}, this)
options.render = render
options.staticRenderFns = staticRenderFns
/* istanbul ignore if */
if (process.env.NODE_ENV !== 'production' && config.performance && mark) {
mark('compile end')
measure(`vue ${this._name} compile`, 'compile', 'compile end')
}
}
}
return mount.call(this, el, hydrating)
}
初始的$mount方法在runtime/index.js文件。
Vue.prototype.$mount = function(
el ? : string | Element,
hydrating ? : boolean
): Component {
el = el && inBrowser ? query(el) : undefined
return mountComponent(this, el, hydrating)
}
export function mountComponent (
vm: Component,
el: ?Element,
hydrating?: boolean
): Component {
vm.$el = el
callHook(vm, 'beforeMount')
let updateComponent
// **重点**
updateComponent = () => {
vm._update(vm._render(), hydrating)
}
// we set this to vm._watcher inside the watcher's constructor
// since the watcher's initial patch may call $forceUpdate (e.g. inside child
// component's mounted hook), which relies on vm._watcher being already defined
// 实例化watcher的时候会调用updateComponent作为watcher实例的value
// 在这个过程中插入新结点，删除旧结点
new Watcher(vm, updateComponent, noop, {
before () {
if (vm._isMounted && !vm._isDestroyed) {
callHook(vm, 'beforeUpdate')
}
}
}, true /* isRenderWatcher */)
hydrating = false
// manually mounted instance, call mounted on self
// mounted is called for render-created child components in its inserted hook
if (vm.$vnode == null) {
vm._isMounted = true
callHook(vm, 'mounted')
}
return vm
}
updateComponent首先调用实例的_render方法，该方法最重要的作用是从render函数生成vnode对象，进而作为_update方法的第一个参数进行方法调用。
Vue.prototype._render = function(): VNode {
const vm: Component = this
const {
render,
_parentVnode
} = vm.$options
if (_parentVnode) {
vm.$scopedSlots = normalizeScopedSlots(
_parentVnode.data.scopedSlots,
vm.$slots,
vm.$scopedSlots
)
}
// set parent vnode. this allows render functions to have access
// to the data on the placeholder node.
vm.$vnode = _parentVnode
// render self
let vnode
try {
// There's no need to maintain a stack because all render fns are called
// separately from one another. Nested component's render fns are called
// when parent component is patched.
currentRenderingInstance = vm
// 核心功能
vnode = render.call(vm._renderProxy, vm.$createElement)
} catch (e) {
handleError(e, vm, `render`)
// return error render result,
// or previous vnode to prevent render error causing blank component
/* istanbul ignore else */
if (process.env.NODE_ENV !== 'production' && vm.$options.renderError) {
try {
vnode = vm.$options.renderError.call(vm._renderProxy, vm.$createElement, e)
} catch (e) {
handleError(e, vm, `renderError`)
vnode = vm._vnode
}
} else {
vnode = vm._vnode
}
} finally {
currentRenderingInstance = null
}
// if the returned array contains only a single node, allow it
if (Array.isArray(vnode) && vnode.length === 1) {
vnode = vnode[0]
}
// return empty vnode in case the render function errored out
if (!(vnode instanceof VNode)) {
if (process.env.NODE_ENV !== 'production' && Array.isArray(vnode)) {
warn(
'Multiple root nodes returned from render function. Render function ' +
'should return a single root node.',
vm
)
}
vnode = createEmptyVNode()
}
// set parent
vnode.parent = _parentVnode
return vnode
}
这是一个示例的render函数：
(function anonymous() {
with(this) {
// 这些除了_c之外的_v之类的别名都是在初次引入vue.js这个构建好的文件
// 调用renderMixin（installRenderHelpers）函数挂载到vue实例
// vm._c = (a, b, c, d) => createElement(vm, a, b, c, d, false)
return _c('div', {
attrs: {
"id": "app"
}
}, [_v("\n " + _s(message) + "\n ")])
}
})
function installRenderHelpers(target: any) {
target._o = markOnce
target._n = toNumber
target._s = toString
target._l = renderList
target._t = renderSlot
target._q = looseEqual
target._i = looseIndexOf
target._m = renderStatic
target._f = resolveFilter
target._k = checkKeyCodes
target._b = bindObjectProps
target._v = createTextVNode
target._e = createEmptyVNode
target._u = resolveScopedSlots
target._g = bindObjectListeners
target._d = bindDynamicKeys
target._p = prependModifier
}
export function createElement(
context: Component,
tag: any,
data: any,
children: any,
normalizationType: any,
alwaysNormalize: boolean
): VNode | Array < VNode > {
if (Array.isArray(data) || isPrimitive(data)) {
normalizationType = children
children = data
data = undefined
}
if (isTrue(alwaysNormalize)) {
normalizationType = ALWAYS_NORMALIZE
}
return _createElement(context, tag, data, children, normalizationType)
}
export function _createElement(
context: Component,
tag ? : string | Class < Component > | Function | Object,
data ? : VNodeData,
children ? : any,
normalizationType ? : number
): VNode | Array < VNode > {
if (isDef(data) && isDef((data: any).__ob__)) {
process.env.NODE_ENV !== 'production' && warn(
`Avoid using observed data object as vnode data: ${JSON.stringify(data)}\n` +
'Always create fresh vnode data objects in each render!',
context
)
return createEmptyVNode()
}
// object syntax in v-bind
if (isDef(data) && isDef(data.is)) {
tag = data.is
}
if (!tag) {
// in case of component :is set to falsy value
return createEmptyVNode()
}
// warn against non-primitive key
if (process.env.NODE_ENV !== 'production' &&
isDef(data) && isDef(data.key) && !isPrimitive(data.key)
) {
if (!__WEEX__ || !('@binding' in data.key)) {
warn(
'Avoid using non-primitive value as key, ' +
'use string/number value instead.',
context
)
}
}
// support single function children as default scoped slot
if (Array.isArray(children) &&
typeof children[0] === 'function'
) {
data = data || {}
data.scopedSlots = {
default: children[0]
}
children.length = 0
}
if (normalizationType === ALWAYS_NORMALIZE) {
children = normalizeChildren(children)
} else if (normalizationType === SIMPLE_NORMALIZE) {
children = simpleNormalizeChildren(children)
}
let vnode, ns
if (typeof tag === 'string') {
let Ctor
ns = (context.$vnode && context.$vnode.ns) || config.getTagNamespace(tag)
if (config.isReservedTag(tag)) {
// platform built-in elements
if (process.env.NODE_ENV !== 'production' && isDef(data) && isDef(data.nativeOn) && data.tag !== 'component') {
warn(
`The .native modifier for v-on is only valid on components but it was used on <${tag}>.`,
context
)
}
// 对于我们的示例，在这个分支
// children是一个数组，只包含一个vnode实例的元素，为textVNode
// data是VNodeData类型
// 定义可以在源码的types文件夹下的vnode.d.ts文件中查看
vnode = new VNode(
config.parsePlatformTagName(tag), data, children,
undefined, undefined, context
)
} else if ((!data || !data.pre) && isDef(Ctor = resolveAsset(context.$options, 'components', tag))) {
// component
vnode = createComponent(Ctor, data, context, children, tag)
} else {
// unknown or unlisted namespaced elements
// check at runtime because it may get assigned a namespace when its
// parent normalizes children
vnode = new VNode(
tag, data, children,
undefined, undefined, context
)
}
} else {
// direct component options / constructor
vnode = createComponent(tag, data, context, children)
}
if (Array.isArray(vnode)) {
return vnode
} else if (isDef(vnode)) {
if (isDef(ns)) applyNS(vnode, ns)
if (isDef(data)) registerDeepBindings(data)
return vnode
} else {
return createEmptyVNode()
}
}
VNode
constructor(
tag ? : string,
data ? : VNodeData,
children ? : ? Array < VNode > ,
text ? : string,
elm ? : Node,
context ? : Component,
componentOptions ? : VNodeComponentOptions,
asyncFactory ? : Function
) {
this.tag = tag
this.data = data
this.children = children
this.text = text
this.elm = elm
this.ns = undefined
this.context = context
this.fnContext = undefined
this.fnOptions = undefined
this.fnScopeId = undefined
this.key = data && data.key
this.componentOptions = componentOptions
this.componentInstance = undefined
this.parent = undefined
this.raw = false
this.isStatic = false
this.isRootInsert = true
this.isComment = false
this.isCloned = false
this.isOnce = false
this.asyncFactory = asyncFactory
this.asyncMeta = undefined
this.isAsyncPlaceholder = false
}
__update
Vue.prototype._update = function(vnode: VNode, hydrating ? : boolean) {
const vm: Component = this
const prevEl = vm.$el
const prevVnode = vm._vnode
const restoreActiveInstance = setActiveInstance(vm)
vm._vnode = vnode
// Vue.prototype.__patch__ is injected in entry points
// based on the rendering backend used.
if (!prevVnode) {
// 初次渲染
// vm.$el是querySelector返回的Element元素
vm.$el = vm.__patch__(vm.$el, vnode, hydrating, false /* removeOnly */ )
} else {
// 后续update
vm.$el = vm.__patch__(prevVnode, vnode)
}
restoreActiveInstance()
// update __vue__ reference
if (prevEl) {
prevEl.__vue__ = null
}
if (vm.$el) {
vm.$el.__vue__ = vm
}
// if parent is an HOC, update its $el as well
if (vm.$vnode && vm.$parent && vm.$vnode === vm.$parent._vnode) {
vm.$parent.$el = vm.$el
}
// updated hook is called by the scheduler to ensure that children are
// updated in a parent's updated hook.
}
_patch
function patch(oldVnode, vnode, hydrating, removeOnly) {
if (isUndef(vnode)) {
if (isDef(oldVnode)) invokeDestroyHook(oldVnode)
return
}
let isInitialPatch = false
const insertedVnodeQueue = []
if (isUndef(oldVnode)) {
// empty mount (likely as component), create new root element
isInitialPatch = true
createElm(vnode, insertedVnodeQueue)
} else {
const isRealElement = isDef(oldVnode.nodeType)
if (!isRealElement && sameVnode(oldVnode, vnode)) {
// patch existing root node
patchVnode(oldVnode, vnode, insertedVnodeQueue, null, null, removeOnly)
} else {
if (isRealElement) {
// mounting to a real element
// check if this is server-rendered content and if we can perform
// a successful hydration.
if (oldVnode.nodeType === 1 && oldVnode.hasAttribute(SSR_ATTR)) {
oldVnode.removeAttribute(SSR_ATTR)
hydrating = true
}
if (isTrue(hydrating)) {
if (hydrate(oldVnode, vnode, insertedVnodeQueue)) {
invokeInsertHook(vnode, insertedVnodeQueue, true)
return oldVnode
} else if (process.env.NODE_ENV !== 'production') {
warn(
'The client-side rendered virtual DOM tree is not matching ' +
'server-rendered content. This is likely caused by incorrect ' +
'HTML markup, for example nesting block-level elements inside ' +
'<p>, or missing <tbody>. Bailing hydration and performing ' +
'full client-side render.'
)
}
}
// either not server-rendered, or hydration failed.
// create an empty node and replace it
// 将作为htmlelement的oldVnode转化为真实的vnode对象
// 且这个vode对象的elm属性就是原来的htmlElement对象
oldVnode = emptyNodeAt(oldVnode)
}
// 原来的element对象div#app
const oldElm = oldVnode.elm
// div#app的父结点body
const parentElm = nodeOps.parentNode(oldElm)
// create new node
// nextSibling会获取一个textElement，是因为换行符被解析为一个Element对象
// 会插入dom结点到html文档中
createElm(
vnode,
insertedVnodeQueue,
// extremely rare edge case: do not insert if old element is in a
// leaving transition. Only happens when combining transition +
// keep-alive + HOCs. (#4590)
oldElm._leaveCb ? null : parentElm,
nodeOps.nextSibling(oldElm)
)
// update parent placeholder node element, recursively
if (isDef(vnode.parent)) {
let ancestor = vnode.parent
const patchable = isPatchable(vnode)
while (ancestor) {
for (let i = 0; i < cbs.destroy.length; ++i) {
cbs.destroy[i](ancestor)
}
ancestor.elm = vnode.elm
if (patchable) {

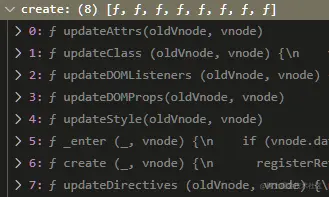

for (let i = 0; i < cbs.create.length; ++i) {
cbs.create[i](emptyNode, ancestor)
}
// #6513
// invoke insert hooks that may have been merged by create hooks.
// e.g. for directives that uses the "inserted" hook.
const insert = ancestor.data.hook.insert
if (insert.merged) {
// start at index 1 to avoid re-invoking component mounted hook
for (let i = 1; i < insert.fns.length; i++) {
insert.fns[i]()
}
}
} else {
registerRef(ancestor)
}
ancestor = ancestor.parent
}
}
// 现在新旧结点并存，需要删除旧结点
// destroy old node
if (isDef(parentElm)) {
removeVnodes([oldVnode], 0, 0)
} else if (isDef(oldVnode.tag)) {
invokeDestroyHook(oldVnode)
}
}
}
invokeInsertHook(vnode, insertedVnodeQueue, isInitialPatch)
return vnode.elm
}
createElm添加新结点
function createElm(
vnode,
insertedVnodeQueue,
parentElm,
refElm,
nested,
ownerArray,
index
) {
if (isDef(vnode.elm) && isDef(ownerArray)) {
// This vnode was used in a previous render!
// now it's used as a new node, overwriting its elm would cause
// potential patch errors down the road when it's used as an insertion
// reference node. Instead, we clone the node on-demand before creating
// associated DOM element for it.
vnode = ownerArray[index] = cloneVNode(vnode)
}
vnode.isRootInsert = !nested // for transition enter check
if (createComponent(vnode, insertedVnodeQueue, parentElm, refElm)) {
return
}
const data = vnode.data
const children = vnode.children
const tag = vnode.tag
if (isDef(tag)) {
// 非文本和注释vnode
if (process.env.NODE_ENV !== 'production') {
if (data && data.pre) {
creatingElmInVPre++
}
if (isUnknownElement(vnode, creatingElmInVPre)) {
warn(
'Unknown custom element: <' + tag + '> - did you ' +
'register the component correctly? For recursive components, ' +
'make sure to provide the "name" option.',
vnode.context
)
}
}
vnode.elm = vnode.ns ?
nodeOps.createElementNS(vnode.ns, tag) :
nodeOps.createElement(tag, vnode)
setScope(vnode)
/* istanbul ignore if */
if (__WEEX__) {
// in Weex, the default insertion order is parent-first.
// List items can be optimized to use children-first insertion
// with append="tree".
const appendAsTree = isDef(data) && isTrue(data.appendAsTree)
if (!appendAsTree) {
if (isDef(data)) {
invokeCreateHooks(vnode, insertedVnodeQueue)
}
insert(parentElm, vnode.elm, refElm)
}
createChildren(vnode, children, insertedVnodeQueue)
if (appendAsTree) {
if (isDef(data)) {
invokeCreateHooks(vnode, insertedVnodeQueue)
}
insert(parentElm, vnode.elm, refElm)
}
} else {
// 所有的孩子结点创造对应的dom结点
// 对于每个child又调用createElm
// 间接递归
createChildren(vnode, children, insertedVnodeQueue)
if (isDef(data)) {
// 执行内部的createhooks，在createPatchFunction函数中注册
// 分布在web/runtime/modules文件夹下
invokeCreateHooks(vnode, insertedVnodeQueue)
}
// 将vnode的elm插入到refElm之前，代码执行完之后，模板和新插入的dom节点会有短暂时间的并存
insert(parentElm, vnode.elm, refElm)
}
if (process.env.NODE_ENV !== 'production' && data && data.pre) {
creatingElmInVPre--
}
} else if (isTrue(vnode.isComment)) {
// 注释vnode
vnode.elm = nodeOps.createComment(vnode.text)
insert(parentElm, vnode.elm, refElm)
} else {
// 文本vnode
vnode.elm = nodeOps.createTextNode(vnode.text)
insert(parentElm, vnode.elm, refElm)
}
}
执行完insert语句时
createChildren
function createChildren(vnode, children, insertedVnodeQueue) {
if (Array.isArray(children)) {
if (process.env.NODE_ENV !== 'production') {
checkDuplicateKeys(children)
}
for (let i = 0; i < children.length; ++i) {
createElm(children[i], insertedVnodeQueue, vnode.elm, null, true, children, i)
}
} else if (isPrimitive(vnode.text)) {
nodeOps.appendChild(vnode.elm, nodeOps.createTextNode(String(vnode.text)))
}
}
移除旧结点
function removeVnodes(vnodes, startIdx, endIdx) {
for (; startIdx <= endIdx; ++startIdx) {
const ch = vnodes[startIdx]
if (isDef(ch)) {
if (isDef(ch.tag)) {
// 真正从dom上移除旧结点的函数
removeAndInvokeRemoveHook(ch)
// 执行内部3个destroy钩子
invokeDestroyHook(ch)
} else { // Text node
removeNode(ch.elm)
}
}
}
}
function removeAndInvokeRemoveHook(vnode, rm) {
if (isDef(rm) || isDef(vnode.data)) {
let i
const listeners = cbs.remove.length + 1
if (isDef(rm)) {
// we have a recursively passed down rm callback
// increase the listeners count
rm.listeners += listeners
} else {
// 创造一个removem callback函数
// 调用它便会真正移除
// directly removing
rm = createRmCb(vnode.elm, listeners)
}
// recursively invoke hooks on child component root node
if (isDef(i = vnode.componentInstance) && isDef(i = i._vnode) && isDef(i.data)) {
removeAndInvokeRemoveHook(i, rm)
}
for (i = 0; i < cbs.remove.length; ++i) {
cbs.remove[i](vnode, rm)
}
if (isDef(i = vnode.data.hook) && isDef(i = i.remove)) {
i(vnode, rm)
} else {
rm()
}
} else {
removeNode(vnode.elm)
}
}
工具函数
function createRmCb(childElm, listeners) {
function remove() {
if (--remove.listeners === 0) {
removeNode(childElm)
}
}
remove.listeners = listeners
return remove
}
function removeNode(el) {
const parent = nodeOps.parentNode(el)
// element may have already been removed due to v-html / v-text
if (isDef(parent)) {
nodeOps.removeChild(parent, el)
}
}
内部的hooks
invokeCreateHooks时依次执行
invokeDestroyHooks执行
