原理

即整个应用的主线程，只有这一个looper，不管有多少handler，最后都会回到这里。

private static Looper sMainLooper;  // guarded by Looper.class

...

/**
 * Initialize the current thread as a looper, marking it as an
 * application's main looper. The main looper for your application
 * is created by the Android environment, so you should never need
 * to call this function yourself.  See also: {@link #prepare()}
 */
public static void prepareMainLooper() {
    prepare(false);
    synchronized (Looper.class) {
        if (sMainLooper != null) {
            throw new IllegalStateException("The main Looper has already been prepared.");
        }
        sMainLooper = myLooper();
    }
}

/** Returns the application's main looper, which lives in the main thread of the application.
 */
public static Looper getMainLooper() {
    synchronized (Looper.class) {
        return sMainLooper;
    }
}

看下Looper的loop方法。

public static void loop() {
    ...

    for (;;) {
        ...

        // This must be in a local variable, in case a UI event sets the logger
        Printer logging = me.mLogging;
        if (logging != null) {
            logging.println(">>>>> Dispatching to " + msg.target + " " +
                    msg.callback + ": " + msg.what);
        }

        msg.target.dispatchMessage(msg);

        if (logging != null) {
            logging.println("<<<<< Finished to " + msg.target + " " + msg.callback);
        }

        ...
    }
}

在消息执行前后打印时间。根据时间判断是否卡顿。

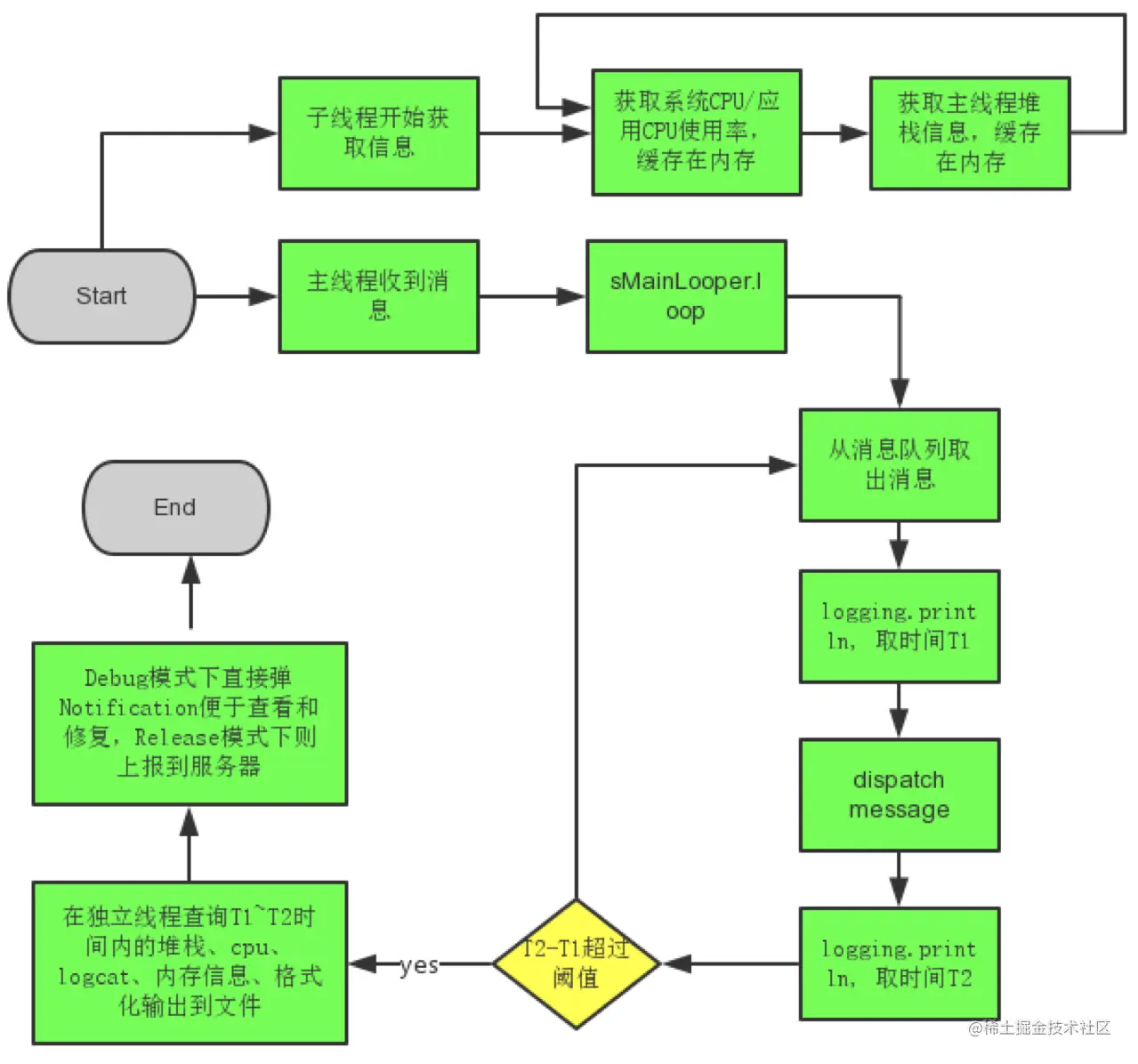

核心流程图

源码分析

BlockCanary.install(this, new AppBlockCanaryContext()).start();

看下BlockCanary.install()

public final class BlockCanary {

    private static final String TAG = "BlockCanary";

    private static BlockCanary sInstance;
    private BlockCanaryInternals mBlockCanaryCore;
    private boolean mMonitorStarted = false;

    private BlockCanary() {
       （1) 赋值一个Context。
        BlockCanaryInternals.setContext(BlockCanaryContext.get());
       （2）获取一个单例看下构造方法
        mBlockCanaryCore = BlockCanaryInternals.getInstance();
       （3）添加两个回调
        mBlockCanaryCore.addBlockInterceptor(BlockCanaryContext.get());
        if (!BlockCanaryContext.get().displayNotification()) {
            return;
        }
        mBlockCanaryCore.addBlockInterceptor(new DisplayService());

    }

    /**
     * Install {@link BlockCanary}
     *
     * @param context            Application context
     * @param blockCanaryContext BlockCanary context
     * @return {@link BlockCanary}
     */
    public static BlockCanary install(Context context, BlockCanaryContext blockCanaryContext) {
        (1) 里面就是一些赋值操作。
        BlockCanaryContext.init(context, blockCanaryContext);
       （2）是否通过DisplayActivity展示卡顿，默认展示
        setEnabled(context, DisplayActivity.class, BlockCanaryContext.get().displayNotification());
       （3）返回单例看下构造方法
        return get();
    }

    /**
     * Get {@link BlockCanary} singleton.
     *
     * @return {@link BlockCanary} instance
     */
    public static BlockCanary get() {
        if (sInstance == null) {
            synchronized (BlockCanary.class) {
                if (sInstance == null) {
                    sInstance = new BlockCanary();
                }
            }
        }
        return sInstance;
    }
}
public class BlockCanaryContext implements BlockInterceptor {

    private static Context sApplicationContext;
    private static BlockCanaryContext sInstance = null;

    public BlockCanaryContext() {
    }

    static void init(Context context, BlockCanaryContext blockCanaryContext) {
        sApplicationContext = context;
        sInstance = blockCanaryContext;
    }

    public static BlockCanaryContext get() {
        if (sInstance == null) {
            throw new RuntimeException("BlockCanaryContext null");
        } else {
            return sInstance;
        }
    }
 }

BlockCanary只是一个门面类，真正处理逻辑的是 BlockCanaryInternals

看下BlockCanaryInternals

public final class BlockCanaryInternals {

    LooperMonitor monitor;
    StackSampler stackSampler;
    CpuSampler cpuSampler;

    private static BlockCanaryInternals sInstance;
    private static BlockCanaryContext sContext;

    private List<BlockInterceptor> mInterceptorChain = new LinkedList<>();

    public BlockCanaryInternals() {
        (1)设置了主线程的Looper，所以采集的是主线程的堆栈信息。
        stackSampler = new StackSampler(
                Looper.getMainLooper().getThread(),
                sContext.provideDumpInterval());
       （2）采集CPU的使用信息。
        cpuSampler = new CpuSampler(sContext.provideDumpInterval());
       （3）创建一个Printer对象。
        setMonitor(new LooperMonitor(new LooperMonitor.BlockListener() {

            @Override
            public void onBlockEvent(long realTimeStart, long realTimeEnd,
                                     long threadTimeStart, long threadTimeEnd) {
                // Get recent thread-stack entries and cpu usage
                (4)如果主线程出现了卡顿，就会触发 onBlockEvent 回调方法，然后进行线程堆栈信息和cpu信息的采集。
                ArrayList<String> threadStackEntries = stackSampler
                        .getThreadStackEntries(realTimeStart, realTimeEnd);
                if (!threadStackEntries.isEmpty()) {
                    BlockInfo blockInfo = BlockInfo.newInstance()
                            .setMainThreadTimeCost(realTimeStart, realTimeEnd, threadTimeStart, threadTimeEnd)
                            .setCpuBusyFlag(cpuSampler.isCpuBusy(realTimeStart, realTimeEnd))
                            .setRecentCpuRate(cpuSampler.getCpuRateInfo())
                            .setThreadStackEntries(threadStackEntries)
                            .flushString();
                    LogWriter.save(blockInfo.toString());

                    if (mInterceptorChain.size() != 0) {
                        for (BlockInterceptor interceptor : mInterceptorChain) {
                            interceptor.onBlock(getContext().provideContext(), blockInfo);
                        }
                    }
                }
            }
        }, getContext().provideBlockThreshold(), getContext().stopWhenDebugging()));

        LogWriter.cleanObsolete();
    }

    /**
     * Get BlockCanaryInternals singleton
     *
     * @return BlockCanaryInternals instance
     */
    static BlockCanaryInternals getInstance() {
        if (sInstance == null) {
            synchronized (BlockCanaryInternals.class) {
                if (sInstance == null) {
                    sInstance = new BlockCanaryInternals();
                }
            }
        }
        return sInstance;
    }

    /**
     * set {@link BlockCanaryContext} implementation
     *
     * @param context context
     */
    public static void setContext(BlockCanaryContext context) {
        sContext = context;
    }

    public static BlockCanaryContext getContext() {
        return sContext;
    }

    void addBlockInterceptor(BlockInterceptor blockInterceptor) {
        mInterceptorChain.add(blockInterceptor);
    }

    private void setMonitor(LooperMonitor looperPrinter) {
        monitor = looperPrinter;
    }
 }

上面主要构造了一些卡顿监测和采集对象。

看下BlockCanary.start()

public void start() {
    if (!mMonitorStarted) {
        mMonitorStarted = true;
        （1）将自定义的 Printer 赋值给主线程的 Looper。
        Looper.getMainLooper().setMessageLogging(mBlockCanaryCore.monitor);
    }
}

看下LooperMonitor

class LooperMonitor implements Printer {

    private static final int DEFAULT_BLOCK_THRESHOLD_MILLIS = 3000;

    private long mBlockThresholdMillis = DEFAULT_BLOCK_THRESHOLD_MILLIS;
    private long mStartTimestamp = 0;
    private long mStartThreadTimestamp = 0;
    private BlockListener mBlockListener = null;
    private boolean mPrintingStarted = false;
    private final boolean mStopWhenDebugging;

    public interface BlockListener {
        void onBlockEvent(long realStartTime,
                          long realTimeEnd,
                          long threadTimeStart,
                          long threadTimeEnd);
    }

    public LooperMonitor(BlockListener blockListener, long blockThresholdMillis, boolean stopWhenDebugging) {
        if (blockListener == null) {
            throw new IllegalArgumentException("blockListener should not be null.");
        }
        mBlockListener = blockListener;
        mBlockThresholdMillis = blockThresholdMillis;
        mStopWhenDebugging = stopWhenDebugging;
    }

    @Override
    public void println(String x) {
        if (mStopWhenDebugging && Debug.isDebuggerConnected()) {
            return;
        }
        if (!mPrintingStarted) {
            mStartTimestamp = System.currentTimeMillis();
            mStartThreadTimestamp = SystemClock.currentThreadTimeMillis();
            mPrintingStarted = true;
            startDump();
        } else {
            final long endTime = System.currentTimeMillis();
            mPrintingStarted = false;
            if (isBlock(endTime)) {
                notifyBlockEvent(endTime);
            }
            stopDump();
        }
    }

   （1）是否卡顿
    private boolean isBlock(long endTime) {
        return endTime - mStartTimestamp > mBlockThresholdMillis;
    }

    private void notifyBlockEvent(final long endTime) {
        final long startTime = mStartTimestamp;
        final long startThreadTime = mStartThreadTimestamp;
        final long endThreadTime = SystemClock.currentThreadTimeMillis();
        (2) 卡顿回调
        HandlerThreadFactory.getWriteLogThreadHandler().post(new Runnable() {
            @Override
            public void run() {
                mBlockListener.onBlockEvent(startTime, endTime, startThreadTime, endThreadTime);
            }
        });
    }

    private void startDump() {
       （3）线程堆栈信息
        if (null != BlockCanaryInternals.getInstance().stackSampler) {
            BlockCanaryInternals.getInstance().stackSampler.start();
        }
       （4）CPU使用信息
        if (null != BlockCanaryInternals.getInstance().cpuSampler) {
            BlockCanaryInternals.getInstance().cpuSampler.start();
        }
    }

    private void stopDump() {
        if (null != BlockCanaryInternals.getInstance().stackSampler) {
            BlockCanaryInternals.getInstance().stackSampler.stop();
        }

        if (null != BlockCanaryInternals.getInstance().cpuSampler) {
            BlockCanaryInternals.getInstance().cpuSampler.stop();
        }
    }
}

代码还是比较简单，

1. 消息触发前获取堆栈和CPU的信息，
2. 根据消息执行前后时间间隔，判断是否卡顿，卡顿就回调卡顿事件。
3. 消息执行后停止获取堆栈和CPU的信息。

看下StackSampler

abstract class AbstractSampler {

    private static final int DEFAULT_SAMPLE_INTERVAL = 300;

    protected AtomicBoolean mShouldSample = new AtomicBoolean(false);
    protected long mSampleInterval;

    private Runnable mRunnable = new Runnable() {
        @Override
        public void run() {
           （1）采集信息
            doSample();
           （2）间隔一段时间再采集
            if (mShouldSample.get()) {
                HandlerThreadFactory.getTimerThreadHandler()
                        .postDelayed(mRunnable, mSampleInterval);
            }
        }
    };

    public AbstractSampler(long sampleInterval) {
        if (0 == sampleInterval) {
            sampleInterval = DEFAULT_SAMPLE_INTERVAL;
        }
        mSampleInterval = sampleInterval;
    }

    public void start() {
        if (mShouldSample.get()) {
            return;
        }
        mShouldSample.set(true);

        HandlerThreadFactory.getTimerThreadHandler().removeCallbacks(mRunnable);
        （1）看下mRunnable
        HandlerThreadFactory.getTimerThreadHandler().postDelayed(mRunnable,
                BlockCanaryInternals.getInstance().getSampleDelay());
    }

    public void stop() {
        if (!mShouldSample.get()) {
            return;
        }
        mShouldSample.set(false);
        HandlerThreadFactory.getTimerThreadHandler().removeCallbacks(mRunnable);
    }

    abstract void doSample();
}

class StackSampler extends AbstractSampler {

    @Override
    protected void doSample() {
        StringBuilder stringBuilder = new StringBuilder();


        for (StackTraceElement stackTraceElement : mCurrentThread.getStackTrace()) {
            stringBuilder
                    .append(stackTraceElement.toString())
                    .append(BlockInfo.SEPARATOR);
        }

        synchronized (sStackMap) {
            if (sStackMap.size() == mMaxEntryCount && mMaxEntryCount > 0) {
                sStackMap.remove(sStackMap.keySet().iterator().next());
            }
           （1）时间为key，线程堆栈信息为value放入LinkedHashMap
            sStackMap.put(System.currentTimeMillis(), stringBuilder.toString());
        }
    }
}

很简单就是

每隔一定时间做一次线程堆栈信息的采集，放入到LinkedHashMap。

看下CpuSampler

class CpuSampler extends AbstractSampler {

    private static final String TAG = "CpuSampler";
    private static final int BUFFER_SIZE = 1000;

    /**
     * TODO: Explain how we define cpu busy in README
     */
    private final int BUSY_TIME;
    private static final int MAX_ENTRY_COUNT = 10;

    private final LinkedHashMap<Long, String> mCpuInfoEntries = new LinkedHashMap<>();
    private int mPid = 0;
    private long mUserLast = 0;
    private long mSystemLast = 0;
    private long mIdleLast = 0;
    private long mIoWaitLast = 0;
    private long mTotalLast = 0;
    private long mAppCpuTimeLast = 0;

    public CpuSampler(long sampleInterval) {
        super(sampleInterval);
        BUSY_TIME = (int) (mSampleInterval * 1.2f);
    }

    @Override
    public void start() {
        super.start();
        reset();
    }

    /**
     * Get cpu rate information
     *
     * @return string show cpu rate information
     */
    public String getCpuRateInfo() {
        StringBuilder sb = new StringBuilder();
        synchronized (mCpuInfoEntries) {
            for (Map.Entry<Long, String> entry : mCpuInfoEntries.entrySet()) {
                long time = entry.getKey();
                sb.append(BlockInfo.TIME_FORMATTER.format(time))
                        .append(' ')
                        .append(entry.getValue())
                        .append(BlockInfo.SEPARATOR);
            }
        }
        return sb.toString();
    }

    public boolean isCpuBusy(long start, long end) {
        if (end - start > mSampleInterval) {
            long s = start - mSampleInterval;
            long e = start + mSampleInterval;
            long last = 0;
            synchronized (mCpuInfoEntries) {
                for (Map.Entry<Long, String> entry : mCpuInfoEntries.entrySet()) {
                    long time = entry.getKey();
                    if (s < time && time < e) {
                        if (last != 0 && time - last > BUSY_TIME) {
                            return true;
                        }
                        last = time;
                    }
                }
            }
        }
        return false;
    }

    @Override
    protected void doSample() {
        BufferedReader cpuReader = null;
        BufferedReader pidReader = null;

        try {
            cpuReader = new BufferedReader(new InputStreamReader(
                    new FileInputStream("/proc/stat")), BUFFER_SIZE);
            String cpuRate = cpuReader.readLine();
            if (cpuRate == null) {
                cpuRate = "";
            }

            if (mPid == 0) {
                mPid = android.os.Process.myPid();
            }
            pidReader = new BufferedReader(new InputStreamReader(
                    new FileInputStream("/proc/" + mPid + "/stat")), BUFFER_SIZE);
            String pidCpuRate = pidReader.readLine();
            if (pidCpuRate == null) {
                pidCpuRate = "";
            }

            parse(cpuRate, pidCpuRate);
        } catch (Throwable throwable) {
            Log.e(TAG, "doSample: ", throwable);
        } finally {
            try {
                if (cpuReader != null) {
                    cpuReader.close();
                }
                if (pidReader != null) {
                    pidReader.close();
                }
            } catch (IOException exception) {
                Log.e(TAG, "doSample: ", exception);
            }
        }
    }

    private void reset() {
        mUserLast = 0;
        mSystemLast = 0;
        mIdleLast = 0;
        mIoWaitLast = 0;
        mTotalLast = 0;
        mAppCpuTimeLast = 0;
    }

    private void parse(String cpuRate, String pidCpuRate) {
        String[] cpuInfoArray = cpuRate.split(" ");
        if (cpuInfoArray.length < 9) {
            return;
        }

        long user = Long.parseLong(cpuInfoArray[2]);
        long nice = Long.parseLong(cpuInfoArray[3]);
        long system = Long.parseLong(cpuInfoArray[4]);
        long idle = Long.parseLong(cpuInfoArray[5]);
        long ioWait = Long.parseLong(cpuInfoArray[6]);
        long total = user + nice + system + idle + ioWait
                + Long.parseLong(cpuInfoArray[7])
                + Long.parseLong(cpuInfoArray[8]);

        String[] pidCpuInfoList = pidCpuRate.split(" ");
        if (pidCpuInfoList.length < 17) {
            return;
        }

        long appCpuTime = Long.parseLong(pidCpuInfoList[13])
                + Long.parseLong(pidCpuInfoList[14])
                + Long.parseLong(pidCpuInfoList[15])
                + Long.parseLong(pidCpuInfoList[16]);

        if (mTotalLast != 0) {
            StringBuilder stringBuilder = new StringBuilder();
            long idleTime = idle - mIdleLast;
            long totalTime = total - mTotalLast;

            stringBuilder
                    .append("cpu:")
                    .append((totalTime - idleTime) * 100L / totalTime)
                    .append("% ")
                    .append("app:")
                    .append((appCpuTime - mAppCpuTimeLast) * 100L / totalTime)
                    .append("% ")
                    .append("[")
                    .append("user:").append((user - mUserLast) * 100L / totalTime)
                    .append("% ")
                    .append("system:").append((system - mSystemLast) * 100L / totalTime)
                    .append("% ")
                    .append("ioWait:").append((ioWait - mIoWaitLast) * 100L / totalTime)
                    .append("% ]");

            synchronized (mCpuInfoEntries) {
                mCpuInfoEntries.put(System.currentTimeMillis(), stringBuilder.toString());
                if (mCpuInfoEntries.size() > MAX_ENTRY_COUNT) {
                    for (Map.Entry<Long, String> entry : mCpuInfoEntries.entrySet()) {
                        Long key = entry.getKey();
                        mCpuInfoEntries.remove(key);
                        break;
                    }
                }
            }
        }
        mUserLast = user;
        mSystemLast = system;
        mIdleLast = idle;
        mIoWaitLast = ioWait;
        mTotalLast = total;

        mAppCpuTimeLast = appCpuTime;
    }
}

做的工作差不多

每隔一定时间特定文件读取一下CPU信息，并保存到LinkedHashMap。

总结:

代码还是很简单的。

1. 根据消息执行前和执行后的时间差，判断是否卡顿。

2. 执行消息的时候，开启子线程打印主线程的堆栈信息和CPU信息并使用LinkedHashMap保存。

3. 并通过DisplayActivity显示卡顿详情。

参考:

• BlockCanary
• BlockCanary — 轻松找出Android App界面卡顿元凶
