前言
之前有用storybook尝试搭建一套组件库《Storybook从零到一搭建组件库(上篇)》,但是一顿操作下来之后,发现storybook学习成本相对较高且配置复杂,最重要的是页面有被丑到。然后开始使用dumi,发现真香,不仅上手简单就像正常开发一个普通的项目一样,而且没有繁杂的配置,最重要的是页面美观简洁大方。一个像antd一样的组件库,你值得拥有。
本文将带你学习搭建一个React+TS组件库,编写一个完整组件、部署至 github&gitee 静态 web 站点及发布 npm公有包。
使用技术:
dumi
:负责组件开发及组件文档生成(基于umi,使用过umi
的同学比较友好易上手)
github
:配置自动化部署静态web
gitee
:同步github gh pages
特性:
- 📦 开箱即用,将注意力集中在组件开发和文档编写上
- 📋 丰富的 Markdown 扩展,不止于渲染组件 demo
- 🏷 基于 TypeScript 类型定义,自动生成组件 API
- 🎨 主题轻松自定义,还可创建自己的 Markdown 组件
- 📱 支持移动端组件库研发,内置移动端高清渲染方案
- 📡 一行命令将组件资产数据化,与下游生产力工具串联
环境准备
node
: v10.13.0及以上版本
安装
搭建一个站点模式的组件库
$ npx @umijs/create-dumi-lib --site # 初始化一个站点模式的组件库开发脚手架
# or
$ yarn create @umijs/dumi-lib --site

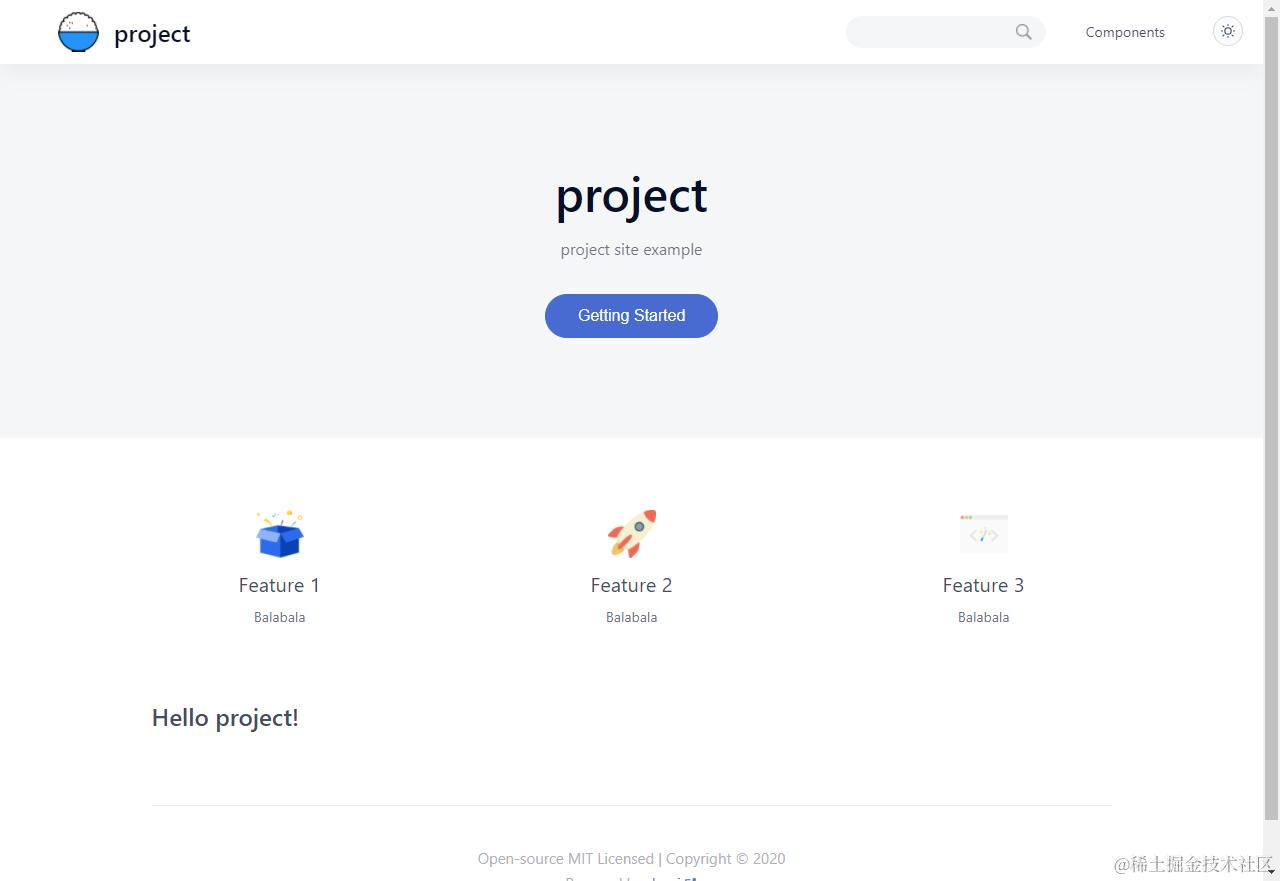

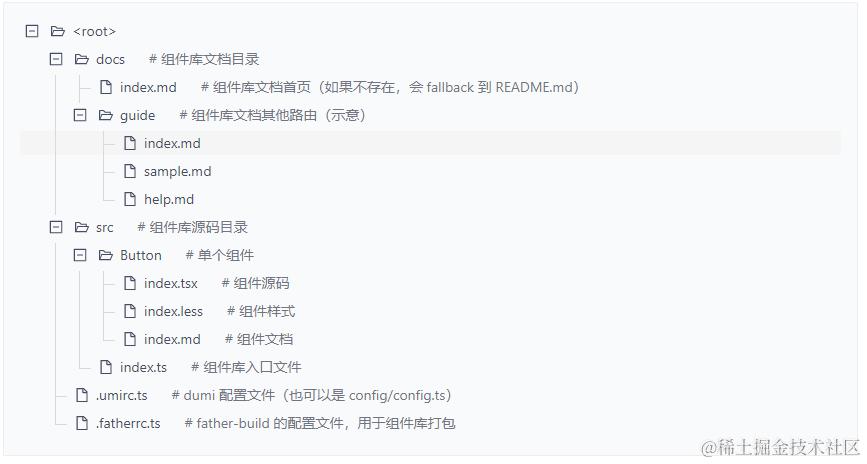

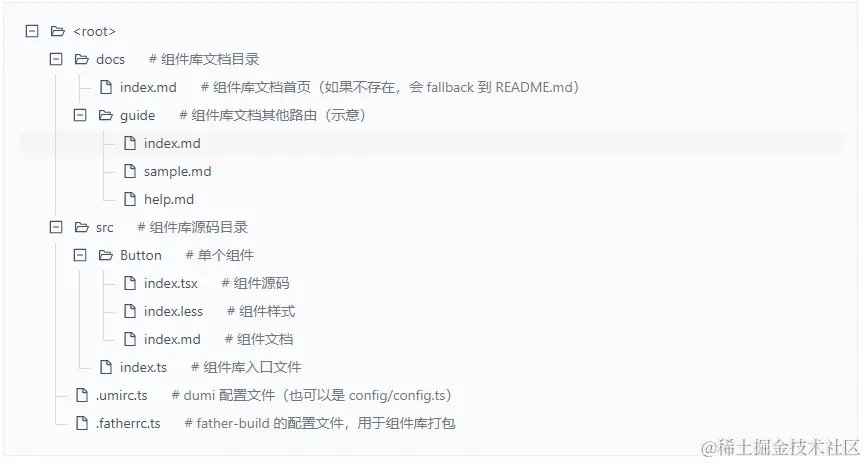

项目目录结构大致如下: 安装依赖,启动,可以看到类似官网的首页和简洁明了的组件页。 首页:
首页对应项目中的root/docs/index.md

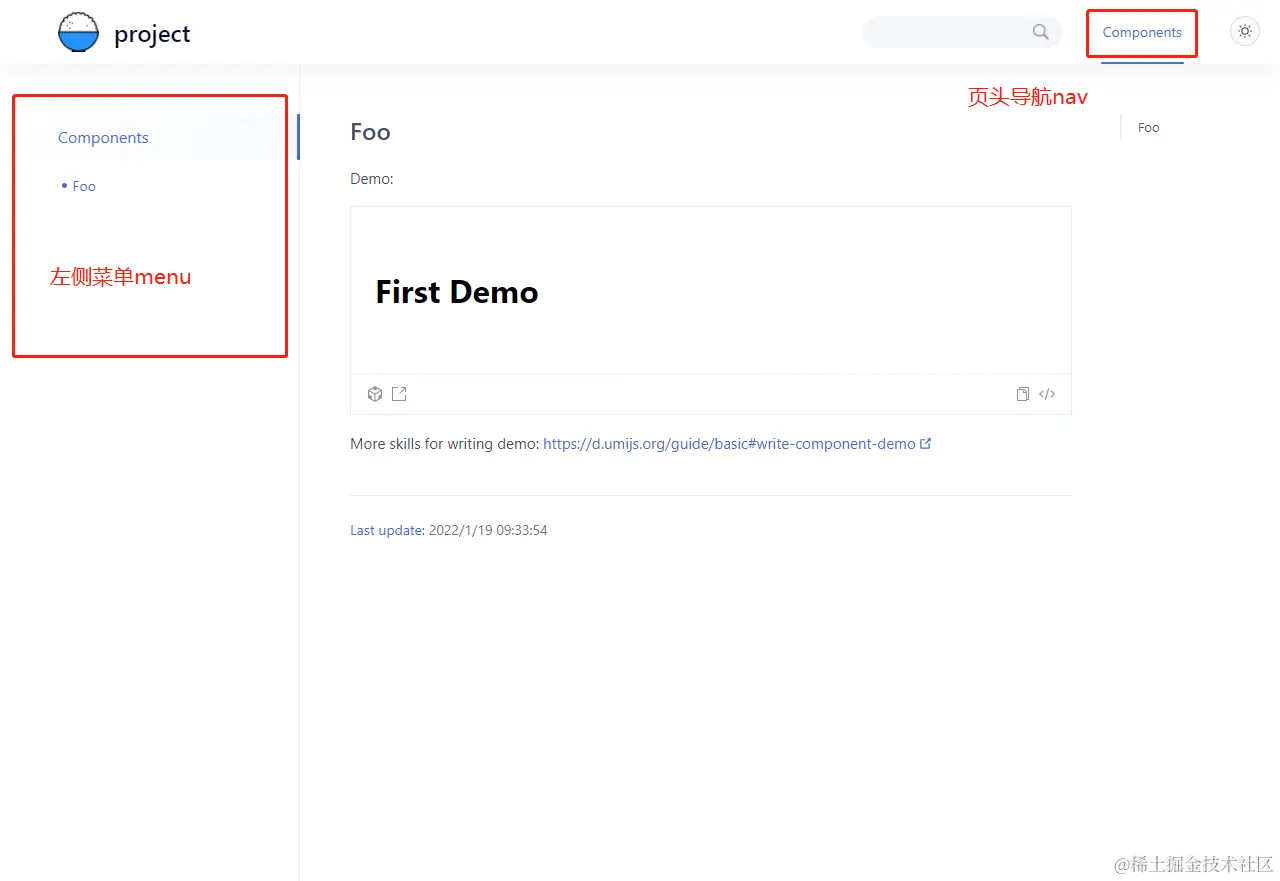

组件页:
组件页对应项目中的root/src/index.ts
配置
主要是导航和菜单的配置: .umirc.ts
import { defineConfig } from 'dumi';
function getMenus(opts: { lang?: string; base: '/components' | '/docs' }) {
const menus = {
'/docs': [
{
title: 'Introduce',
'title_zh-CN': '介绍',
path: '/docs/guide',
},
{
title: 'FAQ',
'title_zh-CN': '问题',
path: '/docs/faq',
},
],
'/components': [
{
title: 'Common',
'title_zh-CN': '通用',
children: ['/components/button', '/components/icon', '/components/typography'],
},
{
title: 'Layout',
'title_zh-CN': '布局',
children: [
'/components/layout/Divider',
'/components/layout/Grid',
'/components/layout/Layout',
'/components/space',
],
},
],
};
return (menus[opts.base] as [])?.map((menu: any) => {
if (!opts.lang) return menu;
return {
...menu,
title: menu[`title_${opts.lang}`] || menu.title,
};
});
}
export default defineConfig({
title: 'fish-ui',
hash: true,
base: '/fish-ui',
publicPath: '/fish-ui/',
favicon: 'https://img.alicdn.com/tfs/TB1YHEpwUT1gK0jSZFhXXaAtVXa-28-27.svg',
logo: 'https://img.alicdn.com/tfs/TB1YHEpwUT1gK0jSZFhXXaAtVXa-28-27.svg',
outputPath: 'docs-dist',
mode: 'site',
mfsu: {},
dynamicImport: {},
navs: [
// null,
{
title: '文档',
path: '/docs',
},
{
title: '组件',
path: '/components',
},
{
title: 'GitHub',
path: 'https://github.com/yingliyu/fish-ui',
},
],
menus: {
'/zh-CN/docs': getMenus({ lang: 'zh-CN', base: '/docs' }),
'/docs': getMenus({ base: '/docs' }),
'/zh-CN/components': getMenus({ lang: 'zh-CN', base: '/components' }),
'/components': getMenus({ base: '/components' }),
},
// more config: https://d.umijs.org/config
lessLoader: { javascriptEnabled: true },
// 按需加载 antd
extraBabelPlugins: [
[
'babel-plugin-import',
{
libraryName: 'antd',
libraryDirectory: 'es',
style: true,
},
],
],
});

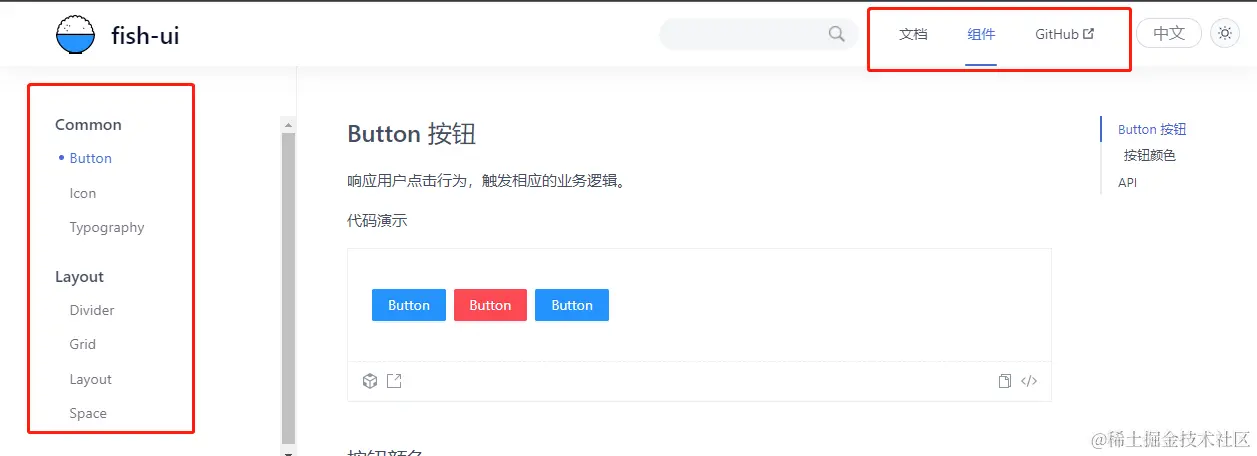

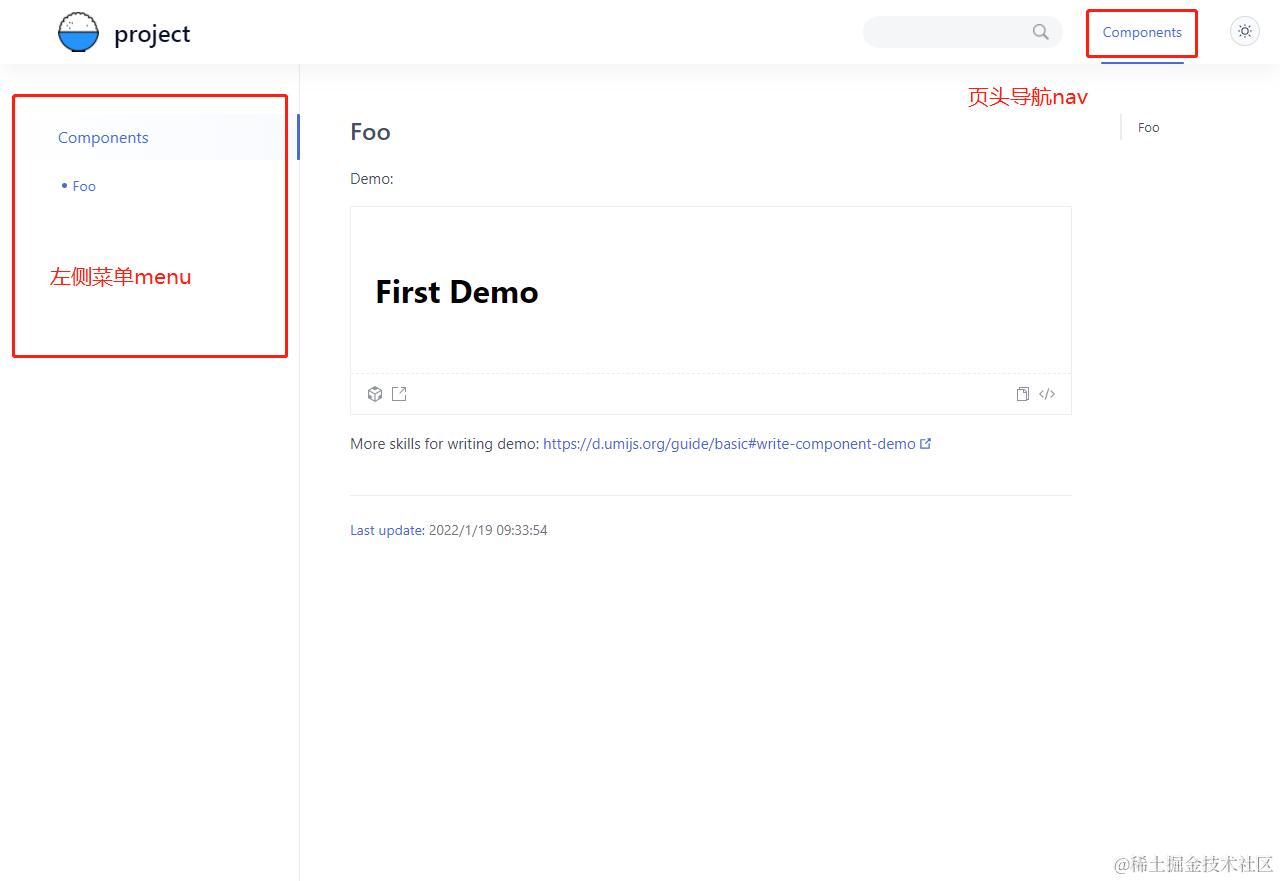

此配置中的menus和navs对应到页面布局如下:
完成一个组件
基于Ant Design以Button组件为例: /components/button/index.tsx(写组件)
import React from 'react';
import { Button as AntdButton } from 'antd';
import classNames from 'classnames';
import './index.less';
declare type ButtonHTMLType = 'submit' | 'button' | 'reset';
declare const ButtonTypes: ['default', 'primary', 'ghost', 'dashed', 'link', 'text'];
export declare type ButtonType = typeof ButtonTypes[number];
interface IABSButtonProps {
loading?: boolean;
danger?: boolean;
className?: string;
type?: ButtonType;
style?: React.CSSProperties;
icon?: React.ReactNode;
children?: React.ReactNode;
disabled?: boolean;
block?: boolean;
large?: boolean;
htmlType?: ButtonHTMLType;
color?: 'blue' | 'red' | 'yellow' | 'green' | 'white';
onClick?: React.MouseEventHandler<HTMLButtonElement>;
}
const Button: React.FC<IABSButtonProps> = (props: IABSButtonProps) => {
const {
danger,
loading,
style,
children,
large = false,
className,
onClick,
type = 'primary',
icon,
block = false,
disabled,
htmlType,
color,
} = props;
let classes = classNames('fish-btn', className, {
'fish-btn-large': large,
'fish-btn-block': block,
'fish-btn-link': type === 'link',
});
const displayStyle = block ? 'block' : 'inline-block';
let newTpye = type;
let isDanger = danger;
if (color) {
switch (color) {
case 'blue':
newTpye = 'primary';
break;
case 'red':
isDanger = true;
break;
case 'white':
newTpye = 'default';
break;
case 'yellow':
classes = classNames(classes, 'fish-yellow-btn');
break;
case 'green':
classes = classNames(classes, 'fish-green-btn');
break;
default:
break;
}
}
return (
<div className={classes} style={{ display: displayStyle, ...style }}>
<AntdButton
icon={icon}
onClick={onClick}
disabled={disabled}
type={newTpye}
block={block}
htmlType={htmlType}
danger={isDanger}
loading={loading}
>
{children}
</AntdButton>
</div>
);
};
export default Button;
/components/button/index.less(组件样式)
.color(@bg, @bgHover, @bgActive) when (default()) {
.ant-btn {
color: @text-color-inverse;
background: @bg;
border-color: @bg;
&:hover,
&:focus {
color: @text-color-inverse;
background: @bgHover;
border-color: @bgHover;
}
&:active {
color: @text-color-inverse;
background: @bgActive;
border-color: @bgActive;
}
}
}
.fish-btn {
&.fish-btn-block {
width: 200px;
}
&.fish-btn-link {
.ant-btn-link {
padding: 0;
}
}
&.fish-yellow-btn {
.color(@warning-color, @gold-5, @gold-7);
}
&.fish-green-btn {
.color(@success-color, @green-5, @green-7);
}
}
/components/button/index.md(组件文档)
---
title: Button
group:
path: /components
order: 1
---
## Button 按钮
响应用户点击行为,触发相应的业务逻辑。
代码演示
```tsx
import React from 'react';
import { Button, Space } from 'fish-ui';
export default () => (
<Space>
<Button>Button</Button>
<Button danger>Button</Button>
<Button large>Button</Button>
</Space>
);
按钮颜色
import React from 'react';
import { Button, Space } from 'fish-ui';
export default () => (
<Space>
<Button color="white">Button</Button>
<Button color="blue">Button</Button>
<Button color="red">Button</Button>
<Button color="yellow">Button</Button>
<Button color="green">Button</Button>
<Button>Button</Button>
</Space>
);
API

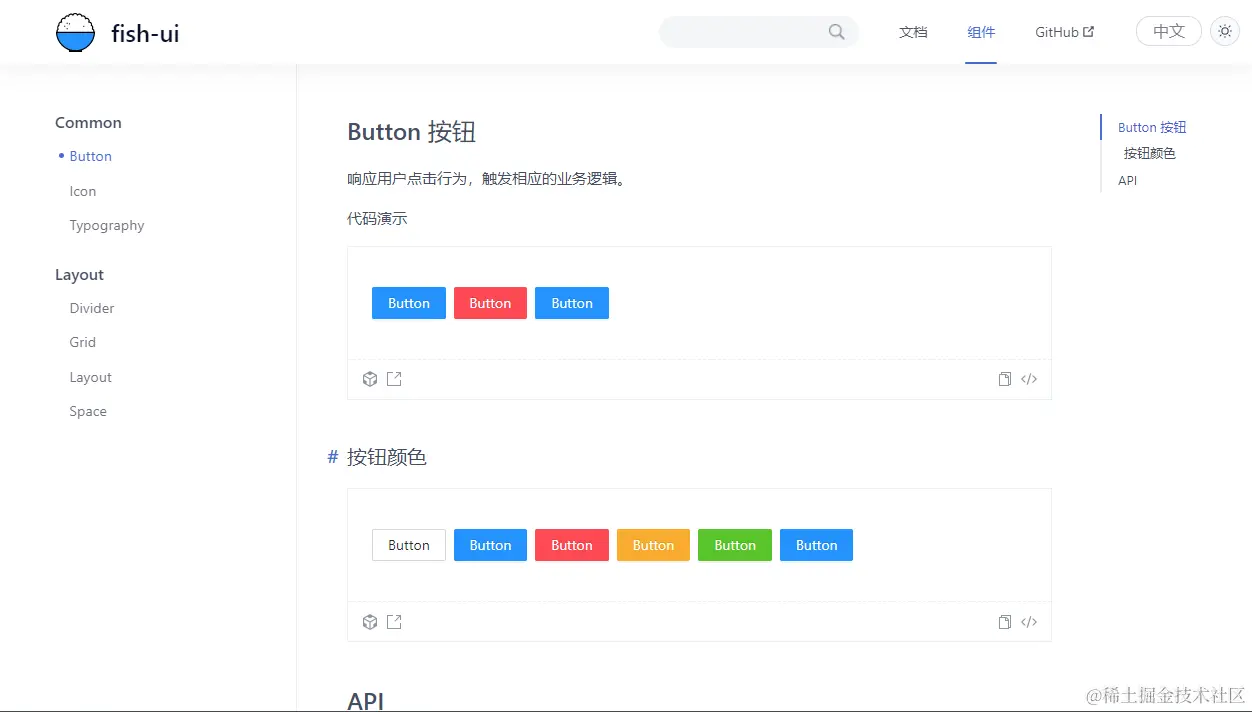

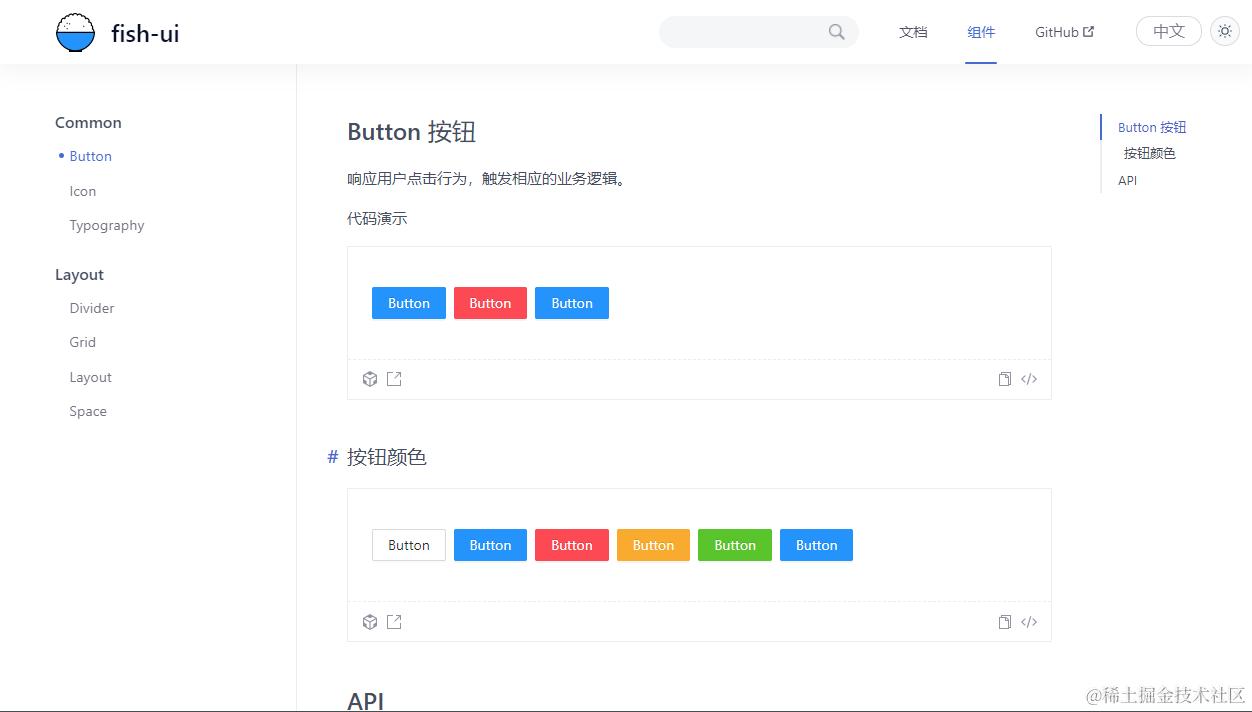

页面展示:
到这里,基于antd的Button组件及文档的编写已经有了雏形,但是文档很重要的一部分API还没有加上,使用md语法编写API显得繁琐也违背了专注组件开发的初衷。我们使用的TS,如果API能根据类型声明及代码注释自动生成那岂不美哉,是的它可以,即通过 JS Doc 注解 + TypeScript 类型定义的方式实现组件 API 的自动生成。
自动生成API
前提:确保 dumi 能够通过 TypeScript 类型定义 + 注解推导出 API 的内容 dumi 背后的类型解析工具是 react-docgen-typescript,更多类型和注解的用法可参考 它的文档
安装
npm install --save-dev react-docgen-typescript
配置
项目根目录创建配置文件styleguide.config.js
module.exports = {
propsParser: require('react-docgen-typescript').withDefaultConfig([parserOptions]).parse,
};
修改组件代码
components/button/index.tsx 加注释如下:
interface IABSButtonProps {
/**设置按钮载入状态 */
loading?: boolean;
/**
* 设置危险按钮
* @default false
*/
danger?: boolean;
className?: string;
/**按钮类型 */
type?: ButtonType;
style?: React.CSSProperties;
/**设置按钮的图标组件 */
icon?: React.ReactNode;
children?: React.ReactNode;
/**
* 按钮失效状态
* @default false
*/
disabled?: boolean;
block?: boolean;
large?: boolean;
htmlType?: ButtonHTMLType;
/**按钮颜色 */
color?: 'blue' | 'red' | 'yellow' | 'green' | 'white';
onClick?: React.MouseEventHandler<HTMLButtonElement>;
}
components/button/index.md 在你想要显示API的页面位置引用API标签
<API></API>
效果展示

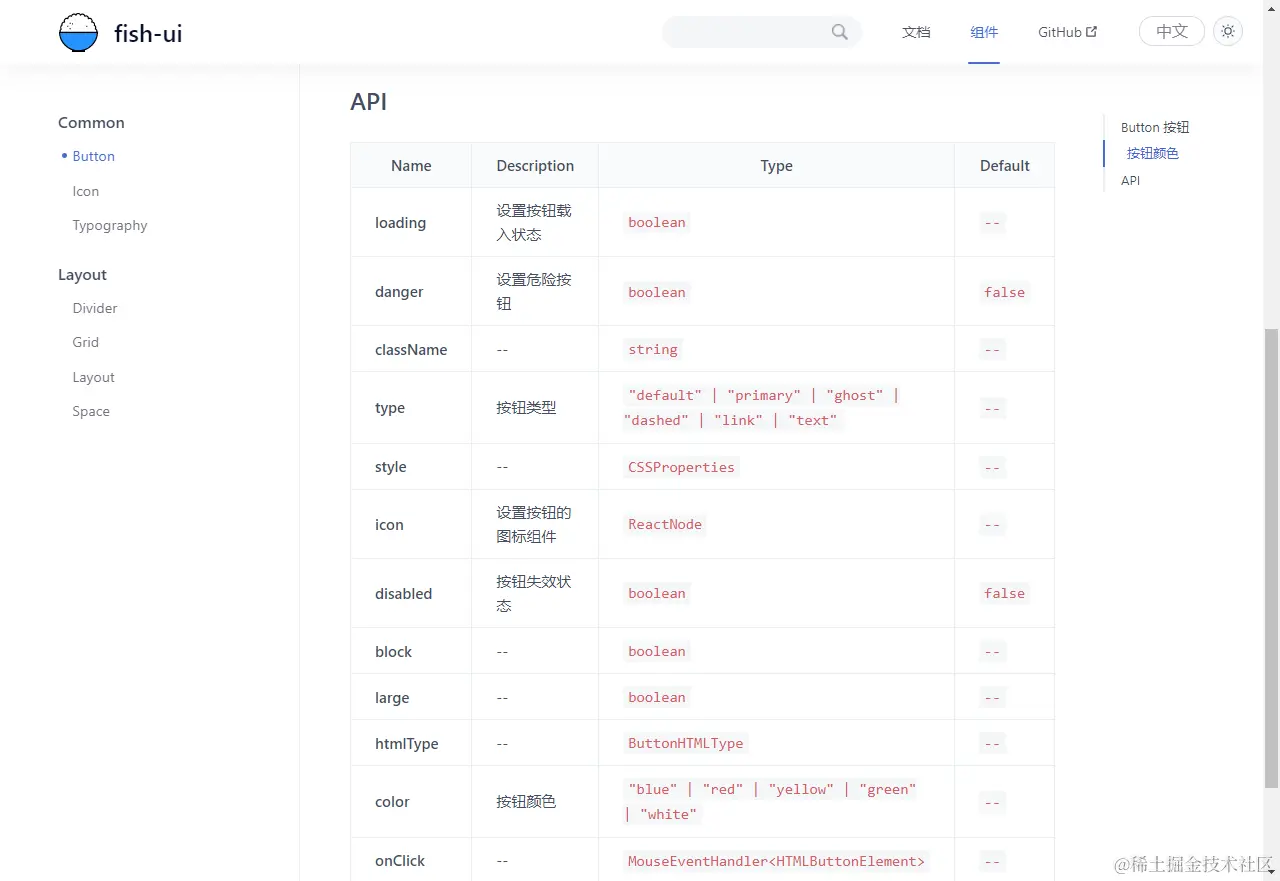

基于以上代码,自动生成如下API表格:
自动化部署
将组件库自动化部署至Github gh-pages,由于github访问比较慢,所以在Gitee gh-pages也部署一份。
例如,访问我的组件库:yingliyu.github.io/fish-ui-pro 、 ylyubook.gitee.io/fish-ui-pro 如果不是部署在根目录需要修改.umirc.ts配置,以fish-ui为例:
// .umirc.ts
export default defineConfig({
base: '/fish-ui',
publicPath: '/fish-ui/'
...
})
在项目根目录下创建.github/workflows/gh-pages.yml
name: Deploy Github Pages # Actions 名字
on: # 触发条件
push:
branches:
- master # 仅向 master 分支 push 时触发
jobs:
build: # job id
name: Build and publish # job 名,不写默认使用 job id
runs-on: ubuntu-latest # 运行环境,可选 ubuntu-latest, ubuntu-18.04, ubuntu-16.04, windows-latest, windows-2019, windows-2016, macOS-latest, macOS-10.14
steps:
- uses: actions/checkout@v2
- name: Use Node.js 14.x
uses: actions/setup-node@v2
with:
node-version: 14.x
- name: Setup env
run: |
npm install
- name: Generate public files
run: |
npm run docs:build
# 发布到 github pages 上
- name: Auto Deploy
env:
GH_REF: github.com/xxx/仓库名.git # github仓库地址http
ACCESS_TOKEN: ${{ secrets.ACCESS_TOKEN }} # github token
GITEE_REF: gitee.com/[gitee usename]/仓库名.git # gitee仓库地址,[gitee usename]替换为自己的gitee用户名
GITEE_TOKEN: ${{ secrets.GITEE_TOKEN}} # gitee 私人令牌
run: |
git config --global user.name "your name"
git config --global user.email "your email"
git clone https://${GH_REF} .deploy_git
cd .deploy_git
git checkout gh-pages
cd ../
mv .deploy_git/.git/ ./docs-dist # 打包之后的文件存放目录docs-dist
cd ./docs-dist
git add .
git commit -m ":construction_worker:CI built at `date +"%Y-%m-%d %H:%M:%S"`"
# GitHub Pages
git push --force --quiet "https://${ACCESS_TOKEN}@${GH_REF}" gh-pages:gh-pages
# Gitee Pages
git push --force --quiet "https://[gitee usename]:${GITEE_TOKEN}@${GITEE_REF}" gh-pages:gh-pages
以上GITEE_TOKEN是在Gitee 中创建的私人令牌,这里我们从 Gitee 上获取,具体地址为 gitee.com/profile/per…。生成并复制 Token,添加到对应的github仓库,ACCESS_TOKEN是Github Secrets 。
注意:push之前先build一下,确保发的dist包是最新的,部署的内容是最新版的。
发布npm包
注意:npm发布的包是完全公共的,也就是所有使用npm的人都可以在npm仓库里下载你发布的包,但是实际项目中,部门间公用的包可能涉及到商业机密,那么就不能在npm上发布了,公司需要搭建自己的私有包管理仓库,这时可使用cnpm。
本文只记录npm包发布步骤,cnpm私有仓库的搭建,可点击这里参考。 发布之前需要在package.json加配置,添加一些必要的描述信息。
//package.json
"private": false,
"name": "fish-ui-pro",
"version": "1.0.0",
"description": "A library of react components",
"author": "yingliyu",
"license": "MIT",
"keywords": [
"React",
"Component"
],
"homepage": "https://yingliyu.github.io/fish-ui",
"repository": {
"type": "git",
"url": "https://github.com/yingliyu/fish-ui.git"
},
"files": [
"docs-dist",
"es"
],
- 将
private
字段置为 false , 表示非私有包; - 添加
description
、author
、license
、keywords
等相关字段; - 添加
homepage
字段,即项目主页URL; - 添加
repository
字段,即项目仓库地址URL; - 添加 files 字段,表示要将哪些文件上传到 npm 上去。如果什么都不写,则默认会使用
.gitignore
里面的信息。但要注意,不管.gitignore
怎么配置,一些文件会始终发布到package
上,这些文件包括package.json
、README.md
、LICENSE
等等;
//package.json
"peerDependencies": {
"react": ">=16.9.0",
"react-dom": ">=16.9.0",
"antd": ">=4.18.0"
},
执行
npm login
,依次输入注册npm时的username, password, email后,执行npm whoami
能终端输出用户名,说明登录成功,最后执行npm publish
发包。
报错: 403:npm包名已被使用
最后
到这里我们就完成了这次的任务啦,恭喜你拥有了自己的组件库及npm包!!!
参考: dumi官网、 juejin.cn/post/684490…
