SpringBoot集成Quartz实现分布式任务调度

前言

本篇内容包括

• SpringBoot整合Quartz
• Quartz持久化
• 分布式任务调度

一、介绍

1.1 Quartz集群

​ Quartz集群中每个节点都是一个单独的Quartz应用，它又管理着其他的节点。这个集群需要每个节点单独的启动或停止；和我们的应用服务器集群不同，独立的Quratz节点之间是不需要通信的。不同节点之间是通过数据库表来感知另一个应用。只有使用持久的JobStore才能完成Quartz集群。

1.2 Quartz持久化

Quartz持久化配置提供了两种存储器：

类型	优点	缺点
RAMJobStore	不要外部数据库，配置容易，运行速度快	因为调度程序信息是存储在被分配给 JVM 的内存里面，所以，当应用程序停止运行时，所有调度信息将被丢失。另外因为存储到JVM内存里面，所以可以存储多少个 Job 和 Trigger 将会受到限制
JDBC 作业存储	支持集群，因为所有的任务信息都会保存到数据库中，可以控制事物，还有就是如果应用服务器关闭或者重启，任务信息都不会丢失，并且可以恢复因服务器关闭或者重启而导致执行失败的任务	运行速度的快慢取决与连接数据库的快慢

二、操作步骤

需要提前创建一个SpringBoot项目

2.1 引入依赖包

<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
    <groupId>commons-lang</groupId>
    <artifactId>commons-lang</artifactId>
    <version>2.5</version>
</dependency>
<dependency>
    <groupId>mysql</groupId>
    <artifactId>mysql-connector-java</artifactId>
    <version>5.1.39</version>
</dependency>
<dependency>
    <groupId>com.mchange</groupId>
    <artifactId>c3p0</artifactId>
    <version>0.9.5.4</version>
</dependency>

2.2 配置文件

通过在application.yml配置文件中对quartz进行相关配置。

server:
  port: 8090

spring:
  datasource:
    driver-class-name: com.mysql.jdbc.Driver
    url: jdbc:mysql://127.0.0.1:3306/quartz?characterEncoding=utf-8&useSSL=false
    username: root
    password: 123456
  quartz:
    jdbc:
      initialize-schema: never # 是否自动使用 SQL 初始化 Quartz 表结构。always:总是,never:不需要
    job-store-type: jdbc # Job 存储器类型。默认为 memory 表示内存，可选 jdbc 使用数据库。
    properties:
      org:
        quartz:
          scheduler:
            instanceName: QuartzScheduler # 调度标识名 集群中每一个实例都必须使用相同的名称
            instanceId: AUTO # 定时任务的实例编号, 如果手动指定需要保证每个节点的唯一性
          threadPool:
            class: org.quartz.simpl.SimpleThreadPool
            threadCount: 100  # 线程池大小。默认为 10 。
            threadPriority: 5 # 线程优先级
          jobStore:
            misfireThreshold: 120000

说明：application.yml文件中的配置相当与Quartz中quartz.properties配置文件

2.3 创建数据库表

Quartz持久化过程创建数据库表方式

第一种

将yml文件中配置项initialize-schema在第一次执行时指定为always，会自动在数据库中生成表信息,当表创建完成后在将参数改成never

initialize-schema: always

第二种

在官网中下载Quartz对应版本的安装包在docs\dbTables目录下找到tables_mysql_innodb.sql文件在数据库中执行SQL。

官网下载地址：www.quartz-scheduler.org/downloads/

数据库表结构说明

表名	说明
qrtz_blob_triggers	以Blob 类型存储的触发器
qrtz_calendars	存放日历信息， quartz可配置一个日历来指定一个时间范围
qrtz_cron_triggers	存放cron类型的触发器
qrtz_fired_triggers	存放已触发的触发器
qrtz_job_details	存放一个jobDetail信息
qrtz_job_listeners	job监听器
qrtz_locks	存储程序的悲观锁的信息(假如使用了悲观锁)
qrtz_paused_trigger_graps	存放暂停掉的触发器
qrtz_scheduler_state	调度器状态
qrtz_simple_triggers	简单触发器的信息
qrtz_trigger_listeners	触发器监听器
qrtz_triggers	触发器的基本信息

2.4 定义Job

• QuartzJobFirst

import com.dataojo.quartz.util.SchedulerUtils;
import org.quartz.*;
import org.springframework.scheduling.quartz.QuartzJobBean;

import java.text.SimpleDateFormat;
import java.util.Date;
import java.util.List;

/**
 * @author lilinchao
 * @date 2021/9/2
 * @description 1.0
 **/
@PersistJobDataAfterExecution
@DisallowConcurrentExecution
public class QuartzJobFirst extends QuartzJobBean {
    @Override
    protected void executeInternal(JobExecutionContext jobExecutionContext){
        SimpleDateFormat sf = new SimpleDateFormat("yyyy-MM-dd HH:mm:ss");
        List<JobExecutionContext> executionContexts;
        try {
            executionContexts = SchedulerUtils.getScheduler().getCurrentlyExecutingJobs();
        } catch (SchedulerException e) {
            e.printStackTrace();
            return;
        }
        for (JobExecutionContext executionContext : executionContexts){
            JobKey jobKey = executionContext.getJobDetail().getKey();
            Date fireTime = executionContext.getFireTime();
            System.out.println(jobKey+",对应的执行时间是"+sf.format(fireTime));
        }
    }
}

• QuartzJobTwo

import org.quartz.*;
import org.springframework.scheduling.quartz.QuartzJobBean;

import java.text.SimpleDateFormat;
import java.util.Date;

/**
 * @author lilinchao
 * @date 2021/9/2
 * @description 1.0
 **/
@PersistJobDataAfterExecution
@DisallowConcurrentExecution
public class QuartzJobTwo extends QuartzJobBean {
    @Override
    protected void executeInternal(JobExecutionContext jobExecutionContext){
        SimpleDateFormat sf = new SimpleDateFormat("yyyy-MM-dd HH:mm:ss");
        System.out.println("QuartzJobTwo执行时间是"+sf.format(new Date()));
    }
}

说明

• QuartzJobBean

  QuartzJobBean已经实现了job接口，并重写了接口中的execute()方法，在SpringBoot集成时候直接继承QuartzJobBean即可。执行逻辑在executeInternal()方法中。

• @PersistJobDataAfterExecution

  告诉Quartz在成功执行了Job实现类的execute方法后（没有发生任何异常），更新JobDetail中JobDataMap的数据，使得该JobDetail实例在下一次执行的时候，JobDataMap中是更新后的数据，而不是更新前的旧数据。

• @DisallowConcurrentExecution

  告诉Quartz不要并发地执行同一个JobDetail实例。

总结

• 当某一个JobDetail实例到点运行之后，在其运行结束之前，不会再发起一次该JobDetail实例的调用，即使设置的该JobDetail实例的定时执行时间到了。

• JobDetail实例之间互不影响。

2.5 实现ApplicationListener 完成动态调度

​ 根据ApplicationListener的原理，其onApplicationEvent(ContextRefreshedEvent event) 方法会在初始化所有的bean之后被调用，因此我们可以在这里进行scheduler的创建、启动，以及注册trigger和job。

import com.dataojo.quartz.job.QuartzJobFirst;
import com.dataojo.quartz.job.QuartzJobTwo;
import com.dataojo.quartz.util.SchedulerUtils;
import org.springframework.context.ApplicationListener;
import org.springframework.context.event.ContextRefreshedEvent;
import org.springframework.stereotype.Component;

/**
 * @author lilinchao
 * @date 2021/9/2
 * @description 1.0
 **/
@Component
public class StartApplicationListener implements ApplicationListener<ContextRefreshedEvent> {
    @Override
    public void onApplicationEvent(ContextRefreshedEvent contextRefreshedEvent) {
        System.out.println("-------执行StartApplicationListener--------");
        SchedulerUtils.scheduleCronJob(QuartzJobFirst.class, "*/5 * * * * ?");
        SchedulerUtils.scheduleCronJob(QuartzJobTwo.class, "*/10 * * * * ?");
    }
}

2.6 工具类

• SchedulerUtils

import org.apache.commons.lang.time.DateUtils;
import org.quartz.*;
import org.quartz.impl.StdSchedulerFactory;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

import java.text.ParseException;
import java.util.Date;

/**
 * @author lilinchao
 * @date 2021/9/3
 * @description 1.0
 */
public class SchedulerUtils {

    private static final Logger LOGGER = LoggerFactory.getLogger(SchedulerUtils.class);

    private static Scheduler scheduler;

    private static String jobGroup = "group";

    static {
        if (SpringContextUtils.getApplicationContext() != null) {
            scheduler = SpringContextUtils.getBean(Scheduler.class);
        } else {
            SchedulerFactory schedulerFactory = new StdSchedulerFactory();
            try {
                scheduler = schedulerFactory.getScheduler();
                scheduler.start();
            } catch (SchedulerException e) {
                throw new RuntimeException(e);
            }
        }
    }

    private SchedulerUtils() {

    }

    public static Scheduler getScheduler() {
        return scheduler;
    }

    public static void scheduleCronJob(Class<? extends Job> jobClass, String cronExpression) {
        scheduleCronJob(jobClass, jobClass.getSimpleName(), cronExpression);
    }

    public static void scheduleCronJob(Class<? extends Job> jobClass, Object name, String cronExpression) {
        scheduleCronJob(jobClass, name, jobGroup, cronExpression);
    }

    public static void scheduleCronJob(Class<? extends Job> jobClass, Object name, String group, String cronExpression) {
        scheduleCronJob(jobClass, name, group, cronExpression, null);
    }

    public static void scheduleCronJob(Class<? extends Job> jobClass, Object name, String group, String cronExpression, JobDataMap jobDataMap) {
        scheduleCronJob(jobClass, name, group, cronExpression, jobDataMap, null, null);
    }

    public static void scheduleCronJob(Class<? extends Job> jobClass, Object name, String group, String cronExpression, JobDataMap jobDataMap, Date startDate, Date endDate) {
        try {
            JobKey jobKey = new JobKey(String.valueOf(name), group);
            if (!scheduler.checkExists(jobKey)) {
                JobBuilder jobBuilder = JobBuilder.newJob(jobClass);
                jobBuilder.withIdentity(jobKey);
                if (jobDataMap != null && !jobDataMap.isEmpty()) {
                    jobBuilder.setJobData(jobDataMap);
                }
                JobDetail jobDetail = jobBuilder.build();
                CronScheduleBuilder cronScheduleBuilder = CronScheduleBuilder.cronSchedule(cronExpression).withMisfireHandlingInstructionDoNothing();
                TriggerBuilder<CronTrigger> triggerBuilder = TriggerBuilder.newTrigger().withSchedule(cronScheduleBuilder);
                if (startDate != null) {
                    triggerBuilder.startAt(startDate);
                } else {
                    triggerBuilder.startNow();
                }
                if (endDate != null) {
                    triggerBuilder.endAt(endDate);
                }
                CronTrigger trigger = triggerBuilder.build();
                scheduler.scheduleJob(jobDetail, trigger);
            }
        } catch (Exception e) {
            LOGGER.error("Submit job error, name=" + name + " and group=" + group, e);
        }
    }

    /**
     * 默认立即执行且只执行一次
     * @param jobClass
     */
    public static void scheduleSimpleJob(Class<? extends Job> jobClass) {
        scheduleSimpleJob(jobClass, jobClass.getSimpleName());
    }

    public static void scheduleSimpleJob(Class<? extends Job> jobClass, Object name) {
        scheduleSimpleJob(jobClass, name, 0, 0);
    }

    /**
     * @param jobClass
     * @param name
     * @param intervalInMilliseconds 执行间隔
     * @param repeatCount 重复次数，小于0的时候重复执行
     */
    public static void scheduleSimpleJob(Class<? extends Job> jobClass, Object name, long intervalInMilliseconds, int repeatCount) {
        scheduleSimpleJob(jobClass, name, jobGroup, intervalInMilliseconds, repeatCount);
    }

    public static void scheduleSimpleJob(Class<? extends Job> jobClass, Object name, String group, long intervalInMilliseconds, int repeatCount) {
        scheduleSimpleJob(jobClass, name, group, intervalInMilliseconds, repeatCount, null);
    }

    public static void scheduleSimpleJob(Class<? extends Job> jobClass, Object name, String group, long intervalInMilliseconds, int repeatCount, JobDataMap jobDataMap) {
        scheduleSimpleJob(jobClass, name, group, intervalInMilliseconds, repeatCount, jobDataMap, null, null);
    }

    public static void scheduleSimpleJob(Class<? extends Job> jobClass, Object name, String group, long intervalInMilliseconds, int repeatCount, JobDataMap jobDataMap, Date startDate, Date endDate) {
        try {
            JobKey jobKey = new JobKey(String.valueOf(name), group);
            if (!scheduler.checkExists(jobKey)) {
                JobBuilder jobBuilder = JobBuilder.newJob(jobClass);
                jobBuilder.withIdentity(jobKey);
                if (jobDataMap != null && !jobDataMap.isEmpty()) {
                    jobBuilder.setJobData(jobDataMap);
                }
                JobDetail jobDetail = jobBuilder.build();
                SimpleScheduleBuilder simpleScheduleBuilder = SimpleScheduleBuilder.simpleSchedule();
                simpleScheduleBuilder.withIntervalInMilliseconds(intervalInMilliseconds);
                if (repeatCount >= 0) {
                    simpleScheduleBuilder.withRepeatCount(repeatCount);
                } else {
                    simpleScheduleBuilder.repeatForever();
                }
                TriggerBuilder<SimpleTrigger> triggerBuilder = TriggerBuilder.newTrigger().withSchedule(simpleScheduleBuilder);
                if (startDate != null) {
                    triggerBuilder.startAt(startDate);
                } else {
                    triggerBuilder.startNow();
                }
                if (endDate != null) {
                    triggerBuilder.endAt(endDate);
                }
                SimpleTrigger trigger = triggerBuilder.build();
                scheduler.scheduleJob(jobDetail, trigger);
            }
        } catch (Exception e) {
            LOGGER.error("Submit job error, name=" + name + " and group=" + group, e);
        }
    }

    public static void interrupt(Object name, String group) {
        JobKey jobKey = new JobKey(String.valueOf(name), group);
        try {
            if (scheduler.checkExists(jobKey)) {
                scheduler.interrupt(jobKey);
            }
        } catch (SchedulerException e) {
            LOGGER.warn("Interrupt job error, name=" + name + " and group=" + group, e);
        }
    }

    public static void deleteJob(Object name, String group) {
        JobKey jobKey = new JobKey(String.valueOf(name), group);
        try {
            if (scheduler.checkExists(jobKey)) {
                scheduler.deleteJob(jobKey);
            }
        } catch (SchedulerException e) {
            LOGGER.warn("Delete job error, name=" + name + " and group=" + group, e);
        }
    }

    public static boolean checkExists(Object name, String group) {
        JobKey jobKey = new JobKey(String.valueOf(name), group);
        try {
            return scheduler.checkExists(jobKey);
        } catch (SchedulerException e) {
            LOGGER.warn("CheckExists job error, name=" + name + " and group=" + group, e);
        }
        return false;
    }

    public static Date getNeedFireTime(String cron, Date startDate) {
        Date nextFireTime1 = getNextFireTime(cron, startDate);
        Date nextFireTime2 = getNextFireTime(cron, nextFireTime1);
        int intervals = (int) (nextFireTime2.getTime() - nextFireTime1.getTime());
        Date cal1 = DateUtils.addMilliseconds(nextFireTime1, - intervals);
        Date cal2 = getNextFireTime(cron, cal1);
        Date cal3 = getNextFireTime(cron, cal2);
        while (!cal3.equals(nextFireTime1)) {
            cal1 = DateUtils.addMilliseconds(cal1, - intervals);
            cal2 = getNextFireTime(cron, cal1);
            cal3 = getNextFireTime(cron, cal2);
            if (cal3.before(nextFireTime1)) {
                intervals = -1000;
            }
        }
        return cal2;
    }

    public static Date getNextFireTime(String cron, Date startDate) {
        return getCronExpression(cron).getTimeAfter(startDate);
    }

    private static CronExpression getCronExpression(String cron) {
        try {
            return new CronExpression(cron);
        } catch (ParseException e) {
            throw new IllegalArgumentException(e);
        }
    }

}

• SpringContextUtils

  实现ApplicationContextAware的工具类，可以通过其它类引用它以操作spring容器及其中的Bean实例。

import org.springframework.beans.BeansException;
import org.springframework.context.ApplicationContext;
import org.springframework.context.ApplicationContextAware;
import org.springframework.stereotype.Component;

/**
 * @author lilinchao
 * @date 2021/9/3
 * @description 1.0
 */
@Component
public class SpringContextUtils implements ApplicationContextAware {

    private static ApplicationContext applicationContext;

    @Override
    public void setApplicationContext(ApplicationContext applicationContext) throws BeansException {
        SpringContextUtils.applicationContext = applicationContext;
    }

    public static ApplicationContext getApplicationContext() {
        return applicationContext;
    }

    public static Object getBean(String beanName) throws BeansException {
        return applicationContext.getBean(beanName);
    }

    public static <T> T getBean(String beanName, Class<T> clazz) throws BeansException {
        return applicationContext.getBean(beanName, clazz);
    }

    public static <T> T getBean(Class<T> clazz) throws BeansException {
        return applicationContext.getBean(clazz);
    }

    public static Object getBean(String beanName, Object... args) throws BeansException {
        return applicationContext.getBean(beanName, args);
    }

    public static <T> T getBean(Class<T> clazz, Object... args) throws BeansException {
        return applicationContext.getBean(clazz, args);
    }
}

说明

​ Spring容器会检测容器中的所有Bean，如果发现某个Bean实现了ApplicationContextAware接口，Spring容器会在创建该Bean之后，自动调用该Bean的setApplicationContextAware()方法，调用该方法时，会将容器本身作为参数传给该方法——该方法中的实现部分将Spring传入的参数（容器本身）赋给该类对象的applicationContext实例变量，因此接下来可以通过该applicationContext实例变量来访问容器本身。

2.7 运行结果

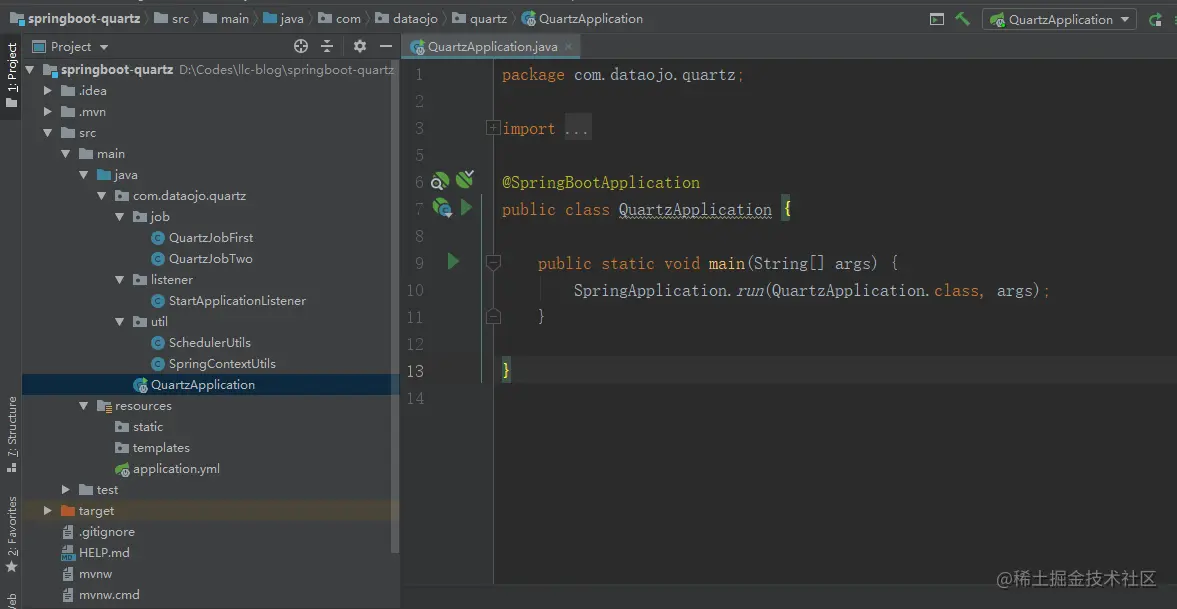

三、项目目录结构

附参考文章链接：

www.jianshu.com/p/ab438d944…

www.cnblogs.com/summerday15…

gitee.com/tqbx/spring…
