1 前言

Gradle由于构建速度比Maven快，且比Maven灵活,虽然现在有了mvnd,但是构建速度还是远比不上Gradle。因此一些大型项目使用Gradle进行构建能够节省很多的构建时间。但一个问题是Gradle的多模块嵌套项目比较难构建。本文就带着大家一起实践一下。

2 环境

Gradle 7.3.3
Spring Boot 2.6.3

3 开始构建项目

3.1 创建项目

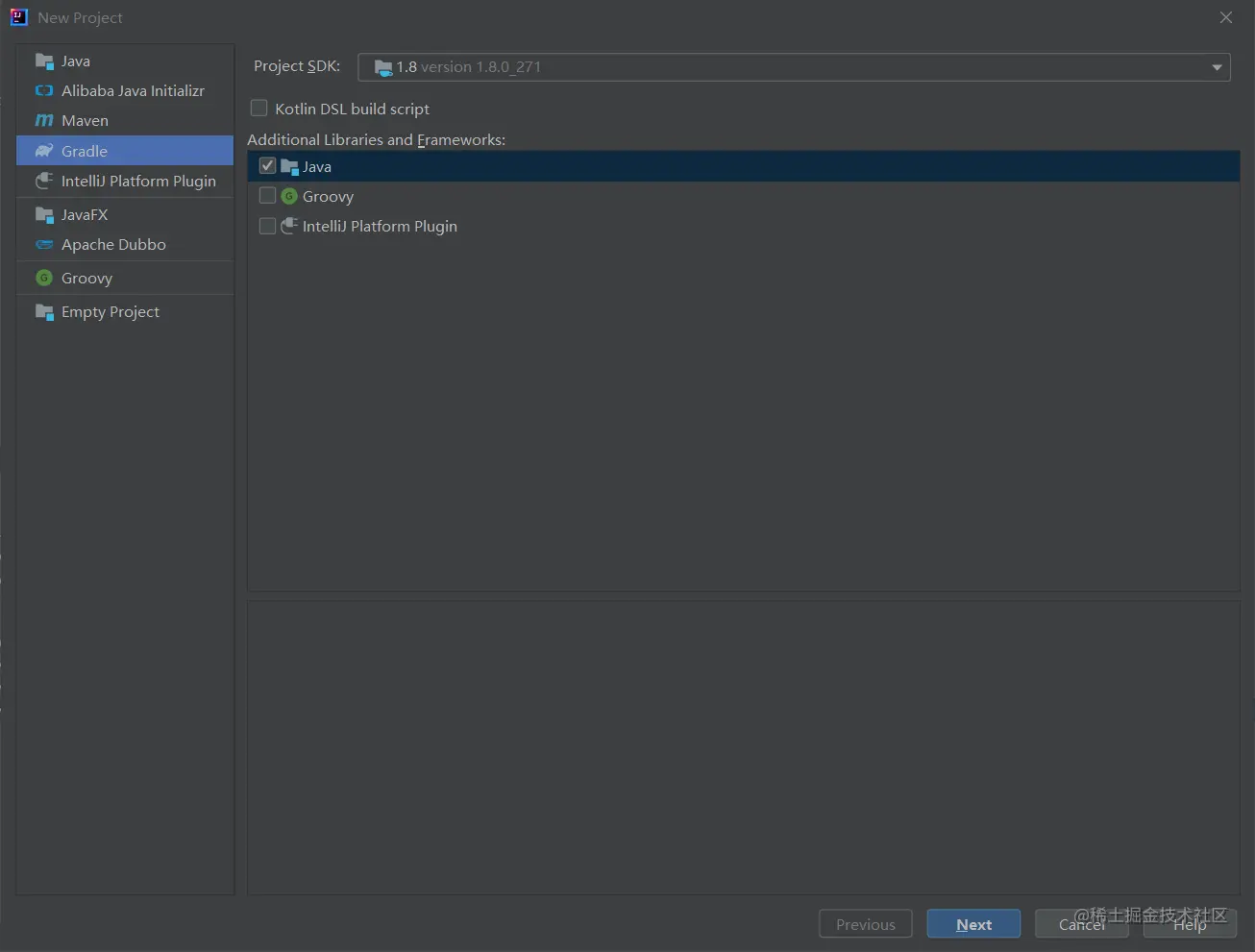

file>new project 选中Gradle Java 下一步(next)

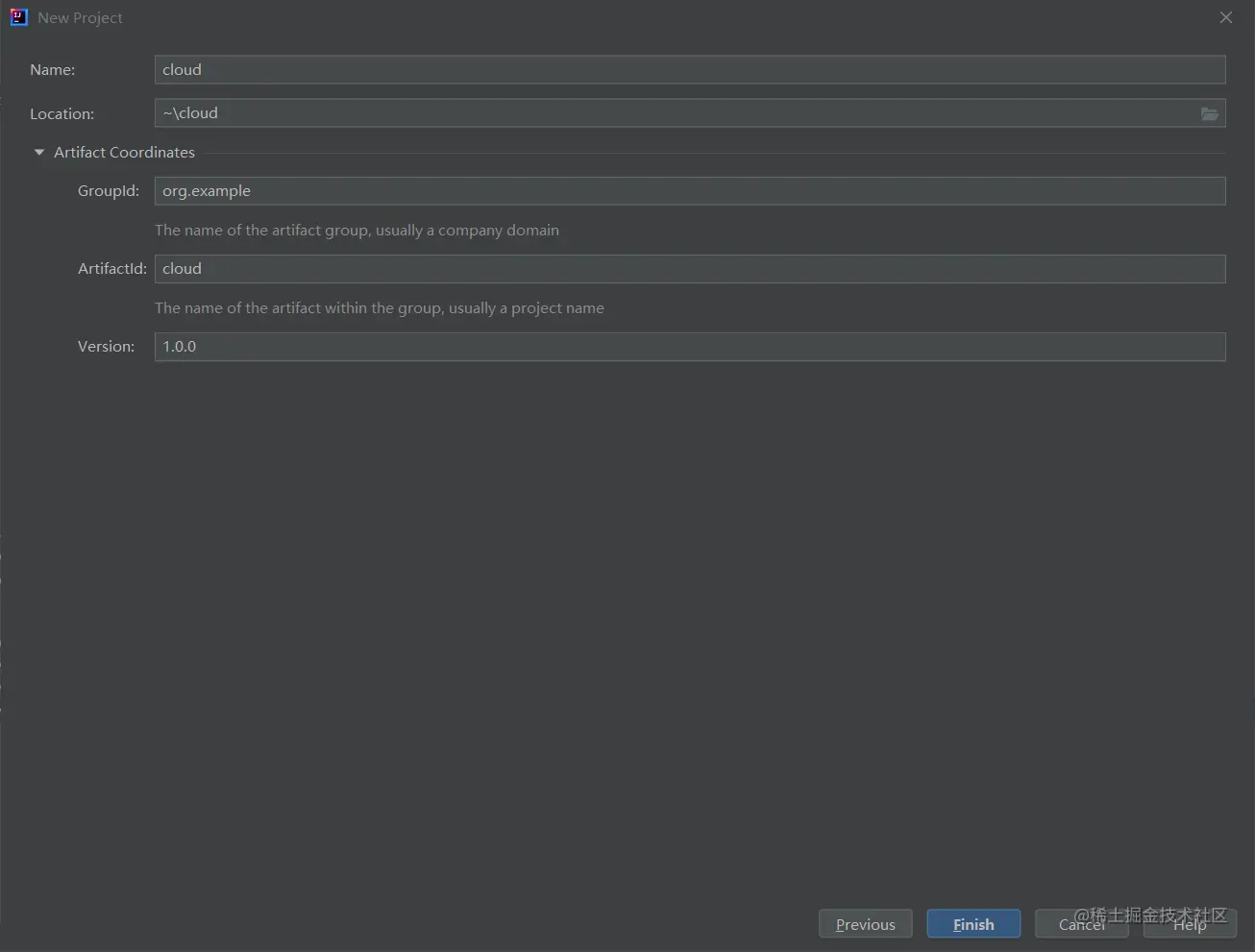

A4SK)(~1X@BDKUT`4L@_~XJ.png 输入项目信息完成(Finish)


然后右键根模块New -> Module依次创建子模块 api common 等

3.2 修改root `build.gradle`

plugins {
    id 'java'
    id 'io.spring.dependency-management' version '1.0.11.RELEASE'
    id 'org.springframework.boot' version '2.6.3'
}

ext {
    set('springCloudAlibabaVersion', "2021.1")
    set('springCloudVersion', "2021.0.0")
}

allprojects {
    apply plugin: 'java'

    group 'com.f'
    version '1.0.0'

    // 设置编译和运行的jre兼容版本
    sourceCompatibility = '1.8'
    targetCompatibility = '1.8'

    configurations {
        compileOnly {
            extendsFrom annotationProcessor
        }
    }

    repositories {
        maven {
            url 'https://repo.huaweicloud.com/repository/maven/'
        }
    }

    dependencies {
        testImplementation 'org.junit.jupiter:junit-jupiter-api:5.8.2'
        testRuntimeOnly 'org.junit.jupiter:junit-jupiter-engine:5.8.2'
    }

    test {
        useJUnitPlatform()
    }
}

// 应用于所有依赖的子项目
subprojects {
    // 应用插件
    apply plugin: "org.springframework.boot"
    apply plugin: "io.spring.dependency-management"

    // spring boot构建任务
    springBoot {
        buildInfo()
    }

    dependencyManagement {
        // 导入maven依赖管理的bom
        imports {
            mavenBom 'org.apache.commons:commons-lang3:3.12.0'
            mavenBom "com.alibaba.cloud:spring-cloud-alibaba-dependencies:${springCloudAlibabaVersion}"
            mavenBom "org.springframework.cloud:spring-cloud-dependencies:${springCloudVersion}"
        }
    }

    /**
    * 为所有模块指定公共的依赖
    * 注意这里有些默认不用再指定版本了，已经由上面的dependencyManagement管理了
    */
    dependencies {
        annotationProcessor "org.springframework.boot:spring-boot-configuration-processor"
        annotationProcessor "org.projectlombok:lombok"
        compileOnly "org.springframework.boot:spring-boot-configuration-processor"
        compileOnly "org.projectlombok:lombok"
        testAnnotationProcessor "org.projectlombok:lombok"
        testCompileOnly "org.projectlombok:lombok"
        testImplementation "org.springframework.boot:spring-boot-starter-test"
    }
}

4 创建嵌套模块

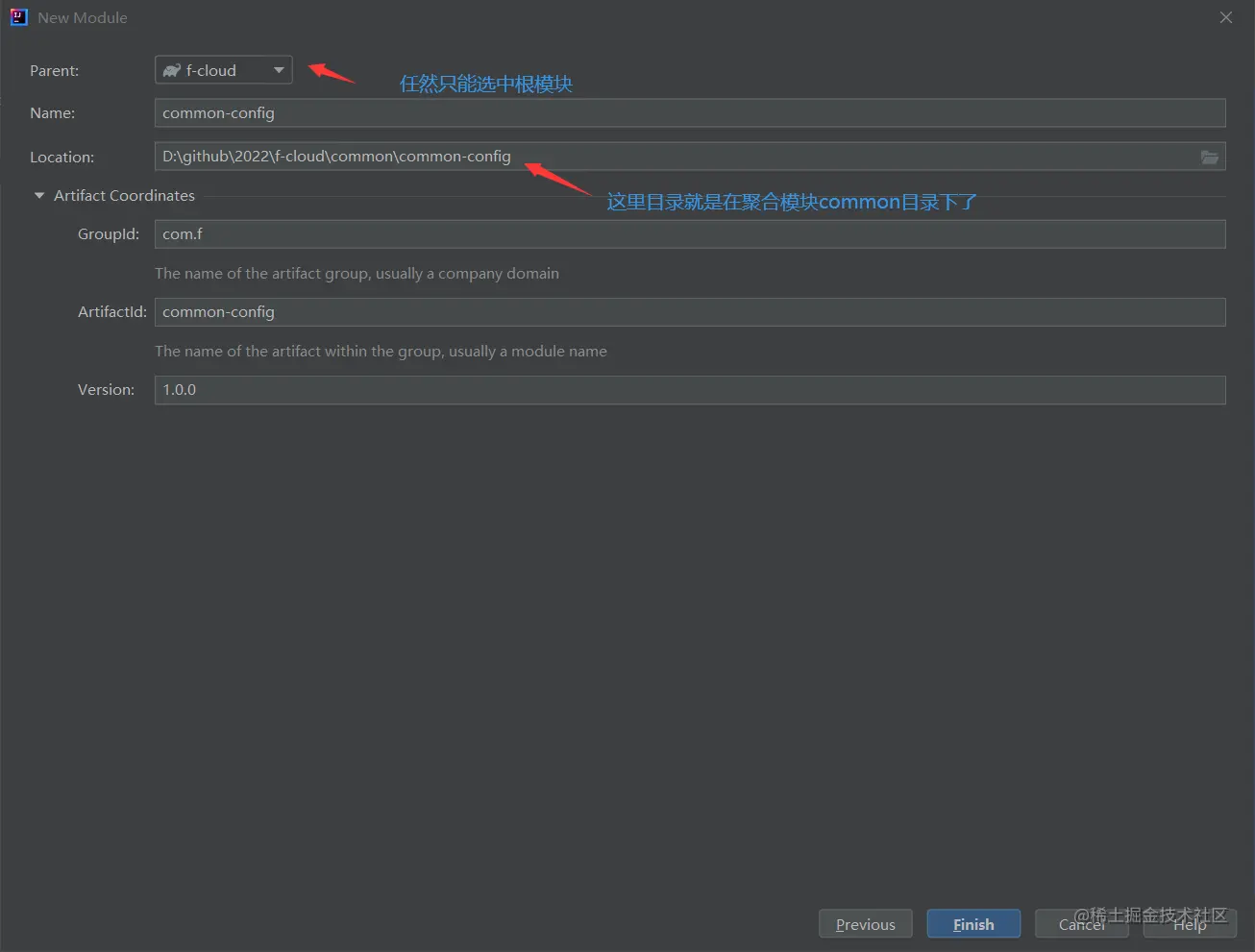

右键common,service聚合模块 New -> Module 创建下级模块父级模块还是root,但是目录需要指定为聚合模块下的子目录

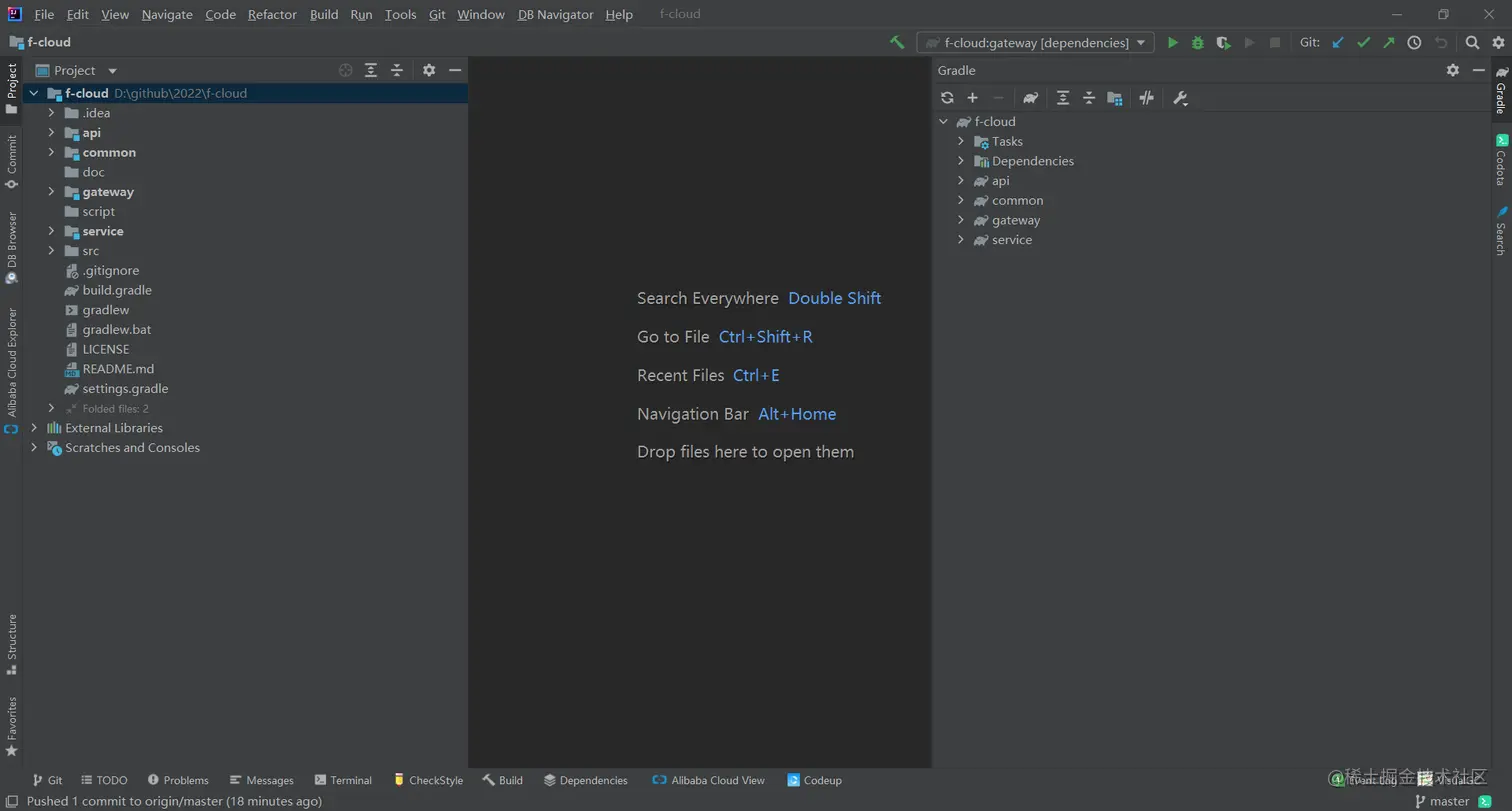

5 结果

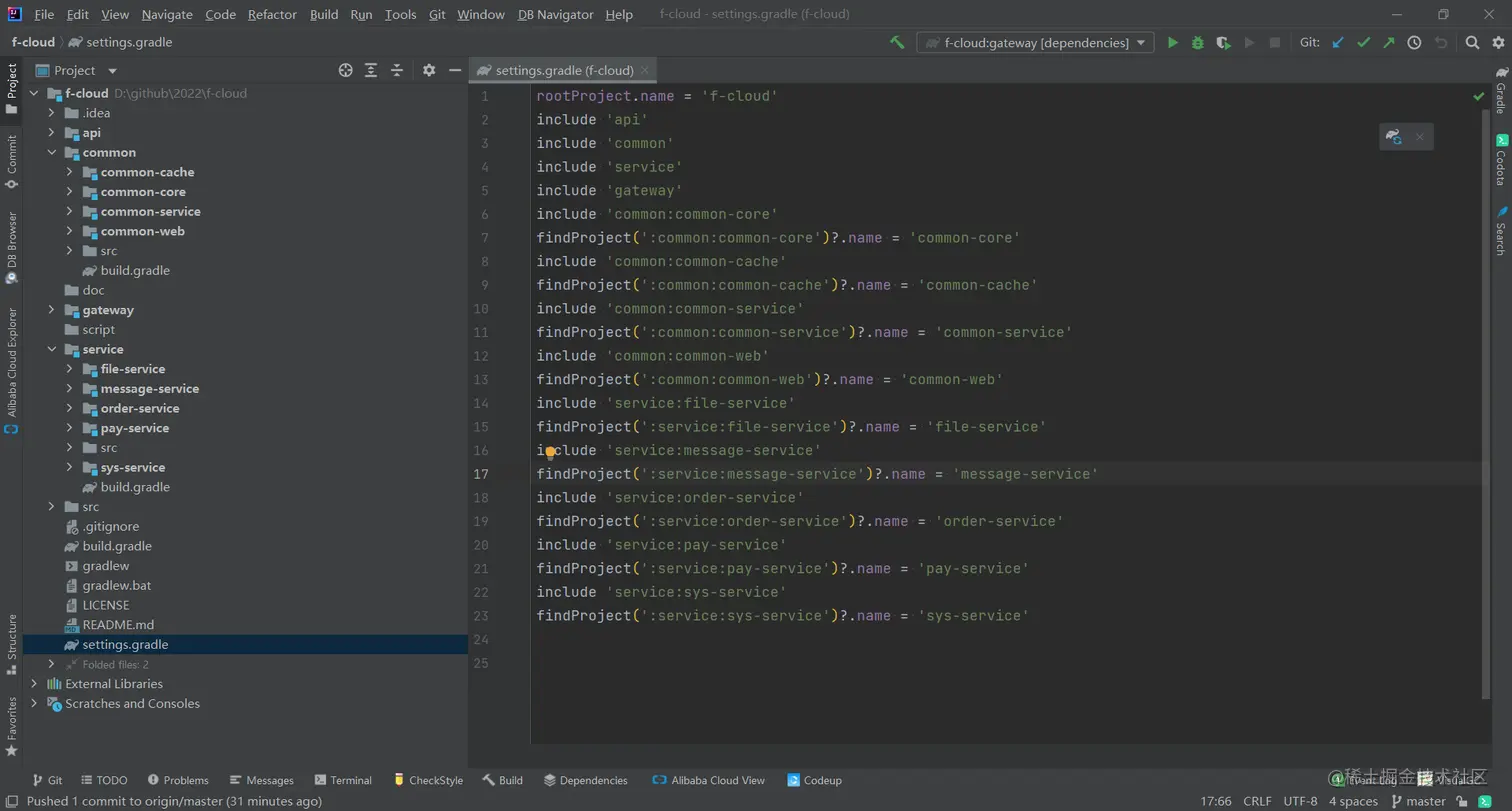

settings.gradle

rootProject.name = 'f-cloud'
include 'api'
include 'common'
include 'service'
include 'gateway'
include 'common:common-core'
findProject(':common:common-core')?.name = 'common-core'
include 'common:common-cache'
findProject(':common:common-cache')?.name = 'common-cache'
include 'common:common-service'
findProject(':common:common-service')?.name = 'common-service'
include 'common:common-web'
findProject(':common:common-web')?.name = 'common-web'
include 'service:file-service'
findProject(':service:file-service')?.name = 'file-service'
include 'service:message-service'
findProject(':service:message-service')?.name = 'message-service'
include 'service:order-service'
findProject(':service:order-service')?.name = 'order-service'
include 'service:pay-service'
findProject(':service:pay-service')?.name = 'pay-service'
include 'service:sys-service'
findProject(':service:sys-service')?.name = 'sys-service'

6 示例代码

f-cloud

Gradle构建SpringBoot多模块项目
