vue3-diff算法源码简单理解
diff算法是什么？
diff算法是vue在处理组件渲染产生改变时进行的一系列操作，想要搞明白首先要对Virtual DOM（虚拟DOM）以及Virtual Nodes（虚拟节点）有所了解。
VDOM为何物？
众所周知vue渲染页面使用模板语法，这些模板在被被渲染的时候，他并不会直接被解析成最终的真实DOM，而是会先产生一个虚拟DOM。这样做其一，能提升DOM在改变时代码的执行效率；其二可以解决一些跨平台相关的问题。
虚拟DOM其实就是用JavaScript对你的dom的一个描述，用对象实现，记录几个参数，比如类型等等。
VNodes又是什么？
VNode很好理解，就是VDOM里面的某一个标签，某一个节点，VNodes就是节点的集合。
从一个插入案例讲起diff算法
<!-- 现有一dom结构，如下，['a', 'b', 'c', 'd']，然后现在从中间插入一f -->
<ul>
<li>a</li>
<li>b</li>
<li>c</li>
<li>d</li>
</ul>
<!-- 插入f之后，最终dom变成下面这样，描述diff算法在这中间做了什么 -->
<ul>
<li>a</li>
<li>b</li>
<li>f</li>
<li>c</li>
<li>d</li>
</ul>
现在先来猜测这一种情况diff可能会怎么做。
首先，当然是会产生一个新的虚拟DOM，然后每个节点去比较，然后决定怎么处理新的VDOM，这个过程对应源码里面的patch。最简单的处理方式就是每个li的新旧虚拟节点一一比较，一样的略过，不一样的直接把最新的给替换上去，然后遍历完之后，剩余的该添加添加，该删除删除。这应该是最好理解的一种方式，算是暴力法吧。
这个过程我们可以模拟一下：
然后，我们试着优化一下，有些时候很多新旧VNodes其实是相同的，只不过因为顺序原因，导致没有跟之前的对上，比如上面这个例子，第三个旧Vnode是c，但是新Vnode第四个才是c，这就让c被重复修改，浪费性能，我们只要解决这个问题，性能就可以提升一大截。这个问题解决起来是比较有难度的，下面直接根据vue3的源码来深入研究一下diff算法到底在干什么。
这里先提一嘴，在优化的时候vue用了一个自定义属性，也就是key，让内部来决定自己应该按照哪种方式来diff。
透过源码看diff
通过上面的解释，大家应该能感觉到了，diff主要是有两种操作，第一种就是在没有绑定key的情况下，就是按照第一种猜测来进行,所以效率很慢,第二种方式就是有key的时候,源码内部会对比较做很多处理.
patchUnkeyedChildren
这种方式几乎不用解释，就是上面的第一条猜测。只是简单的一一比较罢了。
// vue3 diff算法 patchUnkeyedChildren
const patchUnkeyedChildren = (
c1: VNode[], // 旧的nodes['a','b','c','d']
c2: VNodeArrayChildren, // 新的nodes['a','b','f','c','d']
container: RendererElement,
anchor: RendererNode | null,
parentComponent: ComponentInternalInstance | null,
parentSuspense: SuspenseBoundary | null,
isSVG: boolean,
slotScopeIds: string[] | null,
optimized: boolean
) => {
c1 = c1 || EMPTY_ARR
c2 = c2 || EMPTY_ARR
const oldLength = c1.length
const newLength = c2.length
// 取长度小的那个
const commonLength = Math.min(oldLength, newLength)
let i
for (i = 0; i < commonLength; i++) {
const nextChild = (c2[i] = optimized
? cloneIfMounted(c2[i] as VNode)
: normalizeVNode(c2[i]))
patch(
c1[i],
nextChild,
container,
null,
parentComponent,
parentSuspense,
isSVG,
slotScopeIds,
optimized
)
}
// 如果旧的nodes等多
if (oldLength > newLength) {
// remove old
// 移除多余的节点
unmountChildren(
c1,
parentComponent,
parentSuspense,
true,
false,
commonLength
)
// 如果新的nodes更多
} else {
// mount new
// 挂载新的节点
mountChildren(
c2,
container,
anchor,
parentComponent,
parentSuspense,
isSVG,
slotScopeIds,
optimized,
commonLength
)
}
}
patchKeyedChildren
而如果检测到有key的话，那就比较复杂了。
-

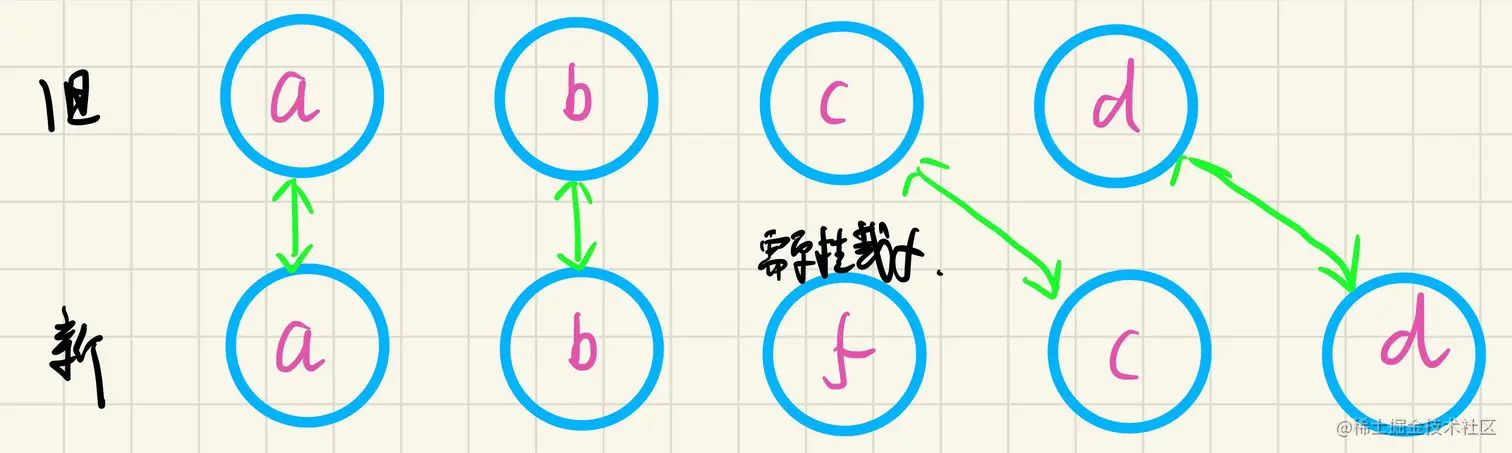

第一步：
-
sync from start
-
(a b) c d
-
(a b) f c d
先从前面开始比较，直到遇到第一个不相同的
-
第二步：
-
sync from end
-
a b (c d)
-
a b f (c d)
然后从后面开始，直到遇到第一个不相同的
- 第三步,根据指针索引
i > e1 || i > e2,都被判断为dom节点增加,也就是需要amount

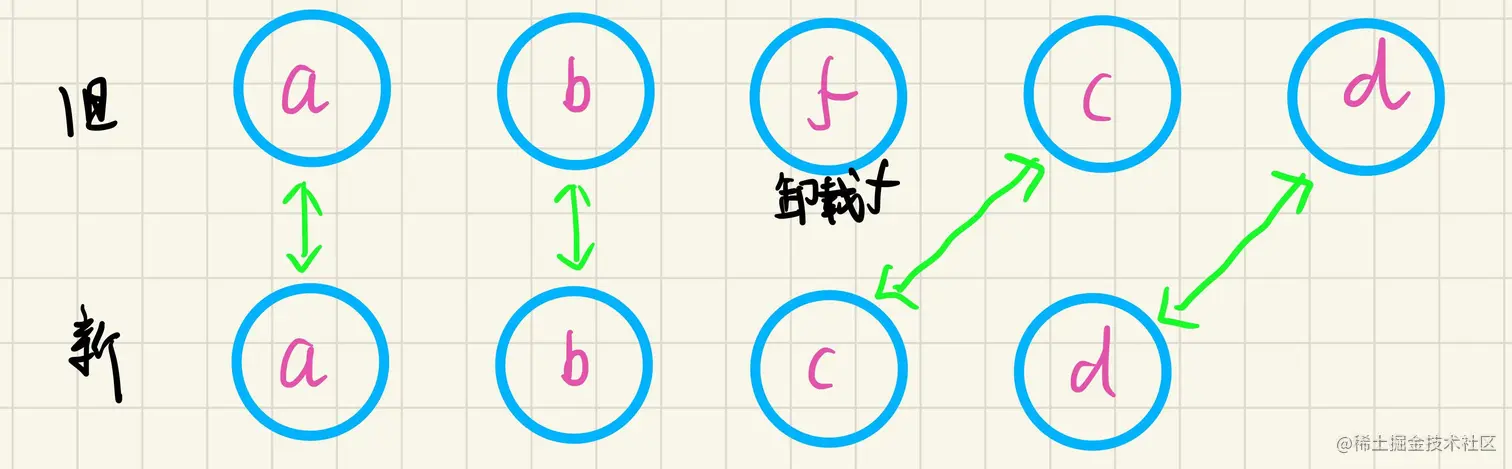

- 第四步,根据指针索引
i <= e1 && i > e2,都被判断为dom节点减少,也就是需要unmount

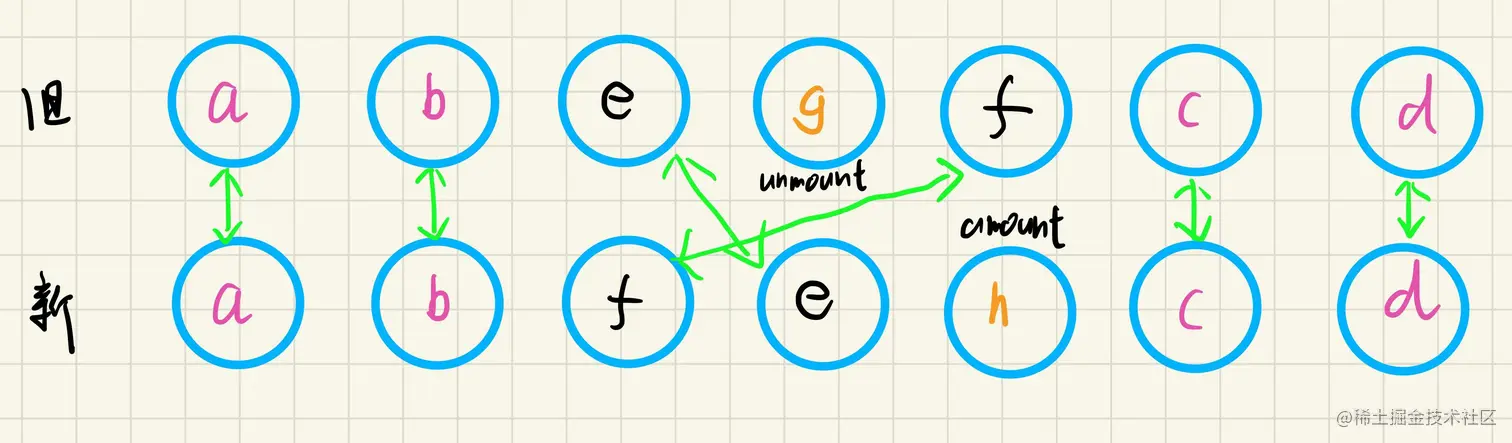

- 第五步，是处理最复杂的情况,就是在中间这一段有相同的Nodes，但是顺序十分混乱。
// vue3 diff算法 patchKeyedChildren
const patchKeyedChildren = (
c1: VNode[],
c2: VNodeArrayChildren,
container: RendererElement,
parentAnchor: RendererNode | null,
parentComponent: ComponentInternalInstance | null,
parentSuspense: SuspenseBoundary | null,
isSVG: boolean,
slotScopeIds: string[] | null,
optimized: boolean
) => {
let i = 0
const l2 = c2.length
let e1 = c1.length - 1 // prev ending index
let e2 = l2 - 1 // next ending index
// 1. sync from start
// (a b) c
// (a b) d e
while (i <= e1 && i <= e2) {
const n1 = c1[i]
const n2 = (c2[i] = optimized
? cloneIfMounted(c2[i] as VNode)
: normalizeVNode(c2[i]))
if (isSameVNodeType(n1, n2)) {
patch(
n1,
n2,
container,
null,
parentComponent,
parentSuspense,
isSVG,
slotScopeIds,
optimized
)
} else {
break
}
i++
}
// 2. sync from end
// a (b c)
// d e (b c)
while (i <= e1 && i <= e2) {
const n1 = c1[e1]
const n2 = (c2[e2] = optimized
? cloneIfMounted(c2[e2] as VNode)
: normalizeVNode(c2[e2]))
if (isSameVNodeType(n1, n2)) {
patch(
n1,
n2,
container,
null,
parentComponent,
parentSuspense,
isSVG,
slotScopeIds,
optimized
)
} else {
break
}
e1--
e2--
}
// 3. common sequence + mount
// (a b)
// (a b) c
// i = 2, e1 = 1, e2 = 2
// (a b)
// c (a b)
// i = 0, e1 = -1, e2 = 0
if (i > e1) {
if (i <= e2) {
const nextPos = e2 + 1
const anchor = nextPos < l2 ? (c2[nextPos] as VNode).el : parentAnchor
while (i <= e2) {
patch(
null,
(c2[i] = optimized
? cloneIfMounted(c2[i] as VNode)
: normalizeVNode(c2[i])),
container,
anchor,
parentComponent,
parentSuspense,
isSVG,
slotScopeIds,
optimized
)
i++
}
}
}
// 4. common sequence + unmount
// (a b) c
// (a b)
// i = 2, e1 = 2, e2 = 1
// a (b c)
// (b c)
// i = 0, e1 = 0, e2 = -1
else if (i > e2) {
while (i <= e1) {
unmount(c1[i], parentComponent, parentSuspense, true)
i++
}
}
// 5. unknown sequence
// [i ... e1 + 1]: a b [c d e] f g
// [i ... e2 + 1]: a b [e d c h] f g
// i = 2, e1 = 4, e2 = 5
else {
const s1 = i // prev starting index
const s2 = i // next starting index
// 5.1 build key:index map for newChildren
const keyToNewIndexMap: Map<string | number, number> = new Map()
for (i = s2; i <= e2; i++) {
const nextChild = (c2[i] = optimized
? cloneIfMounted(c2[i] as VNode)
: normalizeVNode(c2[i]))
if (nextChild.key != null) {
if (__DEV__ && keyToNewIndexMap.has(nextChild.key)) {
warn(
`Duplicate keys found during update:`,
JSON.stringify(nextChild.key),
`Make sure keys are unique.`
)
}
keyToNewIndexMap.set(nextChild.key, i)
}
}
// 5.2 loop through old children left to be patched and try to patch
// matching nodes & remove nodes that are no longer present
let j
let patched = 0
const toBePatched = e2 - s2 + 1
let moved = false
// used to track whether any node has moved
let maxNewIndexSoFar = 0
// works as Map<newIndex, oldIndex>
// Note that oldIndex is offset by +1
// and oldIndex = 0 is a special value indicating the new node has
// no corresponding old node.
// used for determining longest stable subsequence
const newIndexToOldIndexMap = new Array(toBePatched)
for (i = 0; i < toBePatched; i++) newIndexToOldIndexMap[i] = 0
for (i = s1; i <= e1; i++) {
const prevChild = c1[i]
if (patched >= toBePatched) {
// all new children have been patched so this can only be a removal
unmount(prevChild, parentComponent, parentSuspense, true)
continue
}
let newIndex
if (prevChild.key != null) {
newIndex = keyToNewIndexMap.get(prevChild.key)
} else {
// key-less node, try to locate a key-less node of the same type
for (j = s2; j <= e2; j++) {
if (
newIndexToOldIndexMap[j - s2] === 0 &&
isSameVNodeType(prevChild, c2[j] as VNode)
) {
newIndex = j
break
}
}
}
if (newIndex === undefined) {
unmount(prevChild, parentComponent, parentSuspense, true)
} else {
newIndexToOldIndexMap[newIndex - s2] = i + 1
if (newIndex >= maxNewIndexSoFar) {
maxNewIndexSoFar = newIndex
} else {
moved = true
}
patch(
prevChild,
c2[newIndex] as VNode,
container,
null,
parentComponent,
parentSuspense,
isSVG,
slotScopeIds,
optimized
)
patched++
}
}
// 5.3 move and mount
// generate longest stable subsequence only when nodes have moved
const increasingNewIndexSequence = moved
? getSequence(newIndexToOldIndexMap)
: EMPTY_ARR
j = increasingNewIndexSequence.length - 1
// looping backwards so that we can use last patched node as anchor
for (i = toBePatched - 1; i >= 0; i--) {
const nextIndex = s2 + i
const nextChild = c2[nextIndex] as VNode
const anchor =
nextIndex + 1 < l2 ? (c2[nextIndex + 1] as VNode).el : parentAnchor
if (newIndexToOldIndexMap[i] === 0) {
// mount new
patch(
null,
nextChild,
container,
anchor,
parentComponent,
parentSuspense,
isSVG,
slotScopeIds,
optimized
)
} else if (moved) {
// move if:
// There is no stable subsequence (e.g. a reverse)
// OR current node is not among the stable sequence
if (j < 0 || i !== increasingNewIndexSequence[j]) {
move(nextChild, container, anchor, MoveType.REORDER)
} else {
j--
}
}
}
}
}
总结
diff算法没有那么难，简单的就是分为两种情况，有无key，无key操作十分简单，有key的话便是分为五步，分别处理不同情况。
这篇文章仅仅是在理解层面去讨论vue3的diff算法，但是想了解更多细节的话，还是要去GitHub把vue3源码拉下来仔细看看。
