废话开篇：一些 404 页面为了体现趣味性会添加一些简单的交互效果。 这里用纯 JS 简单实现类似 404 可跳跃障碍物页面，内容全部用 canvas 画布实现。

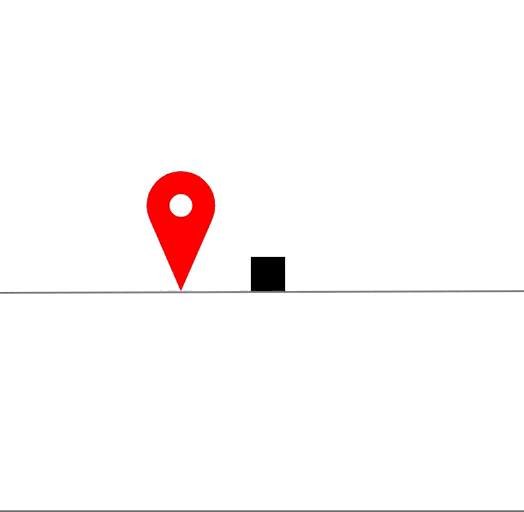

一、效果展示
二、画面拆解
1、绘制地平线
地平线这里就是简单的一条贯穿屏幕的线。
2、绘制红色精灵
绘制红色精灵分为两部分：
（1）上面圆
（2）下面定点与上面圆的切线。
绘制结果：
进行颜色填充，再绘制中小的小圆，绘制结果：
（3）绘制障碍物

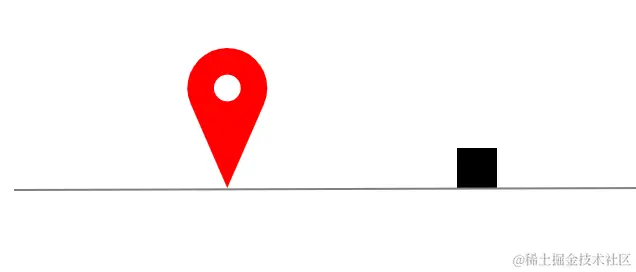

这里绘制的是一个黑色的长方形。最后的实现效果：
三、逻辑拆解
1、全局定时器控制画布重绘
创建全局的定时器。
它有两个具体任务：
（1）全局定时刷新重置，将画布定时擦除之前的绘制结果。
（2）全局定时器刷新动画重绘新内容。
2、精灵跳跃动作
在接收到键盘 “空格” 点击的情况下，让精灵起跳一定高度，到达顶峰的时候进行回落，当然这里设计的是匀速。
3、障碍物移动动作
通过定时器，重绘障碍物从最右侧移动到最左侧。
4、检测碰撞
在障碍物移动到精灵位置时，进行碰撞检测，判断障碍物最上端的左、右顶点是否在精灵的内部。
5、绘制提示语
提示语也是用 canvas 绘制的，当障碍物已移动到左侧的时候进行，结果判断。如果跳跃过程中无碰撞，就显示 “完美跳跃～”，如果调跃过程中有碰撞，就显示 “再接再厉”。
四、代码讲解
1、HTML
<!DOCTYPE html>
<html>
<head>
<meta charset="utf-8">
<title></title>
<script src="./wsl404.js"></script>
</head>
<body>
<div id="content">
<canvas id="myCanvas">
</canvas>
</div>
</body>
<script>
elves.init();
</script>
</html>
2、JS
(function WSLNotFoundPage(window) {
var elves = {};//精灵对象
elves.ctx = null;//画布
elves.width = 0;//屏幕的宽度
elves.height = 0;//屏幕的高度
elves.point = null;//精灵圆中心
elves.elvesR = 20;//精灵圆半径
elves.runloopTargets = [];//任务序列（暂时只保存跳跃）
elves.upDistance = 50;//当前中心位置距离地面高度
elves.upDistanceInitNum = 50;//中心位置距离地面高度初始值
elves.isJumping = false;//是否跳起
elves.jumpTarget = null;//跳跃任务
elves.jumpTop = false;//是否跳到最高点
elves.maxCheckCollisionWith = 0;//碰撞检测的最大宽度尺寸
elves.obstaclesMovedDistance = 0;//障碍物移动的距离
elves.isCollisioned = false;//是否碰撞过
elves.congratulationFont = 13;//庆祝文字大小
elves.congratulationPosition = 40;//庆祝文字位移
elves.isShowCongratulation = false;//是否展示庆祝文字
elves.congratulationContent = "完美一跃～";
elves.congratulationColor = "red";
//初始化
elves.init = function(){
this.drawFullScreen("content");
this.drawElves(this.upDistance);
this.keyBoard();
this.runloop();
}
//键盘点击事件
elves.keyBoard = function(){
var that = this;
document.onkeydown = function whichButton(event)
{
if(event.keyCode == 32){
//空格
that.elvesJump();
}
}
}
//开始跑圈
elves.runloop = function(){
var that = this;
setInterval(function(){
//清除画布
that.cleareAll();
//绘制障碍物
that.creatObstacles();
if(that.isJumping == false){
//未跳起时重绘精灵
that.drawElves(that.upDistanceInitNum);
}
//绘制地面
that.drawGround();
//跳起任务
for(index in that.runloopTargets){
let target = that.runloopTargets[index];
if(target.isRun != null && target.isRun == true){
if(target.runCallBack){
target.runCallBack();
}
}
}
//碰撞检测
that.checkCollision();
//展示庆祝文字
if(that.isShowCongratulation == true){
that.congratulation();
}
},10);
}
//画布
elves.drawFullScreen = function (id){
var element = document.getElementById(id);
this.height = window.screen.height - 200;
this.width = window.screen.width;
element.style.width = this.width + "px";
element.style.height = this.height + "px";
element.style.background = "white";
this.getCanvas("myCanvas",this.width,this.height);
}
elves.getCanvas = function(id,width,height){
var c = document.getElementById(id);
this.ctx = c.getContext("2d");
//锯齿修复
if (window.devicePixelRatio) {
c.style.width = this.width + "px";
c.style.height = this.height + "px";
c.height = height * window.devicePixelRatio;
c.width = width * window.devicePixelRatio;
this.ctx.scale(window.devicePixelRatio, window.devicePixelRatio);
}
};
//绘制地面
elves.drawGround = function() {
// 设置线条的颜色
this.ctx.strokeStyle = 'gray';
// 设置线条的宽度
this.ctx.lineWidth = 1;
// 绘制直线
this.ctx.beginPath();
// 起点
this.ctx.moveTo(0, this.height / 2.0 + 1);
// 终点
this.ctx.lineTo(this.width,this.height / 2.0);
this.ctx.closePath();
this.ctx.stroke();
}
//绘制精灵
elves.drawElves = function(upDistance){
//绘制圆
var angle = Math.acos(this.elvesR / upDistance);
this.point = {x:this.width / 3,y : this.height / 2.0 - upDistance};
this.ctx.fillStyle = "#FF0000";
this.ctx.lineWidth = 1;
this.ctx.beginPath();
this.ctx.arc(this.point.x,this.point.y,this.elvesR,Math.PI / 2 + angle,Math.PI / 2 - angle,false);
//绘制切线
var bottomPoint = {x:this.width / 3,y : this.point.y + this.upDistanceInitNum};
let leftPointY = this.height / 2.0 - (upDistance - Math.cos(angle) * this.elvesR);
let leftPointX = this.point.x - (Math.sin(angle) * this.elvesR);
var leftPoint = {x:leftPointX,y:leftPointY};
let rightPointY = this.height / 2.0 - (upDistance - Math.cos(angle) * this.elvesR);
let rightPointX = this.point.x + (Math.sin(angle) * this.elvesR);
var rightPoint = {x:rightPointX,y:rightPointY};
this.maxCheckCollisionWith = (rightPointX - leftPointX) * 20 / (upDistance - Math.cos(angle) * this.elvesR);
this.ctx.moveTo(bottomPoint.x, bottomPoint.y);
this.ctx.lineTo(leftPoint.x,leftPoint.y);
this.ctx.lineTo(rightPoint.x,rightPoint.y);
this.ctx.closePath();
this.ctx.fill();
//绘制小圆
this.ctx.fillStyle = "#FFF";
this.ctx.lineWidth = 1;
this.ctx.beginPath();
this.ctx.arc(this.point.x,this.point.y,this.elvesR / 3,0,Math.PI * 2,false);
this.ctx.closePath();
this.ctx.fill();
}
//清除画布
elves.cleareAll = function(){
this.ctx.clearRect(0,0,this.width,this.height);
}
//精灵跳动
elves.elvesJump = function(){
if(this.isJumping == true){
return;
}
this.isJumping = true;
if(this.jumpTarget == null){
var that = this;
this.jumpTarget = {type:'jump',isRun:true,runCallBack:function(){
let maxDistance = that.upDistanceInitNum + 55;
if(that.jumpTop == false){
if(that.upDistance > maxDistance){
that.jumpTop = true;
}
that.upDistance += 1;
} else if(that.jumpTop == true) {
that.upDistance -= 1;
if(that.upDistance < 50) {
that.upDistance = 50;
that.jumpTop = false;
that.jumpTarget.isRun = false;
that.isJumping = false;
}
}
that.drawElves(that.upDistance);
}};
this.runloopTargets.push(this.jumpTarget);
} else {
this.jumpTarget.isRun = true;
}
}
//绘制障碍物
elves.creatObstacles = function(){
let obstacles = {width:20,height:20};
if(this.obstaclesMovedDistance != 0){
this.ctx.clearRect(this.width - obstacles.width - this.obstaclesMovedDistance + 0.5, this.height / 2.0 - obstacles.height,obstacles.width,obstacles.height);
}
this.obstaclesMovedDistance += 0.5;
if(this.obstaclesMovedDistance >= this.width + obstacles.width) {
this.obstaclesMovedDistance = 0;
//重置是否碰撞
this.isCollisioned = false;
}
this.ctx.beginPath();
this.ctx.fillStyle = "#000";
this.ctx.moveTo(this.width - obstacles.width - this.obstaclesMovedDistance, this.height / 2.0 - obstacles.height);
this.ctx.lineTo(this.width - this.obstaclesMovedDistance,this.height / 2.0 - obstacles.height);
this.ctx.lineTo(this.width - this.obstaclesMovedDistance,this.height / 2.0);
this.ctx.lineTo(this.width - obstacles.width - this.obstaclesMovedDistance, this.height / 2.0);
this.ctx.closePath();
this.ctx.fill();
}
//检测是否碰撞
elves.checkCollision = function(){
var obstaclesMarginLeft = this.width - this.obstaclesMovedDistance - 20;
var elvesUpDistance = this.upDistanceInitNum - this.upDistance + 20;
if(obstaclesMarginLeft > this.point.x - this.elvesR && obstaclesMarginLeft < this.point.x + this.elvesR && elvesUpDistance <= 20) {
//需要检测的最大范围
let currentCheckCollisionWith = this.maxCheckCollisionWith * elvesUpDistance / 20;
if((obstaclesMarginLeft < this.point.x + currentCheckCollisionWith / 2.0 && obstaclesMarginLeft > this.point.x - currentCheckCollisionWith / 2.0) || (obstaclesMarginLeft + 20 < this.point.x + currentCheckCollisionWith / 2.0 && obstaclesMarginLeft + 20 > this.point.x - currentCheckCollisionWith / 2.0)){
this.isCollisioned = true;
}
}
//记录障碍物移动到精灵左侧
if(obstaclesMarginLeft + 20 < this.point.x - this.elvesR && obstaclesMarginLeft + 20 > this.point.x - this.elvesR - 1){
if(this.isCollisioned == false){
//跳跃成功，防止检测距离内重复得分置为true，在下一次循环前再置为false
this.isCollisioned = true;
//庆祝
if(this.isShowCongratulation == false) {
this.congratulationContent = "完美一跃～";
this.congratulationColor = "red";
this.isShowCongratulation = true;
}
} else {
//鼓励
if(this.isShowCongratulation == false) {
this.isShowCongratulation = true;
this.congratulationColor = "gray";
this.congratulationContent = "再接再厉～";
}
}
}
}
//庆祝绘制文字
elves.congratulation = function(){
this.congratulationFont += 0.1;
this.congratulationPosition += 0.1;
if(this.congratulationFont >= 30){
//重置
this.congratulationFont = 13;
this.congratulationPosition = 30;
this.isShowCongratulation = false;
return;
}
this.ctx.fillStyle = this.congratulationColor;
this.ctx.font = this.congratulationFont + 'px "微软雅黑"';
this.ctx.textBaseline = "bottom";
this.ctx.textAlign = "center";
this.ctx.fillText( this.congratulationContent, this.point.x, this.height / 2.0 - this.upDistanceInitNum - this.congratulationPosition);
}
window.elves = elves;
})(window)
五、总结与思考
逻辑注释基本都写在代码里，里面的一些计算可能会绕一些。代码拙劣，大神勿笑[抱拳][抱拳][抱拳]
