一、背景

  • 收到了设计小姐姐的一张设计图，如下所示
  • 需求分析，一个可以横纵向四个方向滚动的列表
  • 注意：文章穿插太多代码，最好目录跳转查看。文字部分为主要思想，代码可略过。

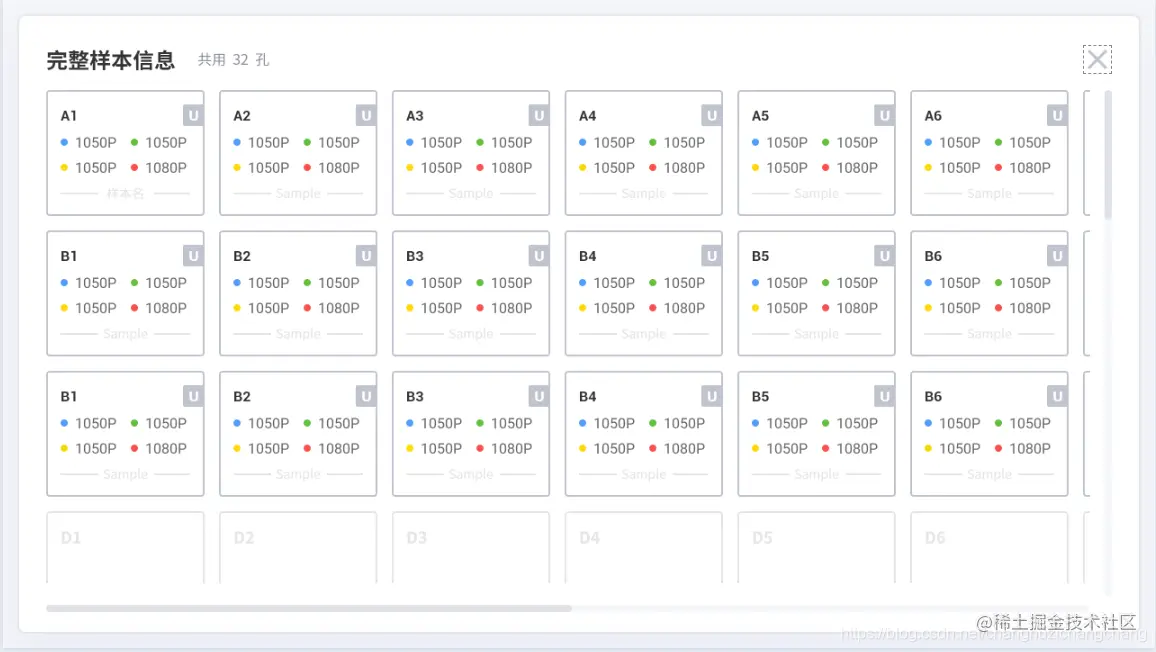

    在这里插入图片描述

二、开始敲代码

方案1 自定义粗糙辣鸡儿View

  • 不考虑横纵向都可以滚动的要求的话，这个图一看就像是一个RecyclerView,然后通过LayoutManager(GridManager,表格布局)控制其布局的显示方式。

  • 接着考虑滚动的问题，RecycleView自己可以滚动，假如设置为纵向滚动，那么我们需要在RecyclerView监测到横向滚动的时候拦截事件。

  • 实现方式：使用RelativeLayout 嵌套一个RecyclerView 。根据事件分发机制，当监测到事件时，任务首先层层向下传递，没人拦截，就传给最底层View。此时监测到横向滚动的时候，我们在父布局中onInterceptTouchEvent拦截事件，返回true，不再向下传递。由父布局直接处理。

  • 问题：基础效果实现了，但是用户体验度会非常差
    1.如此实验的界面，没有考虑到惯性滑动，用户滑动多少距离就移动多少距离，会觉得很卡顿；
    解决办法：手势识别的onfling方法中进行处理，可以参考PhotoView 解析一文
    2、同一时间只能横向移动或纵向移动，必须等一个行为停止之后，另一个才会被响应；

    package com.snap.awesomeserial.ui.widget; public class FullInformationView extends RelativeLayout {

    /**
 * 手指按下时的位置
 */
private float mStartX = 0;
/**
 * 滑动时和按下时的差值
 */
private float mMoveOffsetX = 0;
/**
 * 展示数据时使用的RecycleView
 */
private RecyclerView mRecyclerView;
/**
 * RecycleView的Adapter
 */
private FullInformationAdapter mAdapter;
private Context context;
/**
 * 触发拦截手势的最小值
 */
private int mTriggerMoveDis = 30;
private float currentOffsetX;
private ScrollListener horizontalListener;
private ScrollListener verticalListener;


public FullInformationView(Context context) {
    this(context, null);
}

public FullInformationView(Context context, AttributeSet attrs) {
    this(context, attrs, 0);
}

public FullInformationView(Context context, AttributeSet attrs, int defStyleAttr) {
    super(context, attrs, defStyleAttr);
    this.context = context;
}

private void initView() {
    LinearLayout linearLayout = new LinearLayout(getContext());
    linearLayout.setOrientation(LinearLayout.VERTICAL);
    linearLayout.addView(createMoveRecyclerView());
    addView(linearLayout, new LayoutParams(LayoutParams.MATCH_PARENT,
            ViewGroup.LayoutParams.MATCH_PARENT));
}


public void setHorizontalListener(ScrollListener horizontalListener) {
    this.horizontalListener = horizontalListener;
}

public void setVerticalListener(ScrollListener verticalListener) {
    this.verticalListener = verticalListener;
}

/**
 * 创建数据展示布局
 **/
private View createMoveRecyclerView() {
    FrameLayout linearLayout = new FrameLayout(getContext());
    mRecyclerView = new RecyclerView(getContext());
    GridLayoutManager layoutManager = new GridLayoutManager(context, 12, GridLayoutManager.VERTICAL, false);
    mRecyclerView.setLayoutManager(layoutManager);
    if (null != mAdapter) {
        mRecyclerView.setAdapter(mAdapter);
    }
    mRecyclerView.addOnScrollListener(new RecyclerView.OnScrollListener() {
        @Override
        public void onScrolled(RecyclerView recyclerView, int dx, int dy) {
            //显示区域的高度。
            int extent = mRecyclerView.computeVerticalScrollExtent();
            //整体的高度，注意是整体，包括在显示区域之外的。
            int range = mRecyclerView.computeVerticalScrollRange();
            //已经向下滚动的距离，为0时表示已处于顶部。
            int offset = mRecyclerView.computeVerticalScrollOffset();
            float percent = offset / ((range - extent) * 1f);
            verticalListener.onScroll(percent);
        }
    });

    linearLayout.addView(mRecyclerView, new LayoutParams(LayoutParams.MATCH_PARENT,
            LayoutParams.MATCH_PARENT));
    return linearLayout;
}

/**
 * 设置adapter
 *
 * @param adapter
 */
public void setAdapter(FullInformationAdapter adapter) {
    mAdapter = adapter;
    initView();
}

@Override
public boolean onInterceptTouchEvent(MotionEvent ev) {
    switch (ev.getAction()) {
        case MotionEvent.ACTION_DOWN:
            mStartX = ev.getX();
            break;
        case MotionEvent.ACTION_UP:
            break;
        case MotionEvent.ACTION_MOVE:
            int offsetX = (int) Math.abs(ev.getX() - mStartX);
            //水平移动大于30触发拦截
            if (offsetX > mTriggerMoveDis) {
                return true;
            } else {
                return false;
            }
        default:
    }
    return super.onInterceptTouchEvent(ev);
}

@Override
public boolean onTouchEvent(MotionEvent event) {
    float totalX = (getWidth() - AutoSizeUtils.dp2px(context, 1740));
    switch (event.getAction()) {
        case MotionEvent.ACTION_DOWN:
            return true;
        case MotionEvent.ACTION_UP:
            currentOffsetX = (mStartX - event.getX()) + currentOffsetX;
            if (currentOffsetX > totalX) {
                currentOffsetX = totalX;
            } else if (currentOffsetX < 0) {
                currentOffsetX = 0;
            }
            horizontalListener.onScroll(currentOffsetX / totalX);
            break;
        case MotionEvent.ACTION_MOVE:
            //计算偏移位置[绝对值]
            float offsetX = Math.abs(event.getX() - mStartX);
            if (offsetX > mTriggerMoveDis) {
                mMoveOffsetX = (mStartX - event.getX());
                //当滑动大于最大宽度时，不在滑动（右边到头了）
                float totalOffset = mMoveOffsetX + currentOffsetX;
                if (totalOffset > totalX) {
                    totalOffset = totalX;
                } else if (totalOffset < 0) {
                    totalOffset = 0;
                }
                //跟随手指向右滚动
                scrollTo((int) totalOffset, 0);
            }
            break;
        default:

    }
    return super.onTouchEvent(event);
}

    }

方案2 HorizontalScrollView嵌套RecyclerView

  • 解决问题：惯性滑动
  • 实现方式： HorizontalScrollView嵌套RecyclerView
  • 结论，方案1中的做法，已有成熟的控件实现，且不会出现冲突。这就说明，一开始做需求分析的时候，就很有问题。浪费了很多时间。当然虽然浪费时间，实现效果也不理想，但是自己写的过程中也加深了对事件分发的理解。
  • 缺点：问题2，同一时间只能横向移动或纵向移动，必须等一个行为停止之后，另一个才会被响应的问题依然存在。

如下所示，直接这样写就实现了横纵向滑动的目的。

 <HorizontalScrollView
            android:id="@+id/horizontalView"
            android:layout_width="1740dp"
            android:layout_height="822dp"
            android:orientation="horizontal"
            android:overScrollMode="never"
            android:scrollbars="none"
            app:layout_constraintStart_toStartOf="parent"
            app:layout_constraintTop_toBottomOf="@id/title_tv">

            <android.support.v7.widget.RecyclerView
                android:id="@+id/verticalRecyclerView"
                android:layout_width="3324dp"
                android:layout_height="match_parent"
                android:overScrollMode="never" />
        </HorizontalScrollView>

发现问题：纵向滑动不敏感。
解决办法：重写onInterceptTouchEvent方法，水平移动距离过小时，不拦截事件，传递给RecylerView纵向处理。治标不治本。辣鸡儿处理方式。

public class HorizontalView extends HorizontalScrollView {
    private int mTriggerMoveDis = 30;
    private float mStartX;

    public HorizontalView(Context context) {
        super(context);
    }

    public HorizontalView(Context context, AttributeSet attrs) {
        super(context, attrs);
    }

    public HorizontalView(Context context, AttributeSet attrs, int defStyleAttr) {
        super(context, attrs, defStyleAttr);
    }

    @Override
    public boolean onInterceptTouchEvent(MotionEvent ev) {
        switch (ev.getAction()) {
            case MotionEvent.ACTION_DOWN:
                mStartX = ev.getX();
                break;
            case MotionEvent.ACTION_UP:
                break;
            case MotionEvent.ACTION_MOVE:
                int offsetX = (int) Math.abs(ev.getX() - mStartX);
                //水平移动大于30触发拦截
                if (offsetX > mTriggerMoveDis) {
                    return true;
                } else {
                    return false;
                }
            default:
        }
        return super.onInterceptTouchEvent(ev);
    }
}

监听横纵滚动进度

        verticalRecyclerView.addOnScrollListener(new RecyclerView.OnScrollListener() {
            @Override
            public void onScrolled(RecyclerView recyclerView, int dx, int dy) {
                //显示区域的高度。
                int extent = verticalRecyclerView.computeVerticalScrollExtent();
                //整体的高度，注意是整体，包括在显示区域之外的。
                int range = verticalRecyclerView.computeVerticalScrollRange();
                //已经向下滚动的距离，为0时表示已处于顶部。
                int offset = verticalRecyclerView.computeVerticalScrollOffset();
                float percent = offset / ((range - extent) * 1f);
                verticalProgressBar.setProcess(percent);
            }
        });
        horizontalView.setOnScrollChangeListener(new View.OnScrollChangeListener() {
            @Override
            public void onScrollChange(View v, int scrollX, int scrollY, int oldScrollX, int oldScrollY) {
                horizontalProgressBar.setProcess(scrollX / (AutoSizeUtils.dp2px(FullInformationActivity.this, 1584) * 1f));
            }
        });

方案3 PhotoView

  • 解决问题：同一时间只能横向移动或纵向移动，必须等一个行为停止之后，另一个才会被响应。

  • 解决方式：使用第三方框架PhotoView
    1.自定义View画出界面；
    2.作为一个Drawable设置给PhotoView控件;
    3.通过缩放设置，实现图片的横纵向移动浏览功能；
    4.设置监听setOnMatrixChangeListener，实现滚动进度条；

  • 总结：自定义view应该直接加载xml的，这样写看着很乱；
    什么时候我能自己整个实现这个功能，把方案1补充完整，而不是用人家的轮子，就厉害啦。

    1.自定义View画出界面； public class FullInformationView extends LinearLayout { public FullInformationView(Context context) { super(context); setOrientation(VERTICAL); }

    public FullInformationView(Context context, @Nullable AttributeSet attrs) {
    super(context, attrs);
    setOrientation(VERTICAL);
}

public void init(List<Sample> samples) {
    int column = samples.size() / 12;
    for (int i = 0; i < column; i++) {
        LinearLayout row = new LinearLayout(getContext());
        LayoutParams rowLayoutParams = new LayoutParams(LayoutParams.WRAP_CONTENT, ShadowContainer.LayoutParams.WRAP_CONTENT);
        row.setOrientation(HORIZONTAL);
        for (int j = 0; j < 12; j++) {
            row.addView(getItem(samples.get(i * 12 + j)));
        }
        addView(row, rowLayoutParams);
    }
}

private ConstraintLayout getItem(Sample sample) {
    ConstraintLayout layout = new ConstraintLayout(getContext());
    layout.setId(R.id.full_information_item);
    LayoutParams layoutParams = new LayoutParams(dp2px(264), dp2px(210));
    layoutParams.setMargins(dp2px(12), dp2px(12), dp2px(12), dp2px(12));
    layout.setPadding(0, dp2px(28), 0, 0);
    layout.setBackground(getContext().getDrawable(R.drawable.bg_full_information_item));
    layout.setLayoutParams(layoutParams);

    TextView holeTv = new TextView(getContext());
    holeTv.setId(R.id.hole_tv);
    holeTv.setTextSize(24);
    holeTv.setTextColor(0xff333333);
    holeTv.setGravity(Gravity.CENTER);
    holeTv.setTypeface(Typeface.defaultFromStyle(Typeface.BOLD));
    ConstraintLayout.LayoutParams holeTvLp = new ConstraintLayout.LayoutParams(ConstraintLayout.LayoutParams.WRAP_CONTENT, ConstraintLayout.LayoutParams.WRAP_CONTENT);
    holeTvLp.setMargins(dp2px(24), 0, dp2px(24), 0);
    holeTvLp.startToStart = layout.getId();
    holeTvLp.topToTop = layout.getId();
    layout.addView(holeTv, holeTvLp);


    TextView standardTv = new TextView(getContext());
    standardTv.setBackground(getContext().getDrawable(R.drawable.ic_standard_none));
    standardTv.setTextSize(24);
    standardTv.setTextColor(getContext().getColor(R.color.white));
    standardTv.setGravity(Gravity.CENTER);
    ConstraintLayout.LayoutParams standardTvLp = new ConstraintLayout.LayoutParams(dp2px(36), dp2px(36));
    standardTvLp.endToEnd = layout.getId();
    standardTvLp.topToTop = layout.getId();
    layout.addView(standardTv, standardTvLp);


    TextView famProbeTv = new TextView(getContext());
    famProbeTv.setId(R.id.fam_probe_tv);
    famProbeTv.setTextSize(24);
    famProbeTv.setTextColor(0xff666666);
    famProbeTv.setGravity(Gravity.CENTER_VERTICAL);
    famProbeTv.setCompoundDrawablesWithIntrinsicBounds(getContext().getDrawable(R.drawable.oval_probe_ch1_12), null, null, null);
    famProbeTv.setCompoundDrawablePadding(dp2px(12));
    ConstraintLayout.LayoutParams famProbeTvLp = new ConstraintLayout.LayoutParams(ConstraintLayout.LayoutParams.WRAP_CONTENT, ConstraintLayout.LayoutParams.WRAP_CONTENT);
    famProbeTvLp.setMargins(dp2px(24), dp2px(18), 0, 0);
    famProbeTvLp.startToStart = layout.getId();
    famProbeTvLp.topToBottom = holeTv.getId();
    layout.addView(famProbeTv, famProbeTvLp);


    TextView vicProbeTv = new TextView(getContext());
    vicProbeTv.setId(R.id.vic_probe_tv);
    vicProbeTv.setTextSize(24);
    vicProbeTv.setTextColor(0xff666666);
    vicProbeTv.setGravity(Gravity.CENTER_VERTICAL);
    vicProbeTv.setCompoundDrawablesWithIntrinsicBounds(getContext().getDrawable(R.drawable.oval_probe_ch2_12), null, null, null);
    vicProbeTv.setCompoundDrawablePadding(dp2px(12));
    ConstraintLayout.LayoutParams vicProbeTvLp = new ConstraintLayout.LayoutParams(ConstraintLayout.LayoutParams.WRAP_CONTENT, ConstraintLayout.LayoutParams.WRAP_CONTENT);
    vicProbeTvLp.setMargins(dp2px(132), dp2px(18), 0, 0);
    vicProbeTvLp.startToStart = layout.getId();
    vicProbeTvLp.topToBottom = holeTv.getId();
    layout.addView(vicProbeTv, vicProbeTvLp);

    TextView roxProbeTv = new TextView(getContext());
    roxProbeTv.setId(R.id.rox_probe_tv);
    roxProbeTv.setTextSize(24);
    roxProbeTv.setTextColor(0xff666666);
    roxProbeTv.setGravity(Gravity.CENTER_VERTICAL);
    roxProbeTv.setCompoundDrawablesWithIntrinsicBounds(getContext().getDrawable(R.drawable.oval_probe_ch3_12), null, null, null);
    roxProbeTv.setCompoundDrawablePadding(dp2px(12));
    ConstraintLayout.LayoutParams roxProbeTvLp = new ConstraintLayout.LayoutParams(ConstraintLayout.LayoutParams.WRAP_CONTENT, ConstraintLayout.LayoutParams.WRAP_CONTENT);
    roxProbeTvLp.setMargins(0, dp2px(12), 0, 0);
    roxProbeTvLp.startToStart = famProbeTv.getId();
    roxProbeTvLp.topToBottom = famProbeTv.getId();
    layout.addView(roxProbeTv, roxProbeTvLp);

    TextView cy5ProbeTv = new TextView(getContext());
    cy5ProbeTv.setId(R.id.cy5_probe_tv);
    cy5ProbeTv.setTextSize(24);
    cy5ProbeTv.setTextColor(0xff666666);
    cy5ProbeTv.setGravity(Gravity.CENTER_VERTICAL);
    cy5ProbeTv.setCompoundDrawablesWithIntrinsicBounds(getContext().getDrawable(R.drawable.oval_probe_ch4_12), null, null, null);
    cy5ProbeTv.setCompoundDrawablePadding(dp2px(12));
    ConstraintLayout.LayoutParams cy5ProbeTvLp = new ConstraintLayout.LayoutParams(ConstraintLayout.LayoutParams.WRAP_CONTENT, ConstraintLayout.LayoutParams.WRAP_CONTENT);
    cy5ProbeTvLp.setMargins(0, dp2px(12), 0, 0);
    cy5ProbeTvLp.startToStart = vicProbeTv.getId();
    cy5ProbeTvLp.topToBottom = famProbeTv.getId();
    layout.addView(cy5ProbeTv, cy5ProbeTvLp);


    TextView sampleNameTv = new TextView(getContext());
    sampleNameTv.setBackgroundColor(getContext().getColor(R.color.white));
    sampleNameTv.setId(R.id.cy5_probe_tv);
    sampleNameTv.setTextSize(21);
    sampleNameTv.setTextColor(0xffe5e5e5);
    sampleNameTv.setGravity(Gravity.CENTER);
    ConstraintLayout.LayoutParams sampleNameTvLp = new ConstraintLayout.LayoutParams(dp2px(100), ConstraintLayout.LayoutParams.WRAP_CONTENT);
    sampleNameTvLp.setMargins(0, 0, 0, dp2px(24));
    sampleNameTvLp.bottomToBottom = layout.getId();
    sampleNameTvLp.endToEnd = layout.getId();
    sampleNameTvLp.startToStart = layout.getId();


    View view = new View(getContext());
    view.setBackgroundColor(0xFFE5E5E5);
    ConstraintLayout.LayoutParams viewLp = new ConstraintLayout.LayoutParams(ConstraintLayout.LayoutParams.MATCH_PARENT, dp2px(3));
    viewLp.setMargins(dp2px(24), 0, dp2px(24), 0);
    viewLp.bottomToBottom = sampleNameTv.getId();
    viewLp.topToTop = sampleNameTv.getId();
    layout.addView(view, viewLp);
    layout.addView(sampleNameTv, sampleNameTvLp);
    //设置数据
    holeTv.setText("A" + sample.getIndex());
    setProbe(famProbeTv, vicProbeTv, roxProbeTv, cy5ProbeTv, sample);
    setStandard(standardTv, sample);
    sampleNameTv.setText(sample.getName() == null ? "N/A" : sample.getName());
    return layout;
}

private void setProbe(TextView famProbeTv, TextView vicProbeTv, TextView roxProbeTv, TextView cy5ProbeTv, Sample sample) {
    famProbeTv.setText(sample.getCh1Probe() == null ? "N/A" : sample.getCh1Probe());
    vicProbeTv.setText(sample.getCh2Probe() == null ? "N/A" : sample.getCh2Probe());
    roxProbeTv.setText(sample.getCh3Probe() == null ? "N/A" : sample.getCh3Probe());
    cy5ProbeTv.setText(sample.getCh4Probe() == null ? "N/A" : sample.getCh4Probe());
}

private void setStandard(TextView standardTv, Sample sample) {
    String tag = null;
    if (sample.getTag() == 0) {
        standardTv.setVisibility(View.GONE);
    } else {
        standardTv.setVisibility(View.VISIBLE);
        if (sample.getTag() == Constants.SAMPLE_TAG_UNKNOWN) {
            tag = "U";
        } else if (sample.getTag() == Constants.SAMPLE_TAG_STANDARD) {
            tag = "S";
        } else if (sample.getTag() == Constants.SAMPLE_TAG_POSITIVE) {
            tag = "P";
        } else if (sample.getTag() == Constants.SAMPLE_TAG_NEGATIVE) {
            tag = "N";
        }
        standardTv.setText(tag);
    }
}

private int dp2px(int value) {
    return AutoSizeUtils.dp2px(getContext(), value);
}

    }

    2.作为一个Drawable设置给PhotoView控件; 3.通过缩放设置，实现图片的横纵向移动浏览功能； full_information_view.post(new Runnable() { @Override public void run() { Bitmap bitmap = loadBitmapFromView(full_information_view); photoView.setImageBitmap(bitmap); Matrix matrix = new Matrix(); matrix.setScale(2f, 2f,0,0); photoView.setDisplayMatrix(matrix); } });

    public static Bitmap loadBitmapFromView(FullInformationView v) { Bitmap b = Bitmap.createBitmap(v.getWidth(), v.getHeight(), Bitmap.Config.ARGB_8888); Canvas c = new Canvas(b); c.drawColor(Color.WHITE); v.layout(0, 0, v.getLayoutParams().width, v.getLayoutParams().height); v.draw(c); return b; }

    4.设置监听setOnMatrixChangeListener，实现滚动进度条； photoView.setOnMatrixChangeListener(new OnMatrixChangedListener() { @Override public void onMatrixChanged(RectF rect) { Matrix matrix = new Matrix(); photoView.getDisplayMatrix(matrix); float[] floats = new float[9]; matrix.getValues(floats); float scaleX = floats[0]; float scaleY = floats[4]; float offsetX =Math.abs(floats[2]) ; float offsetY = Math.abs(floats[5]); } });

PhotoView的源码分析以及使用请移步下个文章

PhotoView的源码分析以及使用

avatar
文章
阅读
粉丝
