前言
ProFormGroup会把多个表单项合并成表单项中的一个,类似下图:
需求
表单项里有两层ProFormList,如下:

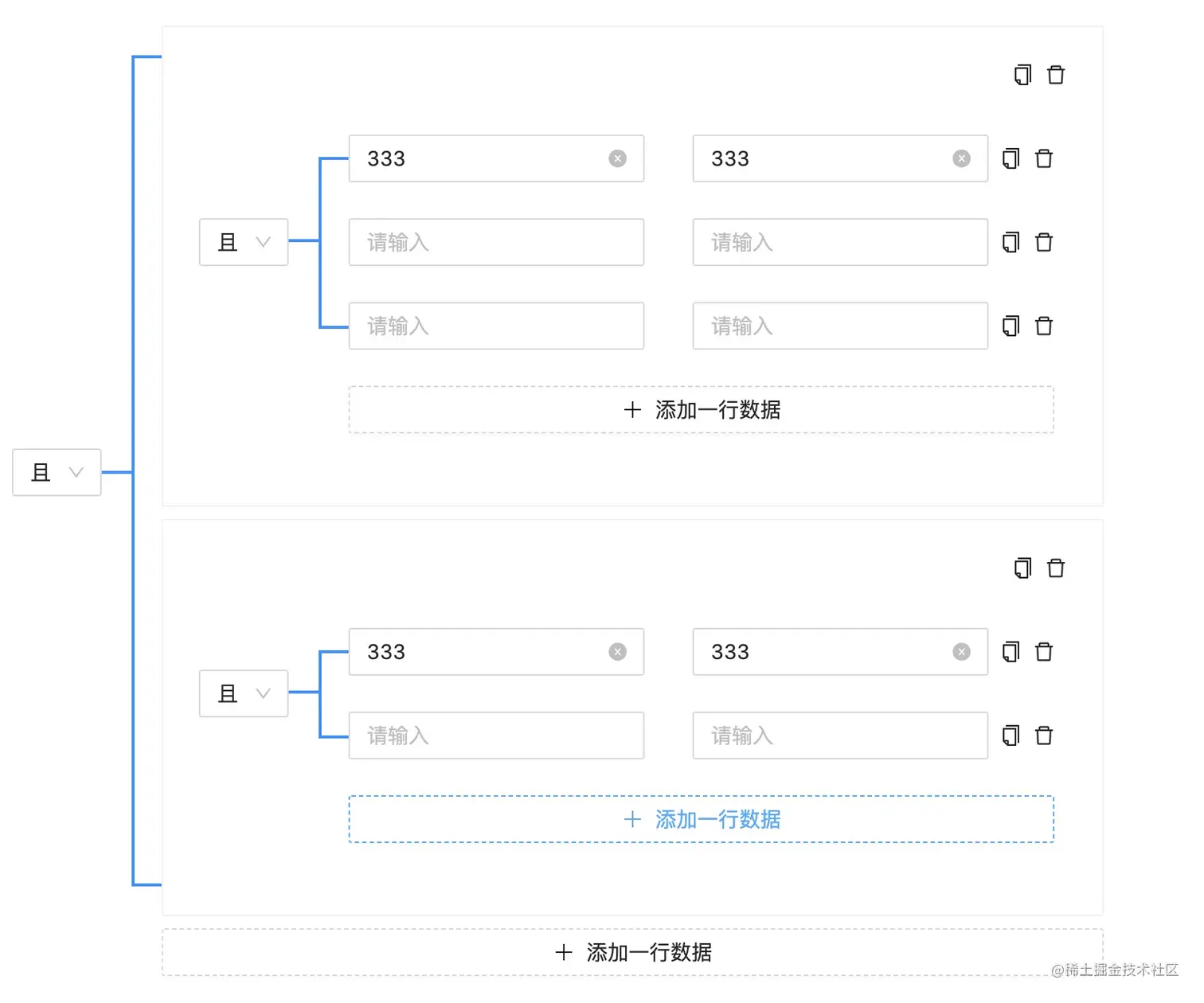

这里需要完成两层的线路指示图:如下:
所以要将线路图画出来,线路这层需要重写样式。
问题

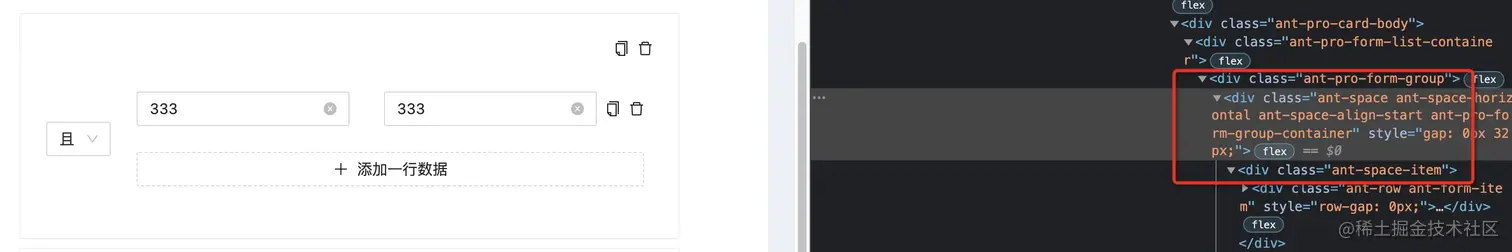

这个表单项是嵌套了两层ProFormList,也有同样的ProformGroup结构,ProformGroup在嵌套ProFormFields时是会自动套三层antd(.ant-proform-group、.ant-space、.ant-space-item)自己的样式,且这个样式没法通过对ProFormGroup标签代码去自定义classname,如下:
而我们这个项目是使用scss model的方法去将元素样式嵌入(即:global覆写antd样式),一开始我是这么写的:
.diyForm {
margin-bottom: 8px!important;
:global {
.ant-pro-form-group > .ant-space {
display: flex;
flex-wrap: nowrap;
align-items: center;
gap: 0px 0px!important;
.ant-space-item:nth-child(2) {
align-self: stretch;
width: 20px;
}
}
}
}

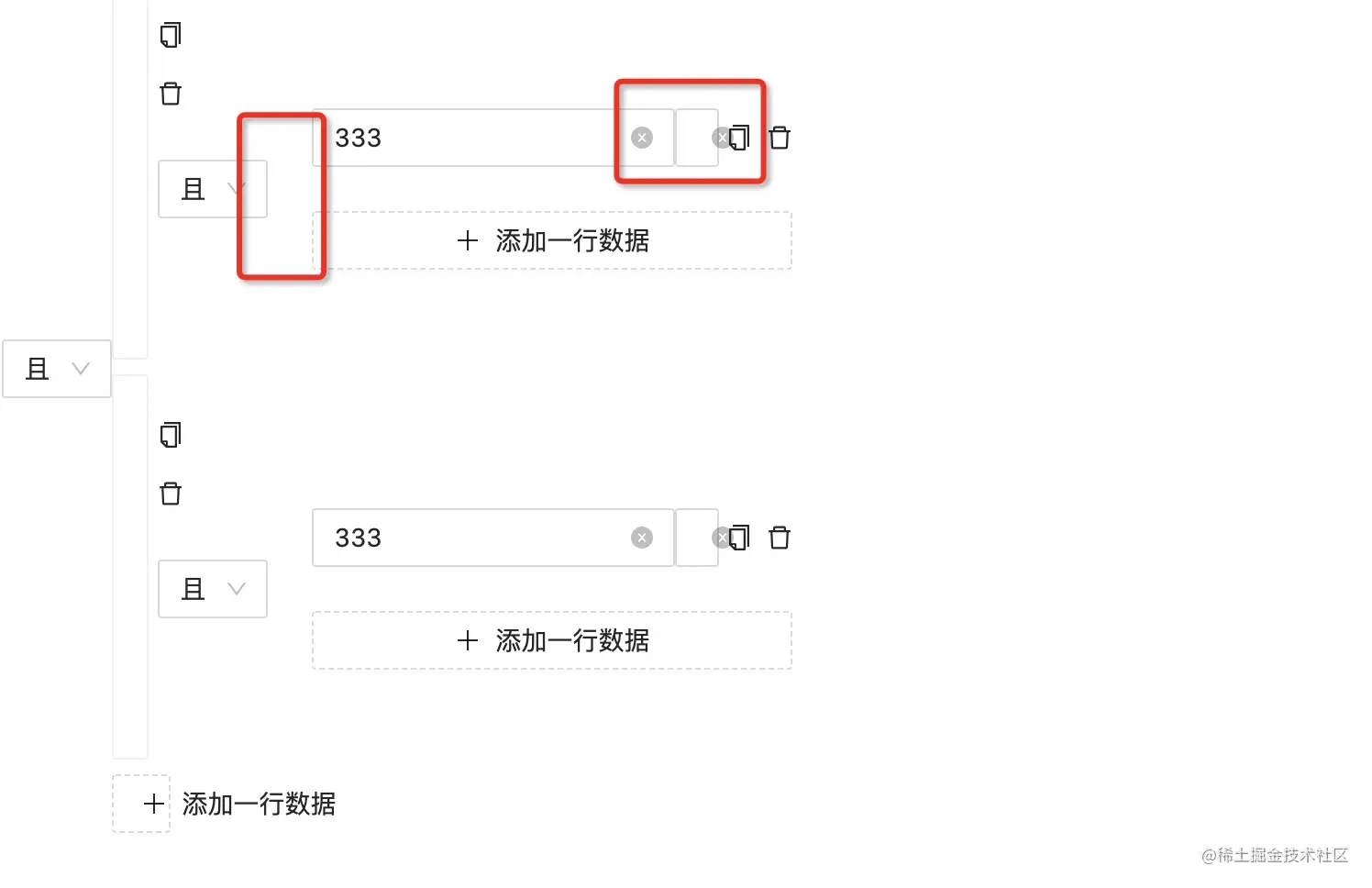

这样的结果是会影响到两层,如下:
解决
.diyForm {
margin-bottom: 8px!important;
:global {
.ant-row + .ant-pro-form-group > .ant-space {
display: flex;
flex-wrap: nowrap;
align-items: center;
// gap: 0px 0px!important;
// & > .ant-space-item:nth-child(2) {
// align-self: stretch;
// width: 20px;
// }
}
}
}
兄弟元素还是挺有用的,显示如下:
