前端部署脚手架专网项目实践

前言

前端脚手架是前端工程化中一项重要的提升团队效率的工具,因而构建脚手架对于前端工程师而言是一项不可获取的技能,而业界对于部署方面的脚手架相对较少,一般来说都是针对于业务的相关模板进行相关的工程化脚手架构建,本文旨在提供一些对前端部署相关的脚手架实践方案,希望对构建工程链路相关的同学能有所帮助。

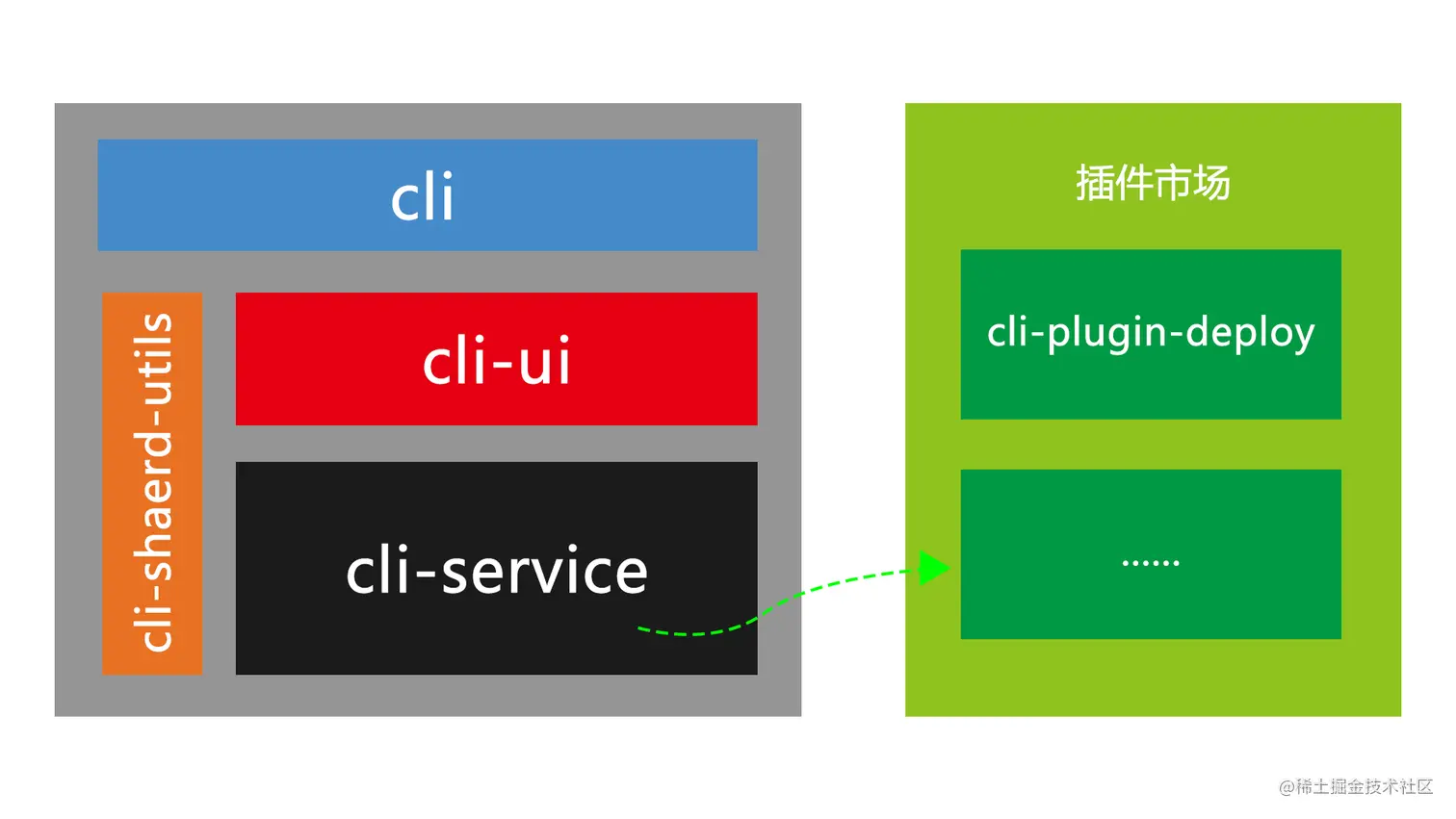

架构

对于一款脚手架而言,不只是单单实现一个部署的方案,因而在脚手架架构设计方面,采用了插件化的插件模式,通过插件化的机制将所需要的功能部分进行提供

目录

  • packages
    • @pnw
      • cli
      • cli-service
      • cli-shared-utils
      • cli-ui
    • test
  • scripts
    • bootstrap.js
    • dev.js
    • prod.js
    • release.js
  • env.json

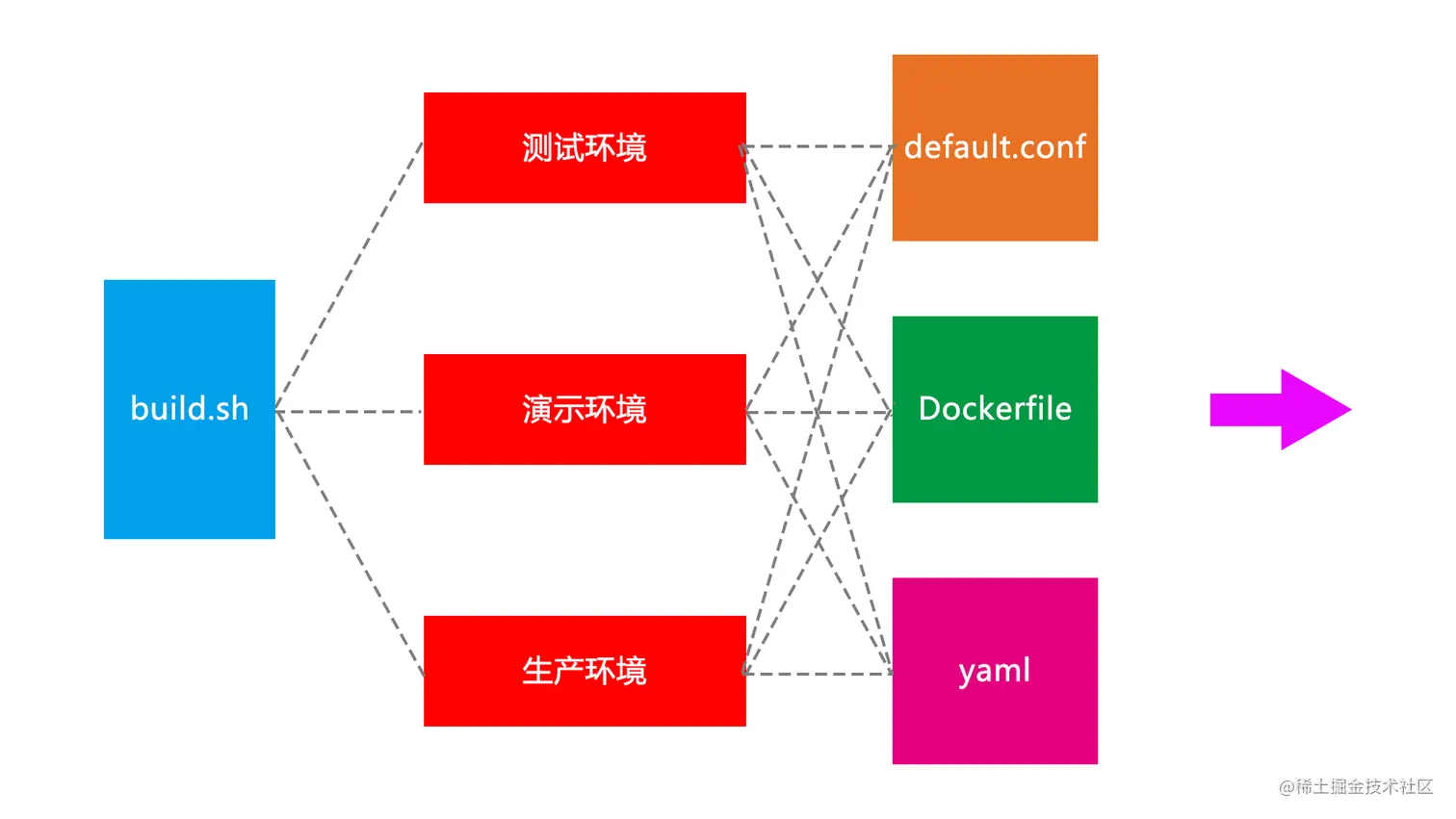

案例

使用@pnw/cli脚手架构建,使用命令pnw deploy实现部署目录的构建,后续进行ci/cd流程,其中default.conf主要用于nginx的构建,Dockerfile用于镜像的构建,yaml文件主要用于k8s相关的构建

源码

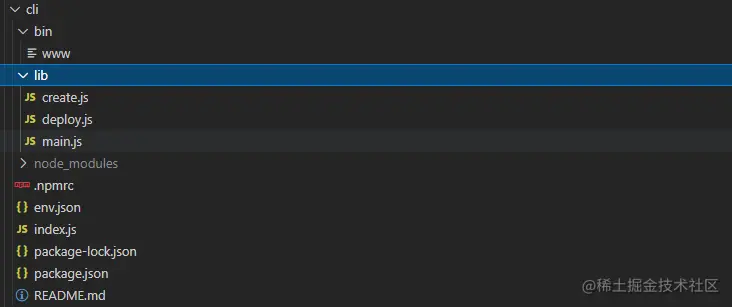

cli

部署部分的核心在deploy.js中的deployFn函数的调起,而这部分是在cli-plugin-deploy中去实现具体的功能

create.js

const { isDev } = require('../index');

console.log('isDev', isDev)

const { Creator } = isDev ? require('../../cli-service') : require('@pnw/cli-service');

const creator = new Creator();

module.exports = (name, targetDir, fetch) => {
    return creator.create(name, targetDir, fetch)
}
复制代码

deploy.js

const { isDev } = require('../index');

const {
    path,
    stopSpinner,
    error,
    info
} = require('@pnw/cli-shared-utils');

const create = require('./create');

const { Service } = isDev ? require('../../cli-service') : require('@pnw/cli-service');

const { deployFn } = isDev ? require('../../cli-plugin-deploy') :require('@pnw/cli-plugin-deploy');

// console.log('deployFn', deployFn);

async function fetchDeploy(...args) {
    info('fetchDeploy 执行了')
    const service = new Service();
    service.apply(deployFn);
    service.run(...args);
}


async function deploy(options) {
    // 自定义配置deploy内容 TODO
    info('deploy 执行了')
    const targetDir = path.resolve(process.cwd(), '.');
    return await create('deploy', targetDir, fetchDeploy)
}

module.exports = (...args) => {
    return deploy(...args).catch(err => {
        stopSpinner(false)
        error(err)
    })
};
复制代码

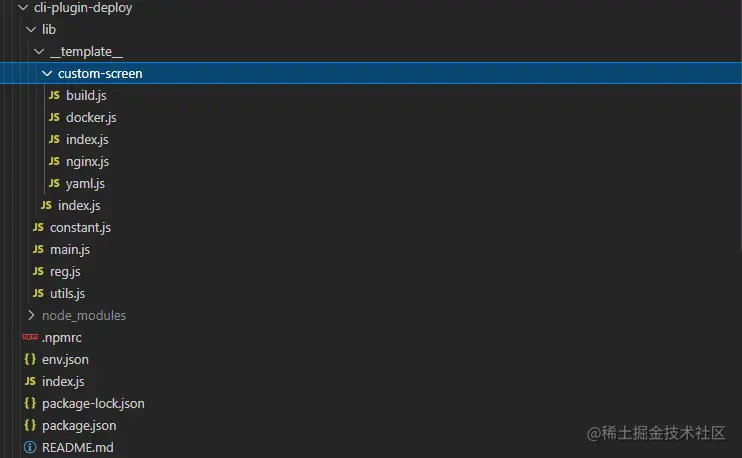

cli-plugin-deploy

实现部署部分的核心部分,其中build、nginx、docker、yaml等主要是用于生成模板内容文件

build.js

exports.build = config => {
    return `npm install
npm run build`
};
复制代码

docker.js

exports.docker = config => {
    const {
        forward_name,
        env_directory
    } = config;
    return `FROM harbor.dcos.ncmp.unicom.local/platpublic/nginx:1.20.1
COPY ./dist /usr/share/nginx/html/${forward_name}/
COPY ./deploy/${env_directory}/default.conf /etc/nginx/conf.d/
EXPOSE 80`
}
复制代码

nginx.js

exports.nginx = config => {
	return `client_max_body_size 1000m;
server {
	listen       80;
	server_name  localhost;

	location / {
		root   /usr/share/nginx/html;
		index  index.html;
		gzip_static on;
	}
}`
}
复制代码

yaml.js

exports.yaml = config => {
  const {
    git_name
  } = config;
  return `apiVersion: apps/v1
kind: Deployment
metadata:
  name: ${git_name}
spec:
  replicas: 1
  selector:
    matchLabels:
      app: ${git_name}
  template:
    metadata:
      labels:
        app: ${git_name}
    spec:
      containers:
        - name: ${git_name}
          image: harbor.dcos.ncmp.unicom.local/custom/${git_name}:1.0
          imagePullPolicy: Always
          resources:
            limits:
              cpu: 5
              memory: 10G
            requests:
              cpu: 1
              memory: 1G
          ports:
            - containerPort: 80`
}
复制代码

index.js

// const { fs, path } = require('@pnw/cli-shared-utils');

const { TEMPLATES } = require('../constant');

/**
 *
 * @param {*} template 模板路径
 * @param {*} config 注入模板的参数
 */
function generate(template, config) {
    // console.log('template', template);
    return require(`./${template}`).generateJSON(config);
}


function isExitTemplate(template) {
    return TEMPLATES.includes(template)
}

TEMPLATES.forEach(m => {
    Object.assign(exports, {
        [`${m}`]: require(`./${m}`)
    })
})



exports.createTemplate = (tempalteName, env_dirs) => {
    if( isExitTemplate(tempalteName) ) {
        return generate(tempalteName, {
            // git_name: 'fescreenrj',
            // forward_name: 'rj',
            env_dirs
        });
    } else {
        return `${tempalteName} is NOT A Template, Please SELECT A correct TEMPLATE`
    }
}
复制代码

main.js

const {
    createTemplate
} = require('./__template__');

const { isDev } = require('../index');

console.log('isDev', isDev);

const {
    REPO_REG,
    PATH_REG
} = require('./reg');

const {
    TEMPLATES
} = require('./constant');

const {
    path,
    fs,
    inquirer,
    done,
    error
} = isDev ? require('../../cli-shared-utils') : require('@pnw/cli-shared-utils');

/**
 *
 * @param {*} targetDir 目标文件夹的绝对路径
 * @param {*} fileName 文件名称
 * @param {*} fileExt 文件扩展符
 * @param {*} data 文件内容
 */
const createFile = async (targetDir, fileName, fileExt, data) => {
    // console.log('fileName', fileName);
    // console.log('fileExt', fileExt);
    let file = fileName + '.' + fileExt;
    if (!fileExt) file = fileName;
    // console.log('file', file)
    await fs.promises.writeFile(path.join(targetDir, file), data)
            .then(() => done(`创建文件${file}成功`))
            .catch(err => {
                if (err) {
                    error(err);
                    return err;
                }
            });
}



/**
 *
 * @param {*} targetDir 需要创建目录的目标路径地址
 * @param {*} projectName 需要创建的目录名称
 * @param {*} templateStr 目录中的配置字符串
 * @param {*} answers 命令行中获取到的参数
 */
const createCatalogue = async (targetDir, projectName, templateMap, answers) => {
    const templateKey = Object.keys(templateMap)[0],
        templateValue = Object.values(templateMap)[0];

    // console.log('templateKey', templateKey);

    // console.log('templateValue', templateValue);

    // 获取模板对应的各种工具函数
    const {
        yaml,
        nginx,
        build,
        docker
    } = require('./__template__')[`${templateKey}`];

    // 获取环境文件夹
    const ENV = templateValue.ENV;

    console.log('path.join(targetDir, projectName)', targetDir, projectName)
    // 1. 创建文件夹
    await fs.promises.mkdir(path.join(targetDir, projectName)).then(() => {
            done(`创建工程目录${projectName}成功`);
            return true
        })
        .then((flag) => {
            // console.log('flag', flag);
            // 获取build的Options
            const buildOptions = templateValue.FILE.filter(f => f.KEY == 'build')[0];

            // console.log('buildOptions', buildOptions);

            flag && createFile(path.join(targetDir, projectName), buildOptions[`NAME`], buildOptions[`EXT`], build());
        })
        .catch(err => {
            if (err) {
                error(err);
                return err;
            }
        });

    ENV.forEach(env => {
        fs.promises.mkdir(path.join(targetDir, projectName, env))
            .then(() => {
                done(`创建工程目录${projectName}/${env}成功`);
                return true;
            })
            .then(flag => {
                // 获取docker的Options
                const dockerOptions = templateValue.FILE.filter(f => f.KEY == 'docker')[0];
                flag && createFile(path.join(targetDir, projectName, env), dockerOptions[`NAME`], dockerOptions[`EXT`], docker({
                    forward_name: answers[`forward_name`],
                    env_directory: env
                }));
                // 获取yaml的Options
                const yamlOptions = templateValue.FILE.filter(f => f.KEY == 'yaml')[0];
                flag && createFile(path.join(targetDir, projectName, env), yamlOptions[`NAME`], yamlOptions[`EXT`], yaml({
                    git_name: answers[`repo_name`]
                }));
                // 获取nginx的Options
                const nginxOptions = templateValue.FILE.filter(f => f.KEY == 'nginx')[0];
                flag && createFile(path.join(targetDir, projectName, env), nginxOptions[`NAME`], nginxOptions[`EXT`], nginx());
            })
            .catch(err => {
                if (err) {
                    error(err);
                    return err;
                }
            });
    });
}

/**
 *
 * @param {*} projectName 生成的目录名称
 * @param {*} targetDir 绝对路径
 */
 module.exports = async (projectName, targetDir) => {
    let options = [];
    async function getOptions() {
        return fs.promises.readdir(path.resolve(__dirname, './__template__')).then(files => files.filter(f => TEMPLATES.includes(f)))
    }

    options = await getOptions();

    console.log('options', options);

    const promptList = [{
            type: 'list',
            message: '请选择你所需要部署的应用模板',
            name: 'template_name',
            choices: options
        },
        {
            type: 'checkbox',
            message: '请选择你所需要部署的环境',
            name: 'env_dirs',
            choices: [{
                    value: 'dev',
                    name: '开发环境'
                },
                {
                    value: 'demo',
                    name: '演示环境'
                },
                {
                    value: 'production',
                    name: '生产环境'
                },
            ]
        },
        {
            type: 'input',
            name: 'repo_name',
            message: '建议以当前git仓库的缩写作为镜像名称',
            filter: function (v) {
                return v.match(REPO_REG).join('')
            }
        },
        {
            type: 'input',
            name: 'forward_name',
            message: '请使用符合url路径规则的名称',
            filter: function (v) {
                return v.match(PATH_REG).join('')
            }
        },
    ];

    inquirer.prompt(promptList).then(answers => {
        console.log('answers', answers);
        const {
            template_name
        } = answers;
        // console.log('templateName', templateName)
        // 获取模板字符串
        const templateStr = createTemplate(template_name, answers.env_dirs);
        // console.log('template', JSON.parse(templateStr));
        const templateMap = {
            [`${template_name}`]: JSON.parse(templateStr)
        }
        createCatalogue(targetDir, projectName, templateMap, answers);
    })
};
复制代码

cli-service

Service和Creator分别是两个基类,用于提供基础的相关服务

Creator.js

const {
    path,
    fs,
    chalk,
    stopSpinner,
    inquirer,
    error
} = require('@pnw/cli-shared-utils');

class Creator {
    constructor() {

    }
    async create(projectName, targetDir, fetch) {
        // const cwd = process.cwd();
        // const inCurrent = projectName === '.';
        // const name = inCurrent ? path.relative('../', cwd) : projectName;
        // targetDir = path.resolve(cwd, name || '.');
        // if (fs.existsSync(targetDir)) {
        //     const {
        //         action
        //     } = await inquirer.prompt([{
        //         name: 'action',
        //         type: 'list',
        //         message: `Target directory ${chalk.cyan(targetDir)} already exists. Pick an action:`,
        //         choices: [{
        //                 name: 'Overwrite',
        //                 value: 'overwrite'
        //             },
        //             {
        //                 name: 'Merge',
        //                 value: 'merge'
        //             },
        //             {
        //                 name: 'Cancel',
        //                 value: false
        //             }
        //         ]
        //     }])
        //     if (!action) {
        //         return
        //     } else if (action === 'overwrite') {
        //         console.log(`\nRemoving ${chalk.cyan(targetDir)}...`)
        //         await fs.remove(targetDir)
        //     }
        // }

        await fetch(projectName, targetDir);
    }
}

module.exports = Creator;
复制代码

Service.js

const { isFunction } = require('@pnw/cli-shared-utils')

class Service {
    constructor() {
        this.plugins = [];
    }
    apply(fn) {
        if(isFunction(fn)) this.plugins.push(fn)
    }
    run(...args) {
        if( this.plugins.length > 0 ) {
            this.plugins.forEach(plugin => plugin(...args))
        }
    }
}

module.exports = Service;
复制代码

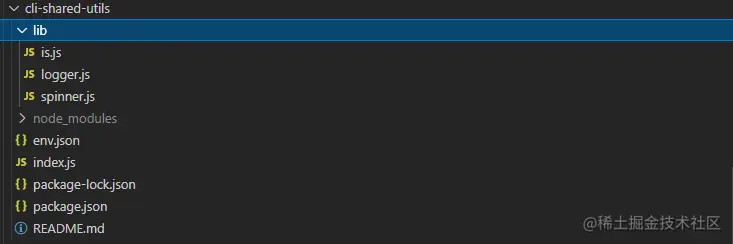

cli-shared-utils

共用工具库,将第三方及node相关核心模块收敛到这个里边,统一输出和魔改

is.js

exports.isFunction= fn => typeof fn === 'function';
复制代码

logger.js

const chalk = require('chalk');
const {
    stopSpinner
} = require('./spinner');

const format = (label, msg) => {
    return msg.split('\n').map((line, i) => {
        return i === 0 ?
            `${label} ${line}` :
            line.padStart(stripAnsi(label).length + line.length + 1)
    }).join('\n')
};

exports.log = (msg = '', tag = null) => {
    tag ? console.log(format(chalkTag(tag), msg)) : console.log(msg)
};

exports.info = (msg, tag = null) => {
    console.log(format(chalk.bgBlue.black(' INFO ') + (tag ? chalkTag(tag) : ''), msg))
};

exports.done = (msg, tag = null) => {
    console.log(format(chalk.bgGreen.black(' DONE ') + (tag ? chalkTag(tag) : ''), msg))
};

exports.warn = (msg, tag = null) => {
    console.warn(format(chalk.bgYellow.black(' WARN ') + (tag ? chalkTag(tag) : ''), chalk.yellow(msg)))
};

exports.error = (msg, tag = null) => {
    stopSpinner()
    console.error(format(chalk.bgRed(' ERROR ') + (tag ? chalkTag(tag) : ''), chalk.red(msg)))
    if (msg instanceof Error) {
        console.error(msg.stack)
    }
}
复制代码

spinner.js

const ora = require('ora')
const chalk = require('chalk')

const spinner = ora()
let lastMsg = null
let isPaused = false

exports.logWithSpinner = (symbol, msg) => {
  if (!msg) {
    msg = symbol
    symbol = chalk.green('✔')
  }
  if (lastMsg) {
    spinner.stopAndPersist({
      symbol: lastMsg.symbol,
      text: lastMsg.text
    })
  }
  spinner.text = ' ' + msg
  lastMsg = {
    symbol: symbol + ' ',
    text: msg
  }
  spinner.start()
}

exports.stopSpinner = (persist) => {
  if (!spinner.isSpinning) {
    return
  }

  if (lastMsg && persist !== false) {
    spinner.stopAndPersist({
      symbol: lastMsg.symbol,
      text: lastMsg.text
    })
  } else {
    spinner.stop()
  }
  lastMsg = null
}

exports.pauseSpinner = () => {
  if (spinner.isSpinning) {
    spinner.stop()
    isPaused = true
  }
}

exports.resumeSpinner = () => {
  if (isPaused) {
    spinner.start()
    isPaused = false
  }
}

exports.failSpinner = (text) => {
  spinner.fail(text)
}
复制代码

总结

前端工程链路不仅仅是前端应用项目的构建,同时也需要关注整个前端上下游相关的构建,包括但不限于:ui构建、测试构建、部署构建等,对于前端工程化而言,所有能够抽象成模板化的东西都应该可以被工程化,这样才能降本增效,提升开发体验与效率,共勉!!!

参考

分类:
前端
标签:
分类:
前端
标签:
收藏成功!
已添加到「」, 点击更改
