自建 TCP Server

Rust 提供了标准库 std::net 模块，提供网络基本功能，支持 TCP 和 UDP 通信。

下面我们将一步一步来搭建一个 TCP Server 和一个 TCP Client。

Step1 创建工作空间及项目

# 创建工作空间
cargo new s1 && cd s1
# 创建两个项目
cargo new tcpserver
cargo new tcpclient

配置 s1 目录下的 Cargo.toml：

[workspace]

members = ["tcpserver", "tcpclient"]

Step2 创建TCP Server

tcpserver/src/main.rs

use std::net::TcpListener;

fn main() {
    let listener = TcpListener::bind("127.0.0.1:3000").unwrap();
    println!("Running on port 3000...");

    for stream in listener.incoming() {
        let _stream = stream.unwrap();
        println!("Connection established!");
    }
}

运行：

cargo run -p tcpserver

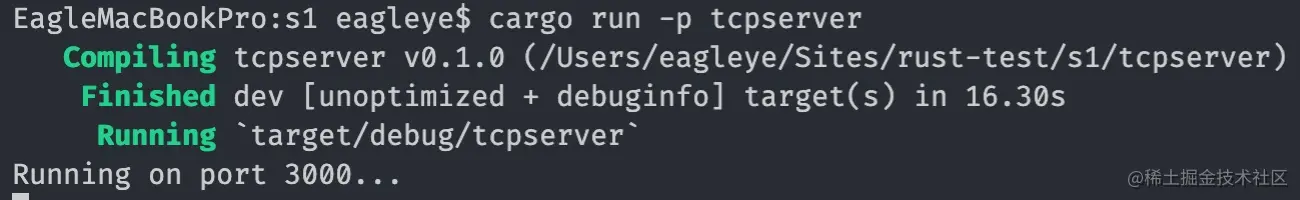

效果如下图所示：

Step3 创建 TCP Client

tcpclient/src/main.rs

use std::net::TcpStream;

fn main() {
    let _stream = TcpStream::connect("localhost:3000").unwrap();
}

新打开一个命令行窗口，运行：

cargo run -p tcpclient

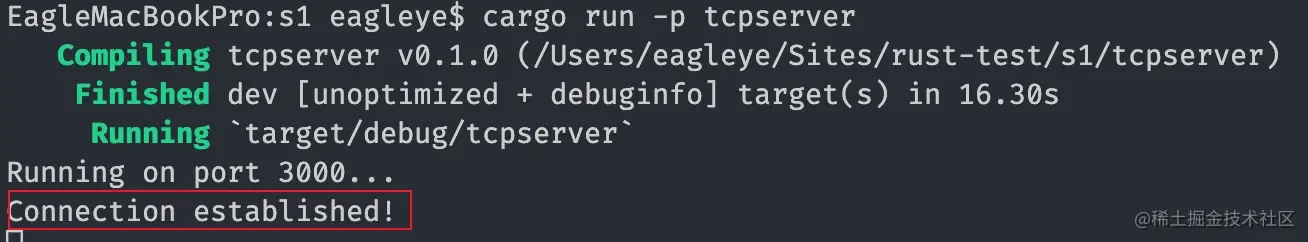

运行 tcpserver 那个命令行窗口效果如下图所示：

Step4 TCP Server 收发消息

tcpserver/src/main.rs

use std::net::TcpListener;
use std::io::{Read, Write};

fn main() {
    let listener = TcpListener::bind("127.0.0.1:3000").unwrap();
    println!("Running on port 3000...");

    for stream in listener.incoming() {
        let mut stream = stream.unwrap();
        println!("Connection established!");
        let mut buffer = [0; 1024];

        stream.read(&mut buffer).unwrap();
        stream.write(&mut buffer).unwrap();
    }
}

重新运行。

Step5 TCP Client 收发消息

tcpclient/src/main.rs

use std::net::TcpStream;
use std::io::{Read, Write};
use std::str;

fn main() {
    let mut stream = TcpStream::connect("localhost:3000").unwrap();
    stream.write("Hello".as_bytes()).unwrap();

    let mut buffer = [0; 5];
    stream.read(&mut buffer).unwrap();

    println!(
        "Response from server: {:?}",
        str::from_utf8(&buffer).unwrap()
    );
}

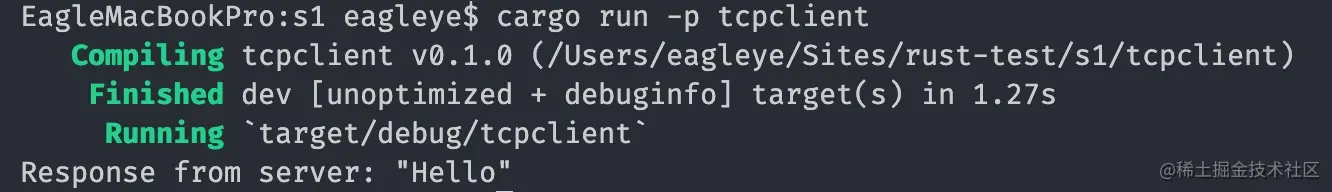

重新运行，运行 tcpclient 那个命令行窗口效果如下图所示：

自建 HTTP Server

Rust 中没有内置的 HTTP 支持，所以我们需要自己进行构建，构建的内容如下：

Server 监听进来的 TCP 字节流
Router 接受 HTTP 请求，并决定调用哪个 Handler
Handler 处理 HTTP 请求，构建 HTTP 响应
HTTP Library 解释字节流，把它转化为 HTTP 请求；把 HTTP 响应转化回字节流

构建步骤：

解析 HTTP 请求消息
构建 HTTP 响应消息
路由与 Handler
测试 Web Server

创建项目

# 创建二进制库
cargo new httpserver
# 创建 library 库
cargo new --lib http

修改 s1/Cargo.toml：

[workspace]

members = ["tcpserver", "tcpclient", "httpserver", "http"]

解析 HTTP 请求（消息）

需要的四个数据结构

数据结构名称	数据结构	描述
HttpRequest	struct	表示 HTTP 请求
Method	enum	指定所允许的 HTTP 方法
Version	enum	指定所允许的 HTTP 版本
Resource	enum	路径

需要实现的 Trait

Trait	描述
From<&str>	用于把传进来的字符串切片转化为 HttpRequest
Debug	打印调试信息
PartialEq	用于解析和自动化测试脚本里做比较

HTTP 请求的构成

Request Line 例如：GET(Method) /greeing(Path) HTTP/1.1(Version)
Header Line 是 key-value 格式，例如：Host: localhost:3000; User-Agent: Curl/7.64.1; Accept: */* 等
Empty Line
Message body

代码实现

http/src/lib.rs 中添加：

pub mod httprequest;

http/src/httprequest.rs：

use std::collections::HashMap;

#[derive(Debug, PartialEq)] // 提供基础实现
pub enum Method {
    Get,
    Post, // 目前只实现 Get 和 Post 两种
    Uninitialized,
}

impl From<&str> for Method {
    fn from(s: &str) -> Method {
        match s {
            "GET" => Method::Get,
            "POST" => Method::Post,
            _ => Method::Uninitialized,
        }
    }
}

#[derive(Debug, PartialEq)]

pub enum Version {
    V1_1,
    V2_0,
    Uninitialized,
}

impl From<&str> for Version {
    fn from(s: &str) -> Version {
        match s {
            "HTTP/1.1" => Version::V1_1, // 暂时实现这一个
            _ => Version::Uninitialized,
        }
    }
}
#[derive(Debug, PartialEq)]
pub enum Resource {
    Path(String),
}

#[derive(Debug)]
pub struct HttpRequest {
    pub method: Method,
    pub version: Version,
    pub resource: Resource,
    pub headers: HashMap<String, String>,
    pub msg_body: String,
}

impl From<String> for HttpRequest {
    fn from(req: String) -> Self {
        let mut parsed_method = Method::Uninitialized;
        let mut parsed_version = Version::V1_1;
        let mut parsed_resource = Resource::Path("".to_string());
        let mut parsed_headers = HashMap::new();
        let mut parsed_msg_body = "";

        for line in req.lines() {
            if line.contains("HTTP") {
                // 处理 http 请求行
                let (method, resource, version) = process_req_line(line);
                parsed_method = method;
                parsed_resource = resource;
                parsed_version = version;
            } else if line.contains(":") {
                // 处理 header 行
                let (key, value) = process_header_line(line);
                parsed_headers.insert(key, value);
            } else if line.len() == 0 {
            } else {
                parsed_msg_body = line;
            }
        }

        HttpRequest {
            method: parsed_method,
            version: parsed_version,
            resource: parsed_resource,
            headers: parsed_headers,
            msg_body: parsed_msg_body.to_string(),
        }
    }
}

fn process_req_line(s: &str) -> (Method, Resource, Version) {
    let mut words = s.split_whitespace();
    let method = words.next().unwrap();
    let resource = words.next().unwrap();
    let version = words.next().unwrap();

    (
        method.into(),
        Resource::Path(resource.to_string()),
        version.into(),
    )
}

fn process_header_line(s: &str) -> (String, String) {
    let mut header_items = s.split(":");
    let mut key = String::from("");
    let mut value = String::from("");
    if let Some(k) = header_items.next() {
        key = k.to_string();
    }
    if let Some(v) = header_items.next() {
        value = v.to_string();
    }

    (key, value)
}

#[cfg(test)]
mod tests {
    use super::*;

    #[test]
    fn test_method_into() {
        let m: Method = "GET".into();
        assert_eq!(m, Method::Get);
    }

    #[test]
    fn test_version_into() {
        let v: Version = "HTTP/1.1".into();
        assert_eq!(v, Version::V1_1);
    }

    #[test]
    fn test_read_http() {
        let s: String = String::from("GET /greeting HTTP/1.1\r\nHost: localhost:3000\r\nUser-Agent: curl/7.71.1\r\nAccept: */*\r\n\r\n");
        let mut headers_expected = HashMap::new();
        headers_expected.insert("Host".into(), " localhost".into());
        headers_expected.insert("Accept".into(), " */*".into());
        headers_expected.insert("User-Agent".into(), " curl/7.71.1".into());
        let req: HttpRequest = s.into();
        assert_eq!(Method::Get, req.method);
        assert_eq!(Version::V1_1, req.version);
        assert_eq!(Resource::Path("/greeting".to_string()), req.resource);
        assert_eq!(headers_expected, req.headers);
    }
}

运行测试：

cargo test -p http

构建 HTTP 响应

响应体的结构

Status Line 例如：HTTP/1.1（Version） 200 （Status code） OK（Status text）
Header Line 是 key-value 格式，例如：Content-type: text/html; Content-Length: 30 等
Empty Line
Message body

需要实现的方法或 Trait

需要实现的方法或 Trait	用途
Default trait	指定成员的默认值
new()	使用默认值创建一个新的结构体
send_response()	构建响应，将原始字节通过 TCP 传送
getter 方法	获得成员的值
From trait	能够将 HttpResponse 转化为 String

代码实现

http/src/lib.rs 中添加：

pub mod httpresponse;

http/src/httpresponse.rs ：

use std::{collections::HashMap, io::{Write, Result}};

#[derive(Debug, PartialEq, Clone)]
pub struct HttpResponse<'a> {
    version: &'a str,
    status_code: &'a str,
    status_text: &'a str,
    headers: Option<HashMap<&'a str, &'a str>>,
    body: Option<String>,
}

impl<'a> Default for HttpResponse<'a> {
    fn default() -> Self {
        Self {
            version: "HTTP/1.1".into(),
            status_code: "200".into(),
            status_text: "OK".into(),
            headers: None,
            body: None,
        }
    }
}

impl<'a> From<HttpResponse<'a>> for String {
    fn from(res: HttpResponse) -> String {
        let res1 = res.clone();
        format!(
            "{} {} {}\r\n{}Content-Length: {}\r\n\r\n{}",
            &res1.version(),
            &res1.status_code(),
            &res1.status_text(),
            &res1.headers(),
            &res.body.unwrap().len(),
            &res1.body()
        )
    }

}

impl<'a> HttpResponse<'a> {
    pub fn new(
        status_code: &'a str,
        headers: Option<HashMap<&'a str, &'a str>>,
        body: Option<String>,
    ) -> HttpResponse<'a> {
        let mut response: HttpResponse<'a> = HttpResponse::default();
        if status_code != "200" {
            response.status_code = status_code.into();
        }
        response.headers = match &headers {
            Some(_h) => headers,
            None => {
                let mut h = HashMap::new();
                h.insert("Content-Type", "text/html");
                Some(h)
            }
        };
        response.status_text = match response.status_code {
            "200" => "OK".into(),
            "400" => "Bad Request".into(),
            "404" => "Not Found".into(),
            "500" => "Internal Server Error".into(),
            _ => "Not Found".into(),
        };

        response.body = body;

        response
    }

    pub fn send_response(&self, write_stream: &mut impl Write) -> Result<()> {
        let res = self.clone();
        let response_string: String = String::from(res);
        let _ = write!(write_stream, "{}", response_string);

        Ok(())
    }

    fn version(&self) -> &str {
        self.version
    }

    fn status_code(&self) -> &str {
        self.status_code
    }

    fn status_text(&self) -> &str {
        self.status_text
    }

    fn headers(&self) -> String {
        let map: HashMap<&str, &str> = self.headers.clone().unwrap();
        let mut header_string: String = "".into();
        for (k, v) in map.iter() {
            header_string = format!("{}{}:{}\r\n", header_string, k, v);
        }
        header_string
    }

    pub fn body(&self) -> &str {
        match &self.body {
            Some(b) => b.as_str(),
            None => "",
        }
    }
}

#[cfg(test)]
mod tests {
    use super::*;

    #[test]
    fn test_response_struct_creation_200() {
        let response_actual = HttpResponse::new("200", None, Some("xxxx".into()));
        let response_expected = HttpResponse {
            version: "HTTP/1.1",
            status_code: "200",
            status_text: "OK",
            headers: {
                let mut h = HashMap::new();
                h.insert("Content-Type", "text/html");
                Some(h)
            },
            body: Some("xxxx".into()),
        };
        assert_eq!(response_actual, response_expected);
    }

    #[test]
    fn test_response_struct_creation_404() {
        let response_actual = HttpResponse::new("404", None, Some("xxxx".into()));
        let response_expected = HttpResponse {
            version: "HTTP/1.1",
            status_code: "404",
            status_text: "Not Found",
            headers: {
                let mut h = HashMap::new();
                h.insert("Content-Type", "text/html");
                Some(h)
            },
            body: Some("xxxx".into()),
        };
        assert_eq!(response_actual, response_expected);
    }

    #[test]
    fn test_http_response_creation() {
        let response_expected = HttpResponse {
            version: "HTTP/1.1",
            status_code: "404",
            status_text: "Not Found",
            headers: {
                let mut h = HashMap::new();
                h.insert("Content-Type", "text/html");
                Some(h)
            },
            body: Some("xxxx".into()),
        };
        let http_string: String = response_expected.into();
        let actual_string =
            "HTTP/1.1 404 Not Found\r\nContent-Type:text/html\r\nContent-Length: 4\r\n\r\nxxxx";
        assert_eq!(http_string, actual_string);
    }
}

构建 server 模块

引入 http 包

在 httpserver 项目中引入前面实现的 http 包，在 httpserver/Cago.toml 中添加依赖：

[dependencies]
http = {path = "../http"}

代码实现

main 函数会调用 server，server 会调用 router，router 再调用 handler。

在 httpserver/src/main.rs 中使用 server 模块：

mod handler;
mod router;
mod server;

use server::Server;

fn main() {
    let server = Server::new("localhost:3000");
    server.run();
}

httpserver/src/server.rs

use super::router::Router;
use std::{net::TcpListener, io::Read};

use http::httprequest::HttpRequest;

pub struct Server<'a> {
    socket_addr: &'a str,
}

impl<'a> Server<'a> {
    pub fn new(socket_addr: &'a str) -> Self {
        Server { socket_addr }
    }

    pub fn run(&self) {
        let connection_listener = TcpListener::bind(self.socket_addr).unwrap();
        println!("Running on port {}", self.socket_addr);

        for stream in connection_listener.incoming() {
            let mut stream = stream.unwrap();
            println!("Connection established!");

            let mut read_buffer = [0; 1024];
            stream.read(&mut read_buffer).unwrap();
            let req: HttpRequest = String::from_utf8(read_buffer.to_vec()).unwrap().into();
            Router::route(req, &mut stream);
        }
    }
}

构建 router 模块

代码实现

httpserver/src/router.rs

use std::{io::Write};

use super::handler::{Handler, PageNotFoundHandler, StaticPageHandler, WebServiceHandler};
use http::{httprequest, httprequest::HttpRequest, httpresponse::HttpResponse};

pub struct Router;

impl Router {
    pub fn route(req: HttpRequest, stream: &mut impl Write) -> () {
        match req.method {
            httprequest::Method::Get => match &req.resource {
                httprequest::Resource::Path(s) => {
                    let route: Vec<&str> = s.split("/").collect();
                    match route[1] {
                        "api" => {
                            let resp: HttpResponse = WebServiceHandler::handle(&req);
                            let _ = resp.send_response(stream);
                        }
                        _ => {
                            let resp: HttpResponse = StaticPageHandler::handle(&req);
                            let _ = resp.send_response(stream);
                        }
                    }
                }
            }, // 暂时仅实现 get 方法
            _ => {
                let resp: HttpResponse = PageNotFoundHandler::handle(&req);
                let _ = resp.send_response(stream);
            }
        }
    }
}

构建 handler 模块

添加 JSON 相关依赖

使用 serde 与 serde_json 两个 crate 来进行 JSON 相关数据处理，在 httpserver/Cargo.toml 中添加依赖：

serde = {version="1.0.131", features=["derive"]}
serde_json = "1.0.72"

代码实现

httpserver/src/handler.rs

use http::{httprequest::HttpRequest, httpresponse::HttpResponse};
use serde::{Deserialize, Serialize};
use std::{env, fs, collections::HashMap};

pub trait Handler {
    fn handle(req: &HttpRequest) -> HttpResponse;
    fn load_file(file_name: &str) -> Option<String> {
        let default_path = format!("{}/public", env!("CARGO_MANIFEST_DIR"));
        let public_path = env::var("PUBLIC_PATH").unwrap_or(default_path);
        let full_path = format!("{}/{}", public_path, file_name);

        let contents = fs::read_to_string(full_path);
        contents.ok()
    }
}

pub struct StaticPageHandler;
pub struct PageNotFoundHandler;
pub struct WebServiceHandler;

#[derive(Deserialize, Serialize)]
pub struct OrderStatus {
    order_id: i32,
    order_date: String,
    order_status: String,
}

impl Handler for PageNotFoundHandler {
    fn handle(_req: &HttpRequest) -> HttpResponse {
        HttpResponse::new("404", None, Self::load_file("404.html"))
    }
}

impl Handler for StaticPageHandler {
    fn handle(req: &HttpRequest) -> HttpResponse {
        let http::httprequest::Resource::Path(s) = &req.resource;
        let route: Vec<&str> = s.split("/").collect();
        match route[1] {
            "" => HttpResponse::new("200", None, Self::load_file("index.html")),
            "health" => HttpResponse::new("200", None, Self::load_file("health.html")),
            path => match Self::load_file(path) {
                Some(contents) => {
                    let mut map: HashMap<&str, &str> = HashMap::new();
                    if path.ends_with(".css") {
                        map.insert("Content-Type", "text/css");
                    } else if path.ends_with(".js") {
                        map.insert("Content-Type", "text/javascript");
                    } else {
                        map.insert("COntent-Type", "text/html");
                    }
                    HttpResponse::new("200", Some(map), Some(contents))
                }
                None => HttpResponse::new("404", None, Self::load_file("404.html")),
            }
        }
    }
}

impl WebServiceHandler {
    fn load_json() -> Vec<OrderStatus> {
        let default_path = format!("{}/data", env!("CARGO_MANIFEST_DIR"));
        let data_path = env::var("DATA_PATH").unwrap_or(default_path);
        let full_path = format!("{}/{}", data_path, "orders.json");
        let json_contents = fs::read_to_string(full_path);
        let orders: Vec<OrderStatus> =
            serde_json::from_str(json_contents.unwrap().as_str()).unwrap();
        orders
    }
}

impl Handler for WebServiceHandler {
    fn handle(req: &HttpRequest) -> HttpResponse {
        let http::httprequest::Resource::Path(s) = &req.resource;
        let route: Vec<&str> = s.split("/").collect();
        // localhost:3000/api/shipping/orders
        match route[2] {
            "shipping" if route.len() > 2 && route[3] == "orders" => {
                let body = Some(serde_json::to_string(&Self::load_json()).unwrap());
                let mut headers: HashMap<&str, &str> = HashMap::new();
                headers.insert("Content-Type", "application/json");
                HttpResponse::new("200", Some(headers), body)
            }
            _ => HttpResponse::new("404", None, Self::load_file("404.html"))
        }
    }
}

添加页面和 JSON

httpserver/src/data/orders.json

[
    {
        "order_id": 1,
        "order_date": "21 Jan 2020",
        "order_status": "Delivered"
    },
    {
        "order_id": 2,
        "order_date": "2 Feb 2020",
        "order_status": "Pending"
    }
]

httpserver/src/public/404.html

<!DOCTYPE html>
<html lang="en">
<head>
  <meta charset="UTF-8">
  <meta http-equiv="X-UA-Compatible" content="IE=edge">
  <meta name="viewport" content="width=device-width, initial-scale=1.0">
  <title>404</title>
</head>
<body>
  <h1>404 Error</h1>
  <p>Sorry the requested page does not exist</p>
</body>
</html>

httpserver/src/public/index.html

<!DOCTYPE html>
<html lang="en">
<head>
  <meta charset="UTF-8">
  <meta http-equiv="X-UA-Compatible" content="IE=edge">
  <meta name="viewport" content="width=device-width, initial-scale=1.0">
  <link rel="stylesheet" href="styles.css">
  <title>Index!</title>
</head>
<body>
  <h1>Hello, wellcome to home page</h1>
  <p>This is the index page for the web site</p>
</body>
</html>

httpserver/src/public/health.html

<!DOCTYPE html>
<html lang="en">
<head>
  <meta charset="UTF-8">
  <meta http-equiv="X-UA-Compatible" content="IE=edge">
  <meta name="viewport" content="width=device-width, initial-scale=1.0">
  <title>Health!</title>
</head>
<body>
  <h1>Hello, wellcome to health page</h1>
  <p>This site is perfectly fine</p>
</body>
</html>

httpserver/src/public/styles.css

h1 {
  color: red;
  margin-left: 25px;
}

运行项目：

cargo run -p httpserver

Rust 学习笔记 - Web 全栈开发1

自建 TCP Server

Step1 创建工作空间及项目

Step2 创建TCP Server

Step3 创建 TCP Client

Step4 TCP Server 收发消息

Step5 TCP Client 收发消息

自建 HTTP Server

创建项目

解析 HTTP 请求（消息）

需要的四个数据结构

需要实现的 Trait

HTTP 请求的构成

代码实现

构建 HTTP 响应

响应体的结构

需要实现的方法或 Trait

代码实现

构建 server 模块

引入 http 包

代码实现

构建 router 模块

代码实现

构建 handler 模块

添加 JSON 相关依赖

代码实现

添加页面和 JSON
