4-12：业务落地：创建结构路由表

4-12：业务落地：创建结构路由表

想要实现结构路由表，那么我们需要先知道最终我们要实现的结构是什么样子的，大家来看下面的截图：

这是我们最终要实现的 menu 截图

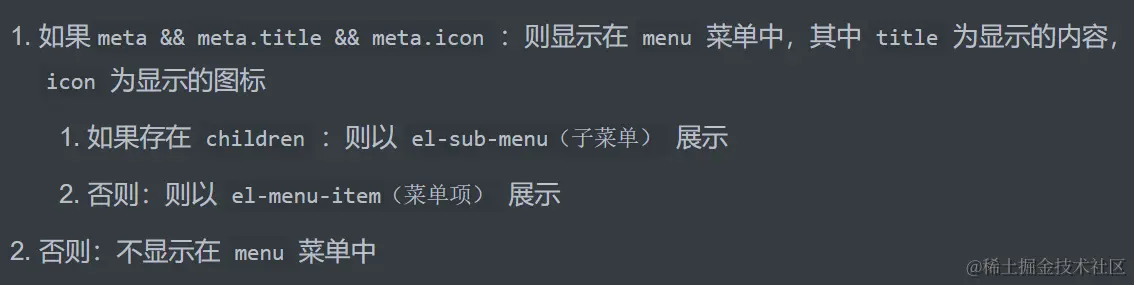

根据此截图，我们可以知道两点内容：

1. 我们创建的页面并没有全部进行展示

   1. 根据该方案
   2. 即不显示页面 不满足 该条件 meta && meta.title && meta.icon

2. menu 菜单将具备父子级的结构

   1. 按照此结构规划数据，则数据应为

      [
          {
              "title": "个人中心",
              "path": ""
          },
          {
              "title": "用户",
              "children": [
                  {
                      "title": "员工管理",
                      "path": ""
                  },
                  {
                      "title": "角色列表",
                      "path": ""
                  },
                  {
                      "title": "权限列表",
                      "path": ""
                  }
              ]
          },
          {
              "title": "文章",
              "children": [
                  {
                      "title": "文章排名",
                      "path": ""
                  },
                  {
                      "title": "创建文章",
                      "path": ""
                  }
              ]
          }
      ]


又因为将来我们需要进行 用户权限处理，所以此时我们需要先对路由表进行一个划分：

1. 私有路由表 privateRoutes ：权限路由

   2. 公有路由表 publicRoutes：无权限路由

根据以上理论，生成以下路由表结构：

/**
 * 私有路由表
 */
const privateRoutes = [
  {
    path: '/user',
    component: layout,
    redirect: '/user/manage',
    meta: {
      title: 'user',
      icon: 'personnel'
    },
    children: [
      {
        path: '/user/manage',
        component: () => import('@/views/user-manage/index'),
        meta: {
          title: 'userManage',
          icon: 'personnel-manage'
        }
      },
      {
        path: '/user/role',
        component: () => import('@/views/role-list/index'),
        meta: {
          title: 'roleList',
          icon: 'role'
        }
      },
      {
        path: '/user/permission',
        component: () => import('@/views/permission-list/index'),
        meta: {
          title: 'permissionList',
          icon: 'permission'
        }
      },
      {
        path: '/user/info/:id',
        name: 'userInfo',
        component: () => import('@/views/user-info/index'),
        meta: {
          title: 'userInfo'
        }
      },
      {
        path: '/user/import',
        name: 'import',
        component: () => import('@/views/import/index'),
        meta: {
          title: 'excelImport'
        }
      }
    ]
  },
  {
    path: '/article',
    component: layout,
    redirect: '/article/ranking',
    meta: {
      title: 'article',
      icon: 'article'
    },
    children: [
      {
        path: '/article/ranking',
        component: () => import('@/views/article-ranking/index'),
        meta: {
          title: 'articleRanking',
          icon: 'article-ranking'
        }
      },
      {
        path: '/article/:id',
        component: () => import('@/views/article-detail/index'),
        meta: {
          title: 'articleDetail'
        }
      },
      {
        path: '/article/create',
        component: () => import('@/views/article-create/index'),
        meta: {
          title: 'articleCreate',
          icon: 'article-create'
        }
      },
      {
        path: '/article/editor/:id',
        component: () => import('@/views/article-create/index'),
        meta: {
          title: 'articleEditor'
        }
      }
    ]
  }
]

/**
 * 公开路由表
 */
const publicRoutes = [
  {
    path: '/login',
    component: () => import('@/views/login/index')
  },
  {
    path: '/',
    // 注意：带有路径“/”的记录中的组件“默认”是一个不返回 Promise 的函数
    component: layout,
    redirect: '/profile',
    children: [
      {
        path: '/profile',
        name: 'profile',
        component: () => import('@/views/profile/index'),
        meta: {
          title: 'profile',
          icon: 'el-icon-user'
        }
      },
      {
        path: '/404',
        name: '404',
        component: () => import('@/views/error-page/404')
      },
      {
        path: '/401',
        name: '401',
        component: () => import('@/views/error-page/401')
      }
    ]
  }
]

const router = createRouter({
  history: createWebHashHistory(),
  routes: [...publicRoutes, ...privateRoutes]
})

最后不要忘记在 layout/appMain 下设置路由出口

<template>
  <div class="app-main">
    <router-view></router-view>
  </div>
</template>
