记录JavaWeb使用MyBatis连接数据库基础配置项和报错信息处理

1. 新建项目

选择sdk1.8 语言级别8.0

2.新建模块

选择Maven模块

3.添加测试使用的数据库

CREATE DATABASE mybatis;
USE mybatis;

DROP TABLE IF EXISTS tb_user;

CREATE TABLE tb_user(
	id int primary key auto_increment,
	username varchar(20),
	password varchar(20),
	gender char(1),
	addr varchar(30)
);

INSERT INTO tb_user VALUES (1, 'zhangsan', '123', '男', '北京');
INSERT INTO tb_user VALUES (2, '李四', '234', '女', '天津');
INSERT INTO tb_user VALUES (3, '王五', '11', '男', '西安');

SELECT * FROM tb_user;

4.编辑项目下pom.xml依赖配置文件

分别添加:mybatis junit slf4j logback logback

<dependencies>
    <!--添加mybatis驱动-->
    <dependency>
        <groupId>org.mybatis</groupId>
        <artifactId>mybatis</artifactId>
        <version>3.5.5</version>
    </dependency>

    <!--添加mysql驱动-->
    <dependency>
        <groupId>mysql</groupId>
        <artifactId>mysql-connector-mxj</artifactId>
        <version>5.0.12</version>
    </dependency>

    <!-- junit单元测试 -->
    <dependency>
        <groupId>junit</groupId>
        <artifactId>junit</artifactId>
        <version>4.13</version>
        <scope>test</scope>
    </dependency>

    <!-- 添加slf4j日志api -->
    <dependency>
        <groupId>org.slf4j</groupId>
        <artifactId>slf4j-api</artifactId>
        <version>1.7.20</version>
    </dependency>
    <!-- 添加logback-classic依赖 -->
    <dependency>
        <groupId>ch.qos.logback</groupId>
        <artifactId>logback-classic</artifactId>
        <version>1.2.3</version>
    </dependency>
    <!-- 添加logback-core依赖 -->
    <dependency>
        <groupId>ch.qos.logback</groupId>
        <artifactId>logback-core</artifactId>
        <version>1.2.3</version>
    </dependency>
</dependencies>

5.项目main/java/resources中新建mybatis-config.xml文件并添加配置项

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
        PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
    <environments default="development">
        <environment id="development">
            <transactionManager type="JDBC"/>
            <dataSource type="POOLED">
                <!--sql的连接信息-->
                <property name="driver" value="com.mysql.jdbc.Driver"/>
                <!-- mybatis是我的数据库名称 -->
                <property name="url" value="jdbc:mysql://localhost:3306/mybatis?useSSL=false"/>
                <!-- 账号 密码-->
                <property name="username" value="root"/>
                <property name="password" value="123456"/>
            </dataSource>
        </environment>
    </environments>
    <mappers>
        <!-- 加载sql的映射文件-->
        <mapper resource="UserMapper.xml"/>
    </mappers>
</configuration>

6.项目main/java/resources中新建UserMapper.xml文件并添加配置项

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">

<!-- namespace为命名空间 -->
<mapper namespace="UserTest">
    <!--添加sql执行语句-->
    <select id="selectAll" resultType="com.mybatis.User">
        select * from tb_user;
    </select>
</mapper>

7.java项目下新建包和Java类

public class MybatisDemo {
    public static void main(String[] args) throws IOException {
        //读取mybatis配置文件
        String resource = "mybatis-config.xml";
        InputStream inputStream = Resources.getResourceAsStream(resource);
        SqlSessionFactory sqlSessionFactory = new SqlSessionFactoryBuilder().build(inputStream);
        // 获取sql执行对象sqlSession
        SqlSession sqlSession = sqlSessionFactory.openSession();
        List<User> users = sqlSession.selectList("UserTest.selectAll");
        System.out.println(users);
        //释放资源
        sqlSession.close();
    }
}

重点来了 此时会报错

报错信息

Exception in thread "main" org.apache.ibatis.exceptions.PersistenceException:
### Error querying database.  Cause: java.sql.SQLException: Error setting driver on UnpooledDataSource. Cause: java.lang.ClassNotFoundException: Cannot find class: com.mysql.cj.jdbc.Driver
### The error may exist in UserMapper.xml
### The error may involve test.selectAll
### The error occurred while executing a query
### Cause: java.sql.SQLException: Error setting driver on UnpooledDataSource. Cause: java.lang.ClassNotFoundException: Cannot find class: com.mysql.cj.jdbc.Driver
	at org.apache.ibatis.exceptions.ExceptionFactory.wrapException(ExceptionFactory.java:30)
	at org.apache.ibatis.session.defaults.DefaultSqlSession.selectList(DefaultSqlSession.java:149)
	at org.apache.ibatis.session.defaults.DefaultSqlSession.selectList(DefaultSqlSession.java:140)
	at org.apache.ibatis.session.defaults.DefaultSqlSession.selectList(DefaultSqlSession.java:135)
	at com.itheima.MyBatisDemo.main(MyBatisDemo.java:29)
Caused by: java.sql.SQLException: Error setting driver on UnpooledDataSource. Cause: java.lang.ClassNotFoundException: Cannot find class: com.mysql.cj.jdbc.Driver
	at org.apache.ibatis.datasource.unpooled.UnpooledDataSource.initializeDriver(UnpooledDataSource.java:244)
	at org.apache.ibatis.datasource.unpooled.UnpooledDataSource.doGetConnection(UnpooledDataSource.java:223)
	at org.apache.ibatis.datasource.unpooled.UnpooledDataSource.doGetConnection(UnpooledDataSource.java:219)
	at org.apache.ibatis.datasource.unpooled.UnpooledDataSource.getConnection(UnpooledDataSource.java:95)
	at org.apache.ibatis.datasource.pooled.PooledDataSource.popConnection(PooledDataSource.java:432)
	at org.apache.ibatis.datasource.pooled.PooledDataSource.getConnection(PooledDataSource.java:89)
	at org.apache.ibatis.transaction.jdbc.JdbcTransaction.openConnection(JdbcTransaction.java:139)
	at org.apache.ibatis.transaction.jdbc.JdbcTransaction.getConnection(JdbcTransaction.java:61)
	at org.apache.ibatis.executor.BaseExecutor.getConnection(BaseExecutor.java:337)
	at org.apache.ibatis.executor.SimpleExecutor.prepareStatement(SimpleExecutor.java:86)
	at org.apache.ibatis.executor.SimpleExecutor.doQuery(SimpleExecutor.java:62)
	at org.apache.ibatis.executor.BaseExecutor.queryFromDatabase(BaseExecutor.java:325)
	at org.apache.ibatis.executor.BaseExecutor.query(BaseExecutor.java:156)
	at org.apache.ibatis.executor.CachingExecutor.query(CachingExecutor.java:109)
	at org.apache.ibatis.executor.CachingExecutor.query(CachingExecutor.java:89)
	at org.apache.ibatis.session.defaults.DefaultSqlSession.selectList(DefaultSqlSession.java:147)
	... 3 more

8.解决报错问题\

1.将pom.xml中的mysql驱动升级为8.0以上的版本 升级完一定要刷新Maven包的加载

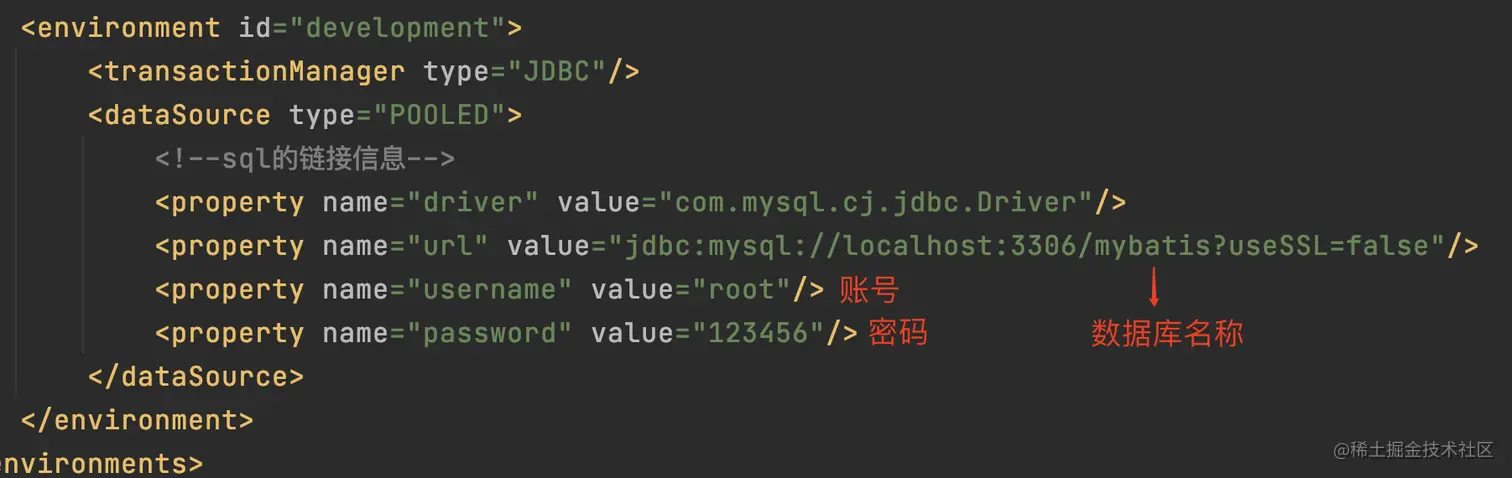

2.修改 mybatis.config.xml中的mysql包信息
