如何阅读源码
简单概括就是八个字：抽丝剥茧、点到即止。应该认准一个功能点，然后去分析这个功能点是如何实现的。但只要去追寻主体的实现逻辑即可，千万不要试图去搞懂每一行代码都是什么意思，那样很容易会陷入到思维黑洞当中，而且越陷越深。

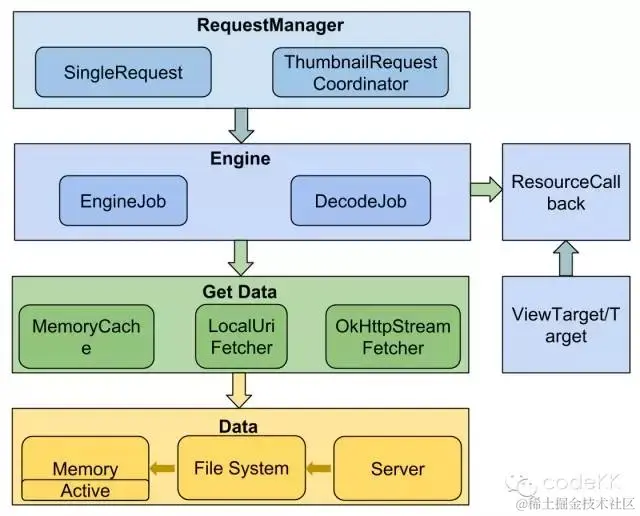

Glide 架构图
with方法
public class Glide {
...
public static RequestManager with(Context context) {
//(1)调用RequestManagerRetriever的静态get()方法得到一个RequestManagerRetriever对象，这个静态get()方法就是一个单例实现
RequestManagerRetriever retriever = RequestManagerRetriever.get();
return retriever.get(context);
}
public static RequestManager with(Activity activity) {
RequestManagerRetriever retriever = RequestManagerRetriever.get();
return retriever.get(activity);
}
public static RequestManager with(FragmentActivity activity) {
RequestManagerRetriever retriever = RequestManagerRetriever.get();
return retriever.get(activity);
}
@TargetApi(Build.VERSION_CODES.HONEYCOMB)
public static RequestManager with(android.app.Fragment fragment) {
RequestManagerRetriever retriever = RequestManagerRetriever.get();
return retriever.get(fragment);
}
public static RequestManager with(Fragment fragment) {
RequestManagerRetriever retriever = RequestManagerRetriever.get();
return retriever.get(fragment);
}
}
public class RequestManagerRetriever implements Handler.Callback {
private static final RequestManagerRetriever INSTANCE = new RequestManagerRetriever();
private volatile RequestManager applicationManager;
...
/**
* Retrieves and returns the RequestManagerRetriever singleton.
*/
public static RequestManagerRetriever get() {
return INSTANCE;
}
private RequestManager getApplicationManager(Context context) {
// Either an application context or we're on a background thread.
if (applicationManager == null) {
synchronized (this) {
if (applicationManager == null) {
// Normally pause/resume is taken care of by the fragment we add to the fragment or activity.
// However, in this case since the manager attached to the application will not receive lifecycle
// events, we must force the manager to start resumed using ApplicationLifecycle.
applicationManager = new RequestManager(context.getApplicationContext(),
new ApplicationLifecycle(), new EmptyRequestManagerTreeNode());
}
}
}
return applicationManager;
}
public RequestManager get(Context context) {
if (context == null) {
throw new IllegalArgumentException("You cannot start a load on a null Context");
} else if (Util.isOnMainThread() && !(context instanceof Application)) {
//(1)RequestManagerRetriever类中看似有很多个get()方法的重载，实际上只有两种情况而已，即传入Application类型的参数，和传入非Application类型的参数。
if (context instanceof FragmentActivity) {
return get((FragmentActivity) context);
} else if (context instanceof Activity) {
return get((Activity) context);
} else if (context instanceof ContextWrapper) {
return get(((ContextWrapper) context).getBaseContext());
}
}
return getApplicationManager(context);
}
public RequestManager get(FragmentActivity activity) {
if (Util.isOnBackgroundThread()) {
return get(activity.getApplicationContext());
} else {
assertNotDestroyed(activity);
FragmentManager fm = activity.getSupportFragmentManager();
return supportFragmentGet(activity, fm);
}
}
public RequestManager get(Fragment fragment) {
if (fragment.getActivity() == null) {
throw new IllegalArgumentException("You cannot start a load on a fragment before it is attached");
}
if (Util.isOnBackgroundThread()) {
return get(fragment.getActivity().getApplicationContext());
} else {
FragmentManager fm = fragment.getChildFragmentManager();
return supportFragmentGet(fragment.getActivity(), fm);
}
}
@TargetApi(Build.VERSION_CODES.HONEYCOMB)
public RequestManager get(Activity activity) {
if (Util.isOnBackgroundThread() || Build.VERSION.SDK_INT < Build.VERSION_CODES.HONEYCOMB) {
return get(activity.getApplicationContext());
} else {
assertNotDestroyed(activity);
android.app.FragmentManager fm = activity.getFragmentManager();
return fragmentGet(activity, fm);
}
}
@TargetApi(Build.VERSION_CODES.JELLY_BEAN_MR1)
private static void assertNotDestroyed(Activity activity) {
if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.JELLY_BEAN_MR1 && activity.isDestroyed()) {
throw new IllegalArgumentException("You cannot start a load for a destroyed activity");
}
}
@TargetApi(Build.VERSION_CODES.JELLY_BEAN_MR1)
public RequestManager get(android.app.Fragment fragment) {
if (fragment.getActivity() == null) {
throw new IllegalArgumentException("You cannot start a load on a fragment before it is attached");
}
if (Util.isOnBackgroundThread() || Build.VERSION.SDK_INT < Build.VERSION_CODES.JELLY_BEAN_MR1) {
return get(fragment.getActivity().getApplicationContext());
} else {
android.app.FragmentManager fm = fragment.getChildFragmentManager();
return fragmentGet(fragment.getActivity(), fm);
}
}
@TargetApi(Build.VERSION_CODES.JELLY_BEAN_MR1)
RequestManagerFragment getRequestManagerFragment(final android.app.FragmentManager fm) {
RequestManagerFragment current = (RequestManagerFragment) fm.findFragmentByTag(FRAGMENT_TAG);
if (current == null) {
current = pendingRequestManagerFragments.get(fm);
if (current == null) {
current = new RequestManagerFragment();
pendingRequestManagerFragments.put(fm, current);
fm.beginTransaction().add(current, FRAGMENT_TAG).commitAllowingStateLoss();
handler.obtainMessage(ID_REMOVE_FRAGMENT_MANAGER, fm).sendToTarget();
}
}
return current;
}
@TargetApi(Build.VERSION_CODES.HONEYCOMB)
RequestManager fragmentGet(Context context, android.app.FragmentManager fm) {
RequestManagerFragment current = getRequestManagerFragment(fm);
RequestManager requestManager = current.getRequestManager();
if (requestManager == null) {
requestManager = new RequestManager(context, current.getLifecycle(), current.getRequestManagerTreeNode());
current.setRequestManager(requestManager);
}
return requestManager;
}
SupportRequestManagerFragment getSupportRequestManagerFragment(final FragmentManager fm) {
SupportRequestManagerFragment current = (SupportRequestManagerFragment) fm.findFragmentByTag(FRAGMENT_TAG);
if (current == null) {
current = pendingSupportRequestManagerFragments.get(fm);
if (current == null) {
current = new SupportRequestManagerFragment();
pendingSupportRequestManagerFragments.put(fm, current);
fm.beginTransaction().add(current, FRAGMENT_TAG).commitAllowingStateLoss();
handler.obtainMessage(ID_REMOVE_SUPPORT_FRAGMENT_MANAGER, fm).sendToTarget();
}
}
return current;
}
RequestManager supportFragmentGet(Context context, FragmentManager fm) {
SupportRequestManagerFragment current = getSupportRequestManagerFragment(fm);
RequestManager requestManager = current.getRequestManager();
if (requestManager == null) {
requestManager = new RequestManager(context, current.getLifecycle(), current.getRequestManagerTreeNode());
current.setRequestManager(requestManager);
}
return requestManager;
}
...
}
总结：
-
Application对象的生命周期即应用程序的生命周期，因此Glide并不需要做什么特殊的处理，它自动就是和应用程序的生命周期是同步的，如果应用程序关闭的话，Glide的加载也会同时终止。 -
非Application通过
添加隐藏Fragment监听Activity的生命周期，因为Fragment的生命周期和Activity是同步的。
load方法
public class RequestManager implements LifecycleListener {
...
/**
* Returns a request builder to load the given {@link String}.
* signature.
*
* @see #fromString()
* @see #load(Object)
*
* @param string A file path, or a uri or url handled by {@link com.bumptech.glide.load.model.UriLoader}.
*/
public DrawableTypeRequest<String> load(String string) {
return (DrawableTypeRequest<String>) fromString().load(string);
}
/**
* Returns a request builder that loads data from {@link String}s using an empty signature.
*
* <p>
* Note - this method caches data using only the given String as the cache key. If the data is a Uri outside of
* your control, or you otherwise expect the data represented by the given String to change without the String
* identifier changing, Consider using
* {@link GenericRequestBuilder#signature(Key)} to mixin a signature
* you create that identifies the data currently at the given String that will invalidate the cache if that data
* changes. Alternatively, using {@link DiskCacheStrategy#NONE} and/or
* {@link DrawableRequestBuilder#skipMemoryCache(boolean)} may be appropriate.
* </p>
*
* @see #from(Class)
* @see #load(String)
*/
public DrawableTypeRequest<String> fromString() {
return loadGeneric(String.class);
}
private <T> DrawableTypeRequest<T> loadGeneric(Class<T> modelClass) {
ModelLoader<T, InputStream> streamModelLoader = Glide.buildStreamModelLoader(modelClass, context);
ModelLoader<T, ParcelFileDescriptor> fileDescriptorModelLoader =
Glide.buildFileDescriptorModelLoader(modelClass, context);
if (modelClass != null && streamModelLoader == null && fileDescriptorModelLoader == null) {
throw new IllegalArgumentException("Unknown type " + modelClass + ". You must provide a Model of a type for"
+ " which there is a registered ModelLoader, if you are using a custom model, you must first call"
+ " Glide#register with a ModelLoaderFactory for your custom model class");
}
return optionsApplier.apply(
new DrawableTypeRequest<T>(modelClass, streamModelLoader, fileDescriptorModelLoader, context,
glide, requestTracker, lifecycle, optionsApplier));
}
...
}
public class DrawableTypeRequest<ModelType> extends DrawableRequestBuilder<ModelType> implements DownloadOptions {
private final ModelLoader<ModelType, InputStream> streamModelLoader;
private final ModelLoader<ModelType, ParcelFileDescriptor> fileDescriptorModelLoader;
private final RequestManager.OptionsApplier optionsApplier;
private static <A, Z, R> FixedLoadProvider<A, ImageVideoWrapper, Z, R> buildProvider(Glide glide,
ModelLoader<A, InputStream> streamModelLoader,
ModelLoader<A, ParcelFileDescriptor> fileDescriptorModelLoader, Class<Z> resourceClass,
Class<R> transcodedClass,
ResourceTranscoder<Z, R> transcoder) {
if (streamModelLoader == null && fileDescriptorModelLoader == null) {
return null;
}
if (transcoder == null) {
transcoder = glide.buildTranscoder(resourceClass, transcodedClass);
}
DataLoadProvider<ImageVideoWrapper, Z> dataLoadProvider = glide.buildDataProvider(ImageVideoWrapper.class,
resourceClass);
ImageVideoModelLoader<A> modelLoader = new ImageVideoModelLoader<A>(streamModelLoader,
fileDescriptorModelLoader);
return new FixedLoadProvider<A, ImageVideoWrapper, Z, R>(modelLoader, transcoder, dataLoadProvider);
}
DrawableTypeRequest(Class<ModelType> modelClass, ModelLoader<ModelType, InputStream> streamModelLoader,
ModelLoader<ModelType, ParcelFileDescriptor> fileDescriptorModelLoader, Context context, Glide glide,
RequestTracker requestTracker, Lifecycle lifecycle, RequestManager.OptionsApplier optionsApplier) {
super(context, modelClass,
buildProvider(glide, streamModelLoader, fileDescriptorModelLoader, GifBitmapWrapper.class,
GlideDrawable.class, null),
glide, requestTracker, lifecycle);
this.streamModelLoader = streamModelLoader;
this.fileDescriptorModelLoader = fileDescriptorModelLoader;
this.optionsApplier = optionsApplier;
}
/**
* Attempts to always load the resource as a {@link android.graphics.Bitmap}, even if it could actually be animated.
*
* @return A new request builder for loading a {@link android.graphics.Bitmap}
*/
public BitmapTypeRequest<ModelType> asBitmap() {
return optionsApplier.apply(new BitmapTypeRequest<ModelType>(this, streamModelLoader,
fileDescriptorModelLoader, optionsApplier));
}
/**
* Attempts to always load the resource as a {@link com.bumptech.glide.load.resource.gif.GifDrawable}.
* <p>
* If the underlying data is not a GIF, this will fail. As a result, this should only be used if the model
* represents an animated GIF and the caller wants to interact with the GIfDrawable directly. Normally using
* just an {@link DrawableTypeRequest} is sufficient because it will determine whether or
* not the given data represents an animated GIF and return the appropriate animated or not animated
* {@link android.graphics.drawable.Drawable} automatically.
* </p>
*
* @return A new request builder for loading a {@link com.bumptech.glide.load.resource.gif.GifDrawable}.
*/
public GifTypeRequest<ModelType> asGif() {
return optionsApplier.apply(new GifTypeRequest<ModelType>(this, streamModelLoader, optionsApplier));
}
...
}
public class DrawableRequestBuilder<ModelType>
extends GenericRequestBuilder<ModelType, ImageVideoWrapper, GifBitmapWrapper, GlideDrawable>
implements BitmapOptions, DrawableOptions {
DrawableRequestBuilder(Context context, Class<ModelType> modelClass,
LoadProvider<ModelType, ImageVideoWrapper, GifBitmapWrapper, GlideDrawable> loadProvider, Glide glide,
RequestTracker requestTracker, Lifecycle lifecycle) {
super(context, modelClass, loadProvider, GlideDrawable.class, glide, requestTracker, lifecycle);
// Default to animating.
crossFade();
}
public DrawableRequestBuilder<ModelType> thumbnail(
DrawableRequestBuilder<?> thumbnailRequest) {
super.thumbnail(thumbnailRequest);
return this;
}
@Override
public DrawableRequestBuilder<ModelType> thumbnail(
GenericRequestBuilder<?, ?, ?, GlideDrawable> thumbnailRequest) {
super.thumbnail(thumbnailRequest);
return this;
}
@Override
public DrawableRequestBuilder<ModelType> thumbnail(float sizeMultiplier) {
super.thumbnail(sizeMultiplier);
return this;
}
@Override
public DrawableRequestBuilder<ModelType> sizeMultiplier(float sizeMultiplier) {
super.sizeMultiplier(sizeMultiplier);
return this;
}
@Override
public DrawableRequestBuilder<ModelType> decoder(ResourceDecoder<ImageVideoWrapper, GifBitmapWrapper> decoder) {
super.decoder(decoder);
return this;
}
@Override
public DrawableRequestBuilder<ModelType> cacheDecoder(ResourceDecoder<File, GifBitmapWrapper> cacheDecoder) {
super.cacheDecoder(cacheDecoder);
return this;
}
@Override
public DrawableRequestBuilder<ModelType> encoder(ResourceEncoder<GifBitmapWrapper> encoder) {
super.encoder(encoder);
return this;
}
@Override
public DrawableRequestBuilder<ModelType> priority(Priority priority) {
super.priority(priority);
return this;
}
public DrawableRequestBuilder<ModelType> transform(BitmapTransformation... transformations) {
return bitmapTransform(transformations);
}
public DrawableRequestBuilder<ModelType> centerCrop() {
return transform(glide.getDrawableCenterCrop());
}
public DrawableRequestBuilder<ModelType> fitCenter() {
return transform(glide.getDrawableFitCenter());
}
public DrawableRequestBuilder<ModelType> bitmapTransform(Transformation<Bitmap>... bitmapTransformations) {
GifBitmapWrapperTransformation[] transformations =
new GifBitmapWrapperTransformation[bitmapTransformations.length];
for (int i = 0; i < bitmapTransformations.length; i++) {
transformations[i] = new GifBitmapWrapperTransformation(glide.getBitmapPool(), bitmapTransformations[i]);
}
return transform(transformations);
}
@Override
public DrawableRequestBuilder<ModelType> transform(Transformation<GifBitmapWrapper>... transformation) {
super.transform(transformation);
return this;
}
@Override
public DrawableRequestBuilder<ModelType> transcoder(
ResourceTranscoder<GifBitmapWrapper, GlideDrawable> transcoder) {
super.transcoder(transcoder);
return this;
}
public final DrawableRequestBuilder<ModelType> crossFade() {
super.animate(new DrawableCrossFadeFactory<GlideDrawable>());
return this;
}
public DrawableRequestBuilder<ModelType> crossFade(int duration) {
super.animate(new DrawableCrossFadeFactory<GlideDrawable>(duration));
return this;
}
public DrawableRequestBuilder<ModelType> crossFade(int animationId, int duration) {
super.animate(new DrawableCrossFadeFactory<GlideDrawable>(context, animationId,
duration));
return this;
}
@Override
public DrawableRequestBuilder<ModelType> dontAnimate() {
super.dontAnimate();
return this;
}
@Override
public DrawableRequestBuilder<ModelType> animate(ViewPropertyAnimation.Animator animator) {
super.animate(animator);
return this;
}
@Override
public DrawableRequestBuilder<ModelType> animate(int animationId) {
super.animate(animationId);
return this;
}
@Override
public DrawableRequestBuilder<ModelType> placeholder(int resourceId) {
super.placeholder(resourceId);
return this;
}
@Override
public DrawableRequestBuilder<ModelType> placeholder(Drawable drawable) {
super.placeholder(drawable);
return this;
}
@Override
public DrawableRequestBuilder<ModelType> fallback(Drawable drawable) {
super.fallback(drawable);
return this;
}
@Override
public DrawableRequestBuilder<ModelType> fallback(int resourceId) {
super.fallback(resourceId);
return this;
}
@Override
public DrawableRequestBuilder<ModelType> error(int resourceId) {
super.error(resourceId);
return this;
}
@Override
public DrawableRequestBuilder<ModelType> error(Drawable drawable) {
super.error(drawable);
return this;
}
@Override
public DrawableRequestBuilder<ModelType> listener(
RequestListener<? super ModelType, GlideDrawable> requestListener) {
super.listener(requestListener);
return this;
}
@Override
public DrawableRequestBuilder<ModelType> diskCacheStrategy(DiskCacheStrategy strategy) {
super.diskCacheStrategy(strategy);
return this;
}
@Override
public DrawableRequestBuilder<ModelType> skipMemoryCache(boolean skip) {
super.skipMemoryCache(skip);
return this;
}
@Override
public DrawableRequestBuilder<ModelType> override(int width, int height) {
super.override(width, height);
return this;
}
@Override
public DrawableRequestBuilder<ModelType> sourceEncoder(Encoder<ImageVideoWrapper> sourceEncoder) {
super.sourceEncoder(sourceEncoder);
return this;
}
@Override
public DrawableRequestBuilder<ModelType> dontTransform() {
super.dontTransform();
return this;
}
@Override
public DrawableRequestBuilder<ModelType> signature(Key signature) {
super.signature(signature);
return this;
}
@Override
public DrawableRequestBuilder<ModelType> load(ModelType model) {
super.load(model);
return this;
}
@Override
public DrawableRequestBuilder<ModelType> clone() {
return (DrawableRequestBuilder<ModelType>) super.clone();
}
@Override
public Target<GlideDrawable> into(ImageView view) {
return super.into(view);
}
@Override
void applyFitCenter() {
fitCenter();
}
@Override
void applyCenterCrop() {
centerCrop();
}
}
总结:
load方法就是返回一个DrawableTypeRequest对象。
into方法
public Target<TranscodeType> into(ImageView view) {
Util.assertMainThread();
if (view == null) {
throw new IllegalArgumentException("You must pass in a non null View");
}
if (!isTransformationSet && view.getScaleType() != null) {
switch (view.getScaleType()) {
case CENTER_CROP:
applyCenterCrop();
break;
case FIT_CENTER:
case FIT_START:
case FIT_END:
applyFitCenter();
break;
//$CASES-OMITTED$
default:
// Do nothing.
}
}
//（1）构建出一个Target对象，Target对象则是用来最终展示图片用的
return into(glide.buildImageViewTarget(view, transcodeClass));
}
几种Target
public class ImageViewTargetFactory {
@SuppressWarnings("unchecked")
public <Z> Target<Z> buildTarget(ImageView view, Class<Z> clazz) {
if (GlideDrawable.class.isAssignableFrom(clazz)) {
return (Target<Z>) new GlideDrawableImageViewTarget(view);
} else if (Bitmap.class.equals(clazz)) {
return (Target<Z>) new BitmapImageViewTarget(view);
} else if (Drawable.class.isAssignableFrom(clazz)) {
return (Target<Z>) new DrawableImageViewTarget(view);
} else {
throw new IllegalArgumentException("Unhandled class: " + clazz
+ ", try .as*(Class).transcode(ResourceTranscoder)");
}
}
}
public <Y extends Target<TranscodeType>> Y into(Y target) {
Util.assertMainThread();
if (target == null) {
throw new IllegalArgumentException("You must pass in a non null Target");
}
if (!isModelSet) {
throw new IllegalArgumentException("You must first set a model (try #load())");
}
Request previous = target.getRequest();
if (previous != null) {
previous.clear();
requestTracker.removeRequest(previous);
previous.recycle();
}
//（1）构建请求
Request request = buildRequest(target);
target.setRequest(request);
lifecycle.addListener(target);
//(2)发送请求
requestTracker.runRequest(request);
return target;
}
构建请求就是一些赋值。这里不重点分析。
/**
* Starts tracking the given request.
*/
public void runRequest(Request request) {
requests.add(request);
if (!isPaused) {
request.begin();
} else {
pendingRequests.add(request);
}
}
@Override
public void begin() {
startTime = LogTime.getLogTime();
if (model == null) {
//(1)参数错误处理
onException(null);
return;
}
status = Status.WAITING_FOR_SIZE;
if (Util.isValidDimensions(overrideWidth, overrideHeight)) {
//(2)跟下去
onSizeReady(overrideWidth, overrideHeight);
} else {
target.getSize(this);
}
if (!isComplete() && !isFailed() && canNotifyStatusChanged()) {
target.onLoadStarted(getPlaceholderDrawable());
}
if (Log.isLoggable(TAG, Log.VERBOSE)) {
logV("finished run method in " + LogTime.getElapsedMillis(startTime));
}
}
private void setErrorPlaceholder(Exception e) {
if (!canNotifyStatusChanged()) {
return;
}
Drawable error = model == null ? getFallbackDrawable() : null;
if (error == null) {
//(1)获取错误图片
error = getErrorDrawable();
}
if (error == null) {
//（2）获取展位图
error = getPlaceholderDrawable();
}
target.onLoadFailed(e, error);
}
@Override
public void onSizeReady(int width, int height) {
if (Log.isLoggable(TAG, Log.VERBOSE)) {
logV("Got onSizeReady in " + LogTime.getElapsedMillis(startTime));
}
if (status != Status.WAITING_FOR_SIZE) {
return;
}
status = Status.RUNNING;
width = Math.round(sizeMultiplier * width);
height = Math.round(sizeMultiplier * height);
//（1）loadProvider是什么？
ModelLoader<A, T> modelLoader = loadProvider.getModelLoader();
//(2) 跟下去
final DataFetcher<T> dataFetcher = modelLoader.getResourceFetcher(model, width, height);
if (dataFetcher == null) {
onException(new Exception("Failed to load model: \'" + model + "\'"));
return;
}
ResourceTranscoder<Z, R> transcoder = loadProvider.getTranscoder();
if (Log.isLoggable(TAG, Log.VERBOSE)) {
logV("finished setup for calling load in " + LogTime.getElapsedMillis(startTime));
}
loadedFromMemoryCache = true;
//(3)ImageVideoFetcher、GifBitmapWrapperDrawableTranscoder传进去
loadStatus = engine.load(signature, width, height, dataFetcher, loadProvider, transformation, transcoder,
priority, isMemoryCacheable, diskCacheStrategy, this);
loadedFromMemoryCache = resource != null;
if (Log.isLoggable(TAG, Log.VERBOSE)) {
logV("finished onSizeReady in " + LogTime.getElapsedMillis(startTime));
}
}
public class DrawableTypeRequest<ModelType> extends DrawableRequestBuilder<ModelType> implements DownloadOptions {
private final ModelLoader<ModelType, InputStream> streamModelLoader;
private final ModelLoader<ModelType, ParcelFileDescriptor> fileDescriptorModelLoader;
private final RequestManager.OptionsApplier optionsApplier;
private static <A, Z, R> FixedLoadProvider<A, ImageVideoWrapper, Z, R> buildProvider(Glide glide,
ModelLoader<A, InputStream> streamModelLoader,
ModelLoader<A, ParcelFileDescriptor> fileDescriptorModelLoader, Class<Z> resourceClass,
Class<R> transcodedClass,
ResourceTranscoder<Z, R> transcoder) {
if (streamModelLoader == null && fileDescriptorModelLoader == null) {
return null;
}
if (transcoder == null) {
//(1)用于对图片进行转码的,这里实际会构建出一个GifBitmapWrapperDrawableTranscoder对象。
transcoder = glide.buildTranscoder(resourceClass, transcodedClass);
}
//(2)用于对图片进行编解码的,这里实际会构建出一个ImageVideoGifDrawableLoadProvider对象。
DataLoadProvider<ImageVideoWrapper, Z> dataLoadProvider = glide.buildDataProvider(ImageVideoWrapper.class,
resourceClass);
ImageVideoModelLoader<A> modelLoader = new ImageVideoModelLoader<A>(streamModelLoader,
fileDescriptorModelLoader);
return new FixedLoadProvider<A, ImageVideoWrapper, Z, R>(modelLoader, transcoder, dataLoadProvider);
}
DrawableTypeRequest(Class<ModelType> modelClass, ModelLoader<ModelType, InputStream> streamModelLoader,
ModelLoader<ModelType, ParcelFileDescriptor> fileDescriptorModelLoader, Context context, Glide glide,
RequestTracker requestTracker, Lifecycle lifecycle, RequestManager.OptionsApplier optionsApplier) {
super(context, modelClass,
buildProvider(glide, streamModelLoader, fileDescriptorModelLoader, GifBitmapWrapper.class,
GlideDrawable.class, null),
glide, requestTracker, lifecycle);
this.streamModelLoader = streamModelLoader;
this.fileDescriptorModelLoader = fileDescriptorModelLoader;
this.optionsApplier = optionsApplier;
}
...
}
public class ImageVideoModelLoader<A> implements ModelLoader<A, ImageVideoWrapper> {
private static final String TAG = "IVML";
private final ModelLoader<A, InputStream> streamLoader;
private final ModelLoader<A, ParcelFileDescriptor> fileDescriptorLoader;
public ImageVideoModelLoader(ModelLoader<A, InputStream> streamLoader,
ModelLoader<A, ParcelFileDescriptor> fileDescriptorLoader) {
if (streamLoader == null && fileDescriptorLoader == null) {
throw new NullPointerException("At least one of streamLoader and fileDescriptorLoader must be non null");
}
this.streamLoader = streamLoader;
this.fileDescriptorLoader = fileDescriptorLoader;
}
@Override
public DataFetcher<ImageVideoWrapper> getResourceFetcher(A model, int width, int height) {
DataFetcher<InputStream> streamFetcher = null;
if (streamLoader != null) {
streamFetcher = streamLoader.getResourceFetcher(model, width, height);
}
DataFetcher<ParcelFileDescriptor> fileDescriptorFetcher = null;
if (fileDescriptorLoader != null) {
fileDescriptorFetcher = fileDescriptorLoader.getResourceFetcher(model, width, height);
}
if (streamFetcher != null || fileDescriptorFetcher != null) {
return new ImageVideoFetcher(streamFetcher, fileDescriptorFetcher);
} else {
return null;
}
}
static class ImageVideoFetcher implements DataFetcher<ImageVideoWrapper> {
private final DataFetcher<InputStream> streamFetcher;
private final DataFetcher<ParcelFileDescriptor> fileDescriptorFetcher;
public ImageVideoFetcher(DataFetcher<InputStream> streamFetcher,
DataFetcher<ParcelFileDescriptor> fileDescriptorFetcher) {
this.streamFetcher = streamFetcher;
this.fileDescriptorFetcher = fileDescriptorFetcher;
}
...
}
}
public class Engine implements EngineJobListener,
MemoryCache.ResourceRemovedListener,
EngineResource.ResourceListener {
...
public <T, Z, R> LoadStatus load(Key signature, int width, int height, DataFetcher<T> fetcher,
DataLoadProvider<T, Z> loadProvider, Transformation<Z> transformation, ResourceTranscoder<Z, R> transcoder,
Priority priority, boolean isMemoryCacheable, DiskCacheStrategy diskCacheStrategy, ResourceCallback cb) {
Util.assertMainThread();
long startTime = LogTime.getLogTime();
final String id = fetcher.getId();
EngineKey key = keyFactory.buildKey(id, signature, width, height, loadProvider.getCacheDecoder(),
loadProvider.getSourceDecoder(), transformation, loadProvider.getEncoder(),
transcoder, loadProvider.getSourceEncoder());
EngineResource<?> cached = loadFromCache(key, isMemoryCacheable);
if (cached != null) {
cb.onResourceReady(cached);
if (Log.isLoggable(TAG, Log.VERBOSE)) {
logWithTimeAndKey("Loaded resource from cache", startTime, key);
}
return null;
}
EngineResource<?> active = loadFromActiveResources(key, isMemoryCacheable);
if (active != null) {
cb.onResourceReady(active);
if (Log.isLoggable(TAG, Log.VERBOSE)) {
logWithTimeAndKey("Loaded resource from active resources", startTime, key);
}
return null;
}
EngineJob current = jobs.get(key);
if (current != null) {
current.addCallback(cb);
if (Log.isLoggable(TAG, Log.VERBOSE)) {
logWithTimeAndKey("Added to existing load", startTime, key);
}
return new LoadStatus(cb, current);
}
EngineJob engineJob = engineJobFactory.build(key, isMemoryCacheable);
DecodeJob<T, Z, R> decodeJob = new DecodeJob<T, Z, R>(key, width, height, fetcher, loadProvider, transformation,
transcoder, diskCacheProvider, diskCacheStrategy, priority);
EngineRunnable runnable = new EngineRunnable(engineJob, decodeJob, priority);
jobs.put(key, engineJob);
engineJob.addCallback(cb);
//(1)跟进去
engineJob.start(runnable);
if (Log.isLoggable(TAG, Log.VERBOSE)) {
logWithTimeAndKey("Started new load", startTime, key);
}
return new LoadStatus(cb, engineJob);
}
...
}
@Override
public void run() {
if (isCancelled) {
return;
}
Exception exception = null;
Resource<?> resource = null;
try {
//(1)跟进去
resource = decode();
} catch (Exception e) {
if (Log.isLoggable(TAG, Log.VERBOSE)) {
Log.v(TAG, "Exception decoding", e);
}
exception = e;
}
if (isCancelled) {
if (resource != null) {
resource.recycle();
}
return;
}
if (resource == null) {
onLoadFailed(exception);
} else {
onLoadComplete(resource);
}
}
private Resource<?> decode() throws Exception {
if (isDecodingFromCache()) {
return decodeFromCache();
} else {
//(1)跟进去
return decodeFromSource();
}
}
private Resource<?> decodeFromSource() throws Exception {
return decodeJob.decodeFromSource();
}
class DecodeJob<A, T, Z> {
...
public Resource<Z> decodeFromSource() throws Exception {
//(1)获得一个Resource对象
Resource<T> decoded = decodeSource();
//(2)调用transformEncodeAndTranscode()方法来处理这个Resource对象
return transformEncodeAndTranscode(decoded);
}
private Resource<T> decodeSource() throws Exception {
Resource<T> decoded = null;
try {
long startTime = LogTime.getLogTime();
//(1)ImageVideoFetcher对象
final A data = fetcher.loadData(priority);
if (Log.isLoggable(TAG, Log.VERBOSE)) {
logWithTimeAndKey("Fetched data", startTime);
}
if (isCancelled) {
return null;
}
//(2)
decoded = decodeFromSourceData(data);
} finally {
fetcher.cleanup();
}
return decoded;
}
...
}
@Override
public ImageVideoWrapper loadData(Priority priority) throws Exception {
InputStream is = null;
if (streamFetcher != null) {
try {
//(1)调用HttpUrlFetcher的loadData()方法
is = streamFetcher.loadData(priority);
} catch (Exception e) {
if (Log.isLoggable(TAG, Log.VERBOSE)) {
Log.v(TAG, "Exception fetching input stream, trying ParcelFileDescriptor", e);
}
if (fileDescriptorFetcher == null) {
throw e;
}
}
}
ParcelFileDescriptor fileDescriptor = null;
if (fileDescriptorFetcher != null) {
try {
fileDescriptor = fileDescriptorFetcher.loadData(priority);
} catch (Exception e) {
if (Log.isLoggable(TAG, Log.VERBOSE)) {
Log.v(TAG, "Exception fetching ParcelFileDescriptor", e);
}
if (is == null) {
throw e;
}
}
}
return new ImageVideoWrapper(is, fileDescriptor);
}
public class HttpUrlFetcher implements DataFetcher<InputStream> {
...
@Override
public InputStream loadData(Priority priority) throws Exception {
return loadDataWithRedirects(glideUrl.toURL(), 0 /*redirects*/, null /*lastUrl*/, glideUrl.getHeaders());
}
private InputStream loadDataWithRedirects(URL url, int redirects, URL lastUrl, Map<String, String> headers)
throws IOException {
if (redirects >= MAXIMUM_REDIRECTS) {
throw new IOException("Too many (> " + MAXIMUM_REDIRECTS + ") redirects!");
} else {
// Comparing the URLs using .equals performs additional network I/O and is generally broken.
// See http://michaelscharf.blogspot.com/2006/11/javaneturlequals-and-hashcode-make.html.
try {
if (lastUrl != null && url.toURI().equals(lastUrl.toURI())) {
throw new IOException("In re-direct loop");
}
} catch (URISyntaxException e) {
// Do nothing, this is best effort.
}
}
urlConnection = connectionFactory.build(url);
for (Map.Entry<String, String> headerEntry : headers.entrySet()) {
urlConnection.addRequestProperty(headerEntry.getKey(), headerEntry.getValue());
}
urlConnection.setConnectTimeout(2500);
urlConnection.setReadTimeout(2500);
urlConnection.setUseCaches(false);
urlConnection.setDoInput(true);
// Connect explicitly to avoid errors in decoders if connection fails.
urlConnection.connect();
if (isCancelled) {
return null;
}
final int statusCode = urlConnection.getResponseCode();
if (statusCode / 100 == 2) {
return getStreamForSuccessfulRequest(urlConnection);
} else if (statusCode / 100 == 3) {
String redirectUrlString = urlConnection.getHeaderField("Location");
if (TextUtils.isEmpty(redirectUrlString)) {
throw new IOException("Received empty or null redirect url");
}
URL redirectUrl = new URL(url, redirectUrlString);
return loadDataWithRedirects(redirectUrl, redirects + 1, url, headers);
} else {
if (statusCode == -1) {
throw new IOException("Unable to retrieve response code from HttpUrlConnection.");
}
throw new IOException("Request failed " + statusCode + ": " + urlConnection.getResponseMessage());
}
}
private InputStream getStreamForSuccessfulRequest(HttpURLConnection urlConnection)
throws IOException {
if (TextUtils.isEmpty(urlConnection.getContentEncoding())) {
int contentLength = urlConnection.getContentLength();
stream = ContentLengthInputStream.obtain(urlConnection.getInputStream(), contentLength);
} else {
if (Log.isLoggable(TAG, Log.DEBUG)) {
Log.d(TAG, "Got non empty content encoding: " + urlConnection.getContentEncoding());
}
stream = urlConnection.getInputStream();
}
return stream;
}
...
}
获取数据后看下怎么处理数据
private Resource<T> decodeFromSourceData(A data) throws IOException {
final Resource<T> decoded;
if (diskCacheStrategy.cacheSource()) {
decoded = cacheAndDecodeSourceData(data);
} else {
long startTime = LogTime.getLogTime();
//(1)loadProvider就是刚才在onSizeReady()方法中得到的FixedLoadProvider，而getSourceDecoder()得到的则是一个GifBitmapWrapperResourceDecoder对象.
decoded = loadProvider.getSourceDecoder().decode(data, width, height);
if (Log.isLoggable(TAG, Log.VERBOSE)) {
logWithTimeAndKey("Decoded from source", startTime);
}
}
return decoded;
}
public class GifBitmapWrapperResourceDecoder implements ResourceDecoder<ImageVideoWrapper, GifBitmapWrapper> {
...
@SuppressWarnings("resource")
// @see ResourceDecoder.decode
@Override
public Resource<GifBitmapWrapper> decode(ImageVideoWrapper source, int width, int height) throws IOException {
ByteArrayPool pool = ByteArrayPool.get();
byte[] tempBytes = pool.getBytes();
GifBitmapWrapper wrapper = null;
try {
wrapper = decode(source, width, height, tempBytes);
} finally {
pool.releaseBytes(tempBytes);
}
return wrapper != null ? new GifBitmapWrapperResource(wrapper) : null;
}
private GifBitmapWrapper decode(ImageVideoWrapper source, int width, int height, byte[] bytes) throws IOException {
final GifBitmapWrapper result;
if (source.getStream() != null) {
result = decodeStream(source, width, height, bytes);
} else {
result = decodeBitmapWrapper(source, width, height);
}
return result;
}
private GifBitmapWrapper decodeStream(ImageVideoWrapper source, int width, int height, byte[] bytes)
throws IOException {
InputStream bis = streamFactory.build(source.getStream(), bytes);
bis.mark(MARK_LIMIT_BYTES);
ImageHeaderParser.ImageType type = parser.parse(bis);
bis.reset();
GifBitmapWrapper result = null;
if (type == ImageHeaderParser.ImageType.GIF) {
//(1)GIF图就调用decodeGifWrapper()方法来进行解码
result = decodeGifWrapper(bis, width, height);
}
// Decoding the gif may fail even if the type matches.
if (result == null) {
// We can only reset the buffered InputStream, so to start from the beginning of the stream, we need to
// pass in a new source containing the buffered stream rather than the original stream.
ImageVideoWrapper forBitmapDecoder = new ImageVideoWrapper(bis, source.getFileDescriptor());
//(2)普通的静图就用调用decodeBitmapWrapper()方法来进行解码
result = decodeBitmapWrapper(forBitmapDecoder, width, height);
}
return result;
}
private GifBitmapWrapper decodeBitmapWrapper(ImageVideoWrapper toDecode, int width, int height) throws IOException {
GifBitmapWrapper result = null;
Resource<Bitmap> bitmapResource = bitmapDecoder.decode(toDecode, width, height);
if (bitmapResource != null) {
result = new GifBitmapWrapper(bitmapResource, null);
}
return result;
}
...
}
public class ImageVideoBitmapDecoder implements ResourceDecoder<ImageVideoWrapper, Bitmap> {
private final ResourceDecoder<InputStream, Bitmap> streamDecoder;
private final ResourceDecoder<ParcelFileDescriptor, Bitmap> fileDescriptorDecoder;
public ImageVideoBitmapDecoder(ResourceDecoder<InputStream, Bitmap> streamDecoder,
ResourceDecoder<ParcelFileDescriptor, Bitmap> fileDescriptorDecoder) {
this.streamDecoder = streamDecoder;
this.fileDescriptorDecoder = fileDescriptorDecoder;
}
@Override
public Resource<Bitmap> decode(ImageVideoWrapper source, int width, int height) throws IOException {
Resource<Bitmap> result = null;
InputStream is = source.getStream();
if (is != null) {
try {
//(1)StreamBitmapDecoder对象
result = streamDecoder.decode(is, width, height);
} catch (IOException e) {
if (Log.isLoggable(TAG, Log.VERBOSE)) {
Log.v(TAG, "Failed to load image from stream, trying FileDescriptor", e);
}
}
}
if (result == null) {
ParcelFileDescriptor fileDescriptor = source.getFileDescriptor();
if (fileDescriptor != null) {
result = fileDescriptorDecoder.decode(fileDescriptor, width, height);
}
}
return result;
}
...
}
public class StreamBitmapDecoder implements ResourceDecoder<InputStream, Bitmap> {
...
private final Downsampler downsampler;
private BitmapPool bitmapPool;
private DecodeFormat decodeFormat;
public StreamBitmapDecoder(Downsampler downsampler, BitmapPool bitmapPool, DecodeFormat decodeFormat) {
this.downsampler = downsampler;
this.bitmapPool = bitmapPool;
this.decodeFormat = decodeFormat;
}
@Override
public Resource<Bitmap> decode(InputStream source, int width, int height) {
Bitmap bitmap = downsampler.decode(source, bitmapPool, width, height, decodeFormat);
return BitmapResource.obtain(bitmap, bitmapPool);
}
...
}
public abstract class Downsampler implements BitmapDecoder<InputStream> {
...
@Override
public Bitmap decode(InputStream is, BitmapPool pool, int outWidth, int outHeight, DecodeFormat decodeFormat) {
final ByteArrayPool byteArrayPool = ByteArrayPool.get();
final byte[] bytesForOptions = byteArrayPool.getBytes();
final byte[] bytesForStream = byteArrayPool.getBytes();
final BitmapFactory.Options options = getDefaultOptions();
// Use to fix the mark limit to avoid allocating buffers that fit entire images.
RecyclableBufferedInputStream bufferedStream = new RecyclableBufferedInputStream(
is, bytesForStream);
// Use to retrieve exceptions thrown while reading.
// TODO(#126): when the framework no longer returns partially decoded Bitmaps or provides a way to determine
// if a Bitmap is partially decoded, consider removing.
ExceptionCatchingInputStream exceptionStream =
ExceptionCatchingInputStream.obtain(bufferedStream);
// Use to read data.
// Ensures that we can always reset after reading an image header so that we can still attempt to decode the
// full image even when the header decode fails and/or overflows our read buffer. See #283.
MarkEnforcingInputStream invalidatingStream = new MarkEnforcingInputStream(exceptionStream);
try {
exceptionStream.mark(MARK_POSITION);
int orientation = 0;
try {
orientation = new ImageHeaderParser(exceptionStream).getOrientation();
} catch (IOException e) {
if (Log.isLoggable(TAG, Log.WARN)) {
Log.w(TAG, "Cannot determine the image orientation from header", e);
}
} finally {
try {
exceptionStream.reset();
} catch (IOException e) {
if (Log.isLoggable(TAG, Log.WARN)) {
Log.w(TAG, "Cannot reset the input stream", e);
}
}
}
options.inTempStorage = bytesForOptions;
final int[] inDimens = getDimensions(invalidatingStream, bufferedStream, options);
final int inWidth = inDimens[0];
final int inHeight = inDimens[1];
final int degreesToRotate = TransformationUtils.getExifOrientationDegrees(orientation);
final int sampleSize = getRoundedSampleSize(degreesToRotate, inWidth, inHeight, outWidth, outHeight);
final Bitmap downsampled =
downsampleWithSize(invalidatingStream, bufferedStream, options, pool, inWidth, inHeight, sampleSize,
decodeFormat);
// BitmapFactory swallows exceptions during decodes and in some cases when inBitmap is non null, may catch
// and log a stack trace but still return a non null bitmap. To avoid displaying partially decoded bitmaps,
// we catch exceptions reading from the stream in our ExceptionCatchingInputStream and throw them here.
final Exception streamException = exceptionStream.getException();
if (streamException != null) {
throw new RuntimeException(streamException);
}
Bitmap rotated = null;
if (downsampled != null) {
rotated = TransformationUtils.rotateImageExif(downsampled, pool, orientation);
if (!downsampled.equals(rotated) && !pool.put(downsampled)) {
downsampled.recycle();
}
}
return rotated;
} finally {
byteArrayPool.releaseBytes(bytesForOptions);
byteArrayPool.releaseBytes(bytesForStream);
exceptionStream.release();
releaseOptions(options);
}
}
private Bitmap downsampleWithSize(MarkEnforcingInputStream is, RecyclableBufferedInputStream bufferedStream,
BitmapFactory.Options options, BitmapPool pool, int inWidth, int inHeight, int sampleSize,
DecodeFormat decodeFormat) {
// Prior to KitKat, the inBitmap size must exactly match the size of the bitmap we're decoding.
Bitmap.Config config = getConfig(is, decodeFormat);
options.inSampleSize = sampleSize;
options.inPreferredConfig = config;
if ((options.inSampleSize == 1 || Build.VERSION_CODES.KITKAT <= Build.VERSION.SDK_INT) && shouldUsePool(is)) {
int targetWidth = (int) Math.ceil(inWidth / (double) sampleSize);
int targetHeight = (int) Math.ceil(inHeight / (double) sampleSize);
// BitmapFactory will clear out the Bitmap before writing to it, so getDirty is safe.
setInBitmap(options, pool.getDirty(targetWidth, targetHeight, config));
}
return decodeStream(is, bufferedStream, options);
}
/**
* A method for getting the dimensions of an image from the given InputStream.
*
* @param is The InputStream representing the image.
* @param options The options to pass to
* {@link BitmapFactory#decodeStream(InputStream, android.graphics.Rect,
* BitmapFactory.Options)}.
* @return an array containing the dimensions of the image in the form {width, height}.
*/
public int[] getDimensions(MarkEnforcingInputStream is, RecyclableBufferedInputStream bufferedStream,
BitmapFactory.Options options) {
options.inJustDecodeBounds = true;
decodeStream(is, bufferedStream, options);
options.inJustDecodeBounds = false;
return new int[] { options.outWidth, options.outHeight };
}
private static Bitmap decodeStream(MarkEnforcingInputStream is, RecyclableBufferedInputStream bufferedStream,
BitmapFactory.Options options) {
if (options.inJustDecodeBounds) {
// This is large, but jpeg headers are not size bounded so we need something large enough to minimize
// the possibility of not being able to fit enough of the header in the buffer to get the image size so
// that we don't fail to load images. The BufferedInputStream will create a new buffer of 2x the
// original size each time we use up the buffer space without passing the mark so this is a maximum
// bound on the buffer size, not a default. Most of the time we won't go past our pre-allocated 16kb.
is.mark(MARK_POSITION);
} else {
// Once we've read the image header, we no longer need to allow the buffer to expand in size. To avoid
// unnecessary allocations reading image data, we fix the mark limit so that it is no larger than our
// current buffer size here. See issue #225.
bufferedStream.fixMarkLimit();
}
final Bitmap result = BitmapFactory.decodeStream(is, null, options);
try {
if (options.inJustDecodeBounds) {
is.reset();
}
} catch (IOException e) {
if (Log.isLoggable(TAG, Log.ERROR)) {
Log.e(TAG, "Exception loading inDecodeBounds=" + options.inJustDecodeBounds
+ " sample=" + options.inSampleSize, e);
}
}
return result;
}
...
}
这里其实处理了很多的逻辑，包括对图片的压缩，甚至还有旋转、圆角等逻辑处理。
decode()方法执行之后，会返回一个Bitmap对象。
public class BitmapResource implements Resource<Bitmap> {
private final Bitmap bitmap;
private final BitmapPool bitmapPool;
/**
* Returns a new {@link BitmapResource} wrapping the given {@link Bitmap} if the Bitmap is non-null or null if the
* given Bitmap is null.
*
* @param bitmap A Bitmap.
* @param bitmapPool A non-null {@link BitmapPool}.
*/
public static BitmapResource obtain(Bitmap bitmap, BitmapPool bitmapPool) {
if (bitmap == null) {
return null;
} else {
return new BitmapResource(bitmap, bitmapPool);
}
}
public BitmapResource(Bitmap bitmap, BitmapPool bitmapPool) {
if (bitmap == null) {
throw new NullPointerException("Bitmap must not be null");
}
if (bitmapPool == null) {
throw new NullPointerException("BitmapPool must not be null");
}
this.bitmap = bitmap;
this.bitmapPool = bitmapPool;
}
@Override
public Bitmap get() {
return bitmap;
}
@Override
public int getSize() {
return Util.getBitmapByteSize(bitmap);
}
@Override
public void recycle() {
if (!bitmapPool.put(bitmap)) {
bitmap.recycle();
}
}
}
将Bitmap对象包装成了Resource对象。
private GifBitmapWrapper decodeBitmapWrapper(ImageVideoWrapper toDecode, int width, int height) throws IOException {
GifBitmapWrapper result = null;
Resource<Bitmap> bitmapResource = bitmapDecoder.decode(toDecode, width, height);
if (bitmapResource != null) {
result = new GifBitmapWrapper(bitmapResource, null);
}
return result;
}
public class GifBitmapWrapper {
private final Resource<GifDrawable> gifResource;
private final Resource<Bitmap> bitmapResource;
public GifBitmapWrapper(Resource<Bitmap> bitmapResource, Resource<GifDrawable> gifResource) {
if (bitmapResource != null && gifResource != null) {
throw new IllegalArgumentException("Can only contain either a bitmap resource or a gif resource, not both");
}
if (bitmapResource == null && gifResource == null) {
throw new IllegalArgumentException("Must contain either a bitmap resource or a gif resource");
}
this.bitmapResource = bitmapResource;
this.gifResource = gifResource;
}
/**
* Returns the size of the wrapped resource.
*/
public int getSize() {
if (bitmapResource != null) {
return bitmapResource.getSize();
} else {
return gifResource.getSize();
}
}
/**
* Returns the wrapped {@link Bitmap} resource if it exists, or null.
*/
public Resource<Bitmap> getBitmapResource() {
return bitmapResource;
}
/**
* Returns the wrapped {@link GifDrawable} resource if it exists, or null.
*/
public Resource<GifDrawable> getGifResource() {
return gifResource;
}
}
@Override
public Resource<GifBitmapWrapper> decode(ImageVideoWrapper source, int width, int height) throws IOException {
ByteArrayPool pool = ByteArrayPool.get();
byte[] tempBytes = pool.getBytes();
GifBitmapWrapper wrapper = null;
try {
wrapper = decode(source, width, height, tempBytes);
} finally {
pool.releaseBytes(tempBytes);
}
return wrapper != null ? new GifBitmapWrapperResource(wrapper) : null;
}
private Resource<Z> transformEncodeAndTranscode(Resource<T> decoded) {
long startTime = LogTime.getLogTime();
Resource<T> transformed = transform(decoded);
if (Log.isLoggable(TAG, Log.VERBOSE)) {
logWithTimeAndKey("Transformed resource from source", startTime);
}
writeTransformedToCache(transformed);
startTime = LogTime.getLogTime();
Resource<Z> result = transcode(transformed);
if (Log.isLoggable(TAG, Log.VERBOSE)) {
logWithTimeAndKey("Transcoded transformed from source", startTime);
}
return result;
}
private Resource<Z> transcode(Resource<T> transformed) {
if (transformed == null) {
return null;
}
return transcoder.transcode(transformed);
}
public class GifBitmapWrapperDrawableTranscoder implements ResourceTranscoder<GifBitmapWrapper, GlideDrawable> {
private final ResourceTranscoder<Bitmap, GlideBitmapDrawable> bitmapDrawableResourceTranscoder;
public GifBitmapWrapperDrawableTranscoder(
ResourceTranscoder<Bitmap, GlideBitmapDrawable> bitmapDrawableResourceTranscoder) {
this.bitmapDrawableResourceTranscoder = bitmapDrawableResourceTranscoder;
}
@Override
public Resource<GlideDrawable> transcode(Resource<GifBitmapWrapper> toTranscode) {
GifBitmapWrapper gifBitmap = toTranscode.get();
Resource<Bitmap> bitmapResource = gifBitmap.getBitmapResource();
final Resource<? extends GlideDrawable> result;
if (bitmapResource != null) {
result = bitmapDrawableResourceTranscoder.transcode(bitmapResource);
} else {
result = gifBitmap.getGifResource();
}
return (Resource<GlideDrawable>) result;
}
...
}
GifBitmapWrapperDrawableTranscoder的核心作用就是用来转码的。因为GifBitmapWrapper是无法直接显示到ImageView上面的，只有Bitmap或者Drawable才能显示到ImageView上。
public class GlideBitmapDrawableTranscoder implements ResourceTranscoder<Bitmap, GlideBitmapDrawable> {
private final Resources resources;
private final BitmapPool bitmapPool;
public GlideBitmapDrawableTranscoder(Context context) {
this(context.getResources(), Glide.get(context).getBitmapPool());
}
public GlideBitmapDrawableTranscoder(Resources resources, BitmapPool bitmapPool) {
this.resources = resources;
this.bitmapPool = bitmapPool;
}
@Override
public Resource<GlideBitmapDrawable> transcode(Resource<Bitmap> toTranscode) {
GlideBitmapDrawable drawable = new GlideBitmapDrawable(resources, toTranscode.get());
return new GlideBitmapDrawableResource(drawable, bitmapPool);
}
...
}
@Override
public void run() {
if (isCancelled) {
return;
}
Exception exception = null;
Resource<?> resource = null;
try {
resource = decode();
} catch (Exception e) {
if (Log.isLoggable(TAG, Log.VERBOSE)) {
Log.v(TAG, "Exception decoding", e);
}
exception = e;
}
if (isCancelled) {
if (resource != null) {
resource.recycle();
}
return;
}
if (resource == null) {
onLoadFailed(exception);
} else {
onLoadComplete(resource);
}
}
class EngineJob implements EngineRunnable.EngineRunnableManager {
private static final Handler MAIN_THREAD_HANDLER = new Handler(Looper.getMainLooper(), new MainThreadCallback());
private final List<ResourceCallback> cbs = new ArrayList<ResourceCallback>();
...
public void addCallback(ResourceCallback cb) {
Util.assertMainThread();
if (hasResource) {
cb.onResourceReady(engineResource);
} else if (hasException) {
cb.onException(exception);
} else {
cbs.add(cb);
}
}
@Override
public void onResourceReady(final Resource<?> resource) {
this.resource = resource;
MAIN_THREAD_HANDLER.obtainMessage(MSG_COMPLETE, this).sendToTarget();
}
private void handleResultOnMainThread() {
if (isCancelled) {
resource.recycle();
return;
} else if (cbs.isEmpty()) {
throw new IllegalStateException("Received a resource without any callbacks to notify");
}
engineResource = engineResourceFactory.build(resource, isCacheable);
hasResource = true;
engineResource.acquire();
listener.onEngineJobComplete(key, engineResource);
for (ResourceCallback cb : cbs) {
if (!isInIgnoredCallbacks(cb)) {
engineResource.acquire();
cb.onResourceReady(engineResource);
}
}
engineResource.release();
}
@Override
public void onException(final Exception e) {
this.exception = e;
MAIN_THREAD_HANDLER.obtainMessage(MSG_EXCEPTION, this).sendToTarget();
}
private void handleExceptionOnMainThread() {
if (isCancelled) {
return;
} else if (cbs.isEmpty()) {
throw new IllegalStateException("Received an exception without any callbacks to notify");
}
hasException = true;
listener.onEngineJobComplete(key, null);
for (ResourceCallback cb : cbs) {
if (!isInIgnoredCallbacks(cb)) {
cb.onException(exception);
}
}
}
private static class MainThreadCallback implements Handler.Callback {
@Override
public boolean handleMessage(Message message) {
if (MSG_COMPLETE == message.what || MSG_EXCEPTION == message.what) {
EngineJob job = (EngineJob) message.obj;
if (MSG_COMPLETE == message.what) {
job.handleResultOnMainThread();
} else {
job.handleExceptionOnMainThread();
}
return true;
}
return false;
}
}
...
}
public class Engine implements EngineJobListener,
MemoryCache.ResourceRemovedListener,
EngineResource.ResourceListener {
...
public <T, Z, R> LoadStatus load(Key signature, int width, int height, DataFetcher<T> fetcher,
DataLoadProvider<T, Z> loadProvider, Transformation<Z> transformation, ResourceTranscoder<Z, R> transcoder, Priority priority,
boolean isMemoryCacheable, DiskCacheStrategy diskCacheStrategy, ResourceCallback cb) {
...
EngineJob engineJob = engineJobFactory.build(key, isMemoryCacheable);
DecodeJob<T, Z, R> decodeJob = new DecodeJob<T, Z, R>(key, width, height, fetcher, loadProvider, transformation,
transcoder, diskCacheProvider, diskCacheStrategy, priority);
EngineRunnable runnable = new EngineRunnable(engineJob, decodeJob, priority);
jobs.put(key, engineJob);
engineJob.addCallback(cb);
engineJob.start(runnable);
if (Log.isLoggable(TAG, Log.VERBOSE)) {
logWithTimeAndKey("Started new load", startTime, key);
}
return new LoadStatus(cb, engineJob);
}
...
}
public final class GenericRequest<A, T, Z, R> implements Request, SizeReadyCallback,
ResourceCallback {
...
@Override
public void onSizeReady(int width, int height) {
if (Log.isLoggable(TAG, Log.VERBOSE)) {
logV("Got onSizeReady in " + LogTime.getElapsedMillis(startTime));
}
if (status != Status.WAITING_FOR_SIZE) {
return;
}
status = Status.RUNNING;
width = Math.round(sizeMultiplier * width);
height = Math.round(sizeMultiplier * height);
ModelLoader<A, T> modelLoader = loadProvider.getModelLoader();
final DataFetcher<T> dataFetcher = modelLoader.getResourceFetcher(model, width, height);
if (dataFetcher == null) {
onException(new Exception("Failed to load model: \'" + model + "\'"));
return;
}
ResourceTranscoder<Z, R> transcoder = loadProvider.getTranscoder();
if (Log.isLoggable(TAG, Log.VERBOSE)) {
logV("finished setup for calling load in " + LogTime.getElapsedMillis(startTime));
}
loadedFromMemoryCache = true;
loadStatus = engine.load(signature, width, height, dataFetcher, loadProvider, transformation,
transcoder, priority, isMemoryCacheable, diskCacheStrategy, this);
loadedFromMemoryCache = resource != null;
if (Log.isLoggable(TAG, Log.VERBOSE)) {
logV("finished onSizeReady in " + LogTime.getElapsedMillis(startTime));
}
}
...
}
public void onResourceReady(Resource<?> resource) {
if (resource == null) {
onException(new Exception("Expected to receive a Resource<R> with an object of " + transcodeClass
+ " inside, but instead got null."));
return;
}
Object received = resource.get();
if (received == null || !transcodeClass.isAssignableFrom(received.getClass())) {
releaseResource(resource);
onException(new Exception("Expected to receive an object of " + transcodeClass
+ " but instead got " + (received != null ? received.getClass() : "") + "{" + received + "}"
+ " inside Resource{" + resource + "}."
+ (received != null ? "" : " "
+ "To indicate failure return a null Resource object, "
+ "rather than a Resource object containing null data.")
));
return;
}
if (!canSetResource()) {
releaseResource(resource);
// We can't set the status to complete before asking canSetResource().
status = Status.COMPLETE;
return;
}
onResourceReady(resource, (R) received);
}
private void onResourceReady(Resource<?> resource, R result) {
// We must call isFirstReadyResource before setting status.
boolean isFirstResource = isFirstReadyResource();
status = Status.COMPLETE;
this.resource = resource;
if (requestListener == null || !requestListener.onResourceReady(result, model, target, loadedFromMemoryCache,
isFirstResource)) {
GlideAnimation<R> animation = animationFactory.build(loadedFromMemoryCache, isFirstResource);
target.onResourceReady(result, animation);
}
notifyLoadSuccess();
if (Log.isLoggable(TAG, Log.VERBOSE)) {
logV("Resource ready in " + LogTime.getElapsedMillis(startTime) + " size: "
+ (resource.getSize() * TO_MEGABYTE) + " fromCache: " + loadedFromMemoryCache);
}
}
public class GlideDrawableImageViewTarget extends ImageViewTarget<GlideDrawable> {
private static final float SQUARE_RATIO_MARGIN = 0.05f;
private int maxLoopCount;
private GlideDrawable resource;
public GlideDrawableImageViewTarget(ImageView view) {
this(view, GlideDrawable.LOOP_FOREVER);
}
public GlideDrawableImageViewTarget(ImageView view, int maxLoopCount) {
super(view);
this.maxLoopCount = maxLoopCount;
}
@Override
public void onResourceReady(GlideDrawable resource, GlideAnimation<? super GlideDrawable> animation) {
if (!resource.isAnimated()) {
float viewRatio = view.getWidth() / (float) view.getHeight();
float drawableRatio = resource.getIntrinsicWidth() / (float) resource.getIntrinsicHeight();
if (Math.abs(viewRatio - 1f) <= SQUARE_RATIO_MARGIN
&& Math.abs(drawableRatio - 1f) <= SQUARE_RATIO_MARGIN) {
resource = new SquaringDrawable(resource, view.getWidth());
}
}
super.onResourceReady(resource, animation);
this.resource = resource;
resource.setLoopCount(maxLoopCount);
resource.start();
}
@Override
protected void setResource(GlideDrawable resource) {
view.setImageDrawable(resource);
}
@Override
public void onStart() {
if (resource != null) {
resource.start();
}
}
@Override
public void onStop() {
if (resource != null) {
resource.stop();
}
}
}
public abstract class ImageViewTarget<Z> extends ViewTarget<ImageView, Z> implements GlideAnimation.ViewAdapter {
...
@Override
public void onResourceReady(Z resource, GlideAnimation<? super Z> glideAnimation) {
if (glideAnimation == null || !glideAnimation.animate(resource, this)) {
setResource(resource);
}
}
protected abstract void setResource(Z resource);
}
总结：
into 方法主要流程请求数据，转码数据，缓存数据，显示图片。
into方法可以idea调试下,也不是特别复杂。
