概述
BIO
我们先来看一段代码
import java.io.File;
import java.io.FileInputStream;
public class BIOTest {
public static void main(String[] args) throws Exception{
File file = new File("haha.txt");
FileInputStream fi = new FileInputStream(file);
byte[] bytes = new byte[10];
int c ;
while ((c = fi.read(bytes)) != -1){
String str = new String(bytes,0,c);
System.out.println(str);
}
}
}

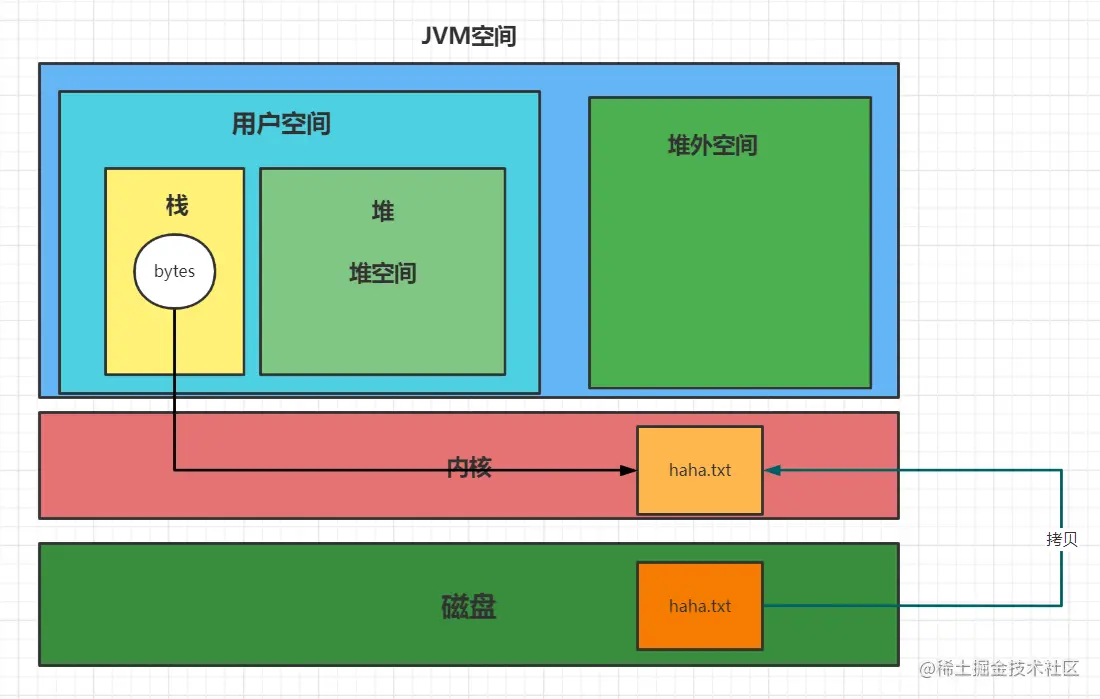

非常简单的一个文件读取操作 底层调用的是 FileInputStream 的 native 方法。读取一次的模型如图
可以看到读取10个字节的内容需要经过 磁盘->内核->堆外空间->用户堆空间
三次拷贝

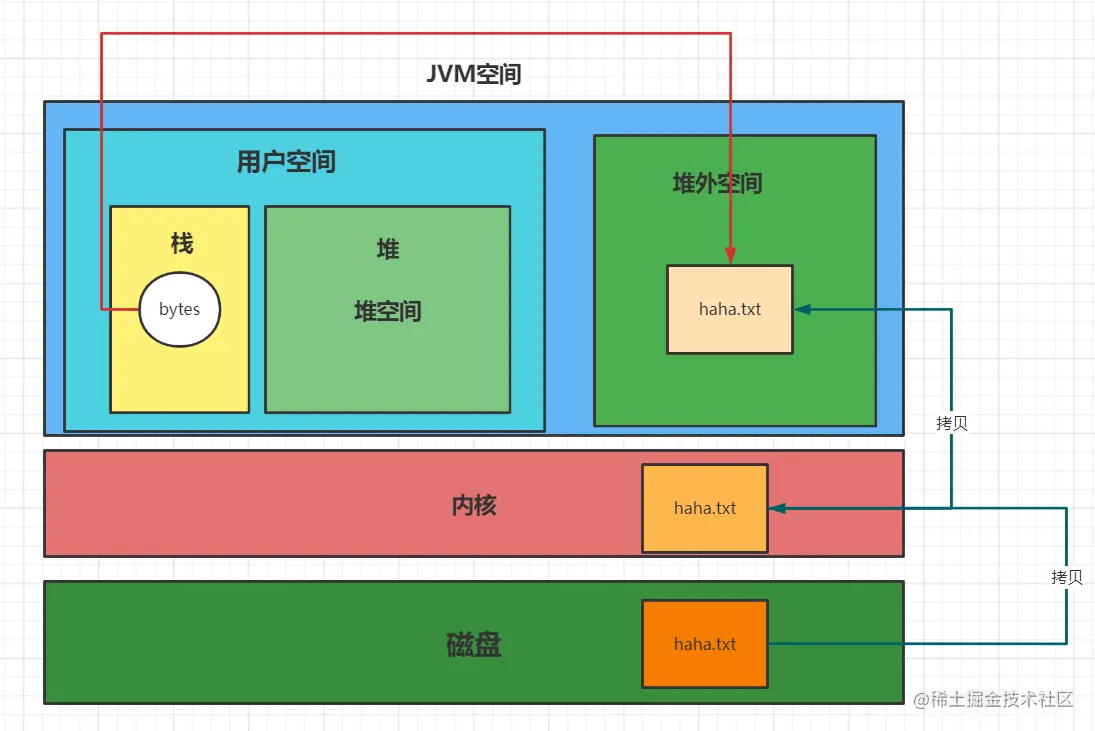

NIO
这么多次的拷贝影响性能，有没有什么方法能减少拷贝的次数呢。
import java.io.FileInputStream;
import java.nio.ByteBuffer;
import java.nio.channels.FileChannel;
public class BIOTest {
public static void main(String[] args) throws Exception{
FileInputStream fi = new FileInputStream("haha.txt");
FileChannel channel = fi.getChannel();
# 申请了一个堆外的内存
ByteBuffer byteBuffer = ByteBuffer.allocateDirect(1);
int c ;
while ((c = channel.read(byteBuffer)) != -1){
byteBuffer.flip();
byte[] bytes = new byte[byteBuffer.remaining()];
byteBuffer.get(bytes);
System.out.println(new String(bytes));
byteBuffer.clear();
}
}
}
mmap
还有没有更快的呢
import java.io.File;
import java.io.RandomAccessFile;
import java.nio.MappedByteBuffer;
import java.nio.channels.FileChannel;
public class BIOTest {
public static void main(String[] args) throws Exception {
File file = new File("F:\workspace\zc-chat\src\main\resources\haha.txt");
long len = 10;
byte[] ds = new byte[(int) len];
MappedByteBuffer mappedByteBuffer = new RandomAccessFile(file, "r")
.getChannel()
.map(FileChannel.MapMode.READ_ONLY, 0, len);
for (int offset = 0; offset < len; offset++) {
byte b = mappedByteBuffer.get();
ds[offset] = b;
}
System.out.println(new String(ds));
}
}
当然,上面是理论结构,实际测试下来,拷贝一个1g的文件,上面几种io其实差别并不大
FileChannel
通过上面的代码可以看出, NIO和BIO最明显的不同是 NIO从fileInputSteam里面获得了一个 fileChannel 然后从 fileChannel 里面读取的是 ByteBuffer, 我们先来看看 FileChannel

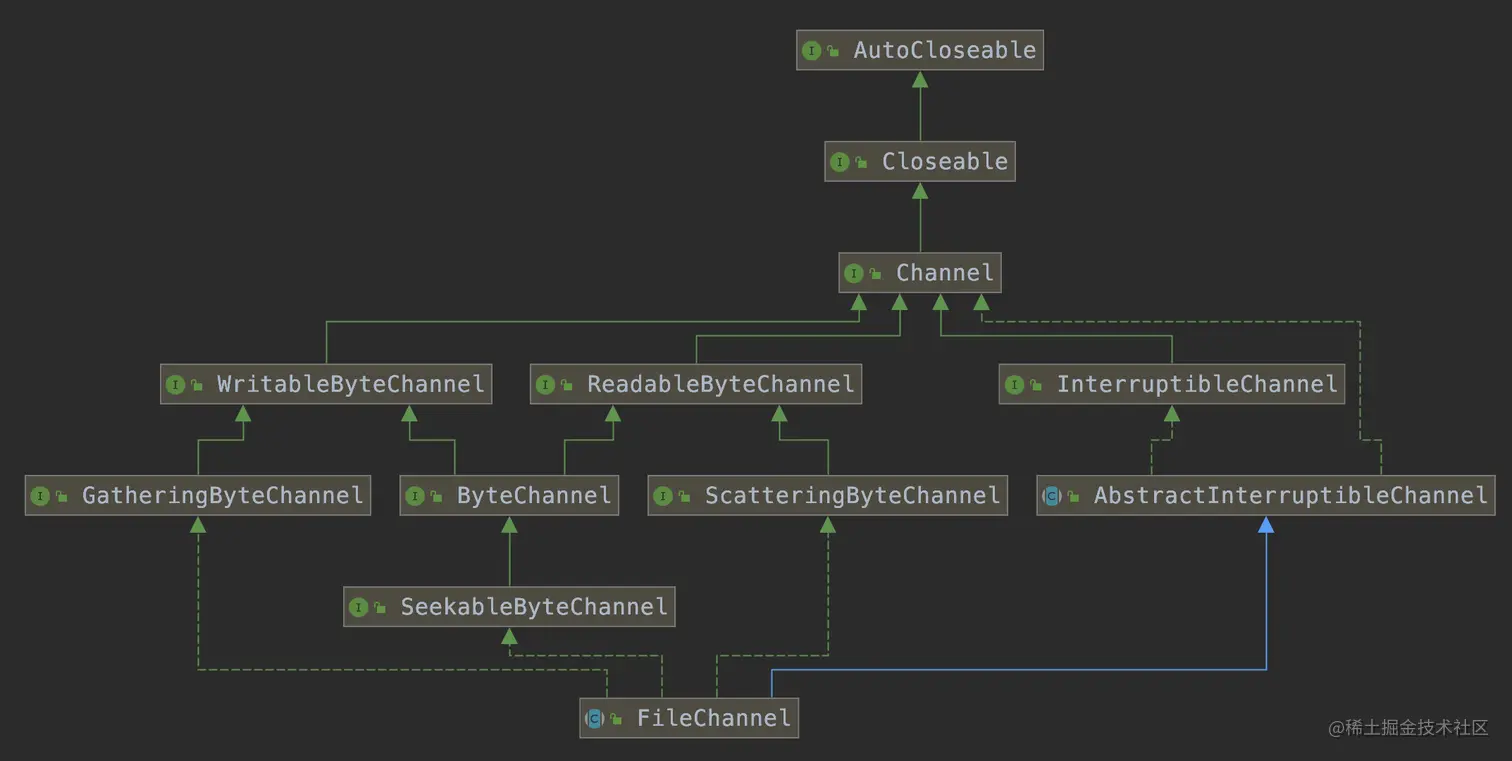

接口继承的太多,用到具体的在细讲主要知道 FileChannel是一个 Channel
# 一个channel 可以表示一个 硬件,一个file,一个网络socket.线程安全
public interface Channel extends Closeable {
public boolean isOpen();
public void close() throws IOException;
}
从案例中我们可以看出 filechannel可以对其进行读写操作,我们看看内部实现
public int read(ByteBuffer var1) throws IOException {
this.ensureOpen();
if (!this.readable) {
throw new NonReadableChannelException();
} else {
synchronized(this.positionLock) {
int var3 = 0;
int var4 = -1;
try {
this.begin();
var4 = this.threads.add();
if (!this.isOpen()) {
byte var12 = 0;
return var12;
} else {
do {
# 把fd内容读取到ByteBuffer 中
var3 = IOUtil.read(this.fd, var1, -1L, this.nd);
} while(var3 == -3 && this.isOpen());
int var5 = IOStatus.normalize(var3);
return var5;
}
} finally {
this.threads.remove(var4);
this.end(var3 > 0);
assert IOStatus.check(var3);
}
}
}
}
可以看到核心其实是 IOUtil的read方法
static int read(FileDescriptor var0, ByteBuffer var1, long var2, NativeDispatcher var4) throws IOException {
if (var1.isReadOnly()) {
throw new IllegalArgumentException("Read-only buffer");
} else if (var1 instanceof DirectBuffer) {
# 如果是直接内存,调用native方法直接 让 内核把数据从磁盘拷贝到内核空间,然后再读到jvm空间返回
return readIntoNativeBuffer(var0, var1, var2, var4);
} else {
# 如果是java堆内存, 创建出来一块堆外内存
ByteBuffer var5 = Util.getTemporaryDirectBuffer(var1.remaining());
int var7;
try {
# 还是把磁盘拷贝到内核,内核拷贝到堆外内存
int var6 = readIntoNativeBuffer(var0, var5, var2, var4);
var5.flip();
if (var6 > 0) {
# 然后把堆外内存再拷贝到堆内中
var1.put(var5);
}
var7 = var6;
} finally {
Util.offerFirstTemporaryDirectBuffer(var5);
}
return var7;
}
}
通过源码可以看出来,channel在读取数据的时候会判断bytebuffer类型是不是 DirectBuffer 不是就会创建一个 直接内存然后拷贝一遍. Channel的写操作也是同理. 所以我们理解Channel就是可以理解为一个文件或者网络socket,读取是通过ByteBuffer,接下来我们就来看看ByteBuffer
ByteBuffer
可以理解为一个内存空间,只是存放的地方不同分为 HeapByteBuffer 堆内内存 DirectByteBuffer 堆外内存也叫直接内存. channel调用readwrite方法底层调用的就是 ByteBuffer 的read write方法,所以我们重点看两种bytebuffer是如何实现读写的.
Buffer封装了4个指针,并且封装了指针的操作,用于读写.
public abstract class Buffer {
// Invariants: mark <= position <= limit <= capacity
private int mark = -1;
private int position = 0;
private int limit;
private int capacity;
」

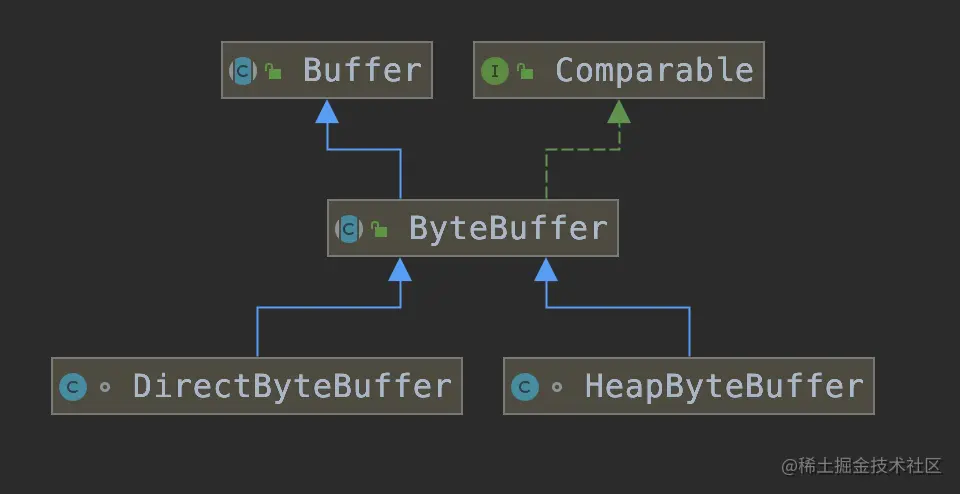

接下来看看 ByteBuffer
public abstract class ByteBuffer
extends Buffer
implements Comparable<ByteBuffer>
{
# 只给堆内存用
final byte[] hb; // Non-null only for heap buffers
final int offset;
boolean isReadOnly;
# 创建直接内存
public static ByteBuffer allocateDirect(int capacity) {
return new DirectByteBuffer(capacity);
}
# 创建堆内存
public static ByteBuffer allocate(int capacity) {
if (capacity < 0)
throw new IllegalArgumentException();
return new HeapByteBuffer(capacity, capacity);
}
# 获得一个字节
public abstract byte get();
# 添加一个字节
public abstract ByteBuffer put(byte b);
}
可以看到,ByteBuffer 提供了两个创建堆内存和非堆内存的方法,并且抽象了读取和写入的方法给子类
class HeapByteBuffer
extends ByteBuffer
{
# java堆空间的byte数组
protected final byte[] hb;
protected final int offset;
public byte get() {
return hb[ix(nextGetIndex())];
}
public ByteBuffer put(byte x) {
hb[ix(nextPutIndex())] = x;
return this;
}
class DirectByteBuffer extends MappedByteBuffer
implements DirectBuffer
{
# 可以理解为一个操作数组的指针
protected static final Unsafe unsafe = Bits.unsafe();
DirectByteBuffer(int cap) { // package-private
# 初始化buffer 四个参数
super(-1, 0, cap, cap);
boolean pa = VM.isDirectMemoryPageAligned();
int ps = Bits.pageSize();
long size = Math.max(1L, (long)cap + (pa ? ps : 0));
Bits.reserveMemory(size, cap);
long base = 0;
try {
# 申请直接内存
base = unsafe.allocateMemory(size);
} catch (OutOfMemoryError x) {
Bits.unreserveMemory(size, cap);
throw x;
}
unsafe.setMemory(base, size, (byte) 0);
if (pa && (base % ps != 0)) {
// Round up to page boundary
address = base + ps - (base & (ps - 1));
} else {
address = base;
}
cleaner = Cleaner.create(this, new Deallocator(base, size, cap));
att = null;
}
public ByteBuffer put(byte x) {
unsafe.putByte(ix(nextPutIndex()), ((x)));
return this;
}
public byte get() {
return ((unsafe.getByte(ix(nextGetIndex()))));
}
}
通过源码可以看出来, DirectByteBuffer 和 HeapByteBuffer 一个管理堆的byte数组,一个是用 unsafe类管理堆外的数组.
