需求：
- 需要满足市场上不同比例的大屏(5:4、4:3（较少）、16:10、16:9（新品）)
- 需要满足不同分辨率的屏幕 (1080px 2K 4K) 125% 175%...等
问题:
如果按照设计稿1920*1080开发 ,就不适用于2k 4K,展示效果不好或者是需要用% 或者 vh vw等比例去写css, 这样的方法不仅笨拙 而且代码量增加了不少,而且计算复杂,存在兼容性问题,字体大小不对等问题
1、方式一（采用zoom）
缺点：鼠标经过会存在位置偏移，例如echart的tooltip位置、select/dropdown等弹出框位置
- 没有地图可直接设置body
// index.html
<script>
window.onload = function() {
document.body.style.zoom = "normal"; //避免zoom尺寸叠加
let scale = 1 / window.devicePixelRatio
document.body.style.zoom = scale;
};
//防抖，避免resize占用过多资源
(function() {
var throttle = function(type, name, obj) {
obj = obj || window;
var running = false;
var func = function() {
if (running) {
return;
}
running = true;
requestAnimationFrame(function() {
obj.dispatchEvent(new CustomEvent(name));
running = false;
});
};
obj.addEventListener(type, func);
};
throttle("resize", "optimizedResize");
})();
// 获取当前屏幕分辨率
(function() {
var ratio=0;
var screen=window.screen;
var ua=navigator.userAgent.toLowerCase();
if(window.devicePixelRatio !== undefined){
ratio=window.devicePixelRatio;
}else if(~ua.indexOf('msie')){
if(screen.deviceXDPI && screen.logicalXDPI)
{
ratio=screen.deviceXDPI/screen.logicalXDPI;
}
}else if(window.outerWidth !== undefined && window.innerWidth !== undefined){
ratio=window.outerWidth/window.innerWidth;
}
console.log(ratio)
if(ratio){
ratio=Math.round(ratio*100);
}
window.screenRatio = ratio
console.log(ratio)
return ratio;
})()
// optimizedResize
window.addEventListener("optimizedResize", function() {
document.body.style.zoom = "normal";
let scale = 1 / window.devicePixelRatio
document.body.style.zoom = scale;
});
</script>
- 有地图页面则设置在无地图页面（单独给每块添加）
// 每块写死宽度
<template>
<div class="xzjc">
<!-- 视图 -->
<router-view class="routerView"></router-view>
<!-- 地图 -->
<div id="map" class="map"></div>
</div>
</template>
export default {
methods: {
// 窗口分辨率缩放 内容大小高度保持不变
resizeScale () {
if (document.documentElement && document.documentElement.clientHeight && document.documentElement.clientWidth) {
var header = document.querySelector(".common-header")
var left = document.querySelector(".routerView .common-index-left")
var right = document.querySelector(".routerView .common-index-right")
var legend = document.querySelector(".routerView .common-index-legend")
var center = document.querySelector(".routerView .common-index-center")
let scale = 1 / window.devicePixelRatio
if(header) {
header.style.zoom = "normal"; //避免zoom尺寸叠加
header.style.zoom = scale;
}
if(left) {
left.style.zoom = "normal"; //避免zoom尺寸叠加
left.style.zoom = scale;
}
if(right) {
right.style.zoom = "normal"; //避免zoom尺寸叠加
right.style.zoom = scale;
}
if(legend) {
legend.style.zoom = "normal"; //避免zoom尺寸叠加
legend.style.zoom = scale;
}
if(center) {
center.style.zoom = "normal"; //避免zoom尺寸叠加
center.style.zoom = scale;
}
}
},
}
}
2、方式二（采用transform:scale(n) ）
参考百度云的 SugerBi可视化
以及阿里的datav可视化
优点：鼠标经过会不存在位置偏移，字体也能很完美的适配
- 没有地图可直接设置body
// index.html
<script>
function resize () {
document.body.style.width = '1920px';
document.body.style.height = 1080px';
var winHeight = document.documentElement.clientHeight; //浏览器的高度
var winWidth = document.documentElement.clientWidth; //浏览器的宽度
var sw = winWidth / 1920
var sh = winHeight / 1080
ducument.body.style.transition = 'all 0.5s'
document.body.style.transformOrigin = 'left top'
document.body.style.transform = `scale(${sw},${sh})`
document.body.style.WebkitTransform = `scale(${sw},${sh})`
}
window.onload = function() {
resize()
};
//防抖，避免resize占用过多资源
(function() {
var throttle = function(type, name, obj) {
obj = obj || window;
var running = false;
var func = function() {
if (running) {
return;
}
running = true;
requestAnimationFrame(function() {
obj.dispatchEvent(new CustomEvent(name));
running = false;
});
};
obj.addEventListener(type, func);
};
throttle("resize", "optimizedResize");
})();
// optimizedResize
window.addEventListener("optimizedResize", resize);
</script>
- 有地图页面则设置在无地图页面
<template>
<div class="xzjc">
<!-- 视图 -->
<router-view class="routerView"></router-view>
<!-- 地图 -->
<div id="map" class="map"></div>
</div>
</template>
export default {
methods: {
// 窗口分辨率缩放 内容大小高度保持不变
resizeScale () {
if (document.documentElement && document.documentElement.clientHeight && document.documentElement.clientWidth) {
var winHeight = document.documentElement.clientHeight; //浏览器的高度
var winWidth = document.documentElement.clientWidth; //浏览器的宽度
var sw = winWidth / 1920
var sh = winHeight / 1080
var content = document.querySelector(".routerView")
if (content) {
content.style.transform = `scale(${sw},${sh})`
content.style.WebkitTransform = `scale(${sw},${sh})`
}
}
},
}
}
// css部分
.common-index {
width: 1920px !important;
height: 1080px !important;
transform-origin: left top;
position: absolute;
transition: all 0.5s;
&-header {
height: 84px;
}
&-left {
position: absolute;
top: 85px;
left: 0 !important;
z-index: 1;
height: calc(100% - 110px) !important;
pointer-events: auto;
}
&-right {
position: absolute;
top: 85px;
left: 0 !important;
z-index: 1;
height: calc(100% - 110px) !important;
pointer-events: auto;
}
.common-index-part {
width: 100%;
padding: 0 16px;
box-sizing: border-box;
/* 第一块 */
&_1 {
width: 100%;
height: 323px;
// height: calc(100% / 3 + 13px) !important;
}
/* 第二块 */
&_2 {
width: 100%;
// height: calc(100% / 3 - 30px) !important;
height: 323px;
}
/* 第三块 */
&_3 {
width: 100%;
// height: calc(100% / 3 + 17px) !important;
height: 323px;
}
}
}

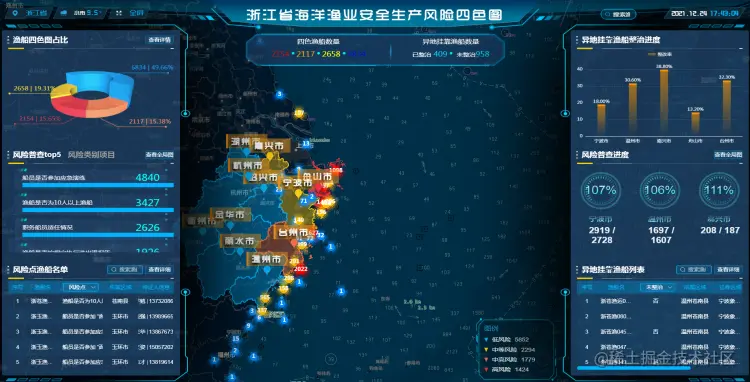

效果图
