RabbitMQ

RabbitMQ的安装部署

CentOS7安装RabbitMQ单机版(3.8.4)

gper.club/articles/7e…

Docker安装RabbitMQ集群

gper.club/articles/7e…

RabbitMQ默认端口：5672；UI端口：15672；集群端口：25672；

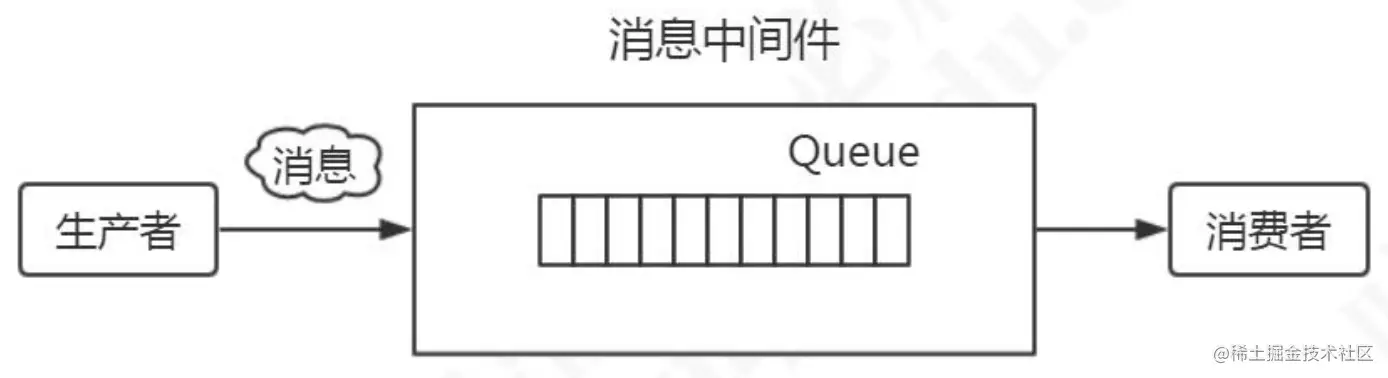

1. MQ的作用

异步
解耦
削峰

2. RabbitMQ的工作模型

RabbitMQ是用Erlang语言编写的

特性：

高可靠

灵活的路由

支持多客户端

集群与扩展性

高可用队列

权限管理

插件系统

与Spring集成 Spring AMQP

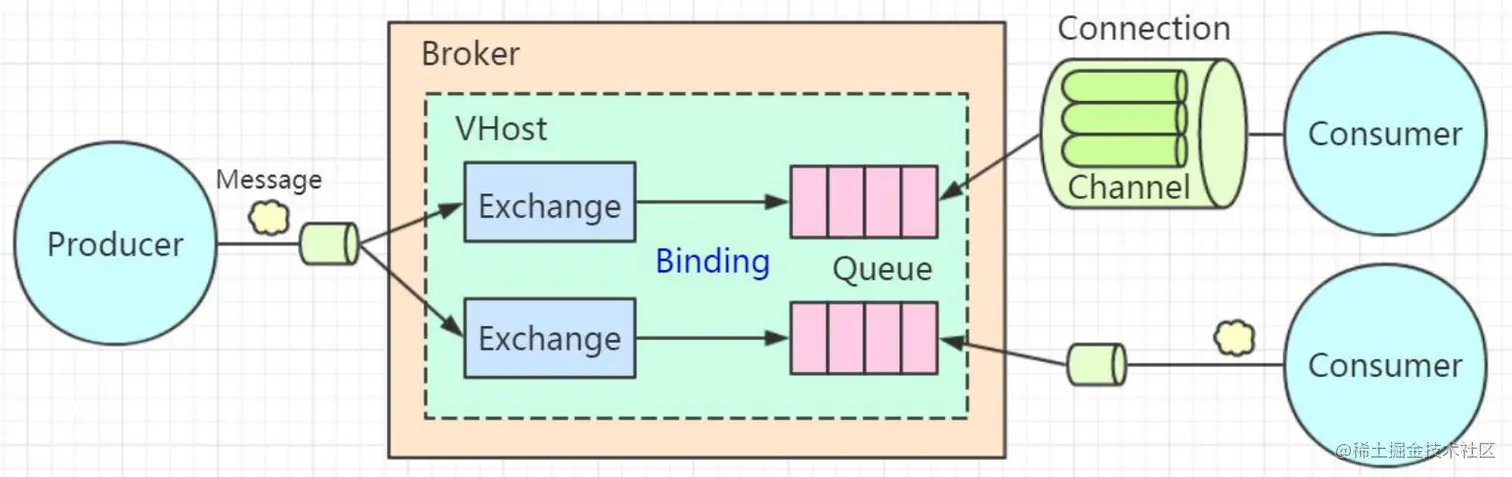

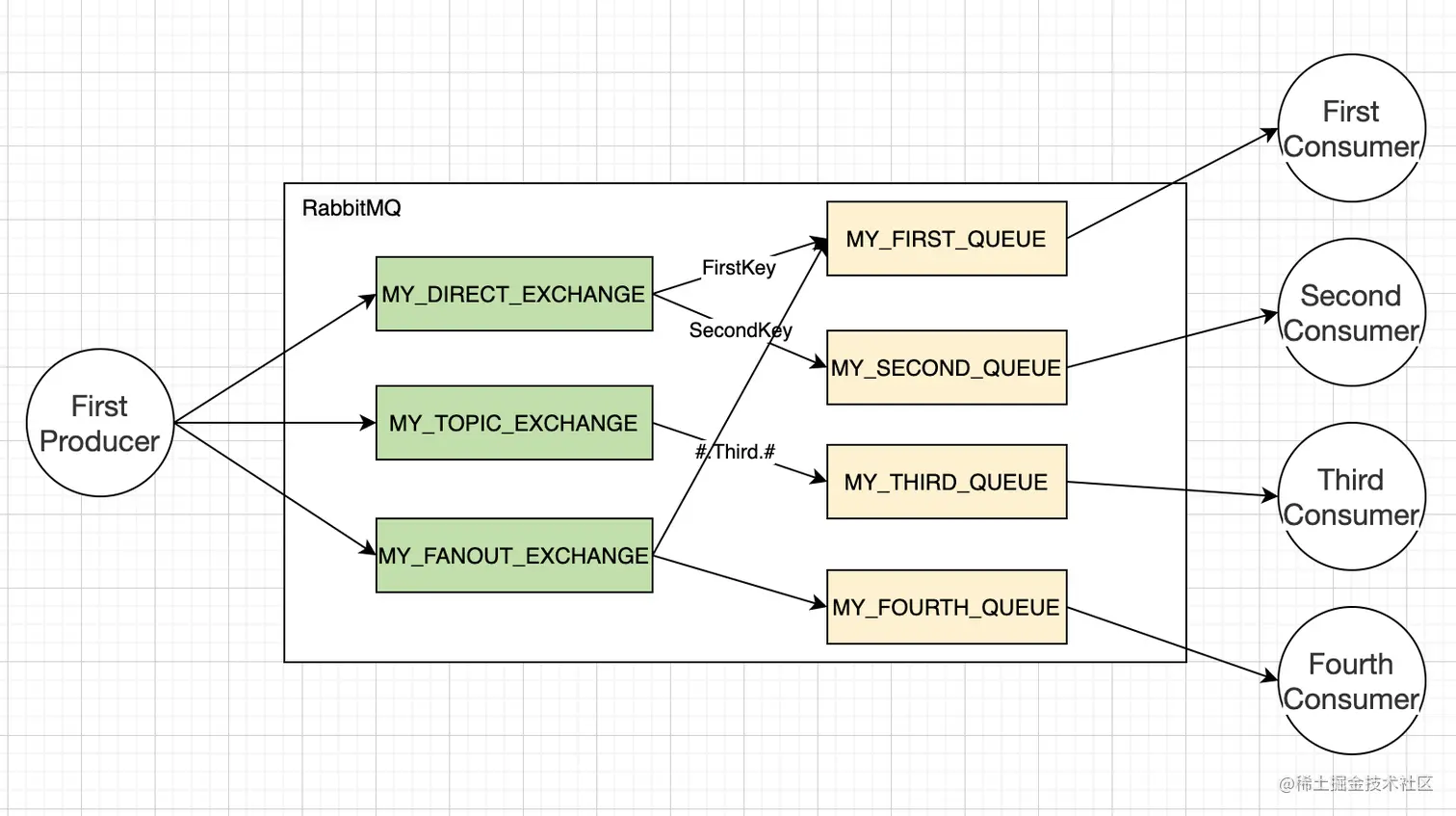

工作模型：

Broker: 主机；VHost: 虚拟主机；Exchange: 交换机；Binding: 绑定；Queue: 队列；Channel: 信道

利用VHost虚拟主机可以实现多租户的权限隔离，使用时互相之间不影响。

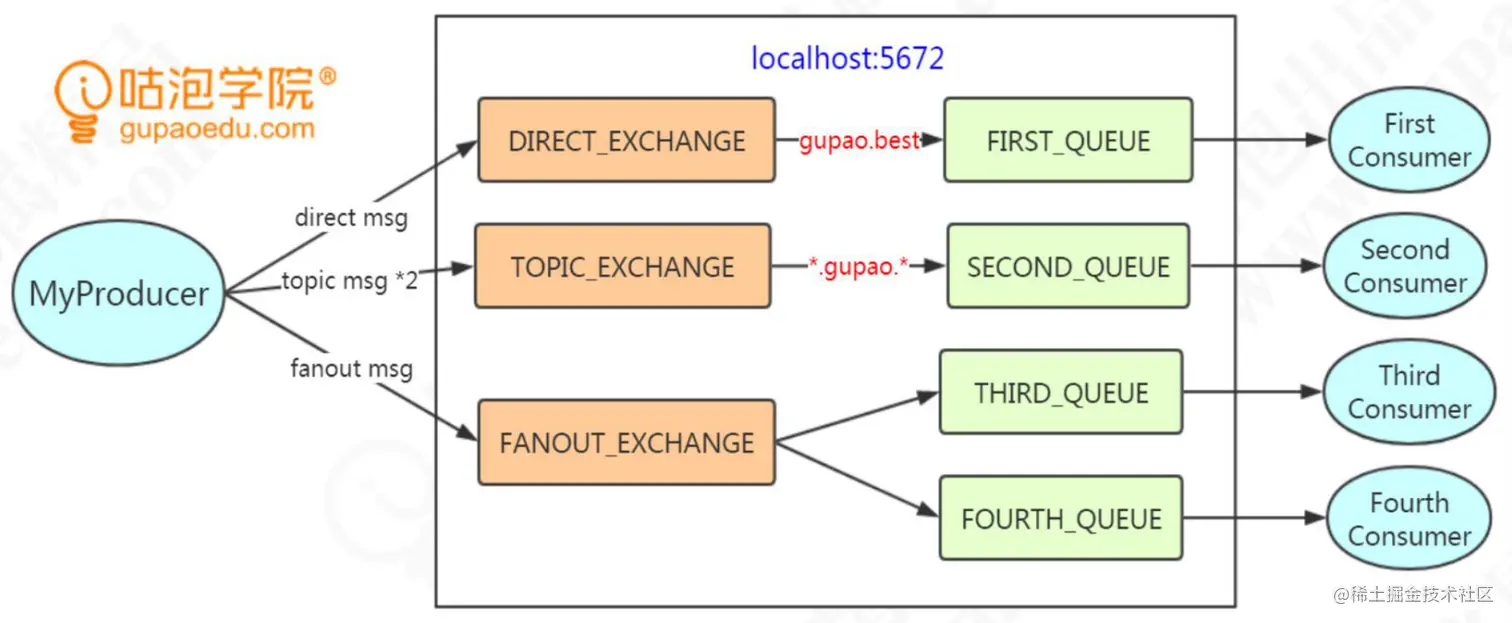

3. Exchange消息路由

Direct 直连

Topic 主题
- * 代表一个单词
- # 代表0个或多个单词
- .隔开的代表一个单词，a.bc.def：a bc def三个单词

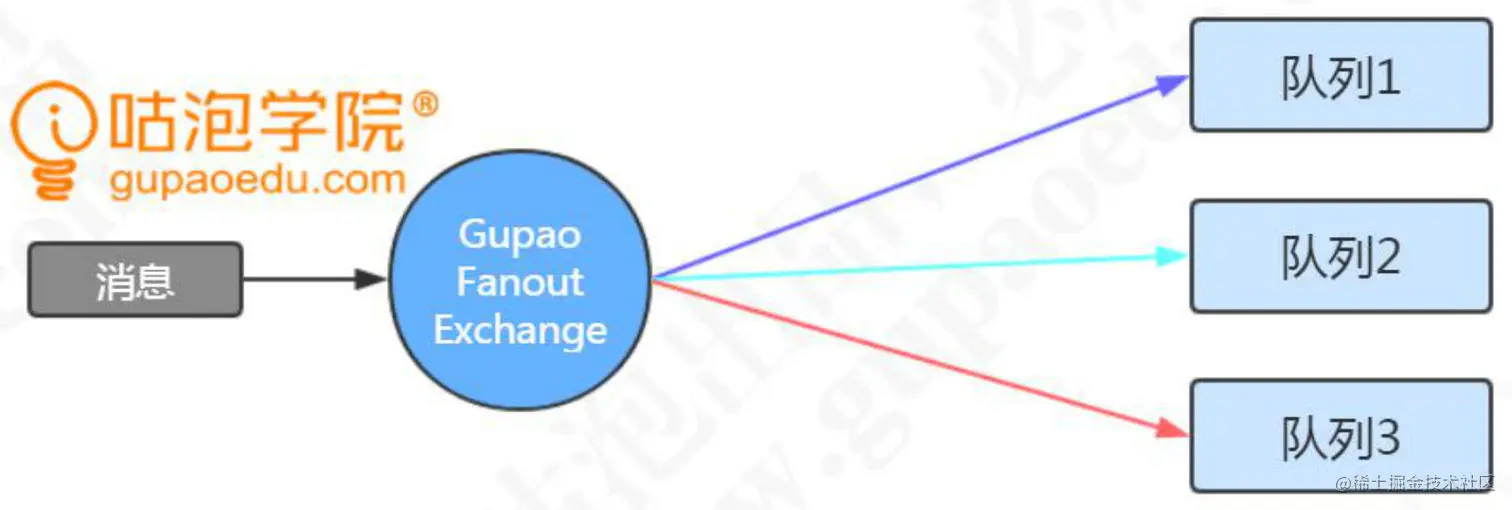

Fanout 广播

4. 基本使用 Java API

安装RabbitMQ（需要先安装Erlang）：略

Java使用RabbitMQ

4.1 引入依赖

<dependencies>
    <dependency>
        <groupId>com.rabbitmq</groupId>
        <artifactId>amqp-client</artifactId>
        <version>5.6.0</version>
    </dependency>
</dependencies>

4.2 消费者

package com.gupaoedu.simple;

import com.rabbitmq.client.*;
import java.io.IOException;

public class MyConsumer {
    private final static String EXCHANGE_NAME = "SIMPLE_EXCHANGE";
    private final static String QUEUE_NAME = "SIMPLE_QUEUE";

    public static void main(String[] args) throws Exception {
        ConnectionFactory factory = new ConnectionFactory();
        // 连接IP
        factory.setHost("127.0.0.1");
        // 默认监听端口
        factory.setPort(5672);
        // 虚拟机 VHost
        factory.setVirtualHost("/");

        // 设置访问的用户 默认guest
        factory.setUsername("guest");
        factory.setPassword("guest");
        // 建立连接
        Connection conn = factory.newConnection();
        // 创建消息通道
        Channel channel = conn.createChannel();

        // 声明交换机（创建交换机，已存在不会报错）
        // String exchange 交换机名称
      	// String type 类型
      	// boolean durable 是否持久化
      	// boolean autoDelete 是否自动删除
      	// Map<String, Object> arguments 其他参数
        channel.exchangeDeclare(EXCHANGE_NAME,"direct",false, false, null);

        // 声明队列
        // String queue 队列名称
      	// boolean durable 是否持久化
      	// boolean exclusive 是否排外的
      	// boolean autoDelete 是否自动删除
      	// Map<String, Object> arguments 其他参数
        channel.queueDeclare(QUEUE_NAME, false, false, false, null);
        System.out.println(" Waiting for message....");

        // 绑定队列和交换机（绑定键gupao.best）
        channel.queueBind(QUEUE_NAME, EXCHANGE_NAME, "gupao.best");

        // 创建消费者
        Consumer consumer = new DefaultConsumer(channel) {
            @Override
            public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {
                String msg = new String(body, "UTF-8");
                System.out.println("Received message : '" + msg + "'");
                System.out.println("consumerTag : " + consumerTag );
                System.out.println("deliveryTag : " + envelope.getDeliveryTag() );
            }
        };

        // 开始获取消息
        // String queue, boolean autoAck, Consumer callback
        channel.basicConsume(QUEUE_NAME, true, consumer);
    }
}

4.3 生产者

package com.gupaoedu.simple;

import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.ConnectionFactory;

public class MyProducer {
    private final static String EXCHANGE_NAME = "SIMPLE_EXCHANGE";

    public static void main(String[] args) throws Exception {
        ConnectionFactory factory = new ConnectionFactory();
        // 连接IP
        factory.setHost("127.0.0.1");
        // 连接端口
        factory.setPort(5672);
        // 虚拟机 VHost
        factory.setVirtualHost("/");
        // 用户 默认guest
        factory.setUsername("guest");
        factory.setPassword("guest");

        // 建立连接
        Connection conn = factory.newConnection();
        // 创建消息通道
        Channel channel = conn.createChannel();

        String msg = "Hello world, Rabbit MQ";

        // 发送消息
        // String exchange, String routingKey, BasicProperties props, byte[] body
        channel.basicPublish("QUEUE_NAME", "gupao.best", null, msg.getBytes());

        channel.close();
        conn.close();
    }
}

4.4 参数详解（待补充）

5. 死信 Dead Letter 队列

死信交换机 DLX
死信队列 DLQ

5.1 TTL：time to live

x-message-ttl：队列可设置消息过期时间（对队列内所有消息生效）

.expiration("10000")：对每条消息设置过期时间（只对当前消息生效）

两种方式设置消息过期时间的方式都使用了，将以较小的数值为准

package com.gupaoedu.ttl;

import com.gupaoedu.util.ResourceUtil;
import com.rabbitmq.client.AMQP;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.ConnectionFactory;

import java.util.HashMap;
import java.util.Map;

public class TTLProducer {

    public static void main(String[] args) throws Exception {
        ConnectionFactory factory = new ConnectionFactory();
        factory.setUri(ResourceUtil.getKey("rabbitmq.uri"));

        // 建立连接
        Connection conn = factory.newConnection();
        // 创建消息通道
        Channel channel = conn.createChannel();

        String msg = "Hello world, Rabbit MQ, DLX MSG";

        // 通过队列属性设置消息过期时间
        Map<String, Object> argss = new HashMap<String, Object>();
        argss.put("x-message-ttl",6000);

        // 声明队列（默认交换机AMQP default，Direct）
        // String queue, boolean durable, boolean exclusive, boolean autoDelete, Map<String, Object> arguments
        channel.queueDeclare("TEST_TTL_QUEUE", false, false, false, argss);

        // 对每条消息设置过期时间
        AMQP.BasicProperties properties = new AMQP.BasicProperties.Builder()
                .deliveryMode(2) // 持久化消息
                .contentEncoding("UTF-8")
                .expiration("10000") // TTL
                .build();

        // 此处两种方式设置消息过期时间的方式都使用了，将以较小的数值为准

        // 发送消息  未指定交换机会发到默认的交换机上
        channel.basicPublish("", "TEST_DLX_QUEUE", properties, msg.getBytes());

        channel.close();
        conn.close();
    }
}

5.2 死信交换机和死信队列

创建队列的时候设置参数："x-dead-letter-exchange" = "DLX_EXCHANGE"

如果设置了死信队列，触发以下条件会进入死信队列：

消息超时未被消费（TTL）
消息被消费者拒绝并且被设置不重回队列
消息超过队列最大数量或最大存储空间（x-max-length、x-max-length-bytes）

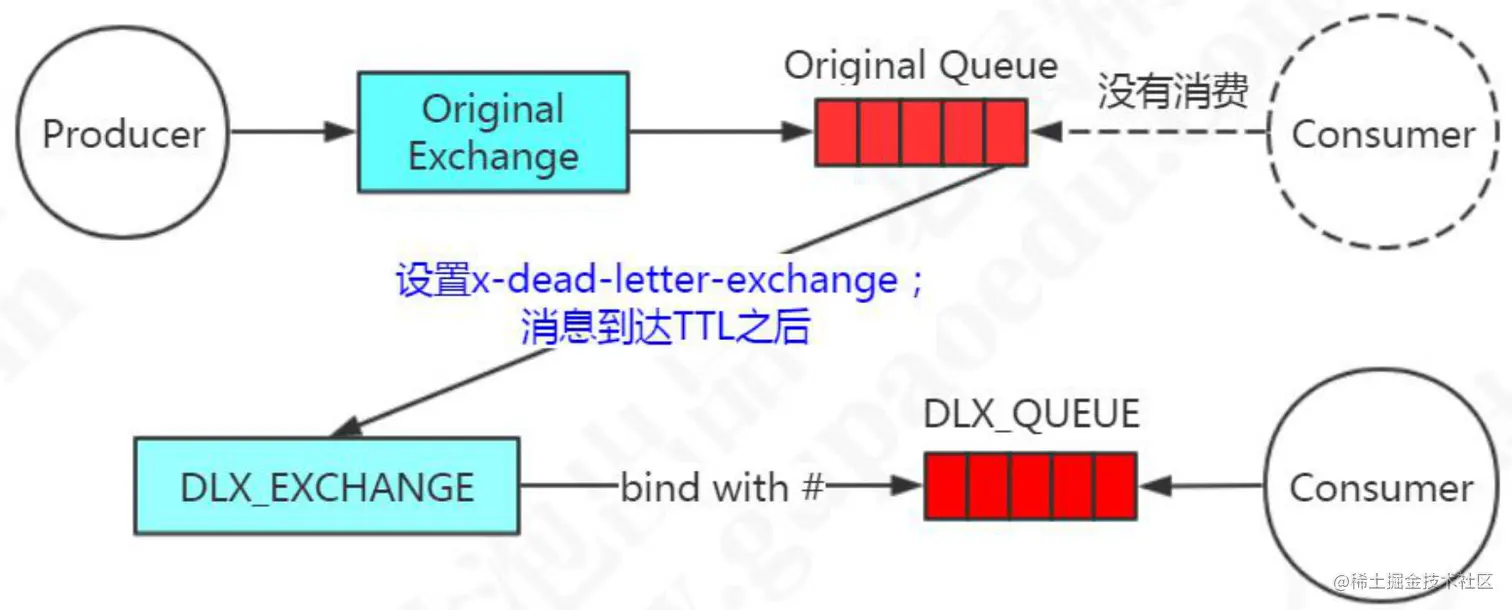

消息流转过程：

package com.gupaoedu.dlx;

import com.gupaoedu.util.ResourceUtil;
import com.rabbitmq.client.*;

import java.io.IOException;
import java.util.HashMap;
import java.util.Map;

/**
 * 消息消费者，由于消费的代码被注释掉了，
 * 10秒钟后，消息会从正常队列 TEST_DLX_QUEUE 到达死信交换机 DLX_EXCHANGE ，然后路由到死信队列DLX_QUEUE
 *
 */
public class DlxConsumer {

    public static void main(String[] args) throws Exception {
        ConnectionFactory factory = new ConnectionFactory();
        factory.setUri(ResourceUtil.getKey("rabbitmq.uri"));
        // 建立连接
        Connection conn = factory.newConnection();
        // 创建消息通道
        Channel channel = conn.createChannel();

        // 指定队列的死信交换机
        Map<String,Object> arguments = new HashMap<String,Object>();
        arguments.put("x-dead-letter-exchange","DLX_EXCHANGE");
        // arguments.put("x-expires","9000"); // 设置队列的TTL
        // arguments.put("x-max-length", 4); // 如果设置了队列的最大长度，超过长度时，先入队的消息会被发送到DLX

        // 声明队列（默认交换机AMQP default，Direct）
        // String queue, boolean durable, boolean exclusive, boolean autoDelete, Map<String, Object> arguments
        channel.queueDeclare("TEST_DLX_QUEUE", false, false, false, arguments);

        // 声明死信交换机
        channel.exchangeDeclare("DLX_EXCHANGE","topic", false, false, false, null);
        // 声明死信队列
        channel.queueDeclare("DLX_QUEUE", false, false, false, null);
        // 绑定，此处 Dead letter routing key 设置为 #
        channel.queueBind("DLX_QUEUE","DLX_EXCHANGE","#");
        System.out.println(" Waiting for message....");

        // 创建消费者
        Consumer consumer = new DefaultConsumer(channel) {
            @Override
            public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {
                String msg = new String(body, "UTF-8");
                System.out.println("Received message : '" + msg + "'");
            }
        };

        // 开始获取消息
        // String queue, boolean autoAck, Consumer callback
        // channel.basicConsume("TEST_DLX_QUEUE", true, consumer);
    }
}

package com.gupaoedu.dlx;

import com.gupaoedu.util.ResourceUtil;
import com.rabbitmq.client.AMQP;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.ConnectionFactory;
import com.rabbitmq.client.impl.AMQBasicProperties;

import java.util.HashMap;
import java.util.Map;

/**
 * @Author: qingshan
 * 消息生产者，通过TTL测试死信队列
 */
public class DlxProducer {

    public static void main(String[] args) throws Exception {
        ConnectionFactory factory = new ConnectionFactory();
        factory.setUri(ResourceUtil.getKey("rabbitmq.uri"));

        // 建立连接
        Connection conn = factory.newConnection();
        // 创建消息通道
        Channel channel = conn.createChannel();

        String msg = "Hello world, Rabbit MQ, DLX MSG";

        // 设置属性，消息10秒钟过期
        AMQP.BasicProperties properties = new AMQP.BasicProperties.Builder()
                .deliveryMode(2) // 持久化消息
                .contentEncoding("UTF-8")
                .expiration("10000") // TTL
                .build();

        // 发送消息  未指定交换机会发到默认的交换机上
        channel.basicPublish("", "TEST_DLX_QUEUE", properties, msg.getBytes());

        channel.close();
        conn.close();
    }
}

6. 延迟队列（插件）

需要用到rabbitmq_delayed_message_exchange插件来实现消息的延迟投递

6.1 安装插件

基于延时插件实现的延时队列（需连接到Linux系统的服务），需要安装延时队列插件： www.rabbitmq.com/community-p… github.com/rabbitmq/ra…

$ cd /usr/lib/rabbitmq/lib/rabbitmq_server-3.6.12/plugins

$ wget https://github.com/rabbitmq/rabbitmq-delayed-message-exchange/releases/download/3.9.0/rabbitmq_delayed_message_exchange-3.9.0.ez

$ rabbitmq-plugins enable rabbitmq_delayed_message_exchange

6.2 使用

使用x-delayed-message类型声明一个Exchange

使用自定义标头x-delay发布消息，以毫秒为单位表示消息的延迟时间。消息将在x-delay毫秒后传递到相应的队列

package com.gupaoedu.dlx;

import com.gupaoedu.util.ResourceUtil;
import com.rabbitmq.client.*;

import java.io.IOException;
import java.text.SimpleDateFormat;
import java.util.Date;
import java.util.HashMap;
import java.util.Map;

/**
 *  使用延时插件实现的消息投递-消费者
 *  必须要在服务端安装rabbitmq-delayed-message-exchange插件，安装步骤见README.MD
 *  先启动消费者
 */
public class DelayPluginConsumer {

    public static void main(String[] args) throws Exception {
        ConnectionFactory factory = new ConnectionFactory();
        factory.setUri("amqp://guest:guest@127.0.0.1:5672");
        // 建立连接
        Connection conn = factory.newConnection();
        // 创建消息通道
        Channel channel = conn.createChannel();

        // 声明x-delayed-message类型的exchange
        Map<String, Object> argss = new HashMap<String, Object>();
        argss.put("x-delayed-type", "direct");
        channel.exchangeDeclare("DELAY_EXCHANGE", "x-delayed-message", false,
                false, argss);

        // 声明队列
        channel.queueDeclare("DELAY_QUEUE", false,false,false,null);

        // 绑定交换机与队列
        channel.queueBind("DELAY_QUEUE", "DELAY_EXCHANGE", "DELAY_KEY");

        // 创建消费者
        Consumer consumer = new DefaultConsumer(channel) {
            @Override
            public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {
                String msg = new String(body, "UTF-8");
                SimpleDateFormat sf=new SimpleDateFormat("yyyy-MM-dd HH:mm:ss.SSS");
                System.out.println("收到消息：[" + msg + "]\n接收时间：" +sf.format(new Date()));
            }
        };

        // 开始获取消息
        // String queue, boolean autoAck, Consumer callback
        channel.basicConsume("DELAY_QUEUE", true, consumer);
    }
}

package com.gupaoedu.dlx;

import com.gupaoedu.util.ResourceUtil;
import com.rabbitmq.client.AMQP;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.ConnectionFactory;

import java.text.SimpleDateFormat;
import java.util.Calendar;
import java.util.Date;
import java.util.HashMap;
import java.util.Map;

/**
 *  使用延时插件实现的消息投递-生产者
 *  必须要在服务端安装rabbitmq-delayed-message-exchange插件，安装步骤见README.MD
 *  先启动消费者
 */
public class DelayPluginProducer {

    public static void main(String[] args) throws Exception {
        ConnectionFactory factory = new ConnectionFactory();
        factory.setUri("amqp://guest:guest@127.0.0.1:5672");

        // 建立连接
        Connection conn = factory.newConnection();
        // 创建消息通道
        Channel channel = conn.createChannel();

        // 延时投递，比如延时1分钟
        Date now = new Date();
        Calendar calendar = Calendar.getInstance();
        calendar.add(Calendar.MINUTE, +1);// 1分钟后投递
        Date delayTime = calendar.getTime();

        // 定时投递，把这个值替换delayTime即可
        // Date exactDealyTime = new Date("2019/01/14,22:30:00");

        SimpleDateFormat sf = new SimpleDateFormat("yyyy-MM-dd HH:mm:ss.SSS");
        String msg = "发送时间：" + sf.format(now) + "，需要投递时间：" + sf.format(delayTime);

        // 延迟的间隔时间，目标时刻减去当前时刻
        Map<String, Object> headers = new HashMap<String, Object>();
        headers.put("x-delay", delayTime.getTime() - now.getTime());

        AMQP.BasicProperties.Builder props = new AMQP.BasicProperties.Builder()
                .headers(headers);
        channel.basicPublish("DELAY_EXCHANGE", "DELAY_KEY", props.build(),
                msg.getBytes());

        channel.close();
        conn.close();
    }
}

7. 流量控制

7.1 服务端流控（删除先入队或拒收）

设置队列容量（会删除先入队的消息）
- x-max-length 最大数量
- x-max-length-bytes 最大存储空间
内存控制（达到设定值不再接收消息）
- RabbitMQ配置文件中设置：vm_memory_high_watermark = 0.4 （40%）
磁盘控制（达到设定值不再接收消息）
- disk_free_limit.relative = 0.3 （30%）
- disk_free_limit.absolute = 2GB

7.2 消费端流控

prefetch count：非自动确认消息的前提下，如果一定数目的消息（通过基于consume或者channel设置Qos的值）未被确认前，不进行消费新的消息。消费者未回复的消息数量，即消费者正在处理的数量

代码示例：

package com.gupaoedu.limit;

import com.gupaoedu.util.ResourceUtil;
import com.rabbitmq.client.*;

import java.io.IOException;

/**
 * 消息消费者，测试消费端限流，先启动
 */
public class LimitConsumer {
    private final static String QUEUE_NAME = "TEST_LIMIT_QUEUE";

    public static void main(String[] args) throws Exception {
        ConnectionFactory factory = new ConnectionFactory();
        factory.setUri(ResourceUtil.getKey("rabbitmq.uri"));

        // 建立连接
        Connection conn = factory.newConnection();
        // 创建消息通道
        final Channel channel = conn.createChannel();

        // 声明队列（默认交换机AMQP default，Direct）
        // String queue, boolean durable, boolean exclusive, boolean autoDelete, Map<String, Object> arguments
        channel.queueDeclare(QUEUE_NAME, false, false, false, null);
        System.out.println("Consumer1  Waiting for message....");

        // 创建消费者，并接收消息
        Consumer consumer = new DefaultConsumer(channel) {
            @Override
            public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {
                String msg = new String(body, "UTF-8");

                System.out.println("Consumer1 Received message : '" + msg + "'" );

                channel.basicAck(envelope.getDeliveryTag(), true); // 手动应答

            }
        };

        // 非自动确认消息的前提下，如果一定数目的消息（通过基于consume或者channel设置Qos的值）未被确认前，不进行消费新的消息。
        channel.basicQos(2); // prefetch count
        channel.basicConsume(QUEUE_NAME, false, consumer); // false：非自动应答（手动应答）
    }
}

多消费者

多个消费者监听同一个队列，RabbitMQ会进行消息的轮询分发（每条消息只会发送给一个消费者）

如果某些消费者任务繁重，来不及消费那么多消息，而某些其他消费者由于某些原因很快处理完了所分配到的消息，进而空闲，这样就会造成整体应用吞吐量的下降

可通过 channel.basicQos(x); 限制信道上消费者所能保持的最大未确认消息的数（通过消费端限流来平衡）

8. Spring AMQP

8.1 引入依赖

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.gupaoedu</groupId>
    <artifactId>spring-rabbitmq</artifactId>
    <version>1.0-SNAPSHOT</version>

    <properties>
        <!-- spring版本号 -->
        <spring.version>4.3.14.RELEASE</spring.version>
        <!-- log4j日志文件管理包版本 -->
        <slf4j.version>1.6.6</slf4j.version>
        <log4j.version>1.2.12</log4j.version>
        <!-- junit版本号 -->
        <junit.version>4.10</junit.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-core</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context-support</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-aspects</artifactId>
            <version>${spring.version}</version>
        </dependency>

        <!--rabbitmq依赖 -->
        <dependency>
            <groupId>org.springframework.amqp</groupId>
            <artifactId>spring-rabbit</artifactId>
            <version>1.3.5.RELEASE</version>
        </dependency>
        <!-- 日志文件管理包 -->
        <dependency>
            <groupId>log4j</groupId>
            <artifactId>log4j</artifactId>
            <version>${log4j.version}</version>
        </dependency>
        <dependency>
            <groupId>org.slf4j</groupId>
            <artifactId>slf4j-api</artifactId>
            <version>${slf4j.version}</version>
        </dependency>
        <dependency>
            <groupId>org.slf4j</groupId>
            <artifactId>slf4j-log4j12</artifactId>
            <version>${slf4j.version}</version>
        </dependency>
        <!-- log end -->

        <!--单元测试依赖 -->
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>${junit.version}</version>
            <scope>test</scope>
        </dependency>
    </dependencies>
</project>

8.2 配置applicationContext.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:context="http://www.springframework.org/schema/context"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-3.1.xsd
    http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-3.1.xsd">

    <import resource="classpath*:rabbitMQ.xml" />

    <!-- 扫描指定package下所有带有如 @Controller,@Service,@Resource 并把所注释的注册为Spring Beans -->
    <context:component-scan base-package="com.gupaoedu.*" />

    <!-- 激活annotation功能 -->
    <context:annotation-config />

    <!-- 激活annotation功能 -->
    <context:spring-configured />
</beans>

log4j.properties

log4j.rootLogger=INFO,consoleAppender,fileAppender
log4j.category.ETTAppLogger=DEBUG, ettAppLogFile
log4j.appender.consoleAppender=org.apache.log4j.ConsoleAppender
log4j.appender.consoleAppender.Threshold=TRACE
log4j.appender.consoleAppender.layout=org.apache.log4j.PatternLayout
log4j.appender.consoleAppender.layout.ConversionPattern=%-d{yyyy-MM-dd HH:mm:ss SSS} ->[%t]--[%-5p]--[%c{1}]--%m%n
log4j.appender.fileAppender=org.apache.log4j.DailyRollingFileAppender
log4j.appender.fileAppender.File=F:/dev_logs/rabbitmq/debug1.log
log4j.appender.fileAppender.DatePattern='_'yyyy-MM-dd'.log'
log4j.appender.fileAppender.Threshold=TRACE
log4j.appender.fileAppender.Encoding=BIG5
log4j.appender.fileAppender.layout=org.apache.log4j.PatternLayout
log4j.appender.fileAppender.layout.ConversionPattern=%-d{yyyy-MM-dd HH:mm:ss SSS}-->[%t]--[%-5p]--[%c{1}]--%m%n
log4j.appender.ettAppLogFile=org.apache.log4j.DailyRollingFileAppender
log4j.appender.ettAppLogFile.File=F:/dev_logs/rabbitmq/ettdebug.log
log4j.appender.ettAppLogFile.DatePattern='_'yyyy-MM-dd'.log'
log4j.appender.ettAppLogFile.Threshold=DEBUG
log4j.appender.ettAppLogFile.layout=org.apache.log4j.PatternLayout
log4j.appender.ettAppLogFile.layout.ConversionPattern=%-d{yyyy-MM-dd HH\:mm\:ss SSS}-->[%t]--[%-5p]--[%c{1}]--%m%n

8.3 配置rabbitMQ.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:rabbit="http://www.springframework.org/schema/rabbit"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
     http://www.springframework.org/schema/beans/spring-beans-3.0.xsd
     http://www.springframework.org/schema/rabbit
     http://www.springframework.org/schema/rabbit/spring-rabbit-1.2.xsd">

    <!--配置connection-factory，指定连接rabbit server参数 -->
    <rabbit:connection-factory id="connectionFactory" virtual-host="/" username="guest" password="guest" host="127.0.0.1" port="5672" />

    <!--通过指定下面的admin信息，当前producer中的exchange和queue会在rabbitmq服务器上自动生成 -->
    <rabbit:admin id="connectAdmin" connection-factory="connectionFactory" />

    <!--############分隔线############-->

    <!--定义queue -->
    <rabbit:queue name="MY_FIRST_QUEUE" durable="true" auto-delete="false" exclusive="false" declared-by="connectAdmin" />

    <!--定义direct exchange，绑定MY_FIRST_QUEUE -->
    <rabbit:direct-exchange name="MY_DIRECT_EXCHANGE" durable="true" auto-delete="false" declared-by="connectAdmin">
        <rabbit:bindings>
            <rabbit:binding queue="MY_FIRST_QUEUE" key="FirstKey">
            </rabbit:binding>
        </rabbit:bindings>
    </rabbit:direct-exchange>

    <!--定义rabbit template用于数据的接收和发送 -->
    <rabbit:template id="amqpTemplate" connection-factory="connectionFactory" exchange="MY_DIRECT_EXCHANGE" />

    <!--消息接收者 -->
    <bean id="messageReceiver" class="com.gupaoedu.consumer.FirstConsumer"></bean>

    <!--queue listener 观察 监听模式 当有消息到达时会通知监听在对应的队列上的监听对象 -->
    <rabbit:listener-container connection-factory="connectionFactory">
        <rabbit:listener queues="MY_FIRST_QUEUE" ref="messageReceiver" />
    </rabbit:listener-container>

    <!--定义queue -->
    <rabbit:queue name="MY_SECOND_QUEUE" durable="true" auto-delete="false" exclusive="false" declared-by="connectAdmin" />

    <!-- 将已经定义的Exchange绑定到MY_SECOND_QUEUE，注意关键词是key -->
    <rabbit:direct-exchange name="MY_DIRECT_EXCHANGE" durable="true" auto-delete="false" declared-by="connectAdmin">
        <rabbit:bindings>
            <rabbit:binding queue="MY_SECOND_QUEUE" key="SecondKey"></rabbit:binding>
        </rabbit:bindings>
    </rabbit:direct-exchange>

    <!-- 消息接收者 -->
    <bean id="receiverSecond" class="com.gupaoedu.consumer.SecondConsumer"></bean>

    <!-- queue litener 观察 监听模式 当有消息到达时会通知监听在对应的队列上的监听对象 -->
    <rabbit:listener-container connection-factory="connectionFactory">
        <rabbit:listener queues="MY_SECOND_QUEUE" ref="receiverSecond" />
    </rabbit:listener-container>

    <!--############分隔线############-->

    <!--定义queue -->
    <rabbit:queue name="MY_THIRD_QUEUE" durable="true" auto-delete="false" exclusive="false" declared-by="connectAdmin" />

    <!-- 定义topic exchange，绑定MY_THIRD_QUEUE，注意关键词是pattern -->
    <rabbit:topic-exchange name="MY_TOPIC_EXCHANGE" durable="true" auto-delete="false" declared-by="connectAdmin">
        <rabbit:bindings>
            <rabbit:binding queue="MY_THIRD_QUEUE" pattern="#.Third.#"></rabbit:binding>
        </rabbit:bindings>
    </rabbit:topic-exchange>

    <!--定义rabbit template用于数据的接收和发送 -->
    <rabbit:template id="amqpTemplate2" connection-factory="connectionFactory" exchange="MY_TOPIC_EXCHANGE" />

    <!-- 消息接收者 -->
    <bean id="receiverThird" class="com.gupaoedu.consumer.ThirdConsumer"></bean>

    <!-- queue litener 观察 监听模式 当有消息到达时会通知监听在对应的队列上的监听对象 -->
    <rabbit:listener-container connection-factory="connectionFactory">
        <rabbit:listener queues="MY_THIRD_QUEUE" ref="receiverThird" />
    </rabbit:listener-container>

    <!--############分隔线############-->

    <!--定义queue -->
    <rabbit:queue name="MY_FOURTH_QUEUE" durable="true" auto-delete="false" exclusive="false" declared-by="connectAdmin" />

    <!-- 定义fanout exchange，绑定MY_FIRST_QUEUE 和 MY_FOURTH_QUEUE -->
    <rabbit:fanout-exchange name="MY_FANOUT_EXCHANGE" auto-delete="false" durable="true" declared-by="connectAdmin" >
        <rabbit:bindings>
            <rabbit:binding queue="MY_FIRST_QUEUE"></rabbit:binding>
            <rabbit:binding queue="MY_FOURTH_QUEUE"></rabbit:binding>
        </rabbit:bindings>
    </rabbit:fanout-exchange>

    <!-- 消息接收者 -->
    <bean id="receiverFourth" class="com.gupaoedu.consumer.FourthConsumer"></bean>

    <!-- queue litener 观察 监听模式 当有消息到达时会通知监听在对应的队列上的监听对象 -->
    <rabbit:listener-container connection-factory="connectionFactory">
        <rabbit:listener queues="MY_FOURTH_QUEUE" ref="receiverFourth" />
    </rabbit:listener-container>
</beans>

<rabbit:connection-factory

<rabbit:admin

<rabbit:queue

<rabbit:direct-exchange

<rabbit:bindings

<rabbit:template

<rabbit:listener-container

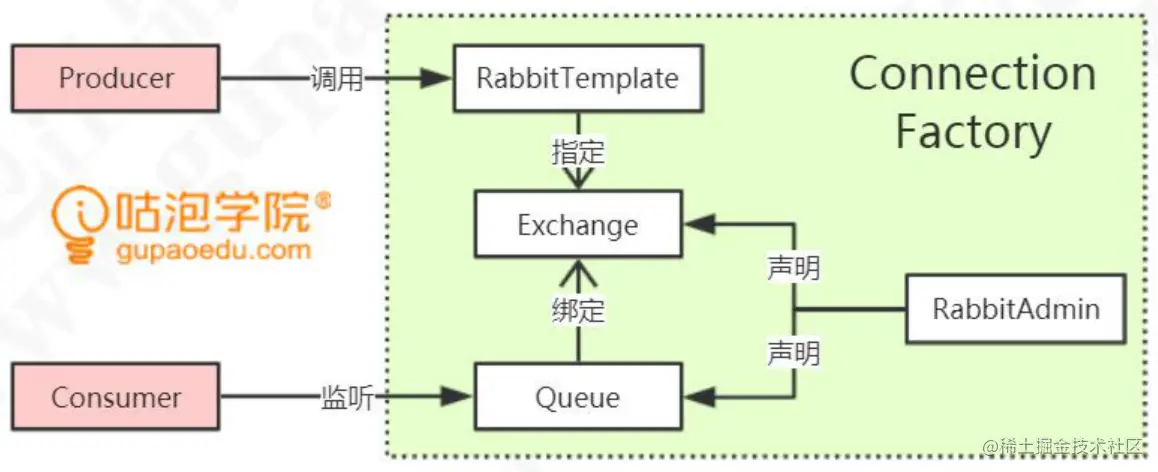

效果图示：

8.4 消费者

FirstConsumer

package com.gupaoedu.consumer;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.amqp.core.Message;
import org.springframework.amqp.core.MessageListener;

public class FirstConsumer implements MessageListener {
    private Logger logger = LoggerFactory.getLogger(FirstConsumer.class);

    public void onMessage(Message message) {
        logger.info("The first consumer received message : " + message.getBody());
    }
}

SecondConsumer

public class SecondConsumer implements MessageListener {
    private Logger logger = LoggerFactory.getLogger(SecondConsumer.class);

    public void onMessage(Message message) {
        logger.info("The second consumer received message : " + message);
    }
}

ThirdConsumer

public class ThirdConsumer implements MessageListener {
    private Logger logger = LoggerFactory.getLogger(ThirdConsumer.class);

    public void onMessage(Message message) {
        logger.info("The third cosumer received message : " + message);
    }
}

FourthConsumer

public class FourthConsumer implements MessageListener {
    private Logger logger = LoggerFactory.getLogger(FourthConsumer.class);

    public void onMessage(Message message) {
        logger.info("The fourth consumer received message : " + message);
    }
}

8.5 生产者

package com.gupaoedu.producer;

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.amqp.core.AmqpTemplate;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.stereotype.Service;

/**
 * 消息生产者
 */
@Service
public class MessageProducer {
    private Logger logger = LoggerFactory.getLogger(MessageProducer.class);

    @Autowired
    @Qualifier("amqpTemplate")
    private AmqpTemplate amqpTemplate;

    @Autowired
    @Qualifier("amqpTemplate2")
    private AmqpTemplate amqpTemplate2;

    /**
     * 演示三种交换机的使用
     *
     * @param message
     */
    public void sendMessage(Object message) {
        logger.info("Send message:" + message);

        // amqpTemplate 默认交换机 MY_DIRECT_EXCHANGE
        // amqpTemplate2 默认交换机 MY_TOPIC_EXCHANGE

        // Exchange 为 direct 模式，直接指定routingKey
        amqpTemplate.convertAndSend("FirstKey", "[Direct,FirstKey] "+message);
        amqpTemplate.convertAndSend("SecondKey", "[Direct,SecondKey] "+message);

        // Exchange模式为topic，通过topic匹配关心该主题的队列
        amqpTemplate2.convertAndSend("msg.Third.send","[Topic,msg.Third.send] "+message);

        // 广播消息，与Exchange绑定的所有队列都会收到消息，routingKey为空
        amqpTemplate2.convertAndSend("MY_FANOUT_EXCHANGE",null,"[Fanout] "+message);
    }
}

8.6 测试类

package com.gupaoedu.test;
import org.junit.Test;
import org.springframework.context.ApplicationContext;
import org.springframework.context.support.ClassPathXmlApplicationContext;
import com.gupaoedu.producer.MessageProducer;

public class RabbitTest {
    private ApplicationContext context = null;

    @Test
    public void sendMessage() {
        context = new ClassPathXmlApplicationContext("applicationContext.xml");
        MessageProducer messageProducer = (MessageProducer) context.getBean("messageProducer");
        int k = 100;
        while (k > 0) {
            messageProducer.sendMessage("第" + k + "次发送的消息");
            k--;
            try {
                Thread.sleep(1000);
            } catch (Exception e) {
                e.printStackTrace();
            }
        }
    }
}

9. Spring Boot 集成 RabbitMQ

对象定义：创建交换机、队列、绑定
监听关系：消费者类监听队列
发送消息：注入模板发送消息

案例：

9.1 消费者工程

依赖和配置

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>

	<groupId>com.gupaoedu</groupId>
	<artifactId>springboot-rabbit-consumer</artifactId>
	<version>0.0.1-SNAPSHOT</version>
	<packaging>jar</packaging>

	<name>springboot-rabbit-consumer</name>
	<description>Demo project for RabbitMQ Consumer</description>

	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>2.0.6.RELEASE</version>
		<relativePath/> <!-- lookup parent from repository -->
	</parent>

	<properties>
		<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
		<project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
		<java.version>1.8</java.version>
	</properties>

	<dependencies>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-amqp</artifactId>
		</dependency>

		<dependency>
			<groupId>com.fasterxml.jackson.core</groupId>
			<artifactId>jackson-databind</artifactId>
			<version>2.9.5</version>
		</dependency>

		<dependency>
			<groupId>com.alibaba</groupId>
			<artifactId>fastjson</artifactId>
			<version>1.2.21</version>
		</dependency>

		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-test</artifactId>
			<scope>test</scope>
		</dependency>
	</dependencies>

	<build>
		<plugins>
			<plugin>
				<groupId>org.springframework.boot</groupId>
				<artifactId>spring-boot-maven-plugin</artifactId>
			</plugin>
		</plugins>
	</build>
</project>

application.properties

server.port=9072
// 手动ack
spring.rabbitmq.listener.direct.acknowledge-mode=manual
spring.rabbitmq.listener.simple.acknowledge-mode=manual
spring.rabbitmq.cache.channel.size=

gupaomq.properties

com.gupaoedu.directexchange=GP_DIRECT_EXCHANGE
com.gupaoedu.topicexchange=GP_TOPIC_EXCHANGE
com.gupaoedu.fanoutexchange=GP_FANOUT_EXCHANGE
com.gupaoedu.firstqueue=GP_FIRST_QUEUE
com.gupaoedu.secondqueue=GP_SECOND_QUEUE
com.gupaoedu.thirdqueue=GP_THIRD_QUEUE
com.gupaoedu.fourthqueue=GP_FOURTH_QUEUE

package com.gupaoedu.entity;

import java.io.Serializable;

public class Merchant implements Serializable {
    int id; // 商户编号
    String name; // 商户名称
    String address; // 商户地址
    String accountNo; // 商户账号
    String accountName; // 户名
    String state; // 状态 1 激活 2 关闭
    String stateStr; // 状态中文

    public Merchant() {
    }

    public Merchant(int id, String name, String address) {
        this.id = id;
        this.name = name;
        this.address = address;
    }

    public int getId() {
        return id;
    }

    public void setId(int id) {
        this.id = id;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public String getAddress() {
        return address;
    }

    public void setAddress(String address) {
        this.address = address;
    }
    public String getAccountNo() {
        return accountNo;
    }

    public void setAccountNo(String accountNo) {
        this.accountNo = accountNo;
    }

    public String getAccountName() {
        return accountName;
    }

    public void setAccountName(String accountName) {
        this.accountName = accountName;
    }

    public String getState() {
        return state;
    }

    public void setState(String state) {
        this.state = state;
    }

    public String getStateStr() {
        if(null == state){
            return "";
        }else if("1".equals(state.toString())){
            return "激活";
        }else if ("0".equals(state.toString())){
            return "关闭";
        }else{
            return "未知";
        }
    }

    public void setStateStr(String stateStr) {
        this.stateStr = state;
    }

    @Override
    public String toString() {
        return "Merchant{" +
                "id=" + id +
                ", name='" + name + '\'' +
                ", address='" + address + '\'' +
                ", accountNo='" + accountNo + '\'' +
                ", accountName='" + accountName + '\'' +
                ", state='" + state + '\'' +
                ", stateStr='" + stateStr + '\'' +
                '}';
    }
}

RabbitMQ配置类 RabbitConfig

package com.gupaoedu.config;

import org.springframework.amqp.core.*;
import org.springframework.amqp.rabbit.annotation.RabbitListenerConfigurer;
import org.springframework.amqp.rabbit.config.SimpleRabbitListenerContainerFactory;
import org.springframework.amqp.rabbit.connection.ConnectionFactory;
import org.springframework.amqp.rabbit.listener.RabbitListenerEndpointRegistrar;
import org.springframework.amqp.support.converter.Jackson2JsonMessageConverter;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.PropertySource;
import org.springframework.messaging.converter.MappingJackson2MessageConverter;
import org.springframework.messaging.handler.annotation.support.DefaultMessageHandlerMethodFactory;
import org.springframework.messaging.handler.annotation.support.MessageHandlerMethodFactory;


@Configuration
@PropertySource("classpath:gupaomq.properties")
public class RabbitConfig {
    @Value("${com.gupaoedu.firstqueue}")
    private String firstQueue;

    @Value("${com.gupaoedu.secondqueue}")
    private String secondQueue;

    @Value("${com.gupaoedu.thirdqueue}")
    private String thirdQueue;

    @Value("${com.gupaoedu.fourthqueue}")
    private String fourthQueue;

    @Value("${com.gupaoedu.directexchange}")
    private String directExchange;

    @Value("${com.gupaoedu.topicexchange}")
    private String topicExchange;

    @Value("${com.gupaoedu.fanoutexchange}")
    private String fanoutExchange;

    // 创建四个队列
    @Bean("vipFirstQueue")
    public Queue getFirstQueue(){
        return new Queue(firstQueue);
    }

    @Bean("vipSecondQueue")
    public Queue getSecondQueue(){
        return new Queue(secondQueue);
    }

    @Bean("vipThirdQueue")
    public  Queue getThirdQueue(){
        return  new Queue(thirdQueue);
    }

    @Bean("vipFourthQueue")
    public  Queue getFourthQueue(){
        return  new Queue(fourthQueue);
    }

    // 创建三个交换机
    @Bean("vipDirectExchange")
    public DirectExchange getDirectExchange(){
        return new DirectExchange(directExchange);
    }

    @Bean("vipTopicExchange")
    public TopicExchange getTopicExchange(){
        return new TopicExchange(topicExchange);
    }

    @Bean("vipFanoutExchange")
    public FanoutExchange getFanoutExchange(){
        return new FanoutExchange(fanoutExchange);
    }

    // 定义四个绑定关系
    @Bean
    public Binding bindFirst(@Qualifier("vipFirstQueue") Queue queue, @Qualifier("vipDirectExchange") DirectExchange exchange){
        return BindingBuilder.bind(queue).to(exchange).with("gupao.best");
    }

    @Bean
    public Binding bindSecond(@Qualifier("vipSecondQueue") Queue queue, @Qualifier("vipTopicExchange") TopicExchange exchange){
        return BindingBuilder.bind(queue).to(exchange).with("*.gupao.*");
    }

    @Bean
    public Binding bindThird(@Qualifier("vipThirdQueue") Queue queue, @Qualifier("vipFanoutExchange") FanoutExchange exchange){
        return BindingBuilder.bind(queue).to(exchange);
    }

    @Bean
    public Binding bindFourth(@Qualifier("vipFourthQueue") Queue queue, @Qualifier("vipFanoutExchange") FanoutExchange exchange){
        return BindingBuilder.bind(queue).to(exchange);
    }

    /**
     * 在消费端转换JSON消息
     * 监听类都要加上containerFactory属性
     * @param connectionFactory
     * @return
     */
    @Bean
    public SimpleRabbitListenerContainerFactory rabbitListenerContainerFactory(ConnectionFactory connectionFactory) {
        SimpleRabbitListenerContainerFactory factory = new SimpleRabbitListenerContainerFactory();
        factory.setConnectionFactory(connectionFactory);
        factory.setMessageConverter(new Jackson2JsonMessageConverter());
        factory.setAcknowledgeMode(AcknowledgeMode.MANUAL);
        factory.setAutoStartup(true);
        return factory;
    }
}

消费者

@Component
@PropertySource("classpath:gupaomq.properties")
@RabbitListener(queues = "${com.gupaoedu.firstqueue}", containerFactory="rabbitListenerContainerFactory")
public class FirstConsumer {

    @RabbitHandler
    public void process(@Payload Merchant merchant){

        System.out.println("First Queue received msg : " + merchant.getName());

    }

}

@Component
@PropertySource("classpath:gupaomq.properties")
@RabbitListener(queues = "${com.gupaoedu.secondqueue}", containerFactory="rabbitListenerContainerFactory")
public class SecondConsumer {
    @RabbitHandler
    public void process(String msgContent,Channel channel, Message message) throws IOException {
        System.out.println("Second Queue received msg : " + msgContent );

        channel.basicAck(message.getMessageProperties().getDeliveryTag(), false);
    }
}

@Component
@PropertySource("classpath:gupaomq.properties")
@RabbitListener(queues = "${com.gupaoedu.thirdqueue}", containerFactory="rabbitListenerContainerFactory")
public class ThirdConsumer {
    @RabbitHandler
    public void process(String msg){
        System.out.println("Third Queue received msg : " + msg);
    }
}

@Component
@PropertySource("classpath:gupaomq.properties")
@RabbitListener(queues = "${com.gupaoedu.fourthqueue}", containerFactory="rabbitListenerContainerFactory")
public class FourthConsumer {
    @RabbitHandler
    public void process(String message) throws IOException {

        System.out.println("Fourth Queue received msg : " + message);
    }
}

启动类

@SpringBootApplication
public class RabbitConsumerApp {
   public static void main(String[] args) {
      SpringApplication.run(RabbitConsumerApp.class, args);
   }
}

9.2 生产者工程

实战demo见工程springboot-project：springboot-rabbit-producer

Spring AMQP默认使用的消息转换器是SimpleMessageConverter。

Jackson2JsonMessageConverter 用于将消息转换为JSON后发送。

com.gupaoedu.directexchange=GP_DIRECT_EXCHANGE
com.gupaoedu.topicexchange=GP_TOPIC_EXCHANGE
com.gupaoedu.fanoutexchange=GP_FANOUT_EXCHANGE
com.gupaoedu.directroutingkey=gupao.best
com.gupaoedu.topicroutingkey1=shanghai.gupao.teacher
com.gupaoedu.topicroutingkey2=changsha.gupao.student

@Configuration
public class RabbitConfig {
    /**
     * 所有的消息发送都会转换成JSON格式发到交换机
     * @param connectionFactory
     * @return
     */
    @Bean
    public RabbitTemplate gupaoTemplate(final ConnectionFactory connectionFactory) {
        final RabbitTemplate rabbitTemplate = new RabbitTemplate(connectionFactory);
        rabbitTemplate.setMessageConverter(new Jackson2JsonMessageConverter());
        return rabbitTemplate;
    }
}

package com.gupaoedu.producer;

import com.fasterxml.jackson.core.JsonProcessingException;
import com.fasterxml.jackson.databind.ObjectMapper;
import com.gupaoedu.entity.Merchant;
import org.springframework.amqp.core.AmqpTemplate;
import org.springframework.amqp.core.Message;
import org.springframework.amqp.core.MessageBuilder;
import org.springframework.amqp.core.MessageProperties;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.context.annotation.PropertySource;
import org.springframework.stereotype.Component;

@Component
@PropertySource("classpath:gupaomq.properties")
public class RabbitSender {

    @Value("${com.gupaoedu.directexchange}")
    private String directExchange;

    @Value("${com.gupaoedu.topicexchange}")
    private String topicExchange;

    @Value("${com.gupaoedu.fanoutexchange}")
    private String fanoutExchange;

    @Value("${com.gupaoedu.directroutingkey}")
    private String directRoutingKey;

    @Value("${com.gupaoedu.topicroutingkey1}")
    private String topicRoutingKey1;

    @Value("${com.gupaoedu.topicroutingkey2}")
    private String topicRoutingKey2;


    // 自定义的模板gupaoTemplate，所有的消息都会转换成JSON发送
    @Autowired
    AmqpTemplate gupaoTemplate;

    public void send() throws JsonProcessingException {
        Merchant merchant =  new Merchant(1001,"a direct msg : 中原镖局","汉中省解放路266号");
        gupaoTemplate.convertAndSend(directExchange,directRoutingKey, merchant);

        gupaoTemplate.convertAndSend(topicExchange,topicRoutingKey1, "a topic msg : shanghai.gupao.teacher");
        gupaoTemplate.convertAndSend(topicExchange,topicRoutingKey2, "a topic msg : changsha.gupao.student");

        // 发送JSON字符串
        ObjectMapper mapper = new ObjectMapper();
        String json = mapper.writeValueAsString(merchant);
        System.out.println(json);
        gupaoTemplate.convertAndSend(fanoutExchange,"", json);
    }

}

测试类

package com.gupaoedu;

import com.fasterxml.jackson.core.JsonProcessingException;
import com.gupaoedu.producer.RabbitSender;
import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;
import org.springframework.test.context.junit4.SpringRunner;

/**
 * 记得一定要先启动消费者，否则交换机和队列以及绑定关系都不会创建
 */
@RunWith(SpringRunner.class)
@SpringBootTest
public class AppTests {

    @Autowired
    RabbitSender rabbitSender;

   @Test
   public void contextLoads() throws JsonProcessingException {
       // 先启动消费者 consumer，否则交换机、队列、绑定都不存在
        rabbitSender.send();
   }

}

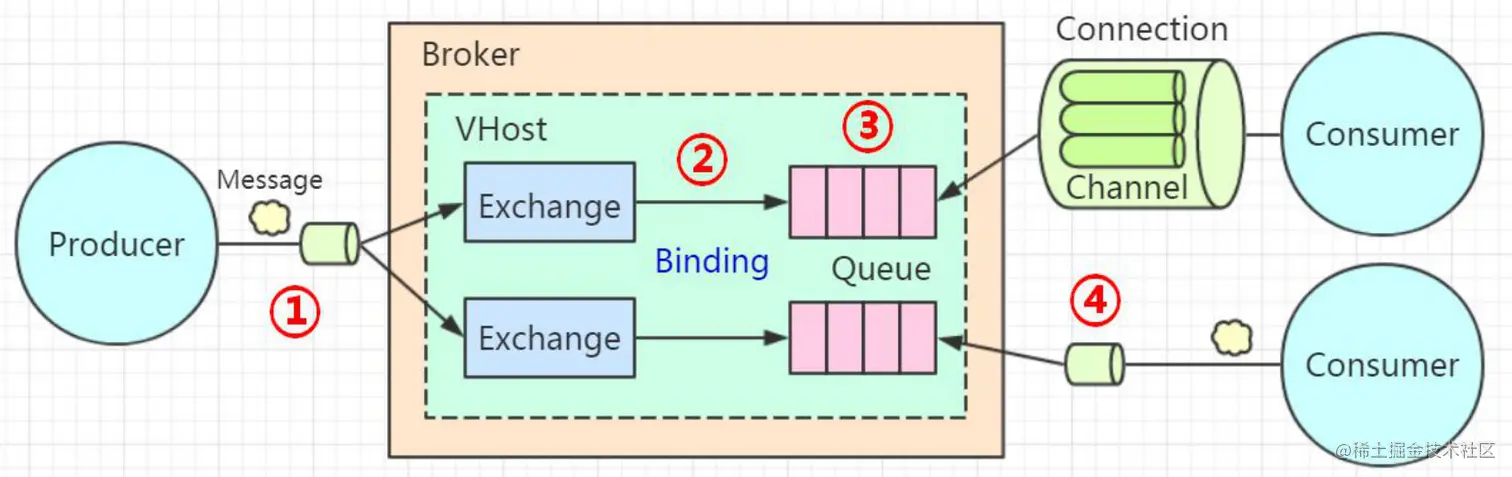

10. 消息可靠性投递

生产者发送消息给Broker 的可靠性
Exchange路由给Queue 的可靠性
队列存储消息的可靠性
消费者消费消息的可靠性（Queue到Consumer）

10.1 服务端确认（事务消息）

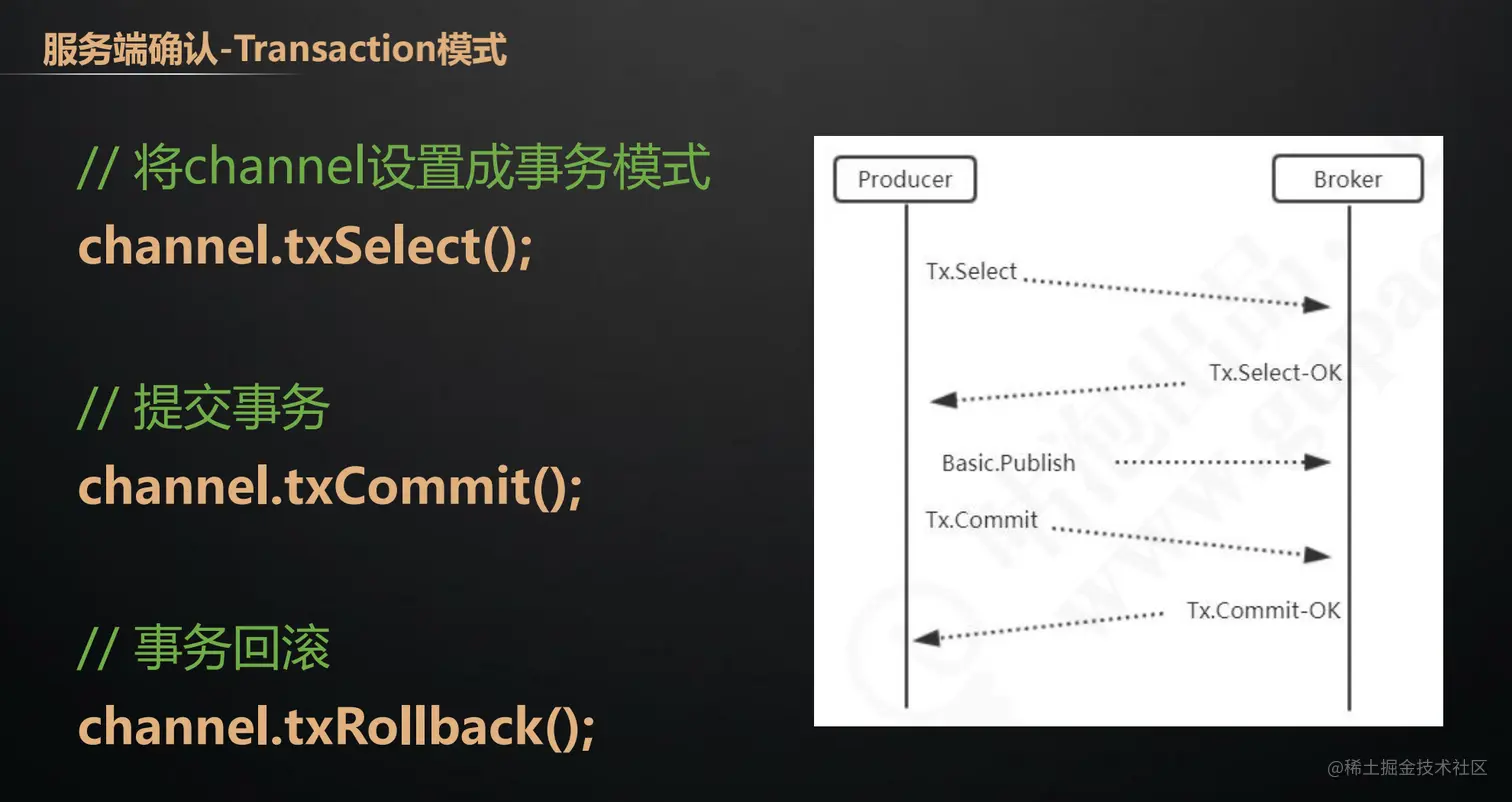

1. Transaction 事务模式

// 将channel设置成事务模式
channel.txSelect();
// 发送消息。String exchange, String routingKey, BasicProperties props, byte[] body
channel.basicPublish("", QUEUE_NAME, null, (msg).getBytes());
// ...
// 无问题 提交事务
channel.txCommit();
// try/catch 有异常 事务回滚
channel.txRollback();

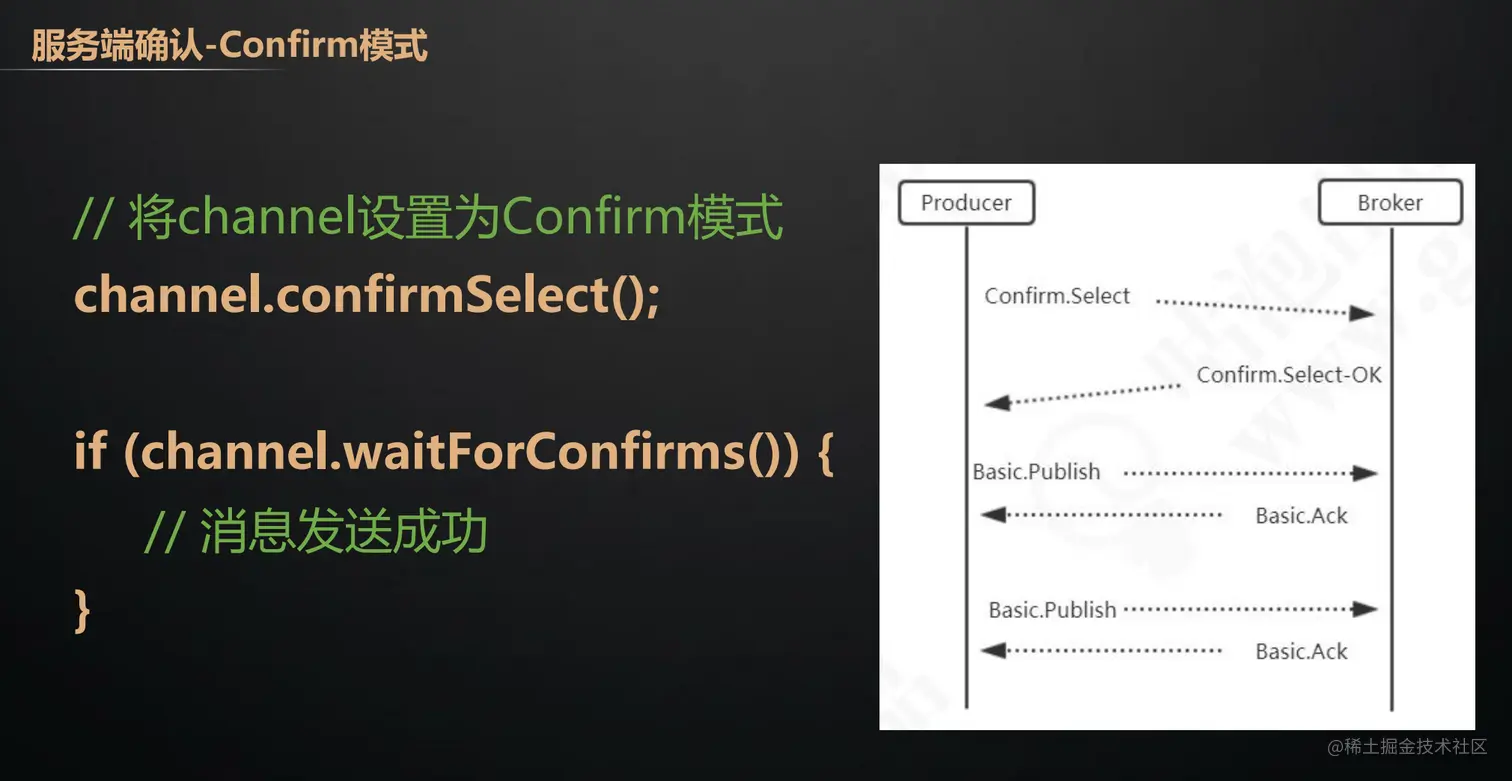

2. Confirm 确认模式

普通模式

// 开启发送方确认模式：将channel设置为Confirm模式
channel.confirmSelect();
// 发送消息
channel.basicPublish("", QUEUE_NAME, null, msg.getBytes());
// ①普通Confirm，发送一条，确认一条
if (channel.waitForConfirms()) {
		// 消息发送成功
}

批量确认模式

try {
    channel.confirmSelect();
    for (int i = 0; i < 1000; i++) {
        // 发送消息
        // String exchange, String routingKey, BasicProperties props, byte[] body
        channel.basicPublish("", QUEUE_NAME, null, (msg +"-"+ i).getBytes());
    }
    // 批量确认结果，ACK如果是Multiple=True，代表ACK里面的Delivery-Tag之前的消息都被确认了
    // 比如5条消息可能只收到1个ACK，也可能收到2个（抓包才看得到）
    // 直到所有信息都发布，只要有一个未被Broker确认就会IOException
    channel.waitForConfirmsOrDie();
    System.out.println("消息发送完毕，批量确认成功");
} catch (Exception e) {
    // 发生异常，可能需要对所有消息进行重发
    e.printStackTrace();
}

异步确认模式

// 用来维护未确认消息的deliveryTag
final SortedSet<Long> confirmSet = Collections.synchronizedSortedSet(new TreeSet<Long>());

// 这里不会打印所有响应的ACK；ACK可能有多个，有可能一次确认多条，也有可能一次确认一条
// 异步监听确认和未确认的消息
// 如果要重复运行，先停掉之前的生产者，清空队列
channel.addConfirmListener(new ConfirmListener() {
  	// 未确认的消息
    public void handleNack(long deliveryTag, boolean multiple) throws IOException {
        // 如果true表示批量执行了deliveryTag这个值以前（小于deliveryTag的）的所有消息，如果为false的话表示单条确认
      	System.out.println("Broker未确认消息，标识：" + deliveryTag);
        if (multiple) {
            // headSet表示后面参数之前的所有元素，全部删除
            confirmSet.headSet(deliveryTag + 1L).clear();
        } else {
            // 只移除一个元素
            confirmSet.remove(deliveryTag);
        }
        // TODO 这里添加重发的方法
    }
  	// 已经确认的消息
    public void handleAck(long deliveryTag, boolean multiple) throws IOException {
        // 如果true表示批量执行了deliveryTag这个值以前（小于deliveryTag的）的所有消息，如果为false的话表示单条确认
        System.out.println(String.format("Broker已确认消息，标识：%d，多个消息：%b", deliveryTag, multiple));
        if (multiple) {
            // headSet表示后面参数之前的所有元素，全部删除
            confirmSet.headSet(deliveryTag + 1L).clear();
        } else {
            // 只移除一个元素
            confirmSet.remove(deliveryTag);
        }
        System.out.println("未确认的消息:"+confirmSet);
    }
});

// 开启发送方确认模式
channel.confirmSelect();
for (int i = 0; i < 10; i++) {
    long nextSeqNo = channel.getNextPublishSeqNo();
    // 发送消息
    // String exchange, String routingKey, BasicProperties props, byte[] body
    channel.basicPublish("", QUEUE_NAME, null, (msg +"-"+ i).getBytes());
    confirmSet.add(nextSeqNo);
}
System.out.println("所有消息:"+confirmSet);

10.2 路由保证

默认情况下无法被路由的消息将会被丢弃。有两种方式来挽救：

配置mandatory=true + 回发监听器ReturnListener
- 消息无法路由时将回发至ReturnListener
指定交换机的备份交换机
- 创建交换机的时候设置alternate-exchange参数

import com.gupaoedu.util.ResourceUtil;

/**
 * 当消息无法匹配到队列时，会发回给生产者
 */
public class ReturnListenerProducer {
    public static void main(String[] args) throws Exception{
        ConnectionFactory factory = new ConnectionFactory();
      	// IP、端口、用户名、密码、虚拟主机
		// 默认使用 / 的vhost，如果修改vhost，加在端口后即可，如 /gphost
        factory.setUri("amqp://guest:guest@127.0.0.1:5672");
        Connection connection = factory.newConnection();
        Channel channel = connection.createChannel();

        channel.addReturnListener(new ReturnListener() {
            public void handleReturn(int replyCode,
                                     String replyText,
                                     String exchange,
                                     String routingKey,
                                     AMQP.BasicProperties properties,
                                     byte[] body)
                    throws IOException {
                System.out.println("=========监听器收到了无法路由，被返回的消息=========");
                System.out.println("replyText:"+replyText);
                System.out.println("exchange:"+exchange);
                System.out.println("routingKey:"+routingKey);
                System.out.println("message:"+new String(body));
            }
        });

      	// 2 消息持久化
        AMQP.BasicProperties properties = new AMQP.BasicProperties.Builder().deliveryMode(2).contentEncoding("UTF-8").build();

        // 声明备份交换机
        channel.exchangeDeclare("ALTERNATE_EXCHANGE","topic", false, false, false, null);
        channel.queueDeclare("ALTERNATE_QUEUE", false, false, false, null);
        channel.queueBind("ALTERNATE_QUEUE","ALTERNATE_EXCHANGE","#");

        // 在声明交换机的时候指定备份交换机
        Map<String,Object> arguments = new HashMap<String,Object>();
        arguments.put("alternate-exchange","ALTERNATE_EXCHANGE");
        channel.exchangeDeclare("TEST_EXCHANGE","topic", false, false, false, arguments);

        // 发送到了默认的交换机上，由于没有任何队列使用这个关键字跟交换机绑定，所以会被退回
        // 第三个参数是设置的mandatory，如果mandatory是false，消息也会被直接丢弃
        channel.basicPublish("","gupaodirect",true, properties,"只为更好的你".getBytes());

        TimeUnit.SECONDS.sleep(10);

        channel.close();
        connection.close();
    }
}

10.3 消息存储

队列持久化 durable = true
交换机持久化 durable = true
消息持久化
- 上面的例子中2代码持久化，其他数字代表非持久化。AMQP.BasicProperties properties = new AMQP.BasicProperties.Builder().deliveryMode(2).contentEncoding("UTF-8").build();
集群（防止单点故障）

10.4 消费者确认

默认的是自动应答（NONE）：一接收到消息就会ack
- spring.rabbitmq.listener.direct.acknowledge-mode=manual spring.rabbitmq.listener.simple.acknowledge-mode=manual
- NONE自动ack、MANUAL手动ack、AUTO不发生异常的情况下自动ack
channel.basicConsume(QUEUE_NAME, false, consumer); // false 关闭自动应答
- channel.basicAck(); // 手工应答
- channel.basicReject(); // 单条拒绝
- channel.basicNack(); // 批量拒绝

应答最好放到finally中，确保被执行，否则队列中的消息会一直存在

package com.gupaoedu.ack;

import com.gupaoedu.util.ResourceUtil;
import com.rabbitmq.client.*;

import java.io.IOException;

/**
 * 消息消费者，用于测试消费者手工应答和重回队列
 */
public class AckConsumer {
    private final static String QUEUE_NAME = "TEST_ACK_QUEUE";

    public static void main(String[] args) throws Exception {
        ConnectionFactory factory = new ConnectionFactory();
        factory.setUri(ResourceUtil.getKey("rabbitmq.uri"));

        // 建立连接
        Connection conn = factory.newConnection();
        // 创建消息通道
        final Channel channel = conn.createChannel();

        // 声明队列（默认交换机AMQP default，Direct）
        // String queue, boolean durable, boolean exclusive, boolean autoDelete, Map<String, Object> arguments
        channel.queueDeclare(QUEUE_NAME, false, false, false, null);
        System.out.println(" Waiting for message....");

        // 创建消费者，并接收消息
        Consumer consumer = new DefaultConsumer(channel) {
            @Override
            public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {
                String msg = new String(body, "UTF-8");
                System.out.println("Received message : '" + msg + "'");

                if (msg.contains("拒收")){
                    // 拒绝消息
                    // 第二个参数 requeue：是否重回队列，true：是；false：直接丢弃，相当于告诉队列可以直接删除掉
                    // TODO 如果只有这一个消费者，requeue为true的时候会造成消息重复消费【死循环】
                    channel.basicReject(envelope.getDeliveryTag(), false);
                } else if (msg.contains("异常")){
                    // 批量拒绝
                  	// 第二个参数 multiple：是否批量.true:将一次性拒绝所有小于deliveryTag的消息
                    // 第三个参数 requeue：是否重回队列
                    // TODO 如果只有这一个消费者，requeue为true的时候会造成消息重复消费【死循环】
                    channel.basicNack(envelope.getDeliveryTag(), true, false);
                } else {
                    // 手工应答
                    // 如果不应答，队列中的消息会一直存在，重新连接的时候会重复消费
                    // ... 业务逻辑的处理 ...
                    channel.basicAck(envelope.getDeliveryTag(), true);
                }
            }
        };

        // 开始获取消息，注意这里开启了手工应答
        // String queue, boolean autoAck, Consumer callback
        channel.basicConsume(QUEUE_NAME, false, consumer);
    }
}

10.5 其他

1. 消费者回调

消费者调用生产者提供的API：通知生产者已处理完数据
给生产者发一条消息（回执）

2. 补偿机制(重发)

重发消息（消息重试机制）
- 时间间隔
- 重发次数
- 消息落库，保证重发消息一致

3. 最终一致性

对账（定时(比如每晚)进行批处理对账）

4. 消息的幂等性

全局唯一的业务ID/流水号

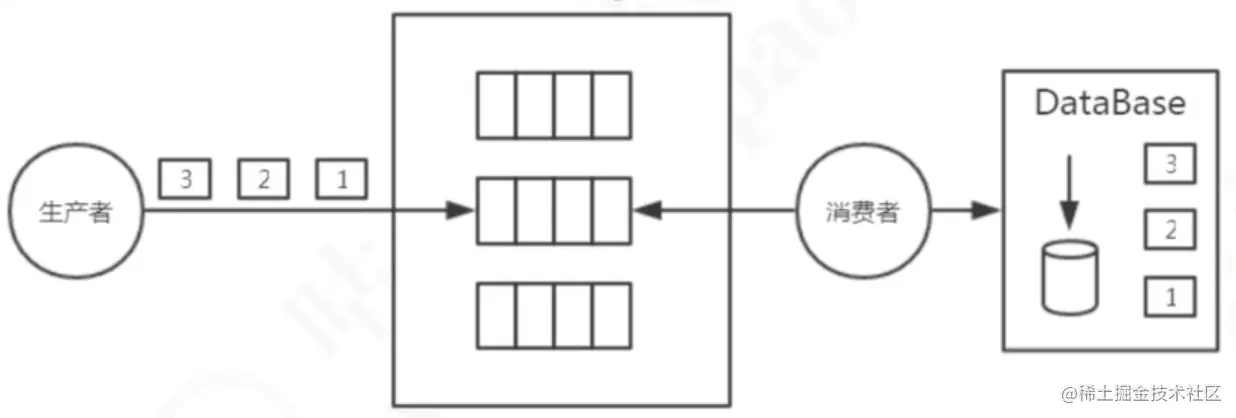

5. 消息的顺序性

一个消费者消费一个队列时才能保证顺序性

11. 集群和高可用

集群的目的：

高可用
负载均衡

RabbitMQ的节点类型

disc（默认）：磁盘节点。数据只存储到磁盘上面，是稳定、持久的
- 至少需要1个disc，所以单节点一定是disc
- 用来做稳定存储的节点
RAM：内存节点。数据同时存储在内存和磁盘上
- 读写在内存中操作，持久化在磁盘中操作。读写效率比较高
- 可以做对外提供服务的节点

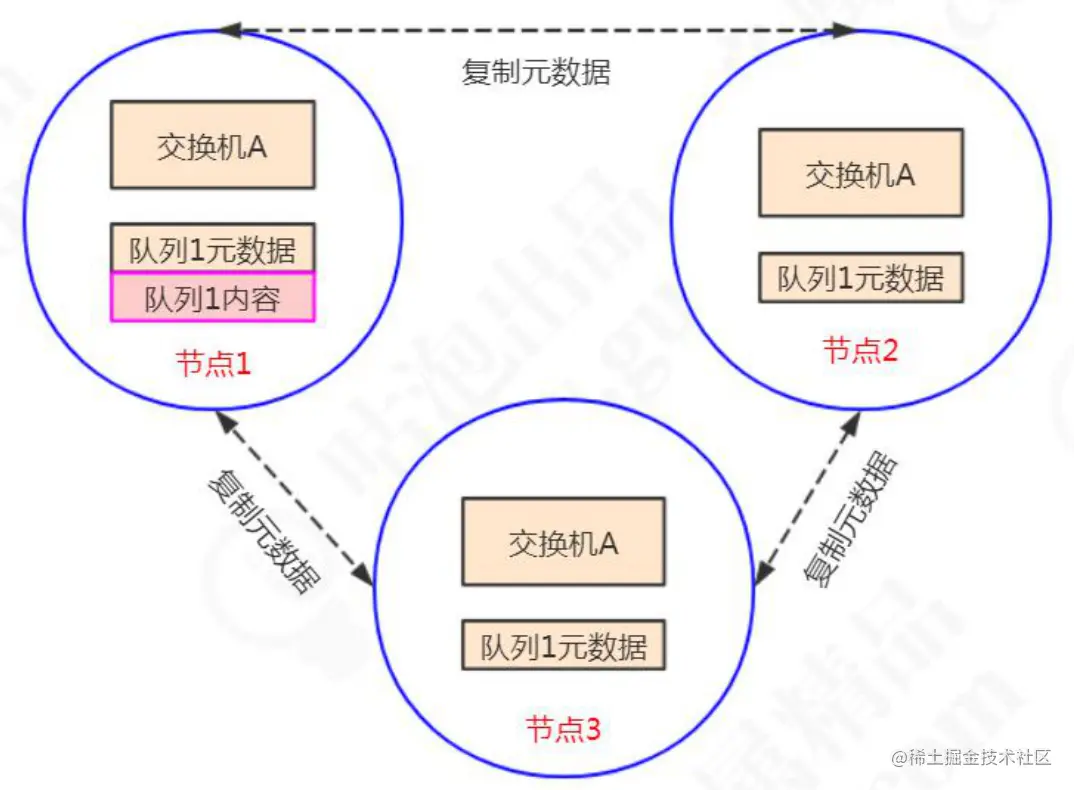

11.1 普通集群

节点间只同步元数据，不同步队列内容

同一个集群要保证cookie一致：/var/lib/rabbitmq/.erlang.cookie

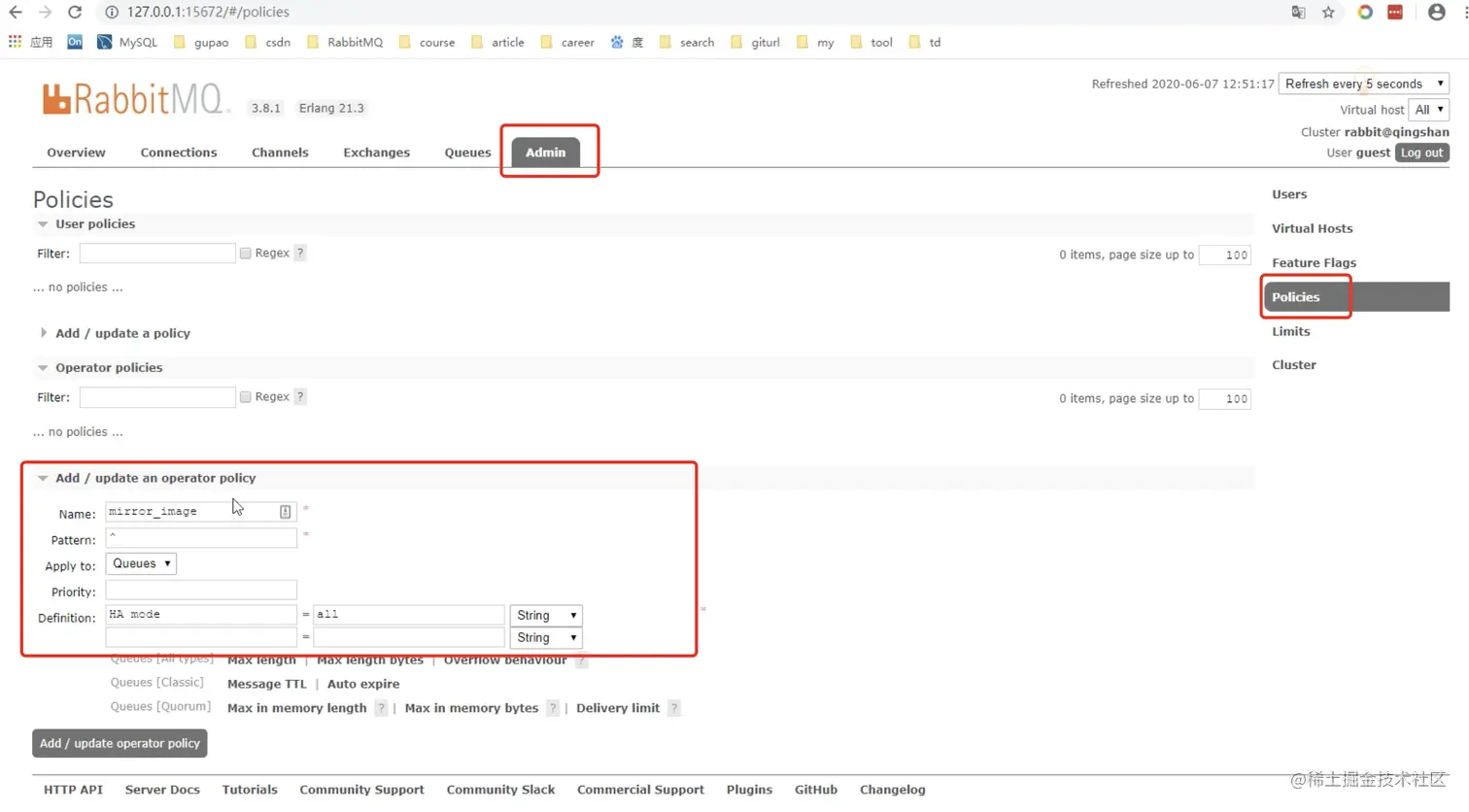

11.2 镜像队列

1、节点之间同步所有数据，多个消费者连接到不同节点会消费到一样的数据

2、镜像队列的设计只保证了HA，并不能显著提升性能，反而因为增加节点消耗了更多硬件资源

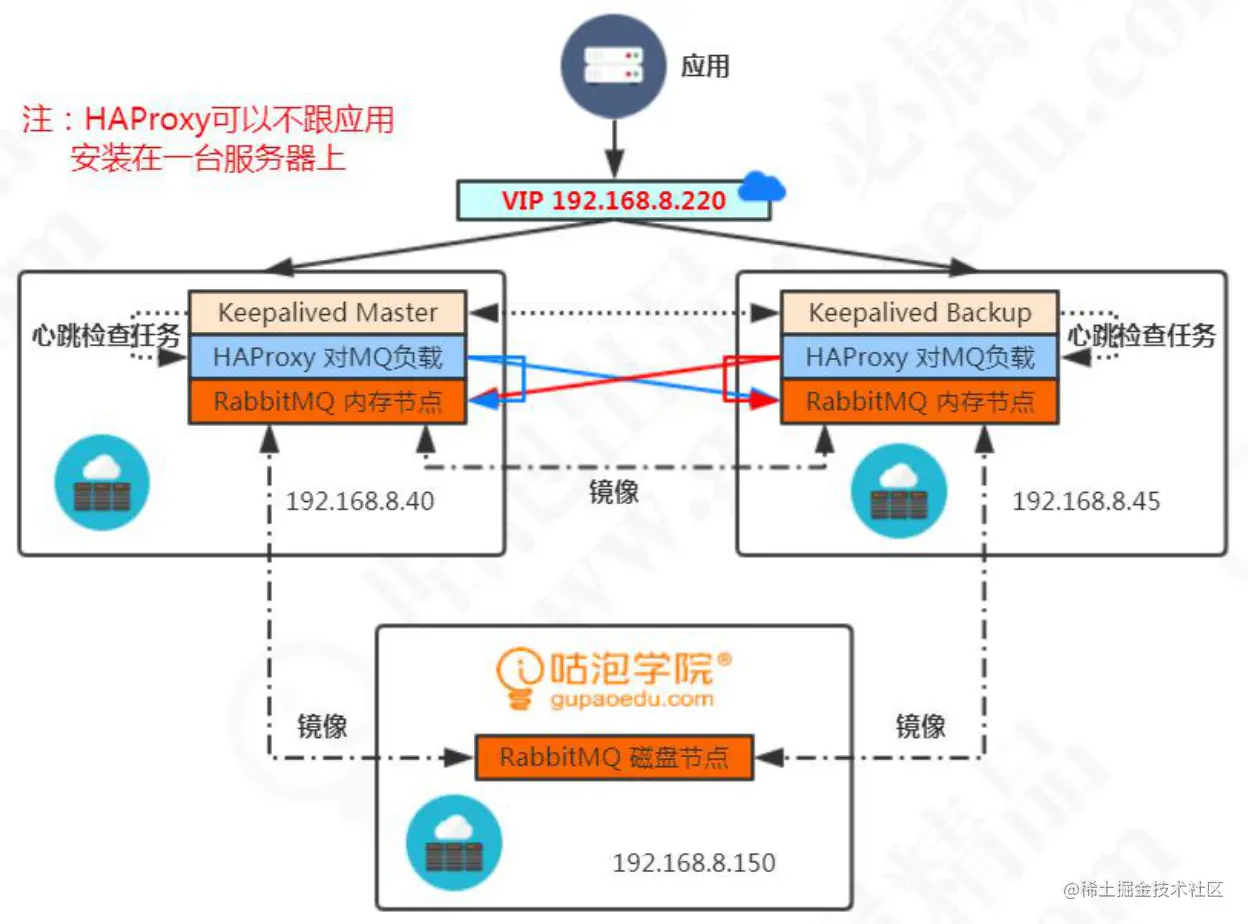

11.3 高可用HA

HAProxy+Keepalived搭建RabbitMQ高可用集群：gper.club/articles/7e…

VRRP：虚拟路由器冗余协议

11.4 Docker安装RabbitMQ集群

gper.club/articles/7e…

12. 实践经验总结

资源管理
- 交换机、队列资源谁使用谁创建（消费者）
- 创建方式可以在代码中，或者在管理界面中统一创建（就像数据库的表一样）
配置文件和命名规范
- xxx_mq.properties：统一存放交换机名字、队列名字等
- 虚拟机后缀：_VHOST
- 交换机后缀：_EXCHANGE
- 队列后缀：_QUEUE
- 体现数据来源和去向：SALE_TO_PRODUCT_EXCHANGE（销售系统跟产品系统通信用的）

调用封装

自定义封装，简化参数
自定义封装，方便切换成其他的MQ产品

  GpSendMsg(Object msg){
    	JmsTemplate.send(destination,msg);
  }
  GpSendMsg(Object msg){
    	RabbitTemplate.send(exchange,routingKey,msg);
  }

消息追溯与重发
- 如果要实现消息的可追溯：入库-消息表
- 如果要实现消息的重发：入库-消息表，加上发送状态字段
生产环境运维监控
- zabbix
- Grafana
日志追踪，消息的流入流出（影响性能，不建议做）
- Firehose
- Tracing GUI
连接数过多（如何减少连接数）

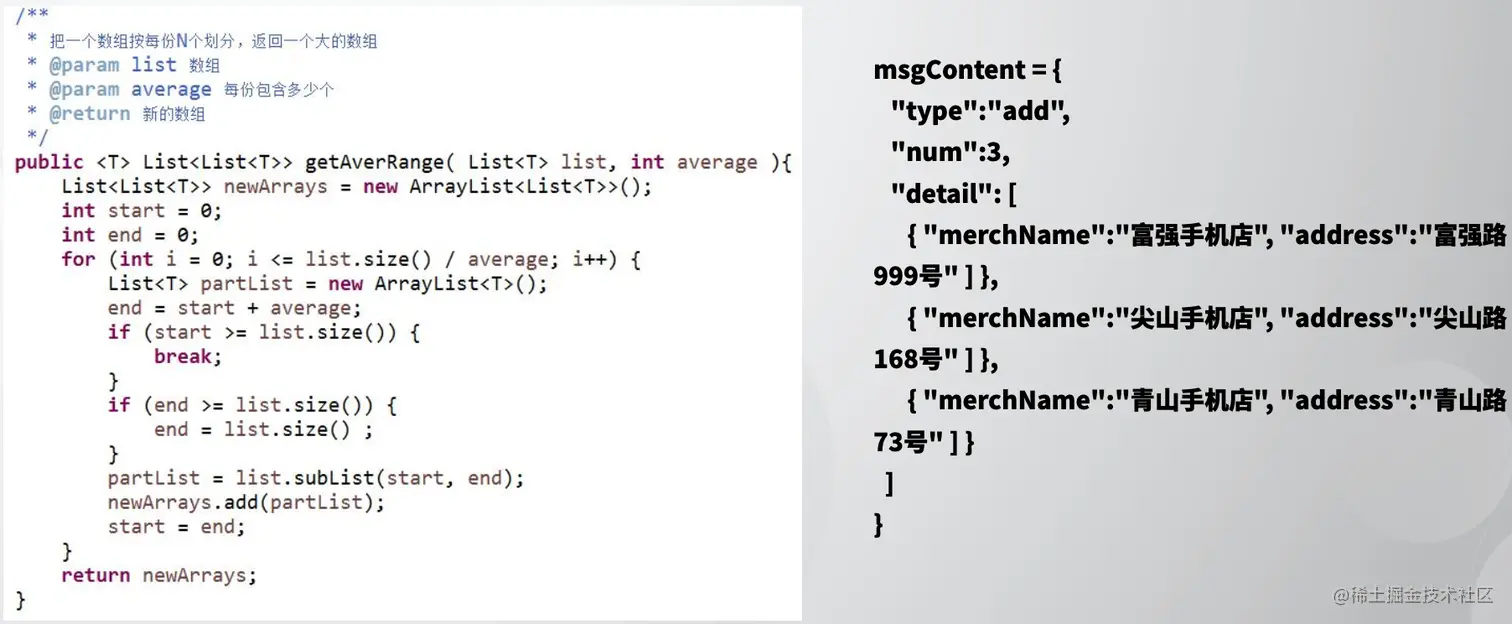

- 设计的时候兼容单条和多条数据的通信，多条消息合并发送减少连接次数

RabbitMQ

RabbitMQ

RabbitMQ的安装部署

1. MQ的作用

2. RabbitMQ的工作模型

3. Exchange消息路由

4. 基本使用 Java API

4.1 引入依赖

4.2 消费者

4.3 生产者

4.4 参数详解（待补充）

5. 死信 Dead Letter 队列

5.1 TTL：time to live

5.2 死信交换机和死信队列

6. 延迟队列（插件）

6.1 安装插件

6.2 使用

7. 流量控制

7.1 服务端流控（删除先入队或拒收）

7.2 消费端流控

多消费者

8. Spring AMQP

8.1 引入依赖

8.2 配置applicationContext.xml

8.3 配置rabbitMQ.xml

8.4 消费者

8.5 生产者

8.6 测试类

9. Spring Boot 集成 RabbitMQ

9.1 消费者工程

9.2 生产者工程

10. 消息可靠性投递

10.1 服务端确认（事务消息）

1. Transaction 事务模式

2. Confirm 确认模式

10.2 路由保证

10.3 消息存储

10.4 消费者确认

10.5 其他

1. 消费者回调

2. 补偿机制(重发)

3. 最终一致性

4. 消息的幂等性

5. 消息的顺序性

11. 集群和高可用

RabbitMQ的节点类型

11.1 普通集群

11.2 镜像队列

11.3 高可用HA

11.4 Docker安装RabbitMQ集群

12. 实践经验总结

13. RabbitMQ面试题

大纲
