简介:录音功能是H5表单中的一个功能，该H5会通过webview嵌入到小程序外壳中使用。按照通用性要求，不能使用类似wx-jssdk等JSBridge库，需要使用H5原生开发。
技术选择：vue vant-UI Record.js

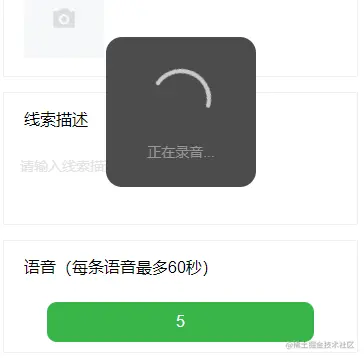

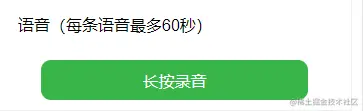

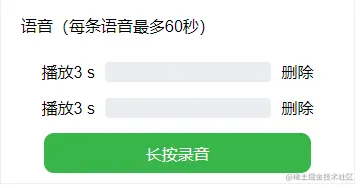

效果图如下所示：
核心代码展示：需要使用loadsh和js-audio-recorder(自己百度安装吧)
样式中引用了一个flexbox() 这是我自己封装的..先展示一下吧 很好理解吧 哈哈哈哈
.flexbox(@fd: row, @jc: center, @ai: center) {
display: flex;
flex-direction: @fd;
justify-content: @jc;
align-items: @ai;
}
组件：voice (index.vue) 直接引用组件就行，无需其他代码。 由于代码还没有整理好，有几个样式直接写到标签里了...等洒家整理好了再更新
<template>
<div class="container">
<div v-for="item in voiceList" :key="item.stream.id" class="voice-list">
<div @click="play(item)">播放{{ item.duration.toFixed(0)}} s</div>
<div style="width: 50%; margin-left: 10px">
<van-progress :percentage="item.percentage" stroke-width="20" :show-pivot="false" class="progress" :id="item.stream.id + progressId"/>
</div>
<span @click="delVoice(item)" style="margin-left: 10px">删除</span>
</div>
<div @touchstart="start" @touchend="end" class="press" v-show="canInputVoice">{{ title }}</div>
<!-- 支持绘制波浪图 -->
<!-- <canvas id="canvas"></canvas>-->
<van-dialog v-model="show" cancelButtonText :overlay="false" :showConfirmButton="false" style="width: 150px;height: 150px">
<div style="background-color: rgba(0, 0, 0, 0.7);width: 150px;height: 150px;display: flex;align-items: center;justify-content: center">
<van-loading size="70px" vertical>正在录音...</van-loading>
</div>
</van-dialog>
</div>
</template>
<script>
import Recorder from 'js-audio-recorder'
import _ from 'loadsh'
export default {
data () {
return {
ctx: null,
oCanvas: null,
// 波浪图-录音
drawRecordId: null,
title: '长按录音',
state: {
normal: '长按录音',
during: 0
},
progressId: 0,
time: 1,
timer: {},
voiceList: [], // 录音列表
recorder: {}, // 音频对象
currenPlayTimer: null,
show: false
}
},
watch: {
// 如果大于60s 停止录音
time (val) {
if (val > 60) {
this.end()
}
}
},
computed: {
// 控制最多录制三个
canInputVoice () {
return this.voiceList.length <= 2
}
},
mounted () {
this.recorder = new Recorder()
Recorder.getPermission().then(() => {
}, (error) => {
this.$message({
message: '请先允许该网页使用麦克风',
type: 'info'
})
console.log(`${error.name} : ${error.message}`)
})
// this.startCanvas()
},
methods: {
startCanvas () {
// 录音波浪
this.oCanvas = document.getElementById('canvas')
this.ctx = this.oCanvas.getContext('2d')
},
/**
* 绘制波浪图-录音
* */
drawRecord () {
// 用requestAnimationFrame稳定60fps绘制
this.drawRecordId = requestAnimationFrame(this.drawRecord)
// 实时获取音频大小数据
const dataArray = this.recorder.getRecordAnalyseData()
const bufferLength = dataArray.length
// 填充背景色
this.ctx.fillStyle = 'rgb(200, 200, 200)'
this.ctx.fillRect(0, 0, this.oCanvas.width, this.oCanvas.height)
// 设定波形绘制颜色
this.ctx.lineWidth = 2
this.ctx.strokeStyle = 'rgb(0, 0, 0)'
this.ctx.beginPath()
var sliceWidth = this.oCanvas.width * 1.0 / bufferLength // 一个点占多少位置，共有bufferLength个点要绘制
var x = 0 // 绘制点的x轴位置
for (var i = 0; i < bufferLength; i++) {
var v = dataArray[i] / 128.0
var y = v * this.oCanvas.height / 2
if (i === 0) {
// 第一个点
this.ctx.moveTo(x, y)
} else {
// 剩余的点
this.ctx.lineTo(x, y)
}
// 依次平移，绘制所有点
x += sliceWidth
}
this.ctx.lineTo(this.oCanvas.width, this.oCanvas.height / 2)
this.ctx.stroke()
},
// 播放录音
// 播放录音支持快速点击重复播放同一个录音，支持切换播放
play (recorder) {
clearInterval(this.currenPlayTimer)
for (const item of this.voiceList) {
item.stopPlay()
item.percentage = 0
this.progressId++
}
// getCurrentPlayTime()是个大坑，不能实时获取
// 这里用到的两个0.1s延时必要的。否则切换语音播放时计算进度条动画会有问题
setTimeout(() => {
const r = _.cloneDeep(recorder)
recorder.play() // 播放录音
// 播放时长
this.currenPlayTimer = setInterval(() => {
try {
const num = r.getPlayTime().toFixed(2) / r.duration.toFixed(2) * 100
if (num < 100) {
recorder.percentage = num
} else {
recorder.percentage = 100
}
if (r.getPlayTime().toFixed(1) === r.duration.toFixed(1)) {
clearInterval(this.currenPlayTimer)
}
} catch (error) {
this.currenPlayTimer = null
}
this.progressId++
}, 100)
}, 100)
},
// 开始录音
start () {
this.recorder = new Recorder()
this.recorder.start() // 开始录音
// this.drawRecord()
this.timer = setInterval(() => {
this.show = true
this.state.during = this.time++
this.title = this.state.during
}, 1000)
},
// 停止录音
end () {
clearInterval(this.timer)
this.recorder.stop() // 停止录音
this.show = false
// this.drawRecordId && cancelAnimationFrame(this.drawRecordId)
// this.drawRecordId = null
// 如果录音小于1.5秒就提示录音过短，toFixed是四舍五入所以是小于1.5秒
if (this.recorder.duration.toFixed(0) < 1) {
this.$toast({
msg: '时常过短，请重新录制',
type: 'fail'
})
this.recorder.destroy()
setTimeout(() => {
this.time = 1
this.title = this.state.normal
}, 100)
return
}
this.recorder.percentage = 0
this.voiceList.push(this.recorder)
this.recorder = new Recorder()
setTimeout(() => {
this.time = 1
this.title = this.state.normal
}, 100)
},
// 删除录音
delVoice (item) {
item.stopPlay()
this.voiceList = _.remove(this.voiceList, (i) => {
return i.stream.id !== item.stream.id
})
},
// 上传录音
getVoiceList () {
const urlList = []
for (const item of this.voiceList) {
console.log(item.duration.toFixed(0))
const blob = item.getWAVBlob()
const newbolb = new Blob([blob], { type: 'audio/wav' })
const fileOfBlob = new File([newbolb], new Date().getTime() + '.wav')
fileOfBlob.duration = parseInt(item.duration.toFixed(0))
urlList.push(fileOfBlob)
}
return urlList
},
// 清除录音
clearAll () {
this.voiceList = []
}
}
}
</script>
<style scoped lang="less">
@import '../../../assets/css/mixins';
.container {
width: 100%;
.flexbox(@fd: column)
}
.press {
.clearFontPressAction;
.flexbox();
width: 80%;
height: 40px;
background-color: #39b54a;
border-radius: 10px;
color: white;
}
.voice-list {
.flexbox();
width: 100%;
margin-bottom: 15px;
}
.progress {
width: 100%;
.flexbox();
}
</style>
