前端用bpmn画流程图时，如何能在画的过程中给出一定的提示，无疑能增加一定的体验感。就像写js时可以用eslint进行实时验证，bpmn相应的存在bpmnlint。
安装依赖
npm install -S bpmn-js-bpmnlint bpmnlint bpmnlint-loader
其中，bpmnlint是bpmn-js-bpmnlint的的依赖包，bpmnlint-loader是bpmnlint配置文件的webpack加载器。
bpmnlint的配置文件
在对应的文件夹创建bpmnlint的配置文件.bpmnlintrc，使用bpmnlint默认的校验，
{
"extends": "bpmnlint:recommended",
"rules": {}
}

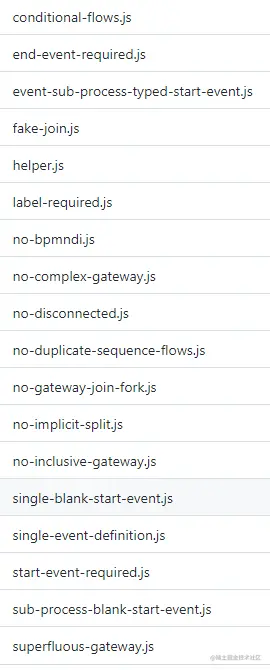

其中，rules是可以配置的规则有
例如：
{
"extends": "bpmnlint:recommended",
"rules": {
"label-required": "off"
}
}
配置wepback
module.exports = {
// ...
module: {
rules: [
{
test: /.bpmnlintrc$/,
use: [
{
loader: 'bpmnlint-loader',
}
]
}
]
}
};
使用
import lintModule from 'bpmn-js-bpmnlint';
import 'bpmn-js-bpmnlint/dist/assets/css/bpmn-js-bpmnlint.css';
import BpmnModeler from 'bpmn-js/lib/Modeler';
import bpmnlintConfig from './.bpmnlintrc';
const modeler = new BpmnModeler({
linting: {
bpmnlint: bpmnlintConfig
},
additionalModules: [
lintModule
]
});
modeler.get('editorActions').trigger('toggleLinting') // 开启
bpmnlint汉化
在创建modeler时，导入汉化包就可以的。
// customTranslate.js
export default function customTranslate(translations) {
return function(template, replacements) {
replacements = replacements || {}
// Translate
template = translations[template] || template
// Replace
return template.replace(/{([^}]+)}/g, function(_, key) {
let str = replacements[key]
if (translations[replacements[key]] !== null && translations[replacements[key]] !== undefined) {
// eslint-disable-next-line no-mixed-spaces-and-tabs
str = translations[replacements[key]]
// eslint-disable-next-line no-mixed-spaces-and-tabs
}
return str || '{' + key + '}'
})
}
}
汉化json文件，zh.json
{
"Activate the global connect tool": "激活全局连接工具",
"Append {type}": "追加 {type}",
"Append EndEvent": "追加 结束事件 ",
"Append Task": "追加 任务",
"Append Gateway": "追加 网关",
"Append Intermediate/Boundary Event": "追加 中间/边界 事件",
"Add Lane above": "在上面添加道",
"Divide into two Lanes": "分割成两个道",
"Divide into three Lanes": "分割成三个道",
"Add Lane below": "在下面添加道",
"Append compensation activity": "追加补偿活动",
"Change type": "修改类型",
"Connect using Association": "使用关联连接",
"Connect using Sequence/MessageFlow or Association": "使用顺序/消息流或者关联连接",
"Connect using DataInputAssociation": "使用数据输入关联连接",
"Remove": "移除",
"Activate the hand tool": "激活抓手工具",
"Activate the lasso tool": "激活套索工具",
"Activate the create/remove space tool": "激活创建/删除空间工具",
"Create expanded SubProcess": "创建扩展子过程",
"Create IntermediateThrowEvent/BoundaryEvent": "创建中间抛出事件/边界事件",
"Create Pool/Participant": "创建池/参与者",
"Parallel Multi Instance": "并行多重事件",
"Sequential Multi Instance": "时序多重事件",
"DataObjectReference": "数据对象参考",
"DataStoreReference": "数据存储参考",
"Loop": "循环",
"Ad-hoc": "即席",
"Create {type}": "创建 {type}",
"Create Task": "创建任务",
"Create StartEvent": "创建开始事件",
"Create EndEvent": "创建结束事件",
"Create Group": "创建组",
"Task": "任务",
"Send Task": "发送任务",
"Receive Task": "接收任务",
"User Task": "用户任务",
"Manual Task": "手工任务",
"Business Rule Task": "业务规则任务",
"Service Task": "服务任务",
"Script Task": "脚本任务",
"Call Activity": "调用活动",
"Sub Process (collapsed)": "子流程 (折叠的)",
"Sub Process (expanded)": "子流程 (展开的)",
"Start Event": "开始事件",
"StartEvent": "开始事件",
"Intermediate Throw Event": "中间事件",
"End Event": "结束事件",
"EndEvent": "结束事件",
"Create Gateway": "创建网关",
"GateWay": "网关",
"Create Intermediate/Boundary Event": "创建中间/边界事件",
"Message Start Event": "消息开始事件",
"Timer Start Event": "定时开始事件",
"Conditional Start Event": "条件开始事件",
"Signal Start Event": "信号开始事件",
"Error Start Event": "错误开始事件",
"Escalation Start Event": "升级开始事件",
"Compensation Start Event": "补偿开始事件",
"Message Start Event (non-interrupting)": "消息开始事件 (非中断)",
"Timer Start Event (non-interrupting)": "定时开始事件 (非中断)",
"Conditional Start Event (non-interrupting)": "条件开始事件 (非中断)",
"Signal Start Event (non-interrupting)": "信号开始事件 (非中断)",
"Escalation Start Event (non-interrupting)": "升级开始事件 (非中断)",
"Message Intermediate Catch Event": "消息中间捕获事件",
"Message Intermediate Throw Event": "消息中间抛出事件",
"Timer Intermediate Catch Event": "定时中间捕获事件",
"Escalation Intermediate Throw Event": "升级中间抛出事件",
"Conditional Intermediate Catch Event": "条件中间捕获事件",
"Link Intermediate Catch Event": "链接中间捕获事件",
"Link Intermediate Throw Event": "链接中间抛出事件",
"Compensation Intermediate Throw Event": "补偿中间抛出事件",
"Signal Intermediate Catch Event": "信号中间捕获事件",
"Signal Intermediate Throw Event": "信号中间抛出事件",
"Message End Event": "消息结束事件",
"Escalation End Event": "定时结束事件",
"Error End Event": "错误结束事件",
"Cancel End Event": "取消结束事件",
"Compensation End Event": "补偿结束事件",
"Signal End Event": "信号结束事件",
"Terminate End Event": "终止结束事件",
"Message Boundary Event": "消息边界事件",
"Message Boundary Event (non-interrupting)": "消息边界事件 (非中断)",
"Timer Boundary Event": "定时边界事件",
"Timer Boundary Event (non-interrupting)": "定时边界事件 (非中断)",
"Escalation Boundary Event": "升级边界事件",
"Escalation Boundary Event (non-interrupting)": "升级边界事件 (非中断)",
"Conditional Boundary Event": "条件边界事件",
"Conditional Boundary Event (non-interrupting)": "条件边界事件 (非中断)",
"Error Boundary Event": "错误边界事件",
"Cancel Boundary Event": "取消边界事件",
"Signal Boundary Event": "信号边界事件",
"Signal Boundary Event (non-interrupting)": "信号边界事件 (非中断)",
"Compensation Boundary Event": "补偿边界事件",
"Exclusive Gateway": "互斥网关",
"Parallel Gateway": "并行网关",
"Inclusive Gateway": "相容网关",
"Complex Gateway": "复杂网关",
"Event based Gateway": "事件网关",
"Transaction": "转运",
"Sub Process": "子流程",
"Event Sub Process": "事件子流程",
"Collapsed Pool": "折叠池",
"Expanded Pool": "展开池",
"no parent for {element} in {parent}": "在{parent}里，{element}没有父类",
"no shape type specified": "没有指定的形状类型",
"flow elements must be children of pools/participants": "流元素必须是池/参与者的子类",
"out of bounds release": "out of bounds release",
"more than {count} child lanes": "子道大于{count} ",
"element required": "元素不能为空",
"diagram not part of bpmn:Definitions": "流程图不符合bpmn规范",
"no diagram to display": "没有可展示的流程图",
"no process or collaboration to display": "没有可展示的流程/协作",
"element {element} referenced by {referenced}#{property} not yet drawn": "由{referenced}#{property}引用的{element}元素仍未绘制",
"already rendered {element}": "{element} 已被渲染",
"failed to import {element}": "导入{element}失败",
"Id": "编号",
"Name": "名称",
"General": "常规",
"Details": "详情",
"Message Name": "消息名称",
"Message": "消息",
"Initiator": "创建者",
"Asynchronous Continuations": "持续异步",
"Asynchronous Before": "异步前",
"Asynchronous After": "异步后",
"Job Configuration": "工作配置",
"Exclusive": "排除",
"Job Priority": "工作优先级",
"Retry Time Cycle": "重试时间周期",
"Documentation": "文档",
"Element Documentation": "元素文档",
"History Configuration": "历史配置",
"History Time To Live": "历史的生存时间",
"Forms": "表单",
"Form Key": "表单key",
"Form Fields": "表单字段",
"Business Key": "业务key",
"Form Field": "表单字段",
"ID": "编号",
"Type": "类型",
"Label": "名称",
"Default Value": "默认值",
"Validation": "校验",
"Add Constraint": "添加约束",
"Config": "配置",
"Properties": "属性",
"Add Property": "添加属性",
"Value": "值",
"Add": "添加",
"Values": "值",
"Add Value": "添加值",
"Listeners": "监听器",
"Execution Listener": "执行监听",
"Event Type": "事件类型",
"Listener Type": "监听器类型",
"Java Class": "Java类",
"Expression": "表达式",
"Must provide a value": "必须提供一个值",
"Delegate Expression": "代理表达式",
"Script": "脚本",
"Script Format": "脚本格式",
"Script Type": "脚本类型",
"Inline Script": "内联脚本",
"External Script": "外部脚本",
"Resource": "资源",
"Field Injection": "字段注入",
"Extensions": "扩展",
"Input/Output": "输入/输出",
"Input Parameters": "输入参数",
"Output Parameters": "输出参数",
"Parameters": "参数",
"Output Parameter": "输出参数",
"Timer Definition Type": "定时器定义类型",
"Timer Definition": "定时器定义",
"Date": "日期",
"Duration": "持续",
"Cycle": "循环",
"Signal": "信号",
"Signal Name": "信号名称",
"Escalation": "升级",
"Error": "错误",
"Link Name": "链接名称",
"Condition": "条件名称",
"Variable Name": "变量名称",
"Variable Event": "变量事件",
"Specify more than one variable change event as a comma separated list.": "多个变量事件以逗号隔开",
"Wait for Completion": "等待完成",
"Activity Ref": "活动参考",
"Version Tag": "版本标签",
"Executable": "可执行文件",
"External Task Configuration": "扩展任务配置",
"Task Priority": "任务优先级",
"External": "外部",
"Connector": "连接器",
"Must configure Connector": "必须配置连接器",
"Connector Id": "连接器编号",
"Implementation": "实现方式",
"Field Injections": "字段注入",
"Fields": "字段",
"Result Variable": "结果变量",
"Topic": "主题",
"Configure Connector": "配置连接器",
"Input Parameter": "输入参数",
"Assignee": "代理人",
"Candidate Users": "候选用户",
"Candidate Groups": "候选组",
"Due Date": "到期时间",
"Follow Up Date": "跟踪日期",
"Priority": "优先级",
"The follow up date as an EL expression (e.g. ${someDate} or an ISO date (e.g. 2015-06-26T09:54:00)": "跟踪日期必须符合EL表达式，例如 ${someDate} ,或者一个ISO标准日期（如，2015-06-26T09:54:00）",
"The due date as an EL expression (e.g. ${someDate} or an ISO date (e.g. 2015-06-26T09:54:00)": "跟踪日期必须符合EL表达式，例如 ${someDate} ,或者一个ISO标准日期（如，2015-06-26T09:54:00）",
"Variables": "变量",
"Candidate Starter Configuration": "候选开始配置",
"Task Listener": "任务监听器",
"Candidate Starter Groups": "候选开始组",
"Candidate Starter Users": "候选开始用户",
"Tasklist Configuration": "任务列表配置",
"Startable": "启动",
"Specify more than one group as a comma separated list.": "指定多个组,用逗号分隔",
"Specify more than one user as a comma separated list.": "指定多个用户,用逗号分隔",
"This maps to the process definition key.": "这会映射为流程定义的键",
"CallActivity Type": "调用活动类型",
"Condition Type": "条件类型",
"Create UserTask": "创建用户任务",
"Create CallActivity": "创建调用活动",
"Called Element": "调用元素",
"Create DataObjectReference": "创建数据对象引用",
"Create DataStoreReference": "创建数据存储引用",
"Multi Instance": "多实例",
"Loop Cardinality": "实例数量",
"Collection": "任务参与人列表",
"Element Variable": "元素变量",
"Completion Condition": "完成条件",
// 以下是bpmnlint的汉化
"{errors} Errors, {warnings} Warnings": "{errors} 错误, {warnings} 警告",
"Process is missing end event": "流程缺少结束节点",
"Sub process is missing end event": "子流程缺少结束节点",
"Process is missing start event": "流程缺少结束节点",
"Sub process is missing start event": "子流程缺少结束节点",
"Sequence flow is missing condition": "顺序流缺少条件",
"Start event is missing event definition": "开始节点缺少事件定义",
"Incoming flows do not join": "传入流不能连接",
"Element has disallowed type <{type}>": "元素存在不允许类型<{type}>",
"Element is missing label/name": "元素缺少标签或者名称",
"Element is missing bpmndi": "元素缺少bpmni",
"Element is not connected": "元素缺少连接",
"SequenceFlow is a duplicate": "流入流出存在重复",
"Duplicate outgoing sequence flows": "存在重复的流出",
"Duplicate incoming sequence flows": "存在重复的流入",
"Gateway forks and joins": "网关同时存在分叉和连接",
"Flow splits implicitly": "流程隐性分割",
"Process has multiple blank start events": "流程存在多个空的开始节点",
"Sub process has multiple blank start events": "子流程存在多个空的开始节点",
"Event has multiple event definitions": "事件节点存在多个事件定义",
"Start event must be blank": "不需要开始节点",
"Gateway is superfluous. It only has one source and target.": "网关是多余的。它只有一个源和目标。"
}
导入汉化
import lintModule from 'bpmn-js-bpmnlint';
import 'bpmn-js-bpmnlint/dist/assets/css/bpmn-js-bpmnlint.css';
import BpmnModeler from 'bpmn-js/lib/Modeler';
import bpmnlintConfig from './.bpmnlintrc';
import customTranslate from './translate/customTranslate'
import translationsCN from './translate/zh.json'
const modeler = new BpmnModeler({
linting: {
bpmnlint: bpmnlintConfig
},
additionalModules: [
lintModule,
{
translate: ['value', customTranslate(translationsCN)]
}
]
});
modeler.get('editorActions').trigger('toggleLinting') // 开启
自定义验证规则

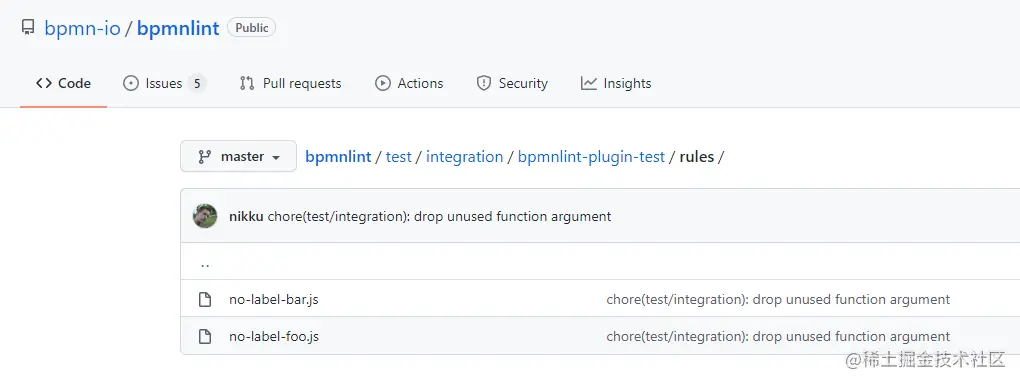

参考这个，进行相关规则的自定义。
