使用SVG写一个支付成功效果

471 阅读1分钟

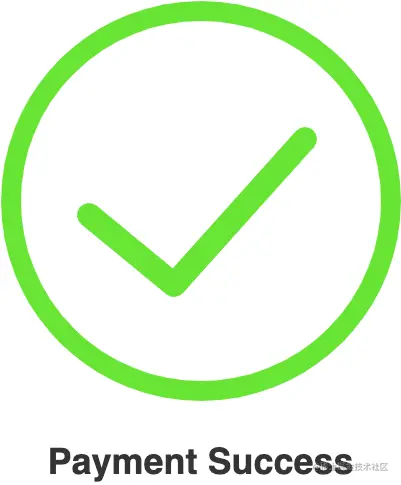

👉 SVG实现一个支付成功效果

<svg width="400" height="400">
    <circle
        fill="none"
        stroke="#68E534"
        stroke-width="20"
        cx="200"
        cy="200"
        r="190"
        class="circle"
        stroke-linecap="round"
        transform="rotate(-90 200 200)"
    />
    <polyline
        fill="none"
        stroke="#68E534"
        stroke-width="24"
        points="88,214 173,284 304,138"
        stroke-linecap="round"
        stroke-linejoin="round"
        class="tick"
    />
</svg>
body {
    display: flex;
    justify-content: center;
    align-items: center;
    min-height: 100vh;
    flex-direction: column;
}


h2 {
    font-family: Helvetica;
    font-size: 36px;
    margin-top: 40px;
    color: #333;
    opacity: 0;
}


input[type="checkbox"]:checked ~ h2 {
    animation: 0.6s title ease-in-out;
    animation-delay: 1.2s;
    animation-fill-mode: forwards;
}

.circle {
    stroke-dasharray: 1194;
    stroke-dashoffset: 1194;
}

input[type="checkbox"]:checked + svg .circle {
    animation: circle 1s ease-in-out;
    animation-fill-mode: forwards;
}

.tick {
    stroke-dasharray: 350;
    stroke-dashoffset: 350;
}

input[type="checkbox"]:checked + svg .tick {
    animation: tick 0.8s ease-out;
    animation-fill-mode: forwards;
    animation-delay: 0.95s;
}

@keyframes circle {
    from {
        stroke-dashoffset: 1194;
    }
    to {
        stroke-dashoffset: 2388;
    }
}

@keyframes tick {
    from {
        stroke-dashoffset: 350;
    }
    to {
        stroke-dashoffset: 0;
    }
}

@keyframes title {
    from {
        opacity: 0;
    }
    to {
        opacity: 1;
    }
}
