使用certManager自动管理https证书主要实践了使用cert manager来管理k8s中的证书，我们可以基于

https是什么？

超文本传输协议HTTP协议被用于在Web浏览器和网站服务器之间传递信息，HTTP协议以明文方式发送内容，不提供任何方式的数据加密，如果攻击者截取了Web浏览器和网站服务器之间的传输报文，就可以直接读懂其中的信息，因此，HTTP协议不适合传输一些敏感信息，比如：信用卡号、密码等支付信息。

为了解决HTTP协议的这一缺陷，需要使用另一种协议：安全套接字层超文本传输协议HTTPS，为了数据传输的安全，HTTPS在HTTP的基础上加入了SSL协议，SSL依靠证书来验证服务器的身份，并为浏览器和服务器之间的通信加密。http和https使用的是完全不同的连接方式，用的端口也不一样，前者是80，后者是443。

certManager是什么？

cert-manager 是一个云原生证书管理开源项目，用于在 kubernetes 集群中提供 HTTPS 证书并自动续期，支持 Let’s Encrypt, HashiCorp Vault 这些免费证书的签发。在Kubernetes集群中，我们可以通过 Kubernetes Ingress 和 Let’s Encrypt 实现外部服务的自动化 HTTPS。

在Kubernetes集群中使用 HTTPS 协议，需要一个证书管理器、一个证书自动签发服务，主要通过 Ingress 来发布 HTTPS 服务，因此需要Ingress Controller并进行配置，启用 HTTPS 及其路由。

如何安装certManager？

环境依赖

集群必须已经装有 Ingress Controller
外部客户端配置hosts，IP 指向 Ingress Controller 对外暴露的地址（如果IP是公网地址并做了域名解析，则无需配置）

开始安装

安装cert-manager
- 官网：cert-manager.io/docs/instal…
- 安装：kubectl apply -f https://github.com/jetstack/cert-manager/releases/download/v1.6.1/cert-manager.yaml

查看安装结果

kubectl get pods -n cert-manager

[root@master cert-manager-161]# kubectl get pods -n cert-manager
NAME                                      READY   STATUS    RESTARTS   AGE
cert-manager-55658cdf68-9wbwh             1/1     Running   0          37s
cert-manager-cainjector-967788869-ddmlv   1/1     Running   0          37s
cert-manager-webhook-6668fbb57d-gqr7t     1/1     Running   0          37s

生成CA证书

安装cfssl

下载最新的可执行文件

[root@master ssl]# wget https://github.com/cloudflare/cfssl/releases/download/v1.6.1/cfssl_1.6.1_linux_amd64
[root@master ssl]# wget https://github.com/cloudflare/cfssl/releases/download/v1.6.1/cfssljson_1.6.1_linux_amd64
[root@master ssl]# wget https://github.com/cloudflare/cfssl/releases/download/v1.6.1/cfssl-certinfo_1.6.1_linux_amd64

[root@master ssl]# mv cfssl_1.6.1_linux_amd64 cfssl
[root@master ssl]# mv cfssl-certinfo_1.6.1_linux_amd64 certinfo
[root@master ssl]# mv cfssljson_1.6.1_linux_amd64 cfssljson

[root@master ssl]# chmod +x certinfo
[root@master ssl]# chmod +x cfssl
[root@master ssl]# chmod +x cfssljson

复制到/usr/local/bin

[root@master ssl]# mv cfssl /usr/local/sbin/
[root@master ssl]# mv certinfo /usr/local/sbin/
[root@master ssl]# mv cfssljson /usr/local/sbin/

生成CA证书

配置证书请求文件

cfssl print-defaults csr > csr.json

{
    "CN": "kdemo",
    "key": {
        "algo": "rsa",
        "size": 2048
    },
    "names": [
        {
            "C": "CN",
            "ST": "ShenZhen",
            "L": "ShenZhen",
            "O": "k8s",
            "OU": "systemGroup"
        }
    ],
    "ca": {
        "expiry": "87600h"
    }
}

字段说明： default：默认策略，指定了证书的有效期是一年(8760h) signing：表示该证书可用于签名其它证书；生成的 ca.pem 证书中 CA=TRUE server auth：表示 client 可以用该 CA 对 server 提供的证书进行验证 client auth：表示 server 可以用该 CA 对 client 提供的证书进行验证 expiry：过期时间

cfssl gencert -initca csr.json | cfssljson -bare ca

[root@master ssl]# cfssl gencert -initca csr.json  | cfssljson -bare ca
2021/12/28 17:25:55 [INFO] generating a new CA key and certificate from CSR
2021/12/28 17:25:55 [INFO] generate received request
2021/12/28 17:25:55 [INFO] received CSR
2021/12/28 17:25:55 [INFO] generating key: rsa-2048
2021/12/28 17:25:55 [INFO] encoded CSR
2021/12/28 17:25:55 [INFO] signed certificate with serial number 151317294092143127619036180787140414839328861547
[root@master ssl]# ls
ca.csr  ca-key.pem  ca.pem  csr.json

使用certManager管理证书

使用本地证书来创建

将签名密钥对保存为Secret

kubectl create secret tls ca-key-pair --cert=ca.crt --key=ca.key --namespace=kdemo

[root@master ssl]# kubectl create secret tls ca-key-pair --cert=ca.pem --key=ca-key.pem --namespace=kdemo
secret/ca-key-pair created
[root@master ssl]# kubectl get se
secrets                             serviceaccounts                     serviceentries.networking.istio.io  services
[root@master ssl]# kubectl get secrets -n kdemo
NAME                  TYPE                                  DATA   AGE
ca-key-pair           kubernetes.io/tls                     2      16s
default-token-n7xwn   kubernetes.io/service-account-token   3      90s

创建一个签发机构

我们需要先创建一个签发机构，cert-manager 给我们提供了 Issuer 和 ClusterIssuer 这两种用于创建签发机构的自定义资源对象，Issuer 只能用来签发自己所在 namespace 下的证书，ClusterIssuer 可以签发任意 namespace 下的证书，这里以 Issuer 为例创建一个签发机构
- vim kdemo-issuer.yaml
```
apiVersion: cert-manager.io/v1
kind: Issuer
metadata:
  name: kdemo-issuer
  namespace: kdemo
spec:
  ca:
    secretName: ca-key-pair
```
- kubectl apply -f kdemo-issuer.yaml
```
[root@master ssl]# kubectl apply -f kdemo-issuer.yaml
issuer.cert-manager.io/kdemo-issuer created
[root@master ssl]# kubectl get issuers.cert-manager.io -n kdemo
NAME           READY   AGE
kdemo-issuer   True    25s
```

创建一个免费证书Certificate

vim kdemo-certificate.yaml

apiVersion: cert-manager.io/v1
kind: Certificate
metadata:
  name: kdemo-tls
  namespace: kdemo
spec:
  secretName: kdemo-tls
  issuerRef:
    name: kdemo-issuer
    kind: Issuer
  commonName: kdemo.com
  dnsNames:
  - kdemo.com

kubectl apply -f kdemo-certificate.yaml

[root@master ssl]# kubectl apply -f kdemo-certificate.yaml
certificate.cert-manager.io/kdemo-tls created
[root@master ssl]# kubectl get certificate -n kdemo
NAME        READY   SECRET      AGE
kdemo-tls   True    kdemo-tls   21s

kubectl get secrets -n kdemo 查看secrets

[root@master ssl]# kubectl get secrets -n kdemo
NAME                  TYPE                                  DATA   AGE
ca-key-pair           kubernetes.io/tls                     2      61m
default-token-n7xwn   kubernetes.io/service-account-token   3      62m
kdemo-tls             kubernetes.io/tls                     3      63s

kubectl describe -n kdemo secrets kdemo-tls 查看详细信息

[root@master ssl]# kubectl describe -n kdemo secrets kdemo-tls
Name:         kdemo-tls
Namespace:    kdemo
Labels:       <none>
Annotations:  cert-manager.io/alt-names: kdemo.com
              cert-manager.io/certificate-name: kdemo-tls
              cert-manager.io/common-name: kdemo.com
              cert-manager.io/ip-sans:
              cert-manager.io/issuer-group:
              cert-manager.io/issuer-kind: Issuer
              cert-manager.io/issuer-name: kdemo-issuer
              cert-manager.io/uri-sans:

Type:  kubernetes.io/tls

Data
====
ca.crt:   1314 bytes
tls.crt:  1224 bytes
tls.key:  1679 bytes

创建服务进行测试

vim kdemo-nginx.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  name: kdemo
  namespace: kdemo
  labels:
    app: kdemo
spec:
  replicas: 1
  template:
    metadata:
      name: kdemo
      labels:
        app: kdemo
    spec:
      containers:
        - name: nginx
          image: nginx:1.20.2-alpine
          imagePullPolicy: IfNotPresent
      restartPolicy: Always
  selector:
    matchLabels:
      app: kdemo

---
apiVersion: v1
kind: Service
metadata:
  name: kdemo
  namespace: kdemo
spec:
  selector:
    app: kdemo
  ports:
    - port: 80
  type: ClusterIP

---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: kdemo
  namespace: kdemo
spec:
  ingressClassName: nginx
  rules:
    - host: kdemo.com
      http:
        paths:
          - backend:
              service:
                name: kdemo
                port:
                  number: 80
            path: /
            pathType: Prefix
  tls:
    - hosts:
        - kdemo.com
      secretName: kdemo-tls
status:
  loadBalancer: {}

kubectl apply -f kdemo-nginx.yaml

[root@master ssl]# kubectl apply -f kdemo-nginx.yaml
deployment.apps/kdemo created
service/kdemo created
ingress.networking.k8s.io/kdemo created

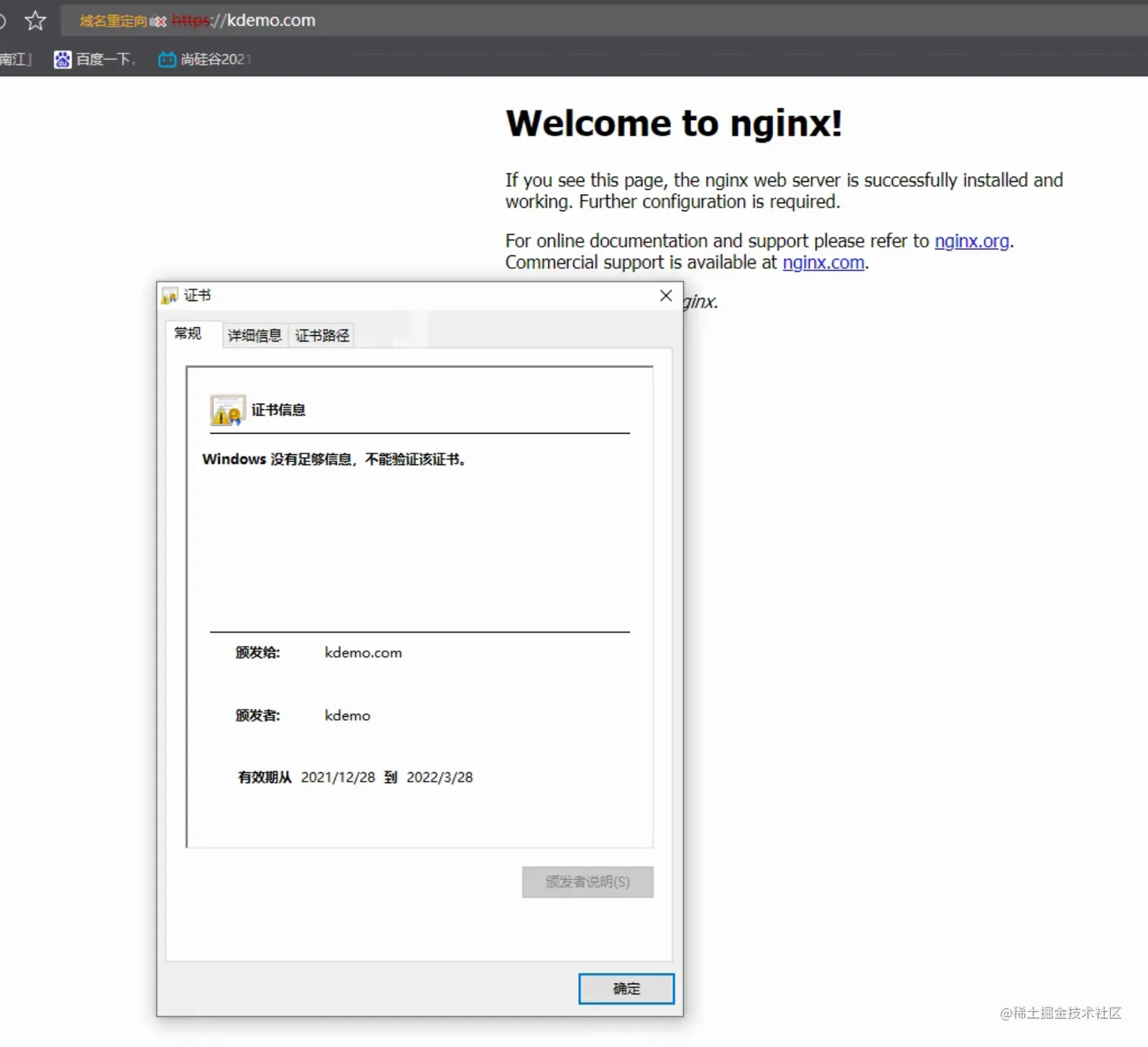

访问测试

使用aliyun-dns-webhook自动为阿里云域名续期https证书

安装aliyun-dns-webhook插件

使用helm安装

helm repo add cert-manager-alidns-webhook https://gitee.com/daiminr/cert-manager-alidns-webhook
helm repo update
helm install cert-manager-alidns-webhook/alidns-webhook

安装结果

[root@master alidns-webhook]# helm install alidns-webhook cert-manager-alidns-webhook/alidns-webhook -n cert-manager
NAME: alidns-webhook
LAST DEPLOYED: Wed Dec  8 16:11:08 2021
NAMESPACE: cert-manager
STATUS: deployed
REVISION: 1
TEST SUITE: None

查看安装的情况：kubectl get pods,svc -n cert-manager

[root@master AtarisMio-alidns]# kubectl get pods,svc -n cert-manager
NAME                                          READY   STATUS    RESTARTS      AGE
pod/alidns-webhook-6d4d766fd7-chd89           1/1     Running   0             4m20s
pod/cert-manager-55658cdf68-9wbwh             1/1     Running   2 (14h ago)   2d
pod/cert-manager-cainjector-967788869-ddmlv   1/1     Running   2 (14h ago)   2d
pod/cert-manager-webhook-6668fbb57d-gqr7t     1/1     Running   0             2d

NAME                           TYPE        CLUSTER-IP     EXTERNAL-IP   PORT(S)    AGE
service/alidns-webhook         ClusterIP   10.1.169.162   <none>        443/TCP    4m20s
service/cert-manager           ClusterIP   10.1.17.75     <none>        9402/TCP   2d
service/cert-manager-webhook   ClusterIP   10.1.167.181   <none>        443/TCP    2d

添加alidnsSecret配置：vim alidnsSecret.yaml

apiVersion: v1
kind: Secret
metadata:
  name: alidns-secret
  namespace: cert-manager
data:
  access-key: base64(accessKey)
  secret-key: base64(secretKey)
type: Opaque

新增ClusterIssuer签发机构

看groupName：kubectl edit pod -n cert-manager alidns-webhook-6d4d766fd7-chd89

vim clusterIssuer.yaml

kind: ClusterIssuer
metadata:
  name: letsencrypt-alidns
spec:
  acme:
    # 修改你的邮箱
    email: xxxx@xxxx.cn
    server: https://acme-v02.api.letsencrypt.org/directory
    privateKeySecretRef:
      name: letsencrypt-alidns-key
    solvers:
    - dns01:
        webhook:
          groupName: acme.mycompany.com # 需要和alidns-webhook的group保持一致
          solverName: alidns
          config:
            region: ""
            accessKeyIdSecretRef:
              name: alidns-secret
              key: access-key
            accessSecretSecretRef:
              name: alidns-secret
              key: secret-key

执行：kubectl apply -f clusterIssuer.yaml

[root@master aliyun-dns-webhook]# kubectl apply -f clusterIssuer.yaml
clusterissuer.cert-manager.io/letsencrypt-alidns created
[root@master aliyun-dns-webhook]#

新增一个证书

vim certificate-test.yaml

kind: Certificate
metadata:
  name: test-xxxx-tls
  namespace: test
spec:
  secretName: test-xxxx-cn-tls
  commonName: test.xxxx.cn
  dnsNames:
  - test.xxxx.cn
  - "*.test.xxxx.cn"
  issuerRef:
    name: letsencrypt-alidns
    kind: ClusterIssuer

安装：kubectl apply -f certificate-test.yaml

[root@master aliyun-dns-webhook]# kubectl apply -f certificate-test.yaml
certificate.cert-manager.io/test-xxxx-tls created
[root@master aliyun-dns-webhook]#

查看阿里云dns解析记录

查看certificate信息：

[root@master AtarisMio-alidns]# kubectl get certificate -n test
NAME             READY   SECRET              AGE
test-xxxx-tls   True    test-xxxx-cn-tls   10m
[root@master AtarisMio-alidns]#

配置一个域名试试水

域名：kuboard.xxxx.cn
命名空间：kuboard

添加certificate-kuboard.yaml

vim certificate-kuboard.yaml

apiVersion: cert-manager.io/v1
kind: Certificate
metadata:
  name: kuboard-xxxx-tls
  namespace: kuboard
spec:
  secretName: kuboard-xxxx-cn-tls
  commonName: kuboard.xxxx.cn
  dnsNames:
  - kuboard.xxxx.cn
  issuerRef:
    name: letsencrypt-alidns
    kind: ClusterIssuer

执行kubectl apply -f certificate-kuboard.yaml

查看结果kubectl get certificate -n kuboard

[root@master AtarisMio-alidns]# kubectl get certificate -n kuboard
NAME                READY   SECRET                 AGE
kuboard-xxxx-tls   True    kuboard-xxxx-cn-tls   2d20h

新增kuboard-ingress.yaml

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: kuboard
  namespace: kuboard
spec:
  ingressClassName: nginx
  tls:
  - hosts:
    - kuboard.xxxx.cn
    secretName: kuboard-xxxx-tls
  rules:
  - host: kuboard.xxxx.cn
    http:
      paths:
      - backend:
          service:
            name: kuboard-v3
            port:
              number: 80
        path: /
        pathType: Prefix
status:
  loadBalancer: {}

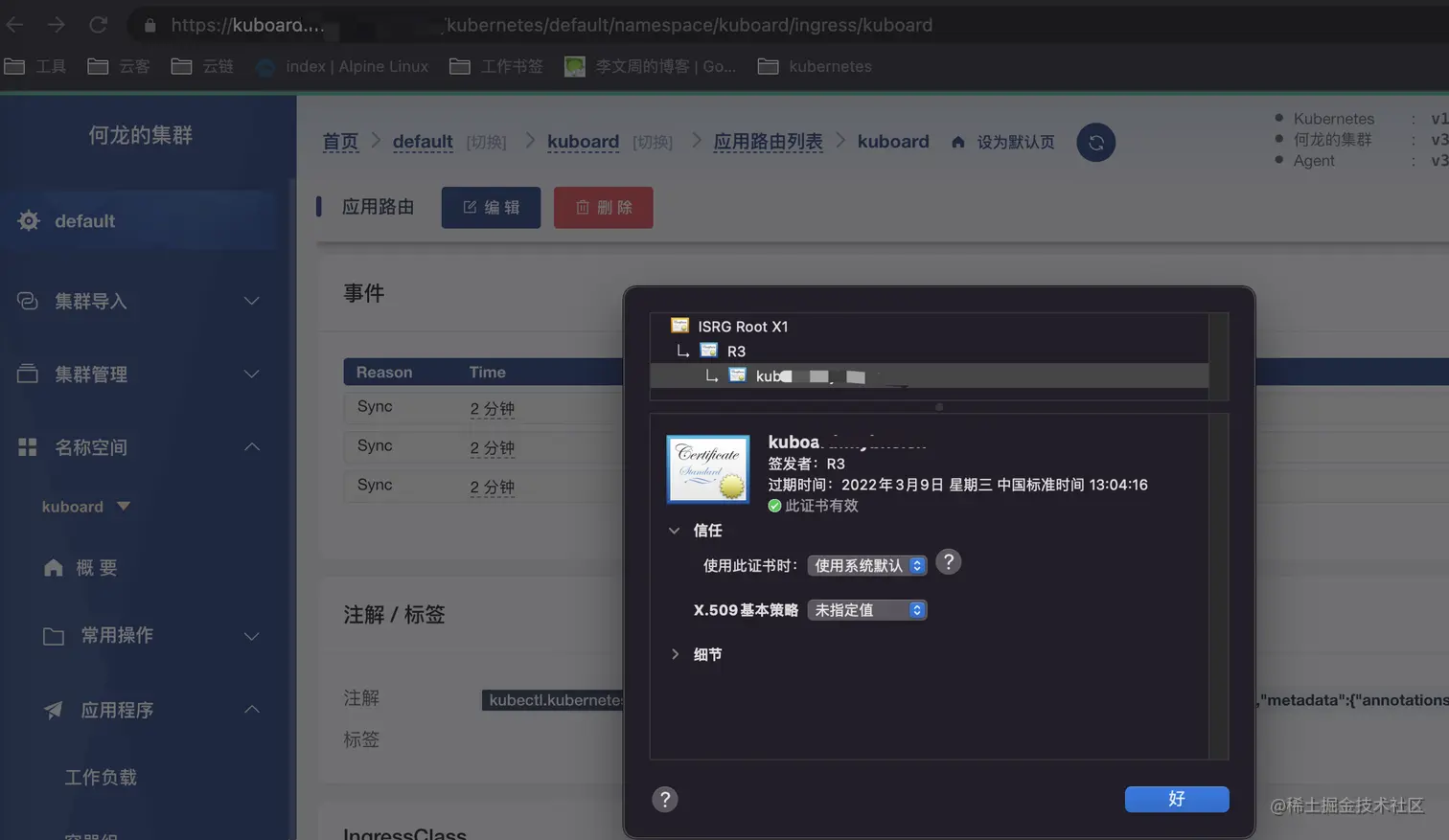

访问
