前言

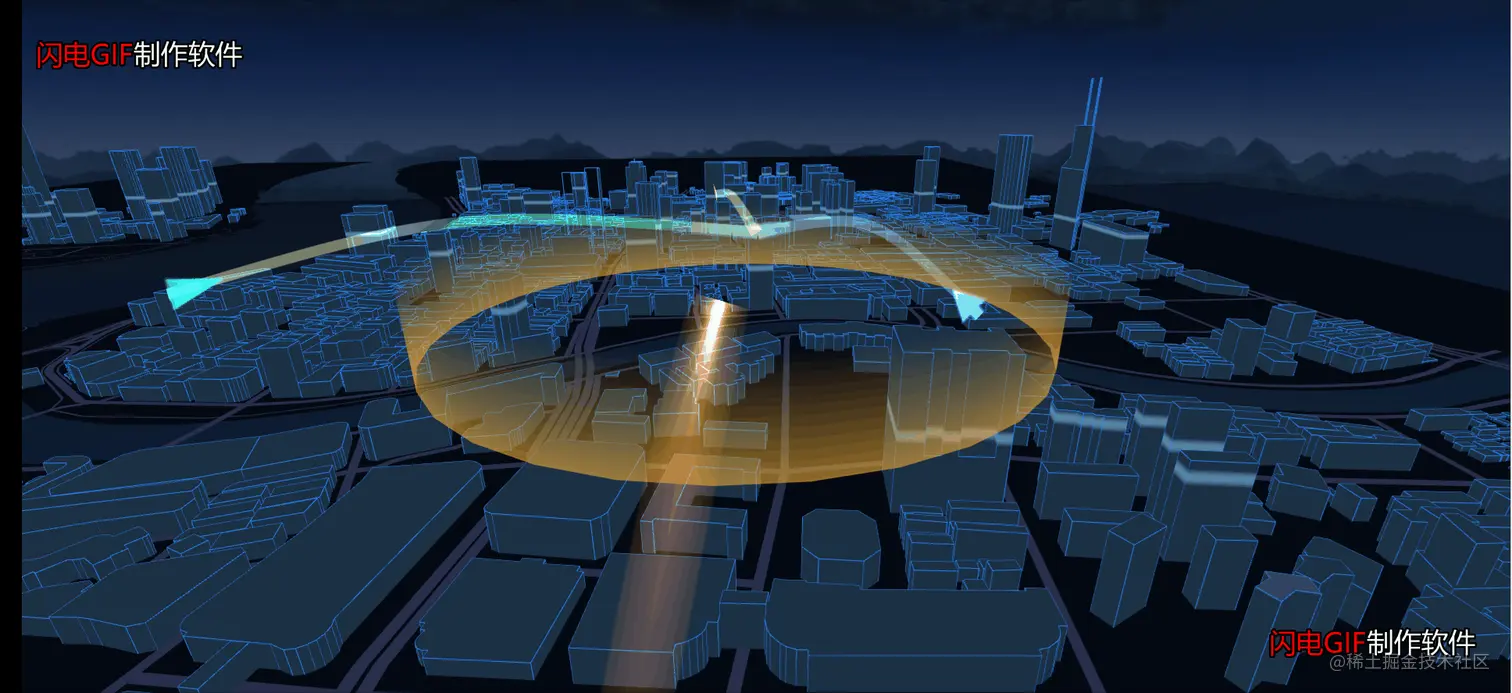

上一节实现了天空盒、扩散墙、扩散圆，这一节来添加飞线，飞点。
思路
主要思路是通过两个点和高度创建贝塞尔曲线，然后把该曲线的点构造成MeshLine（这个插件可以生成有宽度的线）,然后把想要效果的图贴到线上。
- 飞点：
- 飞线
这里用到了别人写的MeshLine插件（github.com/spite/THREE… ），对这个代码做了一点点修改，可进行模型材质的uv移动（THREE高版本有问题，我这边用的是127版本没有问题）。
这个修改是借鉴的
deckgl（deck.gl/ ）具体的修改就是把UV偏移量传进去实现偏移。
代码
import * as THREE from 'three';
import { Geometry } from 'three/examples/jsm/deprecated/Geometry';
import { MeshLine, MeshLineMaterial } from './THREE.MeshLine';
THREE.Geometry = Geometry;
/**
* 波纹散射图层
* @param options.img 照片地址
* @param options.lineWidth 线宽度
* @param options.side 贴图样式
* @param options.camera 相机
* @param options.height 高度
* @param options.v0 点一
* @param options.v1 点二
* @param options.speed 流动速度
* @param options.el 节目场景元素
* @param options.type 线类型分run和top
* @param options.maxheight 当类型为top时最高上升高度
* @param options.line 存储线
* @param options.thing 存储setInterval事件
* @example
*/
class RunLine {
constructor(option) {
this.img = option.img || '';
this.lineWidth = option.lineWidth || 1;
this.side = option.side || THREE.FrontSide;
this.camera = option.camera || '';
this.height = option.height || 100;
this.v0 = option.v0 || new THREE.Vector3(0, 0, 0);
this.v1 = option.v1 || new THREE.Vector3(0, 0, 0);
this.speed = option.speed / 100 || 0.01;
this.el = option.el || '';
this.scene = option.scene || '';
this.type = option.type || 'run';
this.maxheight = option.maxheight || 300;
this.line = '';
this.thing = '';
this.creatline();
}
creatline() {
const textureLoader = new THREE.TextureLoader();
textureLoader.load(this.img, (texture) => {
this.texture = texture;
this.texture.anisotropy = 16;
this.texture.wrapS = THREE.RepeatWrapping; // 每个都重复
this.texture.wrapT = THREE.RepeatWrapping;
const resolution = new THREE.Vector2(this.el.offsetWidth, this.el.offsetHeight);
const material1 = new MeshLineMaterial({
color: '',
map: this.texture,
useMap: true,
lineWidth: this.lineWidth,
resolution,
dashArray: 0, // 破折号之间的长度和间距。(0 -无破折号)
dashRatio: 0.7, // 定义可见和不可见之间的比率(0 -更可见，1 -更不可见)。
dashOffset: 1,
transparent: true,
sizeAttenuation: 1, // 使线宽不变，不管距离(1个单位是屏幕上的1px)(0 -衰减，1 -不衰减)
side: THREE.FrontSide,
depthTest: false,
blending: THREE.AdditiveBlending,
near: this.camera.near,
far: this.camera.far,
});
this.line = this.createAnimateLine({
kind: 'sphere', // 默认不填 为普通 ; 如为sphere,则表示球面建点
type: 'line', // 默认不填 为MeshLine ; 如为pipe,则表示管道线
sphereHeightPointsArgs: [this.v0, this.v1],
material: material1,
number: 50,
radius: 3, // 默认
});
if (this.type === 'run') {
this.line1 = this.createAnimateLine({
kind: 'sphere', // 默认不填 为普通 ; 如为sphere,则表示球面建点
type: 'line', // 默认不填 为MeshLine ; 如为pipe,则表示管道线
sphereHeightPointsArgs: [this.v0, this.v1],
material: material1,
number: 50,
radius: 3, // 默认
});
}
this.scene.add(this.line);
this.scene.add(this.line1);
const { speed } = this;
if (this.type === 'run') {
this.thing = setInterval(() => {
this.line.material.uniforms.offset.value.x -= speed;
this.line1.material.uniforms.offset.value.x -= speed;
}, 30);
} else if (this.type === 'top') {
this.thing = setInterval(() => {
if (this.line.position.y < this.maxheight) {
this.line.position.y += this.speed * 100;
} else {
this.line.position.y = 0;
}
}, 30);
}
});
}
createAnimateLine(option) {
let curve;
if (option.kind === 'sphere') {
// 由两点之间连线成贝塞尔曲线
const { sphereHeightPointsArgs } = option;
const vX = (sphereHeightPointsArgs[1].x + sphereHeightPointsArgs[0].x) / 2;
const vZ = (sphereHeightPointsArgs[1].z + sphereHeightPointsArgs[0].z) / 2;
if (this.type === 'run') {
curve = new THREE.CubicBezierCurve3(
sphereHeightPointsArgs[0],
new THREE.Vector3(vX, this.height, vZ),
new THREE.Vector3(vX, this.height, vZ),
sphereHeightPointsArgs[1],
);
} else {
curve = new THREE.CubicBezierCurve3(
sphereHeightPointsArgs[0],
new THREE.Vector3(vX, this.height, vZ),
new THREE.Vector3(vX, this.height, vZ),
sphereHeightPointsArgs[1],
);
}
}
if (option.type === 'line') {
const geo = new THREE.Geometry();
geo.setFromPoints(curve.getPoints(100));
// const geo = new Geometry();
// geo.vertices = option.sphereHeightPointsArgs;
const meshLine = new MeshLine();
meshLine.setGeometry(geo);
return new THREE.Mesh(meshLine.geometry, option.material);
} // 使用 meshLine
return '';
}
delete() {
if (this.line) {
this.scene.remove(this.line);
this.scene.remove(this.line1);
}
if (this.thing) {
clearInterval(this.thing);
}
}
}
export default RunLine;
调用代码
this.runline5 = new RunLine({
img: "n.png",
camera: camera,
height: 140,
v0: new THREE.Vector3(614, 18, 130),
v1: new THREE.Vector3(-17.5, 111.5, -23),
el: document.getElementById("scene"),
scene: scene,
speed: 1,
lineWidth: 12,
type: "run",
});
