Netty处理一个用户请求是通过boss的EventLoop的Selector注册ServerSocketChannel并设置关注SelectKey.OP_ACCEPT事件,然后在该EventLoop中循环查询Selector中,产生事件的SelectKey,然后调用processSelectedKey去处理选中的SelectKey集合，并执行Unsafe的read方法。
NioEventLoop#processSelectedKey
if ((readyOps & (SelectionKey.OP_READ | SelectionKey.OP_ACCEPT)) != 0 || readyOps == 0) {
unsafe.read();
}
NioServerSocketChannel初始化创建的ChannelId, Unsafe对象(实现类是NioMessageUnsafe)以及pipeline(实现类DefaultChannelPipeline)。
protected AbstractChannel(Channel parent) {
this.parent = parent;
id = newId();
unsafe = newUnsafe();
pipeline = newChannelPipeline();
}
protected DefaultChannelPipeline newChannelPipeline() {
return new DefaultChannelPipeline(this);
}
DefaultChannelPipeline的初始化
protected DefaultChannelPipeline(Channel channel) {
this.channel = ObjectUtil.checkNotNull(channel, "channel");
succeededFuture = new SucceededChannelFuture(channel, null);
voidPromise = new VoidChannelPromise(channel, true);
tail = new TailContext(this);
head = new HeadContext(this);
head.next = tail;
tail.prev = head;
}

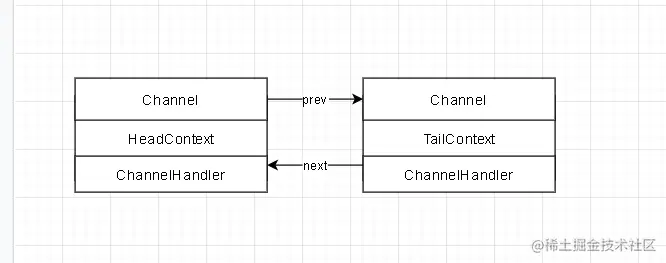

初始化ChannelContext的内部结构如下:

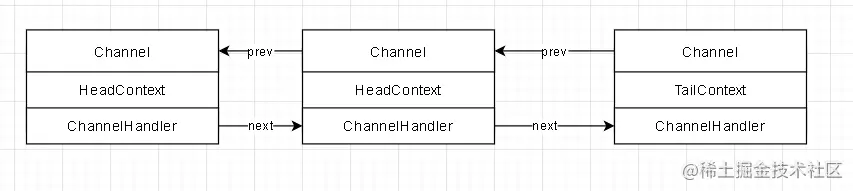

从前面Netty启动的的DiscardServer的Example例子中可以看到ChannelInitializer中初始化channel中，往boss的channle关联的pipeline中增加ServerBootstrapAcceptor这个handler,这是Server内部的结构如下
Server端进行读取操作
当EventLoop中处理Selector查询到选中的Selectkey集合，然后调用Unsafe的read进行读操作，ServerSocketChannel中Unsafe实现类型是NioMessageUnsafe NioMessageUnsafe#read
- 通过while循环是否需要继续读取，调用doReadMessages将ServerSocketChannel调用accept接受对象(实际封装成NioSocketChannel)放在一个集合中。
- 调用RecvByteBufAllocator.Handle的incMessagesRead增加消息读取的个数.
- 获取readBuf中channel个数，循环遍历接受的SocketChannel，并调用pipeline的fireChannelRead进行读事件的传播。
- 从Selectkey中移除interestOps移除SelectionKey.OP_READ.
private final class NioMessageUnsafe extends AbstractNioUnsafe {
private final List<Object> readBuf = new ArrayList<Object>();
@Override
public void read() {
assert eventLoop().inEventLoop();
final ChannelConfig config = config();
final ChannelPipeline pipeline = pipeline();
final RecvByteBufAllocator.Handle allocHandle = unsafe().recvBufAllocHandle();
allocHandle.reset(config);
boolean closed = false;
Throwable exception = null;
try {
try {
do {
int localRead = doReadMessages(readBuf);
if (localRead == 0) {
break;
}
if (localRead < 0) {
closed = true;
break;
}
allocHandle.incMessagesRead(localRead);
} while (continueReading(allocHandle));
} catch (Throwable t) {
exception = t;
}
int size = readBuf.size();
for (int i = 0; i < size; i ++) {
readPending = false;
pipeline.fireChannelRead(readBuf.get(i));
}
readBuf.clear();
allocHandle.readComplete();
pipeline.fireChannelReadComplete();
if (exception != null) {
closed = closeOnReadError(exception);
pipeline.fireExceptionCaught(exception);
}
if (closed) {
inputShutdown = true;
if (isOpen()) {
close(voidPromise());
}
}
} finally {
// Check if there is a readPending which was not processed yet.
// This could be for two reasons:
// * The user called Channel.read() or ChannelHandlerContext.read() in channelRead(...) method
// * The user called Channel.read() or ChannelHandlerContext.read() in channelReadComplete(...) method
//
// See https://github.com/netty/netty/issues/2254
if (!readPending && !config.isAutoRead()) {
removeReadOp();
}
}
}
}
NioServerSocketChannel#doReadMessages
- 调用jdk底层的SockeSocketChannel#accept接受一个新的SocketChannel，然后封装成NioSocketChannel对象，放入buf集合中.
protected int doReadMessages(List<Object> buf) throws Exception {
SocketChannel ch = SocketUtils.accept(javaChannel());
try {
if (ch != null) {
buf.add(new NioSocketChannel(this, ch));
return 1;
}
} catch (Throwable t) {
logger.warn("Failed to create a new channel from an accepted socket.", t);
try {
ch.close();
} catch (Throwable t2) {
logger.warn("Failed to close a socket.", t2);
}
}
return 0;
}
DefaultChannelPipeline#fireChannelRead 可以看到传播是从ChannelHandleConext的head传播读事件的处理，
@Override
public final ChannelPipeline fireChannelRead(Object msg) {
AbstractChannelHandlerContext.invokeChannelRead(head, msg);
return this;
}
AbstractChannelHandlerContext#invokeChannelRead
- 调用HeadContext的pipeline的touch是判断是否使用内存泄漏, 返回对象的Channel对象.
- 获取ChannelContext(这里传入的是HeadContext)的executor对象，即使Channel的eventLoop对象，判断executor是否在当前的时间循环组中，如果是，则调用invokeChannelRead进行读操作，否，则封装成一个Runnable的任务放入 Executor的任务队列中等待执行。
static void invokeChannelRead(final AbstractChannelHandlerContext next, Object msg) {
final Object m = next.pipeline.touch(ObjectUtil.checkNotNull(msg, "msg"), next);
EventExecutor executor = next.executor();
if (executor.inEventLoop()) {
next.invokeChannelRead(m);
} else {
executor.execute(new Runnable() {
@Override
public void run() {
next.invokeChannelRead(m);
}
});
}
}
AbstractChannelHandlerContext#invokeChannelRead
- 调用invokeHandler方法判断handlerState是否等于ADD_COMPLETE或则Executor不是排序的EventExector并且handlerState等于ADD_PENDING状态
- 如果第一步判断返回true，则说明需要调用ChannelHandler进行事件传播处理。则调用当前对象handler(实际就HeadContext对象)的channelRead方法进行事件传播。
private void invokeChannelRead(Object msg) {
if (invokeHandler()) {
try {
((ChannelInboundHandler) handler()).channelRead(this, msg);
} catch (Throwable t) {
invokeExceptionCaught(t);
}
} else {
fireChannelRead(msg);
}
}
private boolean invokeHandler() {
// Store in local variable to reduce volatile reads.
int handlerState = this.handlerState;
return handlerState == ADD_COMPLETE || (!ordered && handlerState == ADD_PENDING);
}
HeadContext#channelRead
- HeadConext中就是调用ChannelHandlerContext的fireChannelRead进行channelRead的传播
@Override
public void channelRead(ChannelHandlerContext ctx, Object msg) {
ctx.fireChannelRead(msg);
}
AbstractChannelHandlerContext#fireChannelRead
- fireChannelRead主要是findContextInbound找到下一个ChannelInboundHandler，然后invokeChannelRead调用其ChannelHandler的channelRead方法。
public ChannelHandlerContext fireChannelRead(final Object msg) {
invokeChannelRead(findContextInbound(MASK_CHANNEL_READ), msg);
return this;
}
AbstractChannelHandlerContext#findContextInbound
- 寻找下一个的ChannelInbound锁对应的Context，就以当前的ChannelContext为ChannelPipeline中双向链表的开始节点，然后通过遍历其next指针后移查找, 遍历停止的条件是skipContext方法返回false, 这个传入的参数是MASK_CHANNEL_READ，该参数具有ChannelRead方法的掩码,这个主要是快速定位到下一个ChannelContext
private AbstractChannelHandlerContext findContextInbound(int mask) {
AbstractChannelHandlerContext ctx = this;
EventExecutor currentExecutor = executor();
do {
ctx = ctx.next;
} while (skipContext(ctx, currentExecutor, mask, MASK_ONLY_INBOUND));
return ctx;
}
private static boolean skipContext(
AbstractChannelHandlerContext ctx, EventExecutor currentExecutor, int mask, int onlyMask) {
// Ensure we correctly handle MASK_EXCEPTION_CAUGHT which is not included in the MASK_EXCEPTION_CAUGHT
return (ctx.executionMask & (onlyMask | mask)) == 0 ||
// We can only skip if the EventExecutor is the same as otherwise we need to ensure we offload
// everything to preserve ordering.
//
// See https://github.com/netty/netty/issues/10067
(ctx.executor() == currentExecutor && (ctx.executionMask & mask) == 0);
}
AbstractChannelHandlerContext#invokeChannelRead
- 找到一个ChannelInbound的ChannelContext,然后回到上面invokeChannelRead方面，就一直ChannekRead事件会传播到TailConext,
static void invokeChannelRead(final AbstractChannelHandlerContext next, Object msg) {
final Object m = next.pipeline.touch(ObjectUtil.checkNotNull(msg, "msg"), next);
EventExecutor executor = next.executor();
if (executor.inEventLoop()) {
next.invokeChannelRead(m);
} else {
executor.execute(new Runnable() {
@Override
public void run() {
next.invokeChannelRead(m);
}
});
}
}
TailContext#onUnhandledInboundMessage#channelRead
- TailContext的channelRead支持记录日志，并不做任何业务操作，具体的业务操作有业务自己定义ChannelHandler去处理对应的逻辑.
@Override
public void channelRead(ChannelHandlerContext ctx, Object msg) {
onUnhandledInboundMessage(ctx, msg);
}
protected void onUnhandledInboundMessage(ChannelHandlerContext ctx, Object msg) {
onUnhandledInboundMessage(msg);
if (logger.isDebugEnabled()) {
logger.debug("Discarded message pipeline : {}. Channel : {}.",
ctx.pipeline().names(), ctx.channel());
}
}
protected void onUnhandledInboundMessage(Object msg) {
try {
logger.debug(
"Discarded inbound message {} that reached at the tail of the pipeline. " +
"Please check your pipeline configuration.", msg);
} finally {
ReferenceCountUtil.release(msg);
}
}
Server端有一个重要的ChannelInboundHandlerAdapter 就是ServerBootstrapAcceptor。进行channelRead操作的事件传播会调用该channelRead方法. ServerBootstrapAcceptor#channelRead
- 此时的msg参数在Server端实现是前面介绍的NioSocketChannel对象,里面就持有建立的socketChannel连接，并以此作为Channel为child,获取子chennel绑定的pipeline，将ServerBootStrap启动中添加childHandler加入pipeline内部双向链表的末尾,
- 设置子Channel的ChannelOptions和Attributes。
- 调用work的EventLoopGroup随机选择一个NioEventLoop调用register,将子Channel注册到该NioEventloop中，这样就由work的NioEventLoop去完成channel的读写操作
@Override
@SuppressWarnings("unchecked")
public void channelRead(ChannelHandlerContext ctx, Object msg) {
final Channel child = (Channel) msg;
child.pipeline().addLast(childHandler);
setChannelOptions(child, childOptions, logger);
setAttributes(child, childAttrs);
try {
childGroup.register(child).addListener(new ChannelFutureListener() {
@Override
public void operationComplete(ChannelFuture future) throws Exception {
if (!future.isSuccess()) {
forceClose(child, future.cause());
}
}
});
} catch (Throwable t) {
forceClose(child, t);
}
}
总结
今天主要对Server端处理器链ChannelPipeline处理流程的分析,Server端的Selector注册ServerSocketChannel以及关注OP_ACCEPT事件,boss的EventLoop循环中调用unsafe的read将ServerSocketChannel#accept放入一个List集合，然后ChannelPipeline的fireChannelRead进行read事件传播,通过Server中重要的ChannelInbound的实现ServerBootStrapAcceptor, 将List集合中SocketChannel作为的child Channel注册到Work的EventLoop中随机选择的一个NioEventLoop的Selector中，由work的EventLoop去处理channel的读写操作。
