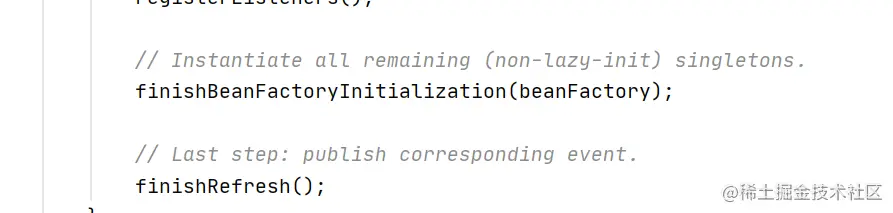

refresh还剩下两个方法
说一下
finishBeanFactoryInitialization(beanFactory);
来看一下这个方法的源码
/**
* Finish the initialization of this context's bean factory,
* initializing all remaining singleton beans.
*/
protected void finishBeanFactoryInitialization(ConfigurableListableBeanFactory beanFactory) {
// Initialize conversion service for this context.
if (beanFactory.containsBean(CONVERSION_SERVICE_BEAN_NAME) &&
beanFactory.isTypeMatch(CONVERSION_SERVICE_BEAN_NAME, ConversionService.class)) {
beanFactory.setConversionService(
beanFactory.getBean(CONVERSION_SERVICE_BEAN_NAME, ConversionService.class));
}
// Register a default embedded value resolver if no BeanFactoryPostProcessor
// (such as a PropertySourcesPlaceholderConfigurer bean) registered any before:
// at this point, primarily for resolution in annotation attribute values.
if (!beanFactory.hasEmbeddedValueResolver()) {
beanFactory.addEmbeddedValueResolver(strVal -> getEnvironment().resolvePlaceholders(strVal));
}
// Initialize LoadTimeWeaverAware beans early to allow for registering their transformers early.
String[] weaverAwareNames = beanFactory.getBeanNamesForType(LoadTimeWeaverAware.class, false, false);
for (String weaverAwareName : weaverAwareNames) {
getBean(weaverAwareName);
}
// Stop using the temporary ClassLoader for type matching.
beanFactory.setTempClassLoader(null);
// Allow for caching all bean definition metadata, not expecting further changes.
beanFactory.freezeConfiguration();
// Instantiate all remaining (non-lazy-init) singletons.
beanFactory.preInstantiateSingletons();
}
看起来没有很多 这里贴一下大佬的文章 Spring IoC源码学习：finishBeanFactoryInitialization 详解_程序员囧辉-CSDN博客
protected void finishBeanFactoryInitialization(ConfigurableListableBeanFactory beanFactory) {
// Initialize conversion service for this context.
// 1.初始化此上下文的转换服务
if (beanFactory.containsBean(CONVERSION_SERVICE_BEAN_NAME) &&
beanFactory.isTypeMatch(CONVERSION_SERVICE_BEAN_NAME, ConversionService.class)) {
beanFactory.setConversionService(
beanFactory.getBean(CONVERSION_SERVICE_BEAN_NAME, ConversionService.class));
}
// Register a default embedded value resolver if no bean post-processor
// (such as a PropertyPlaceholderConfigurer bean) registered any before:
// at this point, primarily for resolution in annotation attribute values.
// 2.如果beanFactory之前没有注册嵌入值解析器，则注册默认的嵌入值解析器：主要用于注解属性值的解析。
if (!beanFactory.hasEmbeddedValueResolver()) {
beanFactory.addEmbeddedValueResolver(new StringValueResolver() {
@Override
public String resolveStringValue(String strVal) {
return getEnvironment().resolvePlaceholders(strVal);
}
});
}
// Initialize LoadTimeWeaverAware beans early to allow for registering their transformers early.
// 3.初始化LoadTimeWeaverAware Bean实例对象
String[] weaverAwareNames = beanFactory.getBeanNamesForType(LoadTimeWeaverAware.class, false, false);
for (String weaverAwareName : weaverAwareNames) {
getBean(weaverAwareName);
}
// Stop using the temporary ClassLoader for type matching.
beanFactory.setTempClassLoader(null);
// Allow for caching all bean definition metadata, not expecting further changes.
// 4.冻结所有bean定义，注册的bean定义不会被修改或进一步后处理，因为马上要创建 Bean 实例对象了
beanFactory.freezeConfiguration();
// Instantiate all remaining (non-lazy-init) singletons.
// 5.实例化所有剩余（非懒加载）单例对象
beanFactory.preInstantiateSingletons();
}

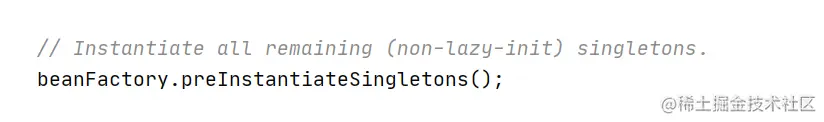

本文只讲最后一行
beanFactory.preInstantiateSingletons();
实例化非懒加载的单例对象
追溯，又回到了DefaultListableBeanFactory这个类里面...
贴一下大佬的解析
@Override
public void preInstantiateSingletons() throws BeansException {
if (this.logger.isDebugEnabled()) {
this.logger.debug("Pre-instantiating singletons in " + this);
}
// Iterate over a copy to allow for init methods which in turn register new bean definitions.
// While this may not be part of the regular factory bootstrap, it does otherwise work fine.
// 1.创建beanDefinitionNames的副本beanNames用于后续的遍历，以允许init等方法注册新的bean定义
List<String> beanNames = new ArrayList<String>(this.beanDefinitionNames);
// Trigger initialization of all non-lazy singleton beans...
// 2.遍历beanNames，触发所有非懒加载单例bean的初始化
for (String beanName : beanNames) {
// 3.获取beanName对应的MergedBeanDefinition
RootBeanDefinition bd = getMergedLocalBeanDefinition(beanName);
// 4.bd对应的Bean实例：不是抽象类 && 是单例 && 不是懒加载
if (!bd.isAbstract() && bd.isSingleton() && !bd.isLazyInit()) {
// 5.判断beanName对应的bean是否为FactoryBean
if (isFactoryBean(beanName)) {
// 5.1 通过beanName获取FactoryBean实例
// 通过getBean(&beanName)拿到的是FactoryBean本身；通过getBean(beanName)拿到的是FactoryBean创建的Bean实例
final FactoryBean<?> factory = (FactoryBean<?>) getBean(FACTORY_BEAN_PREFIX + beanName);
// 5.2 判断这个FactoryBean是否希望急切的初始化
boolean isEagerInit;
if (System.getSecurityManager() != null && factory instanceof SmartFactoryBean) {
isEagerInit = AccessController.doPrivileged(new PrivilegedAction<Boolean>() {
@Override
public Boolean run() {
return ((SmartFactoryBean<?>) factory).isEagerInit();
}
}, getAccessControlContext());
} else {
isEagerInit = (factory instanceof SmartFactoryBean &&
((SmartFactoryBean<?>) factory).isEagerInit());
}
if (isEagerInit) {
// 5.3 如果希望急切的初始化，则通过beanName获取bean实例
getBean(beanName);
}
} else {
// 6.如果beanName对应的bean不是FactoryBean，只是普通Bean，通过beanName获取bean实例
getBean(beanName);
}
}
}
// Trigger post-initialization callback for all applicable beans...
// 7.遍历beanNames，触发所有SmartInitializingSingleton的后初始化回调
for (String beanName : beanNames) {
// 7.1 拿到beanName对应的bean实例
Object singletonInstance = getSingleton(beanName);
// 7.2 判断singletonInstance是否实现了SmartInitializingSingleton接口
if (singletonInstance instanceof SmartInitializingSingleton) {
final SmartInitializingSingleton smartSingleton = (SmartInitializingSingleton) singletonInstance;
// 7.3 触发SmartInitializingSingleton实现类的afterSingletonsInstantiated方法
if (System.getSecurityManager() != null) {
AccessController.doPrivileged(new PrivilegedAction<Object>() {
@Override
public Object run() {
smartSingleton.afterSingletonsInstantiated();
return null;
}
}, getAccessControlContext());
} else {
smartSingleton.afterSingletonsInstantiated();
}
}
}
}

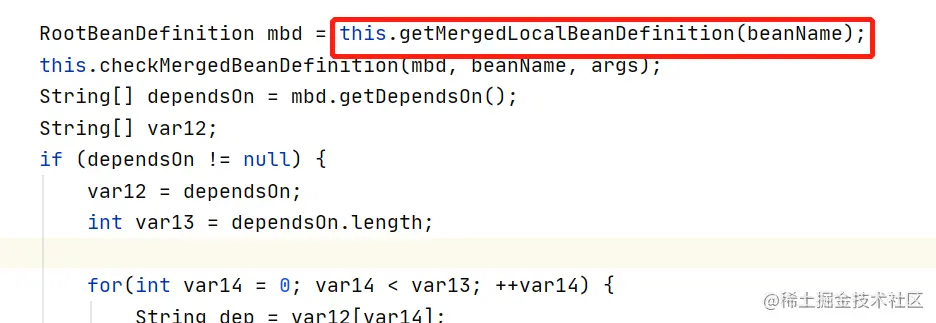

getMergedLocalBeanDefinition方法主要检查beanName对应的MergedBeanDefinition是否存在于缓存中。
protected RootBeanDefinition getMergedLocalBeanDefinition(String beanName) throws BeansException {
// Quick check on the concurrent map first, with minimal locking.
// 1.检查beanName对应的MergedBeanDefinition是否存在于缓存中
RootBeanDefinition mbd = this.mergedBeanDefinitions.get(beanName);
if (mbd != null) {
// 2.如果存在于缓存中则直接返回
return mbd;
}
// 3.如果不存在于缓存中
// 3.1 getBeanDefinition(beanName)： 获取beanName对应的BeanDefinition，从beanDefinitionMap缓存中获取
// 3.2 getMergedBeanDefinition: 根据beanName和对应的BeanDefinition，获取MergedBeanDefinition
return getMergedBeanDefinition(beanName, getBeanDefinition(beanName));
}
如果不在则执行getMergedBeanDefinition方法。
具体详细可以看大佬的文章。
Spring IoC源码学习：finishBeanFactoryInitialization 详解_程序员囧辉-CSDN博客
这里不过多叙述

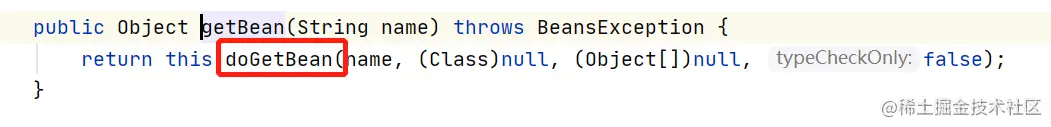

接下来看一下核心方法getBean
protected <T> T doGetBean(
final String name, final Class<T> requiredType, final Object[] args, boolean typeCheckOnly)
throws BeansException {
// 1.解析beanName，主要是解析别名、去掉FactoryBean的前缀“&”
final String beanName = transformedBeanName(name);
Object bean;
// Eagerly check singleton cache for manually registered singletons.
// 2.尝试从缓存中获取beanName对应的实例
Object sharedInstance = getSingleton(beanName);
if (sharedInstance != null && args == null) {
// 3.如果beanName的实例存在于缓存中
if (logger.isDebugEnabled()) {
if (isSingletonCurrentlyInCreation(beanName)) {
logger.debug("Returning eagerly cached instance of singleton bean '" + beanName +
"' that is not fully initialized yet - a consequence of a circular reference");
} else {
logger.debug("Returning cached instance of singleton bean '" + beanName + "'");
}
}
// 3.1 返回beanName对应的实例对象（主要用于FactoryBean的特殊处理，普通Bean会直接返回sharedInstance本身）
bean = getObjectForBeanInstance(sharedInstance, name, beanName, null);
} else {
// Fail if we're already creating this bean instance:
// We're assumably within a circular reference.
// 4.scope为prototype的循环依赖校验：如果beanName已经正在创建Bean实例中，而此时我们又要再一次创建beanName的实例，则代表出现了循环依赖，需要抛出异常。
// 例子：如果存在A中有B的属性，B中有A的属性，那么当依赖注入的时候，就会产生当A还未创建完的时候因为对于B的创建再次返回创建A，造成循环依赖
if (isPrototypeCurrentlyInCreation(beanName)) {
throw new BeanCurrentlyInCreationException(beanName);
}
// Check if bean definition exists in this factory.
// 5.获取parentBeanFactory
BeanFactory parentBeanFactory = getParentBeanFactory();
// 5.1 如果parentBeanFactory存在，并且beanName在当前BeanFactory不存在Bean定义，则尝试从parentBeanFactory中获取bean实例
if (parentBeanFactory != null && !containsBeanDefinition(beanName)) {
// Not found -> check parent.
// 5.2 将别名解析成真正的beanName
String nameToLookup = originalBeanName(name);
// 5.3 尝试在parentBeanFactory中获取bean对象实例
if (args != null) {
// Delegation to parent with explicit args.
return (T) parentBeanFactory.getBean(nameToLookup, args);
} else {
// No args -> delegate to standard getBean method.
return parentBeanFactory.getBean(nameToLookup, requiredType);
}
}
if (!typeCheckOnly) {
// 6.如果不是仅仅做类型检测，而是创建bean实例，这里要将beanName放到alreadyCreated缓存
markBeanAsCreated(beanName);
}
try {
// 7.根据beanName重新获取MergedBeanDefinition（步骤6将MergedBeanDefinition删除了，这边获取一个新的）
final RootBeanDefinition mbd = getMergedLocalBeanDefinition(beanName);
// 7.1 检查MergedBeanDefinition
checkMergedBeanDefinition(mbd, beanName, args);
// Guarantee initialization of beans that the current bean depends on.
// 8.拿到当前bean依赖的bean名称集合，在实例化自己之前，需要先实例化自己依赖的bean
String[] dependsOn = mbd.getDependsOn();
if (dependsOn != null) {
// 8.1 遍历当前bean依赖的bean名称集合
for (String dep : dependsOn) {
// 8.2 检查dep是否依赖于beanName，即检查是否存在循环依赖
if (isDependent(beanName, dep)) {
// 8.3 如果是循环依赖则抛异常
throw new BeanCreationException(mbd.getResourceDescription(), beanName,
"Circular depends-on relationship between '" + beanName + "' and '" + dep + "'");
}
// 8.4 将dep和beanName的依赖关系注册到缓存中
registerDependentBean(dep, beanName);
// 8.5 获取dep对应的bean实例，如果dep还没有创建bean实例，则创建dep的bean实例
getBean(dep);
}
}

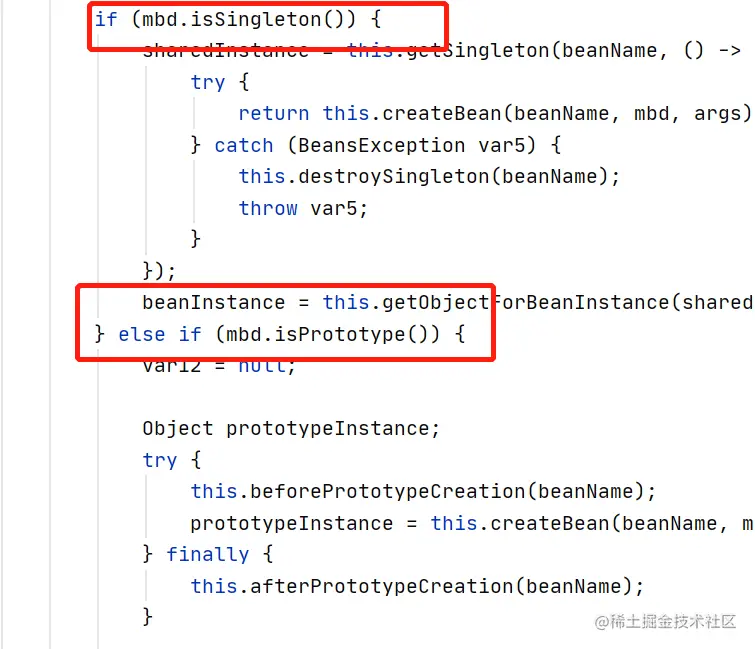

// Create bean instance.
// 9.针对不同的scope进行bean的创建
if (mbd.isSingleton()) {
// 9.1 scope为singleton的bean创建（新建了一个ObjectFactory，并且重写了getObject方法）
sharedInstance = getSingleton(beanName, new ObjectFactory<Object>() {
@Override
public Object getObject() throws BeansException { //
try {
// 9.1.1 创建Bean实例
return createBean(beanName, mbd, args);
} catch (BeansException ex) {
// Explicitly remove instance from singleton cache: It might have been put there
// eagerly by the creation process, to allow for circular reference resolution.
// Also remove any beans that received a temporary reference to the bean.
destroySingleton(beanName);
throw ex;
}
}
});
// 9.1.2 返回beanName对应的实例对象
bean = getObjectForBeanInstance(sharedInstance, name, beanName, mbd);
} else if (mbd.isPrototype()) {
// 9.2 scope为prototype的bean创建
// It's a prototype -> create a new instance.
Object prototypeInstance = null;
try {
// 9.2.1 创建实例前的操作（将beanName保存到prototypesCurrentlyInCreation缓存中）
beforePrototypeCreation(beanName);
// 9.2.2 创建Bean实例
prototypeInstance = createBean(beanName, mbd, args);
} finally {
// 9.2.3 创建实例后的操作（将创建完的beanName从prototypesCurrentlyInCreation缓存中移除）
afterPrototypeCreation(beanName);
}
// 9.2.4 返回beanName对应的实例对象
bean = getObjectForBeanInstance(prototypeInstance, name, beanName, mbd);
} else {
// 9.3 其他scope的bean创建，可能是request之类的
// 9.3.1 根据scopeName，从缓存拿到scope实例
String scopeName = mbd.getScope();
final Scope scope = this.scopes.get(scopeName);
if (scope == null) {
throw new IllegalStateException("No Scope registered for scope name '" + scopeName + "'");
}
try {
// 9.3.2 其他scope的bean创建（新建了一个ObjectFactory，并且重写了getObject方法）
Object scopedInstance = scope.get(beanName, new ObjectFactory<Object>() {
@Override
public Object getObject() throws BeansException {
// 9.3.3 创建实例前的操作（将beanName保存到prototypesCurrentlyInCreation缓存中）
beforePrototypeCreation(beanName);
try {
// 9.3.4 创建bean实例
return createBean(beanName, mbd, args);
} finally {
// 9.3.5 创建实例后的操作（将创建完的beanName从prototypesCurrentlyInCreation缓存中移除）
afterPrototypeCreation(beanName);
}
}
});
// 9.3.6 返回beanName对应的实例对象
bean = getObjectForBeanInstance(scopedInstance, name, beanName, mbd);
} catch (IllegalStateException ex) {
throw new BeanCreationException(beanName,
"Scope '" + scopeName + "' is not active for the current thread; consider " +
"defining a scoped proxy for this bean if you intend to refer to it from a singleton",
ex);
}
}
} catch (BeansException ex) {
// 如果创建bean实例过程中出现异常，则将beanName从alreadyCreated缓存中移除
cleanupAfterBeanCreationFailure(beanName);
throw ex;
}
}
// Check if required type matches the type of the actual bean instance.
// 10.检查所需类型是否与实际的bean对象的类型匹配
if (requiredType != null && bean != null && !requiredType.isInstance(bean)) {
try {
// 10.1 类型不对，则尝试转换bean类型
return getTypeConverter().convertIfNecessary(bean, requiredType);
} catch (TypeMismatchException ex) {
if (logger.isDebugEnabled()) {
logger.debug("Failed to convert bean '" + name + "' to required type '" +
ClassUtils.getQualifiedName(requiredType) + "'", ex);
}
throw new BeanNotOfRequiredTypeException(name, requiredType, bean.getClass());
}
}
// 11.返回创建出来的bean实例对象
return (T) bean;
}
也是大佬的文章： blog.csdn.net/v123411739/…
看了上方方法我们知道了原来Spring本身只定义了两种Scope，也知道了SpringMVC的几种Scope是如何实现的了。 然后发现一开始会先判断bean存不存在，如果存在就直接返回了。如果不存在那就要接着往下看createBean方法了。 如果想要看详细的，建议看他的吧。唉，比不了太强了！ (1条消息) Spring IoC源码学习：createBean 详解（上）_程序员囧辉-CSDN博客 (1条消息) Spring IoC源码学习：createBean 详解（下）_程序员囧辉-CSDN博客
protected Object createBean(String beanName, RootBeanDefinition mbd, Object[] args) throws BeanCreationException {
if (logger.isDebugEnabled()) {
logger.debug("Creating instance of bean '" + beanName + "'");
}
RootBeanDefinition mbdToUse = mbd;
// 确保 BeanDefinition 中的 Class 被加载
Class<?> resolvedClass = resolveBeanClass(mbd, beanName);
if (resolvedClass != null && !mbd.hasBeanClass() && mbd.getBeanClassName() != null) {
mbdToUse = new RootBeanDefinition(mbd);
mbdToUse.setBeanClass(resolvedClass);
}
// 准备方法覆写，如果bean中定义了 <lookup-method /> 和 <replaced-method />
try {
mbdToUse.prepareMethodOverrides();
}
catch (BeanDefinitionValidationException ex) {
throw new BeanDefinitionStoreException(mbdToUse.getResourceDescription(),
beanName, "Validation of method overrides failed", ex);
}
try {
// 如果有代理的话直接返回
Object bean = resolveBeforeInstantiation(beanName, mbdToUse);
if (bean != null) {
return bean;
}
}
catch (Throwable ex) {
throw new BeanCreationException(mbdToUse.getResourceDescription(), beanName,
"BeanPostProcessor before instantiation of bean failed", ex);
}

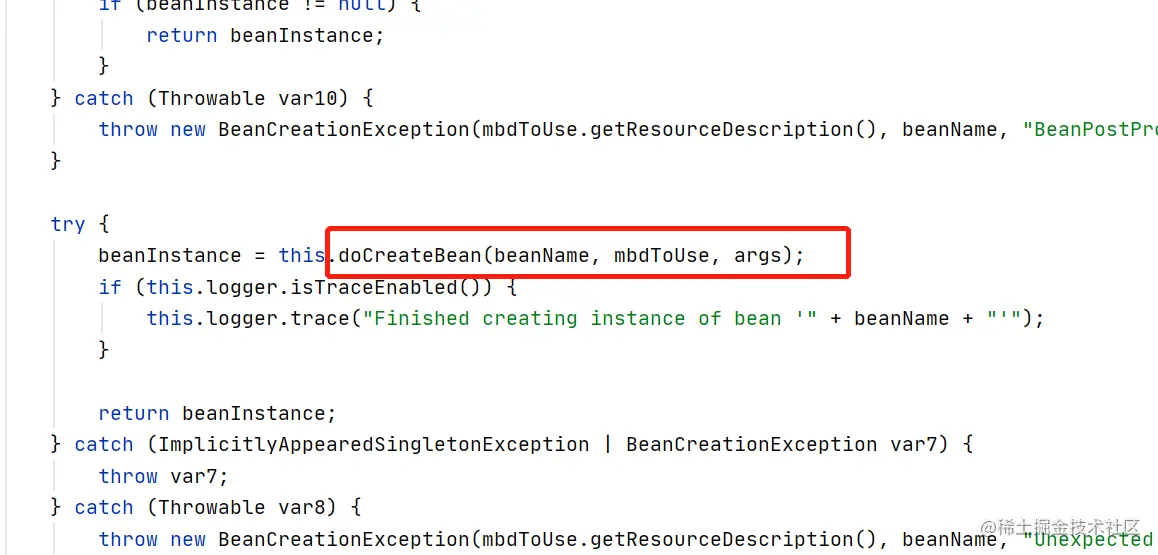

// 创建 bean
Object beanInstance = doCreateBean(beanName, mbdToUse, args);
if (logger.isDebugEnabled()) {
logger.debug("Finished creating instance of bean '" + beanName + "'");
}
return beanInstance;
}
进入到

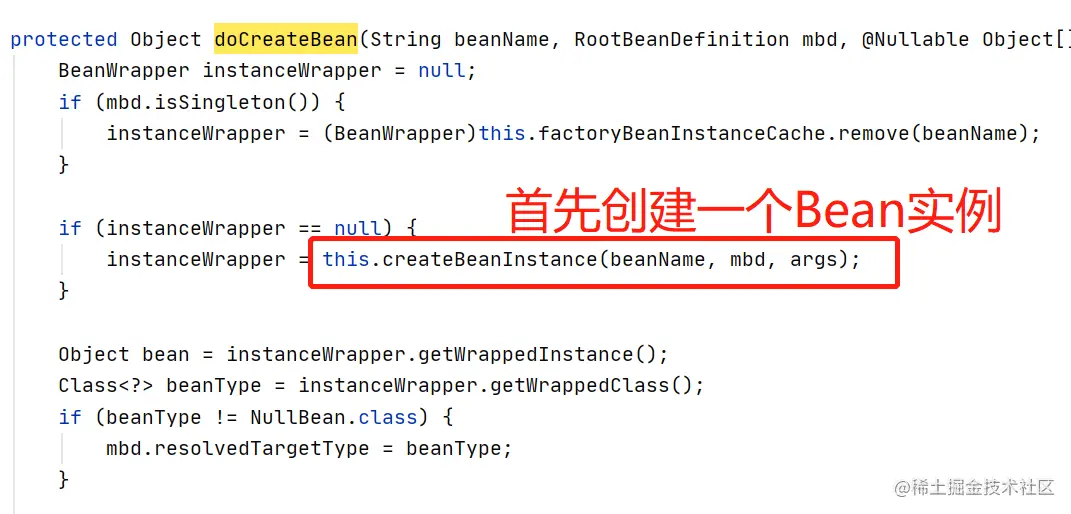

protected Object doCreateBean(final String beanName, final RootBeanDefinition mbd, final Object[] args)
throws BeanCreationException {
BeanWrapper instanceWrapper = null;
if (mbd.isSingleton()) {
//如果是.factoryBean则从缓存删除
instanceWrapper = this.factoryBeanInstanceCache.remove(beanName);
}
if (instanceWrapper == null) {
// 实例化 Bean，这个方法里面才是终点，下面说
instanceWrapper = createBeanInstance(beanName, mbd, args);
}
//bean实例
final Object bean = (instanceWrapper != null ? instanceWrapper.getWrappedInstance() : null);
//bean类型
Class<?> beanType = (instanceWrapper != null ? instanceWrapper.getWrappedClass() : null);
mbd.resolvedTargetType = beanType;
synchronized (mbd.postProcessingLock) {
if (!mbd.postProcessed) {
try {
// 循环调用实现了MergedBeanDefinitionPostProcessor接口的postProcessMergedBeanDefinition方法
// Spring对这个接口有几个默认的实现，其中大家最熟悉的一个是操作@Autowired注解的
applyMergedBeanDefinitionPostProcessors(mbd, beanType, beanName);
}
catch (Throwable ex) {
throw new BeanCreationException(mbd.getResourceDescription(), beanName,
"Post-processing of merged bean definition failed", ex);
}
mbd.postProcessed = true;
}
}
// 解决循环依赖问题
boolean earlySingletonExposure = (mbd.isSingleton() && this.allowCircularReferences &&
isSingletonCurrentlyInCreation(beanName));
if (earlySingletonExposure) {
if (logger.isDebugEnabled()) {
logger.debug("Eagerly caching bean '" + beanName +
"' to allow for resolving potential circular references");
}
//当正在创建A时，A依赖B，此时通过（B将A作为ObjectFactory放入单例工厂中进行early expose，此处B需要引用A，但A正在创建，从单例工厂拿到ObjectFactory，从而允许循环依赖
addSingletonFactory(beanName, new ObjectFactory<Object>() {
@Override
public Object getObject() throws BeansException {
return getEarlyBeanReference(beanName, mbd, bean);
}
});
}
Object exposedObject = bean;

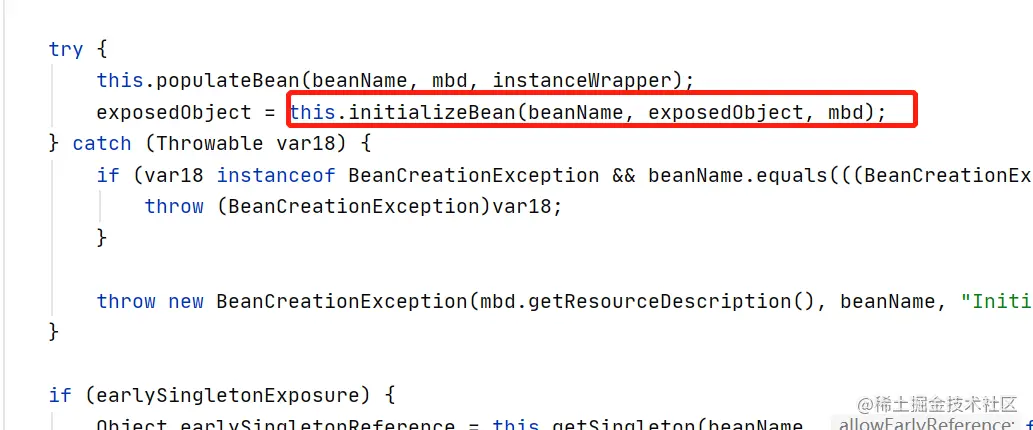

try {
// 负责属性装配,很重要，下面说
populateBean(beanName, mbd, instanceWrapper);
if (exposedObject != null) {

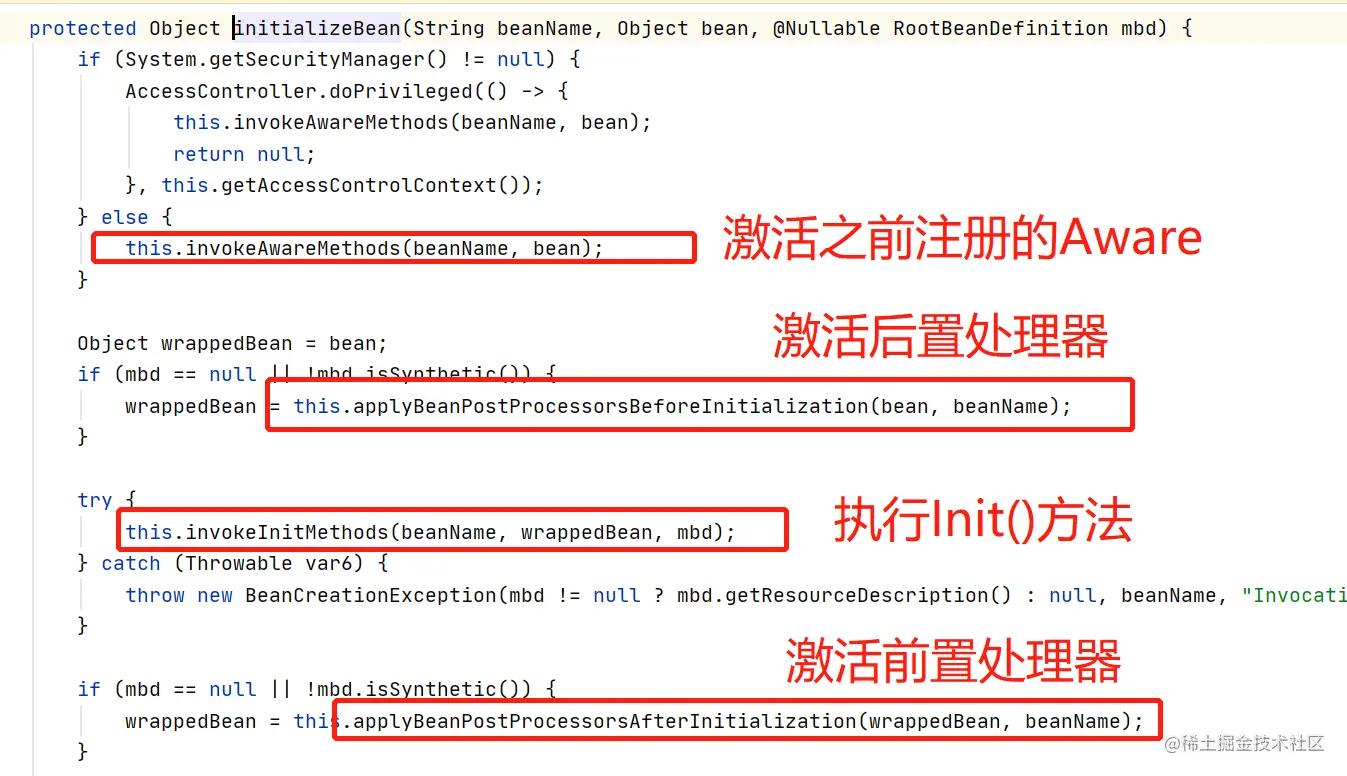

// 这里是处理bean初始化完成后的各种回调，例如init-method、InitializingBean 接口、BeanPostProcessor 接口
exposedObject = initializeBean(beanName, exposedObject, mbd);
}
}
catch (Throwable ex) {
if (ex instanceof BeanCreationException && beanName.equals(((BeanCreationException) ex).getBeanName())) {
throw (BeanCreationException) ex;
}
else {
throw new BeanCreationException(
mbd.getResourceDescription(), beanName, "Initialization of bean failed", ex);
}
}
//同样的，如果存在循环依赖
if (earlySingletonExposure) {
Object earlySingletonReference = getSingleton(beanName, false);
if (earlySingletonReference != null) {
if (exposedObject == bean) {
exposedObject = earlySingletonReference;
}
else if (!this.allowRawInjectionDespiteWrapping && hasDependentBean(beanName)) {
String[] dependentBeans = getDependentBeans(beanName);
Set<String> actualDependentBeans = new LinkedHashSet<String>(dependentBeans.length);
for (String dependentBean : dependentBeans) {
if (!removeSingletonIfCreatedForTypeCheckOnly(dependentBean)) {
actualDependentBeans.add(dependentBean);
}
}
if (!actualDependentBeans.isEmpty()) {
throw new BeanCurrentlyInCreationException(beanName,
"Bean with name '" + beanName + "' has been injected into other beans [" +
StringUtils.collectionToCommaDelimitedString(actualDependentBeans) +
"] in its raw version as part of a circular reference, but has eventually been " +
"wrapped. This means that said other beans do not use the final version of the " +
"bean. This is often the result of over-eager type matching - consider using " +
"'getBeanNamesOfType' with the 'allowEagerInit' flag turned off, for example.");
}
}
}
}
// 把bean注册到相应的Scope中
try {
registerDisposableBeanIfNecessary(beanName, bean, mbd);
}
catch (BeanDefinitionValidationException ex) {
throw new BeanCreationException(
mbd.getResourceDescription(), beanName, "Invalid destruction signature", ex);
}
return exposedObject;
}
protected BeanWrapper createBeanInstance(String beanName, RootBeanDefinition mbd, Object[] args) {
// 确保已经加载了此 class
Class<?> beanClass = resolveBeanClass(mbd, beanName);
// 校验类的访问权限
if (beanClass != null && !Modifier.isPublic(beanClass.getModifiers()) && !mbd.isNonPublicAccessAllowed()) {
throw new BeanCreationException(mbd.getResourceDescription(), beanName,
"Bean class isn't public, and non-public access not allowed: " + beanClass.getName());
}
if (mbd.getFactoryMethodName() != null) {
// 采用工厂方法实例化
return instantiateUsingFactoryMethod(beanName, mbd, args);
}
//是否第一次
boolean resolved = false;
//是否采用构造函数注入
boolean autowireNecessary = false;
if (args == null) {
synchronized (mbd.constructorArgumentLock) {
if (mbd.resolvedConstructorOrFactoryMethod != null) {
resolved = true;
autowireNecessary = mbd.constructorArgumentsResolved;
}
}
}
if (resolved) {
if (autowireNecessary) {
return autowireConstructor(beanName, mbd, null, null);
}
else {
// 无参构造函数
return instantiateBean(beanName, mbd);
}
}
// 判断是否采用有参构造函数
Constructor<?>[] ctors = determineConstructorsFromBeanPostProcessors(beanClass, beanName);
if (ctors != null ||
mbd.getResolvedAutowireMode() == RootBeanDefinition.AUTOWIRE_CONSTRUCTOR ||
mbd.hasConstructorArgumentValues() || !ObjectUtils.isEmpty(args)) {
// 构造函数依赖注入
return autowireConstructor(beanName, mbd, ctors, args);
}
// 调用无参构造函数
return instantiateBean(beanName, mbd);
}
注意createBeanInstance方法返回的是BeanWrapper而不是Bean。BeanWrapper是spring提供的一个用来操作JavaBean属性的工具，使用它可以直接修改一个对象的属性，示例如下
public class User {
String userName;
public String getUserName() {
return userName;
}
public void setUserName(String userName) {
this.userName = userName;
}
}
public class BeanWrapperTest {
public static void main(String[] args) {
User user = new User();
BeanWrapper bw = PropertyAccessorFactory.forBeanPropertyAccess(user);
bw.setPropertyValue("userName", "张三");
System.out.println(user.getUserName());
PropertyValue value = new PropertyValue("userName", "李四");
bw.setPropertyValue(value);
System.out.println(user.getUserName());
}
}
继续看createBeanInstance中的instantiateBean(beanName, mbd)方法
protected BeanWrapper instantiateBean(final String beanName, final RootBeanDefinition mbd) {
try {
Object beanInstance;
final BeanFactory parent = this;
if (System.getSecurityManager() != null) {
beanInstance = AccessController.doPrivileged(new PrivilegedAction<Object>() {
@Override
public Object run() {
return getInstantiationStrategy().instantiate(mbd, beanName, parent);
}
}, getAccessControlContext());
}
else {
// 具体实例化的实现，往下看
beanInstance = getInstantiationStrategy().instantiate(mbd, beanName, parent);
}
BeanWrapper bw = new BeanWrapperImpl(beanInstance);
initBeanWrapper(bw);
return bw;
}
catch (Throwable ex) {
throw new BeanCreationException(
mbd.getResourceDescription(), beanName, "Instantiation of bean failed", ex);
}
}
其中 beanInstance = getInstantiationStrategy().instantiate(mbd, beanName, parent)方法运用了策略模式，下面继续看instantiate方法。
public Object instantiate(RootBeanDefinition bd, String beanName, BeanFactory owner) {
// 如果不存在方法覆写，那就使用 java 反射进行实例化，否则使用 CGLIB,
if (bd.getMethodOverrides().isEmpty()) {
Constructor<?> constructorToUse;
synchronized (bd.constructorArgumentLock) {
constructorToUse = (Constructor<?>) bd.resolvedConstructorOrFactoryMethod;
if (constructorToUse == null) {
final Class<?> clazz = bd.getBeanClass();
if (clazz.isInterface()) {
throw new BeanInstantiationException(clazz, "Specified class is an interface");
}
try {
if (System.getSecurityManager() != null) {
constructorToUse = AccessController.doPrivileged(new PrivilegedExceptionAction<Constructor<?>>() {
@Override
public Constructor<?> run() throws Exception {
return clazz.getDeclaredConstructor((Class[]) null);
}
});
}
else {
constructorToUse = clazz.getDeclaredConstructor((Class[]) null);
}
bd.resolvedConstructorOrFactoryMethod = constructorToUse;
}
catch (Throwable ex) {
throw new BeanInstantiationException(clazz, "No default constructor found", ex);
}
}
}
// 利用构造方法进行实例化
return BeanUtils.instantiateClass(constructorToUse);
}
else {
// 存在方法覆写，利用 CGLIB 来完成实例化，需要依赖于 CGLIB 生成子类，这里就不展开了
return instantiateWithMethodInjection(bd, beanName, owner);
}
}
主要判断是否存在方法重写 如果不存在方法重写，那就使用 java 反射（JDK动态代理）进行实例化，否则使用 CGLIB。
OK至此BeanWrapper创建成功，下来做初始化操作。
回到doCreateBean方法，向下看

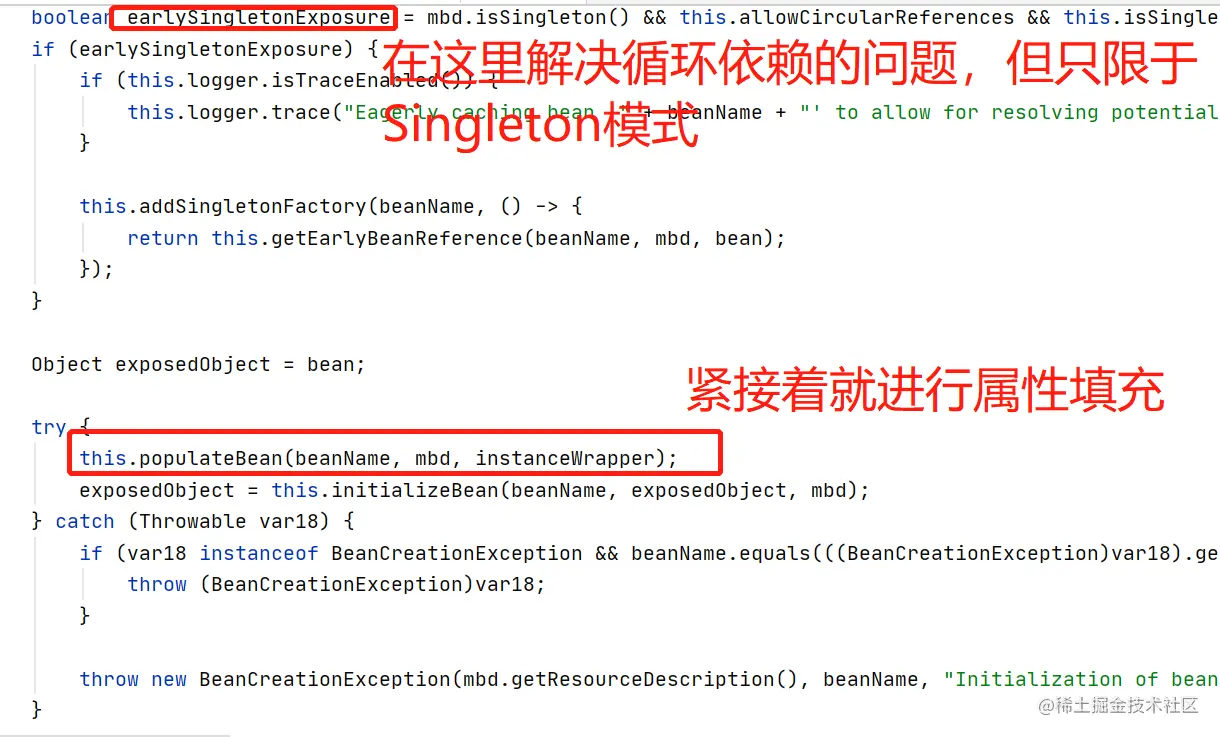

解决循环依赖的方式如下
bean属性注入populateBean ()
protected void populateBean(String beanName, RootBeanDefinition mbd, BeanWrapper bw) {
// bean的所有属性
PropertyValues pvs = mbd.getPropertyValues();
if (bw == null) {
if (!pvs.isEmpty()) {
throw new BeanCreationException(
mbd.getResourceDescription(), beanName, "Cannot apply property values to null instance");
}
else {
return;
}
}
boolean continueWithPropertyPopulation = true;
if (!mbd.isSynthetic() && hasInstantiationAwareBeanPostProcessors()) {
for (BeanPostProcessor bp : getBeanPostProcessors()) {
if (bp instanceof InstantiationAwareBeanPostProcessor) {
InstantiationAwareBeanPostProcessor ibp = (InstantiationAwareBeanPostProcessor) bp;
// 如果返回 false，代表不需要进行后续的属性设值，也不需要再经过其他的 BeanPostProcessor 的处理
if (!ibp.postProcessAfterInstantiation(bw.getWrappedInstance(), beanName)) {
continueWithPropertyPopulation = false;
break;
}
}
}
}
if (!continueWithPropertyPopulation) {
return;
}
if (mbd.getResolvedAutowireMode() == RootBeanDefinition.AUTOWIRE_BY_NAME ||
mbd.getResolvedAutowireMode() == RootBeanDefinition.AUTOWIRE_BY_TYPE) {
MutablePropertyValues newPvs = new MutablePropertyValues(pvs);
// 通过名字找到所有属性值，如果是 bean 依赖，先初始化依赖的 bean。记录依赖关系
if (mbd.getResolvedAutowireMode() == RootBeanDefinition.AUTOWIRE_BY_NAME) {
autowireByName(beanName, mbd, bw, newPvs);
}
// 通过类型装配。复杂一些
if (mbd.getResolvedAutowireMode() == RootBeanDefinition.AUTOWIRE_BY_TYPE) {
autowireByType(beanName, mbd, bw, newPvs);
}
pvs = newPvs;
}
boolean hasInstAwareBpps = hasInstantiationAwareBeanPostProcessors();
boolean needsDepCheck = (mbd.getDependencyCheck() != RootBeanDefinition.DEPENDENCY_CHECK_NONE);
if (hasInstAwareBpps || needsDepCheck) {
PropertyDescriptor[] filteredPds = filterPropertyDescriptorsForDependencyCheck(bw, mbd.allowCaching);
if (hasInstAwareBpps) {
for (BeanPostProcessor bp : getBeanPostProcessors()) {
if (bp instanceof InstantiationAwareBeanPostProcessor) {
InstantiationAwareBeanPostProcessor ibp = (InstantiationAwareBeanPostProcessor) bp;
// 这里就是上方曾经提到过得对@Autowired处理的一个BeanPostProcessor了
// 它会对所有标记@Autowired、@Value 注解的属性进行设值
pvs = ibp.postProcessPropertyValues(pvs, filteredPds, bw.getWrappedInstance(), beanName);
if (pvs == null) {
return;
}
}
}
}
if (needsDepCheck) {
checkDependencies(beanName, mbd, filteredPds, pvs);
}
}
// 设置 bean 实例的属性值
applyPropertyValues(beanName, mbd, bw, pvs);
}
填充完毕后执行
至此Bean创建完毕等待销毁即可。
简单捋一下流程。
1.
2.
3.
5.
在doGetBean中判断容器中有没有Bean，有直接返回。没有判断是单例还是原型还是其他？
再根据情况调用createBean。
6.
7.
判断RootBeanDefinition有没有方法覆盖，没有的话用JDK动态代理反射BeanWrapper否则使用CGlib。
8.
解决循环依赖，前提是单例模式。
9.
填充属性
10.
激活Aware->BeanPostProcessor->Init->BeanAfterProcessor
接下来就是回调、使用、销毁步骤。
最后一行
protected void finishRefresh() {
//看名字就知道了，清理刚才一系列操作使用到的资源缓存
clearResourceCaches();
// 初始化LifecycleProcessor
initLifecycleProcessor();
// 这个方法的内部实现是启动所有实现了Lifecycle接口的bean
getLifecycleProcessor().onRefresh();
//发布ContextRefreshedEvent事件
publishEvent(new ContextRefreshedEvent(this));
// 检查spring.liveBeansView.mbeanDomain是否存在，有就会创建一个MBeanServer
LiveBeansView.registerApplicationContext(this);
}
finilly中
resetCommonCaches();清除缓存
contextRefresh.end();结束上下文刷新
总结
public void refresh() throws BeansException, IllegalStateException {
synchronized (this.startupShutdownMonitor) {
// 记录容器的启动时间、标记“已启动”状态、检查环境变量
prepareRefresh();
// 初始化BeanFactory容器、注册BeanDefinition
ConfigurableListableBeanFactory beanFactory = obtainFreshBeanFactory();
// 设置 BeanFactory 的类加载器，添加几个 BeanPostProcessor，手动注册几个特殊的 bean
prepareBeanFactory(beanFactory);
try {
// 扩展点
postProcessBeanFactory(beanFactory);
// 调用 BeanFactoryPostProcessor 各个实现类的 postProcessBeanFactory(factory) 方法
invokeBeanFactoryPostProcessors(beanFactory);
// 注册 BeanPostProcessor 的实现类
registerBeanPostProcessors(beanFactory);
// 初始化MessageSource
initMessageSource();
// 初始化事件广播器
initApplicationEventMulticaster();
// 扩展点
onRefresh();
// 注册事件监听器
registerListeners();
// 初始化所有的 singleton beans
finishBeanFactoryInitialization(beanFactory);
// 广播事件
finishRefresh();
}
catch (BeansException ex) {
if (logger.isWarnEnabled()) {
logger.warn("Exception encountered during context initialization - " +
"cancelling refresh attempt: " + ex);
}
// 销毁已经初始化的的Bean
destroyBeans();
// 设置 'active' 状态
cancelRefresh(ex);
throw ex;
}
finally {
// 清除缓存
resetCommonCaches();
}
}
}
关于@Autowired Spring IoC源码学习：@Autowire 详解_程序员囧辉-CSDN博客
感谢
