导语：
哈喽啊，今天小编给大家分享一个办公超级实用的图表制作的方法，让你无形之中在公司秀一把！
想领取更多完整源码或Python学习资料可点击这行蓝色字体！
这里我们就来简单看一下该如何制作动态图表吧，首先是动态条形图，基本4行代码搞定，有两行还是 import
import pandas_aliveimport pandas as pdcovid_df = pd.read_csv('covid19.csv', index_col=0, parse_dates=[0])covid_df.diff().fillna(0).plot_animated(filename='line_chart.gif',kind='line',period_label={'x':0.25,'y':0.9})
怎么样，是不是超级方便呢
下面我们就来看看其他图表的制作方法吧！
正文：

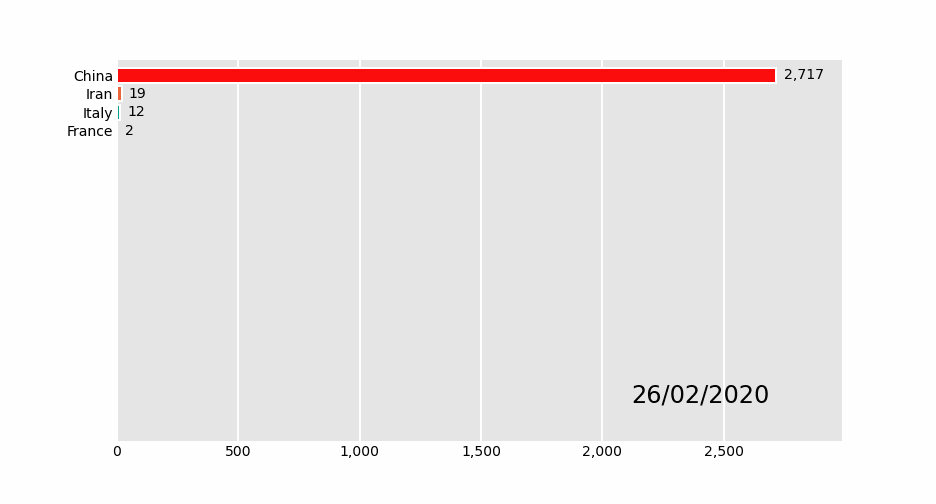

01 动态柱状图
import pandas_aliveimport pandas as pdcovid_df = pd.read_csv('covid19.csv', index_col=0, parse_dates=[0])covid_df.plot_animated(filename='examples/example-barv-chart.gif',orientation='v')

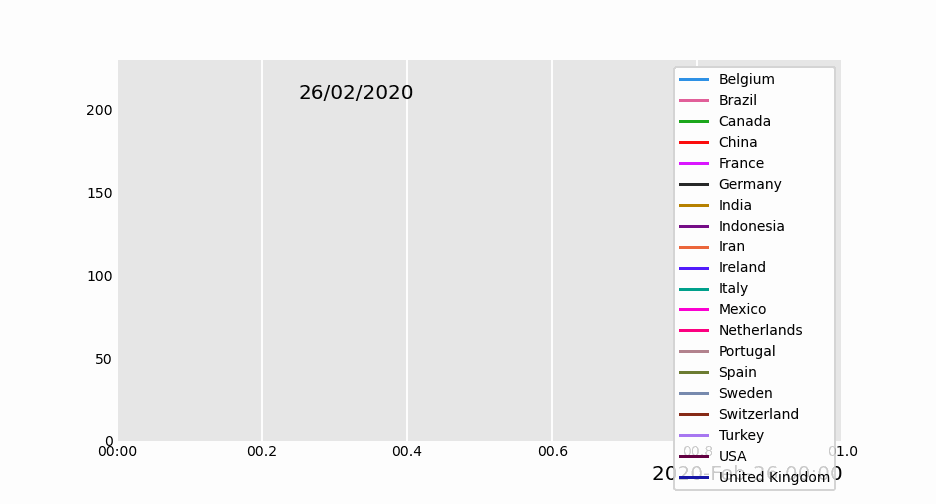

02 动态曲线图
import pandas_aliveimport pandas as pdcovid_df = pd.read_csv('covid19.csv', index_col=0, parse_dates=[0])covid_df.diff().fillna(0).plot_animated(filename='examples/example-line-chart.gif',kind='line',period_label={'x':0.25,'y':0.9})
03 动态面积图
import pandas_aliveimport pandas as pdcovid_df = pd.read_csv('covid19.csv', index_col=0, parse_dates=[0])covid_df.sum(axis=1).fillna(0).plot_animated(filename='examples/example-bar-chart.gif',kind='bar', period_label={'x':0.1,'y':0.9}, enable_progress_bar=True, steps_per_period=2, interpolate_period=True, period_length=200)

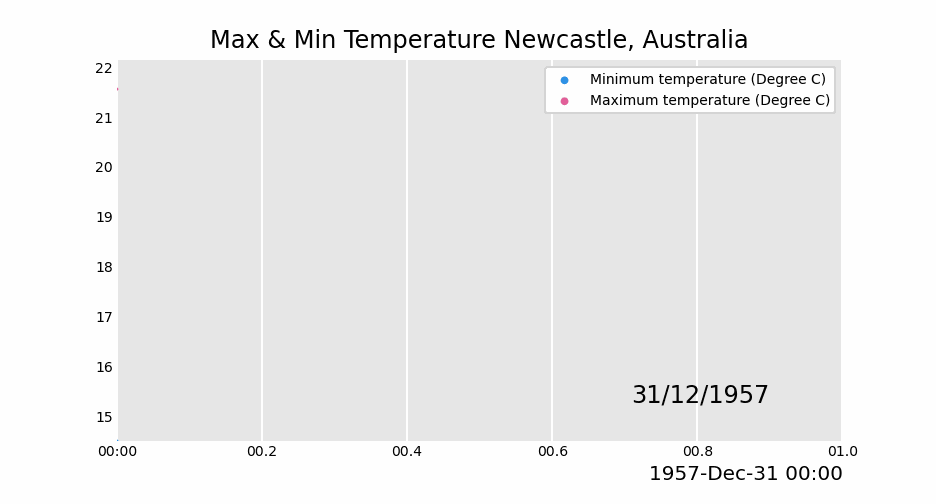

04 动态散点图
import pandas as pdimport pandas_alivemax_temp_df = pd.read_csv( "data/Newcastle_Australia_Max_Temps.csv", parse_dates={"Timestamp": ["Year", "Month", "Day"]},)min_temp_df = pd.read_csv( "data/Newcastle_Australia_Min_Temps.csv", parse_dates={"Timestamp": ["Year", "Month", "Day"]},)merged_temp_df = pd.merge_asof(max_temp_df, min_temp_df, on="Timestamp")merged_temp_df.index = pd.to_datetime(merged_temp_df["Timestamp"].dt.strftime('%Y/%m/%d'))keep_columns = ["Minimum temperature (Degree C)", "Maximum temperature (Degree C)"]merged_temp_df[keep_columns].resample("Y").mean().plot_animated(filename='examples/example-scatter-chart.gif',kind="scatter",title='Max & Min Temperature Newcastle, Australia')

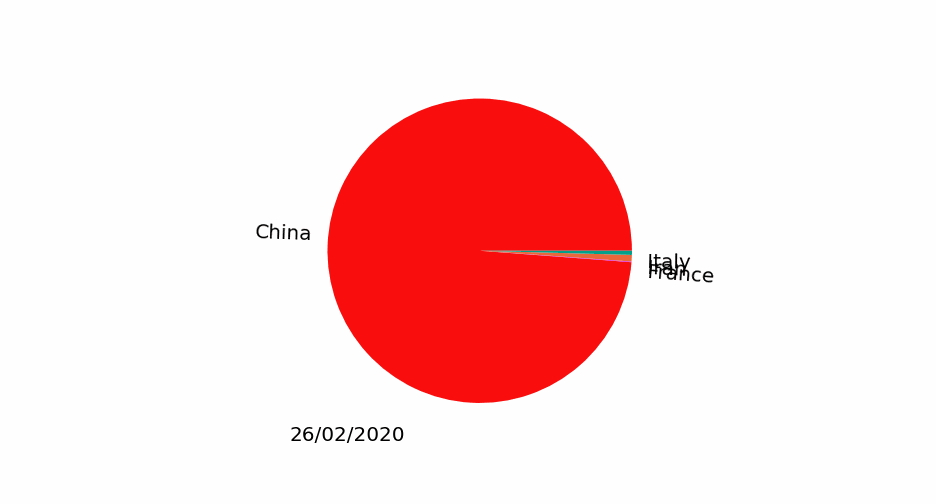

05 动态饼图
import pandas_aliveimport pandas as pdcovid_df = pd.read_csv('covid19.csv', index_col=0, parse_dates=[0])covid_df.plot_animated(filename='examples/example-pie-chart.gif',kind="pie",rotatelabels=True,period_label={'x':0,'y':0})

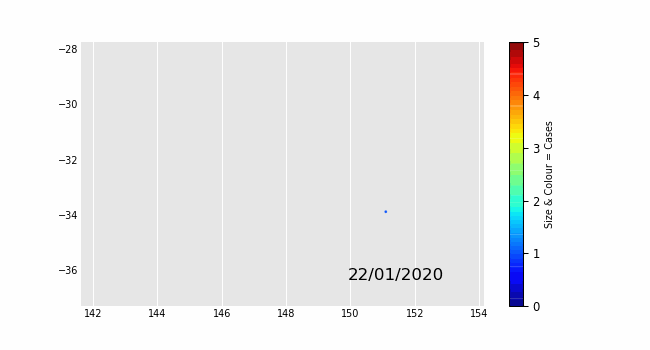

06 动态气泡图
import pandas_alivemulti_index_df = pd.read_csv("data/multi.csv", header=[0, 1], index_col=0)multi_index_df.index = pd.to_datetime(multi_index_df.index,dayfirst=True)map_chart = multi_index_df.plot_animated( kind="bubble", filename="examples/example-bubble-chart.gif", x_data_label="Longitude", y_data_label="Latitude", size_data_label="Cases", color_data_label="Cases", vmax=5, steps_per_period=3, interpolate_period=True, period_length=500, dpi=100)

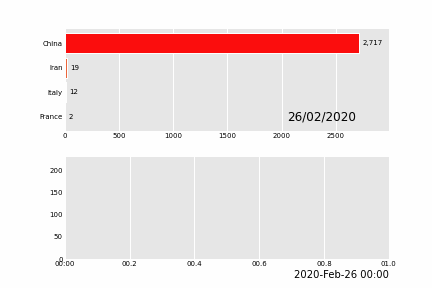

07 多种图组合
import pandas_aliveimport pandas as pdcovid_df = pd.read_csv('covid19.csv', index_col=0, parse_dates=[0])animated_line_chart = covid_df.diff().fillna(0).plot_animated(kind='line',period_label=False,add_legend=False)animated_bar_chart = covid_df.plot_animated(n_visible=10)pandas_alive.animate_multiple_plots('examples/example-bar-and-line-chart.gif',[animated_bar_chart,animated_line_chart], enable_progress_bar=True)
结尾：
怎么样，是不是心动了，那就快行动吧！喜欢的记得三连，需要完整的项目源码的私信我即可哟！
