大家好,我是张晋涛。

Cilium 是一个基于 eBPF 技术,用于为容器工作负载间提供安全且具备可观测性的网络连接的开源软件。

如果你对 Cilium 还不太了解,可以参考我之前的两篇文章:

最近 Cilium v1.11.0 正式发布了,增加 Open Telemetry 的支持以及其他一些增强特性。同时,也宣布了 Cilium Service Mesh 的计划。当前 Cilium Service Mesh 正处于测试阶段,预期在 2022 年会合并到 Cilium v1.12 版本中。

Cilium Service Mesh 也带来了一个全新的模式。

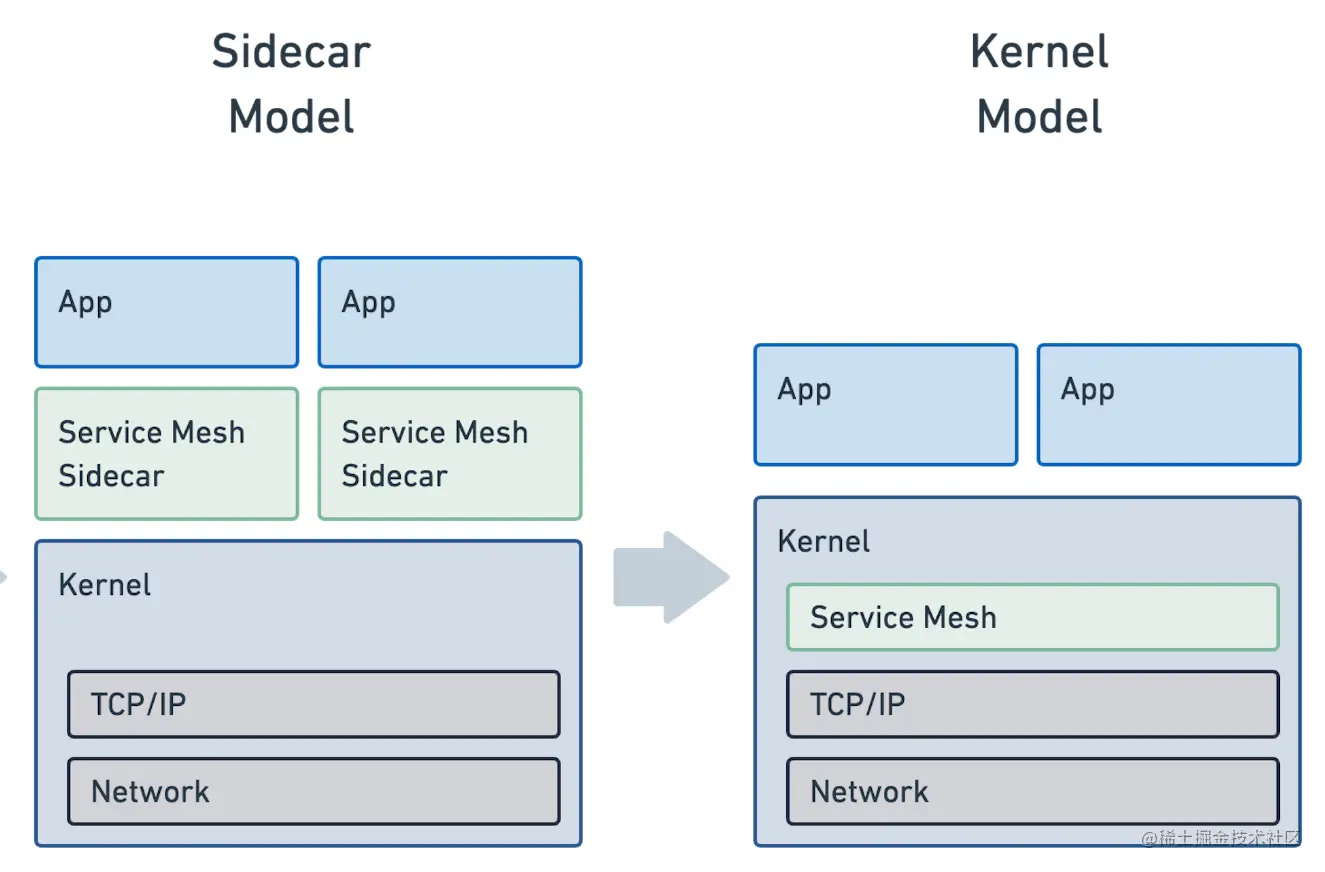

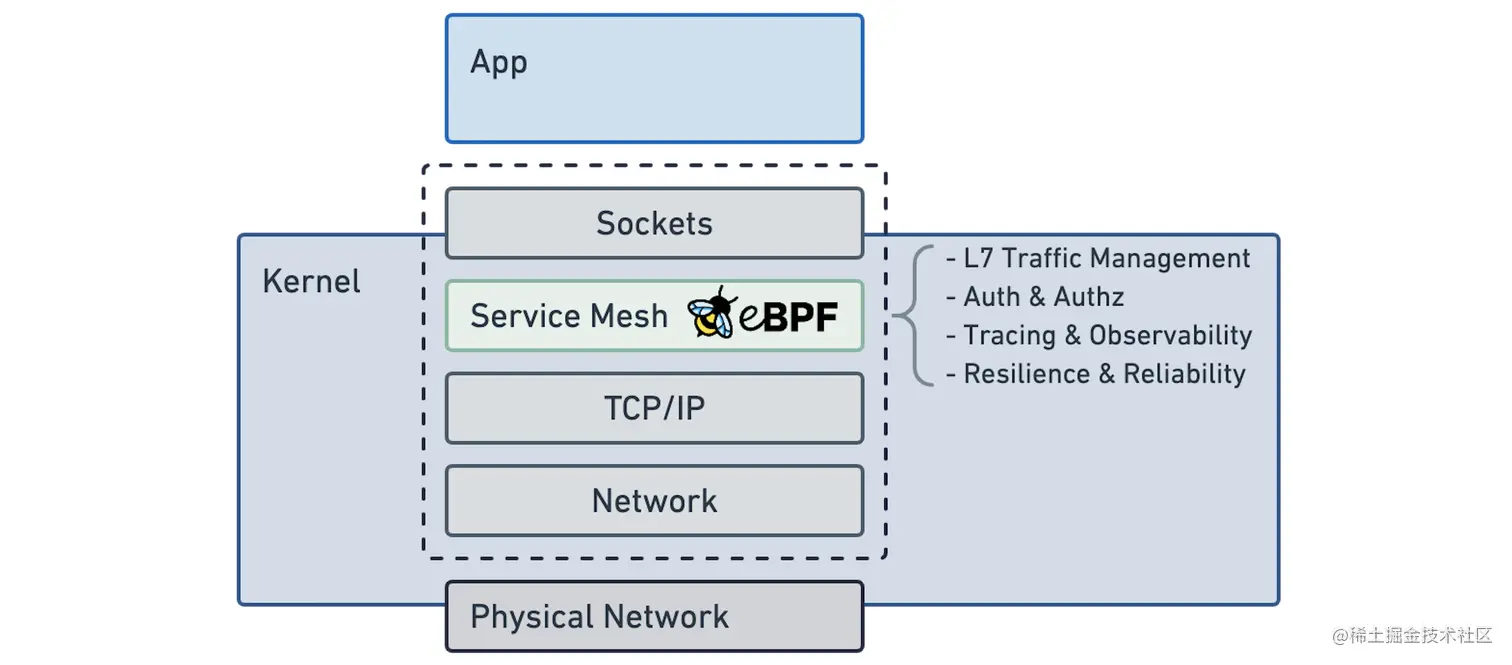

Cilium 直接通过 eBPF 技术实现的 Service Mesh 相比我们常规的 Istio/Linkerd 等方案,最显著的特点就是将 Sidecar proxy 模型替换成了 Kernel 模型, 如下图:


不再需要每个应用程序旁边都放置一个 Sidecar 了,直接在每台 Node 上提供支持。


我在几个月前就已经知道了这个消息并且进行了一些讨论,最近随着 isovalent 的一篇文章 How eBPF will solve Service Mesh - Goodbye Sidecars ,Cilium Service Mesh 也成为了大家关注的焦点。

本篇我带你实际体验下 Cilium Service Mesh。

安装部署

这里我使用 KIND 作为测试环境,我的内核版本是 5.15.8 。

准备 KIND 集群

关于 KIND 命令行工具的安装这里就不再赘述了,感兴趣的小伙伴可以参考我之前的文章 《使用KIND搭建自己的本地 Kubernetes 测试环境》。

以下是我创建集群使用的配置文件:

apiVersion: kind.x-k8s.io/v1alpha4
kind: Cluster
nodes:
- role: control-plane
- role: worker
- role: worker
- role: worker
networking:
  disableDefaultCNI: true
复制代码

创建集群:

➜  cilium-mesh kind create cluster --config kind-config.yaml
Creating cluster "kind" ...
 ✓ Ensuring node image (kindest/node:v1.22.4) 🖼
 ✓ Preparing nodes 📦 📦 📦 📦
 ✓ Writing configuration 📜
 ✓ Starting control-plane 🕹️
 ✓ Installing StorageClass 💾
 ✓ Joining worker nodes 🚜
Set kubectl context to "kind-kind"
You can now use your cluster with:

kubectl cluster-info --context kind-kind

Not sure what to do next? 😅  Check out https://kind.sigs.k8s.io/docs/user/quick-start/
复制代码

安装 Cilium CLI

这里我们使用 Cilium CLI 工具进行 Cilium 的部署。

➜  cilium-mesh curl -L --remote-name-all https://github.com/cilium/cilium-cli/releases/latest/download/cilium-linux-amd64.tar.gz\{,.sha256sum\}

[1/2]: https://github.com/cilium/cilium-cli/releases/latest/download/cilium-linux-amd64.tar.gz --> cilium-linux-amd64.tar.gz
--_curl_--https://github.com/cilium/cilium-cli/releases/latest/download/cilium-linux-amd64.tar.gz
  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current
                                 Dload  Upload   Total   Spent    Left  Speed
100   154  100   154    0     0    243      0 --:--:-- --:--:-- --:--:--   242
100   664  100   664    0     0    579      0  0:00:01  0:00:01 --:--:--   579
100 14.6M  100 14.6M    0     0  2928k      0  0:00:05  0:00:05 --:--:-- 3910k

[2/2]: https://github.com/cilium/cilium-cli/releases/latest/download/cilium-linux-amd64.tar.gz.sha256sum --> cilium-linux-amd64.tar.gz.sha256sum
--_curl_--https://github.com/cilium/cilium-cli/releases/latest/download/cilium-linux-amd64.tar.gz.sha256sum
  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current
                                 Dload  Upload   Total   Spent    Left  Speed
100   164  100   164    0     0    419      0 --:--:-- --:--:-- --:--:--   418
100   674  100   674    0     0    861      0 --:--:-- --:--:-- --:--:--   861
100    92  100    92    0     0     67      0  0:00:01  0:00:01 --:--:--     0
➜  cilium-mesh ls
cilium-linux-amd64.tar.gz  cilium-linux-amd64.tar.gz.sha256sum  kind-config.yaml
➜  cilium-mesh tar -zxvf cilium-linux-amd64.tar.gz
cilium
复制代码

加载镜像

在部署 Cilium 的过程中需要一些镜像,我们可以提前下载后加载到 KIND 的 Node 节点中。如果你的网络比较顺畅, 那这一步可以跳过。

➜  cilium-mesh ciliumMeshImage=("quay.io/cilium/cilium-service-mesh:v1.11.0-beta.1" "quay.io/cilium/operator-generic-service-mesh:v1.11.0-beta.1" "quay.io/cilium/hubble-relay-service-mesh:v1.11.0-beta.1")
➜  cilium-mesh for i in ${ciliumMeshImage[@]}
do
  docker pull $i
  kind load docker-image $i
done
复制代码

部署 cilium

接下来我们直接使用 Cilium CLI 完成部署。注意这里的参数。

➜  cilium-mesh cilium install --version -service-mesh:v1.11.0-beta.1 --config enable-envoy-config=true --kube-proxy-replacement=probe --agent-image='quay.io/cilium/cilium-service-mesh:v1.11.0-beta.1' --operator-image='quay.io/cilium/operator-generic-service-mesh:v1.11.0-beta.1'  --datapath-mode=vxlan
🔮 Auto-detected Kubernetes kind: kind
✨ Running "kind" validation checks
✅ Detected kind version "0.12.0"
ℹ️  using Cilium version "-service-mesh:v1.11.0-beta.1"
🔮 Auto-detected cluster name: kind-kind
🔮 Auto-detected IPAM mode: kubernetes
🔮 Custom datapath mode: vxlan
🔑 Found CA in secret cilium-ca
🔑 Generating certificates for Hubble...
🚀 Creating Service accounts...
🚀 Creating Cluster roles...
🚀 Creating ConfigMap for Cilium version 1.11.0...
ℹ️ Manual overwrite in ConfigMap: enable-envoy-config=true
🚀 Creating Agent DaemonSet...
🚀 Creating Operator Deployment...
⌛ Waiting for Cilium to be installed and ready...
✅ Cilium was successfully installed! Run 'cilium status' to view installation health
复制代码

查看状态

在安装成功后, 可以通过 cilium status命令来查看当前 Cilium 的部署情况。

➜  cilium-mesh cilium status
    /¯¯\
 /¯¯\__/¯¯\    Cilium:         OK
 \__/¯¯\__/    Operator:       OK
 /¯¯\__/¯¯\    Hubble:         disabled
 \__/¯¯\__/    ClusterMesh:    disabled
    \__/

Deployment        cilium-operator    Desired: 1, Ready: 1/1, Available: 1/1
DaemonSet         cilium             Desired: 4, Ready: 4/4, Available: 4/4
Containers:       cilium             Running: 4
                  cilium-operator    Running: 1
Cluster Pods:     3/3 managed by Cilium
Image versions    cilium             quay.io/cilium/cilium-service-mesh:v1.11.0-beta.1: 4
                  cilium-operator    quay.io/cilium/operator-generic-service-mesh:v1.11.0-beta.1: 1
复制代码

启用 Hubble

Hubble 主要是用来提供可观测能力的。在启用它之前,需要先加载一个镜像,如果网络畅通可以跳过。

docker.io/envoyproxy/envoy:v1.18.2@sha256:e8b37c1d75787dd1e712ff389b0d37337dc8a174a63bed9c34ba73359dc67da7
复制代码

然后使用 Cilium CLI 开启 Hubble :

➜  cilium-mesh cilium hubble enable --relay-image='quay.io/cilium/hubble-relay-service-mesh:v1.11.0-beta.1' --ui
🔑 Found CA in secret cilium-ca
✨ Patching ConfigMap cilium-config to enable Hubble...
♻️  Restarted Cilium pods
⌛ Waiting for Cilium to become ready before deploying other Hubble component(s)...
🔑 Generating certificates for Relay...
✨ Deploying Relay from quay.io/cilium/hubble-relay-service-mesh:v1.11.0-beta.1...
✨ Deploying Hubble UI from quay.io/cilium/hubble-ui:v0.8.3 and Hubble UI Backend from quay.io/cilium/hubble-ui-backend:v0.8.3...
⌛ Waiting for Hubble to be installed...
    /¯¯\
 /¯¯\__/¯¯\    Cilium:         OK
 \__/¯¯\__/    Operator:       OK
 /¯¯\__/¯¯\    Hubble:         OK
 \__/¯¯\__/    ClusterMesh:    disabled
    \__/

DaemonSet         cilium             Desired: 4, Ready: 4/4, Available: 4/4
Deployment        cilium-operator    Desired: 1, Ready: 1/1, Available: 1/1
Deployment        hubble-relay       Desired: 1, Ready: 1/1, Available: 1/1
Deployment        hubble-ui          Desired: 1, Unavailable: 1/1
Containers:       cilium             Running: 4
                  cilium-operator    Running: 1
                  hubble-relay       Running: 1
                  hubble-ui          Running: 1
Cluster Pods:     5/5 managed by Cilium
Image versions    cilium             quay.io/cilium/cilium-service-mesh:v1.11.0-beta.1: 4
                  cilium-operator    quay.io/cilium/operator-generic-service-mesh:v1.11.0-beta.1: 1
                  hubble-relay       quay.io/cilium/hubble-relay-service-mesh:v1.11.0-beta.1: 1
                  hubble-ui          quay.io/cilium/hubble-ui:v0.8.3: 1
                  hubble-ui          quay.io/cilium/hubble-ui-backend:v0.8.3: 1
                  hubble-ui          docker.io/envoyproxy/envoy:v1.18.2@sha256:e8b37c1d75787dd1e712ff389b0d37337dc8a174a63bed9c34ba73359dc67da7: 1
复制代码

测试 7 层 Ingress 流量管理

安装LB

这里我们可以给 KIND 集群中安装 MetaLB ,以便于我们可以使用 LoadBalancer 类型的 svc 资源(Cilium 会默认创建一个 LoadBalancer 类型的 svc)。如果不安装 MetaLB ,那也可以使用 NodePort 的方式来进行替代。

具体过程就不一一介绍了,直接按下述操作步骤执行即可。

➜  cilium-mesh kubectl apply -f https://raw.githubusercontent.com/metallb/metallb/master/manifests/namespace.yaml
namespace/metallb-system created
➜  cilium-mesh kubectl create secret generic -n metallb-system memberlist --from-literal=secretkey="$(openssl rand -base64 128)"
secret/memberlist created
➜  cilium-mesh kubectl apply -f https://raw.githubusercontent.com/metallb/metallb/master/manifests/metallb.yaml
Warning: policy/v1beta1 PodSecurityPolicy is deprecated in v1.21+, unavailable in v1.25+
podsecuritypolicy.policy/controller created
podsecuritypolicy.policy/speaker created
serviceaccount/controller created
serviceaccount/speaker created
clusterrole.rbac.authorization.k8s.io/metallb-system:controller created
clusterrole.rbac.authorization.k8s.io/metallb-system:speaker created
role.rbac.authorization.k8s.io/config-watcher created
role.rbac.authorization.k8s.io/pod-lister created
role.rbac.authorization.k8s.io/controller created
clusterrolebinding.rbac.authorization.k8s.io/metallb-system:controller created
clusterrolebinding.rbac.authorization.k8s.io/metallb-system:speaker created
rolebinding.rbac.authorization.k8s.io/config-watcher created
rolebinding.rbac.authorization.k8s.io/pod-lister created
rolebinding.rbac.authorization.k8s.io/controller created
daemonset.apps/speaker created
deployment.apps/controller created
➜  cilium-mesh docker network inspect -f '{{.IPAM.Config}}' kind
[{172.18.0.0/16  172.18.0.1 map[]} {fc00:f853:ccd:e793::/64  fc00:f853:ccd:e793::1 map[]}]
➜  cilium-mesh vim kind-lb-cm.yaml
➜  cilium-mesh cat kind-lb-cm.yaml
apiVersion: v1
kind: ConfigMap
metadata:
  namespace: metallb-system
  name: config
data:
  config: |
    address-pools:
    - name: default
      protocol: layer2
      addresses:
      - 172.18.255.200-172.18.255.250
➜  cilium-mesh kubectl apply  -f kind-lb-cm.yaml
configmap/config created
复制代码

加载镜像

这里我们使用 hashicorp/http-echo:0.2.3作为示例程序,它们可以按照启动参数的不同响应不同的内容。

➜  cilium-mesh docker pull hashicorp/http-echo:0.2.3
0.2.3: Pulling from hashicorp/http-echo
86399148984b: Pull complete
Digest: sha256:ba27d460cd1f22a1a4331bdf74f4fccbc025552357e8a3249c40ae216275de96
Status: Downloaded newer image for hashicorp/http-echo:0.2.3
docker.io/hashicorp/http-echo:0.2.3
➜  cilium-mesh kind load docker-image hashicorp/http-echo:0.2.3
Image: "hashicorp/http-echo:0.2.3" with ID "sha256:a6838e9a6ff6ab3624720a7bd36152dda540ce3987714398003e14780e61478a" not yet present on node "kind-worker", loading...
Image: "hashicorp/http-echo:0.2.3" with ID "sha256:a6838e9a6ff6ab3624720a7bd36152dda540ce3987714398003e14780e61478a" not yet present on node "kind-worker2", loading...
Image: "hashicorp/http-echo:0.2.3" with ID "sha256:a6838e9a6ff6ab3624720a7bd36152dda540ce3987714398003e14780e61478a" not yet present on node "kind-control-plane", loading...
Image: "hashicorp/http-echo:0.2.3" with ID "sha256:a6838e9a6ff6ab3624720a7bd36152dda540ce3987714398003e14780e61478a" not yet present on node "kind-worker3", loading...
复制代码

部署测试服务

本文中的所有配置文件均可在 github.com/tao12345666… 代码仓库中获取。

我们使用如下配置进行测试服务的部署:

apiVersion: v1
kind: Pod
metadata:
  labels:
    run: foo-app
  name: foo-app
spec:
  containers:
  - image: hashicorp/http-echo:0.2.3
    args:
    - "-text=foo"
    name: foo-app
    ports:
    - containerPort: 5678
    resources: {}
  dnsPolicy: ClusterFirst
  restartPolicy: Always
status: {}
---
apiVersion: v1
kind: Service
metadata:
  labels:
    run: foo-app
  name: foo-app
spec:
  ports:
  - port: 5678
    protocol: TCP
    targetPort: 5678
  selector:
    run: foo-app
---
apiVersion: v1
kind: Pod
metadata:
  labels:
    run: bar-app
  name: bar-app
spec:
  containers:
  - image: hashicorp/http-echo:0.2.3
    args:
    - "-text=bar"
    name: bar-app
    ports:
    - containerPort: 5678
    resources: {}
  dnsPolicy: ClusterFirst
  restartPolicy: Always
---
apiVersion: v1
kind: Service
metadata:
  labels:
    run: bar-app
  name: bar-app
spec:
  ports:
  - port: 5678
    protocol: TCP
    targetPort: 5678
  selector:
    run: bar-app

复制代码

新建如下的 Ingress 资源文件:

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: cilium-ingress
  namespace: default
spec:
  ingressClassName: cilium
  rules:
  - http:
      paths:
      - backend:
          service:
            name: foo-app
            port:
              number: 5678
        path: /foo
        pathType: Prefix
      - backend:
          service:
            name: bar-app
            port:
              number: 5678
        path: /bar
        pathType: Prefix
复制代码

创建 Ingress 资源,然后可以看到产生了一个新的 LoadBalancer 类型的 svc 。

➜  cilium-mesh kubectl apply -f cilium-ingress.yaml
ingress.networking.k8s.io/cilium-ingress created
➜  cilium-mesh kubectl get svc
NAME                            TYPE           CLUSTER-IP      EXTERNAL-IP      PORT(S)        AGE
bar-app                         ClusterIP      10.96.229.141   <none>           5678/TCP       106s
cilium-ingress-cilium-ingress   LoadBalancer   10.96.161.128   172.18.255.200   80:31643/TCP   4s
foo-app                         ClusterIP      10.96.166.212   <none>           5678/TCP       106s
kubernetes                      ClusterIP      10.96.0.1       <none>           443/TCP        81m

➜  cilium-mesh kubectl get ing
NAME             CLASS    HOSTS   ADDRESS          PORTS   AGE
cilium-ingress   cilium   *       172.18.255.200   80      1m
复制代码

测试

使用 curl 命令进行测试访问,发现可以按照 Ingress 资源中的配置得到正确的响应。查看响应头,我们会发现这里的代理实际上还是使用的 Envoy 来完成的。

➜  cilium-mesh curl 172.18.255.200
➜  cilium-mesh curl 172.18.255.200/foo
foo
➜  cilium-mesh curl 172.18.255.200/bar
bar
➜  cilium-mesh curl -I 172.18.255.200/bar
HTTP/1.1 200 OK
Content-Length: 4
Connection: keep-alive
Content-Type: text/plain; charset=utf-8
Date: Sat, 18 Dec 2021 06:02:56 GMT
Keep-Alive: timeout=4
Proxy-Connection: keep-alive
Server: envoy
X-App-Name: http-echo
X-App-Version: 0.2.3
X-Envoy-Upstream-Service-Time: 0

➜  cilium-mesh curl -I 172.18.255.200/foo
HTTP/1.1 200 OK
Content-Length: 4
Connection: keep-alive
Content-Type: text/plain; charset=utf-8
Date: Sat, 18 Dec 2021 06:03:01 GMT
Keep-Alive: timeout=4
Proxy-Connection: keep-alive
Server: envoy
X-App-Name: http-echo
X-App-Version: 0.2.3
X-Envoy-Upstream-Service-Time: 0


复制代码

测试 CiliumEnvoyConfig

在使用上述方式部署 CIlium 后, 它其实还安装了一些 CRD 资源。其中有一个是 CiliumEnvoyConfig用于配置服务之间代理的。

➜  cilium-mesh kubectl api-resources |grep cilium.io
ciliumclusterwidenetworkpolicies   ccnp           cilium.io/v2                           false        CiliumClusterwideNetworkPolicy
ciliumendpoints                    cep,ciliumep   cilium.io/v2                           true         CiliumEndpoint
ciliumenvoyconfigs                 cec            cilium.io/v2alpha1                     false        CiliumEnvoyConfig
ciliumexternalworkloads            cew            cilium.io/v2                           false        CiliumExternalWorkload
ciliumidentities                   ciliumid       cilium.io/v2                           false        CiliumIdentity
ciliumnetworkpolicies              cnp,ciliumnp   cilium.io/v2                           true         CiliumNetworkPolicy
ciliumnodes                        cn,ciliumn     cilium.io/v2                           false        CiliumNode
复制代码

部署测试服务

可以先进行 Hubble 的 port-forward

➜  cilium-mesh cilium hubble port-forward
复制代码

默认会监听到 4245 端口上,如果不提前执行此操作就会出现下述内容

🔭 Enabling Hubble telescope...
⚠️  Unable to contact Hubble Relay, disabling Hubble telescope and flow validation: rpc error: code = Unavailable desc = connection error: desc = "transport: Error while dialing dial tcp [::1]:4245: connect: connection refused"
复制代码

如果已经开启 Hubble 的 port-forward ,正常情况下会得到如下输出:

➜  cilium-mesh cilium connectivity test --test egress-l7
ℹ️  Monitor aggregation detected, will skip some flow validation steps
⌛ [kind-kind] Waiting for deployments [client client2 echo-same-node] to become ready...
⌛ [kind-kind] Waiting for deployments [echo-other-node] to become ready...
⌛ [kind-kind] Waiting for CiliumEndpoint for pod cilium-test/client-6488dcf5d4-pk6w9 to appear...
⌛ [kind-kind] Waiting for CiliumEndpoint for pod cilium-test/client2-5998d566b4-hrhrb to appear...
⌛ [kind-kind] Waiting for CiliumEndpoint for pod cilium-test/echo-other-node-f4d46f75b-bqpcb to appear...
⌛ [kind-kind] Waiting for CiliumEndpoint for pod cilium-test/echo-same-node-745bd5c77-zpzdn to appear...
⌛ [kind-kind] Waiting for Service cilium-test/echo-other-node to become ready...
⌛ [kind-kind] Waiting for Service cilium-test/echo-same-node to become ready...
⌛ [kind-kind] Waiting for NodePort 172.18.0.5:32751 (cilium-test/echo-other-node) to become ready...
⌛ [kind-kind] Waiting for NodePort 172.18.0.5:32133 (cilium-test/echo-same-node) to become ready...
⌛ [kind-kind] Waiting for NodePort 172.18.0.3:32133 (cilium-test/echo-same-node) to become ready...
⌛ [kind-kind] Waiting for NodePort 172.18.0.3:32751 (cilium-test/echo-other-node) to become ready...
⌛ [kind-kind] Waiting for NodePort 172.18.0.2:32751 (cilium-test/echo-other-node) to become ready...
⌛ [kind-kind] Waiting for NodePort 172.18.0.2:32133 (cilium-test/echo-same-node) to become ready...
⌛ [kind-kind] Waiting for NodePort 172.18.0.4:32751 (cilium-test/echo-other-node) to become ready...
⌛ [kind-kind] Waiting for NodePort 172.18.0.4:32133 (cilium-test/echo-same-node) to become ready...
ℹ️  Skipping IPCache check
⌛ [kind-kind] Waiting for pod cilium-test/client-6488dcf5d4-pk6w9 to reach default/kubernetes service...
⌛ [kind-kind] Waiting for pod cilium-test/client2-5998d566b4-hrhrb to reach default/kubernetes service...
🔭 Enabling Hubble telescope...
ℹ️  Hubble is OK, flows: 16380/16380
🏃 Running tests...

[=] Skipping Test [no-policies]

[=] Skipping Test [allow-all]

[=] Skipping Test [client-ingress]

[=] Skipping Test [echo-ingress]

[=] Skipping Test [client-egress]

[=] Skipping Test [to-entities-world]

[=] Skipping Test [to-cidr-1111]

[=] Skipping Test [echo-ingress-l7]

[=] Test [client-egress-l7]
..........
[=] Skipping Test [dns-only]

[=] Skipping Test [to-fqdns]

✅ All 1 tests (10 actions) successful, 10 tests skipped, 0 scenarios skipped.
复制代码

我们也可以同时打开UI看看:

➜  cilium-mesh cilium hubble ui
ℹ️  Opening "http://localhost:12000" in your browser...
复制代码

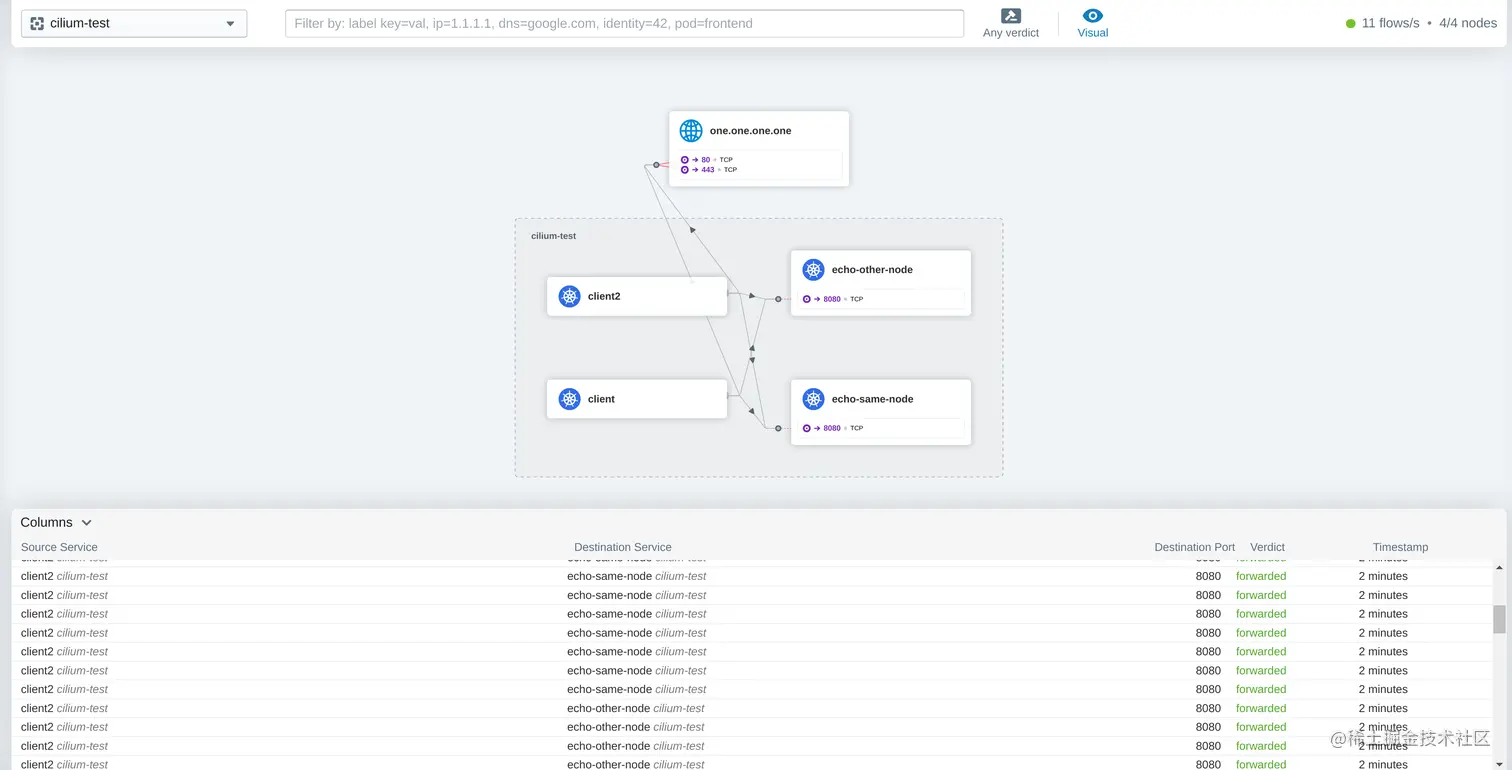

效果图如下:


这个操作实际上会进行如下部署:

➜  cilium-mesh kubectl -n cilium-test get all
NAME                                  READY   STATUS    RESTARTS   AGE
pod/client-6488dcf5d4-pk6w9           1/1     Running   0          66m
pod/client2-5998d566b4-hrhrb          1/1     Running   0          66m
pod/echo-other-node-f4d46f75b-bqpcb   1/1     Running   0          66m
pod/echo-same-node-745bd5c77-zpzdn    1/1     Running   0          66m

NAME                      TYPE       CLUSTER-IP      EXTERNAL-IP   PORT(S)          AGE
service/echo-other-node   NodePort   10.96.124.211   <none>        8080:32751/TCP   66m
service/echo-same-node    NodePort   10.96.136.252   <none>        8080:32133/TCP   66m

NAME                              READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/client            1/1     1            1           66m
deployment.apps/client2           1/1     1            1           66m
deployment.apps/echo-other-node   1/1     1            1           66m
deployment.apps/echo-same-node    1/1     1            1           66m

NAME                                        DESIRED   CURRENT   READY   AGE
replicaset.apps/client-6488dcf5d4           1         1         1       66m
replicaset.apps/client2-5998d566b4          1         1         1       66m
replicaset.apps/echo-other-node-f4d46f75b   1         1         1       66m
replicaset.apps/echo-same-node-745bd5c77    1         1         1       66m
复制代码

我们也可以看看它的 label:

➜  cilium-mesh kubectl get pods -n cilium-test --show-labels -o wide
NAME                              READY   STATUS    RESTARTS   AGE   IP             NODE           NOMINATED NODE   READINESS GATES   LABELS
client-6488dcf5d4-pk6w9           1/1     Running   0          67m   10.244.3.7     kind-worker3   <none>           <none>            kind=client,name=client,pod-template-hash=6488dcf5d4
client2-5998d566b4-hrhrb          1/1     Running   0          67m   10.244.3.18    kind-worker3   <none>           <none>            kind=client,name=client2,other=client,pod-template-hash=5998d566b4
echo-other-node-f4d46f75b-bqpcb   1/1     Running   0          67m   10.244.1.146   kind-worker2   <none>           <none>            kind=echo,name=echo-other-node,pod-template-hash=f4d46f75b
echo-same-node-745bd5c77-zpzdn    1/1     Running   0          67m   10.244.3.164   kind-worker3   <none>           <none>            kind=echo,name=echo-same-node,other=echo,pod-template-hash=745bd5c77
复制代码

测试

这里我们在主机上进行操作下, 先拿到 client2 的 Pod 名称,然后通过 Hubble 命令观察所有访问此 Pod 的流量。

➜  cilium-mesh export CLIENT2=client2-5998d566b4-hrhrb
➜  cilium-mesh hubble observe --from-pod cilium-test/$CLIENT2 -f

Dec 18 14:07:37.200: cilium-test/client2-5998d566b4-hrhrb:44805 <> kube-system/coredns-78fcd69978-7lbwh:53 to-overlay FORWARDED (UDP)
Dec 18 14:07:37.200: cilium-test/client2-5998d566b4-hrhrb:44805 -> kube-system/coredns-78fcd69978-7lbwh:53 to-endpoint FORWARDED (UDP)
Dec 18 14:07:37.200: cilium-test/client2-5998d566b4-hrhrb:44805 <> kube-system/coredns-78fcd69978-7lbwh:53 to-overlay FORWARDED (UDP)
Dec 18 14:07:37.200: cilium-test/client2-5998d566b4-hrhrb:44805 -> kube-system/coredns-78fcd69978-7lbwh:53 to-endpoint FORWARDED (UDP)
Dec 18 14:07:37.200: cilium-test/client2-5998d566b4-hrhrb:42260 -> cilium-test/echo-same-node-745bd5c77-zpzdn:8080 to-endpoint FORWARDED (TCP Flags: SYN)
Dec 18 14:07:37.201: cilium-test/client2-5998d566b4-hrhrb:42260 -> cilium-test/echo-same-node-745bd5c77-zpzdn:8080 to-endpoint FORWARDED (TCP Flags: ACK)
Dec 18 14:07:37.201: cilium-test/client2-5998d566b4-hrhrb:42260 -> cilium-test/echo-same-node-745bd5c77-zpzdn:8080 to-endpoint FORWARDED (TCP Flags: ACK, PSH)
Dec 18 14:07:37.202: cilium-test/client2-5998d566b4-hrhrb:42260 -> cilium-test/echo-same-node-745bd5c77-zpzdn:8080 to-endpoint FORWARDED (TCP Flags: ACK, FIN)
Dec 18 14:07:37.203: cilium-test/client2-5998d566b4-hrhrb:42260 -> cilium-test/echo-same-node-745bd5c77-zpzdn:8080 to-endpoint FORWARDED (TCP Flags: ACK)
Dec 18 14:07:50.769: cilium-test/client2-5998d566b4-hrhrb:36768 <> kube-system/coredns-78fcd69978-7lbwh:53 to-overlay FORWARDED (UDP)
Dec 18 14:07:50.769: cilium-test/client2-5998d566b4-hrhrb:36768 <> kube-system/coredns-78fcd69978-7lbwh:53 to-overlay FORWARDED (UDP)
Dec 18 14:07:50.769: cilium-test/client2-5998d566b4-hrhrb:36768 -> kube-system/coredns-78fcd69978-7lbwh:53 to-endpoint FORWARDED (UDP)
Dec 18 14:07:50.769: cilium-test/client2-5998d566b4-hrhrb:36768 -> kube-system/coredns-78fcd69978-7lbwh:53 to-endpoint FORWARDED (UDP)
Dec 18 14:07:50.770: cilium-test/client2-5998d566b4-hrhrb:42068 <> cilium-test/echo-other-node-f4d46f75b-bqpcb:8080 to-overlay FORWARDED (TCP Flags: SYN)
Dec 18 14:07:50.770: cilium-test/client2-5998d566b4-hrhrb:42068 -> cilium-test/echo-other-node-f4d46f75b-bqpcb:8080 to-endpoint FORWARDED (TCP Flags: SYN)
Dec 18 14:07:50.770: cilium-test/client2-5998d566b4-hrhrb:42068 <> cilium-test/echo-other-node-f4d46f75b-bqpcb:8080 to-overlay FORWARDED (TCP Flags: ACK)
Dec 18 14:07:50.770: cilium-test/client2-5998d566b4-hrhrb:42068 -> cilium-test/echo-other-node-f4d46f75b-bqpcb:8080 to-endpoint FORWARDED (TCP Flags: ACK)
Dec 18 14:07:50.770: cilium-test/client2-5998d566b4-hrhrb:42068 <> cilium-test/echo-other-node-f4d46f75b-bqpcb:8080 to-overlay FORWARDED (TCP Flags: ACK, PSH)
Dec 18 14:07:50.770: cilium-test/client2-5998d566b4-hrhrb:42068 -> cilium-test/echo-other-node-f4d46f75b-bqpcb:8080 to-endpoint FORWARDED (TCP Flags: ACK, PSH)
Dec 18 14:07:50.771: cilium-test/client2-5998d566b4-hrhrb:42068 <> cilium-test/echo-other-node-f4d46f75b-bqpcb:8080 to-overlay FORWARDED (TCP Flags: ACK, FIN)
Dec 18 14:07:50.771: cilium-test/client2-5998d566b4-hrhrb:42068 -> cilium-test/echo-other-node-f4d46f75b-bqpcb:8080 to-endpoint FORWARDED (TCP Flags: ACK, FIN)
Dec 18 14:07:50.772: cilium-test/client2-5998d566b4-hrhrb:42068 <> cilium-test/echo-other-node-f4d46f75b-bqpcb:8080 to-overlay FORWARDED (TCP Flags: ACK)
Dec 18 14:07:50.772: cilium-test/client2-5998d566b4-hrhrb:42068 -> cilium-test/echo-other-node-f4d46f75b-bqpcb:8080 to-endpoint FORWARDED (TCP Flags: ACK)

复制代码

以上输出是由于我们执行了下面的操作:

kubectl exec -it -n cilium-test $CLIENT2 -- curl -v echo-same-node:8080/
kubectl exec -it -n cilium-test $CLIENT2 -- curl -v echo-other-node:8080/
复制代码

日志中基本上都是 to-endpoint 或者 to-overlay的。

测试使用 proxy

需要先安装 networkpolicy , 我们可以直接从 Cilium CLI 的仓库中拿到。

kubectl apply -f https://raw.githubusercontent.com/cilium/cilium-cli/master/connectivity/manifests/client-egress-l7-http.yaml
kubectl apply -f https://raw.githubusercontent.com/cilium/cilium-cli/master/connectivity/manifests/client-egress-only-dns.yaml
复制代码

然后重复上面的请求:

Dec 18 14:33:40.570: cilium-test/client2-5998d566b4-hrhrb:44344 -> kube-system/coredns-78fcd69978-2ww28:53 L3-L4 REDIRECTED (UDP)
Dec 18 14:33:40.570: cilium-test/client2-5998d566b4-hrhrb:44344 -> kube-system/coredns-78fcd69978-2ww28:53 to-proxy FORWARDED (UDP)
Dec 18 14:33:40.570: cilium-test/client2-5998d566b4-hrhrb:44344 -> kube-system/coredns-78fcd69978-2ww28:53 to-proxy FORWARDED (UDP)
Dec 18 14:33:40.570: cilium-test/client2-5998d566b4-hrhrb:44344 -> kube-system/coredns-78fcd69978-2ww28:53 dns-request FORWARDED (DNS Query echo-other-node.cilium-test.svc.cluster.local. A)
Dec 18 14:33:40.570: cilium-test/client2-5998d566b4-hrhrb:44344 -> kube-system/coredns-78fcd69978-2ww28:53 dns-request FORWARDED (DNS Query echo-other-node.cilium-test.svc.cluster.local. AAAA)
Dec 18 14:33:40.571: cilium-test/client2-5998d566b4-hrhrb:42074 -> cilium-test/echo-other-node-f4d46f75b-bqpcb:8080 L3-L4 REDIRECTED (TCP Flags: SYN)
Dec 18 14:33:40.571: cilium-test/client2-5998d566b4-hrhrb:42074 -> cilium-test/echo-other-node-f4d46f75b-bqpcb:8080 to-proxy FORWARDED (TCP Flags: SYN)
Dec 18 14:33:40.571: cilium-test/client2-5998d566b4-hrhrb:42074 -> cilium-test/echo-other-node-f4d46f75b-bqpcb:8080 to-proxy FORWARDED (TCP Flags: ACK)
Dec 18 14:33:40.571: cilium-test/client2-5998d566b4-hrhrb:42074 -> cilium-test/echo-other-node-f4d46f75b-bqpcb:8080 to-proxy FORWARDED (TCP Flags: ACK, PSH)
Dec 18 14:33:40.572: cilium-test/client2-5998d566b4-hrhrb:42074 -> cilium-test/echo-other-node-f4d46f75b-bqpcb:8080 http-request FORWARDED (HTTP/1.1 GET http://echo-other-node:8080/)
Dec 18 14:33:40.573: cilium-test/client2-5998d566b4-hrhrb:42074 -> cilium-test/echo-other-node-f4d46f75b-bqpcb:8080 to-proxy FORWARDED (TCP Flags: ACK, FIN)
Dec 18 14:33:40.573: cilium-test/client2-5998d566b4-hrhrb:42074 -> cilium-test/echo-other-node-f4d46f75b-bqpcb:8080 to-proxy FORWARDED (TCP Flags: ACK)
复制代码

执行另一个请求:

➜  cilium-mesh kubectl exec -it -n cilium-test $CLIENT2 -- curl -v echo-same-node:8080/
复制代码

也可以看到如下输出,其中有 to-proxy的字样。

Dec 18 14:45:18.857: cilium-test/client2-5998d566b4-hrhrb:58895 -> kube-system/coredns-78fcd69978-2ww28:53 L3-L4 REDIRECTED (UDP)
Dec 18 14:45:18.857: cilium-test/client2-5998d566b4-hrhrb:58895 -> kube-system/coredns-78fcd69978-2ww28:53 to-proxy FORWARDED (UDP)
Dec 18 14:45:18.857: cilium-test/client2-5998d566b4-hrhrb:58895 -> kube-system/coredns-78fcd69978-2ww28:53 to-proxy FORWARDED (UDP)
Dec 18 14:45:18.857: cilium-test/client2-5998d566b4-hrhrb:58895 -> kube-system/coredns-78fcd69978-2ww28:53 dns-request FORWARDED (DNS Query echo-same-node.cilium-test.svc.cluster.local. AAAA)
Dec 18 14:45:18.857: cilium-test/client2-5998d566b4-hrhrb:58895 -> kube-system/coredns-78fcd69978-2ww28:53 dns-request FORWARDED (DNS Query echo-same-node.cilium-test.svc.cluster.local. A)
Dec 18 14:45:18.858: cilium-test/client2-5998d566b4-hrhrb:42266 -> cilium-test/echo-same-node-745bd5c77-zpzdn:8080 L3-L4 REDIRECTED (TCP Flags: SYN)
Dec 18 14:45:18.858: cilium-test/client2-5998d566b4-hrhrb:42266 -> cilium-test/echo-same-node-745bd5c77-zpzdn:8080 to-proxy FORWARDED (TCP Flags: SYN)
Dec 18 14:45:18.858: cilium-test/client2-5998d566b4-hrhrb:42266 -> cilium-test/echo-same-node-745bd5c77-zpzdn:8080 to-proxy FORWARDED (TCP Flags: ACK)
Dec 18 14:45:18.858: cilium-test/client2-5998d566b4-hrhrb:42266 -> cilium-test/echo-same-node-745bd5c77-zpzdn:8080 to-proxy FORWARDED (TCP Flags: ACK, PSH)
Dec 18 14:45:18.858: cilium-test/client2-5998d566b4-hrhrb:42266 -> cilium-test/echo-same-node-745bd5c77-zpzdn:8080 http-request FORWARDED (HTTP/1.1 GET http://echo-same-node:8080/)
Dec 18 14:45:18.859: cilium-test/client2-5998d566b4-hrhrb:42266 -> cilium-test/echo-same-node-745bd5c77-zpzdn:8080 to-proxy FORWARDED (TCP Flags: ACK, FIN)
Dec 18 14:45:18.859: cilium-test/client2-5998d566b4-hrhrb:42266 -> cilium-test/echo-same-node-745bd5c77-zpzdn:8080 to-proxy FORWARDED (TCP Flags: ACK)
复制代码

其实看请求头更加方便:

➜  cilium-mesh kubectl exec -it -n cilium-test $CLIENT2 -- curl -I echo-same-node:8080/
HTTP/1.1 403 Forbidden
content-length: 15
content-type: text/plain
date: Sat, 18 Dec 2021 14:47:39 GMT
server: envoy
复制代码

之前都是如下:

## 没有 proxy
➜  cilium-mesh kubectl exec -it -n cilium-test $CLIENT2 -- curl -v echo-same-node:8080/
*   Trying 10.96.136.252:8080...
* Connected to echo-same-node (10.96.136.252) port 8080 (#0)
> GET / HTTP/1.1
> Host: echo-same-node:8080
> User-Agent: curl/7.78.0
> Accept: */*
>
* Mark bundle as not supporting multiuse
< HTTP/1.1 200 OK
< X-Powered-By: Express
< Vary: Origin, Accept-Encoding
< Access-Control-Allow-Credentials: true
< Accept-Ranges: bytes
< Cache-Control: public, max-age=0
< Last-Modified: Sat, 26 Oct 1985 08:15:00 GMT
< ETag: W/"809-7438674ba0"
< Content-Type: text/html; charset=UTF-8
< Content-Length: 2057
< Date: Sat, 18 Dec 2021 14:07:37 GMT
< Connection: keep-alive
< Keep-Alive: timeout=5
复制代码

请求一个不存在的地址:

以前请求响应是 404 ,现在是 403 ,并得到如下内容

➜  cilium-mesh kubectl exec -it -n cilium-test $CLIENT2 -- curl -v echo-same-node:8080/foo
*   Trying 10.96.136.252:8080...
* Connected to echo-same-node (10.96.136.252) port 8080 (#0)
> GET /foo HTTP/1.1
> Host: echo-same-node:8080
> User-Agent: curl/7.78.0
> Accept: */*
>
* Mark bundle as not supporting multiuse
< HTTP/1.1 403 Forbidden
< content-length: 15
< content-type: text/plain
< date: Sat, 18 Dec 2021 14:50:38 GMT
< server: envoy
<
Access denied
* Connection #0 to host echo-same-node left intact
复制代码

日志中也都是 to-proxy的字样。

Dec 18 14:50:39.185: cilium-test/client2-5998d566b4-hrhrb:37683 -> kube-system/coredns-78fcd69978-7lbwh:53 L3-L4 REDIRECTED (UDP)
Dec 18 14:50:39.185: cilium-test/client2-5998d566b4-hrhrb:37683 -> kube-system/coredns-78fcd69978-7lbwh:53 to-proxy FORWARDED (UDP)
Dec 18 14:50:39.185: cilium-test/client2-5998d566b4-hrhrb:37683 -> kube-system/coredns-78fcd69978-7lbwh:53 to-proxy FORWARDED (UDP)
Dec 18 14:50:39.185: cilium-test/client2-5998d566b4-hrhrb:37683 -> kube-system/coredns-78fcd69978-7lbwh:53 dns-request FORWARDED (DNS Query echo-same-node.cilium-test.svc.cluster.local. AAAA)
Dec 18 14:50:39.185: cilium-test/client2-5998d566b4-hrhrb:37683 -> kube-system/coredns-78fcd69978-7lbwh:53 dns-request FORWARDED (DNS Query echo-same-node.cilium-test.svc.cluster.local. A)
Dec 18 14:50:39.186: cilium-test/client2-5998d566b4-hrhrb:42274 -> cilium-test/echo-same-node-745bd5c77-zpzdn:8080 L3-L4 REDIRECTED (TCP Flags: SYN)
Dec 18 14:50:39.186: cilium-test/client2-5998d566b4-hrhrb:42274 -> cilium-test/echo-same-node-745bd5c77-zpzdn:8080 to-proxy FORWARDED (TCP Flags: SYN)
Dec 18 14:50:39.186: cilium-test/client2-5998d566b4-hrhrb:42274 -> cilium-test/echo-same-node-745bd5c77-zpzdn:8080 to-proxy FORWARDED (TCP Flags: ACK)
Dec 18 14:50:39.186: cilium-test/client2-5998d566b4-hrhrb:42274 -> cilium-test/echo-same-node-745bd5c77-zpzdn:8080 to-proxy FORWARDED (TCP Flags: ACK, PSH)
Dec 18 14:50:39.186: cilium-test/client2-5998d566b4-hrhrb:42274 -> cilium-test/echo-same-node-745bd5c77-zpzdn:8080 http-request DROPPED (HTTP/1.1 GET http://echo-same-node:8080/foo)
Dec 18 14:50:39.186: cilium-test/client2-5998d566b4-hrhrb:42274 -> cilium-test/echo-same-node-745bd5c77-zpzdn:8080 to-proxy FORWARDED (TCP Flags: ACK, FIN)
Dec 18 14:50:39.187: cilium-test/client2-5998d566b4-hrhrb:42274 -> cilium-test/echo-same-node-745bd5c77-zpzdn:8080 to-proxy FORWARDED (TCP Flags: ACK)
复制代码

我们使用如下内容作为 Envoy 的配置文件,其中包含 rewrite 策略。

apiVersion: cilium.io/v2alpha1
kind: CiliumEnvoyConfig
metadata:
  name: envoy-lb-listener
spec:
  services:
    - name: echo-other-node
      namespace: cilium-test
    - name: echo-same-node
      namespace: cilium-test
  resources:
    - "@type": type.googleapis.com/envoy.config.listener.v3.Listener
      name: envoy-lb-listener
      filter_chains:
        - filters:
            - name: envoy.filters.network.http_connection_manager
              typed_config:
                "@type": type.googleapis.com/envoy.extensions.filters.network.http_connection_manager.v3.HttpConnectionManager
                stat_prefix: envoy-lb-listener
                rds:
                  route_config_name: lb_route
                http_filters:
                  - name: envoy.filters.http.router
    - "@type": type.googleapis.com/envoy.config.route.v3.RouteConfiguration
      name: lb_route
      virtual_hosts:
        - name: "lb_route"
          domains: ["*"]
          routes:
            - match:
                prefix: "/"
              route:
                weighted_clusters:
                  clusters:
                    - name: "cilium-test/echo-same-node"
                      weight: 50
                    - name: "cilium-test/echo-other-node"
                      weight: 50
                retry_policy:
                  retry_on: 5xx
                  num_retries: 3
                  per_try_timeout: 1s
                regex_rewrite:
                  pattern:
                    google_re2: {}
                    regex: "^/foo.*$"
                  substitution: "/"
    - "@type": type.googleapis.com/envoy.config.cluster.v3.Cluster
      name: "cilium-test/echo-same-node"
      connect_timeout: 5s
      lb_policy: ROUND_ROBIN
      type: EDS
      outlier_detection:
        split_external_local_origin_errors: true
        consecutive_local_origin_failure: 2
    - "@type": type.googleapis.com/envoy.config.cluster.v3.Cluster
      name: "cilium-test/echo-other-node"
      connect_timeout: 3s
      lb_policy: ROUND_ROBIN
      type: EDS
      outlier_detection:
        split_external_local_origin_errors: true
        consecutive_local_origin_failure: 2

复制代码

测试请求时,发现可以正确的得到响应了。

➜  cilium-mesh kubectl exec -it -n cilium-test $CLIENT2 -- curl -X GET -I echo-same-node:8080/
HTTP/1.1 200 OK
x-powered-by: Express
vary: Origin, Accept-Encoding
access-control-allow-credentials: true
accept-ranges: bytes
cache-control: public, max-age=0
last-modified: Sat, 26 Oct 1985 08:15:00 GMT
etag: W/"809-7438674ba0"
content-type: text/html; charset=UTF-8
content-length: 2057
date: Sat, 18 Dec 2021 15:00:01 GMT
x-envoy-upstream-service-time: 1
server: envoy

复制代码

并且请求 /foo地址时,也可以正确的得到响应了。

➜  cilium-mesh kubectl exec -it -n cilium-test $CLIENT2 -- curl -X GET -I echo-same-node:8080/foo
HTTP/1.1 200 OK
x-powered-by: Express
vary: Origin, Accept-Encoding
access-control-allow-credentials: true
accept-ranges: bytes
cache-control: public, max-age=0
last-modified: Sat, 26 Oct 1985 08:15:00 GMT
etag: W/"809-7438674ba0"
content-type: text/html; charset=UTF-8
content-length: 2057
date: Sat, 18 Dec 2021 15:01:40 GMT
x-envoy-upstream-service-time: 2
server: envoy

复制代码

同时:请求 /foo 的时候,流量如下: 直接转换成功了对/的访问

Dec 18 15:02:22.541: cilium-test/client2-5998d566b4-hrhrb:38860 -> kube-system/coredns-78fcd69978-2ww28:53 L3-L4 REDIRECTED (UDP)
Dec 18 15:02:22.541: cilium-test/client2-5998d566b4-hrhrb:38860 -> kube-system/coredns-78fcd69978-2ww28:53 to-proxy FORWARDED (UDP)
Dec 18 15:02:22.541: cilium-test/client2-5998d566b4-hrhrb:38860 -> kube-system/coredns-78fcd69978-2ww28:53 to-proxy FORWARDED (UDP)
Dec 18 15:02:22.541: cilium-test/client2-5998d566b4-hrhrb:38860 -> kube-system/coredns-78fcd69978-2ww28:53 dns-request FORWARDED (DNS Query echo-same-node.cilium-test.svc.cluster.local. AAAA)
Dec 18 15:02:22.541: cilium-test/client2-5998d566b4-hrhrb:38860 -> kube-system/coredns-78fcd69978-2ww28:53 dns-request FORWARDED (DNS Query echo-same-node.cilium-test.svc.cluster.local. A)
Dec 18 15:02:22.542: cilium-test/client2-5998d566b4-hrhrb:53062 -> cilium-test/echo-same-node:8080 none REDIRECTED (TCP Flags: SYN)
Dec 18 15:02:22.542: cilium-test/client2-5998d566b4-hrhrb:53062 -> cilium-test/echo-same-node:8080 to-proxy FORWARDED (TCP Flags: SYN)
Dec 18 15:02:22.542: cilium-test/client2-5998d566b4-hrhrb:53062 -> cilium-test/echo-same-node:8080 to-proxy FORWARDED (TCP Flags: ACK)
Dec 18 15:02:22.542: cilium-test/client2-5998d566b4-hrhrb:53062 -> cilium-test/echo-same-node:8080 to-proxy FORWARDED (TCP Flags: ACK, PSH)
Dec 18 15:02:22.542: cilium-test/client2-5998d566b4-hrhrb:53048 -> cilium-test/echo-same-node-745bd5c77-zpzdn:8080 to-proxy FORWARDED (TCP Flags: ACK, PSH)
Dec 18 15:02:22.542: cilium-test/client2-5998d566b4-hrhrb:53048 -> cilium-test/echo-same-node-745bd5c77-zpzdn:8080 http-request FORWARDED (HTTP/1.1 GET http://echo-same-node:8080/)
Dec 18 15:02:22.543: cilium-test/client2-5998d566b4-hrhrb:53062 -> cilium-test/echo-same-node:8080 to-proxy FORWARDED (TCP Flags: ACK, FIN)
Dec 18 15:02:22.544: cilium-test/client2-5998d566b4-hrhrb:53062 -> cilium-test/echo-same-node:8080 to-proxy FORWARDED (TCP Flags: ACK)

复制代码

多次请求看日志:

Dec 18 15:07:20.883: cilium-test/client2-5998d566b4-hrhrb:49656 -> kube-system/coredns-78fcd69978-2ww28:53 L3-L4 REDIRECTED (UDP)
Dec 18 15:07:20.883: cilium-test/client2-5998d566b4-hrhrb:49656 -> kube-system/coredns-78fcd69978-2ww28:53 to-proxy FORWARDED (UDP)
Dec 18 15:07:20.883: cilium-test/client2-5998d566b4-hrhrb:49656 -> kube-system/coredns-78fcd69978-2ww28:53 to-proxy FORWARDED (UDP)
Dec 18 15:07:20.883: cilium-test/client2-5998d566b4-hrhrb:49656 -> kube-system/coredns-78fcd69978-2ww28:53 dns-request FORWARDED (DNS Query echo-same-node.cilium-test.svc.cluster.local. A)
Dec 18 15:07:20.884: cilium-test/client2-5998d566b4-hrhrb:49656 -> kube-system/coredns-78fcd69978-2ww28:53 dns-request FORWARDED (DNS Query echo-same-node.cilium-test.svc.cluster.local. AAAA)
Dec 18 15:07:20.885: cilium-test/client2-5998d566b4-hrhrb:53070 -> cilium-test/echo-same-node:8080 none REDIRECTED (TCP Flags: SYN)
Dec 18 15:07:20.885: cilium-test/client2-5998d566b4-hrhrb:53070 -> cilium-test/echo-same-node:8080 to-proxy FORWARDED (TCP Flags: SYN)
Dec 18 15:07:20.885: cilium-test/client2-5998d566b4-hrhrb:53070 -> cilium-test/echo-same-node:8080 to-proxy FORWARDED (TCP Flags: ACK)
Dec 18 15:07:20.885: cilium-test/client2-5998d566b4-hrhrb:53070 -> cilium-test/echo-same-node:8080 to-proxy FORWARDED (TCP Flags: ACK, PSH)
Dec 18 15:07:20.885: cilium-test/client2-5998d566b4-hrhrb:53064 -> cilium-test/echo-same-node-745bd5c77-zpzdn:8080 to-proxy FORWARDED (TCP Flags: ACK, PSH)
Dec 18 15:07:20.885: cilium-test/client2-5998d566b4-hrhrb:53064 -> cilium-test/echo-same-node-745bd5c77-zpzdn:8080 http-request FORWARDED (HTTP/1.1 GET http://echo-same-node:8080/)
Dec 18 15:07:20.886: cilium-test/client2-5998d566b4-hrhrb:53070 -> cilium-test/echo-same-node:8080 to-proxy FORWARDED (TCP Flags: ACK, FIN)
Dec 18 15:07:20.886: cilium-test/client2-5998d566b4-hrhrb:53070 -> cilium-test/echo-same-node:8080 to-proxy FORWARDED (TCP Flags: ACK)
Dec 18 15:07:26.086: cilium-test/client2-5998d566b4-hrhrb:53048 -> cilium-test/echo-same-node-745bd5c77-zpzdn:8080 to-proxy FORWARDED (TCP Flags: ACK)

Dec 18 15:07:44.739: cilium-test/client2-5998d566b4-hrhrb:39057 -> kube-system/coredns-78fcd69978-7lbwh:53 L3-L4 REDIRECTED (UDP)
Dec 18 15:07:44.739: cilium-test/client2-5998d566b4-hrhrb:39057 -> kube-system/coredns-78fcd69978-7lbwh:53 to-proxy FORWARDED (UDP)
Dec 18 15:07:44.740: cilium-test/client2-5998d566b4-hrhrb:39057 -> kube-system/coredns-78fcd69978-7lbwh:53 to-proxy FORWARDED (UDP)
Dec 18 15:07:44.740: cilium-test/client2-5998d566b4-hrhrb:39057 -> kube-system/coredns-78fcd69978-7lbwh:53 dns-request FORWARDED (DNS Query echo-same-node.cilium-test.svc.cluster.local. AAAA)
Dec 18 15:07:44.740: cilium-test/client2-5998d566b4-hrhrb:39057 -> kube-system/coredns-78fcd69978-7lbwh:53 dns-request FORWARDED (DNS Query echo-same-node.cilium-test.svc.cluster.local. A)
Dec 18 15:07:44.741: cilium-test/client2-5998d566b4-hrhrb:53072 -> cilium-test/echo-same-node:8080 none REDIRECTED (TCP Flags: SYN)
Dec 18 15:07:44.741: cilium-test/client2-5998d566b4-hrhrb:53072 -> cilium-test/echo-same-node:8080 to-proxy FORWARDED (TCP Flags: SYN)
Dec 18 15:07:44.741: cilium-test/client2-5998d566b4-hrhrb:53072 -> cilium-test/echo-same-node:8080 to-proxy FORWARDED (TCP Flags: ACK)
Dec 18 15:07:44.741: cilium-test/client2-5998d566b4-hrhrb:53072 -> cilium-test/echo-same-node:8080 to-proxy FORWARDED (TCP Flags: ACK, PSH)
Dec 18 15:07:44.742: cilium-test/client2-5998d566b4-hrhrb:53068 -> cilium-test/echo-other-node-f4d46f75b-bqpcb:8080 to-proxy FORWARDED (TCP Flags: ACK, PSH)
Dec 18 15:07:44.742: cilium-test/client2-5998d566b4-hrhrb:53068 -> cilium-test/echo-other-node-f4d46f75b-bqpcb:8080 http-request FORWARDED (HTTP/1.1 GET http://echo-same-node:8080/)
Dec 18 15:07:44.744: cilium-test/client2-5998d566b4-hrhrb:53072 -> cilium-test/echo-same-node:8080 to-proxy FORWARDED (TCP Flags: ACK, FIN)
Dec 18 15:07:44.744: cilium-test/client2-5998d566b4-hrhrb:53072 -> cilium-test/echo-same-node:8080 to-proxy FORWARDED (TCP Flags: ACK)
复制代码

可以看到它真的成功的进行了负载均衡。

总结

本文我带你部署了 Cilium Service Mesh,并通过两个示例,带你体验了 Cilium Service Mesh 的工作情况。

整体而言, 这种方式能带来一定的便利性,但它的服务间流量配置主要依靠于 CiliumEnvoyConfig ,不算太方便。

一起来期待它后续的演进!


欢迎订阅我的文章公众号【MoeLove】

TheMoeLove

收藏成功!
已添加到「」, 点击更改
