Android 实现阴影的两种方式

最近项目中有实现阴影的需求，需求是控件左侧或者右侧贴边，未贴边一侧需要圆角，控件背景为白色，整体带0.7的透明，需要阴影。尝试了ShadowLayer还有elevation+outlineProvider两种方案，记录一下。

1. ShadowLayer

该方案是通过自定View，对画笔设置ShadowLayer来绘制图形，代码如下：

class ShadowView : View {

    private var viewWidth: Int = 0
    private var viewHeight: Int = 0

    private var shadowRound = 0f
    private var shadowColor = 0
    private var shadowRadius = 0f
    private var shadowOffsetX = 0f
    private var shadowOffsetY = 0f

    private lateinit var shadowPaint: Paint
    private lateinit var shadowPath: Path

    constructor(context: Context?) : this(context, null)

    constructor(context: Context?, attrs: AttributeSet?) : this(context, attrs, 0)

    constructor(context: Context?, attrs: AttributeSet?, defStyleAttr: Int) : super(context, attrs, defStyleAttr) {
        initAttr(attrs, defStyleAttr)
        initPaint()
    }

    private fun initAttr(attrs: AttributeSet?, defStyleAttr: Int) {
        val typeArray = context.theme.obtainStyledAttributes(attrs, R.styleable.ShadowView, defStyleAttr, 0)
        shadowRound = typeArray.getDimension(R.styleable.ShadowView_shadowRoundRadius, dp2Px(27).toFloat())
        shadowColor = typeArray.getColor(R.styleable.ShadowView_shadowColor, ContextCompat.getColor(context, R.color.alpha_black))
        shadowRadius = typeArray.getFloat(R.styleable.ShadowView_shadowRadius, 10f)
        shadowOffsetX = typeArray.getDimension(R.styleable.ShadowView_shadowOffsetX, 6f)
        shadowOffsetY = typeArray.getDimension(R.styleable.ShadowView_shadowOffsetY, 2f)
    }

    private fun initPaint() {
        shadowPaint = Paint()
        shadowPaint.color = ContextCompat.getColor(context, android.R.color.white)
        shadowPaint.isAntiAlias = true
        shadowPaint.style = Paint.Style.FILL
        shadowPaint.alpha = (255 * 0.7).toInt()
    }

    private fun initPath() {
        shadowPath = Path()

    }

    override fun onMeasure(widthMeasureSpec: Int, heightMeasureSpec: Int) {
        viewWidth = MeasureSpec.getSize(widthMeasureSpec)
        viewHeight = MeasureSpec.getSize(heightMeasureSpec)
        initPath()
        setMeasuredDimension(viewWidth, viewHeight)
    }

    override fun onDraw(canvas: Canvas?) {
        super.onDraw(canvas)
        //shadowRadius:模糊半径，radius越大越模糊，越小越清晰，但是如果radius设置为0，没有阴影
        shadowPaint.setShadowLayer(shadowRadius, shadowOffsetX, shadowOffsetY, shadowColor)
        canvas?.drawPath(shadowPath, shadowPaint)
        canvas?.save()
    }

    private fun dp2Px(dpValue: Int): Int {
        return TypedValue.applyDimension(TypedValue.COMPLEX_UNIT_DIP, dpValue.toFloat(), Resources.getSystem().displayMetrics).toInt()
    }
}

    <androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:clipChildren="false">

        <ShadowView
            android:id="@+id/v_shadow_test_shadow_layer"
            android:layout_width="82dp"
            android:layout_height="54dp"
            android:layout_marginTop="120dp"
            app:layout_constraintEnd_toEndOf="parent"
            app:layout_constraintTop_toTopOf="parent" />

    </androidx.constraintlayout.widget.ConstraintLayout>

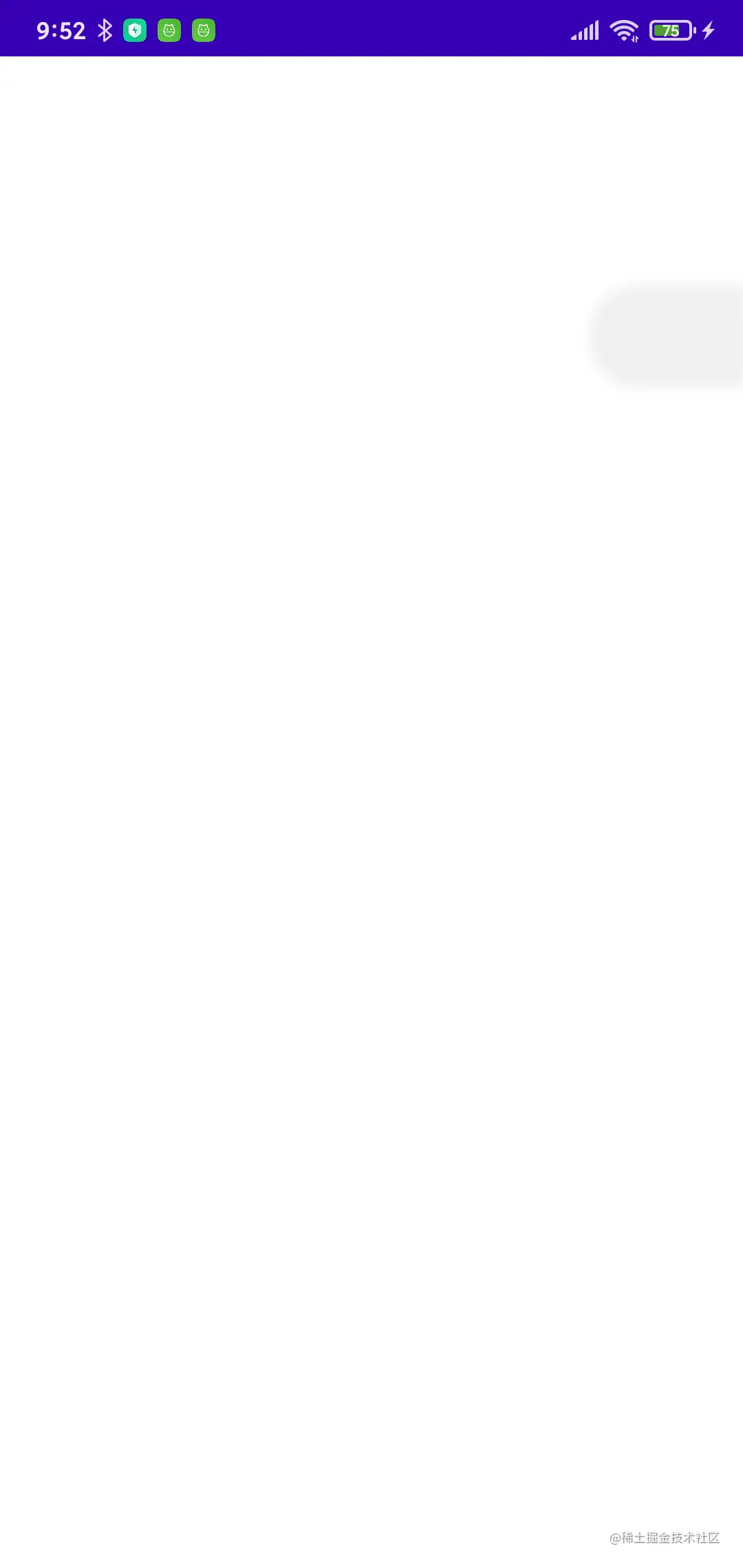

实现效果如下图:

2. elevation+outlineProvider

android:elevation 是Android5.0才加入的属性，不过根据官方的统计5.0已经覆盖了98%的设备,所以大可放心使用。代码如下：

    <androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:clipChildren="false">

        <View
            android:id="@+id/v_shadow_test_outline"
            android:layout_width="82dp"
            android:layout_height="54dp"
            android:layout_marginTop="120dp"
            android:alpha="0.7"
            android:elevation="4dp"
            app:layout_constraintEnd_toEndOf="parent"
            app:layout_constraintTop_toTopOf="parent" />

    </androidx.constraintlayout.widget.ConstraintLayout>

class ShadowActivity : Activity() {

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)

        vShadowOutline.outlineProvider = object : ViewOutlineProvider() {
            override fun getOutline(view: View, outline: Outline) {
                val width = view.measuredWidth.toFloat()
                val height = view.measuredHeight.toFloat()
                val radius = height / 2

                val path = Path()
                path.moveTo(width, 0f)
                path.lineTo(0 + radius, 0f)
                path.addArc(0f, 0f, 0 + radius * 2, height, 270f, -180f)
                path.lineTo(width, height)
                path.lineTo(width, 0f)

                if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.R) {
                    outline.setPath(path)
                } else {
                    outline.setConvexPath(path)
                }

                //阴影透明度，采用这种方式只能调整阴影的透明度，无法调整阴影的颜色
                outline.alpha = 0.4f
            }
        }
    }
}

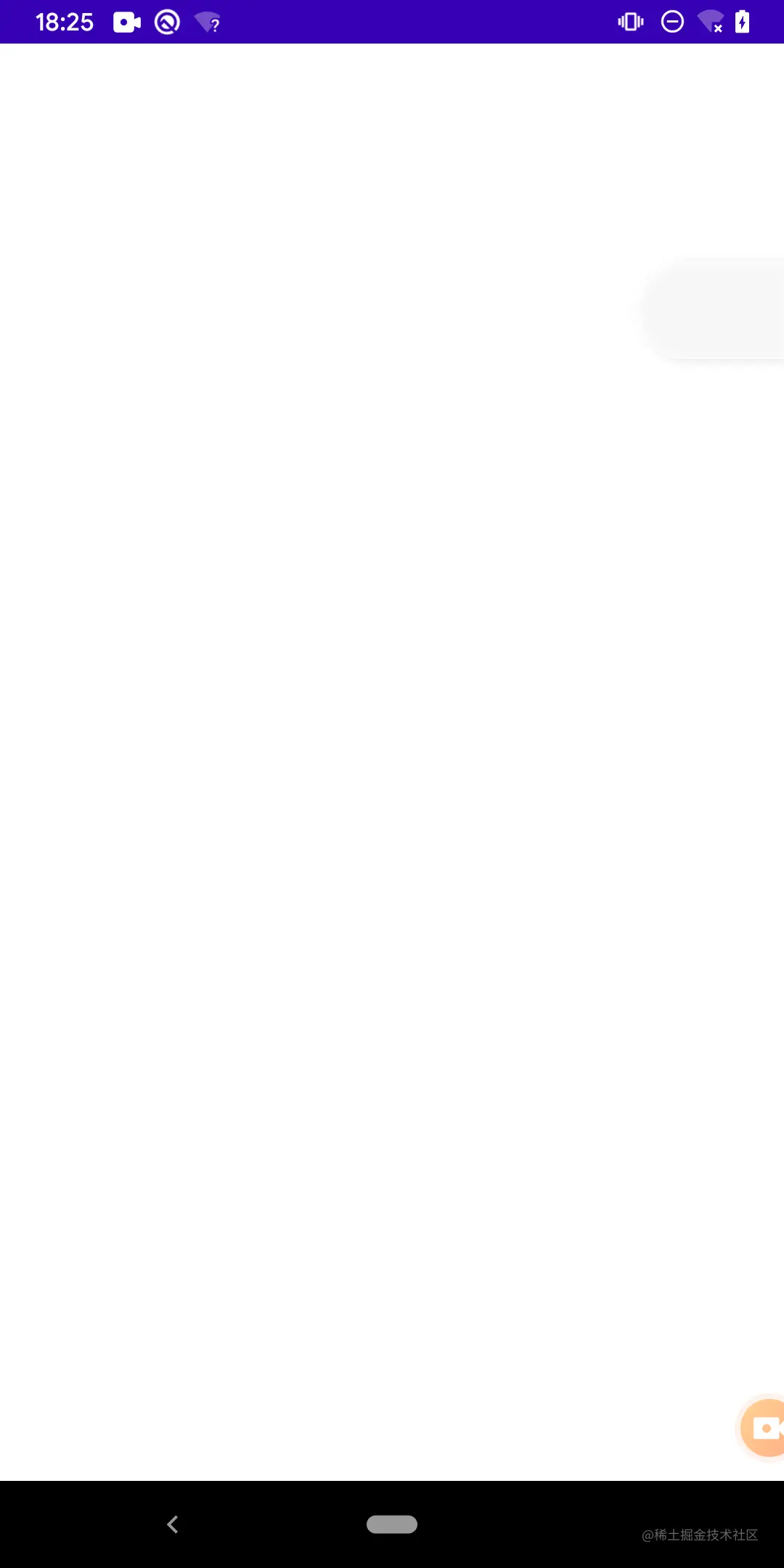

实现效果如下图:

总结

两个方案对于我目前的需求来说都是可以满足的，方案2会比较简单一些，因此目前采用的是方案2。但是方案2也有局限性，就是无法改变阴影的颜色，以后如果有需要彩色的阴影的话就得使用方案1来实现。
