01磁盘管理
1.删除磁盘
pve 删除磁盘目录 | Proxmox VE ——佛西博客
//查看磁盘文件
vi /etc/pve/storage.cfg
//删除挂在磁盘
cd /etc/systemd/system
//默认配置
dir: local
path /var/lib/vz
content iso,vztmpl,backup
lvmthin: local-lvm
thinpool data
vgname pve
content rootdir,images
2.加载磁盘
//检查所有磁盘
mkdir -p /data/
echo "/dev/sdb /data ext4 errors=remount-ro 0 1" >>/etc/fstab
mount -a
df -h
[root@Temp ~]# df -h
Filesystem Size Used Avail Use% Mounted on
/dev/mapper/centos-root 36G 3.1G 33G 9% /
devtmpfs 16G 0 16G 0% /dev
tmpfs 16G 0 16G 0% /dev/shm
tmpfs 16G 8.6M 16G 1% /run
tmpfs 16G 0 16G 0% /sys/fs/cgroup
/dev/mapper/centos-home 18G 33M 18G 1% /home
/dev/sda1 1014M 192M 823M 19% /boot
tmpfs 3.2G 0 3.2G 0% /run/user/0
/dev/sdb 493G 73M 467G 1% /data
//加载磁盘
/dev/sdb 493G 73M 467G 1% /data
02黑群辉安装
镜像准备
3617/61 是高配对CPU有要求
Uefi 引导
不支持在 Docs 外粘贴 block
不支持在 Docs 外粘贴 block
3615/52 对配置要求较低
用传统引导
系统
不支持在 Docs 外粘贴 block
引导：
不支持在 Docs 外粘贴 block
5.2 可以使用的配置
03PVEos虚拟机导入img 教程

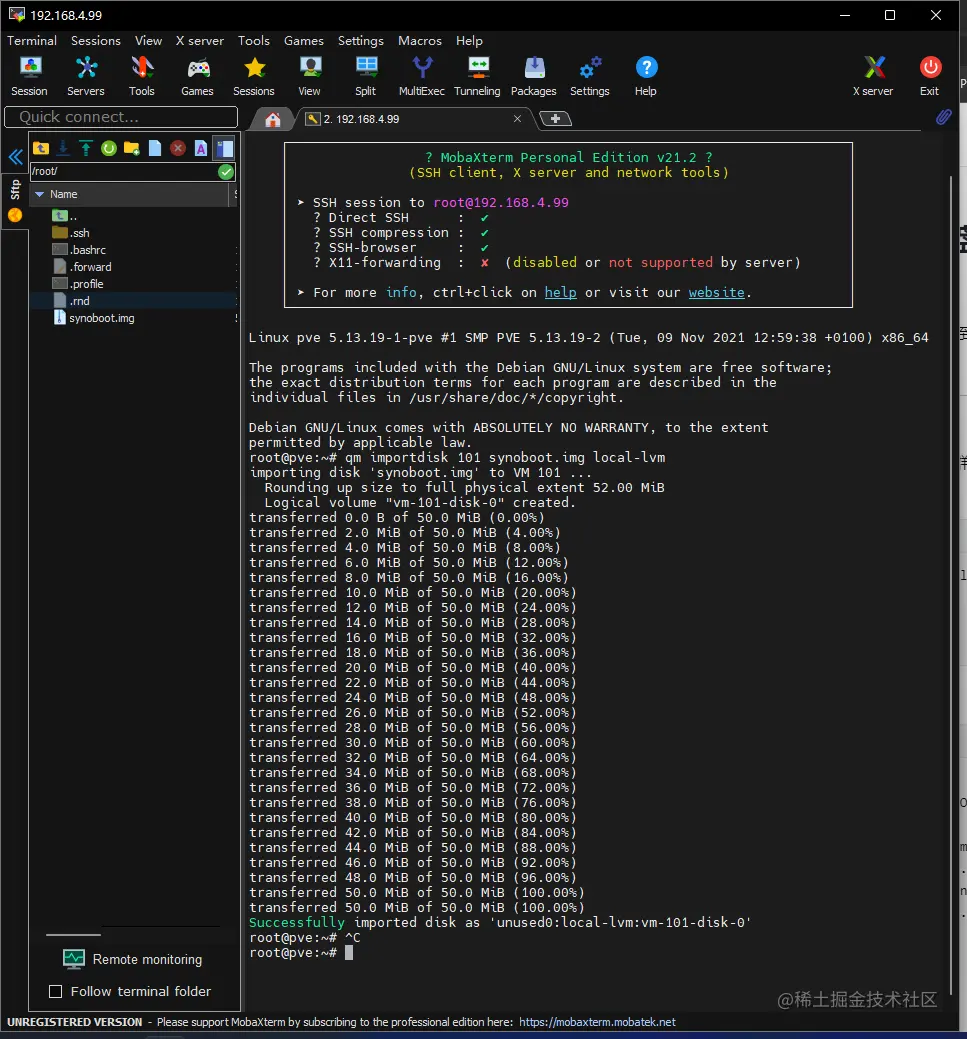

把电脑上的DS918_7.0.1.img点鼠标左键不松开，拖到MobaXterm的左边如下图的空白位置，再松开鼠标左键；
SSH拷贝灌注img文件
在MobaXterm的右边黑色区域，输入以下命令转换群晖引导盘，使它变成PVE虚拟机的格式（命令别照搬，100为第4步骤显示的VM ID）：
qm importdisk 101 XPEnoboot_DS3615xs_5.2-5967.1.img local-lvm
// 100 是虚拟机的ID、
//DS918_7.0.1.img 是镜像名字
//local-lvm 是默认分区
//命令
qm importdisk 101 openwrt.img local-lvm
qm importdisk 100 synoboot.img local-lvm
挂载img 到100虚拟机上

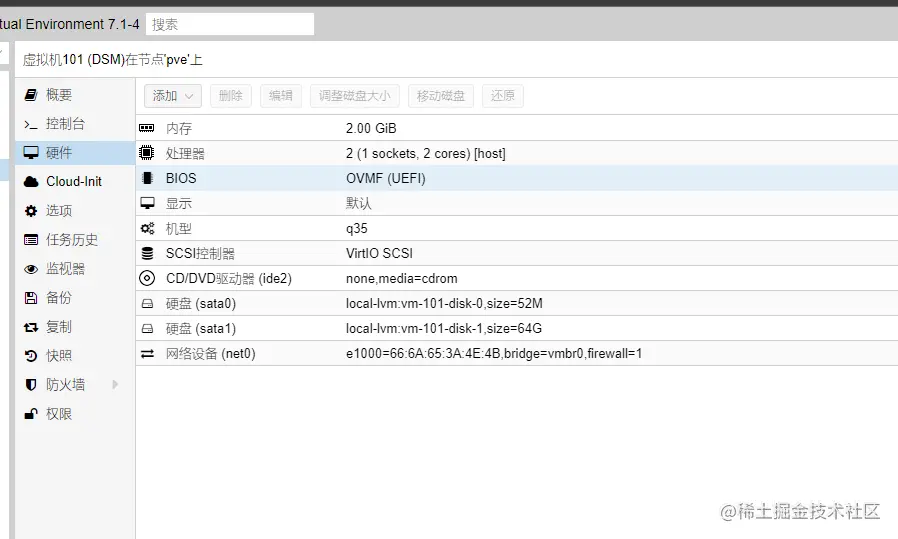

PVE 硬件配置
以下为我的操作示例
//导入img磁盘
qm importdisk 101 synoboot.img local-lvm
Debian GNU/Linux comes with ABSOLUTELY NO WARRANTY, to the extent
permitted by applicable law.
root@pve:~# qm importdisk 101 synoboot.img local-lvm
importing disk 'synoboot.img' to VM 101 ...
Rounding up size to full physical extent 52.00 MiB
Logical volume "vm-101-disk-0" created.
transferred 0.0 B of 50.0 MiB (0.00%)
transferred 2.0 MiB of 50.0 MiB (4.00%)
transferred 4.0 MiB of 50.0 MiB (8.00%)
transferred 6.0 MiB of 50.0 MiB (12.00%)
transferred 8.0 MiB of 50.0 MiB (16.00%)
transferred 10.0 MiB of 50.0 MiB (20.00%)
transferred 12.0 MiB of 50.0 MiB (24.00%)
transferred 14.0 MiB of 50.0 MiB (28.00%)
transferred 16.0 MiB of 50.0 MiB (32.00%)
transferred 18.0 MiB of 50.0 MiB (36.00%)
transferred 20.0 MiB of 50.0 MiB (40.00%)
transferred 22.0 MiB of 50.0 MiB (44.00%)
transferred 24.0 MiB of 50.0 MiB (48.00%)
transferred 26.0 MiB of 50.0 MiB (52.00%)
transferred 28.0 MiB of 50.0 MiB (56.00%)
transferred 30.0 MiB of 50.0 MiB (60.00%)
transferred 32.0 MiB of 50.0 MiB (64.00%)
transferred 34.0 MiB of 50.0 MiB (68.00%)
transferred 36.0 MiB of 50.0 MiB (72.00%)
transferred 38.0 MiB of 50.0 MiB (76.00%)
transferred 40.0 MiB of 50.0 MiB (80.00%)
transferred 42.0 MiB of 50.0 MiB (84.00%)
transferred 44.0 MiB of 50.0 MiB (88.00%)
transferred 46.0 MiB of 50.0 MiB (92.00%)
transferred 48.0 MiB of 50.0 MiB (96.00%)
transferred 50.0 MiB of 50.0 MiB (100.00%)
transferred 50.0 MiB of 50.0 MiB (100.00%)
Successfully imported disk as 'unused0:local-lvm:vm-101-disk-0'
root@pve:~#
