代码结构
源码基于react 17.0.3
假设我们的代码是以下结构：
function MyComponent() {
return (
// Displays <Spinner> until OtherComponent loads
<React.Suspense fallback={<Spinner />}>
{React.lazy(() => import('./OtherComponent'))}
</React.Suspense>
);
}
主要流程
首先调用react.createElement去生成一个特殊的结构体，里头有个$$typeof属性，如果这个属性是 Symbol(react.suspense),就会调用 updateSuspenseComponent 去生成对应的fiber节点。
packages/react-reconciler/src/ReactFiberBeginWork.old.js
function updateSuspenseComponent(current, workInProgress, renderLanes) {
const nextProps = workInProgress.pendingProps;
let suspenseContext: SuspenseContext = suspenseStackCursor.current;
let showFallback = false;
// 首次执行该值是false，去构建lazy组件
// lazy组件throw error后再次执行，该值为true
const didSuspend = (workInProgress.flags & DidCapture) !== NoFlags;
if (
didSuspend ||
shouldRemainOnFallback(
suspenseContext,
current,
workInProgress,
renderLanes,
)
) {
// Something in this boundary's subtree already suspended. Switch to
// rendering the fallback children.
showFallback = true;
workInProgress.flags &= ~DidCapture;
} else {
// Attempting the main content
if (
current === null ||
(current.memoizedState: null | SuspenseState) !== null
) {
// This is a new mount or this boundary is already showing a fallback state.
// Mark this subtree context as having at least one invisible parent that could
// handle the fallback state.
// Avoided boundaries are not considered since they cannot handle preferred fallback states.
if (nextProps.unstable_avoidThisFallback !== true) {
suspenseContext = addSubtreeSuspenseContext(
suspenseContext,
InvisibleParentSuspenseContext,
);
}
}
}
suspenseContext = setDefaultShallowSuspenseContext(suspenseContext);
pushSuspenseContext(workInProgress, suspenseContext);
if (current === null) {
// Initial mount
// If we're currently hydrating, try to hydrate this boundary.
tryToClaimNextHydratableInstance(workInProgress);
const nextPrimaryChildren = nextProps.children;
const nextFallbackChildren = nextProps.fallback;
if (showFallback) {
// 第二次执行进入这里
const fallbackFragment = mountSuspenseFallbackChildren(
workInProgress,
nextPrimaryChildren,
nextFallbackChildren,
renderLanes,
);
const primaryChildFragment: Fiber = (workInProgress.child: any);
primaryChildFragment.memoizedState =
mountSuspenseOffscreenState(renderLanes);
workInProgress.memoizedState = SUSPENDED_MARKER;
return fallbackFragment;
} else {
// 首次执行进入这里
return mountSuspensePrimaryChildren(
workInProgress,
nextPrimaryChildren,
renderLanes,
);
}
} else {
// This is an update.
...
}
}
}
这里捋一下 updateSuspenseComponent 的流程
- 首次执行会调用
mountSuspensePrimaryChildren mountSuspensePrimaryChildren内部调用了mountWorkInProgressOffscreenFiber，生成了$$typeof为Symbol(react.offscreen)类型的fiber节点。而lazy组件则作为该fiber节点的pendingProps中的children等待下一次调和。$$typeof为Symbol(react.offscreen)类型的fiber节点 调用reconcileChildFibers基于 pendingProps 为 lazy组件生成子fiber节点。
reconcileChildFibers的源码如下：
packages/react-reconciler/src/ReactChildFiber.old.js
function reconcileChildFibers(
returnFiber: Fiber,
currentFirstChild: Fiber | null,
newChild: any,
lanes: Lanes,
): Fiber | null {
...
// newChild 的结构如下
/**
{
$$typeof: Symbol(react.lazy)
_init: ƒ lazyInitializer(payload)
_payload: {_status: -1, _result: ƒ}
}
*/
// Handle object types
if (typeof newChild === 'object' && newChild !== null) {
switch (newChild.$$typeof) {
case REACT_LAZY_TYPE:
if (enableLazyElements) {
const payload = newChild._payload;
const init = newChild._init;
// TODO: This function is supposed to be non-recursive.
return reconcileChildFibers(
returnFiber,
currentFirstChild,
init(payload),
lanes,
);
}
}
}
...
}
这时候会调用lazy组件中的init方法，源码如下：
packages/react/src/ReactLazy.js
function lazyInitializer<T>(payload: Payload<T>): T {
if (payload._status === Uninitialized) {
const ctor = payload._result;
const thenable = ctor();
// Transition to the next state.
// This might throw either because it's missing or throws. If so, we treat it
// as still uninitialized and try again next time. Which is the same as what
// happens if the ctor or any wrappers processing the ctor throws. This might
// end up fixing it if the resolution was a concurrency bug.
thenable.then(
(moduleObject) => {
if (payload._status === Pending || payload._status === Uninitialized) {
// Transition to the next state.
const resolved: ResolvedPayload<T> = (payload: any);
resolved._status = Resolved;
resolved._result = moduleObject;
}
},
(error) => {
if (payload._status === Pending || payload._status === Uninitialized) {
// Transition to the next state.
const rejected: RejectedPayload = (payload: any);
rejected._status = Rejected;
rejected._result = error;
}
},
);
if (payload._status === Uninitialized) {
// In case, we're still uninitialized, then we're waiting for the thenable
// to resolve. Set it as pending in the meantime.
const pending: PendingPayload = (payload: any);
pending._status = Pending;
pending._result = thenable;
}
}
if (payload._status === Resolved) {
const moduleObject = payload._result;
return moduleObject.default;
} else {
throw payload._result;
}
}
export function lazy<T>(
ctor: () => Thenable<{default: T, ...}>,
): LazyComponent<T, Payload<T>> {
const payload: Payload<T> = {
// We use these fields to store the result.
_status: -1,
_result: ctor,
};
const lazyType: LazyComponent<T, Payload<T>> = {
$$typeof: REACT_LAZY_TYPE,
_payload: payload,
_init: lazyInitializer,
};
return lazyType;
}
调用init方法时，payload._status 的值为-1，直接将 payload._result，即lazy组件传入的promise函数throw出去。
接下来我们看看react是如何处理错误的。
packages/react-reconciler/src/ReactFiberWorkLoop.old.js
function renderRootSync(root: FiberRoot, lanes: Lanes) {
...
do {
try {
workLoopSync();
break;
} catch (thrownValue) {
handleError(root, thrownValue);
}
} while (true);
...
}
function handleError(root, thrownValue): void {
do {
...
let erroredWork = workInProgress;
try {
throwException(
root,
erroredWork.return,
erroredWork,
thrownValue,
workInProgressRootRenderLanes,
);
completeUnitOfWork(erroredWork);
} catch (yetAnotherThrownValue) {
...
continue;
}
// Return to the normal work loop.
return;
} while (true);
}
packages/react-reconciler/src/ReactFiberThrow.old.js
function throwException(
root: FiberRoot,
returnFiber: Fiber,
sourceFiber: Fiber,
value: mixed,
rootRenderLanes: Lanes,
) {
// The source fiber did not complete.
sourceFiber.flags |= Incomplete;
// This is a wakeable.
const wakeable: Wakeable = (value: any);
// Reset the memoizedState to what it was before we attempted to render it.
// A legacy mode Suspense quirk, only relevant to hook components.
const tag = sourceFiber.tag;
// Schedule the nearest Suspense to re-render the timed out view.
let workInProgress = returnFiber;
do {
if (
workInProgress.tag === SuspenseComponent &&
shouldCaptureSuspense(workInProgress, hasInvisibleParentBoundary)
) {
// Found the nearest boundary.
// Stash the promise on the boundary fiber. If the boundary times out, we'll
// attach another listener to flip the boundary back to its normal state.
const wakeables: Set<Wakeable> = (workInProgress.updateQueue: any);
if (wakeables === null) {
const updateQueue = (new Set(): any);
// 将promise挂在了workInProgress中的updateQueues上了
updateQueue.add(wakeable);
workInProgress.updateQueue = updateQueue;
} else {
wakeables.add(wakeable);
}
// 实现监听函数，确保lazy组件loading完成后更新页面
attachPingListener(root, wakeable, rootRenderLanes);
workInProgress.flags |= ShouldCapture;
// TODO: I think we can remove this, since we now use `DidCapture` in
// the begin phase to prevent an early bailout.
workInProgress.lanes = rootRenderLanes;
return;
}
// This boundary already captured during this render. Continue to the next
// boundary.
workInProgress = workInProgress.return;
} while (workInProgress !== null);
}
...
}
function attachPingListener(root: FiberRoot, wakeable: Wakeable, lanes: Lanes) {
let pingCache = root.pingCache;
let threadIDs;
if (pingCache === null) {
pingCache = root.pingCache = new PossiblyWeakMap();
threadIDs = new Set();
pingCache.set(wakeable, threadIDs);
} else {
threadIDs = pingCache.get(wakeable);
if (threadIDs === undefined) {
threadIDs = new Set();
pingCache.set(wakeable, threadIDs);
}
}
if (!threadIDs.has(lanes)) {
// Memoize using the thread ID to prevent redundant listeners.
threadIDs.add(lanes);
const ping = pingSuspendedRoot.bind(null, root, wakeable, lanes);
if (enableUpdaterTracking) {
if (isDevToolsPresent) {
// If we have pending work still, restore the original updaters
restorePendingUpdaters(root, lanes);
}
}
// 这里实现监听
wakeable.then(ping, ping);
}
}
packages/react-reconciler/src/ReactFiberWorkLoop.old.js
export function pingSuspendedRoot(
root: FiberRoot,
wakeable: Wakeable,
pingedLanes: Lanes,
) {
const pingCache = root.pingCache;
if (pingCache !== null) {
// The wakeable resolved, so we no longer need to memoize, because it will
// never be thrown again.
pingCache.delete(wakeable);
}
const eventTime = requestEventTime();
markRootPinged(root, pingedLanes, eventTime);
// debugger发现不走这个if逻辑
if (
workInProgressRoot === root &&
isSubsetOfLanes(workInProgressRootRenderLanes, pingedLanes)
) {
// Received a ping at the same priority level at which we're currently
// rendering. We might want to restart this render. This should mirror
// the logic of whether or not a root suspends once it completes.
// TODO: If we're rendering sync either due to Sync, Batched or expired,
// we should probably never restart.
// If we're suspended with delay, or if it's a retry, we'll always suspend
// so we can always restart.
if (
workInProgressRootExitStatus === RootSuspendedWithDelay ||
(workInProgressRootExitStatus === RootSuspended &&
includesOnlyRetries(workInProgressRootRenderLanes) &&
now() - globalMostRecentFallbackTime < FALLBACK_THROTTLE_MS)
) {
// Restart from the root.
prepareFreshStack(root, NoLanes);
} else {
// Even though we can't restart right now, we might get an
// opportunity later. So we mark this render as having a ping.
workInProgressRootPingedLanes = mergeLanes(
workInProgressRootPingedLanes,
pingedLanes,
);
}
}
// 重新开始渲染流程
ensureRootIsScheduled(root, eventTime);
}

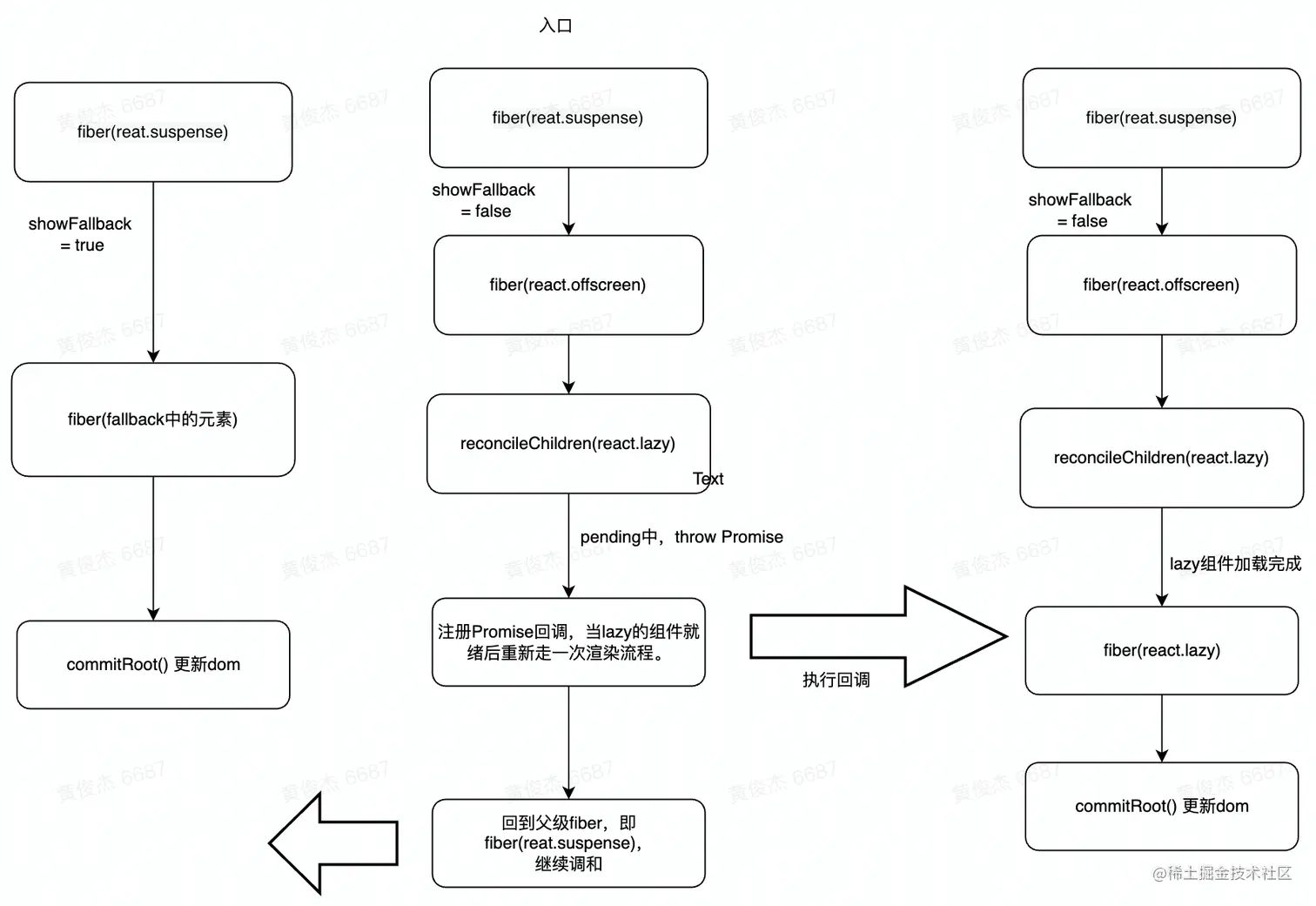

总结
直接上图：
