SpringBoot动态定时任务的实现

·  阅读 1486

1. Spring 定时任务的简单实现

Spring Boot中使用定时任务,只需要@EnableScheduling开启定时任务支持,在需要调度的方法上添加@Scheduled注解。这样就能够在项目中开启定时调度功能了,支持通过cron、fixedRate、fixedDelay等灵活的控制执行周期和频率。

1.1 缺点

  • 周期一旦指定,想要更改必须要重启应用

1.2 需求

  • 热更新定时任务的执行周期,基于cron表达式并支持外部存储,如数据库,nacos等
  • 最小改造兼容现有的定时任务(仅需添加一个注解)
  • 动态增加定时任务

2.Spring 定时任务源码分析

2.1 @EnableScheduling 引入了配置类 SchedulingConfiguration

@Target(ElementType.TYPE)
@Retention(RetentionPolicy.RUNTIME)
@Import(SchedulingConfiguration.class)
@Documented
public @interface EnableScheduling {
}
复制代码

2.2 SchedulingConfiguration只配置了一个bean,ScheduledAnnotationBeanPostProcessor从名字就知道该类实现BeanPostProcessor接口

@Configuration
@Role(BeanDefinition.ROLE_INFRASTRUCTURE)
public class SchedulingConfiguration {
   @Bean(name = TaskManagementConfigUtils.SCHEDULED_ANNOTATION_PROCESSOR_BEAN_NAME)
   @Role(BeanDefinition.ROLE_INFRASTRUCTURE)
   public ScheduledAnnotationBeanPostProcessor scheduledAnnotationProcessor() {
      return new ScheduledAnnotationBeanPostProcessor();
   }
}
复制代码

2.3 ScheduledAnnotationBeanPostProcessorpostProcessAfterInitialization实现,可见具体处理@Scheduled实现定时任务的是processScheduled方法

@Override
public Object postProcessAfterInitialization(Object bean, String beanName) {
   if (bean instanceof AopInfrastructureBean || bean instanceof TaskScheduler ||
         bean instanceof ScheduledExecutorService) {
      // Ignore AOP infrastructure such as scoped proxies.
      return bean;
   }

   Class<?> targetClass = AopProxyUtils.ultimateTargetClass(bean);
   if (!this.nonAnnotatedClasses.contains(targetClass) &&
         AnnotationUtils.isCandidateClass(targetClass, Arrays.asList(Scheduled.class, Schedules.class))) {
      // 获取bean的方法及@Scheduled映射关系
      Map<Method, Set<Scheduled>> annotatedMethods = MethodIntrospector.selectMethods(targetClass,
            (MethodIntrospector.MetadataLookup<Set<Scheduled>>) method -> {
               Set<Scheduled> scheduledMethods = AnnotatedElementUtils.getMergedRepeatableAnnotations(
                     method, Scheduled.class, Schedules.class);
               return (!scheduledMethods.isEmpty() ? scheduledMethods : null);
            });
      if (annotatedMethods.isEmpty()) {
         this.nonAnnotatedClasses.add(targetClass);
         if (logger.isTraceEnabled()) {
            logger.trace("No @Scheduled annotations found on bean class: " + targetClass);
         }
      }
      else {
         // Non-empty set of methods
         annotatedMethods.forEach((method, scheduledMethods) ->
               // 处理@Scheduled注解
               scheduledMethods.forEach(scheduled -> processScheduled(scheduled, method, bean)));
         if (logger.isTraceEnabled()) {
            logger.trace(annotatedMethods.size() + " @Scheduled methods processed on bean '" + beanName +
                  "': " + annotatedMethods);
         }
      }
   }
   return bean;
}
复制代码

2.4 以下仅贴出ScheduledAnnotationBeanPostProcessor.processScheduled处理cron表达式的关键实现,

private final ScheduledTaskRegistrar registrar;

public ScheduledAnnotationBeanPostProcessor() {
   this.registrar = new ScheduledTaskRegistrar();
}

protected void processScheduled(Scheduled scheduled, Method method, Object bean) {
   try {
      // 将定时任务方法,转为Runnable
      Runnable runnable = createRunnable(bean, method);
      boolean processedSchedule = false;

      Set<ScheduledTask> tasks = new LinkedHashSet<>(4);

      // Determine initial delay
      // 处理 scheduled.initialDelay()的值,略过...

      // Check cron expression
      String cron = scheduled.cron();
      if (StringUtils.hasText(cron)) {
         String zone = scheduled.zone();
         if (this.embeddedValueResolver != null) {
            // ${}变量值表达式的转换
            cron = this.embeddedValueResolver.resolveStringValue(cron);
            zone = this.embeddedValueResolver.resolveStringValue(zone);
         }
         if (StringUtils.hasLength(cron)) {
            Assert.isTrue(initialDelay == -1, "'initialDelay' not supported for cron triggers");
            processedSchedule = true;
            if (!Scheduled.CRON_DISABLED.equals(cron)) {
               TimeZone timeZone;
               if (StringUtils.hasText(zone)) {
                  timeZone = StringUtils.parseTimeZoneString(zone);
               } else {
                  timeZone = TimeZone.getDefault();
               }

               // 创建cron触发器CronTrigger对象,并注册CronTask
               tasks.add(this.registrar.scheduleCronTask(new CronTask(runnable, new CronTrigger(cron, timeZone))));
            }
         }
      }
      // 处理fixedDelay和fixedRate,及ScheduledTask保存用于销毁,略过...
   }
   // 略过 catch Exception ...
}
复制代码

以上通过this.registrar.scheduleCronTask实现cron定时任务注册或初始化

3.动态定时任务的实现

实现思路: 重写ScheduledAnnotationBeanPostProcessor.processScheduled方法,修改处理cron的部分代码,使用this.registrar.scheduleTriggerTask注册或初始化定时任务

3.1 相关类图

classDiagram

DisposableBean <|-- DynamicCronScheduleTaskManager
EnvironmentAware <|-- EnvironmentDynamicCronHandler
AbstractDynamicCronHandler <|-- EnvironmentDynamicCronHandler
Trigger <|-- DynamicCronTrigger

EnvironmentAware: +setEnvironment()
DisposableBean: +destroy() void
Trigger: +nextExecutionTime(TriggerContext triggerContext) Date

class DynamicCronScheduleTaskManager{
 +Map<String, ScheduledTask> dynamicScheduledTaskMap
 -ScheduledTaskRegistrar registrar
 +addTriggerTask(String cronName, TriggerTask task) ScheduledTask
 +contains(String cronName) boolean
 +updateTriggerTask(String cronName) void
 +removeTriggerTask(String cronName) void
}

class AbstractDynamicCronHandler{
 -DynamicCronScheduleTaskManager dynamicCronScheduleTaskManager;
 +getCronExpression(String cronName) String
 +updateTriggerTash(String cronName) void
}

class EnvironmentDynamicCronHandler{
+Environment environment
+environmentChangeEvent(EnvironmentChangeEvent event) void
}
class DynamicCronTrigger{
-String cronName
-AbstractDynamicCronHandler dynamicCronHandler
-String cronExpression
-CronSequenceGenerator sequenceGenerator
}

class ScheduledDynamicCron{
 +value() String
 +cronName() String
 +handler() Class<? extends AbstractDynamicCronHandler>
}

3.2 DynamicCronScheduleTaskManager

import org.springframework.beans.factory.DisposableBean;
import org.springframework.scheduling.config.ScheduledTask;
import org.springframework.scheduling.config.ScheduledTaskRegistrar;
import org.springframework.scheduling.config.TriggerTask;
import java.util.HashMap;
import java.util.Map;
/**
 * @author HuangJS
 * @date 2021-12-11 3:04 下午
 */
public class DynamicCronScheduleTaskManager implements DisposableBean {
    private Map<String, ScheduledTask> dynamicScheduledTaskMap = new HashMap<>();
    ScheduledTaskRegistrar registrar;
    // 添加定时任务
    public ScheduledTask addTriggerTask(String cronName, TriggerTask task) {
        ScheduledTask scheduledTask = dynamicScheduledTaskMap.get(cronName);
        if (scheduledTask != null) {
            scheduledTask.cancel();
        }

        scheduledTask = this.registrar.scheduleTriggerTask(task);
        dynamicScheduledTaskMap.put(cronName, scheduledTask);
        return scheduledTask;
    }
    public boolean contains(String cronName){
        return this.dynamicScheduledTaskMap.containsKey(cronName);
    }
    // 更新定时任务的触发时机
    public void updateTriggerTask(String cronName) {
        ScheduledTask scheduledTask = dynamicScheduledTaskMap.get(cronName);
        if (scheduledTask == null) {
            throw new IllegalStateException("Invalid cronName "" + cronName + "",no fund ScheduledTask");
        }
        scheduledTask.cancel();

        scheduledTask = this.registrar.scheduleTriggerTask((TriggerTask) scheduledTask.getTask());
        dynamicScheduledTaskMap.put(cronName, scheduledTask);
    }

    // 移除定时任务
    public void removeTriggerTask(String cronName) {
        ScheduledTask scheduledTask = dynamicScheduledTaskMap.remove(cronName);
        if (scheduledTask != null) {
            scheduledTask.cancel();
        }
    }

    @Override
    public void destroy() throws Exception {
        for (ScheduledTask value : dynamicScheduledTaskMap.values()) {
            value.cancel();
        }
        this.dynamicScheduledTaskMap.clear();
    }
}
复制代码

3.3 AbstractDynamicCronHandler

public abstract class AbstractDynamicCronHandler {
    @Autowired
    protected DynamicCronScheduleTaskManager dynamicCronScheduleTaskManager;
    /**
     * 获取cron表达式
     * @return
     */
    public abstract String getCronExpression(String cronName);

    /**
     * 更新cronName对应的定时任务的触发时机
     * @param cronName
     */
    public void updateTriggerTask(String cronName) {
        dynamicCronScheduleTaskManager.updateTriggerTask(cronName);
    }
}
复制代码

3.4 EnvironmentDynamicCronHandler

基于Environment,在刷新配置时,自动刷新定时任务的触发时机,支持分布式多节点集群部署。

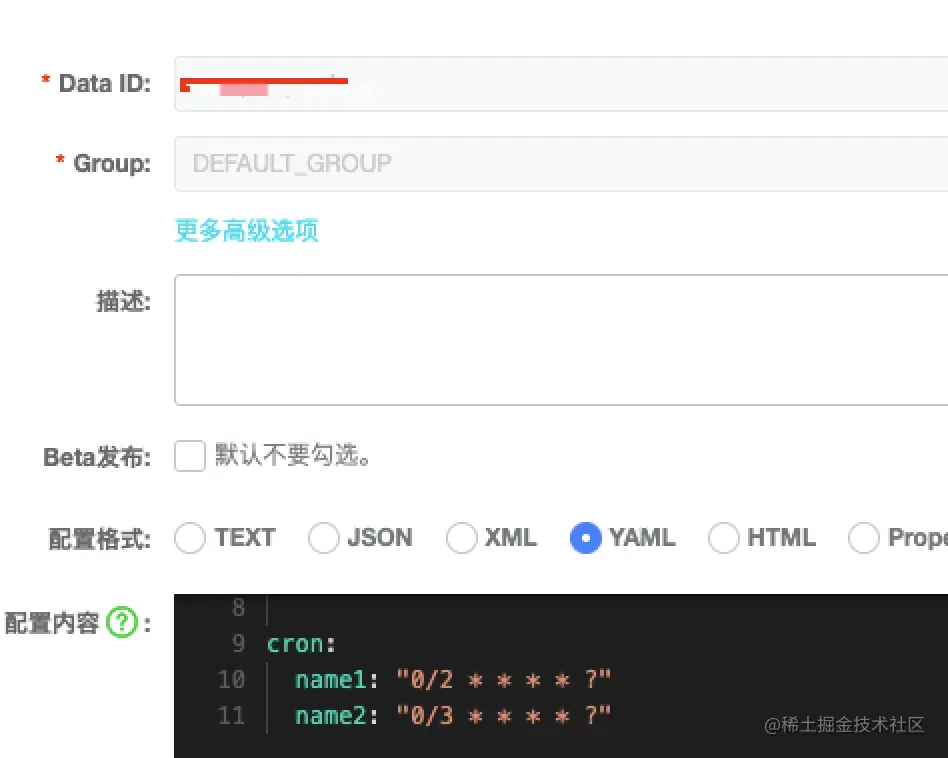

如,cron表达式配置在nacos,更新nacos上的配置时由于监听了EnvironmentChangeEvent事件实现了定时任务的触发时机的更新

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.cloud.context.environment.EnvironmentChangeEvent;
import org.springframework.context.EnvironmentAware;
import org.springframework.context.event.EventListener;
import org.springframework.core.env.Environment;

/**
 * @author HuangJS
 * @date 2021-12-11 11:46 上午
 */
public class EnvironmentDynamicCronHandler extends AbstractDynamicCronHandler implements EnvironmentAware {
    private final Logger logger = LoggerFactory.getLogger(EnvironmentDynamicCronHandler.class);
    private Environment environment;

    @Override
    public String getCronExpression(String cronName) {
        try {
            return environment.getProperty(cronName);
        } catch (Exception e) {
            logger.error(e.getMessage(), e);
        }
        return null;
    }

    @Override
    public void setEnvironment(Environment environment) {
        this.environment = environment;
    }

    @EventListener
    public void environmentChangeEvent(EnvironmentChangeEvent event) {
        for (String key : event.getKeys()) {
            if (this.dynamicCronScheduleTaskManager.contains(key)) {
                this.dynamicCronScheduleTaskManager.updateTriggerTask(key);
            }
        }
    }
}
复制代码

3.5 DynamicCronTrigger

public class DynamicCronTrigger implements Trigger {
    private final static Logger LOGGER = LoggerFactory.getLogger(DynamicCronTrigger.class);
    private String cronName;
    private AbstractDynamicCronHandler dynamicCronHandler;
    private String cronExpression;
    private CronSequenceGenerator sequenceGenerator;

    public DynamicCronTrigger(String cronName, AbstractDynamicCronHandler dynamicCronHandler) {
        this.cronName = cronName;
        this.dynamicCronHandler = dynamicCronHandler;
    }

    @Override
    public Date nextExecutionTime(TriggerContext triggerContext) {
        String cronExpression = dynamicCronHandler.getCronExpression(cronName);
        if (cronExpression == null) {
            return null;
        }
        if (this.sequenceGenerator == null || !cronExpression.equals(this.cronExpression)) {
            try {
                this.sequenceGenerator = new CronSequenceGenerator(cronExpression);
                this.cronExpression = cronExpression;
            } catch (Exception e) {
                LOGGER.error(e.getMessage(), e);
            }
        }

        Date date = triggerContext.lastCompletionTime();
        if (date != null) {
            Date scheduled = triggerContext.lastScheduledExecutionTime();
            if (scheduled != null && date.before(scheduled)) {
                // Previous task apparently executed too early...
                // Let's simply use the last calculated execution time then,
                // in order to prevent accidental re-fires in the same second.
                date = scheduled;
            }
        } else {
            date = new Date();
        }
        return this.sequenceGenerator.next(date);
    }
}
复制代码

3.6 注解类ScheduledDynamicCron

@Target({ElementType.METHOD,ElementType.ANNOTATION_TYPE})
@Retention(RetentionPolicy.RUNTIME)
@Documented
public @interface ScheduledDynamicCron {
    /**
     * 动态cron名称
     * @return
     */
    @AliasFor("cronName")
    String value() default "";
    /**
     * 动态cron名称
     * @return
     */
    @AliasFor("value")
    String cronName() default "";

    /**
     * 动态cron处理类,默认使用基于 Environment 实现的处理类
     * @return
     */
    Class<? extends AbstractDynamicCronHandler> handler() default EnvironmentDynamicCronHandler.class;
}
复制代码

3.7 DynamicScheduledAnnotationBeanPostProcessor

import org.springframework.beans.factory.BeanFactory;
import org.springframework.scheduling.annotation.Scheduled;
import org.springframework.scheduling.annotation.ScheduledAnnotationBeanPostProcessor;
import org.springframework.scheduling.config.*;
import org.springframework.scheduling.support.CronTrigger;
import org.springframework.util.Assert;
import org.springframework.util.StringUtils;
import org.springframework.util.StringValueResolver;

import java.lang.reflect.Field;
import java.lang.reflect.Method;
import java.time.Duration;
import java.util.LinkedHashSet;
import java.util.Map;
import java.util.Set;
import java.util.TimeZone;

/**
 *
 * @author HuangJS
 * @date 2020/5/14 17:23
 **/

public class DynamicScheduledAnnotationBeanPostProcessor extends ScheduledAnnotationBeanPostProcessor {
    private StringValueResolver embeddedValueResolver;
    private BeanFactory beanFactory;
    private DynamicCronScheduleTaskManager dynamicCronScheduleTaskManager;

    private final ScheduledTaskRegistrar registrar = (ScheduledTaskRegistrar) getFieldValueFromParentClass("registrar");
    private final Map<Object, Set<ScheduledTask>> scheduledTasks = (Map) getFieldValueFromParentClass("scheduledTasks");

    public DynamicScheduledAnnotationBeanPostProcessor(DynamicCronScheduleTaskManager dynamicCronScheduleTaskManager) {
        this.dynamicCronScheduleTaskManager = dynamicCronScheduleTaskManager;
        this.dynamicCronScheduleTaskManager.registrar = this.registrar;
    }

    @Override
    public void setEmbeddedValueResolver(StringValueResolver resolver) {
        super.setEmbeddedValueResolver(resolver);
        this.embeddedValueResolver = resolver;
    }

    @Override
    public void setBeanFactory(BeanFactory beanFactory) {
        super.setBeanFactory(beanFactory);
        this.beanFactory = beanFactory;
    }

    /**
     * @param scheduled
     * @param method
     * @param bean
     * @see ScheduledAnnotationBeanPostProcessor
     */
    @Override
    protected void processScheduled(Scheduled scheduled, Method method, Object bean) {
        try {
            Runnable runnable = createRunnable(bean, method);
            boolean processedSchedule = false;
            String errorMessage =
                    "Exactly one of the 'cron', 'fixedDelay(String)', or 'fixedRate(String)' attributes is required";

            Set<ScheduledTask> tasks = new LinkedHashSet<>(4);

            // Determine initial delay
            long initialDelay = scheduled.initialDelay();
            String initialDelayString = scheduled.initialDelayString();
            if (StringUtils.hasText(initialDelayString)) {
                Assert.isTrue(initialDelay < 0, "Specify 'initialDelay' or 'initialDelayString', not both");
                if (this.embeddedValueResolver != null) {
                    initialDelayString = this.embeddedValueResolver.resolveStringValue(initialDelayString);
                }
                if (StringUtils.hasLength(initialDelayString)) {
                    try {
                        initialDelay = parseDelayAsLong(initialDelayString);
                    }
                    catch (RuntimeException ex) {
                        throw new IllegalArgumentException(
                                "Invalid initialDelayString value "" + initialDelayString + "" - cannot parse into long");
                    }
                }
            }

            // 处理ScheduledDynamicCron注解
            if (method.isAnnotationPresent(ScheduledDynamicCron.class)) {
                ScheduledDynamicCron dynamicCron = method.getAnnotation(ScheduledDynamicCron.class);
                String cronName = dynamicCron.value();
                if (StringUtils.hasText(dynamicCron.cronName())) {
                    cronName = dynamicCron.cronName();
                } else {
                    Assert.isTrue(StringUtils.hasText(cronName), "@ScheduledDynamicCron 'cronName' or 'value' attributes is required");
                }

                DynamicCronTrigger trigger = new DynamicCronTrigger(cronName, this.beanFactory.getBean(dynamicCron.handler()));
                ScheduledTask scheduledTask = this.dynamicCronScheduleTaskManager.addTriggerTask(cronName, new TriggerTask(runnable, trigger));
                tasks.add(scheduledTask);

                processedSchedule = true;
            } else {
                // Check cron expression
                String cron = scheduled.cron();
                if (StringUtils.hasText(cron)) {
                    String zone = scheduled.zone();
                    if (this.embeddedValueResolver != null) {
                        cron = this.embeddedValueResolver.resolveStringValue(cron);
                        zone = this.embeddedValueResolver.resolveStringValue(zone);
                    }
                    if (StringUtils.hasLength(cron)) {
                        Assert.isTrue(initialDelay == -1, "'initialDelay' not supported for cron triggers");
                        processedSchedule = true;
                        if (!Scheduled.CRON_DISABLED.equals(cron)) {
                            TimeZone timeZone;
                            if (StringUtils.hasText(zone)) {
                                timeZone = StringUtils.parseTimeZoneString(zone);
                            }
                            else {
                                timeZone = TimeZone.getDefault();
                            }
                            tasks.add(this.registrar.scheduleCronTask(new CronTask(runnable, new CronTrigger(cron, timeZone))));
                        }
                    }
                }
            }

            // At this point we don't need to differentiate between initial delay set or not anymore
            if (initialDelay < 0) {
                initialDelay = 0;
            }

            // Check fixed delay
            long fixedDelay = scheduled.fixedDelay();
            if (fixedDelay >= 0) {
                Assert.isTrue(!processedSchedule, errorMessage);
                processedSchedule = true;
                tasks.add(this.registrar.scheduleFixedDelayTask(new FixedDelayTask(runnable, fixedDelay, initialDelay)));
            }
            String fixedDelayString = scheduled.fixedDelayString();
            if (StringUtils.hasText(fixedDelayString)) {
                if (this.embeddedValueResolver != null) {
                    fixedDelayString = this.embeddedValueResolver.resolveStringValue(fixedDelayString);
                }
                if (StringUtils.hasLength(fixedDelayString)) {
                    Assert.isTrue(!processedSchedule, errorMessage);
                    processedSchedule = true;
                    try {
                        fixedDelay = parseDelayAsLong(fixedDelayString);
                    }
                    catch (RuntimeException ex) {
                        throw new IllegalArgumentException(
                                "Invalid fixedDelayString value "" + fixedDelayString + "" - cannot parse into long");
                    }
                    tasks.add(this.registrar.scheduleFixedDelayTask(new FixedDelayTask(runnable, fixedDelay, initialDelay)));
                }
            }

            // Check fixed rate
            long fixedRate = scheduled.fixedRate();
            if (fixedRate >= 0) {
                Assert.isTrue(!processedSchedule, errorMessage);
                processedSchedule = true;
                tasks.add(this.registrar.scheduleFixedRateTask(new FixedRateTask(runnable, fixedRate, initialDelay)));
            }
            String fixedRateString = scheduled.fixedRateString();
            if (StringUtils.hasText(fixedRateString)) {
                if (this.embeddedValueResolver != null) {
                    fixedRateString = this.embeddedValueResolver.resolveStringValue(fixedRateString);
                }
                if (StringUtils.hasLength(fixedRateString)) {
                    Assert.isTrue(!processedSchedule, errorMessage);
                    processedSchedule = true;
                    try {
                        fixedRate = parseDelayAsLong(fixedRateString);
                    }
                    catch (RuntimeException ex) {
                        throw new IllegalArgumentException(
                                "Invalid fixedRateString value "" + fixedRateString + "" - cannot parse into long");
                    }
                    tasks.add(this.registrar.scheduleFixedRateTask(new FixedRateTask(runnable, fixedRate, initialDelay)));
                }
            }

            // Check whether we had any attribute set
            Assert.isTrue(processedSchedule, errorMessage);

            // Finally register the scheduled tasks
            synchronized (this.scheduledTasks) {
                Set<ScheduledTask> regTasks = this.scheduledTasks.computeIfAbsent(bean, key -> new LinkedHashSet<>(4));
                regTasks.addAll(tasks);
            }
        }
        catch (IllegalArgumentException ex) {
            throw new IllegalStateException(
                    "Encountered invalid @Scheduled method '" + method.getName() + "': " + ex.getMessage());
        }
    }
    private Object getFieldValueFromParentClass(String registrar) {
        try {
            Field field = ScheduledAnnotationBeanPostProcessor.class.getDeclaredField(registrar);
            field.setAccessible(true);
            Object fieldVaule = field.get(this);
            return fieldVaule;
        } catch (Exception e) {
            logger.error("通过反射读取ScheduledAnnotationBeanPostProcessor.{} 的时候出现错误", e);
            throw new IllegalArgumentException(e);
        }
    }
    private static long parseDelayAsLong(String value) throws RuntimeException {
        return value.length() <= 1 || !isP(value.charAt(0)) && !isP(value.charAt(1)) ? Long.parseLong(value) : Duration.parse(value).toMillis();
    }
    private static boolean isP(char ch) {
        return ch == 'P' || ch == 'p';
    }
}
复制代码

3.8 配置类SchedulerConfiguration

@EnableScheduling
public class SchedulerConfiguration implements SchedulingConfigurer {
    /**
     * 执行任务的线程数量
     */
    @Value("${app.scheduler.thread.count:10}")
    private int schedulerThreadCount;

    @Override
    public void configureTasks(ScheduledTaskRegistrar taskRegistrar) {
        TaskScheduler taskScheduler = new ConcurrentTaskScheduler(new ScheduledThreadPoolExecutor(schedulerThreadCount));
        taskRegistrar.setTaskScheduler(taskScheduler);
    }

    @Bean
    public EnvironmentDynamicCronHandler environmentDynamicCronHandler() {
        return new EnvironmentDynamicCronHandler();
    }

    @Bean
    public DynamicCronScheduleTaskManager dynamicCronScheduleTaskManager() {
        return new DynamicCronScheduleTaskManager();
    }

    @Bean(name = TaskManagementConfigUtils.SCHEDULED_ANNOTATION_PROCESSOR_BEAN_NAME)
    @Role(BeanDefinition.ROLE_INFRASTRUCTURE)
    @Primary
    public ScheduledAnnotationBeanPostProcessor scheduledAnnotationProcessor(DynamicCronScheduleTaskManager dynamicCronScheduleTaskManager) {
        return new RedisScheduledAnnotationBeanPostProcessor(dynamicCronScheduleTaskManager);
    }
}
复制代码

4. Spring boot使用示例

4.1 配置方式,在启动类中导入配置类SchedulerConfiguration

如下示例:

@SpringBootApplication
@Import(SchedulerConfiguration.class) // 导入配置类
public class DemoApplication {
    public static void main(String[] args) {
        SpringApplication.run(DemoApplication.class, args);
    }
}
复制代码

4.2 nacos配置cron示例

nacos的配置

cron:
  name1: "0/5 * * * * ?" # 每5秒执行一次
复制代码

使用@ScheduledDynamicCron指定cron表达式的配置名cron.name1,不指定handler()默认使用EnvironmentDynamicCronHandler,该类会根据指定的配置名cron.name1获取nacos上的cron表达式

@Component
public class DynamicTask {
    @Scheduled
    @ScheduledDynamicCron("cron.name1")
    public void dynamicCronForEnvironment() {
        System.out.println("dynamicCronForEnvironment:" + DateUtils.format(LocalDateTime.now()));
    }
}
复制代码
  • @Scheduled仍需要添加,但会忽略其中的cron属性配置
  • 修改nacoscron.name1配置为0/2 * * * * ?并发布,定时任务会立即由原来的5秒执行一次,变为2秒执行一次

4.3 数据库存储cron示例

扩展AbstractDynamicCronHandler,实现从数据库查询cron表达式

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;

@Component
public class DynamicCronHandler extends AbstractDynamicCronHandler {
    @Autowired
    private ParametersService parametersService;

    @Override
    public String getCronExpression(String cronName) {
        // 通过cronName查询保存在数据库的cron表达式
        Parameters ap = parametersService.getByName(cronName);
        return ap.getValue();
    }
}
复制代码

定时任务类

@Component
public class DynamicTask {
    @Scheduled
    // 需要指定handler为上面定义的DynamicCronHandler
    @ScheduledDynamicCron(cronName = "cron.name2", handler = DynamicCronHandler.class)
    public void dynamicCronForDb() {
        System.out.println("dynamicCronForDb:" + LocalDateTime.now());
    }
}
复制代码

定时任务触发时机更新,需要在更新数据库配置时进行更新

@RestController
@RequestMapping("parameters")
public class ParametersController {
    @Autowired
    private ParametersService parametersService;
    @Autowired
    private DynamicCronHandler dynamicCronHandler;

    @PostMapping("/update")
    public Result update(Parameters parameters){
        if (parametersService.update(parameters)) {
            if ("cron.name2".equals(parameters.getName())) {
                // 更新数据库配置后,更新定时任务的触发时机
                dynamicCronHandler.updateTriggerTask(cronName);
            }
        }
        return Result.success();
    }
}
复制代码

4.4 分布式集群部署服务的定时任务的更新

上面更新数据库配置后,同步更新任务的触发时机,仅在本服务生效,集群中的其他服务节点并不会更新

其他节点的更新可以通过消息总线的方式进行更新,如通过MQ发送广播消息,其它服务节点消费消息后调用以下方法更新任务触发时机

dynamicCronHandler.updateTriggerTask(cronName);
复制代码

4.5 添加定时任务

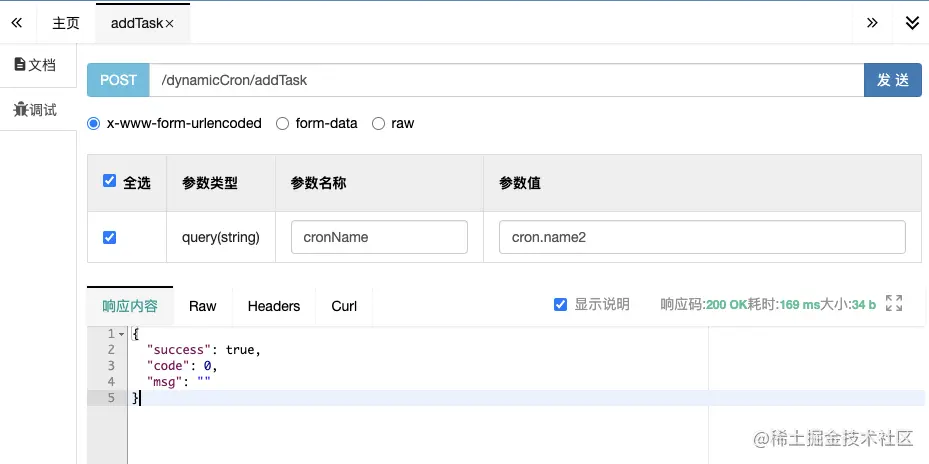

添加任务的web接口

@RestController
@RequestMapping("dynamicCron")
public class DynamicCronController {
    @Autowired
    private DynamicCronScheduleTaskManager dynamicCronScheduleTaskManager;
    @Autowired
    private EnvironmentDynamicCronHandler environmentDynamicCronHandler;

    @PostMapping("/addTask")
    public Result addTask(String cronName){
        // 创建要定时运行的Runnable
        Runnable runnable = () -> System.out.println("run task:" + LocalDateTime.now());
        // 使用EnvironmentDynamicCronHandler,创建触发器
        DynamicCronTrigger trigger = new DynamicCronTrigger(cronName, environmentDynamicCronHandler);
        // 添加定时任务
        dynamicCronScheduleTaskManager.addTriggerTask(cronName, new TriggerTask(runnable, trigger));
        return Result.success();
    }
}
复制代码


接口执行完成后,定时任务并不会执行,因为还没配置cron.name2,在nacos配置cron表达式后,定时任务将开始调度


配置nacos后的控制台输出


分类:
后端
标签:
分类:
后端
标签:
收藏成功!
已添加到「」, 点击更改
