域名访问https

我们的产品，青清水利云是微服务架构，后端接口统一从gateway转接，xxx.com:8765, 各个前端使用不用的端口，门户：9000，数据中心：9010，水建管：9005等，每个前端配置各个应用跳转地址；访问安全一直是青清水利云的隐患，但是一般https只针对80端口，这么多前端端口怎么实现一个证书访问一直没有思路，这几天分析了一下终于搞定了！

1.1 申请ssl证书

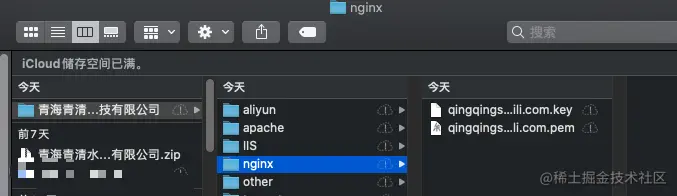

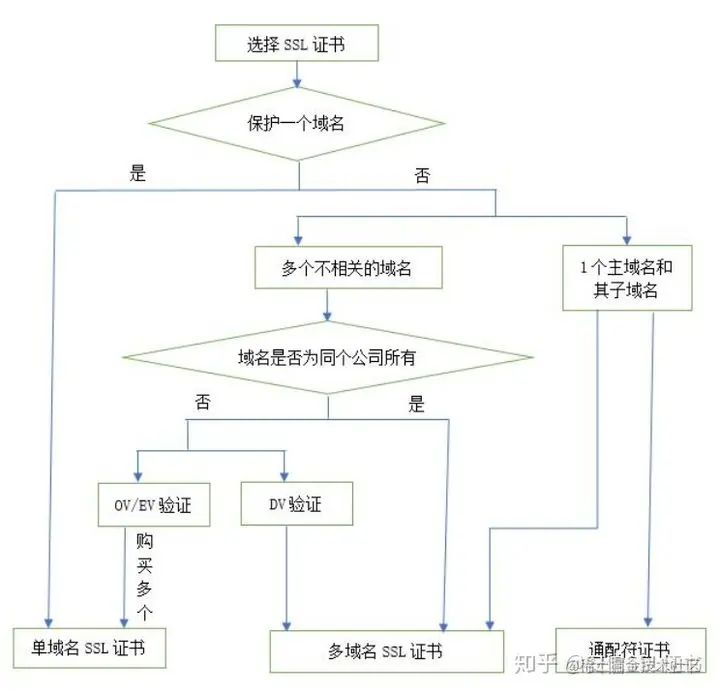

http是超文本传输协议，信息是明文传输，https则是具有安全性的ssl加密传输协议。http和https使用的是完全不同的连接方式，用的端口也不一样，http是80端口，https是443端口。 https证书也就是SSL证书，网站通过申请SSL证书将http协议升级为https加密协议搭建加密传输、身份认证的网络安全通道。选择合适的https安全证书，如何选择？根据青清水利云特点，我们选用通配符证书，ssl证书有免费申请的，也有通过CA机构申请，我们使用中域永信CA机构，拿到手nginx下有key和pem两个文件。

1.2 主域名https

青清水利云服务使用docker发布，前端有6个nginx镜像的docker服务，现在要配置https访问，还得在服务器上装独立运行的nginx用于代理，nginx代理配置都在/etc/nginx/sites-available目录下。首先把qingqingshuili.com.pem,qingqingshuili.com.key这两个ssl文件拷贝到/usr/local/nginx/cert/下，添加一个gateway443文件，配置如下：

server {
        listen 443;
        ssl on;

        # Make site accessible from http://localhost/
        server_name www.qingqingshuili.com;

        ssl_certificate     /usr/local/nginx/cert/qingqingshuili.com.pem;
        ssl_certificate_key  /usr/local/nginx/cert/qingqingshuili.com.key;

        ssl_session_timeout 5m;
        ssl_protocols TLSv1 TLSv1.1 TLSv1.2;
        ssl_ciphers ECDHE-RSA-AES128-GCM-SHA256:HIGH:!aNULL:!MD5:!RC4:!DHE;
        ssl_prefer_server_ciphers on;

        location / {
                # First attempt to serve request as file, then
                # as directory, then fall back to displaying a 404.
                try_files $uri $uri/ =404;
                # Uncomment to enable naxsi on this location
                # include /etc/nginx/naxsi.rules
                proxy_redirect off;
                proxy_set_header Host $host;
                proxy_set_header X-Real-IP $remote_addr;
                proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
                proxy_pass http://127.0.0.1:9000;
        }
        location /content/ {
                proxy_pass http://127.0.0.1:9000;
                expires 1h;
        }
        location /app/ {
                proxy_pass http://127.0.0.1:9000;
                expires 30d;
        }
        location /api/ {
                proxy_pass http://127.0.0.1:8765;
        }
}

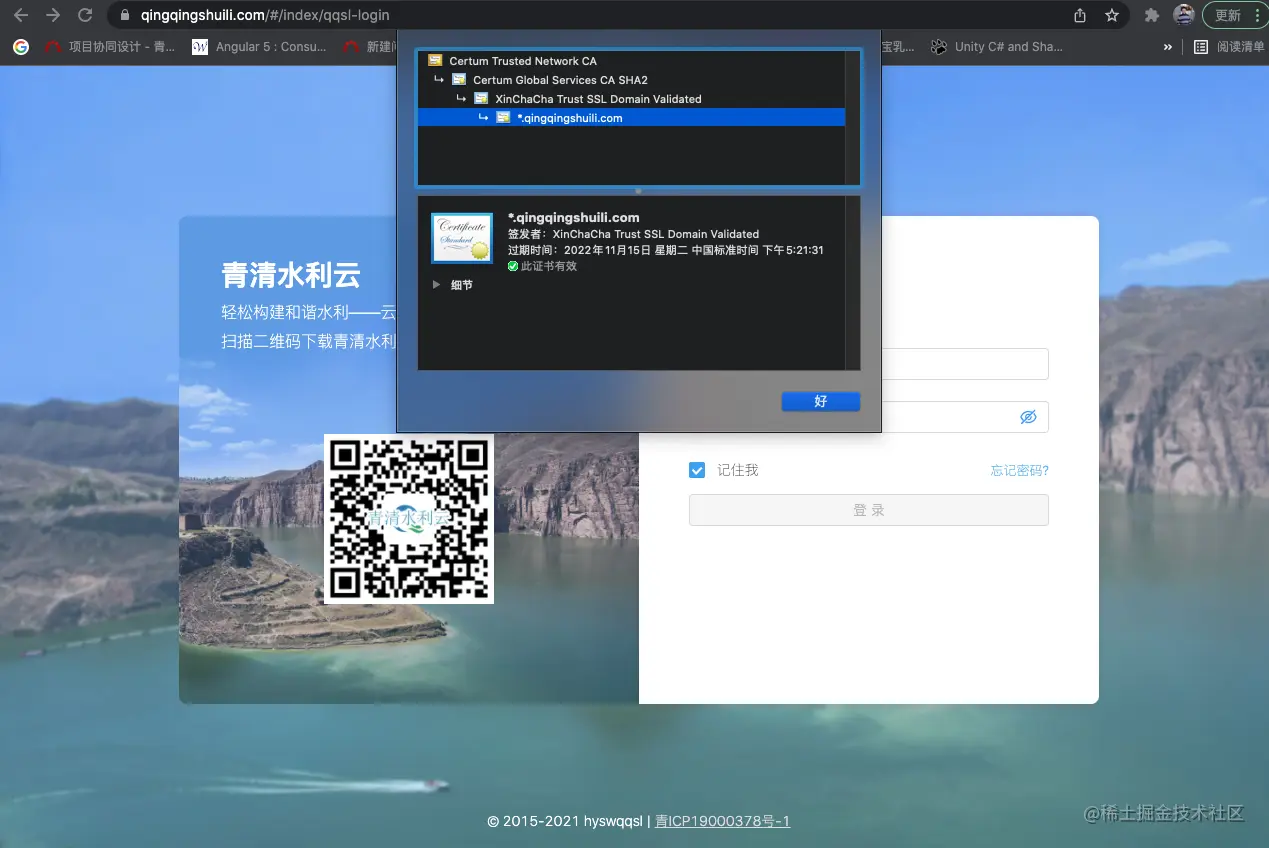

这个配置是把www.qingqingshuili.com https请求，转到内部地址9000上，后面的/content/,/app/是把静态文件的访问也转到内部地址9000上，并加上失效时间(1h,30d)，/api/是把后台请求转到内部8765上(gateway后台)。现在访问www.qingqingshuili.com 已经可安全访问平台了，证书有效：为了用户使用方便，nginx中把80端口直接指向https访问地址：

server {
        listen 80;
        # Make site accessible from http://localhost/
        server_name *.qingqingshuili.com;

        if ($server_port = 80) {
           return 301 https://www.qingqingshuili.com$request_uri;
        }
}

1.3 前端二级域名

单这只实现了门户https访问，还有很多应用使用9000~9100端口，这些应用要通过https访问，首先要设置二级域名与之对应，先到阿里云域名映射添加二级域名，分别对应各个前端应用：在nginx中针对每个二级域名配置https，如management.qingingshuili.com:

server {
        listen 443;
        ssl on;

        # Make site accessible from http://localhost/
        server_name management.qingqingshuili.com;

        ssl_certificate     /usr/local/nginx/cert/qingqingshuili.com.pem;
        ssl_certificate_key  /usr/local/nginx/cert/qingqingshuili.com.key;

        ssl_session_timeout 5m;
        ssl_protocols TLSv1 TLSv1.1 TLSv1.2;
        ssl_ciphers ECDHE-RSA-AES128-GCM-SHA256:HIGH:!aNULL:!MD5:!RC4:!DHE;
        ssl_prefer_server_ciphers on;

        location / {
                # First attempt to serve request as file, then
                # as directory, then fall back to displaying a 404.
                try_files $uri $uri/ =404;
                # Uncomment to enable naxsi on this location
                # include /etc/nginx/naxsi.rules
                proxy_redirect off;
                proxy_set_header Host $host;
                proxy_set_header X-Real-IP $remote_addr;
                proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
                proxy_pass http://127.0.0.1:9005;
        }
        location /content/ {
                proxy_pass http://127.0.0.1:9005;
                expires 1h;
        }
        location /app/ {
                proxy_pass http://127.0.0.1:9005;
                expires 30d;
        }
        location /services/qqsl-management/api/ {
                proxy_pass http://127.0.0.1:8765;
        }
}

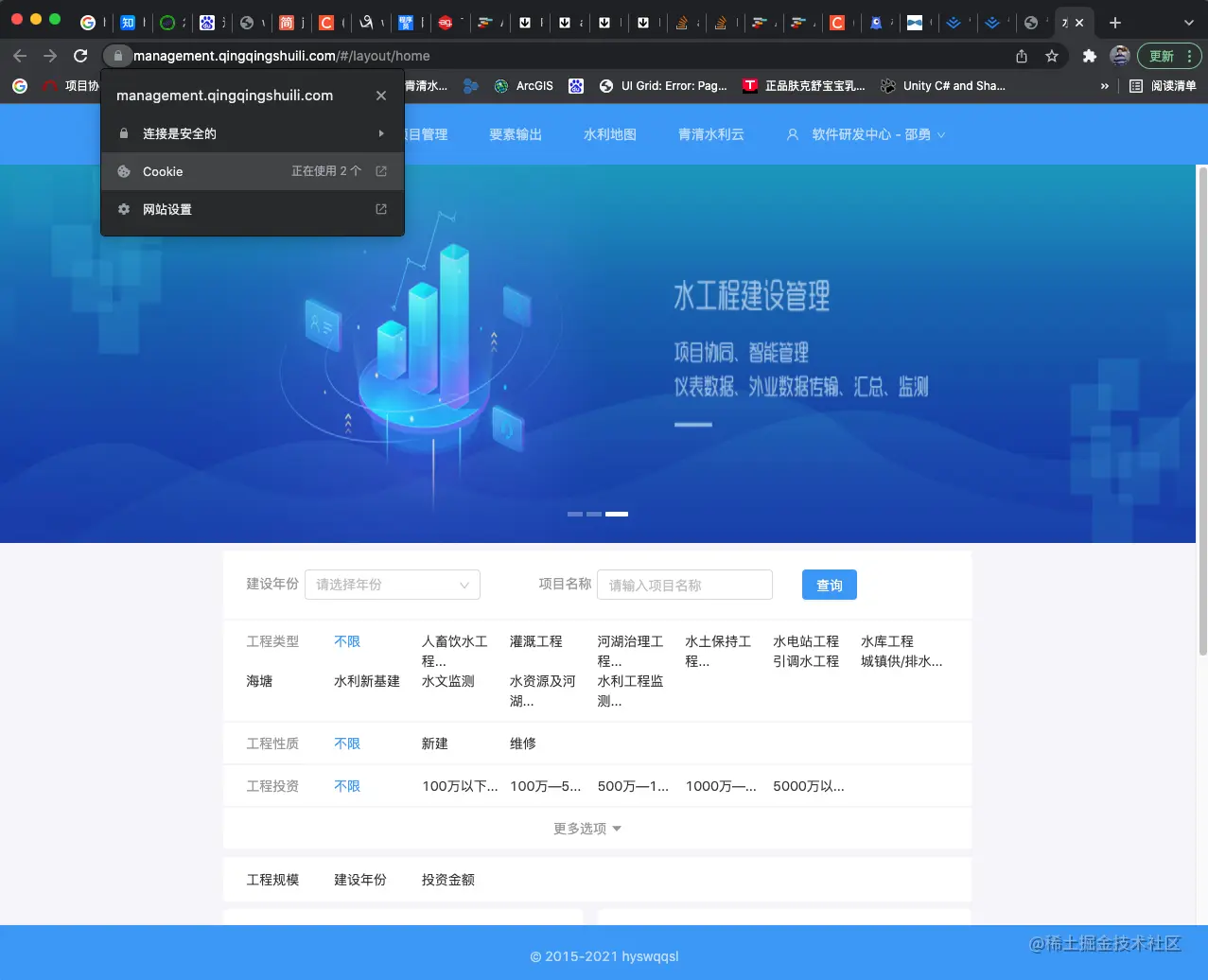

这段配置就是把二级域名https访问转到内部地址9005上，这样青清水利云各个前端都通过https访问了。

1.4 后端二级域名

依据上节配置，前端的后端访问地址都要配成相对地址，然后通过location /api/ { proxy_pass: http://127.0.0.1:8765; }这样转移到后端8765上，很是繁琐，随后又想到给后端专门配一个二级域名，并通过https访问，前端直接使用这个二级域名访问后端api，就简单了，立刻申请api二级域名：api.qingqingshuili.com，并早nginx中配置：

server {
        listen 443;
        ssl on;

        # Make site accessible from http://localhost/
        server_name api.qingqingshuili.com;

        ssl_certificate     /usr/local/nginx/cert/qingqingshuili.com.pem;
        ssl_certificate_key  /usr/local/nginx/cert/qingqingshuili.com.key;

        ssl_session_timeout 5m;
        ssl_protocols TLSv1 TLSv1.1 TLSv1.2;
        ssl_ciphers ECDHE-RSA-AES128-GCM-SHA256:HIGH:!aNULL:!MD5:!RC4:!DHE;
        ssl_prefer_server_ciphers on;

        location / {
                # First attempt to serve request as file, then
                # as directory, then fall back to displaying a 404.
                try_files $uri $uri/ =404;
                # Uncomment to enable naxsi on this location
                # include /etc/nginx/naxsi.rules
                proxy_redirect off;
                proxy_set_header Host $host;
                proxy_set_header X-Real-IP $remote_addr;
                proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
                proxy_pass http://127.0.0.1:8765;
        }
        location /content/ {
                proxy_pass http://127.0.0.1:8765;
                expires 1h;
        }
        location /app/ {
                proxy_pass http://127.0.0.1:8765;
                expires 30d;
        }
        location /management/ {
                proxy_pass http://127.0.0.1:8765;
        }
        location /api/ {
                proxy_pass http://127.0.0.1:8765;
        }
        location /services/qqsl-data-center/api/ {
                proxy_pass http://127.0.0.1:8765;
        }
        location /services/qqsl-awareness-new/api/ {
                proxy_pass http://127.0.0.1:8765;
        }
        location /services/qqsl-management/api/ {
                proxy_pass http://127.0.0.1:8765;
        }
}

前端直接使用api二级域名访问后端接口：

(function (window) {
  window.__env = window.__env || {};

  window.__env.SERVER_API_URL = 'https://api.qingqingshuili.com/';
  module.exports = {__env};
})(this);

1.5 善后工作

最后为了安全，把前端以前使用的9000至9100端口，在阿里云ecs安全组里，把外网端口9000至9100都屏蔽掉，用户就只能通过www.qingqingshuili.com/ 访问青清水利云了，完美！
