一、概念
简介
Hive 中的表对应为HDFS上的指定目录,在查询数据时候,默认会对全表进行扫描,这样时间和性能的消耗都非常大。
分区表实际上就是对应一个HDFS文件系统上的独立的文件夹,该文件夹下是该分区所有的数据文件。Hive中的分区就是分目录,把一个大的数据集根据业务需要分割成小的数据集。在查询时通过WHERE 子句中的表达式选择查询所需要的指定的分区,这样的查询效率会提高很多。
意义
- 分区的目的是为了就数据,分散到多个子目录中,在执行查询时,可以只选择查询某些子目录中的数据,加快查询效率;
- 只有分区表才有子目录(分区目录);
- 分区目录的名称由两部分确定: 分区列列名=分区列列值;
- 将数据导入到指定的分区之后,元信息表中会附加上分区列的信息;
- 分区的最终目的是在查询时,使用分区列进行过滤。
二、分类
Hive分区分为静态分区和动态分区:
- 静态分区:若分区的值是确定的,那么称为静态分区。新增分区或者是加载分区数据时,已经指定分区名;
- 动态分区:分区的值是非确定的,由输入数据来确定。
三、使用场景
通常,在管理大规模数据集的时候都需要进行分区,比如将日志文件按天进行分区,从而保证数据细粒度的划分,使得查询性能得到提升。
四、分区表基本操作
4.1 静态分区
- 可以根据
PARTITIONED BY
创建分区表,一个表可以拥有一个或者多个分区,每个分区以文件夹的形式单独存在表文件夹的目录下。 - 分区是以字段的形式在表结构中存在,通过
describe table
命令可以查看到字段存在,但是该字段不存放实际的数据内容,仅仅是分区的表示。 - 分区建表分为2种,一种是单分区,也就是说在表文件夹目录下只有一级文件夹目录。另外一种是多分区,表文件夹下出现多文件夹嵌套模式。
数据准备
- dept_01.txt
10 ACCOUNTING 1700
20 RESEARCH 1800
- dept_02.txt
30 SALES 1900
40 OPERATIONS 1700
- dept_03.txt
50 TEST 2000
60 DEV 1900
单级分区
(1) 创建分区表语法
create table dept_partition(
deptno int, dname string, loc string
)
partitioned by (day string)
row format delimited fields terminated by '\t';
注意:分区字段不能是表中已经存在的数据,可以将分区字段看作表的伪列。
(2)查看分区表结构
describe formatted dept_partition;
(3)加载数据
0: jdbc:hive2://hadoop001:10000> load data local inpath
'/home/hadoop/datas/dept/dept_01.txt' into table dept_partition
partition(day='20211205');
0: jdbc:hive2://hadoop001:10000> load data local inpath
'/home/hadoop/datas/dept/dept_02.txt' into table dept_partition
partition(day='20211206');
0: jdbc:hive2://hadoop001:10000> load data local inpath
'/home/hadoop/datas/dept/dept_03.txt' into table dept_partition
partition(day='20211207');
注意:分区表加载数据时,必须指定分区,如果不指定会生成一个默认分区
(4)查询分区表中数据
- 单分区查询
select * from dept_partition where day='20211205';
- 多分区联合查询
方式一:
select * from dept_partition where day='20211205'
union
select * from dept_partition where day='20211206'
union
select * from dept_partition where day='20211207';
方式二:
select * from dept_partition where day='20211205' or day='20211206' or day='20211207';
(5)增加分区
- 创建单个分区
alter table dept_partition add partition(day='20211208');
- 同时创建多个分区
alter table dept_partition add partition(day='20211209') partition(day='20211210') partition(day='20211211');
注意:各个分区中间用空格隔开
(6)删除分区
- 删除单个分区
alter table dept_partition drop partition (day='20211211');
- 同时删除多个分区
alter table dept_partition drop partition (day='20211209'),partition (day='20211210');
注意:各个分区中间用空逗号隔开
(7)查看分区表中分区数
show partitions dept_partition;
-- 运行结果
+---------------+
| partition |
+---------------+
| day=20211205 |
| day=20211206 |
| day=20211207 |
| day=20211208 |
+---------------+
(8)重命名分区
alter table default.dept_partition partition(day = '20211208') rename to partition(day = '20211209');
二级分区
(1)创建二级分区表
create table dept_partition2(
deptno int, dname string, loc string
)
partitioned by (day string, hour string)
row format delimited fields terminated by '\t';
(2)加载数据到二级分区表
load data local inpath
'/home/hadoop/datas/dept/dept_01.txt' into table
dept_partition2 partition(day='20211205', hour='10');
load data local inpath
'/home/hadoop/datas/dept/dept_02.txt' into table
dept_partition2 partition(day='20211205', hour='11');
load data local inpath
'/home/hadoop/datas/dept/dept_03.txt' into table
dept_partition2 partition(day='20211206', hour='10');
(3)新增分区
alter table dept_partition2 add partition(day='20211206',hour = '11');
(4)查询分区数据
select * from dept_partition2 where day='20211205' and hour='10';
-- 多条件查询
select * from dept_partition2 where (day='20211205' and hour='10') or (day='20211206' and hour='10');
(5)重命名分区
alter table dept_partition2 partition(day='20211206',hour='11') rename to partition(day='20211206',hour='12');
修复分区
把数据直接上传到分区目录上,让分区表和数据产生关联的三种方式
(1)方式一:上传数据后修复
- 上传数据
-- HDFS中创建目录
dfs -mkdir -p /user/hive/warehouse/dept_partition2/day=20211205/hour=12;
-- 将本地数据上传到HDFS
dfs -put /home/hadoop/datas/dept/dept_01.txt /user/hive/warehouse/dept_partition2/day=20211205/hour=12;
- 查询数据
0: jdbc:hive2://hadoop001:10000> select * from dept_partition2 where day='20211205' and hour='12';
-- 查询结果
+-------------------------+------------------------+----------------------+----------------------+-----------------------+
| dept_partition2.deptno | dept_partition2.dname | dept_partition2.loc | dept_partition2.day | dept_partition2.hour |
+-------------------------+------------------------+----------------------+----------------------+-----------------------+
+-------------------------+------------------------+----------------------+----------------------+-----------------------+
查询结果是空的,也就是我们上传上去的数据并没有被查询到
- 执行修复命令
0: jdbc:hive2://hadoop001:10000> msck repair table dept_partition2;
- 在进行上述查询得到如下结果
(2)方式二:上传数据后添加分区
- 上传数据
-- HDFS中创建目录
dfs -mkdir -p /user/hive/warehouse/dept_partition2/day=20211205/hour=13;
-- 将本地数据上传到HDFS
dfs -put /home/hadoop/datas/dept/dept_02.txt /user/hive/warehouse/dept_partition2/day=20211205/hour=13;
- 执行添加分区
alter table dept_partition2 add partition(day='20211205',hour='13');
- 查询数据

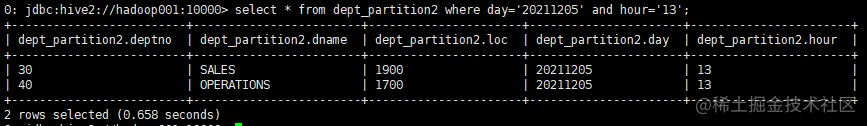

select * from dept_partition2 where day='20211205' and hour='13';
(3)方式三:创建文件夹后 load 数据到分区
- 创建目录
dfs -mkdir -p /user/hive/warehouse/dept_partition2/day=20211205/hour=14;
- 上传数据
load data local inpath '/home/hadoop/datas/dept/dept_03.txt' into table
dept_partition2 partition(day='20211205',hour='14');
- 查询数据
select * from dept_partition2 where day='20211205' and hour='14';
4.2 动态分区
上面我们测试静态分区的时候,可以看到操作分区表的时候一定要指定分区,动态分区就解决了这个问题,只不过, 使用 Hive 的动态分区,需要进行相应的配置。
动态分区的值是非确定的,由输入数据来确定。
1、开启动态分区参数设置
(1)开启动态分区功能(默认 true,开启)
0: jdbc:hive2://hadoop001:10000> set hive.exec.dynamic.partition=true;
(2)指定动态分区模式
0: jdbc:hive2://hadoop001:10000> set hive.exec.dynamic.partition.mode=nonstrict;
动态分区模式:
strict
:表示必须指定至少一个分区为静态分区(默认)nonstrict
:模式表示允许所有的分区字段都可以使用动态分区
其他非必要配置:
-
在所有执行 MR 的节点上,最大一共可以创建多少个动态分区。默认 1000
hive.exec.max.dynamic.partitions=1000
-
在每个执行 MR 的节点上,最大可以创建多少个动态分区
hive.exec.max.dynamic.partitions.pernode=100
该参数需要根据实际 的数据来设定。比如:源数据中包含了一年的数据,即 day 字段有 365 个值,那么该参数就 需要设置成大于 365,如果使用默认值 100,则会报错。
-
整个 MR Job 中,最大可以创建多少个 HDFS 文件。默认 100000
hive.exec.max.created.files=100000
-
当有空分区生成时,是否抛出异常。一般不需要设置。默认false
hive.error.on.empty.partition=false
2、案例实操
需求
将dept表中的数据按照地区(loc字段),插入到目标表dept_partition的相应分区中。
(1)创建目标分区表
create table dept_partition_dy(id int, name string)
partitioned by (loc int) row format delimited fields terminated by '\t';
(2)添加数据
insert into table dept_partition_dy partition(loc) select deptno, dname, loc from dept_partition;
(3)查看目标分区表的分区情况
show partitions dept_partition_dy;
总结
-
尽量不要用动态分区,因为动态分区的时候,将会为每一个分区分配reducer数量,当分区数量多的时候,reducer数量将会增加,对服务器是一种灾难;
-
动态分区和静态分区的区别:
- 静态分区不管有没有数据都将会创建该分区;
- 动态分区是有结果集将创建,否则不创建。
-
hive提供的的严格模式:为了阻止用户不小心提交恶意hql
hive.mapred.mode=nostrict : strict
如果该模式值为strict,将会阻止以下三种查询:
- 对分区表查询,where中过滤字段不是分区字段;
- 笛卡尔积join查询,join查询语句,不带on条件或者where条件;
- 对order by查询,有order by的查询不带limit语句。
