1. 先看效果图
2. 需求描述
移动端，有个能连线答题的功能。从左侧拖线移到右侧。
- 线需要在高度不固定的情况下，依旧生效，并且保持在中间的点。
- 只要求 1对1 的情况。
3. 解决思路
- 首先左右二侧的选项我就不说了。重点是划线部分。
- 借助于

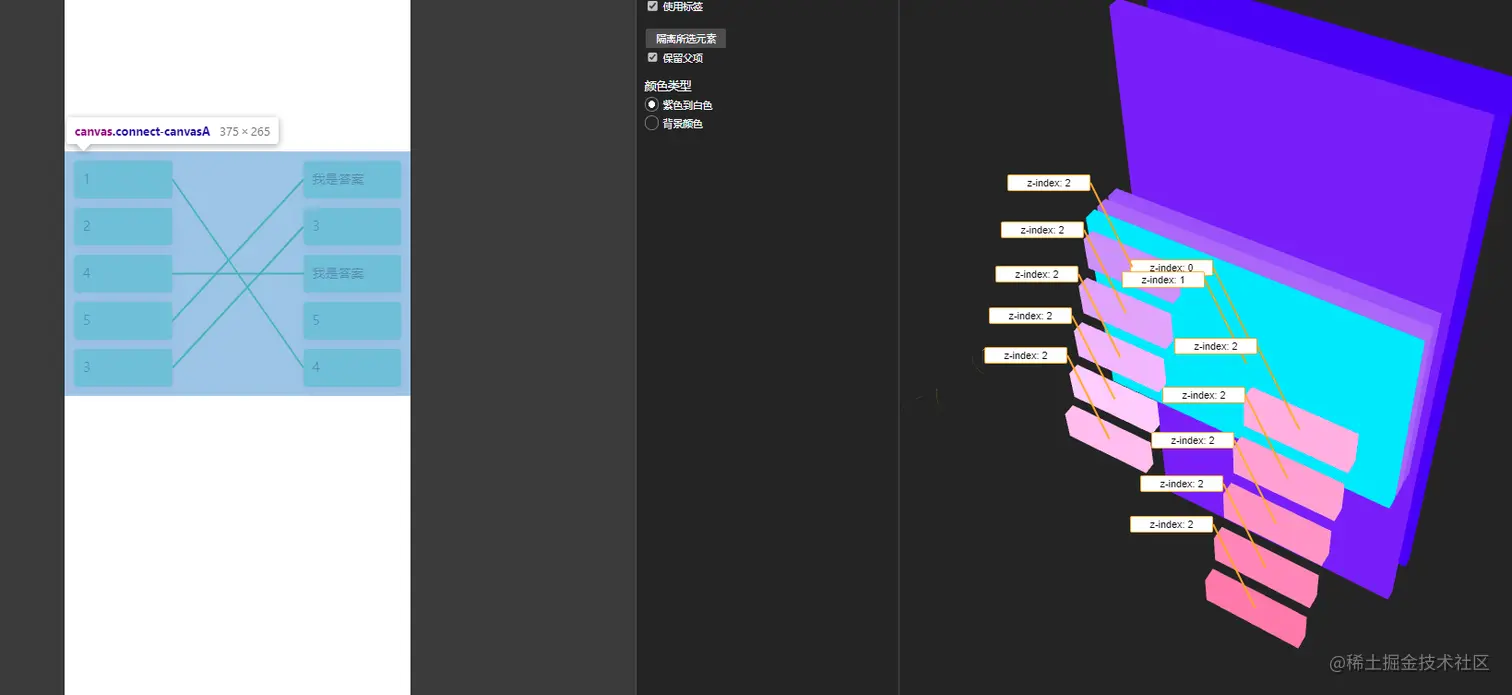

canvas实现 画线功能，查看示意图。
-
二个
canvas标签，一个是触摸中 划线的展示，另一个是为了触摸结束之后，真正展示的划线功能。 -
难点是，
touchend事件并不会知晓我拖到哪个标签上了。这和鼠标事件截然不同。 -
思路：是不是可以手动算出来到哪的节点了？其实js提供了这个方法。
document.elementFromPoint(event.pageX, event.pageY);根据 x,y 得出当前的dom元素。
4. 代码展示
- 说那么多，我直接贴代码了。如果有不同的业务逻辑，可以自己修改调整。重点的划线和拖动功能，都已经写好了。
<template>
<div class="connect" ref="connect" @touchmove.prevent>
<div class="answer">
<div class="answer-box">
<div
class="answer-box-item"
v-for="(item, index) in leftArr"
:key="item.label"
ref="left"
@touchstart="(e) => touchstart(e, item, index)"
@touchend="(e) => touchend(e, item, index)"
@touchmove="(e) => touchmove(e, item, index)"
>
{{ item.label }}
</div>
</div>
<div class="answer-box">
<div class="answer-box-item" v-for="item in rightArr" :key="item.label" ref="right">
{{ item.label }}
</div>
</div>
</div>
<canvas class="connect-canvasA" :width="clientWidth" :height="clientHeight" ref="canvasA"></canvas>
<canvas class="connect-canvasB" :width="clientWidth" :height="clientHeight" ref="canvasB"></canvas>
</div>
</template>
<script>
export default {
data() {
return {
leftArr: [],
rightArr: [],
location: [],
canvasA: null,
canvasB: null,
leftDom: [],
rightDom: [],
clientWidth: 0,
clientHeight: 0,
scrollTop: 0,
debounce: false
};
},
props: {
item: {
type: Object,
default: () => {
return {
left: [],
right: []
};
}
},
value: {
type: Array,
default: () => {
return [];
}
}
},
watch: {
item: {
immediate: true,
handler(val) {
if (val.left && val.left.length) this.init();
}
}
},
mounted() {
// 添加滚动事件 监听 解决因为滚动引起的拖动线不对的问题
window.addEventListener(
'scroll',
(e) => {
// 加个防抖
if (this.debounce) clearTimeout(this.debounce);
this.debounce = setTimeout(() => {
this.debounce = false;
this.scrollTop = e.target.scrollTop;
}, 500);
},
true
);
let connect = this.$refs.connect;
this.clientWidth = connect.clientWidth;
this.clientHeight = connect.clientHeight;
this.canvasA = this.$refs.canvasA.getContext('2d');
this.canvasB = this.$refs.canvasB.getContext('2d');
this.$nextTick(() => {
this.drawing();
});
},
methods: {
init() {
this.leftArr = this.item.left.map((r) => {
return {
label: r,
line: [],
value: []
};
});
this.rightArr = this.item.right.map((r) => {
return {
label: r
};
});
// 等dom 渲染完成
this.$nextTick(() => {
this.leftDom = this.$refs.left.map((r, i) => {
return {
bom: r,
index: i
};
});
this.rightDom = this.$refs.right.map((r, i) => {
return {
bom: r,
index: i
};
});
this.value.map((r) => {
this.leftArr[r.left].line = this.attachment(r.left, r.right);
this.leftArr[r.left].value = [r.right];
});
this.drawing();
});
},
// 触摸结束
touchend(e, item, index) {
let event = e.changedTouches[0];
// document.elementFromPoint 重点，根据x,y坐标 取当前元素 所有能运行的逻辑 都依托于这里。
let dom = document.elementFromPoint(event.pageX, event.pageY);
// 右边的dom是哪个
let right = this.rightDom.find((r) => r.bom === dom);
// 不管是哪个都清除掉 底部的线
this.canvasB.clearRect(0, 0, this.clientWidth, this.clientHeight);
// 如果不是右边的dom 直接把 线 干掉 -- 证明不是 没有拖到右边上
if (!right) {
item.line = [];
return;
}
// 如果已有的不是我自己 直接替换掉上一个的
if (item.value[0] !== right.index) {
let model = this.leftArr.find((r) => r.value[0] === right.index);
if (model) {
model.value = [];
model.line = [];
}
item.value = [right.index];
}
// 重新赋值 线的 x y 轴
item.line = this.attachment(index, right.index);
console.log(item);
this.drawing();
let model = this.leftArr
.map((r, i) => {
return {
left: i,
right: r.value[0]
};
})
.filter((r) => r.right !== undefined);
this.$emit('input', model);
console.log(JSON.stringify(model));
},
// 触摸开始
touchstart(e, item) {
let event = e.targetTouches[0];
item.line = [event.pageX, event.pageY - this.$refs.connect.offsetTop + this.scrollTop];
},
// 触摸中
touchmove(e, item) {
let event = e.targetTouches[0];
item.line[2] = event.pageX;
item.line[3] = event.pageY - this.$refs.connect.offsetTop + this.scrollTop;
this.backstrockline(item.line);
},
// 拖动的时候画线
backstrockline(val) {
let canvasB = this.canvasB;
canvasB.clearRect(0, 0, this.clientWidth, this.clientHeight);
canvasB.save();
canvasB.beginPath();
canvasB.lineWidth = 2;
canvasB.moveTo(val[0], val[1]);
canvasB.lineTo(val[2], val[3]);
canvasB.strokeStyle = '#0C6';
canvasB.stroke();
canvasB.restore();
},
// 渲染出拖动之后的线
drawing() {
let canvasA = this.canvasA;
this.canvasA.clearRect(0, 0, this.clientWidth, this.clientHeight);
canvasA.beginPath();
canvasA.lineWidth = 2;
for (let i = 0; i < this.leftArr.length; i++) {
const line = this.leftArr[i].line;
if (line.length) {
canvasA.moveTo(line[0], line[1]);
canvasA.lineTo(line[2], line[3]);
}
}
canvasA.strokeStyle = '#0C6';
canvasA.stroke();
},
// 根据 左边 和右边的 index,换算出 左右的X,Y轴坐标
attachment(index, rightIndex) {
let leftEvent = this.leftDom[index].bom;
let rightEvent = this.rightDom[rightIndex].bom;
// 为了让线都在中间 x轴不用改 最简单
let leftX = leftEvent.clientWidth + leftEvent.offsetLeft;
let rightX = rightEvent.offsetLeft;
let leftY = leftEvent.offsetTop + leftEvent.clientHeight / 2;
let rightY = rightEvent.offsetTop + rightEvent.clientHeight / 2;
return [leftX, leftY, rightX, rightY];
}
}
};
</script>
<style lang="scss" scoped>
.connect {
position: relative;
padding: 10px;
&-canvasA {
position: absolute;
left: 0px;
top: 0px;
z-index: 1;
}
&-canvasB {
position: absolute;
left: 0px;
top: 0px;
z-index: 0;
}
}
.answer {
width: 100%;
display: flex;
justify-content: space-between;
&-box {
display: flex;
flex-direction: column;
justify-content: space-between;
width: 30%;
&-item {
z-index: 2;
display: inline-flex;
padding: 10px;
background-color: rgb(140, 240, 215);
border-radius: 4px;
box-shadow: 0 2px 12px 0 rgba(0, 0, 0, 0.1);
margin-bottom: 10px;
}
&-item:last-child {
margin-bottom: 0;
}
}
}
</style>
