SerVice的启动原理
- ComponentName：
startService
源码分析
ams
@Override
public ComponentName startService(IApplicationThread caller, Intent service,
String resolvedType, boolean requireForeground, String callingPackage, int userId)
throws TransactionTooLargeException {
ComponentName res;
try {
res = mServices.startServiceLocked(caller, service,
resolvedType, callingPid, callingUid,
requireForeground, callingPackage, userId);
} finally {
Binder.restoreCallingIdentity(origId);
}
return res;
}
}
ActiveServices
ComponentName startServiceLocked(IApplicationThread caller, Intent service, String resolvedType,
int callingPid, int callingUid, boolean fgRequired, String callingPackage, final int userId)
throws TransactionTooLargeException {
// .....省略大部分代码
if (unscheduleServiceRestartLocked(r, callingUid, false)) {
if (DEBUG_SERVICE) Slog.v(TAG_SERVICE, "START SERVICE WHILE RESTART PENDING: " + r);
}
r.lastActivity = SystemClock.uptimeMillis();
r.startRequested = true;
r.delayedStop = false;
r.fgRequired = fgRequired;
// ArrayList<StartItem> start() arguments that haven't yet been delivered. 还没有分发的参数,之后准备调用onStartConmmand()使用的
//ServiceRecord IBinder
r.pendingStarts.add(new ServiceRecord.StartItem(r, false, r.makeNextStartId(),
service, neededGrants, callingUid));
// startServiceInnerLocked
ComponentName cmp = startServiceInnerLocked(smap, service, r, callerFg, addToStarting);
return cmp;
}
// 2
ComponentName startServiceInnerLocked(ServiceMap smap, Intent service, ServiceRecord r,
boolean callerFg, boolean addToStarting) throws TransactionTooLargeException {
ServiceState stracker = r.getTracker();
if (stracker != null) {
stracker.setStarted(true, mAm.mProcessStats.getMemFactorLocked(), r.lastActivity);
}
r.callStart = false;
synchronized (r.stats.getBatteryStats()) {
r.stats.startRunningLocked();
}
// 3
String error = bringUpServiceLocked(r, service.getFlags(), callerFg, false, false);
if (error != null) {
return new ComponentName("!!", error);
}
if (r.startRequested && addToStarting) {
boolean first = smap.mStartingBackground.size() == 0;
smap.mStartingBackground.add(r);
r.startingBgTimeout = SystemClock.uptimeMillis() + mAm.mConstants.BG_START_TIMEOUT;
if (DEBUG_DELAYED_SERVICE) {
RuntimeException here = new RuntimeException("here");
here.fillInStackTrace();
Slog.v(TAG_SERVICE, "Starting background (first=" + first + "): " + r, here);
} else if (DEBUG_DELAYED_STARTS) {
Slog.v(TAG_SERVICE, "Starting background (first=" + first + "): " + r);
}
if (first) {
smap.rescheduleDelayedStartsLocked();
}
} else if (callerFg || r.fgRequired) {
smap.ensureNotStartingBackgroundLocked(r);
}
return r.name;
}
// 4

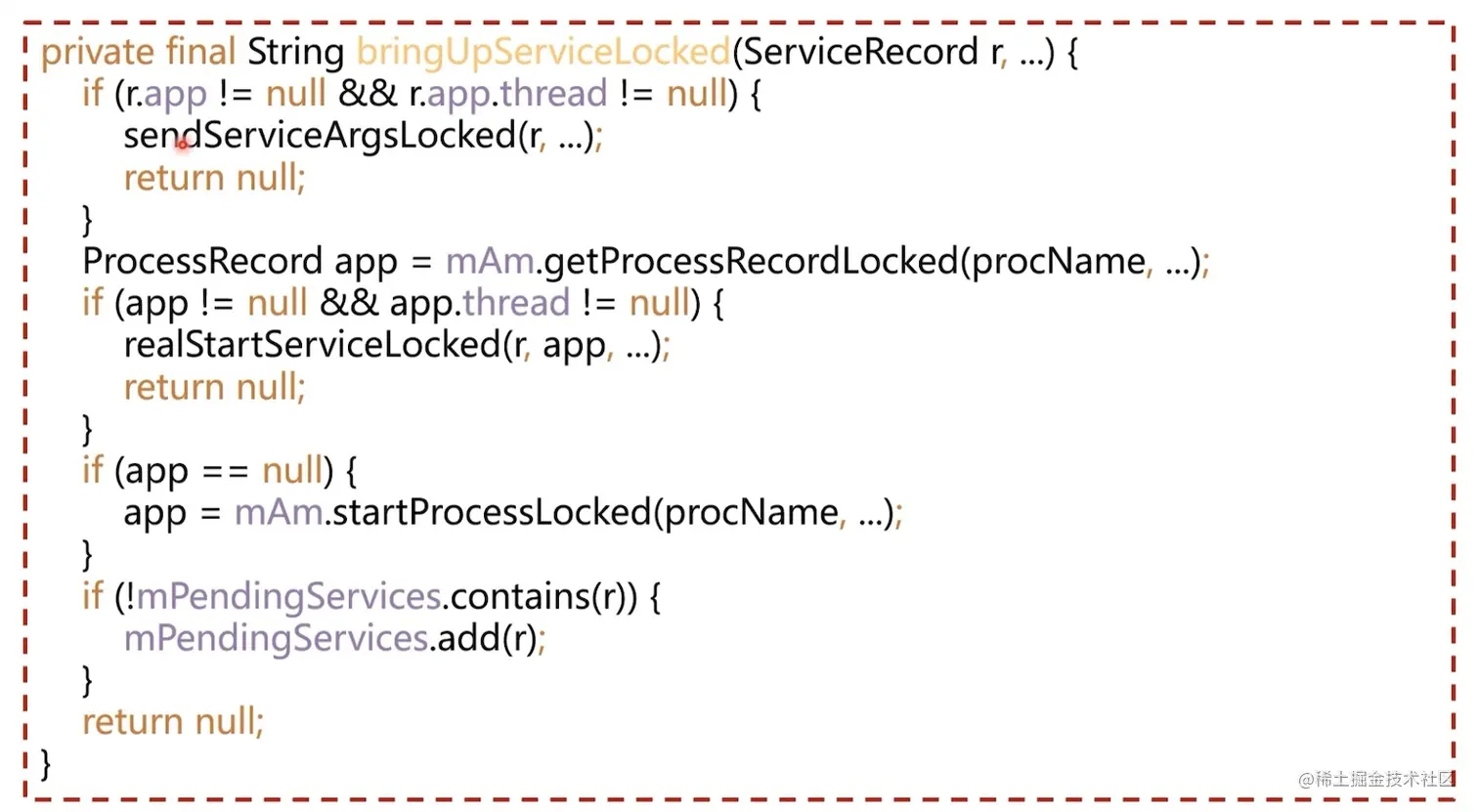

private String bringUpServiceLocked(ServiceRecord r, int intentFlags, boolean execInFg,
boolean whileRestarting, boolean permissionsReviewRequired)
throws TransactionTooLargeException {
// 判断 service 是否是启动了(service所在的进程非空，并且service所在的进程启动了)，如果是启动了，直接调用sendServiceArgsLocked
// 判断serviceRecord 的processRecord是否为空
if (r.app != null && r.app.thread != null) {
// 这个函数主要出发应用端 onServiceStartCommand()
sendServiceArgsLocked(r, execInFg, false);
return null;
}
// 省略部分代码
ProcessRecord app;
if (!isolated) {
// 找到service 对应的ProcessRecord
app = mAm.getProcessRecordLocked(procName, r.appInfo.uid, false);
if (DEBUG_MU) Slog.v(TAG_MU, "bringUpServiceLocked: appInfo.uid=" + r.appInfo.uid
+ " app=" + app);
// 如果service 所在的进程不为空 并且进程已经启动了
if (app != null && app.thread != null) {
try {
app.addPackage(r.appInfo.packageName, r.appInfo.longVersionCode, mAm.mProcessStats);
// 真正启动service
realStartServiceLocked(r, app, execInFg);
return null;
} catch (TransactionTooLargeException e) {
throw e;
} catch (RemoteException e) {
Slog.w(TAG, "Exception when starting service " + r.shortName, e);
}
// If a dead object exception was thrown -- fall through to
// restart the application.
}
} else {
// If this service runs in an isolated process, then each time
// we call startProcessLocked() we will get a new isolated
// process, starting another process if we are currently waiting
// for a previous process to come up. To deal with this, we store
// in the service any current isolated process it is running in or
// waiting to have come up.
app = r.isolatedProc;
if (WebViewZygote.isMultiprocessEnabled()
&& r.serviceInfo.packageName.equals(WebViewZygote.getPackageName())) {
hostingType = "webview_service";
}
}
// Not running -- get it started, and enqueue this service record
// to be executed when the app comes up.
// 进程没有启动，启动进程 还有种情况是app进程启动了，但是thread为null, 说明进程还没有就绪
if (app == null && !permissionsReviewRequired) {
if ((app=mAm.startProcessLocked(procName, r.appInfo, true, intentFlags,
hostingType, r.name, false, isolated, false)) == null) {
String msg = "Unable to launch app "
+ r.appInfo.packageName + "/"
+ r.appInfo.uid + " for service "
+ r.intent.getIntent() + ": process is bad";
Slog.w(TAG, msg);
bringDownServiceLocked(r);
return msg;
}
if (isolated) {
r.isolatedProc = app;
}
}
// 把ServiceRecord加到PendingService 的列表里面
if (!mPendingServices.contains(r)) {
mPendingServices.add(r);
}
if (r.delayedStop) {
// Oh and hey we've already been asked to stop!
r.delayedStop = false;
if (r.startRequested) {
if (DEBUG_DELAYED_STARTS) Slog.v(TAG_SERVICE,
"Applying delayed stop (in bring up): " + r);
stopServiceLocked(r);
}
}
return null;
}
// realStartServiceLocked
private final void realStartServiceLocked(ServiceRecord r,
ProcessRecord app, boolean execInFg) throws RemoteException {
if (app.thread == null) {
throw new RemoteException();
}
if (DEBUG_MU)
Slog.v(TAG_MU, "realStartServiceLocked, ServiceRecord.uid = " + r.appInfo.uid
+ ", ProcessRecord.uid = " + app.uid);
r.app = app;
r.restartTime = r.lastActivity = SystemClock.uptimeMillis();
final boolean newService = app.services.add(r);
bumpServiceExecutingLocked(r, execInFg, "create");
mAm.updateLruProcessLocked(app, false, null);
updateServiceForegroundLocked(r.app, /* oomAdj= */ false);
mAm.updateOomAdjLocked();
boolean created = false;
try {
if (LOG_SERVICE_START_STOP) {
String nameTerm;
int lastPeriod = r.shortName.lastIndexOf('.');
nameTerm = lastPeriod >= 0 ? r.shortName.substring(lastPeriod) : r.shortName;
EventLogTags.writeAmCreateService(
r.userId, System.identityHashCode(r), nameTerm, r.app.uid, r.app.pid);
}
synchronized (r.stats.getBatteryStats()) {
r.stats.startLaunchedLocked();
}
mAm.notifyPackageUse(r.serviceInfo.packageName,
PackageManager.NOTIFY_PACKAGE_USE_SERVICE);
app.forceProcessStateUpTo(ActivityManager.PROCESS_STATE_SERVICE);

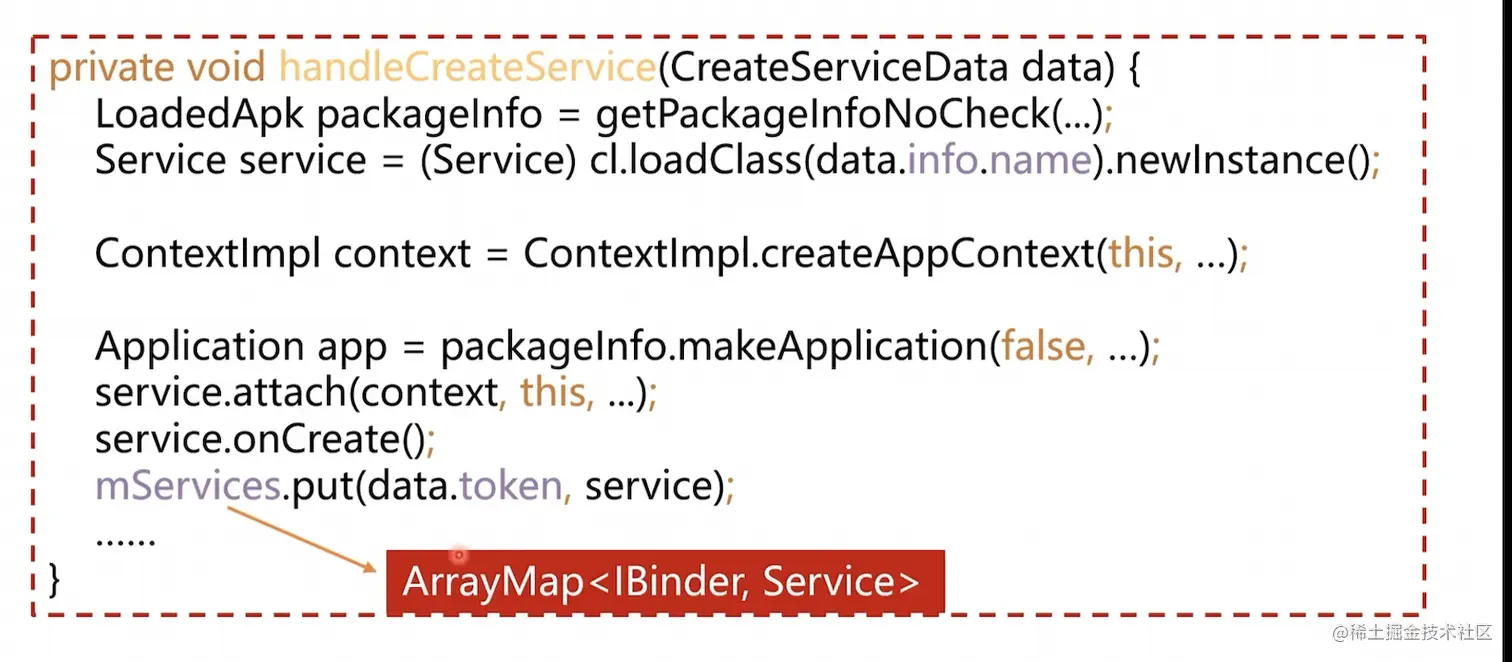

// thread （IApplicationThread）apt 请求创建Service
app.thread.scheduleCreateService(r, r.serviceInfo,
mAm.compatibilityInfoForPackageLocked(r.serviceInfo.applicationInfo),
app.repProcState);
r.postNotification();
created = true;
} catch (DeadObjectException e) {
Slog.w(TAG, "Application dead when creating service " + r);
mAm.appDiedLocked(app);
throw e;
} finally {
if (!created) {
// Keep the executeNesting count accurate.
final boolean inDestroying = mDestroyingServices.contains(r);
serviceDoneExecutingLocked(r, inDestroying, inDestroying);
// Cleanup.
if (newService) {
app.services.remove(r);
r.app = null;
}
// Retry.
if (!inDestroying) {
scheduleServiceRestartLocked(r, false);
}
}
}
if (r.whitelistManager) {
app.whitelistManager = true;
}
requestServiceBindingsLocked(r, execInFg);
updateServiceClientActivitiesLocked(app, null, true);
// If the service is in the started state, and there are no
// pending arguments, then fake up one so its onStartCommand() will
// be called.
if (r.startRequested && r.callStart && r.pendingStarts.size() == 0) {
r.pendingStarts.add(new ServiceRecord.StartItem(r, false, r.makeNextStartId(),
null, null, 0));
}
// 触发service的onstartCommand()
sendServiceArgsLocked(r, execInFg, true);
if (r.delayed) {
if (DEBUG_DELAYED_STARTS) Slog.v(TAG_SERVICE, "REM FR DELAY LIST (new proc): " + r);
getServiceMapLocked(r.userId).mDelayedStartList.remove(r);
r.delayed = false;
}
if (r.delayedStop) {
// Oh and hey we've already been asked to stop!
r.delayedStop = false;
if (r.startRequested) {
if (DEBUG_DELAYED_STARTS) Slog.v(TAG_SERVICE,
"Applying delayed stop (from start): " + r);
stopServiceLocked(r);
}
}
}

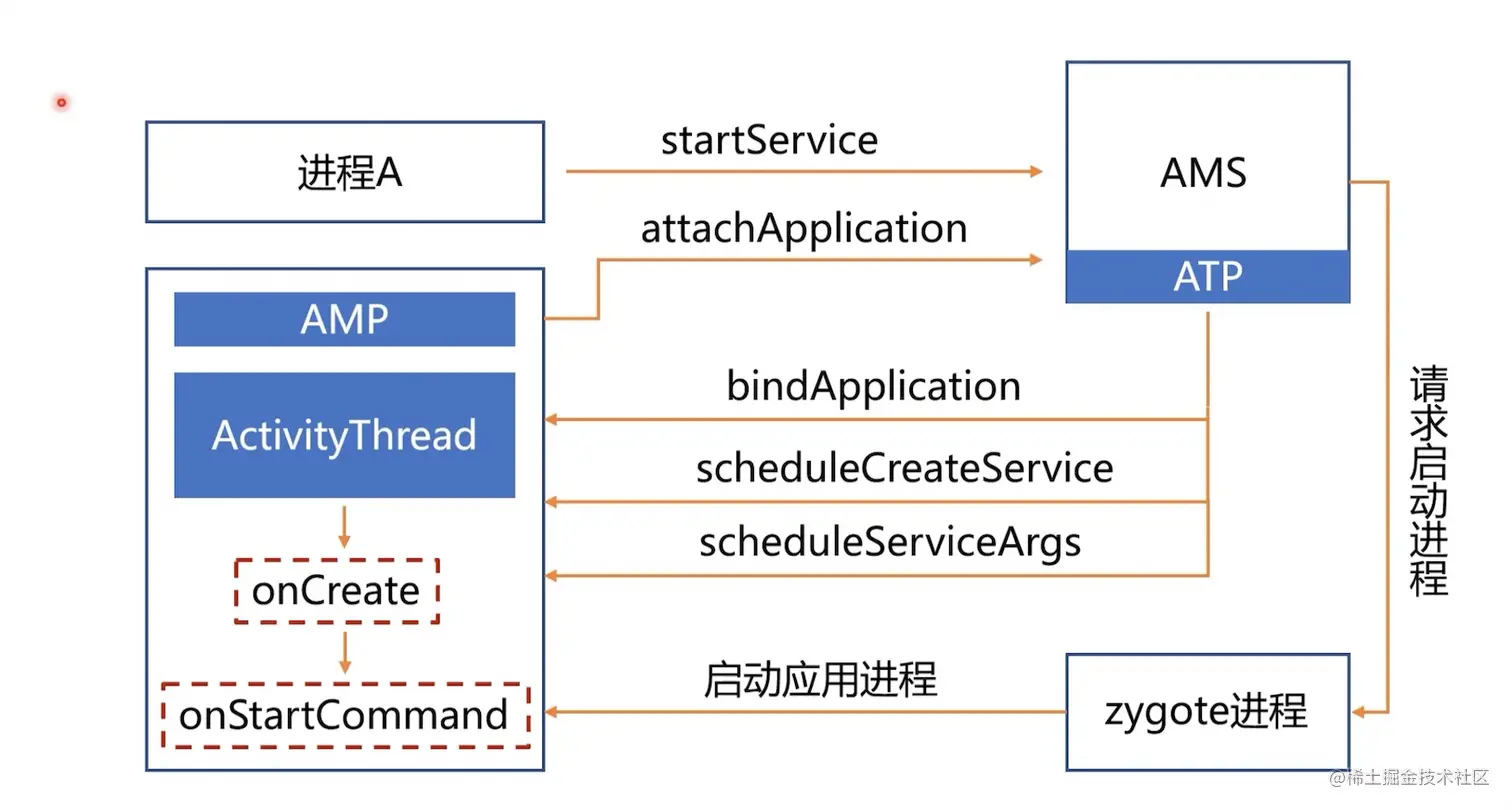

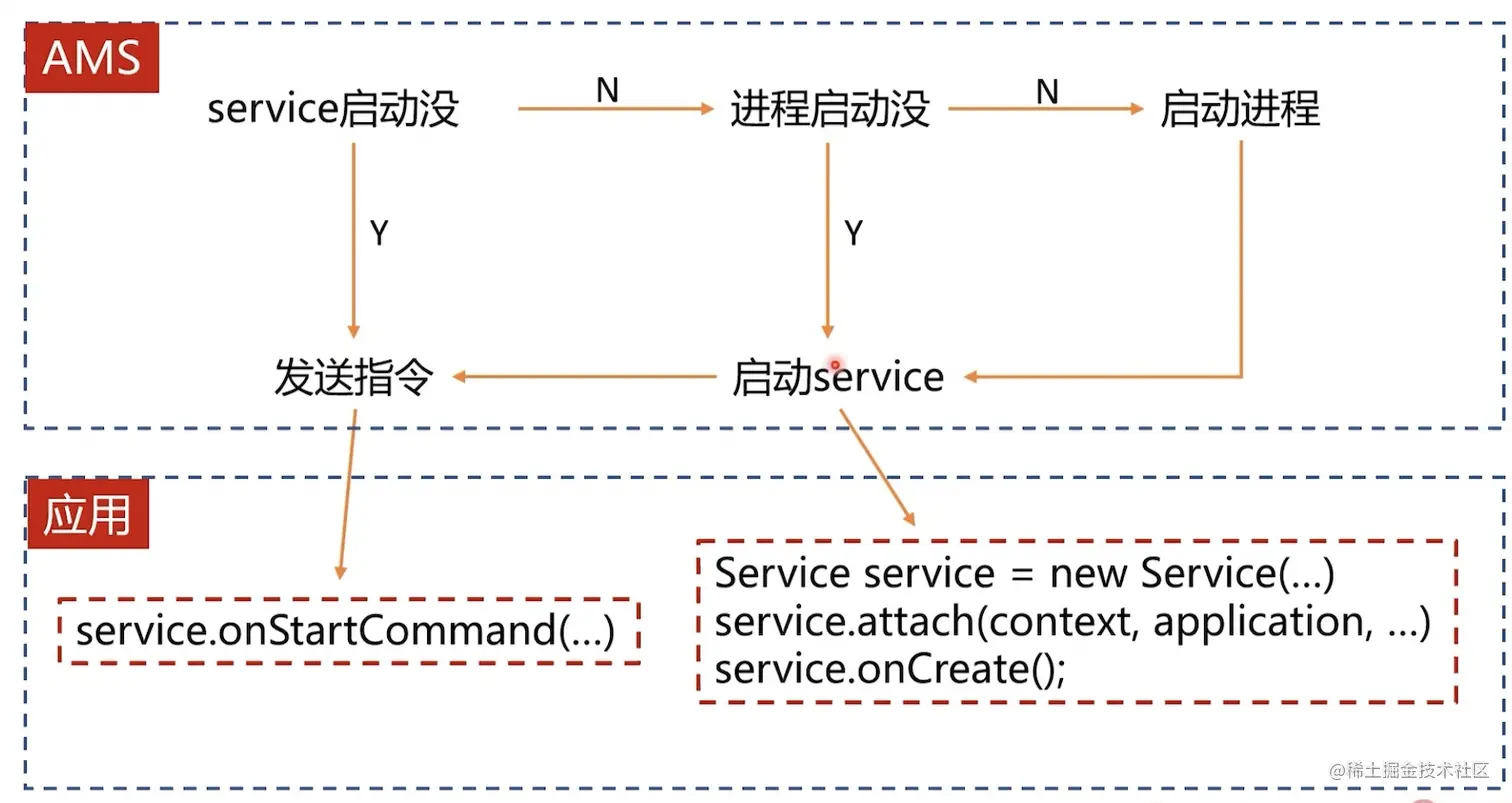

整体流程总结
- 进程A调用startService
- 将ServiceRecord添加进pendingStarts
- mServices.startServiceLocked
- startServiceInnerLocked
- bringUpServiceLocked
- 判断serviceRecord记录的进程是否为空，且进程是否启动，如果启动 sendServiceArgsLocked(r, execInFg, false);，调用onServiceStartCommand
- 判断进程是否启动 ，没启动启动进程，如果启动了通过apt调用scheCreateService,最终会通过mH在主线程中去执行Service的启动，启动后，将service添加到ArrayMap<ServiceRecord,Service>mServices中
- 在AMS的ActiveServices中mPendingService也将已经启动的ServiceRecord存起来

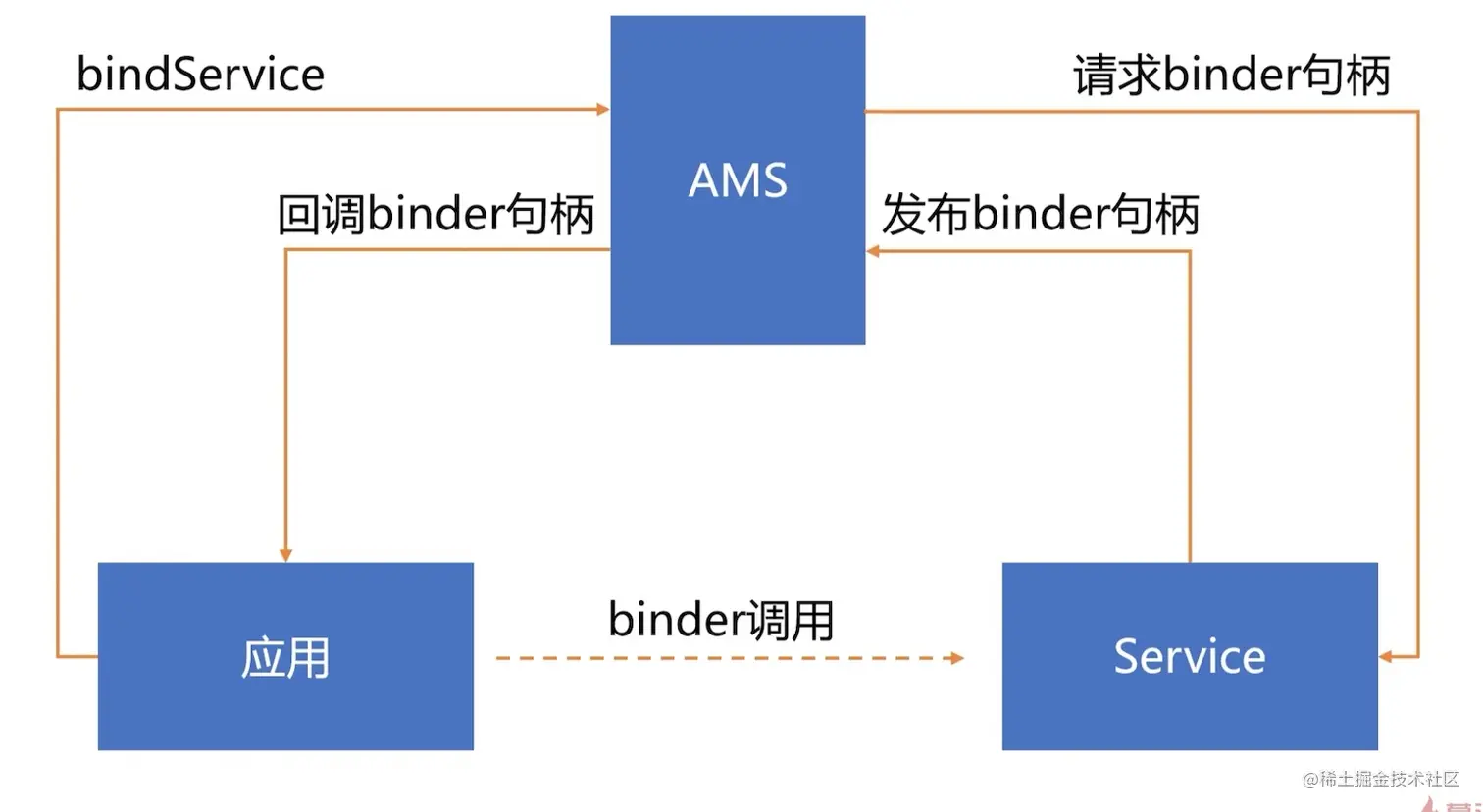

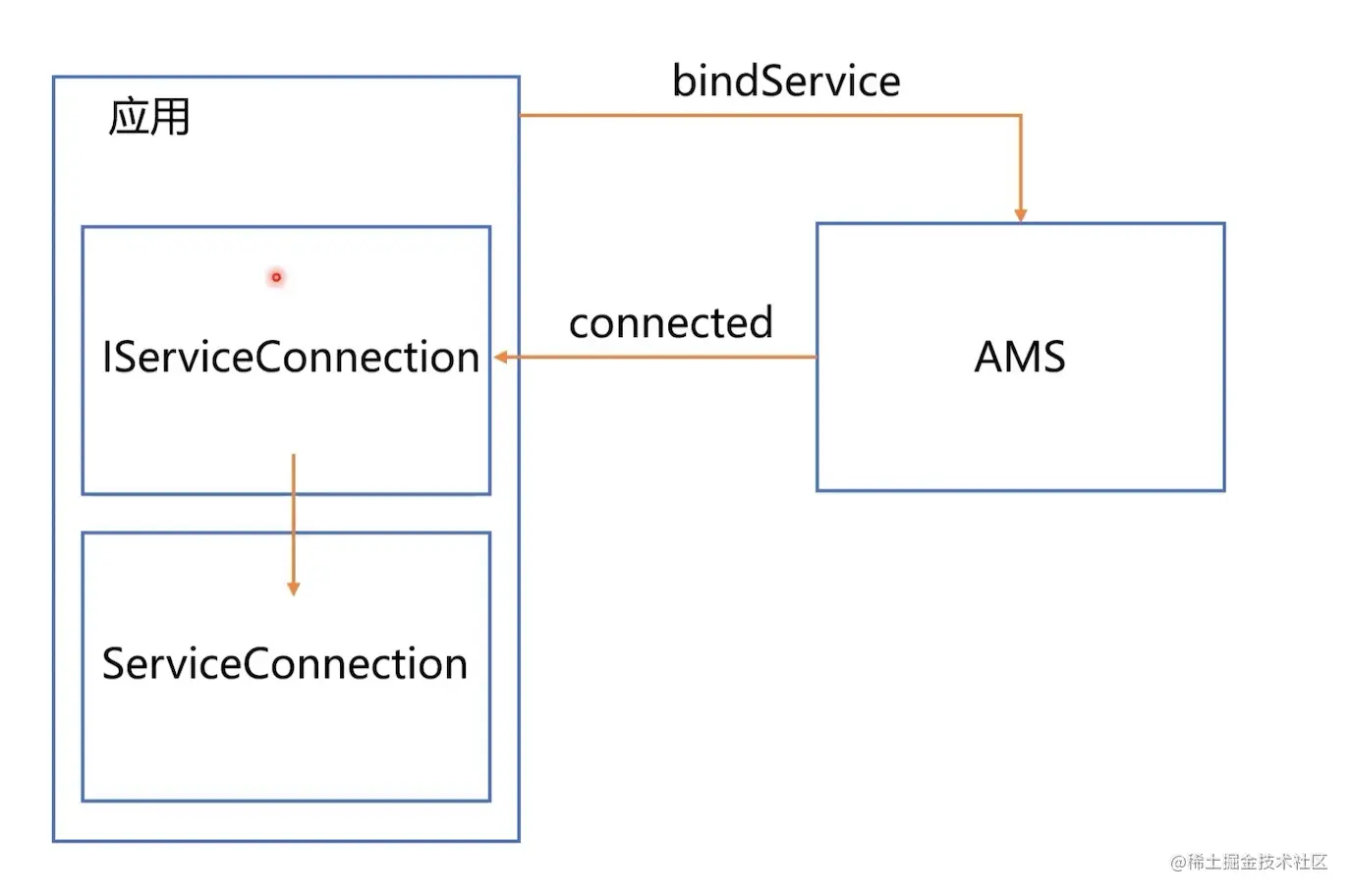

bindService
源码分析
contextImpl
private boolean bindServiceCommon(Intent service, ServiceConnection conn, int flags, Handler
handler, UserHandle user) {
// Keep this in sync with DevicePolicyManager.bindDeviceAdminServiceAsUser.
IServiceConnection sd;
if (conn == null) {
throw new IllegalArgumentException("connection is null");
}
if (mPackageInfo != null) {
sd = mPackageInfo.getServiceDispatcher(conn, getOuterContext(), handler, flags);
} else {
throw new RuntimeException("Not supported in system context");
}
validateServiceIntent(service);
try {
IBinder token = getActivityToken();
if (token == null && (flags&BIND_AUTO_CREATE) == 0 && mPackageInfo != null
&& mPackageInfo.getApplicationInfo().targetSdkVersion
< android.os.Build.VERSION_CODES.ICE_CREAM_SANDWICH) {
flags |= BIND_WAIVE_PRIORITY;
}
service.prepareToLeaveProcess(this);
// 发起AMS调用
int res = ActivityManager.getService().bindService(
mMainThread.getApplicationThread(), getActivityToken(), service,
service.resolveTypeIfNeeded(getContentResolver()),
sd, flags, getOpPackageName(), user.getIdentifier());
if (res < 0) {
throw new SecurityException(
"Not allowed to bind to service " + service);
}
return res != 0;
} catch (RemoteException e) {
throw e.rethrowFromSystemServer();
}
}
ActiveService

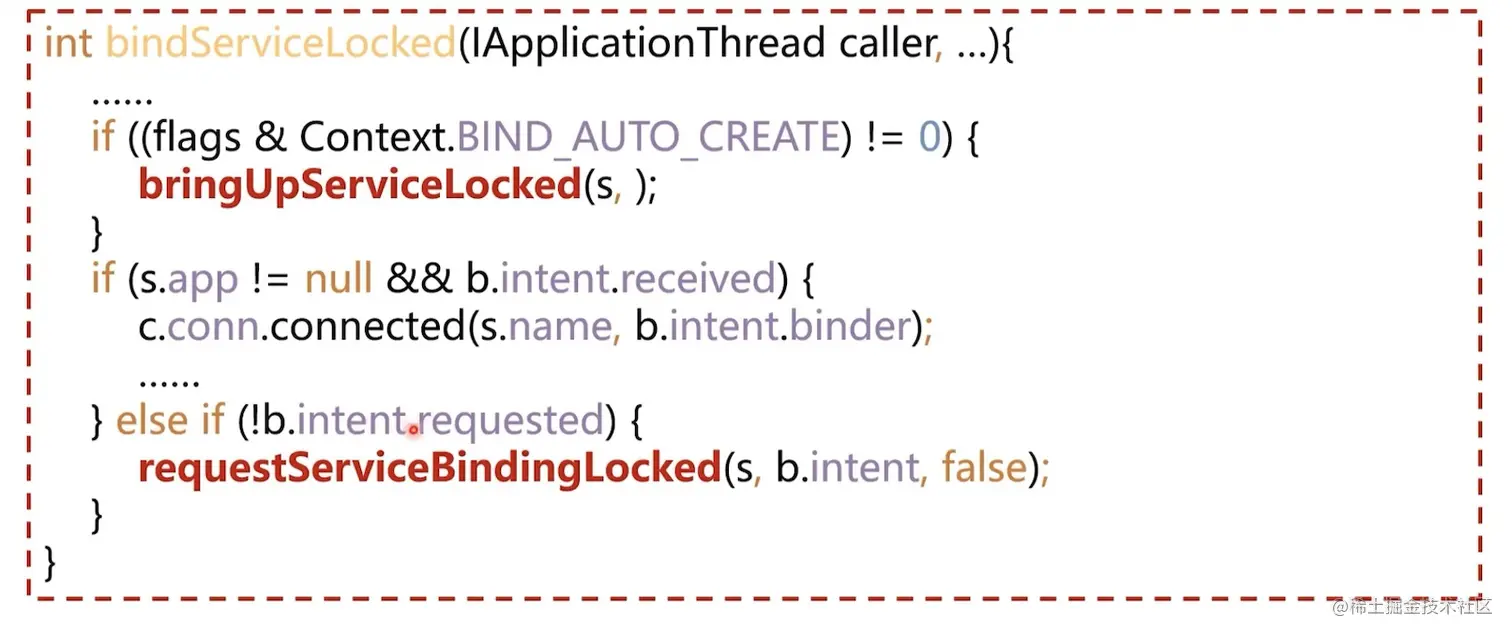

int bindServiceLocked(IApplicationThread caller, IBinder token, Intent service,
String resolvedType, final IServiceConnection connection, int flags,
String callingPackage, final int userId) throws TransactionTooLargeException {
ActivityRecord activity = null;
if (token != null) {
activity = ActivityRecord.isInStackLocked(token);
if (activity == null) {
Slog.w(TAG, "Binding with unknown activity: " + token);
return 0;
}
}
int clientLabel = 0;
PendingIntent clientIntent = null;
final boolean isCallerSystem = callerApp.info.uid == Process.SYSTEM_UID;
final boolean callerFg = callerApp.setSchedGroup != ProcessList.SCHED_GROUP_BACKGROUND;
final boolean isBindExternal = (flags & Context.BIND_EXTERNAL_SERVICE) != 0;
final boolean allowInstant = (flags & Context.BIND_ALLOW_INSTANT) != 0;
ServiceLookupResult res =
retrieveServiceLocked(service, resolvedType, callingPackage, Binder.getCallingPid(),
Binder.getCallingUid(), userId, true, callerFg, isBindExternal, allowInstant);
if (res == null) {
return 0;
}
if (res.record == null) {
return -1;
}
ServiceRecord s = res.record;
boolean permissionsReviewRequired = false;
// If permissions need a review before any of the app components can run,
// we schedule binding to the service but do not start its process, then
// we launch a review activity to which is passed a callback to invoke
// when done to start the bound service's process to completing the binding.
if (mAm.mPermissionReviewRequired) {
if (mAm.getPackageManagerInternalLocked().isPermissionsReviewRequired(
s.packageName, s.userId)) {
permissionsReviewRequired = true;
// Show a permission review UI only for binding from a foreground app
if (!callerFg) {
Slog.w(TAG, "u" + s.userId + " Binding to a service in package"
+ s.packageName + " requires a permissions review");
return 0;
}
final ServiceRecord serviceRecord = s;
final Intent serviceIntent = service;
RemoteCallback callback = new RemoteCallback(
new RemoteCallback.OnResultListener() {
@Override
public void onResult(Bundle result) {
synchronized(mAm) {
final long identity = Binder.clearCallingIdentity();
try {
if (!mPendingServices.contains(serviceRecord)) {
return;
}
// If there is still a pending record, then the service
// binding request is still valid, so hook them up. We
// proceed only if the caller cleared the review requirement
// otherwise we unbind because the user didn't approve.
if (!mAm.getPackageManagerInternalLocked()
.isPermissionsReviewRequired(
serviceRecord.packageName,
serviceRecord.userId)) {
try {
bringUpServiceLocked(serviceRecord,
serviceIntent.getFlags(),
callerFg, false, false);
} catch (RemoteException e) {
/* ignore - local call */
}
} else {
unbindServiceLocked(connection);
}
} finally {
Binder.restoreCallingIdentity(identity);
}
}
}
});
final Intent intent = new Intent(Intent.ACTION_REVIEW_PERMISSIONS);
intent.addFlags(Intent.FLAG_ACTIVITY_NEW_TASK
| Intent.FLAG_ACTIVITY_EXCLUDE_FROM_RECENTS);
intent.putExtra(Intent.EXTRA_PACKAGE_NAME, s.packageName);
intent.putExtra(Intent.EXTRA_REMOTE_CALLBACK, callback);
if (DEBUG_PERMISSIONS_REVIEW) {
Slog.i(TAG, "u" + s.userId + " Launching permission review for package "
+ s.packageName);
}
mAm.mHandler.post(new Runnable() {
@Override
public void run() {
mAm.mContext.startActivityAsUser(intent, new UserHandle(userId));
}
});
}
}
final long origId = Binder.clearCallingIdentity();
try {
if (unscheduleServiceRestartLocked(s, callerApp.info.uid, false)) {
if (DEBUG_SERVICE) Slog.v(TAG_SERVICE, "BIND SERVICE WHILE RESTART PENDING: "
+ s);
}
if ((flags&Context.BIND_AUTO_CREATE) != 0) {
s.lastActivity = SystemClock.uptimeMillis();
if (!s.hasAutoCreateConnections()) {
// This is the first binding, let the tracker know.
ServiceState stracker = s.getTracker();
if (stracker != null) {
stracker.setBound(true, mAm.mProcessStats.getMemFactorLocked(),
s.lastActivity);
}
}
}
mAm.startAssociationLocked(callerApp.uid, callerApp.processName, callerApp.curProcState,
s.appInfo.uid, s.name, s.processName);
// Once the apps have become associated, if one of them is caller is ephemeral
// the target app should now be able to see the calling app
mAm.grantEphemeralAccessLocked(callerApp.userId, service,
s.appInfo.uid, UserHandle.getAppId(callerApp.uid));
AppBindRecord b = s.retrieveAppBindingLocked(service, callerApp);
ConnectionRecord c = new ConnectionRecord(b, activity,
connection, flags, clientLabel, clientIntent);
IBinder binder = connection.asBinder();
ArrayList<ConnectionRecord> clist = s.connections.get(binder);
if (clist == null) {
clist = new ArrayList<ConnectionRecord>();
s.connections.put(binder, clist);
}
clist.add(c);
b.connections.add(c);
if (activity != null) {
if (activity.connections == null) {
activity.connections = new HashSet<ConnectionRecord>();
}
activity.connections.add(c);
}
b.client.connections.add(c);
if ((c.flags&Context.BIND_ABOVE_CLIENT) != 0) {
b.client.hasAboveClient = true;
}
if ((c.flags&Context.BIND_ALLOW_WHITELIST_MANAGEMENT) != 0) {
s.whitelistManager = true;
}
if (s.app != null) {
updateServiceClientActivitiesLocked(s.app, c, true);
}
clist = mServiceConnections.get(binder);
if (clist == null) {
clist = new ArrayList<ConnectionRecord>();
mServiceConnections.put(binder, clist);
}
clist.add(c);
if ((flags&Context.BIND_AUTO_CREATE) != 0) {
s.lastActivity = SystemClock.uptimeMillis();
if (bringUpServiceLocked(s, service.getFlags(), callerFg, false,
permissionsReviewRequired) != null) {
return 0;
}
}
if (s.app != null) {
if ((flags&Context.BIND_TREAT_LIKE_ACTIVITY) != 0) {
s.app.treatLikeActivity = true;
}
if (s.whitelistManager) {
s.app.whitelistManager = true;
}
// This could have made the service more important.
mAm.updateLruProcessLocked(s.app, s.app.hasClientActivities
|| s.app.treatLikeActivity, b.client);
mAm.updateOomAdjLocked(s.app, true);
}
if (DEBUG_SERVICE) Slog.v(TAG_SERVICE, "Bind " + s + " with " + b
+ ": received=" + b.intent.received
+ " apps=" + b.intent.apps.size()
+ " doRebind=" + b.intent.doRebind);
if (s.app != null && b.intent.received) {
// Service is already running, so we can immediately
// publish the connection.
try {
c.conn.connected(s.name, b.intent.binder, false);
} catch (Exception e) {
Slog.w(TAG, "Failure sending service " + s.shortName
+ " to connection " + c.conn.asBinder()
+ " (in " + c.binding.client.processName + ")", e);
}
// If this is the first app connected back to this binding,
// and the service had previously asked to be told when
// rebound, then do so.
if (b.intent.apps.size() == 1 && b.intent.doRebind) {
requestServiceBindingLocked(s, b.intent, callerFg, true);
}
} else if (!b.intent.requested) {
requestServiceBindingLocked(s, b.intent, callerFg, false);
}
getServiceMapLocked(s.userId).ensureNotStartingBackgroundLocked(s);
} finally {
Binder.restoreCallingIdentity(origId);
}
return 1;
}
|--AMS
| |--bindServiceLocked
| |-- bringUpServiceLocked(serviceRecord,serviceIntent.getFlags(),callerFg, false, false);
- bindService 没有给ServiceRecord加到PendingStarts队列里面
- 首先要定义一个AidL接口，在应用端会收到onServiceConnected的毁掉
- 然后通过这个接口向业务层发起调用
- 应用端调用bindService，AMS中创建一个IServiceConnection，传入serviceConnection,当绑定好service后，AMS通知IServiceConnection,因为IServiceConnection中有serviceConnect的引用，这时就可以回调到serviceconnection的onServiceConnected中
- 一个(context,serviceconnection)->IServiceConnection 意思就是同一个ServiceConnextion，但是是不同的context去bind,对应的IServiceConnection也是不同的，同一个context,不同的serviceConnection，也会对应不同的IServiceConnection
- 如果Service没有创建，创建service
- Service已经启动好了，并且Service的binder对象已经发布给Ams了，那么可以直接返回给serviceconnected对调
- 如果service还没有向AMS发布binder对象，b.intent.requested表示AMS有没有向Service请求binder对象
- 最后将ServiceRecord添加到PendingService中
private final void realStartServiceLocked(ServiceRecord r,
ProcessRecord app, boolean execInFg) throws RemoteException {
// 如果ServiceRecord.app！=null,说明realStartServiceLocked,Service已经启动了
r.app = app;
boolean created = false;
try {
synchronized (r.stats.getBatteryStats()) {
r.stats.startLaunchedLocked();
}
mAm.notifyPackageUse(r.serviceInfo.packageName,
PackageManager.NOTIFY_PACKAGE_USE_SERVICE);
app.forceProcessStateUpTo(ActivityManager.PROCESS_STATE_SERVICE);
// 执行创建service
app.thread.scheduleCreateService(r, r.serviceInfo,
mAm.compatibilityInfoForPackageLocked(r.serviceInfo.applicationInfo),
app.repProcState);
r.postNotification();
created = true;
} catch (DeadObjectException e) {
Slog.w(TAG, "Application dead when creating service " + r);
mAm.appDiedLocked(app);
throw e;
} finally {
if (!created) {
// Keep the executeNesting count accurate.
final boolean inDestroying = mDestroyingServices.contains(r);
serviceDoneExecutingLocked(r, inDestroying, inDestroying);
// Cleanup.
if (newService) {
app.services.remove(r);
r.app = null;
}
// Retry.
if (!inDestroying) {
scheduleServiceRestartLocked(r, false);
}
}
}
if (r.whitelistManager) {
app.whitelistManager = true;
}
// 请求Service发布Binder句柄， r.app.thread.scheduleBindService(r, i.intent.getIntent(), rebind,r.app.repProcState);
requestServiceBindingsLocked(r, execInFg);
updateServiceClientActivitiesLocked(app, null, true);
// 看看是否有pendingStart要处理
sendServiceArgsLocked(r, execInFg, true);
}
ActivityThread
private void handleBindService(BindServiceData data) {
Service s = mServices.get(data.token);
if (DEBUG_SERVICE)
Slog.v(TAG, "handleBindService s=" + s + " rebind=" + data.rebind);
if (s != null) {
try {
data.intent.setExtrasClassLoader(s.getClassLoader());
data.intent.prepareToEnterProcess();
try {
// service是否data.rebind
if (!data.rebind) {
IBinder binder = s.onBind(data.intent);
// 发布binder句柄
ActivityManager.getService().publishService(
data.token, data.intent, binder);
} else {
//
s.onRebind(data.intent);
ActivityManager.getService().serviceDoneExecuting(
data.token, SERVICE_DONE_EXECUTING_ANON, 0, 0);
}
ensureJitEnabled();
} catch (RemoteException ex) {
throw ex.rethrowFromSystemServer();
}
} catch (Exception e) {
if (!mInstrumentation.onException(s, e)) {
throw new RuntimeException(
"Unable to bind to service " + s
+ " with " + data.intent + ": " + e.toString(), e);
}
}
}
}
AMS
void publishServiceLocked(ServiceRecord r, Intent intent, IBinder service) {
final long origId = Binder.clearCallingIdentity();
try {
if (DEBUG_SERVICE) Slog.v(TAG_SERVICE, "PUBLISHING " + r
+ " " + intent + ": " + service);
if (r != null) {
Intent.FilterComparison filter
= new Intent.FilterComparison(intent);
IntentBindRecord b = r.bindings.get(filter);
if (b != null && !b.received) {
b.binder = service;
b.requested = true;
b.received = true;
// 遍历ServiceConnect
for (int conni=r.connections.size()-1; conni>=0; conni--) {
ArrayList<ConnectionRecord> clist = r.connections.valueAt(conni);
for (int i=0; i<clist.size(); i++) {
ConnectionRecord c = clist.get(i);
try {
// 回调,传递service
c.conn.connected(r.name, service, false);
} catch (Exception e) {
Slog.w(TAG, "Failure sending service " + r.name +
" to connection " + c.conn.asBinder() +
" (in " + c.binding.client.processName + ")", e);
}
}
}
}
serviceDoneExecutingLocked(r, mDestroyingServices.contains(r), false);
}
} finally {
Binder.restoreCallingIdentity(origId);
}
}
onRebind 什么时候调用
- ServiceREcord！=null&&IntentRecord.received
