以下是Netty官方提供的example中服务端启动流程:
- 首先创建一个parent线程和child线程组，设置到ServerBootstrap，
- 并设置ReflectiveChannelFactory持有NioServerSocketChannel.class的constructor的通道反射工厂.
- 设置LoggingHandler到ServerBootstrap的handle的引用.
- 设置ChannelInitializer到ServerBootstrap的childHandler引用。
- 调用ServerBootstrap的bind的进行绑定操作,并调用sync进行同步等待绑定完成。
- 租后就是优雅的关机操作。
EventLoopGroup bossGroup = new NioEventLoopGroup(1);
EventLoopGroup workerGroup = new NioEventLoopGroup();
try {
ServerBootstrap b = new ServerBootstrap();
b.group(bossGroup, workerGroup)
.channel(NioServerSocketChannel.class)
.handler(new LoggingHandler(LogLevel.INFO))
.childHandler(new ChannelInitializer<SocketChannel>() {
@Override
public void initChannel(SocketChannel ch) {
ChannelPipeline p = ch.pipeline();
if (sslCtx != null) {
p.addLast(sslCtx.newHandler(ch.alloc()));
}
p.addLast(new DiscardServerHandler());
}
});
// Bind and start to accept incoming connections.
ChannelFuture f = b.bind(PORT).sync();
// Wait until the server socket is closed.
// In this example, this does not happen, but you can do that to gracefully
// shut down your server.
f.channel().closeFuture().sync();
} finally {
workerGroup.shutdownGracefully();
bossGroup.shutdownGracefully();
}
ServerBootstrap的网络端口绑定流程
bind函数传入的是包装InetSocketAddress对象，进行绑定网络端口
public ChannelFuture bind(int inetPort) {
return bind(new InetSocketAddress(inetPort));
}
1，进行校验: 校验parent的group和channelFactory都不能为空. 2. 调用doBind进行绑定的端口。
public ChannelFuture bind(SocketAddress localAddress) {
validate();
return doBind(ObjectUtil.checkNotNull(localAddress, "localAddress"));
}
- 对channel的初始化的注册。返回ChannelFuture对象.
- 判断channel注册是否完成，如果完成，则创建ChannelPromise,调用doBind0进行端口绑定，
- 如果channel注册没有完成，则创建PendingRegistrationPromise对象，并在reqFuture增加一个ChannelFutureListener监听器，如果监听器监听到channle注册完成，则同样调用doBind0进行端口绑定。
private ChannelFuture doBind(final SocketAddress localAddress) {
final ChannelFuture regFuture = initAndRegister();
final Channel channel = regFuture.channel();
if (regFuture.cause() != null) {
return regFuture;
}
if (regFuture.isDone()) {
// At this point we know that the registration was complete and successful.
ChannelPromise promise = channel.newPromise();
doBind0(regFuture, channel, localAddress, promise);
return promise;
} else {
// Registration future is almost always fulfilled already, but just in case it's not.
final PendingRegistrationPromise promise = new PendingRegistrationPromise(channel);
regFuture.addListener(new ChannelFutureListener() {
@Override
public void operationComplete(ChannelFuture future) throws Exception {
Throwable cause = future.cause();
if (cause != null) {
// Registration on the EventLoop failed so fail the ChannelPromise directly to not cause an
// IllegalStateException once we try to access the EventLoop of the Channel.
promise.setFailure(cause);
} else {
// Registration was successful, so set the correct executor to use.
// See https://github.com/netty/netty/issues/2586
promise.registered();
doBind0(regFuture, channel, localAddress, promise);
}
}
});
return promise;
}
}
Channel的初始化
Channel#initAndRegister
- channelFactory创建NioServerSocketChannel对象。
- 调用init初始化NioServerSocketChannel通道。
- 调用parent的EventLoopGroup的register进行的channel的注册。
- 如果注册出现异常，则关闭channel,,最后返回ChannelFuture
final ChannelFuture initAndRegister() {
Channel channel = null;
try {
channel = channelFactory.newChannel();
init(channel);
} catch (Throwable t) {
if (channel != null) {
// channel can be null if newChannel crashed (eg SocketException("too many open files"))
channel.unsafe().closeForcibly();
// as the Channel is not registered yet we need to force the usage of the GlobalEventExecutor
return new DefaultChannelPromise(channel, GlobalEventExecutor.INSTANCE).setFailure(t);
}
// as the Channel is not registered yet we need to force the usage of the GlobalEventExecutor
return new DefaultChannelPromise(new FailedChannel(), GlobalEventExecutor.INSTANCE).setFailure(t);
}
ChannelFuture regFuture = config().group().register(channel);
if (regFuture.cause() != null) {
if (channel.isRegistered()) {
channel.close();
} else {
channel.unsafe().closeForcibly();
}
}
return regFuture;
}
创建NioServerSocketChannel
- NioServerSocketChannel对象初始化时候，调用JDK底层的SelectorProvider的创建ServerSocketChannel。
- 然后调用父类的AbstractNioMessageChannel的构造方法，传入parent为null，SelectableChannel是ServerSocketChannel，readInterestOp是OpSelectionKey.OP_ACCEPT为Selectkey为Socket的Accep事件，配置ServerSocketChanne的模式为非阻塞。
- 调用父类AbstractChannel的构造方法，创建channelId实际是DefaultChannelId、unsafe对象实际是NioMessageUnsafe、ChannelPipeline对象实际是DefaultChannelPipeline.
private static final SelectorProvider DEFAULT_SELECTOR_PROVIDER = SelectorProvider.provider();
public NioServerSocketChannel() {
this(newSocket(DEFAULT_SELECTOR_PROVIDER));
}
private static ServerSocketChannel newSocket(SelectorProvider provider) {
try {
return provider.openServerSocketChannel();
} catch (IOException e) {
throw new ChannelException(
"Failed to open a server socket.", e);
}
}
public NioServerSocketChannel(ServerSocketChannel channel) {
super(null, channel, SelectionKey.OP_ACCEPT);
config = new NioServerSocketChannelConfig(this, javaChannel().socket());
}
protected AbstractNioMessageChannel(Channel parent, SelectableChannel ch, int readInterestOp) {
super(parent, ch, readInterestOp);
}
protected AbstractNioChannel(Channel parent, SelectableChannel ch, int readInterestOp) {
super(parent);
this.ch = ch;
this.readInterestOp = readInterestOp;
try {
ch.configureBlocking(false);
} catch (IOException e) {
try {
ch.close();
} catch (IOException e2) {
logger.warn(
"Failed to close a partially initialized socket.", e2);
}
throw new ChannelException("Failed to enter non-blocking mode.", e);
}
}
protected AbstractChannel(Channel parent) {
this.parent = parent;
id = newId();
unsafe = newUnsafe();
pipeline = newChannelPipeline();
}
ServerBootstrap#init方法
- 设置Channel的ChannelOptions。
- 设置Channel的Attributes。
- 获取Channel的pipeline,并添加ChannelInitializer，
- 调用Channel的eventloop执行Runnale,异步执行向pipeline增加 ServerBootstrapAcceptor这个Channelhandler.
void init(Channel channel) {
setChannelOptions(channel, newOptionsArray(), logger);
setAttributes(channel, newAttributesArray());
ChannelPipeline p = channel.pipeline();
final EventLoopGroup currentChildGroup = childGroup;
final ChannelHandler currentChildHandler = childHandler;
final Entry<ChannelOption<?>, Object>[] currentChildOptions = newOptionsArray(childOptions);
final Entry<AttributeKey<?>, Object>[] currentChildAttrs = newAttributesArray(childAttrs);
p.addLast(new ChannelInitializer<Channel>() {
@Override
public void initChannel(final Channel ch) {
final ChannelPipeline pipeline = ch.pipeline();
ChannelHandler handler = config.handler();
if (handler != null) {
pipeline.addLast(handler);
}
ch.eventLoop().execute(new Runnable() {
@Override
public void run() {
pipeline.addLast(new ServerBootstrapAcceptor(
ch, currentChildGroup, currentChildHandler, currentChildOptions, currentChildAttrs));
}
});
}
});
}
DefaultChannelPipeline#addLast 初始化Channel后，向Channel关联的pipeline增加ChannelInitializer的内部类,
- 创建DefaultChannelHandlerContext对象。
- 增加到ChannelContext的双向链表的tail的前面。
- 如果没有注册完成，则修改ChannelContext的handleStatue为add_pending状态。
- 调用callHandlerCallbackLater.
public final ChannelPipeline addLast(ChannelHandler handler) {
return addLast(null, handler);
}
@Override
public final ChannelPipeline addLast(String name, ChannelHandler handler) {
return addLast(null, name, handler);
}
@Override
public final ChannelPipeline addLast(EventExecutorGroup group, String name, ChannelHandler handler) {
final AbstractChannelHandlerContext newCtx;
synchronized (this) {
checkMultiplicity(handler);
newCtx = newContext(group, filterName(name, handler), handler);
addLast0(newCtx);
// If the registered is false it means that the channel was not registered on an eventLoop yet.
// In this case we add the context to the pipeline and add a task that will call
// ChannelHandler.handlerAdded(...) once the channel is registered.
if (!registered) {
newCtx.setAddPending();
callHandlerCallbackLater(newCtx, true);
return this;
}
EventExecutor executor = newCtx.executor();
if (!executor.inEventLoop()) {
callHandlerAddedInEventLoop(newCtx, executor);
return this;
}
}
callHandlerAdded0(newCtx);
return this;
}
DefaultChannelPipeline#callHandlerCallbackLater
- 如果是新增ChannelHandler,则新建PendingHandlerRemovedTask，加入阻塞队列的尾部。否则新建PendingHandlerRemovedTask，加入阻塞队列尾部。
private void callHandlerCallbackLater(AbstractChannelHandlerContext ctx, boolean added) {
assert !registered;
PendingHandlerCallback task = added ? new PendingHandlerAddedTask(ctx) : new PendingHandlerRemovedTask(ctx);
PendingHandlerCallback pending = pendingHandlerCallbackHead;
if (pending == null) {
pendingHandlerCallbackHead = task;
} else {
// Find the tail of the linked-list.
while (pending.next != null) {
pending = pending.next;
}
pending.next = task;
}
}
Channel的注册
- Channel的注册是通过parent的调用EventLoop的register进行注册channel.
ChannelFuture regFuture = config().group().register(channel);
if (regFuture.cause() != null) {
if (channel.isRegistered()) {
channel.close();
} else {
channel.unsafe().closeForcibly();
}
}
- NioEventLoop的register进行channel注册,传入参数为包装了channel的DefaultChannelPromise。
- 获取channel的unsafe对象(这里是不是JDk的Unsafe,而是Netty的 NioMessageUnsafe)注册。
public ChannelFuture register(Channel channel) {
return register(new DefaultChannelPromise(channel, this));
}
@Override
public ChannelFuture register(final ChannelPromise promise) {
ObjectUtil.checkNotNull(promise, "promise");
promise.channel().unsafe().register(this, promise);
return promise;
}
AbstractUnsafe#register
- 判断当前执行的eventloop的线程就是当前线程，并调用register0进行注册。
- 调用eventloop执行Runnable，异步执行register0注册。
public final void register(EventLoop eventLoop, final ChannelPromise promise) {
ObjectUtil.checkNotNull(eventLoop, "eventLoop");
if (isRegistered()) {
promise.setFailure(new IllegalStateException("registered to an event loop already"));
return;
}
if (!isCompatible(eventLoop)) {
promise.setFailure(
new IllegalStateException("incompatible event loop type: " + eventLoop.getClass().getName()));
return;
}
AbstractChannel.this.eventLoop = eventLoop;
if (eventLoop.inEventLoop()) {
register0(promise);
} else {
try {
eventLoop.execute(new Runnable() {
@Override
public void run() {
register0(promise);
}
});
} catch (Throwable t) {
logger.warn(
"Force-closing a channel whose registration task was not accepted by an event loop: {}",
AbstractChannel.this, t);
closeForcibly();
closeFuture.setClosed();
safeSetFailure(promise, t);
}
}
}
AbstractUnsafe#register0
- 调用 doRegister()，进行chennel注册到selector，
- 设置标志位neverRegistered为false、registered为true.
- 调用channel的pipeline的invokeHandlerAddedIfNeeded
- 设置Promise为success,
- 调用pipeline的fireChannelRegistered调用channelHandler的 channelRegistered方法。
- 如果channel是active，则调用pipeline的fireChannelActive方法。
private void register0(ChannelPromi se promise) {
try {
// check if the channel is still open as it could be closed in the mean time when the register
// call was outside of the eventLoop
if (!promise.setUncancellable() || !ensureOpen(promise)) {
return;
}
boolean firstRegistration = neverRegistered;
doRegister();
neverRegistered = false;
registered = true;
// Ensure we call handlerAdded(...) before we actually notify the promise. This is needed as the
// user may already fire events through the pipeline in the ChannelFutureListener.
pipeline.invokeHandlerAddedIfNeeded();
safeSetSuccess(promise);
pipeline.fireChannelRegistered();
// Only fire a channelActive if the channel has never been registered. This prevents firing
// multiple channel actives if the channel is deregistered and re-registered.
if (isActive()) {
if (firstRegistration) {
pipeline.fireChannelActive();
} else if (config().isAutoRead()) {
// This channel was registered before and autoRead() is set. This means we need to begin read
// again so that we process inbound data.
//
// See https://github.com/netty/netty/issues/4805
beginRead();
}
}
} catch (Throwable t) {
// Close the channel directly to avoid FD leak.
closeForcibly();
closeFuture.setClosed();
safeSetFailure(promise, t);
}
}
AbstractNioChannel#doRegister
- 调用JDK的ServerSocket的channel注册到Selector上，并设置interestOp为0(不监听事件),并设置attr为NioServerSocketChannel.
protected void doRegister() throws Exception {
boolean selected = false;
for (;;) {
try {
selectionKey = javaChannel().register(eventLoop().unwrappedSelector(), 0, this);
return;
} catch (CancelledKeyException e) {
if (!selected) {
// Force the Selector to select now as the "canceled" SelectionKey may still be
// cached and not removed because no Select.select(..) operation was called yet.
eventLoop().selectNow();
selected = true;
} else {
// We forced a select operation on the selector before but the SelectionKey is still cached
// for whatever reason. JDK bug ?
throw e;
}
}
}
}
当channel注册完成后，会执行DefaultChannelPipeline的invokeHandlerAddedIfNeeded方法。
- 注册必须是同一线程完成。
- 判断是否是第一次注册，然后调用callHandlerAddedForAllHandlers。
final void invokeHandlerAddedIfNeeded() {
assert channel.eventLoop().inEventLoop();
if (firstRegistration) {
firstRegistration = false;
// We are now registered to the EventLoop. It's time to call the callbacks for the ChannelHandlers,
// that were added before the registration was done.
callHandlerAddedForAllHandlers();
}
}
DefaultChannelPipeline#callHandlerAddedForAllHandlers
- 设置registered为true，这个时候channel注册完成.
- 调用PendingHandlerCallback的execute方法。从Channel初始化部分可以知道这个地方是PendingHandlerRemovedTask，
private void callHandlerAddedForAllHandlers() {
final PendingHandlerCallback pendingHandlerCallbackHead;
synchronized (this) {
assert !registered;
// This Channel itself was registered.
registered = true;
pendingHandlerCallbackHead = this.pendingHandlerCallbackHead;
// Null out so it can be GC'ed.
this.pendingHandlerCallbackHead = null;
}
// This must happen outside of the synchronized(...) block as otherwise handlerAdded(...) may be called while
// holding the lock and so produce a deadlock if handlerAdded(...) will try to add another handler from outside
// the EventLoop.
PendingHandlerCallback task = pendingHandlerCallbackHead;
while (task != null) {
task.execute();
task = task.next;
}
}
PendingHandlerAddedTask#run方法
- 调用DefaultChannelHandlerContext的callHandlerAdded方法。
private void callHandlerAdded0(final AbstractChannelHandlerContext ctx) {
try {
ctx.callHandlerAdded();
} catch (Throwable t) {
boolean removed = false;
try {
atomicRemoveFromHandlerList(ctx);
ctx.callHandlerRemoved();
removed = true;
} catch (Throwable t2) {
if (logger.isWarnEnabled()) {
logger.warn("Failed to remove a handler: " + ctx.name(), t2);
}
}
if (removed) {
fireExceptionCaught(new ChannelPipelineException(
ctx.handler().getClass().getName() +
".handlerAdded() has thrown an exception; removed.", t));
} else {
fireExceptionCaught(new ChannelPipelineException(
ctx.handler().getClass().getName() +
".handlerAdded() has thrown an exception; also failed to remove.", t));
}
}
}
AbstractChannelHandlerContext#callHandlerAdded方法
- 调用handle(实际就是前面Channel出初始化往pipeline增加的ChannelInitializer匿名内部类)的handlerAdded方法。
final void callHandlerAdded() throws Exception {
// We must call setAddComplete before calling handlerAdded. Otherwise if the handlerAdded method generates
// any pipeline events ctx.handler() will miss them because the state will not allow it.
if (setAddComplete()) {
handler().handlerAdded(this);
}
}
ChannelInitializer#handlerAdded方法 1.调用init方法,调用ChannelInitializer的initChannel进行初始化Channel. 2. 初始化完成后，删除状态环缓存。
@Override
public void handlerAdded(ChannelHandlerContext ctx) throws Exception {
if (ctx.channel().isRegistered()) {
// This should always be true with our current DefaultChannelPipeline implementation.
// The good thing about calling initChannel(...) in handlerAdded(...) is that there will be no ordering
// surprises if a ChannelInitializer will add another ChannelInitializer. This is as all handlers
// will be added in the expected order.
if (initChannel(ctx)) {
// We are done with init the Channel, removing the initializer now.
removeState(ctx);
}
}
}
ChannelInitializer#initChannel方法:
- 调用initChannel方法
- 最后会从pipeline中删除删除对应的handler.
private boolean initChannel(ChannelHandlerContext ctx) throws Exception {
if (initMap.add(ctx)) { // Guard against re-entrance.
try {
initChannel((C) ctx.channel());
} catch (Throwable cause) {
// Explicitly call exceptionCaught(...) as we removed the handler before calling initChannel(...).
// We do so to prevent multiple calls to initChannel(...).
exceptionCaught(ctx, cause);
} finally {
ChannelPipeline pipeline = ctx.pipeline();
if (pipeline.context(this) != null) {
pipeline.remove(this);
}
}
return true;
}
return false;
}
pipeline添加的ChannelInitializer匿名内部类的initChannel，如下所示
- 这个往pipeline中往最后增加一个ChannelHandler(这里即是LogHandler).
- 然后的channel中eventLopp中异步往pipeline增加ServerBootstrapAcceptor这个ChannelHndler,
p.addLast(new ChannelInitializer<Channel>() {
@Override
public void initChannel(final Channel ch) {
final ChannelPipeline pipeline = ch.pipeline();
ChannelHandler handler = config.handler();
if (handler != null) {
pipeline.addLast(handler);
}
ch.eventLoop().execute(new Runnable() {
@Override
public void run() {
pipeline.addLast(new ServerBootstrapAcceptor(
ch, currentChildGroup, currentChildHandler, currentChildOptions, currentChildAttrs));
}
});
}
});

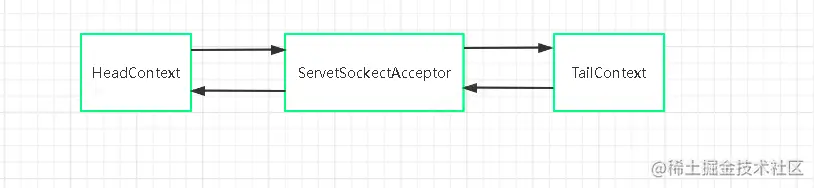

至此，NioSocketChannel的Pipeline拥有的ChannelHandlerContext栓项链表如下图所示
Channel的网络端口的绑定
AbstractBootstrap#doBind0
- 异步执行线程，调用Channel的bind方法。
private static void doBind0(
final ChannelFuture regFuture, final Channel channel,
final SocketAddress localAddress, final ChannelPromise promise) {
// This method is invoked before channelRegistered() is triggered. Give user handlers a chance to set up
// the pipeline in its channelRegistered() implementation.
channel.eventLoop().execute(new Runnable() {
@Override
public void run() {
if (regFuture.isSuccess()) {
channel.bind(localAddress, promise).addListener(ChannelFutureListener.CLOSE_ON_FAILURE);
} else {
promise.setFailure(regFuture.cause());
}
}
});
}
调用父类的AbstractChannel#bind 1。 实际委托给Channel的pipeline的bind方法。
@Override
public ChannelFuture bind(SocketAddress localAddress, ChannelPromise promise) {
return pipeline.bind(localAddress, promise);
}
AbstractChannelPipeline#bind
- 调用尾部ChannelHandlerContext的bind.
- 从pipeline中tail的ChannelHandlerContext从后前找到第一个出站,ChannelHandlerContext, 这里出站几位HeadContext,然后调用invokeBind方法。
@Override
public final ChannelFuture bind(SocketAddress localAddress) {
return tail.bind(localAddress);
}
@Override
public ChannelFuture bind(SocketAddress localAddress) {
return bind(localAddress, newPromise());
}
@Override
public ChannelFuture bind(final SocketAddress localAddress, final ChannelPromise promise) {
ObjectUtil.checkNotNull(localAddress, "localAddress");
if (isNotValidPromise(promise, false)) {
// cancelled
return promise;
}
final AbstractChannelHandlerContext next = findContextOutbound(MASK_BIND);
EventExecutor executor = next.executor();
if (executor.inEventLoop()) {
next.invokeBind(localAddress, promise);
} else {
safeExecute(executor, new Runnable() {
@Override
public void run() {
next.invokeBind(localAddress, promise);
}
}, promise, null, false);
}
return promise;
}
HeadContext#invokeBind
- 调用unsafe(这是netty内部的类，不是JDK的Unsafe)的bind方法
@Override
public void bind(
ChannelHandlerContext ctx, SocketAddress localAddress, ChannelPromise promise) {
unsafe.bind(localAddress, promise);
}
AbstractChannel#bind
- 校验channelPromise状态.
- 嗲用doBind进行网络端口的绑定(实际调用NioServerSocketChannel的bind)
- 古国Channle是active，则执行pipeline的fireChannelActive方法进行传播channelActive事件的传播。
- 设置channelPromise为success.
@Override
public final void bind(final SocketAddress localAddress, final ChannelPromise promise) {
assertEventLoop();
if (!promise.setUncancellable() || !ensureOpen(promise)) {
return;
}
// See: https://github.com/netty/netty/issues/576
if (Boolean.TRUE.equals(config().getOption(ChannelOption.SO_BROADCAST)) &&
localAddress instanceof InetSocketAddress &&
!((InetSocketAddress) localAddress).getAddress().isAnyLocalAddress() &&
!PlatformDependent.isWindows() && !PlatformDependent.maybeSuperUser()) {
// Warn a user about the fact that a non-root user can't receive a
// broadcast packet on *nix if the socket is bound on non-wildcard address.
logger.warn(
"A non-root user can't receive a broadcast packet if the socket " +
"is not bound to a wildcard address; binding to a non-wildcard " +
"address (" + localAddress + ") anyway as requested.");
}
boolean wasActive = isActive();
try {
doBind(localAddress);
} catch (Throwable t) {
safeSetFailure(promise, t);
closeIfClosed();
return;
}
if (!wasActive && isActive()) {
invokeLater(new Runnable() {
@Override
public void run() {
pipeline.fireChannelActive();
}
});
}
safeSetSuccess(promise);
}
NioServerSocketChannel#bind
- 实际获取JDK的ServerSocketChannel的ServerSocket的bind,传入参数就是socket网络端口地址和配置的backlog的个数(即为网络请求等待队列大小)
@SuppressJava6Requirement(reason = "Usage guarded by java version check")
@Override
protected void doBind(SocketAddress localAddress) throws Exception {
if (PlatformDependent.javaVersion() >= 7) {
javaChannel().bind(localAddress, config.getBacklog());
} else {
javaChannel().socket().bind(localAddress, config.getBacklog());
}
}
至此，Server的Channel初始化、注册、端口绑定都完成了。
总结
Netty的server的启动Server的Channel初始化、注册、端口绑定的流程进行详细分析。
