ContainerBase
ContainerBase提供了对子容器和pipeline的管理
addChildInternal
private void addChildInternal(Container child) {
synchronized(children) {
if (children.get(child.getName()) != null) {
throw new IllegalArgumentException(
sm.getString("containerBase.child.notUnique", child.getName()));
}
child.setParent(this); //
children.put(child.getName(), child);//添加子容器
}
try {
if ((getState().isAvailable() ||
LifecycleState.STARTING_PREP.equals(getState())) &&
startChildren) {//根据标识符和当前容器状态来觉得是否启动子容器
child.start();
}
} catch (LifecycleException e) {
log.error("ContainerBase.addChild: start: ", e);
throw new IllegalStateException(sm.getString("containerBase.child.start"), e);
} finally {

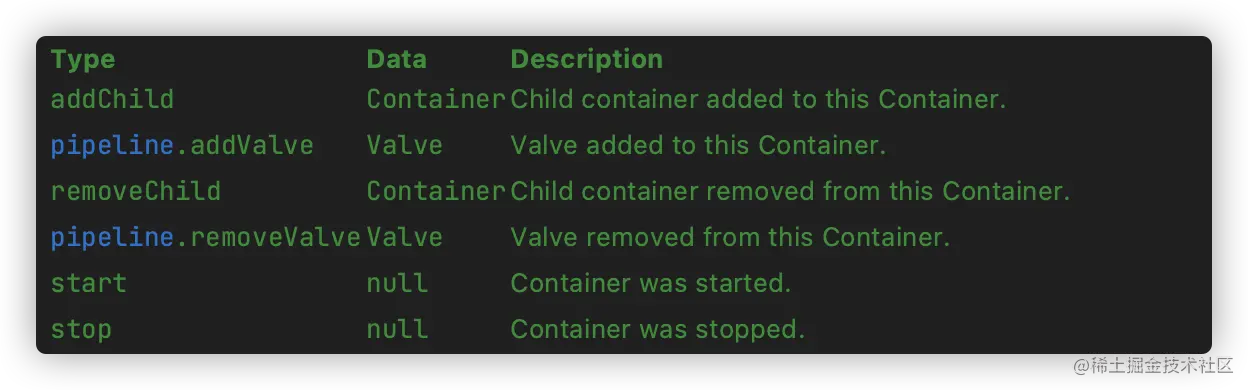

fireContainerEvent(ADD_CHILD_EVENT, child);//触发容器添加事件
}
}
initInternal
initInternal模板方法，LifecycleBase中有定义
//初始化线程池
@Override
protected void initInternal() throws LifecycleException {
BlockingQueue<Runnable> startStopQueue = new LinkedBlockingQueue<>();
startStopExecutor = new ThreadPoolExecutor(
getStartStopThreadsInternal(),
getStartStopThreadsInternal(), 10, TimeUnit.SECONDS,
startStopQueue,
new StartStopThreadFactory(getName() + "-startStop-"));
startStopExecutor.allowCoreThreadTimeOut(true);
super.initInternal();
}
startInternal
@Override
protected synchronized void startInternal() throws LifecycleException {
// 启动子容器
Container children[] = findChildren();
List<Future<Void>> results = new ArrayList<>();
for (Container child : children) {//提交到线程池去执行
results.add(startStopExecutor.submit(new StartChild(child)));
}
MultiThrowable multiThrowable = null;
//等待获取所有的子容器启动的结果
for (Future<Void> result : results) {
try {
result.get();
} catch (Throwable e) {
log.error(sm.getString("containerBase.threadedStartFailed"), e);
if (multiThrowable == null) {
multiThrowable = new MultiThrowable();
}
multiThrowable.add(e);
}
}
if (multiThrowable != null) {
throw new LifecycleException(sm.getString("containerBase.threadedStartFailed"),
multiThrowable.getThrowable());
}
// 启动pipeline
if (pipeline instanceof Lifecycle) {
((Lifecycle) pipeline).start();
}
//子容器自己转变状态
setState(LifecycleState.STARTING);
// 启动线程，后台执行线程
threadStart();
}
processChildren
protected void processChildren(Container container) {
ClassLoader originalClassLoader = null;
try {
if (container instanceof Context) {
Loader loader = ((Context) container).getLoader();
// Loader will be null for FailedContext instances
if (loader == null) {
return;
}
// Ensure background processing for Contexts and Wrappers
// is performed under the web app's class loader
originalClassLoader = ((Context) container).bind(false, null);
}
container.backgroundProcess();
Container[] children = container.findChildren();
for (Container child : children) {
if (child.getBackgroundProcessorDelay() <= 0) {//如果子容器自己有后台执行线程，这里将不会调用
processChildren(child);
}
}
} catch (Throwable t) {
ExceptionUtils.handleThrowable(t);
log.error(sm.getString("containerBase.backgroundProcess.error"), t);
} finally {
if (container instanceof Context) {
((Context) container).unbind(false, originalClassLoader);
}
}
}
Bootstrap
Bootstrap是Tomcat的启动类 核心的方法：
bootstrap.init() //初始化类加载器
bootstrap.load() //间接调用Catalina，创建对象树，然后调用生命周期的init方法初始化整个对象树
bootstrap.start() //间接调用Catalina的start方法，调用生命周期的start方法启动整个对象树
public void init() throws Exception {
//初始化类加载器
initClassLoaders();
Thread.currentThread().setContextClassLoader(catalinaLoader);
SecurityClassLoad.securityClassLoad(catalinaLoader);
// Load our startup class and call its process() method
if (log.isDebugEnabled()) {
log.debug("Loading startup class");
}
//加载 Catalina 类，创建示例，调用setParentClassLoader方法
//这里使用反射的原因？可以决定使用哪个类加载器。当前加载Bootstrap的类加载器是system class loader,假如我们直接new Catalina(),这时Catalina的类加载器就是system class loader。使用反射 Catalina 的类加载器是catalinaLoader
Class<?> startupClass = catalinaLoader.loadClass("org.apache.catalina.startup.Catalina");
Object startupInstance = startupClass.getConstructor().newInstance();
// Set the shared extensions class loader
if (log.isDebugEnabled()) {
log.debug("Setting startup class properties");
}
String methodName = "setParentClassLoader";
Class<?> paramTypes[] = new Class[1];
paramTypes[0] = Class.forName("java.lang.ClassLoader");
Object paramValues[] = new Object[1];
paramValues[0] = sharedLoader;
Method method =
startupInstance.getClass().getMethod(methodName, paramTypes);
method.invoke(startupInstance, paramValues);
catalinaDaemon = startupInstance;
}
//代理，实际干活的都是Catalina
private void load(String[] arguments) throws Exception {
// Call the load() method
String methodName = "load";
Object param[];
Class<?> paramTypes[];
if (arguments==null || arguments.length==0) {
paramTypes = null;
param = null;
} else {
paramTypes = new Class[1];
paramTypes[0] = arguments.getClass();
param = new Object[1];
param[0] = arguments;
}
Method method =
catalinaDaemon.getClass().getMethod(methodName, paramTypes);
if (log.isDebugEnabled()) {
log.debug("Calling startup class " + method);
}
method.invoke(catalinaDaemon, param);
}
public void start() throws Exception {
if (catalinaDaemon == null) {//必须先初始化Catalina
init();
}
//直接调用Catalina的start方法
Method method = catalinaDaemon.getClass().getMethod("start", (Class [])null);
method.invoke(catalinaDaemon, (Object [])null);
}
Bootstrap
|
System
|
Common
/ \
Webapp1 Webapp2 ... Tomcat与应用共享库
Bootstrap
|
System
|
Common
/ \
Server Shared
/ \
Webapp1 Webapp2 ... 可以决定共享的库和不共享的库
private void initClassLoaders() {
try {
//初始化common的classloader
commonLoader = createClassLoader("common", null);
if (commonLoader == null) {
// no config file, default to this loader - we might be in a 'single' env.
commonLoader = this.getClass().getClassLoader();
}
//如果没有在配置文件中配置server或者shared的classloader,返回commonLoader
catalinaLoader = createClassLoader("server", commonLoader);
sharedLoader = createClassLoader("shared", commonLoader);
} catch (Throwable t) {
handleThrowable(t);
log.error("Class loader creation threw exception", t);
System.exit(1);
}
}
Catalina的load方法
//创建对象树，然后调用生命周期的init方法初始化整个对象树
public void load() {
if (loaded) {
return;
}
loaded = true;
long t1 = System.nanoTime();
initDirs();
// Before digester - it may be needed
initNaming();
// Create and execute our Digester
Digester digester = createStartDigester();
InputSource inputSource = null;
InputStream inputStream = null;
File file = null;
try {
try {
file = configFile();
inputStream = new FileInputStream(file);
inputSource = new InputSource(file.toURI().toURL().toString());
} catch (Exception e) {
if (log.isDebugEnabled()) {
log.debug(sm.getString("catalina.configFail", file), e);
}
}
if (inputStream == null) {
try {
inputStream = getClass().getClassLoader()
.getResourceAsStream(getConfigFile());
inputSource = new InputSource
(getClass().getClassLoader()
.getResource(getConfigFile()).toString());
} catch (Exception e) {
if (log.isDebugEnabled()) {
log.debug(sm.getString("catalina.configFail",
getConfigFile()), e);
}
}
}
// This should be included in catalina.jar
// Alternative: don't bother with xml, just create it manually.
if (inputStream == null) {
try {
inputStream = getClass().getClassLoader()
.getResourceAsStream("server-embed.xml");
inputSource = new InputSource
(getClass().getClassLoader()
.getResource("server-embed.xml").toString());
} catch (Exception e) {
if (log.isDebugEnabled()) {
log.debug(sm.getString("catalina.configFail",
"server-embed.xml"), e);
}
}
}
if (inputStream == null || inputSource == null) {
if (file == null) {
log.warn(sm.getString("catalina.configFail",
getConfigFile() + "] or [server-embed.xml]"));
} else {
log.warn(sm.getString("catalina.configFail",
file.getAbsolutePath()));
if (file.exists() && !file.canRead()) {
log.warn("Permissions incorrect, read permission is not allowed on the file.");
}
}
return;
}
try {
inputSource.setByteStream(inputStream);
digester.push(this);
digester.parse(inputSource);//当这段代码执行完毕后，server.xml定义的整个对象数及监听器等会按照digester定义的规则创建
} catch (SAXParseException spe) {
log.warn("Catalina.start using " + getConfigFile() + ": " +
spe.getMessage());
return;
} catch (Exception e) {
log.warn("Catalina.start using " + getConfigFile() + ": " , e);
return;
}
} finally {
if (inputStream != null) {
try {
inputStream.close();
} catch (IOException e) {
// Ignore
}
}
}
//设置server对象的属性
getServer().setCatalina(this);
getServer().setCatalinaHome(Bootstrap.getCatalinaHomeFile());
getServer().setCatalinaBase(Bootstrap.getCatalinaBaseFile());
// 重定向系统输入输出流
initStreams();
// 进入整个对象树的生命周期流程
try {
getServer().init();//初始化
} catch (LifecycleException e) {
if (Boolean.getBoolean("org.apache.catalina.startup.EXIT_ON_INIT_FAILURE")) {
throw new java.lang.Error(e);
} else {
log.error("Catalina.start", e);
}
}
long t2 = System.nanoTime();
if(log.isInfoEnabled()) {
log.info("Initialization processed in " + ((t2 - t1) / 1000000) + " ms");
}
}
public void start() {
if (getServer() == null) {//必须先初始化
load();
}
if (getServer() == null) {
log.fatal("Cannot start server. Server instance is not configured.");
return;
}
long t1 = System.nanoTime();
// Start the new server
try { //启动生命周期的start
getServer().start();
} catch (LifecycleException e) {
log.fatal(sm.getString("catalina.serverStartFail"), e);
try {
getServer().destroy();
} catch (LifecycleException e1) {
log.debug("destroy() failed for failed Server ", e1);
}
return;
}
long t2 = System.nanoTime();
if(log.isInfoEnabled()) {
log.info("Server startup in " + ((t2 - t1) / 1000000) + " ms");
}
// Register shutdown hook
if (useShutdownHook) {//JVM退出钩子
if (shutdownHook == null) {
shutdownHook = new CatalinaShutdownHook();
}
Runtime.getRuntime().addShutdownHook(shutdownHook);
// If JULI is being used, disable JULI's shutdown hook since
// shutdown hooks run in parallel and log messages may be lost
// if JULI's hook completes before the CatalinaShutdownHook()
LogManager logManager = LogManager.getLogManager();
if (logManager instanceof ClassLoaderLogManager) {
((ClassLoaderLogManager) logManager).setUseShutdownHook(
false);
}
}
//主线程等待关闭信号
if (await) {
await();
stop();
}
}
