[Compose] BottomNavigation

在很多应用中都可以看到 BottomNavigtionBar，那如何在 Compose 中实现底部导航呢。

添加 navigation-compose 依赖

implementation "androidx.navigation:navigation-compose:2.4.0-alpha07"

创建用于切换的 Screens

@Composable
fun HomeScreen() {
    Column(
        modifier = Modifier
            .fillMaxSize()
            .background(Color.White),
        horizontalAlignment = Alignment.CenterHorizontally,
        verticalArrangement = Arrangement.Center
    ) {
        Icon(
            imageVector = Icons.Default.Home,
            contentDescription = "home",
            tint = Purple700
        )
        Text(text = "Home", color = Color.Black)
    }
}

@Composable
fun ProfileScreen() {
    Column(
        modifier = Modifier
            .fillMaxSize()
            .background(Color.White),
        // parameters set to place the items in center
        horizontalAlignment = Alignment.CenterHorizontally,
        verticalArrangement = Arrangement.Center
    ) {
        Icon(
            imageVector = Icons.Default.Person,
            contentDescription = "Profile",
            tint = Purple700
        )
        Text(text = "Profile", color = Color.Black)
    }
}

创建 BottomNavItem

首先创建 data class 用于保存导航项的 icon label route

data class BottomNavItem(
    val label: String,
    val icon: ImageVector,
    val route:String,
)

创建导航项列表

object Constants {

    val BottomNavItems = listOf(
        BottomNavItem(
            label = "Home",
            icon = Icons.Filled.Home,
            route = "home"
        ),

        BottomNavItem(
            label = "Profile",
            icon = Icons.Filled.Person,
            route = "profile"
        )
    )
}

创建 NavHostContainer

@Composable
fun NavHostContainer(
    navController: NavHostController,
    padding: PaddingValues
) {
    NavHost(
        navController = navController,
        // set the start destination as home
        startDestination = "home",
        // Set the padding provided by scaffold
        modifier = Modifier.padding(paddingValues = padding),
        builder = {
            // route : Home
            composable("home") {
                HomeScreen()
            }

            // route : profile
            composable("profile") {
                ProfileScreen()
            }
        }
    )
}

创建底部导航 BottomNavigationBar

@Composable
fun BottomNavigationBar(navController: NavController) {

    BottomNavigation(
        backgroundColor = Color.White,
    ) {
        val navBackStackEntry by navController.currentBackStackEntryAsState()
        val currentRoute = navBackStackEntry?.destination?.route
        Constants.BottomNavItems.forEach { navItem ->
            BottomNavigationItem(
                selected = currentRoute == navItem.route,
                onClick = {
                    navController.navigate(navItem.route)
                },
                icon = {
                    Icon(imageVector = navItem.icon, contentDescription = navItem.label)
                },
                label = {
                    Text(text = navItem.label)
                }
            )
        }
    }
}

设置到 Scaffold 里

class MainActivity : ComponentActivity() {
    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setContent {
            Surface(color = Color.White) {
                val navController = rememberNavController()
                Scaffold(
                    bottomBar = {
                        BottomNavigationBar(navController = navController)
                    }, content = { padding ->
                        NavHostContainer(navController = navController, padding = padding)
                    }
                )
            }
        }
    }
}

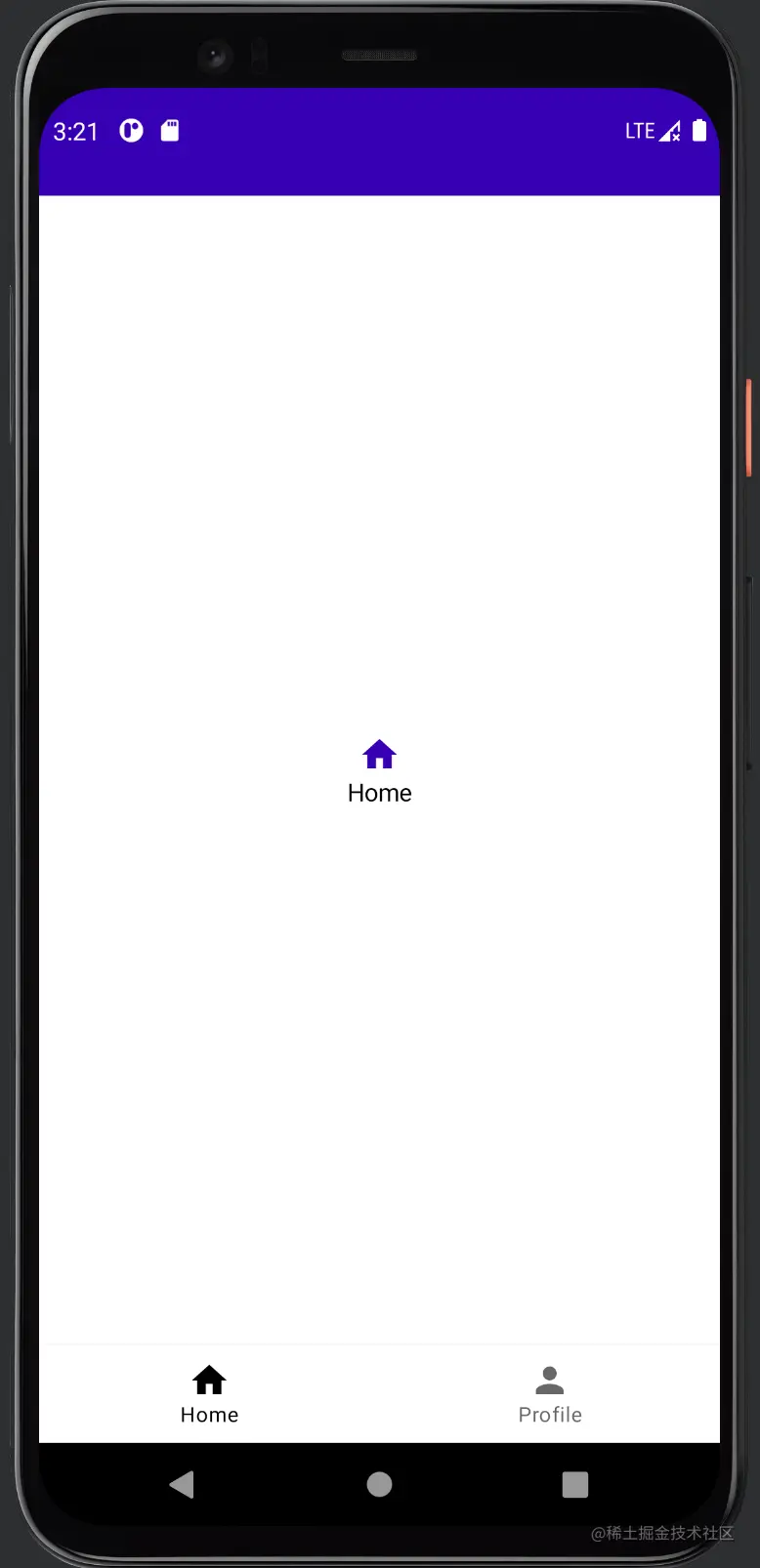

Done!

Github

完整代码
