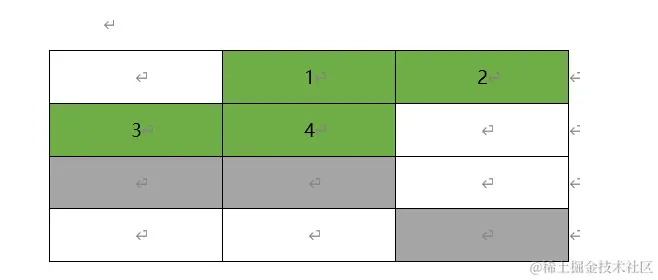

数组

在内存中顺序存储，紧密排列。

List<String> list = new ArrayList<>();
list.add("1");
list.add("2");
list.add("3");
list.add("4");

ArrayList

private static final Object[] DEFAULTCAPACITY_EMPTY_ELEMENTDATA = {};

创建了一个大小为0的对象数组

transient Object[] elementData;

声明了一个对象数组

构造方法

public ArrayList() {
    this.elementData = DEFAULTCAPACITY_EMPTY_ELEMENTDATA;
}

增

没有指定位置的add

添加到尾部

public boolean add(E e) {
    ensureCapacityInternal(size + 1);  // Increments modCount!!
    elementData[size++] = e;
    return true;
}

将数组和原来的size+1传入，计算容量

private void ensureCapacityInternal(int minCapacity) {
    ensureExplicitCapacity(calculateCapacity(elementData, minCapacity));
}

判断是否为空数组

是：返回10 否：返回当前size+1

private static int calculateCapacity(Object[] elementData, int minCapacity) {
    if (elementData == DEFAULTCAPACITY_EMPTY_ELEMENTDATA) {
        return Math.max(DEFAULT_CAPACITY, minCapacity);
    }
    return minCapacity;
}

首先进行判断，如果新长度减去数组原先的长度大于0，调用grow方法，入参为新长度

private void ensureExplicitCapacity(int minCapacity) {
    modCount++;

    // overflow-conscious code
    if (minCapacity - elementData.length > 0)
        grow(minCapacity);
}

新容量=老容量*1.5

private void grow(int minCapacity) {
    // overflow-conscious code
    int oldCapacity = elementData.length;
    int newCapacity = oldCapacity + (oldCapacity >> 1); //新容量=老容量+老容量*0.5
    if (newCapacity - minCapacity < 0)                  //新容量小于新长度
        newCapacity = minCapacity;                      //新容量=新长度
    if (newCapacity - MAX_ARRAY_SIZE > 0)               //新容量大于数组最大长度
        newCapacity = hugeCapacity(minCapacity);        //新容量=int最大取值数或数组最大长度
    // minCapacity is usually close to size, so this is a win:
    elementData = Arrays.copyOf(elementData, newCapacity); // 复制原数组，设置新容量
}

private static int hugeCapacity(int minCapacity) {
    if (minCapacity < 0) // overflow
        throw new OutOfMemoryError();
    return (minCapacity > MAX_ARRAY_SIZE) ?
        Integer.MAX_VALUE :
        MAX_ARRAY_SIZE;
}

指定下标的add

public void add(int index, E element) {
    rangeCheckForAdd(index);            //检查下标越界

    ensureCapacityInternal(size + 1);  // Increments modCount!!
                     原数组 /  原数组复制起点 / 目的数组 / 目的数组起点 / 复制长度
    System.arraycopy(elementData, index, elementData, index + 1,
                     size - index);
    elementData[index] = element;
    size++;
}

例子：[1,2,3]在1前面加上0

相当于把1、2、3往后挪一位

删除

public E remove(int index) {
    rangeCheck(index);

    modCount++;
    E oldValue = elementData(index);

    int numMoved = size - index - 1;
    if (numMoved > 0)
        System.arraycopy(elementData, index+1, elementData, index,
                         numMoved);
    elementData[--size] = null; // clear to let GC do its work
    //数组最后一位设为null

    return oldValue;
}

查

public E get(int index) {
    rangeCheck(index);

    return elementData(index);
}

E elementData(int index) {
    return (E) elementData[index];
}

本质是从用数组的下标取出

总结

适合做查询，不适合增删

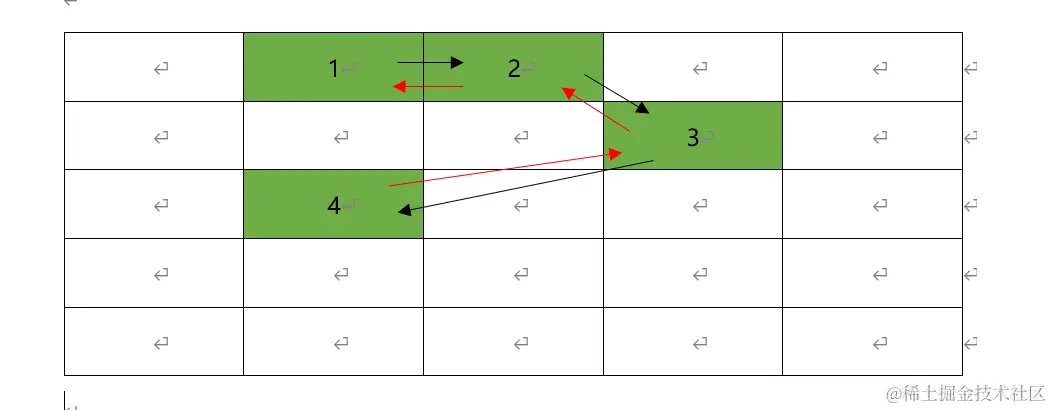

链表

是一种物理存储单元上非连续/非顺序的存储结构

LinkedList

transient int size = 0;

transient Node<E> first;

transient Node<E> last;

private static class Node<E> {
    E item;
    Node<E> next;
    Node<E> prev;

    Node(Node<E> prev, E element, Node<E> next) {
        this.item = element;
        this.next = next;
        this.prev = prev;
    }
}

无参构造

public LinkedList() {
}

有参构造

public LinkedList(Collection<? extends E> c) {
    this();
    addAll(c);
}

public boolean addAll(Collection<? extends E> c) {
    return addAll(size, c);
}

public boolean addAll(int index, Collection<? extends E> c) {
    checkPositionIndex(index);

    Object[] a = c.toArray();
    int numNew = a.length;
    if (numNew == 0)
        return false;

    Node<E> pred, succ;
    if (index == size) {
        succ = null;
        pred = last;
    } else {
        succ = node(index);
        pred = succ.prev;
    }

    for (Object o : a) {
        @SuppressWarnings("unchecked") E e = (E) o;
        Node<E> newNode = new Node<>(pred, e, null);
        if (pred == null)
            first = newNode;
        else
            pred.next = newNode;
        pred = newNode;
    }

    if (succ == null) {
        last = pred;
    } else {
        pred.next = succ;
        succ.prev = pred;
    }

    size += numNew;
    modCount++;
    return true;
}

增

/**
 * 不指定位置add
 */
public boolean add(E e) {
    linkLast(e);
    return true;
}

void linkLast(E e) {
    final Node<E> l = last;
    final Node<E> newNode = new Node<>(l, e, null);
    last = newNode;
    if (l == null)
        first = newNode;
    else
        l.next = newNode;
    size++;
    modCount++;
}

/**

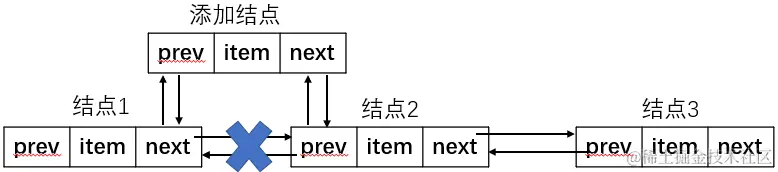

 * 指定位置add
 */
public void add(int index, E element) {
    checkPositionIndex(index);

    if (index == size)
        linkLast(element);
    else
        linkBefore(element, node(index));
}

void linkBefore(E e, Node<E> succ) {
    // assert succ != null;
    final Node<E> pred = succ.prev;
    final Node<E> newNode = new Node<>(pred, e, succ);
    succ.prev = newNode;
    if (pred == null)
        first = newNode;
    else
        pred.next = newNode;
    size++;
    modCount++;
}

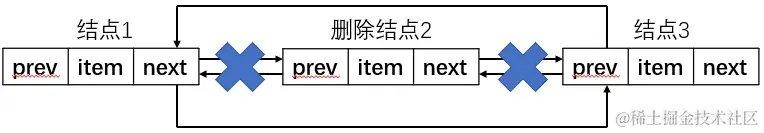

删

public E remove(int index) {
    checkElementIndex(index);
    return unlink(node(index));
}

E unlink(Node<E> x) {
    // assert x != null;
    final E element = x.item;
    final Node<E> next = x.next;
    final Node<E> prev = x.prev;

    if (prev == null) {
        first = next;
    } else {
        prev.next = next;
        x.prev = null;
    }

    if (next == null) {
        last = prev;
    } else {
        next.prev = prev;
        x.next = null;
    }

    x.item = null;
    size--;
    modCount++;
    return element;
}

改

public E set(int index, E element) {
    checkElementIndex(index);
    Node<E> x = node(index);
    E oldVal = x.item;
    x.item = element;
    return oldVal;
}

查

public E get(int index) {
    checkElementIndex(index);
    return node(index).item;
}

Node<E> node(int index) {
    // assert isElementIndex(index);

    if (index < (size >> 1)) {
        Node<E> x = first;
        for (int i = 0; i < index; i++)
            x = x.next;
        return x;
    } else {
        Node<E> x = last;
        for (int i = size - 1; i > index; i--)
            x = x.prev;
        return x;
    }
}

总结

查询慢，适合增删改

栈

先入后出，后进的元素为栈顶，只能操作栈顶元素

队列

先入先出，后入后出
