- 继承了AbstractMap类，实现了ConcurrentMap和Serializable接口，其中ConcurrentMap里定义了一些原子操作
public class ConcurrentHashMap<K,V> extends AbstractMap<K,V>
implements ConcurrentMap<K,V>, Serializable {
private static final long serialVersionUID = 7249069246763182397L;
- 持有的属性
// 持有的属性
// 最大容量
private static final int MAXIMUM_CAPACITY = 1 << 30;
// 默认容量
private static final int DEFAULT_CAPACITY = 16;
/**
* The largest possible (non-power of two) array size.
* Needed by toArray and related methods.
*/
static final int MAX_ARRAY_SIZE = Integer.MAX_VALUE - 8;
/**
* The default concurrency level for this table. Unused but
* defined for compatibility with previous versions of this class.
* 默认的并发等级，Jdk1.8已经不再使用这个了，在这里是为了兼容之前的版本
*/
private static final int DEFAULT_CONCURRENCY_LEVEL = 16;
/**
* The load factor for this table. Overrides of this value in
* constructors affect only the initial table capacity. The
* actual floating point value isn't normally used -- it is
* simpler to use expressions such as {@code n - (n >>> 2)} for
* the associated resizing threshold.
* 默认的负载因子，Jdk1.8也是基本不用，兼容之前的版本
*/
private static final float LOAD_FACTOR = 0.75f;
// 链表转化成红黑树的阈值，链表元素个数大于或者等于这个值会尝试将链表转化成红黑树
static final int TREEIFY_THRESHOLD = 8;
// 红黑树转化成链表的阈值，元素个数小于或等于这个值会尝试将红黑树转化成链表
static final int UNTREEIFY_THRESHOLD = 6;
// 当链表长度大于或等于8时，如果map的容量小于这个值，则不转化成红黑树，而是进行扩容
static final int MIN_TREEIFY_CAPACITY = 64;
//
private static final int MIN_TRANSFER_STRIDE = 16;
// 计算扩容标识的变量之一
private static int RESIZE_STAMP_BITS = 16;
// 进行扩容的最大线程数
private static final int MAX_RESIZERS = (1 << (32 - RESIZE_STAMP_BITS)) - 1;
// 计算扩容标识的变量之一
private static final int RESIZE_STAMP_SHIFT = 32 - RESIZE_STAMP_BITS;
// 不同状态或者节点下的hash值
static final int MOVED = -1; // hash for forwarding nodes
static final int TREEBIN = -2; // hash for roots of trees
static final int RESERVED = -3; // hash for transient reservations
static final int HASH_BITS = 0x7fffffff; // usable bits of normal node hash
// cpu的核心数
static final int NCPU = Runtime.getRuntime().availableProcessors();
- 四种不同类型的节点
// 链表节点的结构
static class Node<K,V> implements Map.Entry<K,V> {
final int hash;
final K key;
volatile V val;
volatile Node<K,V> next;
Node(int hash, K key, V val, Node<K,V> next) {
this.hash = hash;
this.key = key;
this.val = val;
this.next = next;
}
public final K getKey() { return key; }
public final V getValue() { return val; }
public final int hashCode() { return key.hashCode() ^ val.hashCode(); }
public final String toString(){ return key + "=" + val; }
public final V setValue(V value) {
throw new UnsupportedOperationException();
}
public final boolean equals(Object o) {
Object k, v, u; Map.Entry<?,?> e;
return ((o instanceof Map.Entry) &&
(k = (e = (Map.Entry<?,?>)o).getKey()) != null &&
(v = e.getValue()) != null &&
(k == key || k.equals(key)) &&
(v == (u = val) || v.equals(u)));
}
/**
* Virtualized support for map.get(); overridden in subclasses.
*/
// 当头节点的hash值小于0时，则说明不是链表节点，那么就会调用头节点的find方法去找对应的节点
Node<K,V> find(int h, Object k) {
Node<K,V> e = this;
if (k != null) {
do {
K ek;
if (e.hash == h &&
((ek = e.key) == k || (ek != null && k.equals(ek))))
return e;
} while ((e = e.next) != null);
}
return null;
}
}
// 红黑树结点
static final class TreeNode<K, V> extends Node<K, V> {
boolean red;
TreeNode<K, V> parent;
TreeNode<K, V> left;
TreeNode<K, V> right;
/**
* prev指针是为了方便删除.
* 删除链表的非头结点时，需要知道它的前驱结点才能删除，所以直接提供一个prev指针
*/
TreeNode<K, V> prev;
TreeNode(int hash, K key, V val, Node<K, V> next,
TreeNode<K, V> parent) {
super(hash, key, val, next);
this.parent = parent;
}
Node<K, V> find(int h, Object k) {
return findTreeNode(h, k, null);
}
/**
* 以当前结点（this）为根结点，开始遍历查找指定key.
*/
final TreeNode<K, V> findTreeNode(int h, Object k, Class<?> kc) {
if (k != null) {
TreeNode<K, V> p = this;
do {
int ph, dir;
K pk;
TreeNode<K, V> q;
TreeNode<K, V> pl = p.left, pr = p.right;
if ((ph = p.hash) > h)
p = pl;
else if (ph < h)
p = pr;
else if ((pk = p.key) == k || (pk != null && k.equals(pk)))
return p;
else if (pl == null)
p = pr;
else if (pr == null)
p = pl;
else if ((kc != null ||
(kc = comparableClassFor(k)) != null) &&
(dir = compareComparables(kc, k, pk)) != 0)
p = (dir < 0) ? pl : pr;
else if ((q = pr.findTreeNode(h, k, kc)) != null)
return q;
else
p = pl;
} while (p != null);
}
return null;
}
}
//
/**
* TreeNode的代理结点（相当于封装了TreeNode的容器，提供针对红黑树的转换操作和锁控制）
* 继承自Node
* hash值固定为-2
*/
static final class TreeBin<K, V> extends Node<K, V> {
TreeNode<K, V> root; // 红黑树结构的根结点
volatile TreeNode<K, V> first; // 链表结构的头结点
volatile Thread waiter; // 最近的一个设置WAITER标识位的线程
volatile int lockState; // 整体的锁状态标识位
static final int WRITER = 1; // 二进制001，红黑树的写锁状态
static final int WAITER = 2; // 二进制010，红黑树的等待获取写锁状态
static final int READER = 4; // 二进制100，红黑树的读锁状态，读可以并发，每多一个读线程，lockState都加上一个READER值
/**
* 在hashCode相等并且不是Comparable类型时，用此方法判断大小.
*/
static int tieBreakOrder(Object a, Object b) {
int d;
if (a == null || b == null ||
(d = a.getClass().getName().
compareTo(b.getClass().getName())) == 0)
d = (System.identityHashCode(a) <= System.identityHashCode(b) ?
-1 : 1);
return d;
}
/**
* 将以b为头结点的链表转换为红黑树.
* 这里就可以看到当我们上面将Node节点转化成TreeNode节点后，将头节点作为参数调用TreeBin的构造方法时会在这里将其重构成一棵红黑树。
*/
TreeBin(TreeNode<K, V> b) {
super(TREEBIN, null, null, null);
this.first = b;
TreeNode<K, V> r = null;
for (TreeNode<K, V> x = b, next; x != null; x = next) {
next = (TreeNode<K, V>) x.next;
x.left = x.right = null;
if (r == null) {
x.parent = null;
x.red = false;
r = x;
} else {
K k = x.key;
int h = x.hash;
Class<?> kc = null;
for (TreeNode<K, V> p = r; ; ) {
int dir, ph;
K pk = p.key;
if ((ph = p.hash) > h)
dir = -1;
else if (ph < h)
dir = 1;
else if ((kc == null &&
(kc = comparableClassFor(k)) == null) ||
(dir = compareComparables(kc, k, pk)) == 0)
dir = tieBreakOrder(k, pk);
TreeNode<K, V> xp = p;
if ((p = (dir <= 0) ? p.left : p.right) == null) {
x.parent = xp;
if (dir <= 0)
xp.left = x;
else
xp.right = x;
r = balanceInsertion(r, x);
break;
}
}
}
}
this.root = r;
assert checkInvariants(root);
}
/**
* 对红黑树的根结点加写锁.
*/
private final void lockRoot() {
if (!U.compareAndSwapInt(this, LOCKSTATE, 0, WRITER))
contendedLock();
}
/**
* 释放写锁.
*/
private final void unlockRoot() {
lockState = 0;
}
/**
* Possibly blocks awaiting root lock.
*/
private final void contendedLock() {
boolean waiting = false;
for (int s; ; ) {
if (((s = lockState) & ~WAITER) == 0) {
if (U.compareAndSwapInt(this, LOCKSTATE, s, WRITER)) {
if (waiting)
waiter = null;
return;
}
} else if ((s & WAITER) == 0) {
if (U.compareAndSwapInt(this, LOCKSTATE, s, s | WAITER)) {
waiting = true;
waiter = Thread.currentThread();
}
} else if (waiting)
LockSupport.park(this);
}
}
/**
* 从根结点开始遍历查找，找到“相等”的结点就返回它，没找到就返回null
* 当存在写锁时，以链表方式进行查找
*/
final Node<K, V> find(int h, Object k) {
if (k != null) {
for (Node<K, V> e = first; e != null; ) {
int s;
K ek;
/**
* 两种特殊情况下以链表的方式进行查找:
* 1. 有线程正持有写锁，这样做能够不阻塞读线程
* 2. 有线程等待获取写锁，不再继续加读锁，相当于“写优先”模式
*/
if (((s = lockState) & (WAITER | WRITER)) != 0) {
if (e.hash == h &&
((ek = e.key) == k || (ek != null && k.equals(ek))))
return e;
e = e.next;
// 否则给红黑树加读锁
} else if (U.compareAndSwapInt(this, LOCKSTATE, s,
s + READER)) {
TreeNode<K, V> r, p;
try {
p = ((r = root) == null ? null :
r.findTreeNode(h, k, null));
} finally {
Thread w;
if (U.getAndAddInt(this, LOCKSTATE, -READER) ==
(READER | WAITER) && (w = waiter) != null)
LockSupport.unpark(w);
}
return p;
}
}
}
return null;
}
/**
* 查找指定key对应的结点,如果未找到，则插入.
*
* @return 插入成功返回null, 否则返回找到的结点
*/
final TreeNode<K, V> putTreeVal(int h, K k, V v) {
Class<?> kc = null;
boolean searched = false;
for (TreeNode<K, V> p = root; ; ) {
int dir, ph;
K pk;
if (p == null) {
first = root = new TreeNode<K, V>(h, k, v, null, null);
break;
} else if ((ph = p.hash) > h)
dir = -1;
else if (ph < h)
dir = 1;
else if ((pk = p.key) == k || (pk != null && k.equals(pk)))
return p;
else if ((kc == null &&
(kc = comparableClassFor(k)) == null) ||
(dir = compareComparables(kc, k, pk)) == 0) {
if (!searched) {
TreeNode<K, V> q, ch;
searched = true;
if (((ch = p.left) != null &&
(q = ch.findTreeNode(h, k, kc)) != null) ||
((ch = p.right) != null &&
(q = ch.findTreeNode(h, k, kc)) != null))
return q;
}
dir = tieBreakOrder(k, pk);
}
TreeNode<K, V> xp = p;
if ((p = (dir <= 0) ? p.left : p.right) == null) {
TreeNode<K, V> x, f = first;
first = x = new TreeNode<K, V>(h, k, v, f, xp);
if (f != null)
f.prev = x;
if (dir <= 0)
xp.left = x;
else
xp.right = x;
if (!xp.red)
x.red = true;
else {
lockRoot();
try {
root = balanceInsertion(root, x);
} finally {
unlockRoot();
}
}
break;
}
}
assert checkInvariants(root);
return null;
}
/**
* 删除红黑树的结点：
* 1. 红黑树规模太小时，返回true，然后进行 树 -> 链表 的转化;
* 2. 红黑树规模足够时，不用变换成链表，但删除结点时需要加写锁.
*/
final boolean removeTreeNode(TreeNode<K, V> p) {
TreeNode<K, V> next = (TreeNode<K, V>) p.next;
TreeNode<K, V> pred = p.prev; // unlink traversal pointers
TreeNode<K, V> r, rl;
if (pred == null)
first = next;
else
pred.next = next;
if (next != null)
next.prev = pred;
if (first == null) {
root = null;
return true;
}
if ((r = root) == null || r.right == null || // too small
(rl = r.left) == null || rl.left == null)
return true;
lockRoot();
try {
TreeNode<K, V> replacement;
TreeNode<K, V> pl = p.left;
TreeNode<K, V> pr = p.right;
if (pl != null && pr != null) {
TreeNode<K, V> s = pr, sl;
while ((sl = s.left) != null) // find successor
s = sl;
boolean c = s.red;
s.red = p.red;
p.red = c; // swap colors
TreeNode<K, V> sr = s.right;
TreeNode<K, V> pp = p.parent;
if (s == pr) { // p was s's direct parent
p.parent = s;
s.right = p;
} else {
TreeNode<K, V> sp = s.parent;
if ((p.parent = sp) != null) {
if (s == sp.left)
sp.left = p;
else
sp.right = p;
}
if ((s.right = pr) != null)
pr.parent = s;
}
p.left = null;
if ((p.right = sr) != null)
sr.parent = p;
if ((s.left = pl) != null)
pl.parent = s;
if ((s.parent = pp) == null)
r = s;
else if (p == pp.left)
pp.left = s;
else
pp.right = s;
if (sr != null)
replacement = sr;
else
replacement = p;
} else if (pl != null)
replacement = pl;
else if (pr != null)
replacement = pr;
else
replacement = p;
if (replacement != p) {
TreeNode<K, V> pp = replacement.parent = p.parent;
if (pp == null)
r = replacement;
else if (p == pp.left)
pp.left = replacement;
else
pp.right = replacement;
p.left = p.right = p.parent = null;
}
root = (p.red) ? r : balanceDeletion(r, replacement);
if (p == replacement) { // detach pointers
TreeNode<K, V> pp;
if ((pp = p.parent) != null) {
if (p == pp.left)
pp.left = null;
else if (p == pp.right)
pp.right = null;
p.parent = null;
}
}
} finally {
unlockRoot();
}
assert checkInvariants(root);
return false;
}
// 还有很多其他的方法，这里就不一一展示了
....
}
/**
* ForwardingNode是一种临时结点，在扩容进行中才会出现，hash值固定为-1，且不存储实际数据。
* 如果旧table数组的一个hash桶中全部的结点都迁移到了新table中，则在这个桶中放置一个ForwardingNode。
* 读操作碰到ForwardingNode时，将操作转发到扩容后的新table数组上去执行；写操作碰见它时，则尝试帮助扩容。
*hash值为-1
*/
static final class ForwardingNode<K, V> extends Node<K, V> {
final Node<K, V>[] nextTable;
ForwardingNode(Node<K, V>[] tab) {
super(MOVED, null, null, null);
this.nextTable = tab;
}
// 在新的数组nextTable上进行查找
Node<K, V> find(int h, Object k) {
// loop to avoid arbitrarily deep recursion on forwarding nodes
// 调用ForwardingNode的find方法，去新的table上找节点
outer:
// 拿到新的table
for (Node<K, V>[] tab = nextTable; ; ) {
Node<K, V> e;
int n;
// 如果对应位置为null，或者table为null或者长度为0，则直接返回null
if (k == null || tab == null || (n = tab.length) == 0 ||
(e = tabAt(tab, (n - 1) & h)) == null)
return null;
// 遍历对应位置的链表或者红黑树
for (; ; ) {
int eh;
K ek;
// 如果该是要找的节点，则返回对应的值
if ((eh = e.hash) == h &&
((ek = e.key) == k || (ek != null && k.equals(ek))))
return e;
// 如果该节点hash值小于0
if (eh < 0) {
// 判断是否为ForwardingNode，如果是则说明又发生了一次迁移，则去新的table上找节点。
if (e instanceof ForwardingNode) {
tab = ((ForwardingNode<K, V>) e).nextTable;
continue outer;
} else
// 如果不是ForwardingNode，则调用该节点的find方法
return e.find(h, k);
}
// 如果遍历完还没找到则返回null
if ((e = e.next) == null)
return null;
}
}
}
}
/**
* 保留结点.
* hash值固定为-3， 不保存实际数据
* 只在computeIfAbsent和compute这两个函数式API中充当占位符加锁使用
*/
static final class ReservationNode<K, V> extends Node<K, V> {
ReservationNode() {
super(RESERVED, null, null, null);
}
Node<K, V> find(int h, Object k) {
return null;
}
}
- 一些主要的方法
// 此方法计算hash值，类似HashMap中的hash方法
static final int spread(int h) {
return (h ^ (h >>> 16)) & HASH_BITS;
}
// 返回大于传入值的最小二次幂
private static final int tableSizeFor(int c) {
int n = c - 1;
n |= n >>> 1;
n |= n >>> 2;
n |= n >>> 4;
n |= n >>> 8;
n |= n >>> 16;
return (n < 0) ? 1 : (n >= MAXIMUM_CAPACITY) ? MAXIMUM_CAPACITY : n + 1;
}
// 返回哈希表中索引为i的元素，ABASE为哈希表第一个元素的地址
static final <K,V> Node<K,V> tabAt(Node<K,V>[] tab, int i) {
return (Node<K,V>)U.getObjectVolatile(tab, ((long)i << ASHIFT) + ABASE);
}
// 使用cas方法替换掉哈希表中索引为i的元素
static final <K,V> boolean casTabAt(Node<K,V>[] tab, int i,
Node<K,V> c, Node<K,V> v) {
return U.compareAndSwapObject(tab, ((long)i << ASHIFT) + ABASE, c, v);
}
// 给哈希表索引为i的位置设置值
static final <K,V> void setTabAt(Node<K,V>[] tab, int i, Node<K,V> v) {
U.putObjectVolatile(tab, ((long)i << ASHIFT) + ABASE, v);
}
// table就是哈希表，被volatile修饰（可见性和有序性）
transient volatile Node<K,V>[] table;
// 当没有多个线程并发的时候，map内的元素的个数在baseCount上累加，当有线程并发的时候，元素个数在不同的累加单元上累加。（类似LongAdder）
private transient volatile long baseCount;
/*
*初始化和扩容控制变量
*当这个变量为负数时则表示正在初始化或者扩容，-1表示初始化，否则表示-(1+正在扩容的线程数量)
*当哈希表为空时，持有哈希表的初始化容量大小，或者默认为0
*哈希表初始化后则保存下一次扩容的容量
/
private transient volatile int sizeCtl;
// 扩容时用到 The next table index (plus one) to split while resizing.
private transient volatile int transferIndex;
// 扩容或者创建累加单元时使用到的自旋锁
private transient volatile int cellsBusy;
// 累加单元，线程多线程并发时，在累加单元上累加map持有的元素个数，根据hash值定位在哪个counterCell上进行累加
private transient volatile CounterCell[] counterCells;
// 无参构造方法
public ConcurrentHashMap() {
}
// 有参构造方法，传入指定的容量（实际创建的容量是传入容量的最小2次幂）
public ConcurrentHashMap(int initialCapacity) {
if (initialCapacity < 0)
throw new IllegalArgumentException();
int cap = ((initialCapacity >= (MAXIMUM_CAPACITY >>> 1)) ?
MAXIMUM_CAPACITY :
tableSizeFor(initialCapacity + (initialCapacity >>> 1) + 1));
this.sizeCtl = cap;
}
// 有参构造方法，传入一个map
public ConcurrentHashMap(Map<? extends K, ? extends V> m) {
this.sizeCtl = DEFAULT_CAPACITY;
putAll(m);
}
// 两参的构造方法，实际调用的是三参的构造方法
public ConcurrentHashMap(int initialCapacity, float loadFactor) {
this(initialCapacity, loadFactor, 1);
}
// 三参的构造方法
public ConcurrentHashMap(int initialCapacity,
float loadFactor, int concurrencyLevel) {
if (!(loadFactor > 0.0f) || initialCapacity < 0 || concurrencyLevel <= 0)
throw new IllegalArgumentException();
if (initialCapacity < concurrencyLevel) // Use at least as many bins
initialCapacity = concurrencyLevel; // as estimated threads
long size = (long)(1.0 + (long)initialCapacity / loadFactor);
int cap = (size >= (long)MAXIMUM_CAPACITY) ?
MAXIMUM_CAPACITY : tableSizeFor((int)size);
this.sizeCtl = cap;
}
//从上面的构造方法可以看到，sizeCtl变量最后都是持有的初始化后map的容量
// size方法返回map内当前元素的个数，实际调用的是sumCount方法
public int size() {
long n = sumCount();
return ((n < 0L) ? 0 :
(n > (long)Integer.MAX_VALUE) ? Integer.MAX_VALUE :
(int)n);
}
// 统计当前map内元素的个数（对baseCount和累加单元进行求和）
final long sumCount() {
CounterCell[] as = counterCells; CounterCell a;
long sum = baseCount;
if (as != null) {
for (int i = 0; i < as.length; ++i) {
if ((a = as[i]) != null)
sum += a.value;
}
}
return sum;
}
// 判断map是否为空
public boolean isEmpty() {
return sumCount() <= 0L; // ignore transient negative values
}
// get方法
public V get(Object key) {
Node<K,V>[] tab; Node<K,V> e, p; int n, eh; K ek;
// 根据key的hashcode计算出hash值
int h = spread(key.hashCode());
// 判断哈希表不为空且长度大于0，且hash值索引的元素不为空
if ((tab = table) != null && (n = tab.length) > 0 &&
(e = tabAt(tab, (n - 1) & h)) != null) {
// 如果头节点就是要找的，则返回头节点的value
if ((eh = e.hash) == h) {
if ((ek = e.key) == key || (ek != null && key.equals(ek)))
return e.val;
}
// 如果头节点的hash值小于0，则说明不是普通的节点，则调用这个节点的find方法去找这个值
else if (eh < 0)
return (p = e.find(h, key)) != null ? p.val : null;
// 头节点不为空，且不是其他节点，那么就遍历链表节点，找到了就返回值
while ((e = e.next) != null) {
if (e.hash == h &&
((ek = e.key) == key || (ek != null && key.equals(ek))))
return e.val;
}
}
// 没找到返回null
return null;
}
// 判断某个key是否存在
public boolean containsKey(Object key) {
return get(key) != null;
}
// put方法，实际调用的putVal
public V put(K key, V value) {
return putVal(key, value, false);
}
final V putVal(K key, V value, boolean onlyIfAbsent) {
// 如果key或者value为null，则直接抛出空指针异常
if (key == null || value == null) throw new NullPointerException();
// 根据key计算出对应的hash值
int hash = spread(key.hashCode());
// 遍历链表或者红黑树是统计元素个数
int binCount = 0;
// for循环（自旋机制，cas失败则自旋重试，直至put成功）
for (Node<K,V>[] tab = table;;) {
Node<K,V> f; int n, i, fh;
// 如果哈希表为空或者长度为0，则初始化哈希表
if (tab == null || (n = tab.length) == 0)
tab = initTable();
// 如果hash计算出的index对应位置没有元素，则将键值对封装成Node节点用cas方法放在对应位置
else if ((f = tabAt(tab, i = (n - 1) & hash)) == null) {
if (casTabAt(tab, i, null,
new Node<K,V>(hash, key, value, null)))
break; // no lock when adding to empty bin
}
// 如果hash值为MOVED（-1）,则说明正在扩容，则当前线程协助扩容
else if ((fh = f.hash) == MOVED)
tab = helpTransfer(tab, f);
// 否则对该节点上锁
else {
V oldVal = null;
synchronized (f) {
if (tabAt(tab, i) == f) {
// 如果该节点的hash值大于0，则说明是链表
if (fh >= 0) {
binCount = 1;
// 遍历链表，如果key已存在则覆盖旧值
for (Node<K,V> e = f;; ++binCount) {
K ek;
if (e.hash == hash &&
((ek = e.key) == key ||
(ek != null && key.equals(ek)))) {
oldVal = e.val;
if (!onlyIfAbsent)
e.val = value;
break;
}
// 没有在链表中找打对应的key，则将键值对封装成节点，放在链表尾部
Node<K,V> pred = e;
if ((e = e.next) == null) {
pred.next = new Node<K,V>(hash, key,
value, null);
break;
}
}
}
// 如果是树节点，则调用树节点的put方法
else if (f instanceof TreeBin) {
Node<K,V> p;
binCount = 2;
// 这里如果没有返回putTreeValue如果返回null则代表没有找到相同的key，则直接将键值对加到树中，如果找到了相同的key，则返回对应的节点，用新值替代旧值。
if ((p = ((TreeBin<K,V>)f).putTreeVal(hash, key,
value)) != null) {
oldVal = p.val;
if (!onlyIfAbsent)
p.val = value;
}
}
}
}
if (binCount != 0) {
// 如果binCount大于8，则说明不是不是红黑树，且尝试将链表转化成红黑树
if (binCount >= TREEIFY_THRESHOLD)
treeifyBin(tab, i);
if (oldVal != null)
return oldVal;
break;
}
}
}
// 计数值加1
addCount(1L, binCount);
return null;
}
// 尝试将链表转化成红黑树
private final void treeifyBin(Node<K,V>[] tab, int index) {
Node<K,V> b; int n, sc;
if (tab != null) {
// 如果哈希表的长度小于我们的阈值64，则扩容
if ((n = tab.length) < MIN_TREEIFY_CAPACITY)
tryPresize(n << 1);
// 否则，如果对应位置的链表不为null，且hash值大于0
else if ((b = tabAt(tab, index)) != null && b.hash >= 0) {
// 给要转化的链表上锁
synchronized (b) {
if (tabAt(tab, index) == b) {
TreeNode<K,V> hd = null, tl = null;
// 遍历链表，将Node节点转化为TreeNode节点
for (Node<K,V> e = b; e != null; e = e.next) {
TreeNode<K,V> p =
new TreeNode<K,V>(e.hash, e.key, e.val,
null, null);
if ((p.prev = tl) == null)
hd = p;
else
tl.next = p;
tl = p;
}
// 将头节点用TreeBin封装，放到哈希表对应的位置上（TreeBin里面实现了很多红黑树相关的方法）
setTabAt(tab, index, new TreeBin<K,V>(hd));
}
}
}
}
}
- 扩容和节点迁移方法
// 后续再加上
一些问题
1.ConcurrentHashMap1.7和1.8的区别？

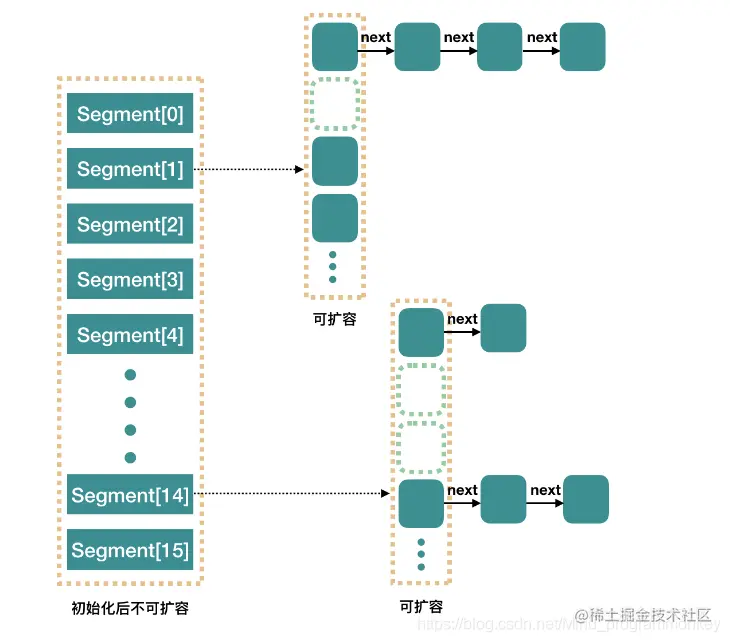

首先1.7底层会持有一个Segement数组，其中segement元素继承自ReentrantLock，用于存放HashEntry[] (结构可以看作一个HashMap)，当我们去put一个元素的时候，不会将整个map锁住，而是会将Segement数组中的某一个元素锁住，也就是分段锁。这样锁的粒度更小，并发程度更高，性能更好。
1.8底层放弃了分段锁的方法，转而采用了Synchronized和cas来保证线程的安全性，同时底层结构也变为了数组加红黑树和链表。参考上面的源码。
