通过Map/Reduce将HDFS数据写入ES,ES数据写入HDFS

807 阅读3分钟

环境准备

系统 centos 7
java 1.8
hadoop 2.7
ES 7.15.2 ES单机版本安装可以参考:blog.csdn.net/weixin_3634…

准备hadoop本地运行环境

获得Hadoop文件

链接:pan.baidu.com/s/1MGriraZ8…
提取码:u4uc

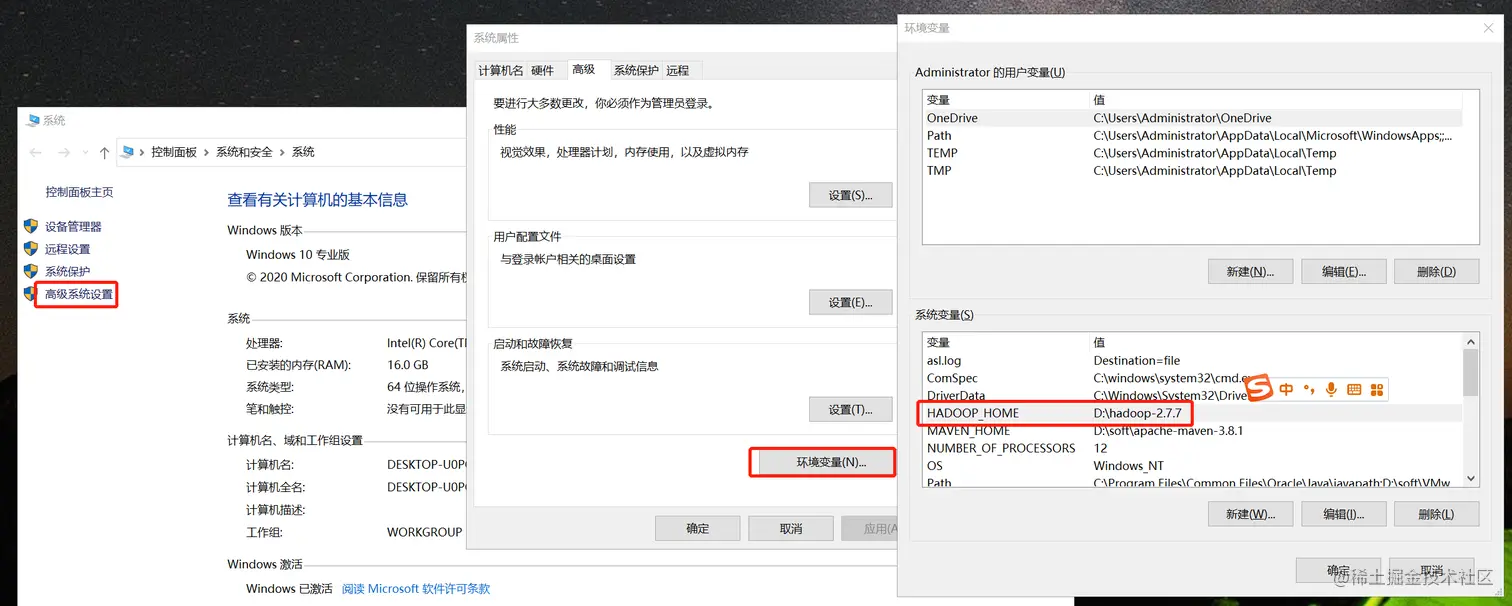

配置HADOOP_HOME

解压上述文件,然后配置HADOOP_HOME,注意修改地址。


获得工程代码

github.com/BaoPiao/ela…

读取HDFS写入ES

通过FileInputFormat读取HDFS数据,然后通过Mapper将数据转换为MapWritable数据类型,最后通过EsOutputFormat将数据写入ES。

参数说明

基本参数

网络参数

es.nodes 连接的es集群信息

es.port 连接es集群的端口号,默认是9200

es.nodes.path.prefix 连接的前缀信息,默认是空(例如每次都想写入到es.node:9200/custom/path/prefix,那么这里就可以写为/custom/path/prefix)

写入参数

es.resource 指定es索引

es.resource = twitter/tweet #索引叫twitter 类型是tweet

es.resource.write 默认取值es.resource

支持根据数据,写入不同的type中(media_type是字段)

es.resource.write = my-collection/{media_type}

根据数据,写入不同的索引中,此外还支持日期类型用于滚动生成日志索引,具体请见参考资料2。

es.resource.write = my-collection_{media_type}

文档相关参数

es.input.json默认是false,输入文件格式为JSON

es.write.operation默认是index

index(default) 如果已经存在会进行替换

create 如果已经存在会报异常

update 更新已经存在的,如果不存在报异常

upsert 如果不存在就是插入,如果存在就是更新

es.output.json默认是false,输出文件格式是否为JSON

es.ingest.pipeline默认是none,指定处理管道

es.mapping.id 指定文档id,这里填写的是字段名称,默认为空

es.mapping.parent 指定父文档,这里填写的是字段名称或填写一个常量

es.mapping.version 指定版本号,这里填写的是字段名称或填写一个常量

es.mapping.include 指定那些字段写入ES

es.mapping.exclude 指定哪些字段不写入ES

代码参考

这里只贴出Driver代码,具体请参考github:github.com/BaoPiao/ela…

public class ElasticsearchHadoop {
    public static void main(String[] args) throws IOException, InterruptedException, ClassNotFoundException {
        Configuration conf = new Configuration();
        conf.setBoolean("mapred.map.tasks.speculative.execution", false);
        conf.setBoolean("mapred.reduce.tasks.speculative.execution", false);
        conf.set("es.nodes", "192.168.10.108:9200");
        conf.set("es.resource", "/artists_2");
        conf.set("es.write.operation", "upsert");
        conf.set("es.mapping.include", "id");
        conf.set("es.mapping.id", "id");
        Job job = Job.getInstance(conf);
        job.setJarByClass(ElasticsearchHadoop.class);
        job.setOutputFormatClass(EsOutputFormat.class);
        job.setMapperClass(EsMapper.class);
        job.setMapOutputKeyClass(NullWritable.class);
        job.setMapOutputValueClass(MapWritable.class);
        FileInputFormat.setInputPaths(job, new Path("hdfs://192.168.10.108:9000/test"));
        boolean b = job.waitForCompletion(true);
        System.exit(b ? 0 : 1);
​
    }
}

读取ES写入HDFS

通过EsInputFormat读取ES数据,返回数据为<Text,MapWritable>,其中Text为key,MapWritable包含字段和字段值信息,最后编写自己的Reduce写到HDFS。

参数说明

元数据信息

es.read.metadata 默认是flase,是否返回原数据信息,例如文档id、版本号等

es.read.metadata.field 默认是_metadata字段,当且仅当es.read.metadata设置为true,返回元数据信息,数据由map封装

es.read.metadata.version 默认是false,当且仅当es.read.metadata设置为true时,该值设置为true才生效返回版本号。

查询参数

es.resource 指定es索引

es.resource = twitter/tweet #索引叫twitter 类型是tweet

es.query默认为空

  1. uri 查询方式
  2. dsl 查询方式(推荐使用)
  3. 读取文件方式
# uri (or parameter) query
es.query = ?q=costinl
​
# query dsl
es.query = { "query" : { "term" : { "user" : "costinl" } } }
​
# external resource
es.query = org/mypackage/myquery.json

es.resource.read 默认值是es.resource

es.resource.read 默认值是es.resource

代码参考

这里只贴出Driver部分,具体请参考github:github.com/BaoPiao/ela…

public class ReadElasticsearch {
    public static void main(String[] args) throws IOException, InterruptedException, ClassNotFoundException {
        Configuration conf = new Configuration();
        conf.set("es.nodes", "192.168.10.108:9200");
        conf.set("es.resource", "artists_2");
        conf.set("es.read.metadata", "true");
        conf.set("es.read.metadata.field", "_metadata");
        conf.set("es.query", "{\n" +
                "    "query":{\n" +
                "        "match_all":{}\n" +
                "    }\n" +
                "}");
        org.apache.hadoop.mapreduce.Job job = Job.getInstance(conf);
        job.setInputFormatClass(EsInputFormat.class);
​
        job.setReducerClass(EsReduce.class);
​
        job.setMapOutputKeyClass(Text.class);
        job.setMapOutputValueClass(MapWritable.class);
​
        FileOutputFormat.setOutputPath(job, new Path("D:\hadoop\outputES"));
        boolean b = job.waitForCompletion(true);
        System.exit(b ? 0 : 1);
    }
}
​

最后

还有很多参数没详细列出来,例如写入批次大小、写入重试次数、超时时间等;读取scroll设置等,具体见参考资料二

参考资料

参考资料一:www.elastic.co/guide/en/el…

参考资料二:www.elastic.co/guide/en/el…
