自定义 hooks 的思考

一. 自定义hooks-驱动条件

hooks本质上是一个函数。函数的执行，决定与无状态组件组件自身的执行上下文。每次函数的执行(本质上就是组件的更新)就会执行自定义hooks的执行，由此可见组件本身执行和hooks的执行如出一辙。

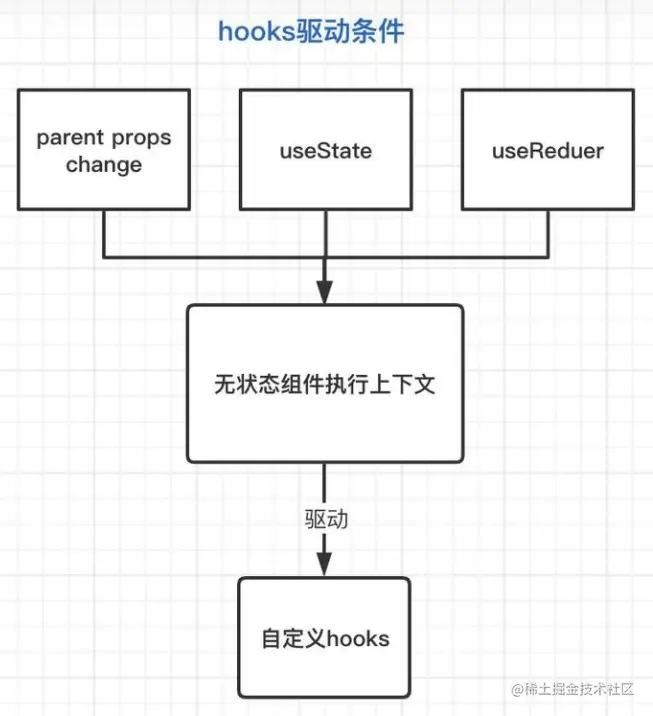

那么prop的修改,useState,useReducer使用是无状态组件更新条件，那么就是驱动hooks执行的条件。我们用一幅图来表示如上关系。

二. 自定义hooks-通用模式

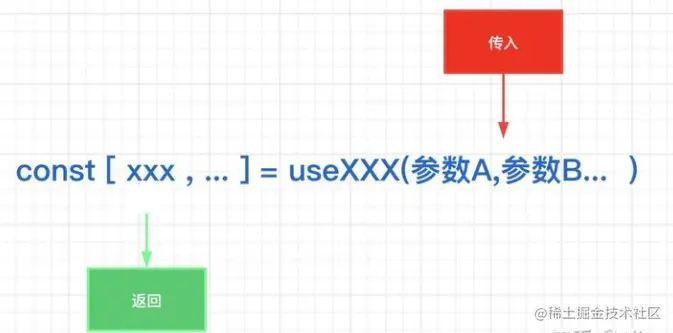

我们设计的自定义react-hooks应该是长的这样的。

const [ xxx , ... ] = useXXX(参数A,参数B...)

在我们在编写自定义hooks的时候，要特别～特别～特别关注的是传进去什么，返回什么。返回的东西是我们真正需要的。更像一个工厂，把原材料加工，最后返回我们。正如上图所示

三. 自定义hooks实战

1. useLineEchart

• 遇到的问题：

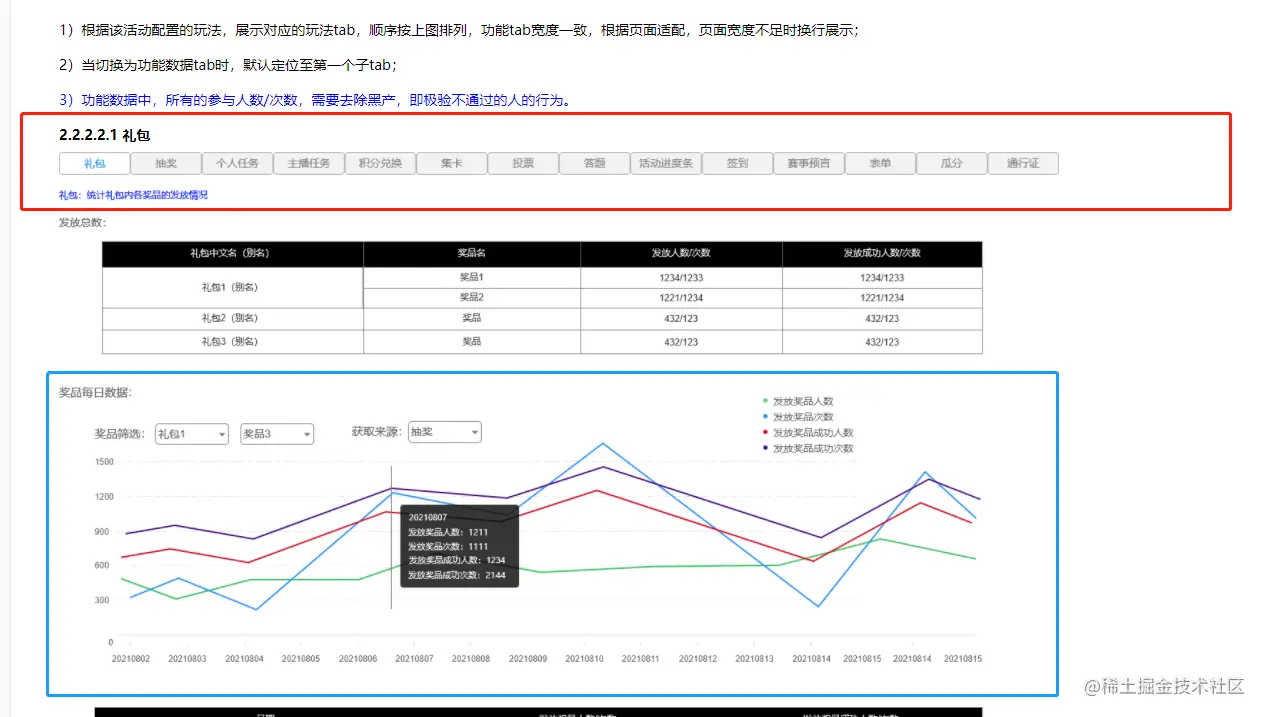

  • 【活动详情】页面中存在大量相同的 echart 折现图
  • 避免重复去配置 echart 折线图的配置项
  • 多人开发相同页面，需要保证 echart 的视觉效果 UI 层次一致

• 解决方法：

  统一将接口数据转换，echart 折线图配置项抽离，书写自定义hooks useLineEchart

• useLineEchart 具体设计思路：

  • 传入参数接口：

    interface YAxisKey {
      key: string;    // y 轴对应的接口返回字段
      legend: string; // y 轴对应的接口返回字段文案描述
    }

    interface LineEchartProps {
      dataSource: Array<DataSourceItem>; // 数据源
      xAxisKey: string; // x 轴的 key 名
      yAxisKeys: Array<YAxisKey>; // y 轴的 [{ key: 'pv',  legend: '次数' }]
      isTime?: boolean; // x 轴是否为时间
    }

    export const useLineEchart = ({ dataSource, xAxisKey, yAxisKeys, isTime = true }: LineEchartProps) => {
    	...
    }


  • 获取 echart 的 legend.data 配置项数据

    export const useLineEchart = ({ dataSource, xAxisKey, yAxisKeys, isTime = true }: LineEchartProps) => {
    	...

    	const legendData: string[] = useMemo(() => yAxisKeys.map(i => i.legend), [yAxisKeys]);

    	...
    }


  • 获取 xAxis.data 的数据

    export const useLineEchart = ({ dataSource, xAxisKey, yAxisKeys, isTime = true }: LineEchartProps) => {
    	...

    	const xAxisData: (string | number)[] = useMemo(
        () => dataSource.map(i => (isTime ? moment(i[xAxisKey] as number).format('YYYY-MM-DD') : i[xAxisKey])),
        [yAxisKeys],
      );

    	...
    }


  • 获取系列 series 数据

    export const useLineEchart = ({ dataSource, xAxisKey, yAxisKeys, isTime = true }: LineEchartProps) => {
    	...

    	const seriesData: SeriesItem[] = useMemo(
        () =>
          yAxisKeys.map(({ key, legend: name }) => {
            return {
              name,
              type: 'line',
              stack: 'Total',
              data: dataSource.map(i => i[key] as number),
            };
          }),
        [yAxisKeys, dataSource],
      );

    	...
    }


  • 修改 echart 配置项，并返回

    export const useLineEchart = ({ dataSource, xAxisKey, yAxisKeys, isTime = true }: LineEchartProps) => {
    	...

    	useEffect(() => {
        const option = {
          tooltip: {
            trigger: 'axis',
          },
          legend: {
            data: legendData,
          },
          grid: {
            left: '0%',
            right: '3%',
            bottom: '3%',
            containLabel: true,
          },
          xAxis: {
            type: 'category',
            boundaryGap: false,
            data: xAxisData,
          },
          yAxis: {
            type: 'value',
          },
          series: seriesData,
        };
        setLineChartOption(option);
      }, [legendData, xAxisData, seriesData]);

      return {
        lineChartOption,
      };
    }

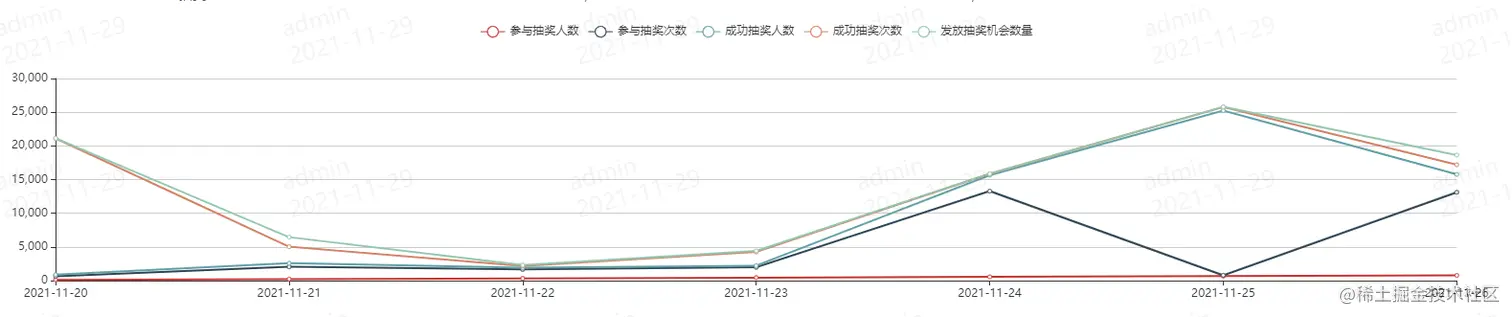

• useLineEchart Demo 实例：

  import React from 'react';
  import { IRouteComponentProps } from 'umi';
  import { Typography } from 'antd';
  import ReactEcharts from 'echarts-for-react';
  import { useLineEchart } from './hooks/useLineEchart';

  export interface LineEchartDemoProps extends IRouteComponentProps {}

  export default function LineEchartDemo(props: LineEchartDemoProps) {
    const { lineChartOption } = useLineEchart({
      dataSource: [
        { time: 1637366400000, cy_pv: 122, cy_uv: 533, cg_pv: 223, cg_uv: 20234, ff_pv: 12 },
        { time: 1637452800000, cy_pv: 222, cy_uv: 1833, cg_pv: 523, cg_uv: 2460, ff_pv: 1423 },
        { time: 1637539200000, cy_pv: 333, cy_uv: 1333, cg_pv: 243, cg_uv: 260, ff_pv: 144 },
        { time: 1637625600000, cy_pv: 444, cy_uv: 1533, cg_pv: 236, cg_uv: 2046, ff_pv: 155 },
        { time: 1637712000000, cy_pv: 555, cy_uv: 12733, cg_pv: 2364, cg_uv: 205, ff_pv: 16 },
        { time: 1637798400000, cy_pv: 666, cy_uv: 123, cg_pv: 24453, cg_uv: 520, ff_pv: 31 },
        { time: 1637884800000, cy_pv: 777, cy_uv: 12335, cg_pv: 2663, cg_uv: 1420, ff_pv: 1443 },
      ],
      xAxisKey: 'time',
      yAxisKeys: [
        { key: 'cy_pv', legend: '参与抽奖人数' },
        { key: 'cy_uv', legend: '参与抽奖次数' },
        { key: 'cg_pv', legend: '成功抽奖人数' },
        { key: 'cg_uv', legend: '成功抽奖次数' },
        { key: 'ff_pv', legend: '发放抽奖机会数量' },
      ],
    });

  return (
      <div className="echart-demo-container">
        <div className="echart-content">
          <ReactEcharts option={lineChartOption} notMerge={true} lazyUpdate={true} />
        </div>
      </div>
    );
  }




2. useTable

• 遇到的问题：

  • antd table 组件动态表头合并

-   *antd table 组件动态表单项合并*

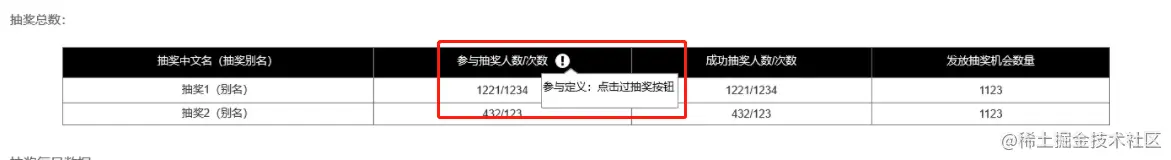

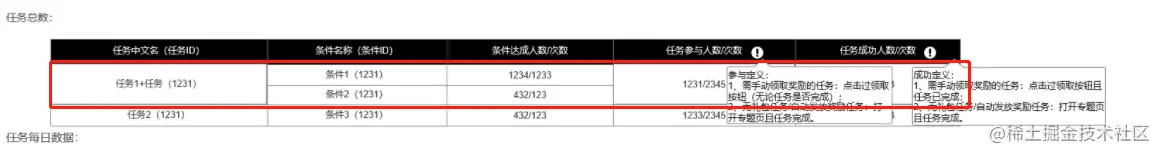

-   *antd table 组件表头 hover 状态，显示表头说明*

• 解决方法：

  统一将接口数据转换成新的 dataSource，动态配置 columns 配置项，hover 表头说明使用 React.ReactNode 就行渲染。

• useTable 设计思想：

  • 传入参数接口定义:

    import React, { useCallback, useMemo, useState, useEffect, useRef } from 'react';
    import { Tooltip, Icon } from 'antd';
    import { ColumnProps } from 'antd/es/table';
    import './useTable.less';

    /** 需要合并的表，，请求传入的 child 数据对象 */
    interface ChileHeader {
      key: string;
      name: string;
      value: string;
    }

    /** 存取需要合并的表头 dataSource 数据源，并将其 children 数组存在一个 key 为其请求字段的字典 */
    interface ChildrenHeaderMap {
      [index: string]: ColumnProps<User>[];
    }

    /** dataSource 数据源定义 */
    interface User {
      [index: string]: string | number | ChileHeader[];
      key: number;
      name: string;
    }

    /** 表头定义 */
    interface HeaderMap {
      key: string; // 每一列的接口请求字段 key
      name: string; // 每一列的接口请求字段 key 的文案说明
      desc?: string; // hover 悬浮提示
      isMergedKey?: boolean; // 是否是合并的行
      isMergedHeader?: boolean; // 是否是需要合并的表头
    }

    interface TableProps {
      dataSource: Array<User>; // 数据源
      headerMap: HeaderMap[]; // 表头字典
    }

    /**
     * 解决问题：
     * * antd table 组件动态表头合并
     * * antd table 组件动态表单项合并
     * * antd table 组件表头 hover 状态，显示表头说明
     */
    export const useTable = ({ dataSource, headerMap }: TableProps) => {
    	...
    }


  • 获取需要合并的行：

    export const useTable = ({ dataSource, headerMap }: TableProps) => {
    	...

    	const mergedKeys: string[] = useMemo(() => headerMap.filter(i => i.isMergedKey).map(i => i.key), [headerMap]);

    	...
    }


  • 获取需要合并的表头：

    export const useTable = ({ dataSource, headerMap }: TableProps) => {
    	...

    	const mergedHeaders: string[] = useMemo(() => headerMap.filter(i => i.isMergedHeader).map(i => i.key), [headerMap]);

    	...
    }


  • 修改需要合并的表头 dataSource 数据源，并将其 children 数组存在一个 key 为其请求字段的字典中：

    export const useTable = ({ dataSource, headerMap }: TableProps) => {
    	...

    	const childrenHeaderMap: React.MutableRefObject<ChildrenHeaderMap> = useRef({});

      const mergedHeaderSource: Array<User> = useMemo(() => {
        if (mergedHeaders.length <= 0) {
          return dataSource || [];
        }
        const source: Array<User> = dataSource.map(i => {
          for (const key in i) {
            if (Object.prototype.hasOwnProperty.call(i, key)) {
              if (mergedHeaders.includes(key)) {
                childrenHeaderMap.current[key] = (i[key] as Array<ChileHeader>).map(({ key: _key, value, name: title }) => {
                  i[_key] = value;
                  return { title, dataIndex: _key, key: _key };
                });
              }
            }
          }
          return i;
        });
        return source;
      }, [dataSource, mergedHeaders]);

    	...
    }


  • 归并 dataSource 数据源：

    export const useTable = ({ dataSource, headerMap }: TableProps) => {
    	...

    	/** 归并数据 */
      const classifyRows: Array<User> = useMemo(() => {
        if (mergedKeys.length <= 0 || dataSource.length <= 0) {
          return mergedHeaderSource || [];
        }
        return mergedHeaderSource.slice(1).reduce(
          (ordered, row) => {
            const index = ordered.findIndex(orderedRow => orderedRow[mergedKeys[0]] === row[mergedKeys[0]]);
            if (index !== -1) {
              return [...ordered.slice(0, index + 1), row, ...ordered.slice(index + 1)];
            }
            return [...ordered, row];
          },
          [mergedHeaderSource[0]],
        );
      }, [mergedHeaderSource, mergedKeys]);

    	...
    }

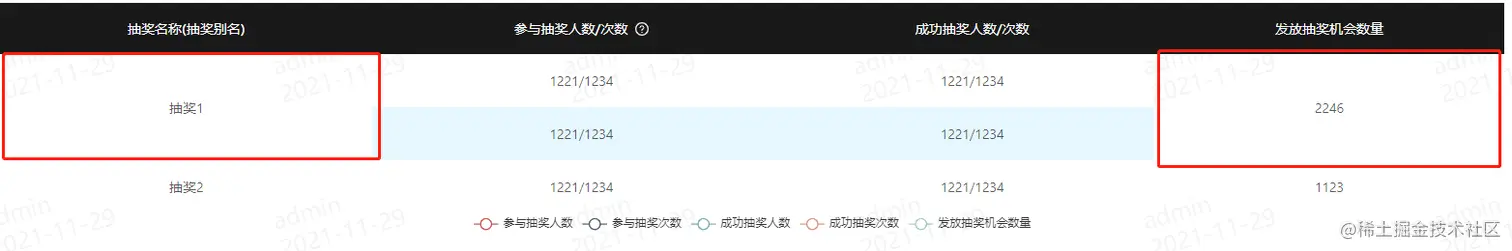

  • 合并行：

    /** 计算归并列表项特定key值的和 */
      const calcTotal: (mergedRows: User[], currentRow: User, idx: number) => void = useCallback(
        (mergedRows: User[], currentRow: User, idx: number) => {
          if (mergedKeys.length <= 1) {
            return;
          }
          for (let i = 1; i < mergedKeys.length; i++) {
            const key = mergedKeys[i];
            mergedRows[idx][key] = (+mergedRows[idx][key] as number) + (+currentRow[key] as number);
          }
        },
        [mergedKeys],
      );

      /** 合并列表项 */
      const mergeRows: Array<User> = useMemo(() => {
        if (mergedKeys.length <= 0 || classifyRows.length <= 0) {
          return classifyRows || [];
        }
        classifyRows[0].rowSpan = 1;
        let idx = 0;
        return classifyRows.slice(1).reduce(
          (mergedRows, currentRow, index) => {
            if (currentRow[mergedKeys[0]] === mergedRows[idx][mergedKeys[0]]) {
              (mergedRows[idx].rowSpan as number)++;
              currentRow.colSpan = 0;
              calcTotal(mergedRows, currentRow, idx);
            } else {
              currentRow.rowSpan = 1;
              idx = index + 1;
            }
            return [...mergedRows, currentRow];
          },
          [classifyRows[0]],
        );
      }, [classifyRows, mergedKeys]);


  • 生成表单 columns 配置项，并输出结果：

    /** hover 悬浮提示 */
    const TooltipTitle = ({ text, title }: { text: string; title: string }) => {
      return (
        <React.Fragment>
          <span style={{ marginRight: 8 }}>{text}</span>
          <Tooltip placement="bottom" title={title}>
            <Icon type="question-circle" theme="outlined" />
          </Tooltip>
        </React.Fragment>
      );
    };

    export const useTable = ({ dataSource, headerMap }: TableProps) => {
    	...

    	useEffect(() => {
        const getColumns: () => ColumnProps<User>[] = () => {
          const _columns: ColumnProps<User>[] = [];
          headerMap.forEach(({ key, name, desc, isMergedHeader }) => {
            const columnItem: ColumnProps<User> = {};
            columnItem.title = desc ? <TooltipTitle text={name} title={desc} /> : name;
            columnItem.dataIndex = key;
            if (!isMergedHeader) {
              columnItem.align = 'center';
              columnItem.render = (text, record) => {
                if (mergedKeys.length > 0 && mergedKeys.includes(key)) {
                  return {
                    children: text,
                    props: {
                      rowSpan: record.rowSpan,
                      colSpan: record.colSpan,
                    },
                  };
                }
                return text;
              };
            } else {
              columnItem.children = childrenHeaderMap.current[key];
            }
            _columns.push(columnItem);
          });
          return _columns;
        };
        setColumns(getColumns());
      }, [dataSource, headerMap, mergedKeys]);

      return {
        columns,
        _dataSource,
      };
    }

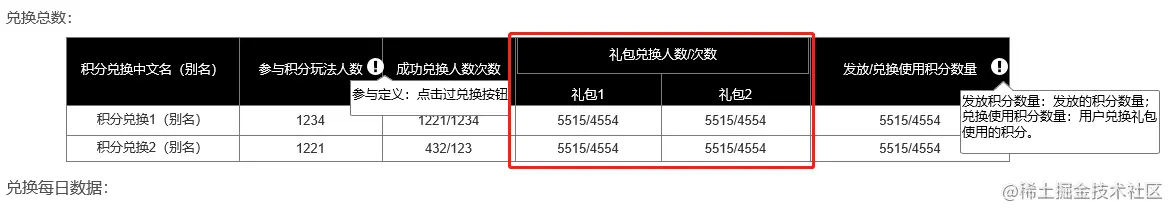

• useTable Demo 实例：

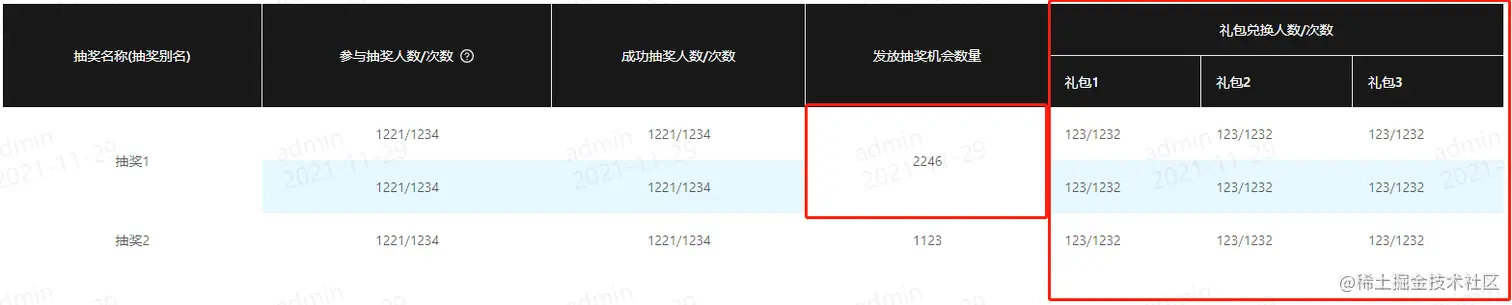

  • 动态合并表头和表单项的Table

    ....
    const { columns, _dataSource } = useTable({
        dataSource: [
          {
            key: 1,
            name: '抽奖1',
            zht_pv: '1221/1234',
            zht_uv: '1221/1234',
            user_click_cnt: '1123',
            lb_pv: [
              {
                key: 'lb_pv1',
                name: '礼包1',
                value: '123/1232',
              },
              {
                key: 'lb_pv2',
                name: '礼包2',
                value: '123/1232',
              },
              {
                key: 'lb_pv3',
                name: '礼包3',
                value: '123/1232',
              },
            ],
          },
          {
            key: 3,
            name: '抽奖2',
            zht_pv: '1221/1234',
            zht_uv: '1221/1234',
            user_click_cnt: '1123',
            lb_pv: [
              {
                key: 'lb_pv1',
                name: '礼包1',
                value: '123/1232',
              },
              {
                key: 'lb_pv2',
                name: '礼包2',
                value: '123/1232',
              },
              {
                key: 'lb_pv3',
                name: '礼包3',
                value: '123/1232',
              },
            ],
          },
          {
            key: 2,
            name: '抽奖3',
            zht_pv: '1221/1234',
            zht_uv: '1221/1234',
            user_click_cnt: '1123',
            lb_pv: [
              {
                key: 'lb_pv1',
                name: '礼包1',
                value: '123/1232',
              },
              {
                key: 'lb_pv2',
                name: '礼包2',
                value: '123/1232',
              },
              {
                key: 'lb_pv3',
                name: '礼包3',
                value: '123/1232',
              },
            ],
          },
        ],
        headerMap: [
          {
            key: 'name',
            name: '抽奖名称(抽奖别名)',
            isMergedKey: false,
            isMergedHeader: false,
          },
          {
            key: 'zht_pv',
            name: '参与抽奖人数/次数',
            desc: '参与定义：点击过抽奖按钮',
            isMergedKey: false,
            isMergedHeader: false,
          },
          {
            key: 'zht_uv',
            name: '成功抽奖人数/次数',
            isMergedKey: false,
            isMergedHeader: false,
          },
          {
            key: 'user_click_cnt',
            name: '发放抽奖机会数量',
            isMergedKey: false,
            isMergedHeader: false,
          },
          {
            key: 'lb_pv',
            name: '礼包兑换人数/次数',
            isMergedKey: false,
            isMergedHeader: true,
          },
        ],
      });

    ...

    <Table rowKey="dt" dataSource={_dataSource} columns={columns} pagination={false} bordered />

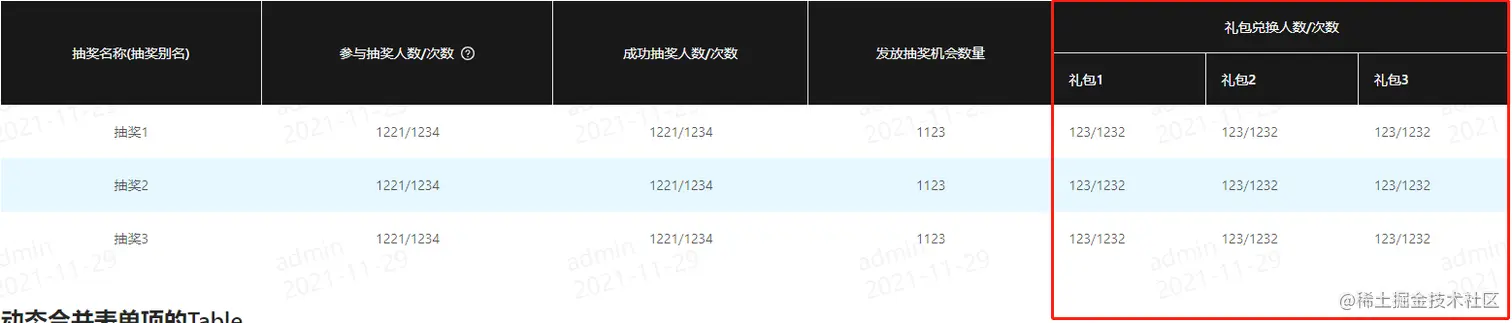

  • 动态合并表头的Table

    const { columns, _dataSource } = useTable({
        dataSource: [
          {
            key: 1,
            name: '抽奖1',
            zht_pv: '1221/1234',
            zht_uv: '1221/1234',
            user_click_cnt: '1123',
            lb_pv: [
              {
                key: 'lb_pv1',
                name: '礼包1',
                value: '123/1232',
              },
              {
                key: 'lb_pv2',
                name: '礼包2',
                value: '123/1232',
              },
              {
                key: 'lb_pv3',
                name: '礼包3',
                value: '123/1232',
              },
            ],
          },
          {
            key: 3,
            name: '抽奖2',
            zht_pv: '1221/1234',
            zht_uv: '1221/1234',
            user_click_cnt: '1123',
            lb_pv: [
              {
                key: 'lb_pv1',
                name: '礼包1',
                value: '123/1232',
              },
              {
                key: 'lb_pv2',
                name: '礼包2',
                value: '123/1232',
              },
              {
                key: 'lb_pv3',
                name: '礼包3',
                value: '123/1232',
              },
            ],
          },
          {
            key: 2,
            name: '抽奖3',
            zht_pv: '1221/1234',
            zht_uv: '1221/1234',
            user_click_cnt: '1123',
            lb_pv: [
              {
                key: 'lb_pv1',
                name: '礼包1',
                value: '123/1232',
              },
              {
                key: 'lb_pv2',
                name: '礼包2',
                value: '123/1232',
              },
              {
                key: 'lb_pv3',
                name: '礼包3',
                value: '123/1232',
              },
            ],
          },
        ],
        headerMap: [
          {
            key: 'name',
            name: '抽奖名称(抽奖别名)',
            isMergedKey: false,
            isMergedHeader: false,
          },
          {
            key: 'zht_pv',
            name: '参与抽奖人数/次数',
            desc: '参与定义：点击过抽奖按钮',
            isMergedKey: false,
            isMergedHeader: false,
          },
          {
            key: 'zht_uv',
            name: '成功抽奖人数/次数',
            isMergedKey: false,
            isMergedHeader: false,
          },
          {
            key: 'user_click_cnt',
            name: '发放抽奖机会数量',
            isMergedKey: false,
            isMergedHeader: false,
          },
          {
            key: 'lb_pv',
            name: '礼包兑换人数/次数',
            isMergedKey: false,
            isMergedHeader: true,
          },
        ],
      });

    <Table rowKey="dt" dataSource={_dataSource} columns={columns} pagination={false} bordered />




  • 动态合并表单项的Table

    const { columns, _dataSource } = useTable({
        dataSource: [
          {
            key: 1,
            name: '抽奖1',
            zht_pv: '1221/1234',
            zht_uv: '1221/1234',
            user_click_cnt: '1123',
          },
          {
            key: 3,
            name: '抽奖1',
            zht_pv: '1221/1234',
            zht_uv: '1221/1234',
            user_click_cnt: '1123',
          },
          {
            key: 2,
            name: '抽奖2',
            zht_pv: '1221/1234',
            zht_uv: '1221/1234',
            user_click_cnt: '1123',
          },
        ],
        headerMap: [
          {
            key: 'name',
            name: '抽奖名称(抽奖别名)',
            isMergedKey: true,
            isMergedHeader: false,
          },
          {
            key: 'zht_pv',
            name: '参与抽奖人数/次数',
            desc: '参与定义：点击过抽奖按钮',
            isMergedKey: false,
            isMergedHeader: false,
          },
          {
            key: 'zht_uv',
            name: '成功抽奖人数/次数',
            isMergedKey: false,
            isMergedHeader: false,
          },
          {
            key: 'user_click_cnt',
            name: '发放抽奖机会数量',
            isMergedKey: true,
            isMergedHeader: false,
          },
        ],
      });

    <Table rowKey="dt" dataSource={_dataSource} columns={columns} pagination={false} bordered />
