都知道echarts柱状图最多支持两个维度，legend是一个维度，x轴是一个维度。

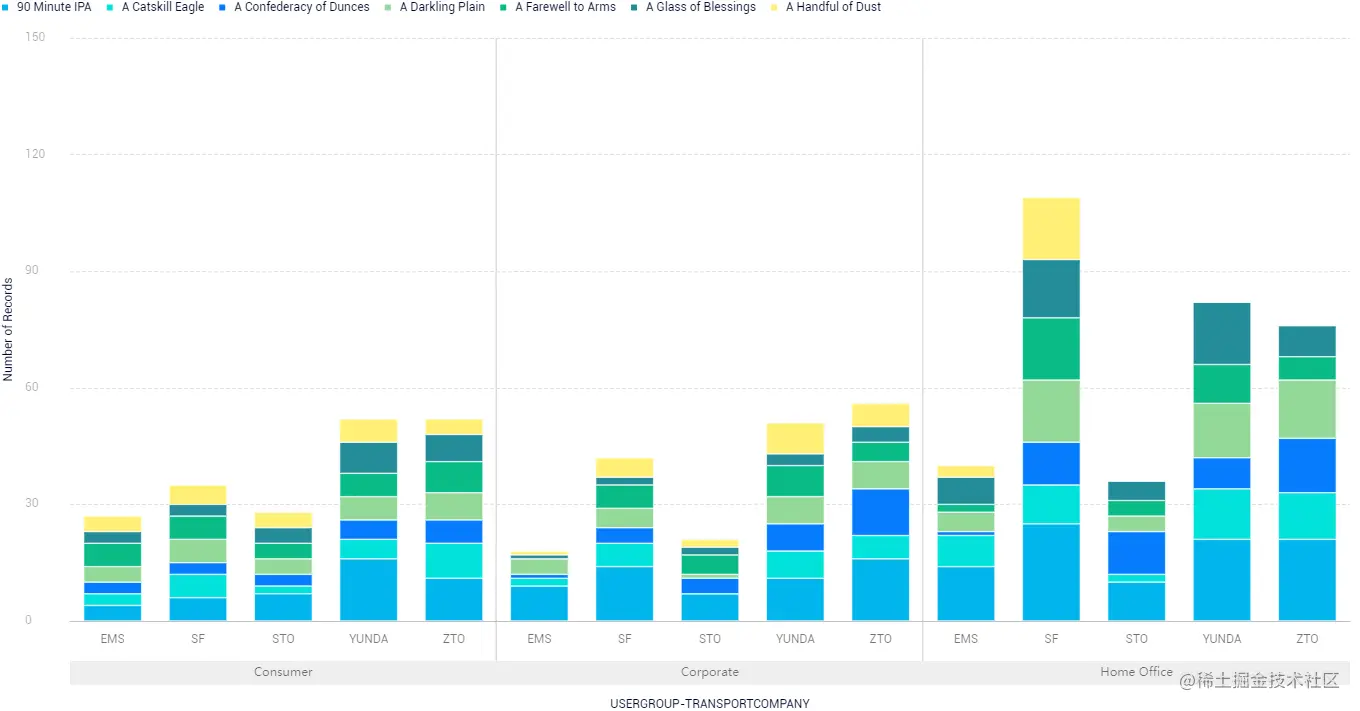

现在产品要求x轴支持两个维度，如图所示。
实现思路：伪实现思路，x轴的第二个维度其实是一个基于第二个grid的柱状图，将第二个grid的x轴和y轴的刻度线直接隐藏
根据x轴的第二个维度把数据分组，然后根据每组中x轴上显示的柱子数量来确定该组的宽度
每组宽度 = 每组柱子个数 / 总柱子数（series中有个barWidth属性，直接给百分比就能确定柱子宽度）
每组中的分割线用的是series中的itemStyle属性，来给柱子加阴影
itemStyle : {
shadowColor: '#cccccc',
shadowOffsetX: -1,
shadowBlur: 0,
color: "#ffffff",
};
第二维度的样式用的也是阴影来实现的，用的是backgroundStyle属性
backgroundStyle : {
shadowColor: '#00000010',
shadowBlur: 0,
color: '#ffffff',
shadowOffsetY: 24
};
一个完整的option如下
{
"animation": true,
"animationDurationUpdate": 0,
"grid": [
{
"left": "70px",
"bottom": "90px",
"right": "10px",
"top": "38px",
"containLabel": false
},
{
"left": "70px",
"right": "10px",
"bottom": "50px",
"top": "38px"
}
],
"color": [
"#02B6ED",
"#01E3DB",
"#077DFE",
"#93D896",
"#0ABB88",
"#248C98",
"#FFEF74",
"#FEA83B",
"#EF6E00",
"#F9B384",
"#FF7D5C",
"#D5706F",
"#E61717",
"#A40D0C",
"#E6749F",
"#CC0E74",
"#790D5A",
"#CFB4FF",
"#CD5EFE",
"#885EFE"
],
"tooltip": {
"trigger": "axis",
"axisPointer": {
"type": "shadow"
},
"hideDelay": 360,
"backgroundColor": "rgba(0, 16, 56, .9)",
"boxShadow": "",
"padding": [
12,
18
],
"confine": true,
"textStyle": {
"color": "#fff",
"fontFamily": "Roboto",
"fontSize": 12,
"align": "left"
},
"extraCssText": "box-shadow: 0 5px 10px 0 rgba(0, 16, 56, 0.2); border-radius: 3px;position:absolute;z-index:9999;margin:0"
},
"legend": {
"data": [
"90 Minute IPA",
"A Catskill Eagle",
"A Confederacy of Dunces",
"A Darkling Plain",
"A Farewell to Arms",
"A Glass of Blessings",
"A Handful of Dust",
"A Many-Splendoured Thing",
"A Monstrous Regiment of Women",
"A Passage to India",
"A Scanner Darkly",
"A Summer Bird-Cage",
"A Swiftly Tilting Planet",
"A Time of Gifts",
"A Time to Kill",
"Absalom Absalom!",
"After Many a Summer Dies the Swan",
"Ah Wilderness!",
"All Passion Spent",
"All the King's Men",
"Alone on a Wide Wide Sea",
"Alpha King Pale Ale",
"An Acceptable Time",
"An Evil Cradling",
"An Instant In The Wind",
"Antic Hay",
"Arms and the Man",
"Arrogant Bastard Ale",
"As I Lay Dying",
"Behold the Man",
"Bell’s Expedition",
"Beneath the Bleeding",
"Beyond the Mexique Bay",
"Blithe Spirit",
"Blood's a Rover",
"Blue Remembered Earth",
"Bourbon County Stout",
"Brandy of the Damned",
"Brooklyn Black",
"Bury My Heart at Wounded Knee",
"Butter In a Lordly Dish",
"By Grand Central Station I Sat Down and Wept",
"Cabbages and Kings",
"Carrion Comfort",
"Celebrator Doppelbock",
"Chimay Grande Réserve",
"Chocolate St",
"Clouds of Witness",
"Consider Phlebas",
"Consider the Lilies",
"Cover Her Face",
"Dance Dance Dance",
"Death Be Not Proud",
"Double Bastard Ale",
"Down to a Sunless Sea",
"Dreadnaught IPA",
"Dulce et Decorum Est",
"Duvel",
"Dying of the Light",
"East of Eden",
"Edmund Fitzgerald Porter",
"Edna O'Brien",
"Ego Dominus Tuus",
"Endless Night",
"Everything is Illuminated",
"Eyeless in Gaza",
"Fair Stood the Wind for France",
"Fame Is the Spur",
"Far From the Madding Crowd",
"Fear and Trembling",
"For Whom the Bell Tolls",
"For a Breath I Tarry",
"Founders Breakfast Stout",
"Founders Kentucky Breakfast",
"Françoise Sagan",
"Frequent Hearses",
"From Here to Eternity",
"Gone with the Wind",
"Great Work of Time",
"Have His Carcase",
"Hennepin",
"Hercules Double IPA",
"His Dark Materials",
"Hop Rod Rye",
"HopSlam Ale",
"I Know Why the Caged Bird Sings",
"I Sing the Body Electric",
"I Will Fear No Evil",
"If I Forget Thee Jerusalem",
"If Not Now When?",
"In Death Ground",
"In Dubious Battle",
"In a Dry Season",
"In a Glass Darkly",
"Infinite Jest",
"It's a Battlefield",
"Jacob Have I Loved",
"Jesting Pilate",
"La Fin Du Monde",
"Let Us Now Praise Famous Men",
"Lilies of the Field",
"Little Hands Clapping",
"Look Homeward Angel",
"Look to Windward",
"Maharaj",
"Many Waters",
"Maudite",
"Moab Is My Washpot",
"Mother Night",
"Mr Standfast",
"Nectar in a Sieve",
"Nine Coaches Waiting",
"No Country for Old Men",
"No Highway",
"No Longer at Ease",
"Noli Me Tangere",
"Now Sleeps the Crimson Petal",
"Nugget Nectar",
"Number the Stars",
"O Jerusalem!",
"O Pioneers!",
"Oak Aged Yeti Imperial Stout",
"Oaked Arrogant Bastard Ale",
"Of Human Bondage",
"Of Mice and Men",
"Oh! To be in England",
"Old Rasputin Russian Imperial Stout",
"Orval Trappist Ale",
"Pale Kings and Princes",
"Paths of Glory",
"Pliny The Elder",
"Postern of Fate",
"Precious Bane",
"Péché Mortel",
"Quo Vadis",
"Racer 5 India Pale Ale Bear Republic Bre",
"Recalled to Life",
"Ring of Bright Water",
"Rosemary Sutcliff",
"Ruination IPA",
"Samuel Smith’s Imperial IPA",
"Samuel Smith’s Oatmeal Stout",
"Schneider Aventinus",
"Shakespeare Oatmeal",
"Shall not Perish",
"Sierra Nevada Bigfoot Barleywine Style Ale",
"Sierra Nevada Celebration Ale",
"Sleep the Brave",
"Some Buried Caesar",
"Specimen Days",
"St. Bernardus Abt 12",
"Stone IPA",
"Stone Imperial Russian Stout",
"Storm King Stout",
"Stranger in a Strange Land",
"Sublimely Self-Righteous Ale",
"Such Such Were the Joys",
"Surprised by Joy",
"Taming a Sea Horse",
"Ten FIDY",
"Tender Is the Night",
"Terrible Swift Sword",
"That Good Night",
"That Hideous Strength",
"The Cricket on the Hearth",
"The Curious Incident of the Dog in the Night-Time",
"The Daffodil Sky",
"The Doors of Perception",
"The Far-Distant Oxus",
"The Glory and the Dream",
"The Golden Apples of the Sun",
"The Golden Bowl",
"The Grapes of Wrath",
"The Green Bay Tree",
"The Heart Is Deceitful Above All Things",
"The Heart Is a Lonely Hunter",
"The House of Mirth",
"The Last Enemy",
"The Last Temptation",
"The Lathe of Heaven",
"The Line of Beauty",
"The Little Foxes",
"The Man Within",
"The Mermaids Singing",
"The Millstone",
"The Mirror Crack'd from Side to Side",
"The Monkey's Raincoat",
"The Moon by Night",
"The Moving Finger",
"The Moving Toyshop",
"The Needle's Eye",
"The Other Side of Silence",
"The Painted Veil",
"The Parliament of Man",
"The Proper Study",
"The Road Less Traveled",
"The Skull Beneath the Skin",
"The Soldier's Art",
"The Stars' Tennis Balls",
"The Sun Also Rises",
"The Torment of Others",
"The Violent Bear It Away",
"The Waste Land",
"The Way Through the Woods",
"The Way of All Flesh",
"The Wealth of Nations",
"The Widening Gyre",
"The Wind's Twelve Quarters",
"The Wings of the Dove",
"The Wives of Bath",
"The World the Flesh and the Devil",
"The Yellow Meads of Asphodel",
"Things Fall Apart",
"This Lime Tree Bower",
"This Side of Paradise",
"Those Barren Leaves Thrones Dominations",
"Tiger! Tiger!",
"Time To Murder And Create",
"Time of our Darkness",
"Tirra Lirra by the River",
"To Sail Beyond the Sunset",
"To Say Nothing of the Dog",
"To Your Scattered Bodies Go",
"To a God Unknown",
"Trappistes Rochefort 10",
"Trappistes Rochefort 8",
"Trois Pistoles",
"Two Hearted Ale",
"Unweaving the Rainbow",
"Vanity Fair",
"Vile Bodies",
"Waiting for the Barbarians",
"Weihenstephaner Hefeweissbier",
"Westmalle Trappist Tripel",
"What's Become of Waring",
"When the Green Woods Laugh",
"Where Angels Fear to Tread",
"Wildfire at Midnight",
"Yeti Imperial Stout"
],
"type": "scroll",
"width": "97%",
"top": 0,
"left": 0,
"right": "80px",
"icon": "roundRect",
"itemWidth": 8,
"itemHeight": 8,
"padding": 0,
"itemGap": 13,
"textStyle": {
"color": "#00092C",
"fontFamily": "Roboto",
"padding": [
0,
0,
0,
3
]
},
"pageButtonPosition": "end"
},
"xAxis": [
{
"type": "category",
"data": [
"Consumer",
"Corporate",
"Home Office",
"Consumer",
"Corporate"
],
"name": "TRANSPORTCOMPANY-USERGROUP",
"nameGap": 78,
"nameLocation": "center",
"nameTextStyle": {
"color": "#00092C",
"fontFamily": "roboto"
},
"boundaryGap": true,
"axisTick": {
"show": false
},
"axisLabel": {
"color": "rgba(0,0,0,0.55)",
"inside": false,
"margin": 13,
"align": "center",
"fontFamily": "roboto"
},
"axisLine": {
"lineStyle": {
"color": "#C2C2C2",
"type": "solid"
}
},
"zlevel": 2
},
{
"type": "category",
"gridIndex": 1,
"axisLabel": {
"show": false
},
"axisLine": {
"show": false
},
"axisTick": {
"show": false
},
"axisPointer": {
"show": false
}
}
],
"yAxis": [
{
"type": "value",
"name": "Number of Records",
"offset": 0,
"nameGap": 55,
"nameLocation": "middle",
"nameTextStyle": {
"color": "#00092C",
"fontFamily": "roboto"
},
"axisTick": {
"show": false
},
"axisLabel": {
"color": "rgba(0,0,0,0.35)",
"align": "left",
"inside": false,
"margin": 45,
"padding": [
0,
0,
0,
0
],
"showMinLabel": true,
"fontFamily": "roboto"
},
"axisLine": {
"show": false
},
"splitLine": {
"show": true,
"lineStyle": {
"color": [
"#E0E0E0"
],
"type": "dashed",
"opacity": 1
}
},
"z": 2,
"interval": 60,
"minInterval": 1
},
{
"type": "value",
"gridIndex": 1,
"axisLabel": {
"show": false
},
"axisLine": {
"show": false
},
"splitLine": {
"show": false
},
"axisTick": {
"show": false
}
}
],
"series": [
{
"data": [
104,
94,
225,
185,
198
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "90 Minute IPA"
},
{
"data": [
47,
45,
91,
100,
93
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "A Catskill Eagle"
},
{
"data": [
54,
43,
90,
90,
82
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "A Confederacy of Dunces"
},
{
"data": [
48,
54,
94,
94,
101
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "A Darkling Plain"
},
{
"data": [
58,
38,
90,
97,
97
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "A Farewell to Arms"
},
{
"data": [
47,
34,
97,
95,
92
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "A Glass of Blessings"
},
{
"data": [
46,
48,
84,
90,
96
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "A Handful of Dust"
},
{
"data": [
49,
46,
109,
101,
98
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "A Many-Splendoured Thing"
},
{
"data": [
54,
44,
95,
97,
102
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "A Monstrous Regiment of Women"
},
{
"data": [
40,
39,
96,
88,
88
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "A Passage to India"
},
{
"data": [
59,
45,
99,
85,
100
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "A Scanner Darkly"
},
{
"data": [
50,
55,
103,
98,
99
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "A Summer Bird-Cage"
},
{
"data": [
43,
41,
88,
97,
95
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "A Swiftly Tilting Planet"
},
{
"data": [
47,
51,
99,
98,
81
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "A Time of Gifts"
},
{
"data": [
39,
49,
90,
107,
97
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "A Time to Kill"
},
{
"data": [
44,
45,
95,
101,
98
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Absalom Absalom!"
},
{
"data": [
45,
76,
83,
90,
84
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "After Many a Summer Dies the Swan"
},
{
"data": [
47,
53,
93,
105,
81
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Ah Wilderness!"
},
{
"data": [
40,
47,
99,
93,
83
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "All Passion Spent"
},
{
"data": [
44,
49,
80,
98,
99
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "All the King's Men"
},
{
"data": [
62,
56,
93,
96,
118
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Alone on a Wide Wide Sea"
},
{
"data": [
92,
109,
172,
220,
211
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Alpha King Pale Ale"
},
{
"data": [
48,
54,
102,
87,
110
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "An Acceptable Time"
},
{
"data": [
40,
59,
102,
102,
105
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "An Evil Cradling"
},
{
"data": [
53,
56,
89,
90,
107
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "An Instant In The Wind"
},
{
"data": [
46,
50,
83,
102,
98
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Antic Hay"
},
{
"data": [
43,
51,
90,
83,
84
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Arms and the Man"
},
{
"data": [
81,
93,
177,
204,
208
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Arrogant Bastard Ale"
},
{
"data": [
55,
48,
93,
97,
107
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "As I Lay Dying"
},
{
"data": [
43,
53,
102,
95,
105
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Behold the Man"
},
{
"data": [
97,
96,
182,
215,
220
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Bell’s Expedition"
},
{
"data": [
63,
56,
90,
110,
82
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Beneath the Bleeding"
},
{
"data": [
48,
36,
88,
83,
101
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Beyond the Mexique Bay"
},
{
"data": [
48,
41,
80,
122,
104
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Blithe Spirit"
},
{
"data": [
50,
48,
101,
99,
101
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Blood's a Rover"
},
{
"data": [
48,
42,
91,
103,
108
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Blue Remembered Earth"
},
{
"data": [
84,
105,
205,
213,
203
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Bourbon County Stout"
},
{
"data": [
41,
47,
86,
118,
123
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Brandy of the Damned"
},
{
"data": [
88,
95,
208,
214,
218
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Brooklyn Black"
},
{
"data": [
47,
55,
102,
101,
108
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Bury My Heart at Wounded Knee"
},
{
"data": [
47,
64,
101,
88,
93
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Butter In a Lordly Dish"
},
{
"data": [
45,
52,
104,
82,
108
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "By Grand Central Station I Sat Down and Wept"
},
{
"data": [
48,
51,
100,
90,
92
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Cabbages and Kings"
},
{
"data": [
42,
52,
83,
100,
98
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Carrion Comfort"
},
{
"data": [
109,
109,
206,
216,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Celebrator Doppelbock"
},
{
"data": [
86,
100,
186,
176,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Chimay Grande Réserve"
},
{
"data": [
87,
98,
215,
177,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Chocolate St"
},
{
"data": [
57,
54,
84,
79,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Clouds of Witness"
},
{
"data": [
60,
51,
80,
102,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Consider Phlebas"
},
{
"data": [
51,
57,
113,
94,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Consider the Lilies"
},
{
"data": [
54,
58,
93,
78,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Cover Her Face"
},
{
"data": [
47,
41,
91,
83,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Dance Dance Dance"
},
{
"data": [
58,
49,
102,
88,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Death Be Not Proud"
},
{
"data": [
127,
103,
195,
206,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Double Bastard Ale"
},
{
"data": [
46,
49,
86,
91,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Down to a Sunless Sea"
},
{
"data": [
94,
87,
221,
200,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Dreadnaught IPA"
},
{
"data": [
46,
58,
94,
86,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Dulce et Decorum Est"
},
{
"data": [
118,
76,
221,
212,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Duvel"
},
{
"data": [
46,
51,
105,
88,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Dying of the Light"
},
{
"data": [
49,
42,
82,
95,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "East of Eden"
},
{
"data": [
96,
100,
185,
191,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Edmund Fitzgerald Porter"
},
{
"data": [
62,
53,
98,
89,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Edna O'Brien"
},
{
"data": [
43,
39,
95,
85,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Ego Dominus Tuus"
},
{
"data": [
50,
40,
102,
101,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Endless Night"
},
{
"data": [
43,
43,
104,
77,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Everything is Illuminated"
},
{
"data": [
50,
51,
90,
117,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Eyeless in Gaza"
},
{
"data": [
52,
45,
113,
92,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Fair Stood the Wind for France"
},
{
"data": [
58,
47,
92,
97,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Fame Is the Spur"
},
{
"data": [
41,
46,
106,
88,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Far From the Madding Crowd"
},
{
"data": [
48,
46,
100,
85,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Fear and Trembling"
},
{
"data": [
43,
39,
83,
89,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "For Whom the Bell Tolls"
},
{
"data": [
49,
46,
89,
92,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "For a Breath I Tarry"
},
{
"data": [
87,
100,
237,
212,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Founders Breakfast Stout"
},
{
"data": [
87,
88,
201,
182,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Founders Kentucky Breakfast"
},
{
"data": [
42,
54,
102,
82,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Françoise Sagan"
},
{
"data": [
46,
40,
94,
103,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Frequent Hearses"
},
{
"data": [
52,
41,
82,
102,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "From Here to Eternity"
},
{
"data": [
43,
55,
89,
110,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Gone with the Wind"
},
{
"data": [
43,
52,
94,
89,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Great Work of Time"
},
{
"data": [
31,
49,
91,
111,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Have His Carcase"
},
{
"data": [
91,
89,
214,
202,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Hennepin"
},
{
"data": [
103,
116,
213,
214,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Hercules Double IPA"
},
{
"data": [
37,
41,
98,
96,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "His Dark Materials"
},
{
"data": [
94,
103,
228,
180,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Hop Rod Rye"
},
{
"data": [
76,
107,
194,
197,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "HopSlam Ale"
},
{
"data": [
61,
58,
94,
93,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "I Know Why the Caged Bird Sings"
},
{
"data": [
46,
33,
102,
94,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "I Sing the Body Electric"
},
{
"data": [
50,
45,
92,
91,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "I Will Fear No Evil"
},
{
"data": [
57,
48,
90,
87,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "If I Forget Thee Jerusalem"
},
{
"data": [
39,
41,
101,
108,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "If Not Now When?"
},
{
"data": [
66,
42,
90,
82,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "In Death Ground"
},
{
"data": [
51,
52,
91,
106,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "In Dubious Battle"
},
{
"data": [
40,
42,
83,
86,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "In a Dry Season"
},
{
"data": [
42,
47,
80,
102,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "In a Glass Darkly"
},
{
"data": [
46,
65,
89,
98,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Infinite Jest"
},
{
"data": [
48,
48,
105,
91,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "It's a Battlefield"
},
{
"data": [
41,
37,
105,
92,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Jacob Have I Loved"
},
{
"data": [
40,
32,
82,
100,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Jesting Pilate"
},
{
"data": [
99,
108,
189,
191,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "La Fin Du Monde"
},
{
"data": [
47,
49,
79,
103,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Let Us Now Praise Famous Men"
},
{
"data": [
59,
37,
111,
110,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Lilies of the Field"
},
{
"data": [
45,
43,
102,
87,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Little Hands Clapping"
},
{
"data": [
53,
53,
104,
114,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Look Homeward Angel"
},
{
"data": [
68,
48,
76,
74,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Look to Windward"
},
{
"data": [
93,
108,
209,
197,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Maharaj"
},
{
"data": [
56,
62,
107,
93,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Many Waters"
},
{
"data": [
110,
108,
215,
198,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Maudite"
},
{
"data": [
52,
51,
101,
91,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Moab Is My Washpot"
},
{
"data": [
56,
56,
101,
100,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Mother Night"
},
{
"data": [
32,
38,
95,
94,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Mr Standfast"
},
{
"data": [
41,
58,
91,
98,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Nectar in a Sieve"
},
{
"data": [
50,
40,
108,
91,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Nine Coaches Waiting"
},
{
"data": [
49,
45,
102,
100,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "No Country for Old Men"
},
{
"data": [
42,
47,
101,
100,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "No Highway"
},
{
"data": [
59,
45,
86,
105,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "No Longer at Ease"
},
{
"data": [
64,
43,
93,
92,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Noli Me Tangere"
},
{
"data": [
53,
55,
104,
98,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Now Sleeps the Crimson Petal"
},
{
"data": [
102,
109,
191,
174,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Nugget Nectar"
},
{
"data": [
35,
43,
92,
94,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Number the Stars"
},
{
"data": [
51,
56,
108,
100,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "O Jerusalem!"
},
{
"data": [
45,
43,
99,
92,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "O Pioneers!"
},
{
"data": [
84,
119,
204,
223,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Oak Aged Yeti Imperial Stout"
},
{
"data": [
107,
111,
188,
209,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Oaked Arrogant Bastard Ale"
},
{
"data": [
38,
57,
84,
91,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Of Human Bondage"
},
{
"data": [
39,
41,
109,
103,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Of Mice and Men"
},
{
"data": [
46,
55,
89,
102,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Oh! To be in England"
},
{
"data": [
111,
84,
186,
224,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Old Rasputin Russian Imperial Stout"
},
{
"data": [
102,
105,
184,
197,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Orval Trappist Ale"
},
{
"data": [
50,
50,
100,
95,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Pale Kings and Princes"
},
{
"data": [
48,
39,
92,
110,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Paths of Glory"
},
{
"data": [
98,
96,
182,
240,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Pliny The Elder"
},
{
"data": [
47,
52,
87,
113,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Postern of Fate"
},
{
"data": [
43,
39,
97,
98,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Precious Bane"
},
{
"data": [
113,
84,
200,
201,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Péché Mortel"
},
{
"data": [
56,
55,
86,
104,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Quo Vadis"
},
{
"data": [
93,
91,
187,
192,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Racer 5 India Pale Ale Bear Republic Bre"
},
{
"data": [
86,
90,
179,
221,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Recalled to Life"
},
{
"data": [
50,
42,
112,
84,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Ring of Bright Water"
},
{
"data": [
43,
41,
93,
102,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Rosemary Sutcliff"
},
{
"data": [
93,
97,
206,
201,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Ruination IPA"
},
{
"data": [
100,
107,
180,
187,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Samuel Smith’s Imperial IPA"
},
{
"data": [
90,
100,
191,
214,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Samuel Smith’s Oatmeal Stout"
},
{
"data": [
118,
98,
207,
190,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Schneider Aventinus"
},
{
"data": [
98,
80,
207,
189,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Shakespeare Oatmeal"
},
{
"data": [
46,
37,
106,
97,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Shall not Perish"
},
{
"data": [
94,
99,
211,
218,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Sierra Nevada Bigfoot Barleywine Style Ale"
},
{
"data": [
99,
80,
211,
189,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Sierra Nevada Celebration Ale"
},
{
"data": [
44,
47,
103,
94,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Sleep the Brave"
},
{
"data": [
41,
55,
103,
87,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Some Buried Caesar"
},
{
"data": [
37,
44,
91,
88,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Specimen Days"
},
{
"data": [
77,
98,
190,
216,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "St. Bernardus Abt 12"
},
{
"data": [
114,
91,
212,
228,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Stone IPA"
},
{
"data": [
99,
98,
174,
193,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Stone Imperial Russian Stout"
},
{
"data": [
101,
100,
204,
203,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Storm King Stout"
},
{
"data": [
43,
34,
88,
104,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Stranger in a Strange Land"
},
{
"data": [
106,
100,
212,
183,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Sublimely Self-Righteous Ale"
},
{
"data": [
52,
44,
101,
83,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Such Such Were the Joys"
},
{
"data": [
48,
58,
109,
122,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Surprised by Joy"
},
{
"data": [
56,
38,
88,
105,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Taming a Sea Horse"
},
{
"data": [
83,
117,
226,
203,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Ten FIDY"
},
{
"data": [
55,
46,
106,
104,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Tender Is the Night"
},
{
"data": [
51,
41,
94,
100,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Terrible Swift Sword"
},
{
"data": [
63,
42,
103,
86,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "That Good Night"
},
{
"data": [
49,
46,
84,
100,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "That Hideous Strength"
},
{
"data": [
50,
48,
105,
108,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "The Cricket on the Hearth"
},
{
"data": [
43,
54,
98,
109,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "The Curious Incident of the Dog in the Night-Time"
},
{
"data": [
48,
37,
107,
96,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "The Daffodil Sky"
},
{
"data": [
53,
45,
94,
107,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "The Doors of Perception"
},
{
"data": [
52,
48,
91,
106,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "The Far-Distant Oxus"
},
{
"data": [
61,
44,
122,
90,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "The Glory and the Dream"
},
{
"data": [
40,
40,
91,
123,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "The Golden Apples of the Sun"
},
{
"data": [
45,
41,
94,
88,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "The Golden Bowl"
},
{
"data": [
50,
52,
109,
100,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "The Grapes of Wrath"
},
{
"data": [
47,
52,
100,
103,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "The Green Bay Tree"
},
{
"data": [
38,
40,
109,
88,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "The Heart Is Deceitful Above All Things"
},
{
"data": [
39,
42,
91,
88,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "The Heart Is a Lonely Hunter"
},
{
"data": [
53,
51,
89,
101,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "The House of Mirth"
},
{
"data": [
47,
50,
101,
87,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "The Last Enemy"
},
{
"data": [
45,
47,
98,
79,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "The Last Temptation"
},
{
"data": [
50,
55,
115,
109,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "The Lathe of Heaven"
},
{
"data": [
53,
49,
96,
104,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "The Line of Beauty"
},
{
"data": [
63,
56,
86,
89,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "The Little Foxes"
},
{
"data": [
55,
57,
87,
98,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "The Man Within"
},
{
"data": [
52,
41,
103,
101,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "The Mermaids Singing"
},
{
"data": [
57,
53,
100,
82,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "The Millstone"
},
{
"data": [
48,
47,
109,
107,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "The Mirror Crack'd from Side to Side"
},
{
"data": [
52,
49,
100,
78,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "The Monkey's Raincoat"
},
{
"data": [
50,
42,
87,
105,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "The Moon by Night"
},
{
"data": [
37,
46,
110,
94,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "The Moving Finger"
},
{
"data": [
62,
53,
94,
118,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "The Moving Toyshop"
},
{
"data": [
48,
45,
101,
79,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "The Needle's Eye"
},
{
"data": [
54,
51,
93,
77,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "The Other Side of Silence"
},
{
"data": [
52,
42,
104,
97,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "The Painted Veil"
},
{
"data": [
54,
40,
104,
89,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "The Parliament of Man"
},
{
"data": [
43,
47,
92,
105,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "The Proper Study"
},
{
"data": [
46,
45,
103,
95,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "The Road Less Traveled"
},
{
"data": [
46,
50,
100,
97,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "The Skull Beneath the Skin"
},
{
"data": [
49,
57,
116,
102,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "The Soldier's Art"
},
{
"data": [
48,
40,
82,
113,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "The Stars' Tennis Balls"
},
{
"data": [
56,
47,
89,
91,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "The Sun Also Rises"
},
{
"data": [
54,
43,
79,
96,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "The Torment of Others"
},
{
"data": [
55,
44,
100,
97,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "The Violent Bear It Away"
},
{
"data": [
48,
35,
75,
103,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "The Waste Land"
},
{
"data": [
37,
59,
108,
88,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "The Way Through the Woods"
},
{
"data": [
46,
43,
100,
95,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "The Way of All Flesh"
},
{
"data": [
47,
47,
99,
105,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "The Wealth of Nations"
},
{
"data": [
39,
48,
77,
93,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "The Widening Gyre"
},
{
"data": [
41,
47,
105,
106,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "The Wind's Twelve Quarters"
},
{
"data": [
49,
46,
95,
99,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "The Wings of the Dove"
},
{
"data": [
66,
44,
86,
109,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "The Wives of Bath"
},
{
"data": [
51,
44,
83,
92,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "The World the Flesh and the Devil"
},
{
"data": [
52,
54,
87,
85,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "The Yellow Meads of Asphodel"
},
{
"data": [
36,
57,
94,
85,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Things Fall Apart"
},
{
"data": [
53,
48,
102,
107,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "This Lime Tree Bower"
},
{
"data": [
61,
50,
97,
113,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "This Side of Paradise"
},
{
"data": [
44,
42,
94,
97,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Those Barren Leaves Thrones Dominations"
},
{
"data": [
58,
46,
108,
86,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Tiger! Tiger!"
},
{
"data": [
46,
43,
85,
97,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Time To Murder And Create"
},
{
"data": [
56,
72,
103,
88,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Time of our Darkness"
},
{
"data": [
47,
63,
94,
96,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Tirra Lirra by the River"
},
{
"data": [
38,
55,
99,
93,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "To Sail Beyond the Sunset"
},
{
"data": [
63,
51,
91,
98,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "To Say Nothing of the Dog"
},
{
"data": [
48,
51,
107,
92,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "To Your Scattered Bodies Go"
},
{
"data": [
43,
60,
113,
106,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "To a God Unknown"
},
{
"data": [
120,
85,
208,
205,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Trappistes Rochefort 10"
},
{
"data": [
82,
91,
217,
210,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Trappistes Rochefort 8"
},
{
"data": [
98,
92,
203,
190,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Trois Pistoles"
},
{
"data": [
107,
106,
189,
215,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Two Hearted Ale"
},
{
"data": [
48,
45,
100,
99,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Unweaving the Rainbow"
},
{
"data": [
49,
49,
109,
94,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Vanity Fair"
},
{
"data": [
47,
48,
104,
92,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Vile Bodies"
},
{
"data": [
42,
49,
81,
84,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Waiting for the Barbarians"
},
{
"data": [
112,
96,
223,
212,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Weihenstephaner Hefeweissbier"
},
{
"data": [
91,
110,
203,
215,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Westmalle Trappist Tripel"
},
{
"data": [
63,
52,
100,
105,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "What's Become of Waring"
},
{
"data": [
44,
46,
88,
90,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "When the Green Woods Laugh"
},
{
"data": [
42,
60,
85,
87,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Where Angels Fear to Tread"
},
{
"data": [
53,
42,
93,
87,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Wildfire at Midnight"
},
{
"data": [
98,
87,
194,
184,
0
],
"type": "bar",
"cursor": "default",
"z": 2,
"name": "Yeti Imperial Stout"
},
{
"data": [
{
"name": "EMS",
"value": 1
}
],
"label": {
"show": true,
"position": "insideBottom",
"formatter": "{b}",
"textStyle": {
"color": "rgba(0,0,0,0.55)"
},
"height": 24,
"verticalAlign": "middle",
"lineHeight": 24,
"distance": -12
},
"labelLayout": {
"hideOverlap": true
},
"itemStyle": {
"color": "#ffffff"
},
"type": "bar",
"barGap": 0,
"z": 0,
"showBackground": true,
"backgroundStyle": {
"shadowColor": "#00000010",
"shadowBlur": 0,
"color": "#ffffff",
"shadowOffsetY": 24
},
"tooltip": {
"show": false
},
"xAxisIndex": 1,
"yAxisIndex": 1,
"barWidth": "60%",
"barMaxWidth": "100%",
"barMinWidth": 0,
"silent": true
},
{
"data": [
{
"name": "SF",
"value": 1
}
],
"label": {
"show": true,
"position": "insideBottom",
"formatter": "{b}",
"textStyle": {
"color": "rgba(0,0,0,0.55)"
},
"height": 24,
"verticalAlign": "middle",
"lineHeight": 24,
"distance": -12
},
"labelLayout": {
"hideOverlap": true
},
"itemStyle": {
"shadowColor": "#cccccc",
"shadowOffsetX": -1,
"shadowBlur": 0,
"color": "#ffffff"
},
"type": "bar",
"barGap": 0,
"z": 0,
"showBackground": true,
"backgroundStyle": {
"shadowColor": "#00000010",
"shadowBlur": 0,
"color": "#ffffff",
"shadowOffsetY": 24
},
"tooltip": {
"show": false
},
"xAxisIndex": 1,
"yAxisIndex": 1,
"barWidth": "40%",
"barMaxWidth": "100%",
"barMinWidth": 0,
"silent": true
}
],
"barMaxWidth": "68%",
"barMinWidth": 1,
"barGap": "10%"
}
