Tomcat生命周期

父子容器

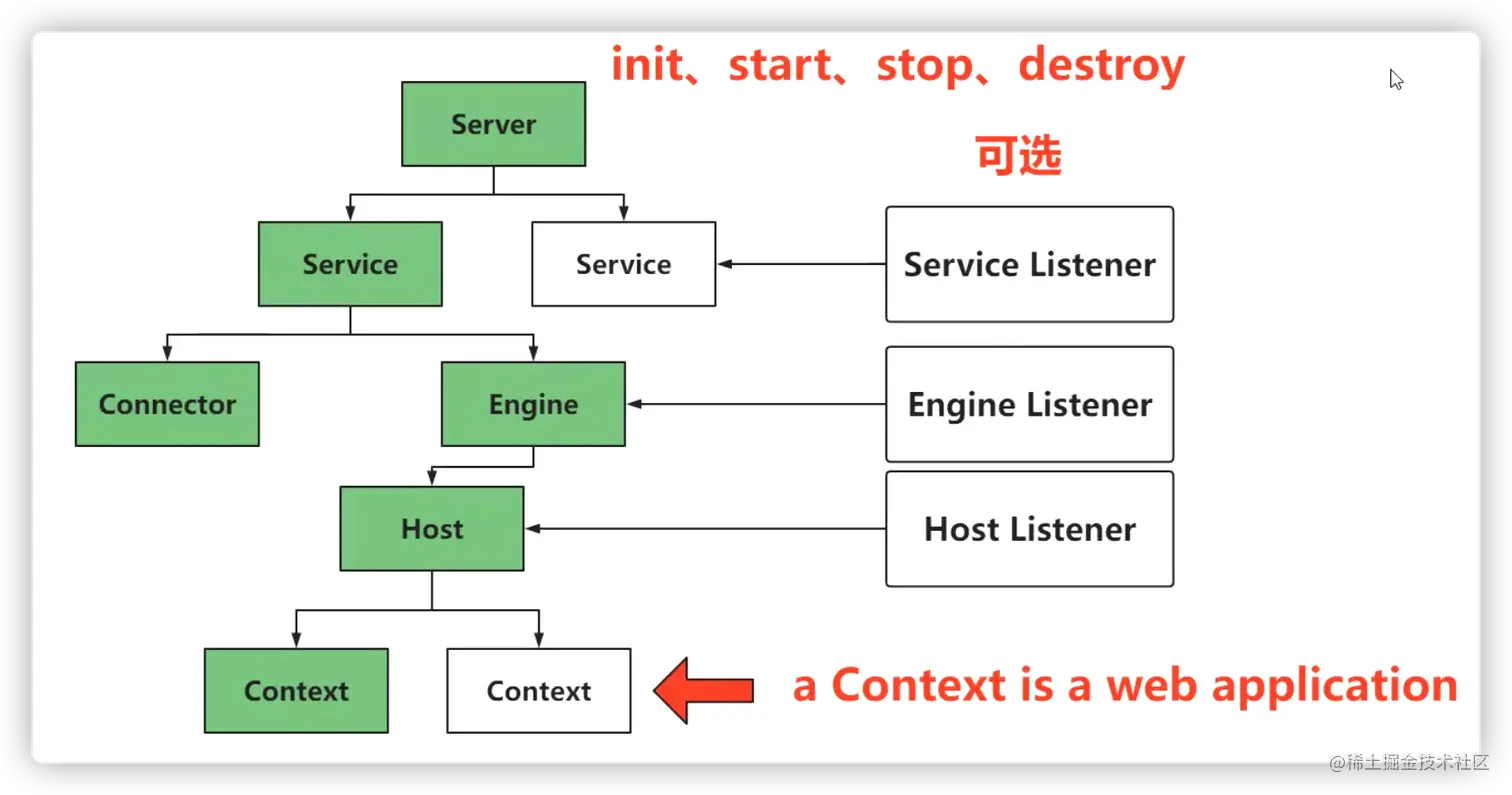

先上一个图，在Tomcat中有父子容器的概念，父容器负责子容器的生命周期。

生命周期接口

Lifecycle

Lifecycle接口定义了Tomcat中所有组件的生命周期函数，定义该接口，主要是为了统一管理组件的生命周期。
在Lifecycle类中，注释了生命周期的转换过程，如下所示：

          start()
 -----------------------------
 |                           |
 | init()                    |
NEW -»-- INITIALIZING        |
| |           |              |     ------------------«-----------------------
| |           |auto          |     |                                        |
| |          \|/    start() \|/   \|/     auto          auto         stop() |
| |      INITIALIZED --»-- STARTING_PREP --»- STARTING --»- STARTED --»---  |
| |         |                                                            |  |
| |destroy()|                                                            |  |
| --»-----«--    ------------------------«--------------------------------  ^
|     |          |                                                          |
|     |         \|/          auto                 auto              start() |
|     |     STOPPING_PREP ----»---- STOPPING ------»----- STOPPED -----»-----
|    \|/                               ^                     |  ^
|     |               stop()           |                     |  |
|     |       --------------------------                     |  |
|     |       |                                              |  |
|     |       |    destroy()                       destroy() |  |
|     |    FAILED ----»------ DESTROYING ---«-----------------  |
|     |                        ^     |                          |
|     |     destroy()          |     |auto                      |
|     --------»-----------------    \|/                         |
|                                 DESTROYED                     |
|                                                               |
|                            stop()                             |
----»-----------------------------»------------------------------

public interface Lifecycle {
    //生命周期字符串
    public static final String BEFORE_INIT_EVENT = "before_init";
    public static final String AFTER_INIT_EVENT = "after_init";
    public static final String START_EVENT = "start";
    public static final String BEFORE_START_EVENT = "before_start";
    public static final String AFTER_START_EVENT = "after_start";
    public static final String STOP_EVENT = "stop";
    public static final String BEFORE_STOP_EVENT = "before_stop";
    public static final String AFTER_STOP_EVENT = "after_stop";
    public static final String AFTER_DESTROY_EVENT = "after_destroy";
    public static final String BEFORE_DESTROY_EVENT = "before_destroy";
    public static final String PERIODIC_EVENT = "periodic";
    public static final String CONFIGURE_START_EVENT = "configure_start";

    //监听器支持方法
    public void addLifecycleListener(LifecycleListener listener);
    public LifecycleListener[] findLifecycleListeners();
    public void removeLifecycleListener(LifecycleListener listener);
    //生命周期支持方法
    public void init() throws LifecycleException;
    public void start() throws LifecycleException;
    public void stop() throws LifecycleException;
    public void destroy() throws LifecycleException;

    public LifecycleState getState();
    public String getStateName();


    public interface SingleUse {
    }
}


public interface LifecycleListener {
    public void lifecycleEvent(LifecycleEvent event);
}

public final class LifecycleEvent extends EventObject {

    public LifecycleEvent(Lifecycle lifecycle, String type, Object data) {
        super(lifecycle);//向上转型，可接收一切实现了生命周期的组件
        this.type = type;
        this.data = data;
    }

    private final Object data;//携带的额外的传递给监听器的数据

    private final String type;//事件类型

    public Object getData() {
        return data;
    }

    public Lifecycle getLifecycle() {
        return (Lifecycle) getSource();
    }

    public String getType() {
        return this.type;
    }
}

public enum LifecycleState {//生命周期状态
    NEW(false, null),
    INITIALIZING(false, Lifecycle.BEFORE_INIT_EVENT),
    INITIALIZED(false, Lifecycle.AFTER_INIT_EVENT),
    STARTING_PREP(false, Lifecycle.BEFORE_START_EVENT),
    STARTING(true, Lifecycle.START_EVENT),
    STARTED(true, Lifecycle.AFTER_START_EVENT),
    STOPPING_PREP(true, Lifecycle.BEFORE_STOP_EVENT),
    STOPPING(false, Lifecycle.STOP_EVENT),
    STOPPED(false, Lifecycle.AFTER_STOP_EVENT),
    DESTROYING(false, Lifecycle.BEFORE_DESTROY_EVENT),
    DESTROYED(false, Lifecycle.AFTER_DESTROY_EVENT),
    FAILED(false, null);

    private final boolean available;//组件是否可用
    private final String lifecycleEvent;

    private LifecycleState(boolean available, String lifecycleEvent) {
        this.available = available;
        this.lifecycleEvent = lifecycleEvent;
    }

    public boolean isAvailable() {
        return available;
    }

    public String getLifecycleEvent() {
        return lifecycleEvent;
    }
}

容器生命周期管理

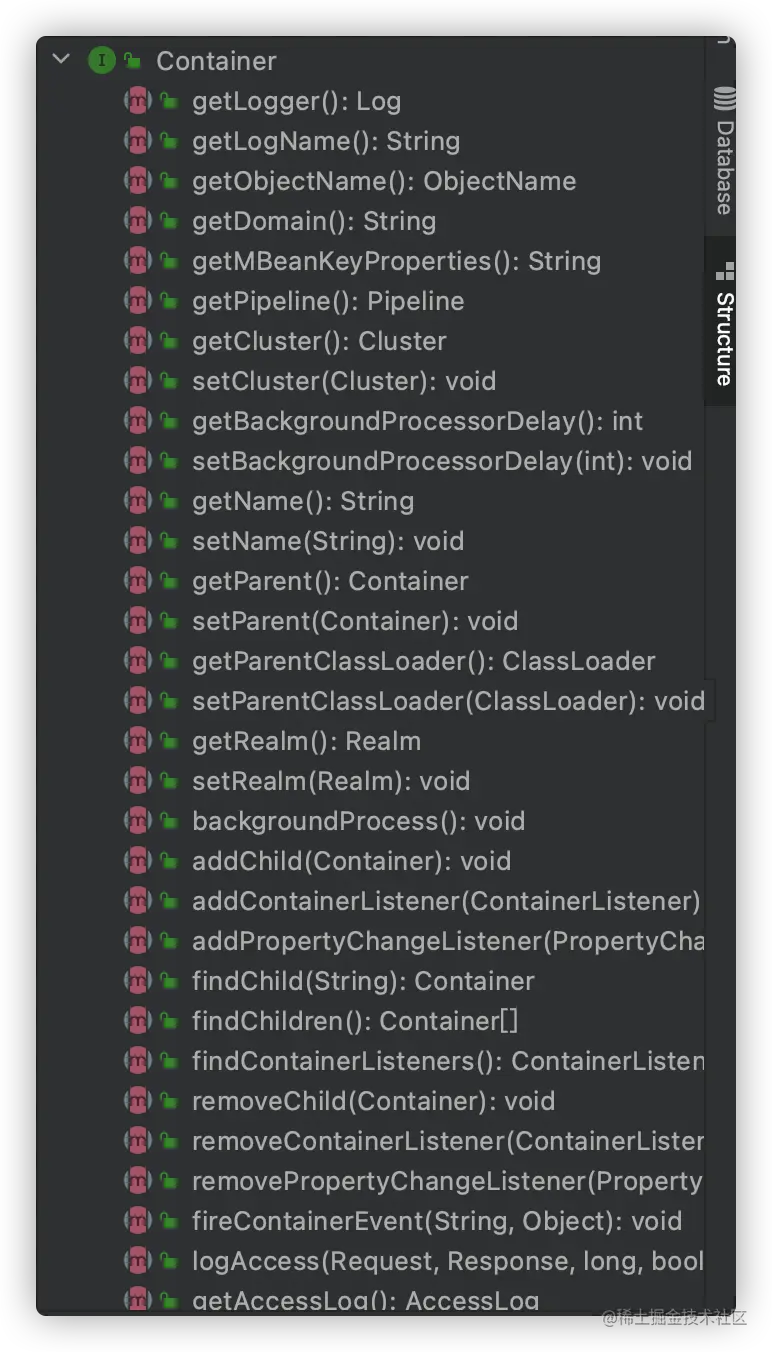

容器是一个组件，它继承自Lifecycle接口。组件不一定是容器，但容器一定是组件。容器可以拥有自己 的生命周期事件、监听器，容器之间可以有父子关系，容器执行后台周期性的方法，也定义了周期执行的时间。

Lifecycle实现

LifecycleBase实现了Lifecycle，完成生命周期的转换流转。

public abstract class LifecycleBase implements Lifecycle {

    //实现了监听器，包括监听器的增删改查及监听器的触发
    private final List<LifecycleListener> lifecycleListeners = new CopyOnWriteArrayList<>();

    private volatile LifecycleState state = LifecycleState.NEW;

    private boolean throwOnFailure = true;

    //添加监听器
    @Override
    public void addLifecycleListener(LifecycleListener listener) {
        lifecycleListeners.add(listener);
    }

    @Override
    public LifecycleListener[] findLifecycleListeners() {
        return lifecycleListeners.toArray(new LifecycleListener[0]);
    }

    @Override
    public void removeLifecycleListener(LifecycleListener listener) {
        lifecycleListeners.remove(listener);
    }

    protected void fireLifecycleEvent(String type, Object data) {
        LifecycleEvent event = new LifecycleEvent(this, type, data);
        for (LifecycleListener listener : lifecycleListeners) {
            listener.lifecycleEvent(event);
        }
    }


    @Override
    public final synchronized void init() throws LifecycleException {
        if (!state.equals(LifecycleState.NEW)) {
            invalidTransition(Lifecycle.BEFORE_INIT_EVENT);
        }

        try {
            setStateInternal(LifecycleState.INITIALIZING, null, false);
            initInternal();
            setStateInternal(LifecycleState.INITIALIZED, null, false);
        } catch (Throwable t) {
            handleSubClassException(t, "lifecycleBase.initFail", toString());
        }
    }
    //模板方法，子类去实现
    protected abstract void initInternal() throws LifecycleException;

    @Override
    public final synchronized void start() throws LifecycleException {

        if (LifecycleState.STARTING_PREP.equals(state) || LifecycleState.STARTING.equals(state) ||
                LifecycleState.STARTED.equals(state)) {

            if (log.isDebugEnabled()) {
                Exception e = new LifecycleException();
                log.debug(sm.getString("lifecycleBase.alreadyStarted", toString()), e);
            } else if (log.isInfoEnabled()) {
                log.info(sm.getString("lifecycleBase.alreadyStarted", toString()));
            }

            return;
        }

        if (state.equals(LifecycleState.NEW)) {
            init();
        } else if (state.equals(LifecycleState.FAILED)) {
            stop();
        } else if (!state.equals(LifecycleState.INITIALIZED) &&
                !state.equals(LifecycleState.STOPPED)) {
            invalidTransition(Lifecycle.BEFORE_START_EVENT);
        }

        try {
            setStateInternal(LifecycleState.STARTING_PREP, null, false);
            startInternal();
            if (state.equals(LifecycleState.FAILED)) {
                // This is a 'controlled' failure. The component put itself into the
                // FAILED state so call stop() to complete the clean-up.
                stop();
            } else if (!state.equals(LifecycleState.STARTING)) {
                // Shouldn't be necessary but acts as a check that sub-classes are
                // doing what they are supposed to.
                invalidTransition(Lifecycle.AFTER_START_EVENT);
            } else {
                setStateInternal(LifecycleState.STARTED, null, false);
            }
        } catch (Throwable t) {
            // This is an 'uncontrolled' failure so put the component into the
            // FAILED state and throw an exception.
            handleSubClassException(t, "lifecycleBase.startFail", toString());
        }
    }

    protected abstract void startInternal() throws LifecycleException;

    @Override
    public final synchronized void stop() throws LifecycleException {

        if (LifecycleState.STOPPING_PREP.equals(state) || LifecycleState.STOPPING.equals(state) ||
                LifecycleState.STOPPED.equals(state)) {

            if (log.isDebugEnabled()) {
                Exception e = new LifecycleException();
                log.debug(sm.getString("lifecycleBase.alreadyStopped", toString()), e);
            } else if (log.isInfoEnabled()) {
                log.info(sm.getString("lifecycleBase.alreadyStopped", toString()));
            }

            return;
        }

        if (state.equals(LifecycleState.NEW)) {
            state = LifecycleState.STOPPED;
            return;
        }

        if (!state.equals(LifecycleState.STARTED) && !state.equals(LifecycleState.FAILED)) {
            invalidTransition(Lifecycle.BEFORE_STOP_EVENT);
        }

        try {
            if (state.equals(LifecycleState.FAILED)) {
                // Don't transition to STOPPING_PREP as that would briefly mark the
                // component as available but do ensure the BEFORE_STOP_EVENT is
                // fired
                fireLifecycleEvent(BEFORE_STOP_EVENT, null);
            } else {
                setStateInternal(LifecycleState.STOPPING_PREP, null, false);
            }

            stopInternal();

            // Shouldn't be necessary but acts as a check that sub-classes are
            // doing what they are supposed to.
            if (!state.equals(LifecycleState.STOPPING) && !state.equals(LifecycleState.FAILED)) {
                invalidTransition(Lifecycle.AFTER_STOP_EVENT);
            }

            setStateInternal(LifecycleState.STOPPED, null, false);
        } catch (Throwable t) {
            handleSubClassException(t, "lifecycleBase.stopFail", toString());
        } finally {
            if (this instanceof Lifecycle.SingleUse) {
                // Complete stop process first
                setStateInternal(LifecycleState.STOPPED, null, false);
                destroy();
            }
        }
    }


    protected abstract void stopInternal() throws LifecycleException;


    @Override
    public final synchronized void destroy() throws LifecycleException {
        if (LifecycleState.FAILED.equals(state)) {
            try {
                // Triggers clean-up
                stop();
            } catch (LifecycleException e) {
                // Just log. Still want to destroy.
                log.error(sm.getString("lifecycleBase.destroyStopFail", toString()), e);
            }
        }

        if (LifecycleState.DESTROYING.equals(state) || LifecycleState.DESTROYED.equals(state)) {
            if (log.isDebugEnabled()) {
                Exception e = new LifecycleException();
                log.debug(sm.getString("lifecycleBase.alreadyDestroyed", toString()), e);
            } else if (log.isInfoEnabled() && !(this instanceof Lifecycle.SingleUse)) {
                // Rather than have every component that might need to call
                // destroy() check for SingleUse, don't log an info message if
                // multiple calls are made to destroy()
                log.info(sm.getString("lifecycleBase.alreadyDestroyed", toString()));
            }

            return;
        }

        if (!state.equals(LifecycleState.STOPPED) && !state.equals(LifecycleState.FAILED) &&
                !state.equals(LifecycleState.NEW) && !state.equals(LifecycleState.INITIALIZED)) {
            invalidTransition(Lifecycle.BEFORE_DESTROY_EVENT);
        }

        try {
            setStateInternal(LifecycleState.DESTROYING, null, false);
            destroyInternal();
            setStateInternal(LifecycleState.DESTROYED, null, false);
        } catch (Throwable t) {
            handleSubClassException(t, "lifecycleBase.destroyFail", toString());
        }
    }

    protected abstract void destroyInternal() throws LifecycleException;

    @Override
    public LifecycleState getState() {
        return state;
    }

    @Override
    public String getStateName() {
        return getState().toString();
    }

    protected synchronized void setState(LifecycleState state) throws LifecycleException {
        setStateInternal(state, null, true);
    }

    protected synchronized void setState(LifecycleState state, Object data)
            throws LifecycleException {
        setStateInternal(state, data, true);
    }


    private synchronized void setStateInternal(LifecycleState state, Object data, boolean check)
            throws LifecycleException {

        if (log.isDebugEnabled()) {
            log.debug(sm.getString("lifecycleBase.setState", this, state));
        }

        if (check) {
            // Must have been triggered by one of the abstract methods (assume
            // code in this class is correct)
            // null is never a valid state
            if (state == null) {
                invalidTransition("null");
                // Unreachable code - here to stop eclipse complaining about
                // a possible NPE further down the method
                return;
            }

            // Any method can transition to failed
            // startInternal() permits STARTING_PREP to STARTING
            // stopInternal() permits STOPPING_PREP to STOPPING and FAILED to
            // STOPPING
            if (!(state == LifecycleState.FAILED ||
                    (this.state == LifecycleState.STARTING_PREP &&
                            state == LifecycleState.STARTING) ||
                    (this.state == LifecycleState.STOPPING_PREP &&
                            state == LifecycleState.STOPPING) ||
                    (this.state == LifecycleState.FAILED &&
                            state == LifecycleState.STOPPING))) {
                // No other transition permitted
                invalidTransition(state.name());
            }
        }

        this.state = state;
        String lifecycleEvent = state.getLifecycleEvent();
        if (lifecycleEvent != null) {
            fireLifecycleEvent(lifecycleEvent, data);
        }
    }


    private void invalidTransition(String type) throws LifecycleException {
        String msg = sm.getString("lifecycleBase.invalidTransition", type, toString(), state);
        throw new LifecycleException(msg);
    }


    private void handleSubClassException(Throwable t, String key, Object... args) throws LifecycleException {
        setStateInternal(LifecycleState.FAILED, null, false);
        ExceptionUtils.handleThrowable(t);
        String msg = sm.getString(key, args);
        if (getThrowOnFailure()) {
            if (!(t instanceof LifecycleException)) {
                t = new LifecycleException(msg, t);
            }
            throw (LifecycleException) t;
        } else {
            log.error(msg, t);
        }
    }
}
