LabVIEW编程LabVIEW开发IEEE754转换例程与相关资料 此 VI将单个精度数字转换为二进制 IEEE 754 表示，反之亦然。 LabVIEW 在四舍五入浮点编号时使用IEEE 754标准。IEEE-754 号码的值计算为：符号 * 2指数* 曼蒂萨 该标志存储在位 32 中。指数可以通过减去 127 来从位 24-31 进行计算。曼蒂萨（也称为分数）存储在位 1-23。 此 VI 提供了有关 IEEE 754 二进制值计算方式的见解。。 Convert Between IEEE 754 (Floating Point) and Binary Information - NI Community Overview This VI allows you to convert a single precision number to binary IEEE 754 representation and vice versa.
Description LabVIEW uses the IEEE 754 standard when rounding a floating point number. The value of a IEEE-754 number is computed as: sign * 2exponent * mantissa The sign is stored in bit 32. The exponent can be computed from bits 24-31 by subtracting 127. The mantissa (also known as fraction) is stored in bits 1-23. This VI provides insight on how the IEEE 754 binary value is calculated. Requirements LabVIEW 2012 (or compatible) Steps to Implement or Execute Code
- Download and open the VI "IEEE 754 Boolean_to_SGL_LV2012_NIVerified"
- Choose a tab to convert from binary to SGL or vice versa
- Set your numberor the binary value

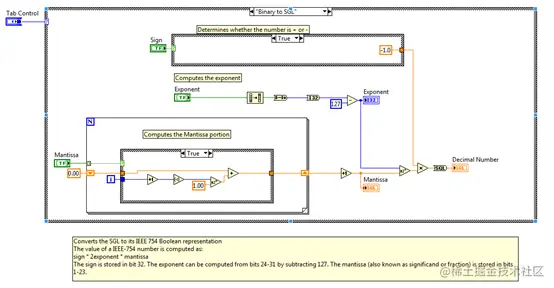

- Run the VI Additional Notes or References Block Diagram

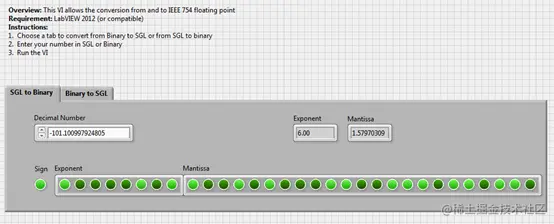

Front Panel
This document has been updated to meet the current required format for the NI Code Exchange*
厂家有提供LabVIEW的例子，根据通讯协议的相关的说明，编写了适合项目的程序。 转换VI如下所示。 LabVIEW、LabVIEW开发、LabVIEW编程、LabVIEW程序 文字内容均在附件Word中，同时上文中提到的例子和资料，均在word中的附件里，可点击下载。登录www.bjcyck.com可以查看更多详细信息。这里只是简略的介绍，有任何关于LabVIEW、LabVIEW开发、LabVIEW编程、LabVIEW程序相关问题，请与我们联系。 链接地址为：www.bjcyck.com/nd.jsp?id=2…
