spring springmvc mybatis maven整合一

ctosb
274 阅读1分钟

原文日期：2016-02-04

1.概述

maven项目目录如下

src/main/java：主要java文件路径

src/main/resources：主要资源文件路径

src/test/java：java测试文件目录

src/test/resources：java测试资源文件目录

com.cygoat.controller：存放spring mvc controller.java文件

com.cygoat.dao：存放mybaitis Mapper.java文件

com.cygoat.mapper：存放mybaitis Mapper.xml文件

com.cygoat.model：存放Model.java文件

com.cygoat.service：存放业务层接口类Manager.java文件

com.cygoat.service.impl：存放业务层实现类ManagerImpl.java文件

2.maven web项目创建

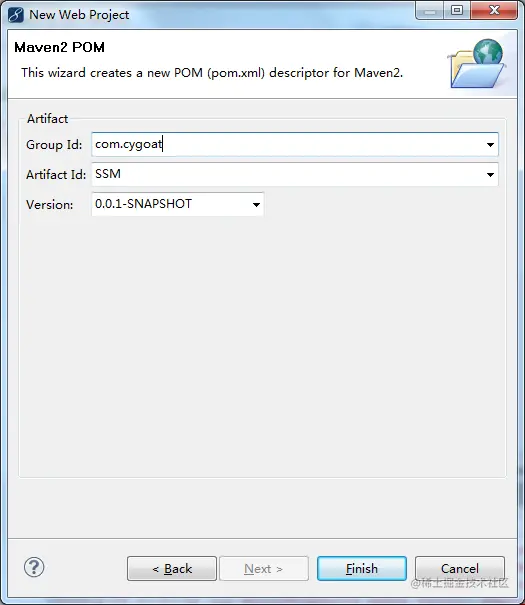

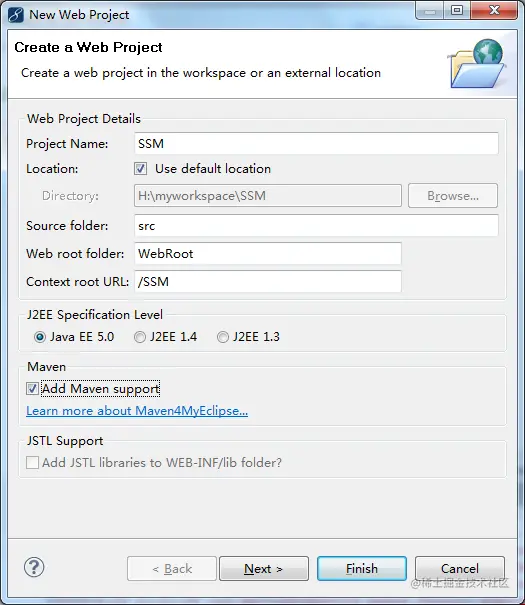

1.新建项目SSM

2.点击下一步

3.点击完成，创建项目成功。

3.spring和mybatis整合

1.pom.xml增加依赖jar包

<properties>
	<spring.version>3.2.13.RELEASE</spring.version>
	<mybatis.version>3.2.8</mybatis.version>
	<mybatis-spring.version>1.2.2</mybatis-spring.version>
	<druid.version>0.2.9</druid.version>
	<mysql.version>5.1.27</mysql.version>
</properties>
<dependencies>
	<!-- spring context -->
	<dependency>
		<groupId>org.springframework</groupId>
		<artifactId>spring-context</artifactId>
		<version>${spring.version}</version>
	</dependency>
	<!-- spring jdbc -->
	<dependency>
		<groupId>org.springframework</groupId>
		<artifactId>spring-jdbc</artifactId>
		<version>${spring.version}</version>
	</dependency>
	<!-- spring transaction -->
	<dependency>
		<groupId>org.springframework</groupId>
		<artifactId>spring-tx</artifactId>
		<version>${spring.version}</version>
	</dependency>
	<!-- aspectj -->
	<dependency>
		<groupId>org.aspectj</groupId>
		<artifactId>aspectjweaver</artifactId>
		<version>1.6.11</version>
	</dependency>
	<!-- mybatis 包 -->
	<dependency>
		<groupId>org.mybatis</groupId>
		<artifactId>mybatis</artifactId>
		<version>${mybatis.version}</version>
	</dependency>
	<!-- mybatis spring 整合包 -->
	<dependency>
		<groupId>org.mybatis</groupId>
		<artifactId>mybatis-spring</artifactId>
		<version>${mybatis-spring.version}</version>
	</dependency>
	<!-- mysql 驱动包 -->
	<dependency>
		<groupId>mysql</groupId>
		<artifactId>mysql-connector-java</artifactId>
		<version>${mysql.version}</version>
		<scope>runtime</scope>
	</dependency>
	<!-- 阿里巴巴数据库连接池 -->
	<dependency>
		<groupId>com.alibaba</groupId>
		<artifactId>druid</artifactId>
		<version>${druid.version}</version>
		<scope>runtime</scope>
	</dependency>

	<dependency>
		<groupId>junit</groupId>
		<artifactId>junit</artifactId>
		<version>4.8.2</version>
		<scope>test</scope>
	</dependency>

</dependencies>

2.配置文件内容如下

在src/main/resources创建spring.xml文件，内容如下

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns:tx="http://www.springframework.org/schema/tx"
	xmlns:aop="http://www.springframework.org/schema/aop"
	xsi:schemaLocation="
	http://www.springframework.org/schema/beans
	http://www.springframework.org/schema/beans/spring-beans-3.0.xsd
	http://www.springframework.org/schema/tx
	http://www.springframework.org/schema/tx/spring-tx-3.0.xsd
	http://www.springframework.org/schema/aop
	http://www.springframework.org/schema/aop/spring-aop-3.0.xsd
	">

	<!-- 配置数据源 -->
	<bean id="dataSource" class="com.alibaba.druid.pool.DruidDataSource"
		init-method="init" destroy-method="close">
		<!-- 基本属性 url、user、password -->
		<property name="url" value="${url}" />
		<property name="username" value="${username}" />
		<property name="password" value="${password}" />

		<!-- 配置初始化大小、最小、最大 -->
		<property name="initialSize" value="1" />
		<property name="minIdle" value="1" />
		<property name="maxActive" value="20" />

		<!-- 配置获取连接等待超时的时间 -->
		<property name="maxWait" value="60000" />

		<!-- 配置间隔多久才进行一次检测，检测需要关闭的空闲连接，单位是毫秒 -->
		<property name="timeBetweenEvictionRunsMillis" value="60000" />

		<!-- 配置一个连接在池中最小生存的时间，单位是毫秒 -->
		<property name="minEvictableIdleTimeMillis" value="300000" />

		<property name="validationQuery" value="SELECT 'x'" />
		<property name="testWhileIdle" value="true" />
		<property name="testOnBorrow" value="false" />
		<property name="testOnReturn" value="false" />

		<!-- 打开PSCache，并且指定每个连接上PSCache的大小 -->
		<property name="poolPreparedStatements" value="true" />
		<property name="maxPoolPreparedStatementPerConnectionSize"
			value="20" />

		<!-- 配置监控统计拦截的filters，去掉后监控界面sql无法统计 -->
		<property name="filters" value="stat" />
	</bean>

	<!-- spring和MyBatis完美整合，不需要mybatis的配置映射文件 -->
    <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
        <property name="dataSource" ref="dataSource" />
        <!-- 自动扫描mapping.xml文件 -->
        <property name="mapperLocations" value="classpath:com/cygoat/mapper/*.xml"></property>
    </bean>

    <!-- DAO接口所在包名，Spring会自动查找其下的类 -->
    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
        <property name="basePackage" value="com.cygoat.dao" />
        <property name="sqlSessionFactoryBeanName" value="sqlSessionFactory"></property>
    </bean>

    <!-- (事务管理)transaction manager, use JtaTransactionManager for global tx -->
    <bean id="transactionManager"
        class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <property name="dataSource" ref="dataSource" />
    </bean>
</beans>

jdbc连接

hibernate.dialect=org.hibernate.dialect.MySQLDialect
driverClassName=com.mysql.jdbc.Driver
validationQuery=SELECT 1
url=jdbc:mysql://localhost:3306/test?useUnicode=true&characterEncoding=UTF-8
username=root
password=lxy123

hibernate.hbm2ddl.auto=update
hibernate.show_sql=true
hibernate.format_sql=true

4.maven集成mybatis代码生成器

1.在pom中增加mybatis插件

<plugin>
	<groupId>org.mybatis.generator</groupId>
	<artifactId>mybatis-generator-maven-plugin</artifactId>
	<version>1.3.2</version>
	<executions>
		<execution>
			<id>Generate MyBatis Artifacts</id>
			<goals>
				<goal>generate</goal>
			</goals>
		</execution>
	</executions>
	<configuration>
		<verbose>true</verbose>
		<overwrite>true</overwrite>
		<!-- <jdbcDriver>com.mysql.jdbc.Driver</jdbcDriver> -->
		<!-- <jdbcURL>jdbc:mysql://127.0.0.1:3306/test</jdbcURL> -->
		<!-- <jdbcUserId>test</jdbcUserId> -->
		<!-- <jdbcPassword>test</jdbcPassword> -->
	</configuration>
	<dependencies>
		<dependency>
			<groupId>mysql</groupId>
			<artifactId>mysql-connector-java</artifactId>
			<version>5.1.6</version>
		</dependency>
		<dependency>
			<groupId>org.mybatis.generator</groupId>
			<artifactId>mybatis-generator-core</artifactId>
			<version>1.3.2</version>
		</dependency>
		<dependency>
			<groupId>org.mybatis</groupId>
			<artifactId>mybatis</artifactId>
			<version>3.2.8</version>
		</dependency>
	</dependencies>
</plugin>

2.在src/main/resources下创建generatorConfig.xml，文件内容如下

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE generatorConfiguration
  PUBLIC "-//mybatis.org//DTD MyBatis Generator Configuration 1.0//EN"
  "http://mybatis.org/dtd/mybatis-generator-config_1_0.dtd">
<generatorConfiguration>
    <!-- 数据库驱动-->
    <context id="DB2Tables"  targetRuntime="MyBatis3">
        <commentGenerator>
            <property name="suppressDate" value="true"/>
            <!-- 是否去除自动生成的注释 true：是 ： false:否 -->
            <property name="suppressAllComments" value="true"/>
        </commentGenerator>
        <!--数据库链接URL，用户名、密码 -->
        <jdbcConnection driverClass="com.mysql.jdbc.Driver" connectionURL="jdbc:mysql://localhost:3306/test" userId="root" password="lxy123">
        </jdbcConnection>
        <javaTypeResolver>
            <property name="forceBigDecimals" value="false"/>
        </javaTypeResolver>
        <!-- 生成模型的包名和位置-->
        <javaModelGenerator targetPackage="com.cygoat.model" targetProject="src/main/java">
            <property name="enableSubPackages" value="true"/>
            <property name="trimStrings" value="true"/>
        </javaModelGenerator>
        <!-- 生成映射文件的包名和位置-->
        <sqlMapGenerator targetPackage="com.cygoat.mapper" targetProject="src/main/java">
            <property name="enableSubPackages" value="true"/>
        </sqlMapGenerator>
        <!-- 生成DAO的包名和位置-->
        <javaClientGenerator type="XMLMAPPER" targetPackage="com.cygoat.dao" targetProject="src/main/java">
            <property name="enableSubPackages" value="true"/>
        </javaClientGenerator>

        <!-- 要生成的表 tableName是数据库中的表名或视图名 domainObjectName是实体类名-->
        <table tableName="sys_user" domainObjectName="SysUser" enableCountByExample="false" enableUpdateByExample="false" enableDeleteByExample="false" enableSelectByExample="false" selectByExampleQueryId="false"></table>
    </context>
</generatorConfiguration>

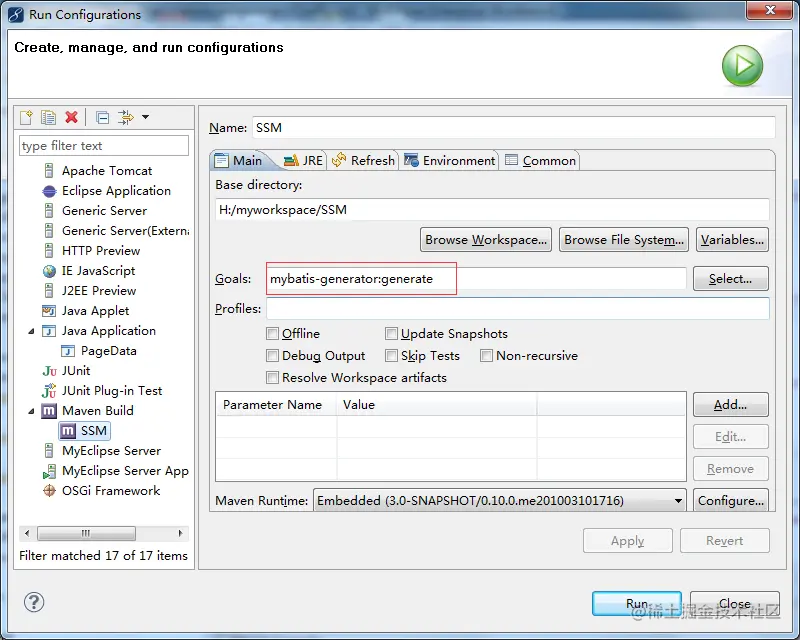

3.执行命令生成代码mybatis-generator:generate

此时已将spring，mybatis和mybatis插件整合起来，接下来将要整个spring和springmvc。待续中。。。spring springmvc mybatis maven整合二
