Elasticsearch 是位于 Elastic Stack 核心的分布式搜索和分析引擎。Logstash 和 Beats 有助于收集、聚合和丰富您的数据并将其存储在 Elasticsearch 中。Kibana 使您能够以交互方式探索、可视化和共享对数据的洞察，并管理和监控堆栈。Elasticsearch 是索引、搜索和分析魔法发生的地方。

ElaticSearch 的组成：

一、配置ES

通过Docker compose配置 elaticsearch的集群，相关的elaticsearch-docker 镜像。

version: "3.9"

services:
    es01:
        image: docker.elastic.co/elasticsearch/elasticsearch:7.15.2
        container_name: es01
        environment:
            - node.name=es01
            - cluster.name=es-docker-cluster
            - discovery.seed_hosts=es02
            - cluster.initial_master_nodes=es01,es02
            - bootstrap.memory_lock=true
            - "ES_JAVA_OPTS=-Xms512m -Xmx512m"
        ulimits:
            memlock:
                soft: -1
                hard: -1
        volumes:
            - ./es/data01:/usr/share/elasticsearch/data
            - ./es/elasticsearch.yml:/usr/share/elasticsearch/config/elasticsearch.yml:rw
        ports:
        - 9200:9200
        networks:
        - elastic
    es02:
        image: docker.elastic.co/elasticsearch/elasticsearch:7.15.2
        container_name: es02
        environment:
            - node.name=es02
            - cluster.name=es-docker-cluster
            - discovery.seed_hosts=es01
            - cluster.initial_master_nodes=es01,es02
            - bootstrap.memory_lock=true
            - "ES_JAVA_OPTS=-Xms512m -Xmx512m"
        ulimits:
            memlock:
                soft: -1
                hard: -1
        volumes:
            - ./es/data02:/usr/share/elasticsearch/data:rw
            - ./es/elasticsearch.yml:/usr/share/elasticsearch/config/elasticsearch.yml:rw
        networks:
            - elastic
networks:
    elastic:
        driver: bridge
volumes:
  db-data:

elasticsearch.yml文件相关的内容如下：

cluster.name: "docker-cluster"
network.host: 0.0.0.0
http.cors.enabled: true
http.cors.allow-origin: "*"

二、配置 elasticsearch head

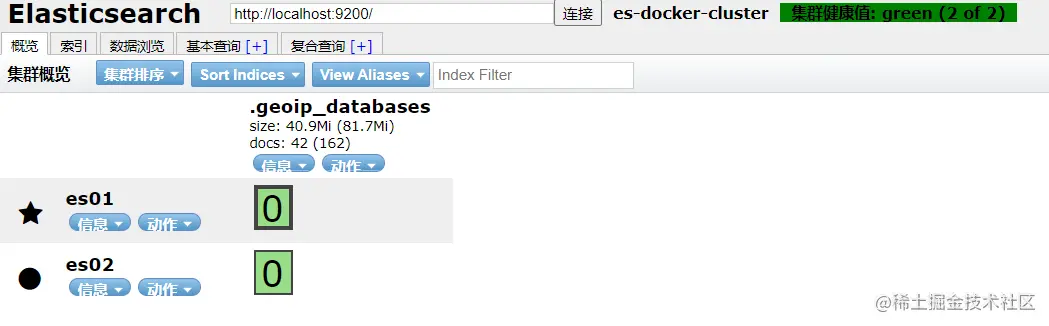

elasticsearch-head 是用于监控 Elasticsearch 状态的客户端插件，包括数据可视化、执行增删改查操作等；它可以监控集群的状态，对集群中的节点进行关停操作，但是无法从该页面重新启动节点。通过http://localhost:9100/可以访问elasticsearch-head。

docker相关配置：

    es-head:
        image: tobias74/elasticsearch-head:6
        container_name: es-head
        ports:
            - "9100:9100"
        networks:
          - elastic

三、配置中文分词器

IK Analyzer是一个开源的，基于java开发的轻量级的中文分词工具包。从2006年12月推出1.0版开始，IKAnalyzer已经推出了4个大版本。最初，它是开源项目Luence为应用主体的，结合词典分词和文法分析算法的中文词组件。从3.0版本开始，IK发展为一个浅Java的公用分词组件，独立于Lucene项目，同时提供了对Lucene的默认优化实现。在2012版本中， IK实现了简单的分词歧义循环，演讲IK词器从容易的词典分词向模拟分词词衍生化。

分词器IK的版本需要和ES的版本匹配，适合的版本比较如下：

IK version	ES version
master	7.x -> master
6.x	6.x
5.x	5.x
1.10.6	2.4.6
1.9.5	2.3.5
1.8.1	2.2.1
1.7.0	2.1.1
1.5.0	2.0.0
1.2.6	1.0.0
1.2.5	0.90.x
1.1.3	0.20.x
1.0.0	0.16.2 -> 0.19.0

下载IK 7.15.2，然后进行配置
解压到ik文件夹，通过docker映射目录。在docker-compose.yml中配置

    es01:
        volumes:
            - ./es/ik:/usr/share/elasticsearch/plugins/ik/

查询是否配置成功

sh-4.4# ./elasticsearch-plugin list
    ik

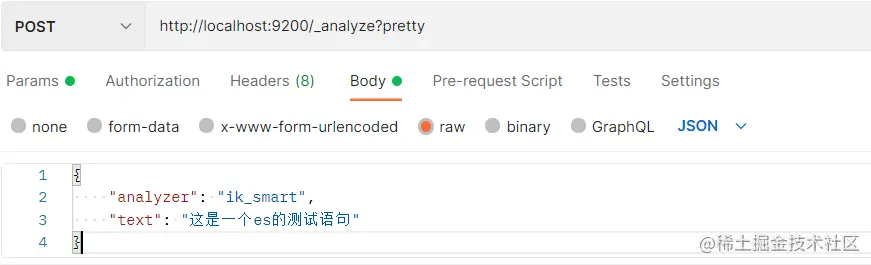

使用postman测试分词

分词结果如下：

{
    "tokens": [
        {
            "token": "这是",
            "start_offset": 0,
            "end_offset": 2,
            "type": "CN_WORD",
            "position": 0
        },
        {
            "token": "一个",
            "start_offset": 2,
            "end_offset": 4,
            "type": "CN_WORD",
            "position": 1
        },
        {
            "token": "es",
            "start_offset": 4,
            "end_offset": 6,
            "type": "ENGLISH",
            "position": 2
        },
        {
            "token": "的",
            "start_offset": 6,
            "end_offset": 7,
            "type": "CN_CHAR",
            "position": 3
        },
        {
            "token": "测试",
            "start_offset": 7,
            "end_offset": 9,
            "type": "CN_WORD",
            "position": 4
        },
        {
            "token": "语句",
            "start_offset": 9,
            "end_offset": 11,
            "type": "CN_WORD",
            "position": 5
        }
    ]
}

综上，IK分词器配置成功。

四、配置kibana

Kibana 是一个免费且开放的用户界面，能够让您对 Elasticsearch 数据进行可视化，并让您在 Elastic Stack 中进行导航。您可以进行各种操作，从跟踪查询负载，到理解请求如何流经您的整个应用，都能轻松完成。

为doker-compose文件添加以下配置：

    es-kibana:
        image: docker.elastic.co/kibana/kibana:7.15.2
        container_name: es-kibana
        environment:
            - "ELASTICSEARCH_HOSTS=http://es01:9200"
        ports:
            - "5601:5601"
        networks:
            - elastic

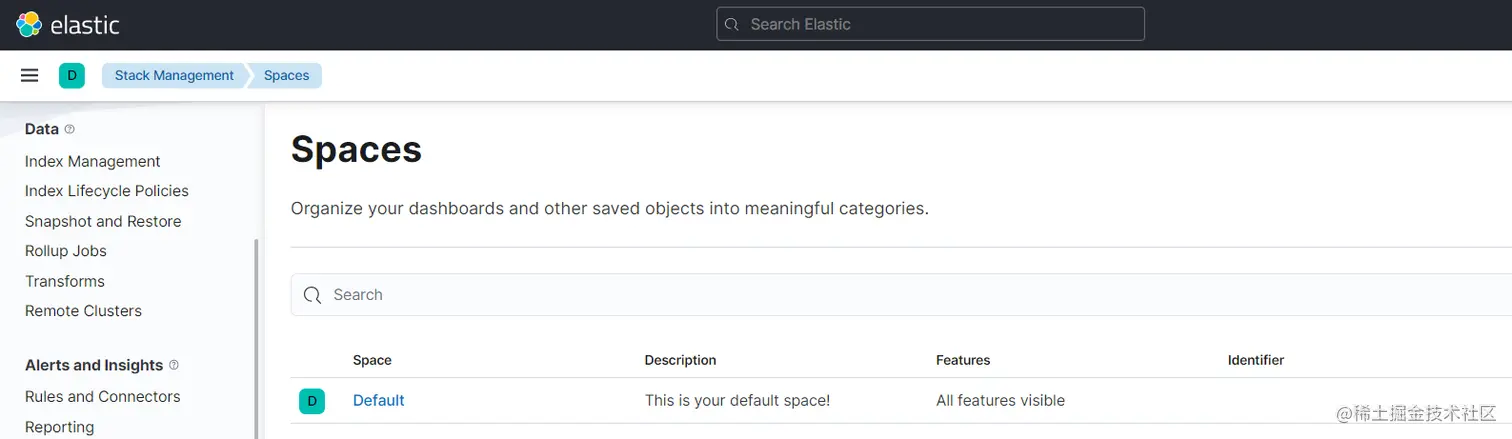

访问http://localhost:5601/：

五、入门示例

添加单个文档

curl  -H "Accept: application/json" -H "Content-type: application/json" -X POST  -d '{"name":"es","version":"7.5"}' 'http://localhost:9200/user-222/_doc?pretty'

响应如下：

{
  "_index" : "user-222",
  "_type" : "_doc",
  "_id" : "5EYtMn0B3xA6QmlDD5FA",
  "_version" : 1,
  "result" : "created",
  "_shards" : {
    "total" : 2,
    "successful" : 1,
    "failed" : 0
  },
  "_seq_no" : 0,
  "_primary_term" : 1
}

返回的是文档的元数据，其中

_index：表示索引名
_type：表示数据类型
result：表示请求结果
_shards：表示分片

添加多个文档

curl -XPOST localhost:9200/index_name/type_name/_bulk -H "Content-Type: application/x-ndjson" --data-binary @bulk.json

curl -XPOST localhost:9200/user/_bulk?pretty -H "Content-Type: application/x-ndjson" --data-binary @bulk.json

bulk.json的数据集：

{ "index" : { "_index" : "user", "_id" : "1" } }
{ "name" : "es1" }
{ "index" : { "_index" : "user", "_id" : "2" } }
{ "name" : "es2", "age": 2 }
{ "index" : { "_index" : "user", "_id" : "3" } }
{ "name" : "es3", "age": 3 }

搜索数据

curl -XGET localhost:9200/user/_search?pretty -H "Content-Type: application/x-ndjson" --data-binary @search.json

`search.json`文件
{
    "query": {
      "match_all": { }
    },
    "sort": [
      {
        "age": "desc"
      }
    ]
  }

查询结果如下：

{
  "took" : 1,
  "timed_out" : false,
  "_shards" : {
    "total" : 1,
    "successful" : 1,
    "skipped" : 0,
    "failed" : 0
  },
  "hits" : {
    "total" : {
      "value" : 3,
      "relation" : "eq"
    },
    "max_score" : null,
    "hits" : [
      {
        "_index" : "user",
        "_type" : "_doc",
        "_id" : "3",
        "_score" : null,
        "_source" : {
          "name" : "es3",
          "age" : 3
        },
        "sort" : [
          3
        ]
      },
      {
        "_index" : "user",
        "_type" : "_doc",
        "_id" : "2",
        "_score" : null,
        "_source" : {
          "name" : "es2",
          "age" : 2
        },
        "sort" : [
          2
        ]
      },
      {
        "_index" : "user",
        "_type" : "_doc",
        "_id" : "1",
        "_score" : null,
        "_source" : {
          "name" : "es1"
        },
        "sort" : [
          -9223372036854775808
        ]
      }
    ]
  }
}

查询时设置"_source": false,查询时只会输出相关字段

修改search.json文件：

{
    "query": {
      "match_all": { }
    },
    "_source": false,
    "sort": [
      {
        "age": "desc"
      }
    ]
  }

查询结果如下，可以看到查询数据的字段没有被查出来，在一些查询中可以加快查询速度

{
  "took" : 0,
  "timed_out" : false,
  "_shards" : {
    "total" : 1,
    "successful" : 1,
    "skipped" : 0,
    "failed" : 0
  },
  "hits" : {
    "total" : {
      "value" : 3,
      "relation" : "eq"
    },
    "max_score" : null,
    "hits" : [
      {
        "_index" : "user",
        "_type" : "_doc",
        "_id" : "3",
        "_score" : null,
        "sort" : [
          3
        ]
      },
      {
        "_index" : "user",
        "_type" : "_doc",
        "_id" : "2",
        "_score" : null,
        "sort" : [
          2
        ]
      },
      {
        "_index" : "user",
        "_type" : "_doc",
        "_id" : "1",
        "_score" : null,
        "sort" : [
          -9223372036854775808
        ]
      }
    ]
  }
}

范围查询：

GET logs-my_app-default/_search
{
  "query": {
    "range": {
      "@timestamp": {
        "gte": "2099-05-05",
        "lt": "2099-05-08"
      }
    }
  },
  "fields": [
    "@timestamp"
  ],
  "_source": false,
  "sort": [
    {
      "@timestamp": "desc"
    }
  ]
}

查询结果
{
  "took" : 0,
  "timed_out" : false,
  "_shards" : {
    "total" : 1,
    "successful" : 1,
    "skipped" : 0,
    "failed" : 0
  },
  "hits" : {
    "total" : {
      "value" : 1,
      "relation" : "eq"
    },
    "max_score" : null,
    "hits" : [
      {
        "_index" : ".ds-logs-my_app-default-2021.11.18-000001",
        "_type" : "_doc",
        "_id" : "5UZdMn0B3xA6QmlDOpF2",
        "_score" : null,
        "fields" : {
          "@timestamp" : [
            "2099-05-07T16:24:32.000Z"
          ]
        },
        "sort" : [
          4081854272000
        ]
      }
    ]
  }
}

删除

curl -X DELETE "localhost:9200/_data_stream/logs-my_app-default?pretty"

curl -X DELETE "localhost:9200/user?pretty"
