javassist监控API接口

384 阅读1分钟

1:创建个maven项目,pom.xml文件如下:

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>agent</artifactId>
        <groupId>org.example</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>boot_javasissts</artifactId>

    <properties>
        <!-- Build args -->
        <argline>-Xms512m -Xmx512m</argline>
        <skip_maven_deploy>false</skip_maven_deploy>
        <updateReleaseInfo>true</updateReleaseInfo>
        <project.build.sourceEncoding>utf-8</project.build.sourceEncoding>
        <maven.test.skip>true</maven.test.skip>
        <!-- 自定义MANIFEST.MF -->
        <maven.configuration.manifestFile>src/main/resources/META-INF/MANIFEST.MF</maven.configuration.manifestFile>
    </properties>

    <dependencies>
        <dependency>
            <groupId>javassist</groupId>
            <artifactId>javassist</artifactId>
            <version>3.12.1.GA</version>
            <type>jar</type>
        </dependency>
    </dependencies>

    <build>
        <sourceDirectory>src/main/java</sourceDirectory>
        <resources>
            <resource>
                <directory>src/main/resources</directory>
                <filtering>true</filtering>
                <includes>
                    <include>**/**</include>
                </includes>
            </resource>
        </resources>
        <testSourceDirectory>src/test/java</testSourceDirectory>
        <testResources>
            <testResource>
                <directory>src/test/resources</directory>
                <filtering>true</filtering>
                <includes>
                    <include>**/**</include>
                </includes>
            </testResource>
        </testResources>
        <plugins>
            <!-- 将javassist包打包到Agent中 -->
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-shade-plugin</artifactId>
                <executions>
                    <execution>
                        <phase>package</phase>
                        <goals>
                            <goal>shade</goal>
                        </goals>
                    </execution>
                </executions>
                <configuration>
                    <artifactSet>
                        <includes>
                            <include>javassist:javassist:jar:</include>
                        </includes>
                    </artifactSet>
                </configuration>
            </plugin>

            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-jar-plugin</artifactId>
                <version>2.4</version>
                <configuration>
                    <archive>
                        <manifestFile>${maven.configuration.manifestFile}</manifestFile>
                    </archive>
                </configuration>
            </plugin>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-resources-plugin</artifactId>
                <version>2.5</version>
                <configuration>
                    <encoding>${project.build.sourceEncoding}</encoding>
                </configuration>
            </plugin>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <version>2.3.2</version>
                <configuration>
                    <source>1.8</source>
                    <target>1.8</target>
                    <encoding>${project.build.sourceEncoding}</encoding>
                </configuration>
            </plugin>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-source-plugin</artifactId>
                <version>2.1.2</version>
                <executions>
                    <execution>
                        <id>attach-sources</id>
                        <goals>
                            <goal>jar</goal>
                        </goals>
                    </execution>
                </executions>
            </plugin>
        </plugins>
    </build>


</project>

2:新建类MyAgent.class和MyMonitorTransformer.class

package com.coco;

import java.lang.instrument.Instrumentation;

public class MyAgent {

    public static void premain(String agentArgs, Instrumentation instrumentation) {
        System.out.println("myagent = " + agentArgs);
        MyMonitorTransformer myMonitorTransformer = new MyMonitorTransformer();
        instrumentation.addTransformer(myMonitorTransformer);
    }
}
package com.coco;
import javassist.*;

import java.lang.instrument.ClassFileTransformer;
import java.lang.instrument.IllegalClassFormatException;
import java.security.ProtectionDomain;

public class MyMonitorTransformer implements ClassFileTransformer {

    @Override
    public byte[] transform(ClassLoader loader,
                            String className,
                            Class<?> classBeingRedefined,
                            ProtectionDomain protectionDomain,
                            byte[] classfileBuffer) throws IllegalClassFormatException {
        String currentClassName = className.replaceAll("/", ".");
        //如果类不是这个包下的就直接返回null
        if(!currentClassName.startsWith("com.coco.controller")) {
            return null;
        }
        System.out.println("classname = " + currentClassName);
        try{
            CtClass ctClass = ClassPool.getDefault().get(currentClassName);
            CtMethod[] declaredMethods = ctClass.getDeclaredMethods();
            for(CtMethod ctMethod : declaredMethods) {
                buildMethod(ctMethod,ctClass);
            }
            return ctClass.toBytecode();
        }catch (Exception e) {
            e.printStackTrace();
        }
        return new byte[0];
    }


    private void buildMethod(CtMethod ctMethod,CtClass ctClass)throws Exception {
        // 获取方法名称
        String name = ctMethod.getName();
        System.out.println("methodname = " + name);
        CtMethod newMethod = CtNewMethod.copy(ctMethod, ctMethod.getName() + "$agent", ctClass, null);
        ctClass.addMethod(newMethod);

        //这里是为了拼接打印的参数值,比如你有n个参数,那可以用 $1,$2,$3,....$n 来打印出来参数的值
        CtClass[] parameterTypes = ctMethod.getParameterTypes();
        StringBuilder paramsStr = new StringBuilder();
        for(int i = 1; i <= parameterTypes.length; i ++) {
            paramsStr.append("$"+i).append(",");
        }
        String paramsResult = "";
        if(parameterTypes.length > 0) {
            paramsResult = paramsStr.substring(0, paramsStr.length() - 1);
        }
        String src = "{"
                + "System.out.println("+paramsResult+");"   //打印方法参数的值
                + "long begin = System.nanoTime();"
                + "Object result = " + ctMethod.getName() + "$agent($$);"   //执行目标方法中的代码
                + "long end = System.nanoTime();"
                + "System.out.println(end - begin);"
                + "return ($r)result;"   //返回值,$(r)代表类型强转
                + "}";
        ctMethod.setBody(src);
    }
}

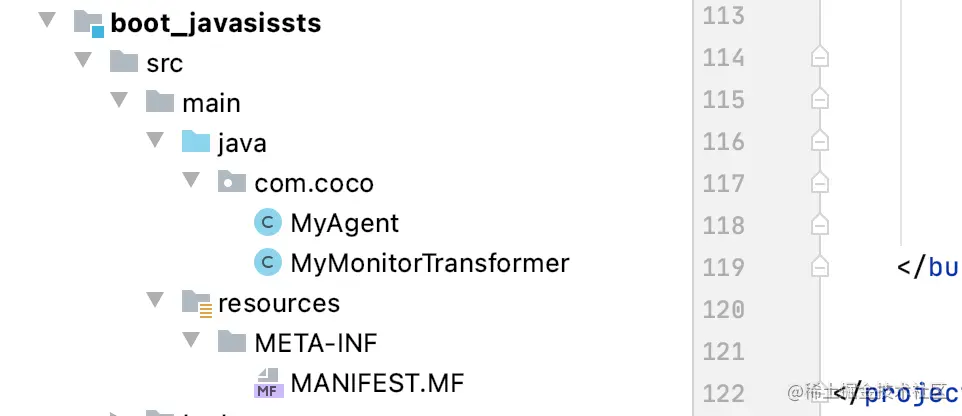

3:在resource目录下创建一个文件 META-INF/MANIFEST.MF


4:META-INF/MANIFEST.MF文件内容如下,注意,写完最后一行代码之后一定要敲回车,最后要有一行空的行保留在那

Manifest-Version: 1.0
Premain-Class: com.coco.MyAgent
Can-Redefine-Classes: true

4:idea右边,maven进行打包,拷贝该jar包的路径

5:创建一个SpringBoot项目


6:IndexController内容如下

package com.coco.controller;

import com.coco.service.IndexServiceImpl;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;

@RestController
public class IndexController {

    @Autowired
    private IndexServiceImpl indexServiceImpl;


    @GetMapping("/index")
    public String index(@RequestParam("name") String name) {
        String test = indexServiceImpl.test();
        return test;
    }
}

7:IndexServiceImpl内容如下

package com.coco.service;

import org.springframework.stereotype.Service;

@Service
public class IndexServiceImpl {

    public String test() {
        return "success";
    }
}

8:修改SpringBoot启动程序的参数,在 VM options添加参数,参数内容是:记住jar包位置替换成自己的

    -javaagent:/Users/baojiahao/Downloads/day1/ideaproject/agent/boot_javasissts/target/boot_javasissts-1.0-SNAPSHOT.jar=testargs


9:注意:在开始的maven项目中的MyMonitorTransformer.class 我们是做了配置的,所以你要么改下这里的包名,总之要扫描的类包名要与这里的一致

//如果类不是这个包下的就直接返回null
if(!currentClassName.startsWith("com.coco.controller")) {
    return null;
}

10:启动SpringBoot项目,访问 http://localhost:8080/index?name=baojh, 可以看到控制台已经打印出了,说明我们已经动态修改了接口方法
