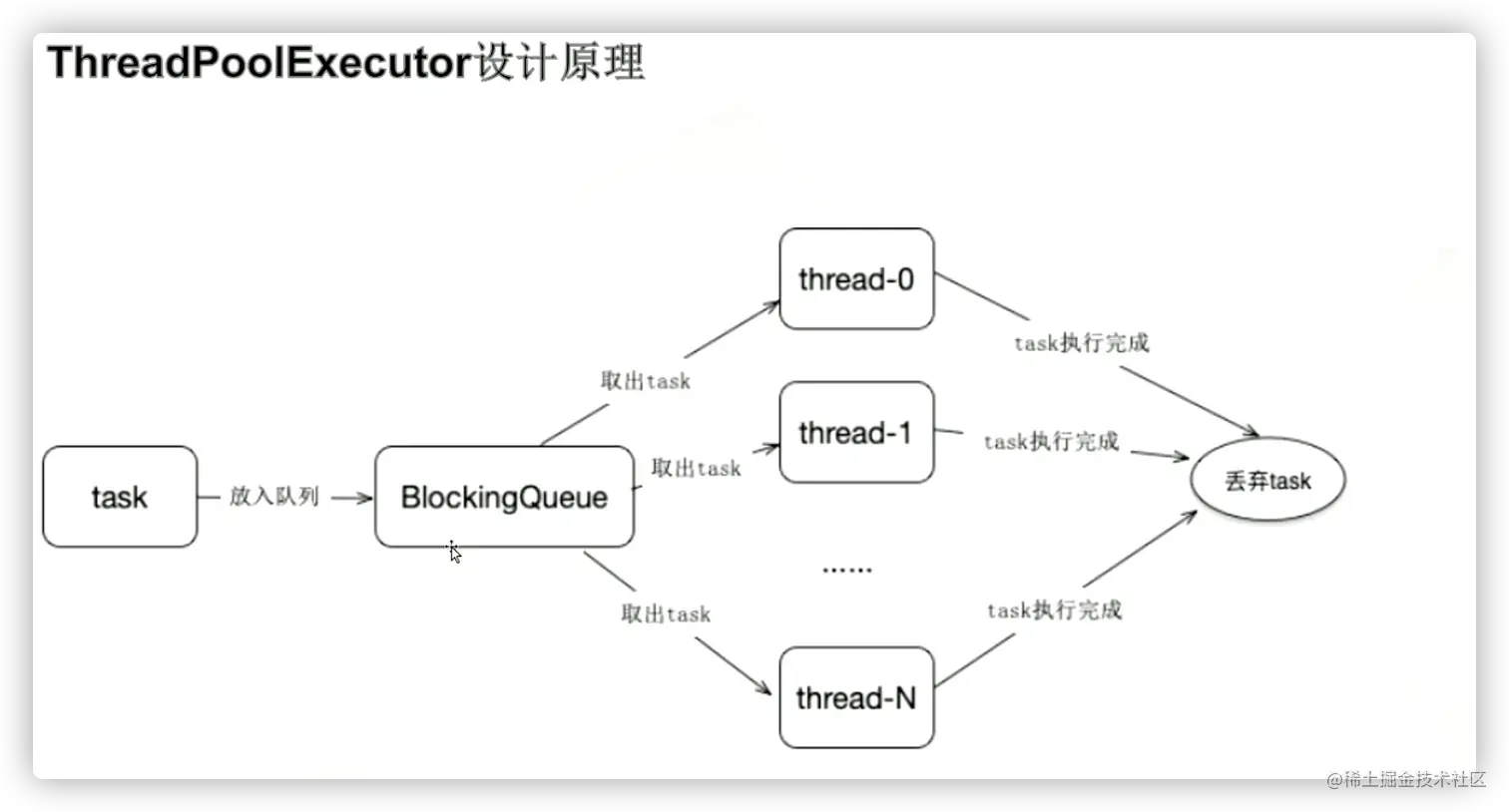

ThreadPoolExecutor设计原理
构造方法
最常被问到的Java线程池构造方法有几个参数，就行下面这7个
/**
* @param corePoolSize the number of threads to keep in the pool, even
* if they are idle, unless {@code allowCoreThreadTimeOut} is set
* @param maximumPoolSize the maximum number of threads to allow in the
* pool
* @param keepAliveTime when the number of threads is greater than
* the core, this is the maximum time that excess idle threads
* will wait for new tasks before terminating.
* @param unit the time unit for the {@code keepAliveTime} argument
* @param workQueue the queue to use for holding tasks before they are
* executed. This queue will hold only the {@code Runnable}
* tasks submitted by the {@code execute} method.
* @param threadFactory the factory to use when the executor
* creates a new thread
* @param handler the handler to use when execution is blocked
* because the thread bounds and queue capacities are reached
*/
public ThreadPoolExecutor(int corePoolSize, //核心线程数
int maximumPoolSize,//最大线程数
long keepAliveTime,// 大于corePoolSize的线程空闲存活时间
TimeUnit unit,//时间单位
BlockingQueue<Runnable> workQueue,//任务队列
ThreadFactory threadFactory,//线程工厂
RejectedExecutionHandler handler)//拒绝策略
线程工厂很简单，就一个接口
public interface ThreadFactory {
/**
* Constructs a new {@code Thread}. Implementations may also initialize
* priority, name, daemon status, {@code ThreadGroup}, etc.
*
* @param r a runnable to be executed by new thread instance
* @return constructed thread, or {@code null} if the request to
* create a thread is rejected
*/
Thread newThread(Runnable r);
}
拒绝策略
public interface RejectedExecutionHandler {
/**
* Method that may be invoked by a {@link ThreadPoolExecutor} when
* {@link ThreadPoolExecutor#execute execute} cannot accept a
* task. This may occur when no more threads or queue slots are
* available because their bounds would be exceeded, or upon
* shutdown of the Executor.
*
* <p>In the absence of other alternatives, the method may throw
* an unchecked {@link RejectedExecutionException}, which will be
* propagated to the caller of {@code execute}.
*
* @param r the runnable task requested to be executed
* @param executor the executor attempting to execute this task
* @throws RejectedExecutionException if there is no remedy
*/
void rejectedExecution(Runnable r, ThreadPoolExecutor executor);
}
线程池提供的拒绝策略有4个：
- CallerRunsPolicy 调用者执行
- AbortPolicy 拒绝执行，抛出RejectedExecutionException异常 线程池默认的拒绝策略
- DiscardPolicy 默默的丢弃
- DiscardOldestPolicy 丢弃最老的
/**
* The default rejected execution handler
*/
private static final RejectedExecutionHandler defaultHandler = new AbortPolicy();
线程池状态
private final AtomicInteger ctl = new AtomicInteger(ctlOf(RUNNING, 0));
private static final int COUNT_BITS = Integer.SIZE - 3;
private static final int CAPACITY = (1 << COUNT_BITS) - 1;
// runState is stored in the high-order bits
private static final int RUNNING = -1 << COUNT_BITS;
private static final int SHUTDOWN = 0 << COUNT_BITS;
private static final int STOP = 1 << COUNT_BITS;
private static final int TIDYING = 2 << COUNT_BITS;
private static final int TERMINATED = 3 << COUNT_BITS;
// Packing and unpacking ctl
private static int runStateOf(int c) { return c & ~CAPACITY; }
private static int workerCountOf(int c) { return c & CAPACITY; }
private static int ctlOf(int rs, int wc) { return rs | wc; }
工作线程数和线程池状态都记录在ctl中，通过runStateOf、workerCountOf、ctlOf三个方法可以获取。
- 状态说明
* RUNNING: Accept new tasks and process queued tasks 接受新任务，处理任务队列中的任务
* SHUTDOWN: Don't accept new tasks, but process queued tasks 不接受新任务，处理任务队列中的任务
* STOP: Don't accept new tasks, don't process queued tasks,
* and interrupt in-progress tasks 不接受新任务，不处理任务队列中的任务
* TIDYING: All tasks have terminated, workerCount is zero,
* the thread transitioning to state TIDYING
* will run the terminated() hook method 所有任务都停止，待处理任务为0，线程转换为TIDYING，将会执行terminated()钩子函数
* TERMINATED: terminated() has completed terminated()执行完成
- 状态之间的转换
* RUNNING -> SHUTDOWN
* On invocation of shutdown(), perhaps implicitly in finalize()
* (RUNNING or SHUTDOWN) -> STOP
* On invocation of shutdownNow()
* SHUTDOWN -> TIDYING
* When both queue and pool are empty
* STOP -> TIDYING
* When pool is empty
* TIDYING -> TERMINATED
* When the terminated() hook method has completed
execute方法
public void execute(Runnable command) {
if (command == null)
throw new NullPointerException();
int c = ctl.get();
if (workerCountOf(c) < corePoolSize) {//当前线程数小于核心线程数
if (addWorker(command, true))//直接添加核心线程，并把command放到线程池中执行
return;
c = ctl.get();
}
if (isRunning(c) && workQueue.offer(command)) {//达到核心线程数后，往任务队列放
int recheck = ctl.get();
if (! isRunning(recheck) && remove(command))//再次检查，如果线程池不是RUNNING状态，移除任务
reject(command);
else if (workerCountOf(recheck) == 0)
addWorker(null, false);
}
else if (!addWorker(command, false))//队列满了，添加非核心线程数
reject(command);
}
addWorker
private boolean addWorker(Runnable firstTask, boolean core) {
retry:
//cas给 workCount 加一
for (;;) {
int c = ctl.get();
//拿到线程池当前状态 runState
int rs = runStateOf(c);
// Check if queue empty only if necessary.
if (rs >= SHUTDOWN &&
//队列不为空才能补充线程
! (rs == SHUTDOWN && //不接受外部的任务，但会执行队列中的任务
firstTask == null && //是否是补充非核心线程
! workQueue.isEmpty()))//队列是否为空
return false;
for (;;) {
int wc = workerCountOf(c);
if (wc >= CAPACITY ||
wc >= (core ? corePoolSize : maximumPoolSize))
return false;
if (compareAndIncrementWorkerCount(c))//CAS的加一操作
break retry;
c = ctl.get(); // Re-read ctl 失败之后重试
if (runStateOf(c) != rs)
continue retry;
// else CAS failed due to workerCount change; retry inner loop
}
}
boolean workerStarted = false;
boolean workerAdded = false;
Worker w = null;
try {
//新增一个 Worker
w = new Worker(firstTask);
final Thread t = w.thread;
if (t != null) {
final ReentrantLock mainLock = this.mainLock;
mainLock.lock();//加锁，往workers里添加work, workers装着所有的Worker 类型是HashSet
try {
// Recheck while holding lock.
// Back out on ThreadFactory failure or if
// shut down before lock acquired.
int rs = runStateOf(ctl.get());
if (rs < SHUTDOWN ||
(rs == SHUTDOWN && firstTask == null)) {
if (t.isAlive()) // precheck that t is startable
throw new IllegalThreadStateException();
workers.add(w);
int s = workers.size();
if (s > largestPoolSize)
largestPoolSize = s;
workerAdded = true;
}
} finally {
mainLock.unlock();
}
if (workerAdded) {//添加成功，启动Worker中thread对应的run方法
t.start();
workerStarted = true;
}
}
} finally {
if (! workerStarted)//添加失败，移除Worker,线程数减一
addWorkerFailed(w);
}
return workerStarted;
}
- Worker
Worker(Runnable firstTask) {
setState(-1); // inhibit interrupts until runWorker
this.firstTask = firstTask;
this.thread = getThreadFactory().newThread(this);
}
