Retrofit 学习

这是我参与11月更文挑战的第14天，活动详情查看：2021最后一次更文挑战

OkHttp使用中的缺陷

• 用户网络请求的接口配置繁琐，尤其是需要配置复杂请求body，请求头，参数的时候
• 数据解析过程需要用户手动拿到response body进行解析，不能复用
• 无法适配自动进行线程的切换
• 万一我们存在嵌套网络请求会陷入回掉陷阱

Retrofit是什么

Retrofit是一个RESTful的HTTP网络请求框架的封装

原因

网络请求的工作本质是Okhttp完成，而Retrofit仅负责网络请求接口的封装

• App应用程序通过Retrofit请求网络，实际上是使用Retrofit接口层封装请求参数，Header，Url等信息，之后由Okhttp完成后续的请求操作。
• 在服务端返回数据后，Okhttp将原始的结果交给Retrofit，Retrofit根据用户的需求对结果进行解析。

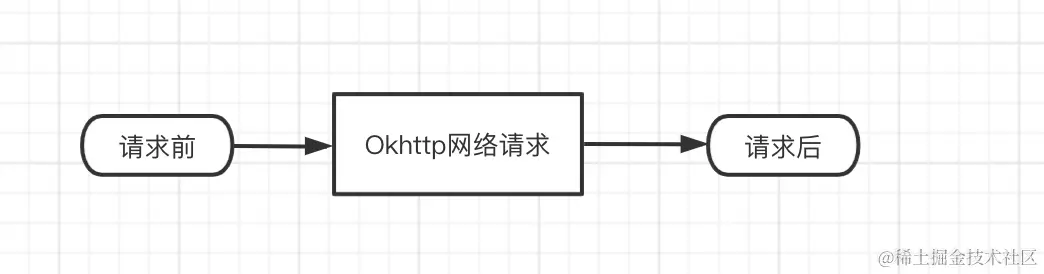

Retrofit设计的任务

请求前

• 统一配置网络请求头
• 一致适配请求request 结果返回
• 线程切换
• 数据适配

例子

Retrofit retrofit = new Retrofit.Builder()
        .baseUrl("xxxxxxxx")
        .addConverterFactory(GsonConverterFactory.create())
        .addCallAdapterFactory(RxJavaCallAdapterFactory.create())
        .build();
OrderApi api = retrofit.create(OrderApi.class);
api.getOrderDetailByNo("xxxx");

retrofit实例创建过程

public Retrofit build() {
  if (baseUrl == null) {
    throw new IllegalStateException("Base URL required.");
  }

  okhttp3.Call.Factory callFactory = this.callFactory;
  //默认只支持okhttp请求
  if (callFactory == null) {
    callFactory = new OkHttpClient();
  }
  //添加一个线程管理Executor，Okhttp切换线程需要手动操作，但是retrofit不需要
  //就是因为Executor的存在，其实他是handler
  Executor callbackExecutor = this.callbackExecutor;
  if (callbackExecutor == null) {
    callbackExecutor = platform.defaultCallbackExecutor();
  }

  // Make a defensive copy of the adapters and add the default Call adapter.
  List<CallAdapter.Factory> callAdapterFactories = new ArrayList<>(this.callAdapterFactories);
  callAdapterFactories.addAll(platform.defaultCallAdapterFactories(callbackExecutor));

  // Make a defensive copy of the converters.
  List<Converter.Factory> converterFactories =
      new ArrayList<>(
          1 + this.converterFactories.size() + platform.defaultConverterFactoriesSize());

  // Add the built-in converter factory first. This prevents overriding its behavior but also
  // ensures correct behavior when using converters that consume all types.
  converterFactories.add(new BuiltInConverters());
  converterFactories.addAll(this.converterFactories);
  converterFactories.addAll(platform.defaultConverterFactories());

  return new Retrofit(
      callFactory,
      baseUrl,
      unmodifiableList(converterFactories),
      unmodifiableList(callAdapterFactories),
      callbackExecutor,
      validateEagerly);
}

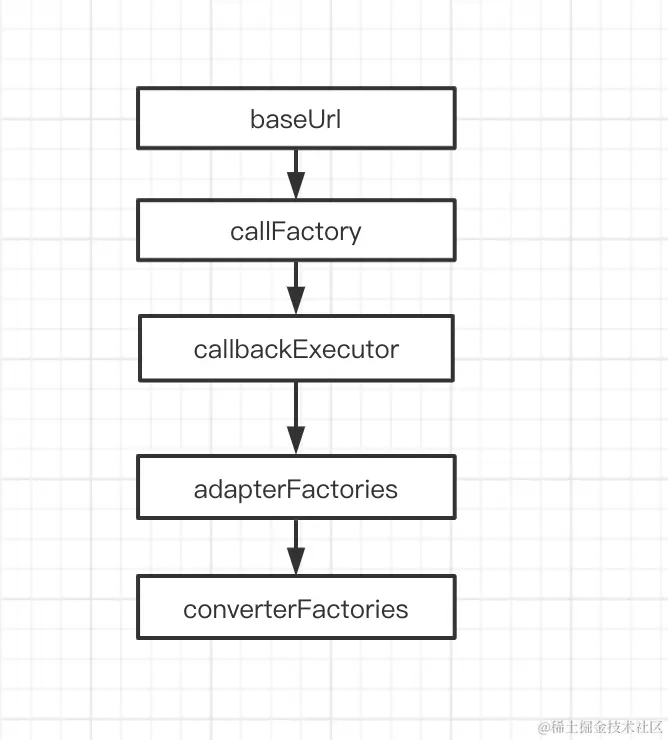

成功建立一个Retrofit对象的标准：配置好Retrofit类里的成员变量：

• baseUrl： 网络请求的url地址
• callFactory：网络请求工厂
• callbackExecutor：回掉方法执行器
• adapterFactories：网络请求适配器工厂的集合
• converterFactories：数据转换器工厂的集合

创建一个接口类的对象

OrderApi api = retrofit.create(OrderApi.class);

create函数内部使用动态代理来创建接口对象，这样的设计可以让所有的访问请求都被代理。

public <T> T create(final Class<T> service) {
  validateServiceInterface(service);
  return (T)
      Proxy.newProxyInstance(
          service.getClassLoader(),
          new Class<?>[] {service},
          new InvocationHandler() {
            private final Platform platform = Platform.get();
            private final Object[] emptyArgs = new Object[0];

            @Override
            public @Nullable Object invoke(Object proxy, Method method, @Nullable Object[] args)
                throws Throwable {
              if (method.getDeclaringClass() == Object.class) {
                return method.invoke(this, args);
              }
              args = args != null ? args : emptyArgs;
              return platform.isDefaultMethod(method)
                  ? platform.invokeDefaultMethod(method, service, proxy, args)
                  : loadServiceMethod(method).invoke(args);
            }
          });
}

任何类型的接口都要走invoke，所有就可以获取到所有的注解和参数值（拦截），最后解析参数拼装成Request

api.getOrderDetailByNo("xxxx");

调用getOrderDetailByNo的时候，在动态代理里面，会存在一个函数getOrderDetailByNo，这个函数里面会调用invoke，也就是retrofit里面的invoke函数。 所以动态代理可以代理所有的接口，让所有的接口都走invoke函数，这样就可以拦截调用函数的执行，从而将网络接口的参数配置归一化。

代理实例创建过程

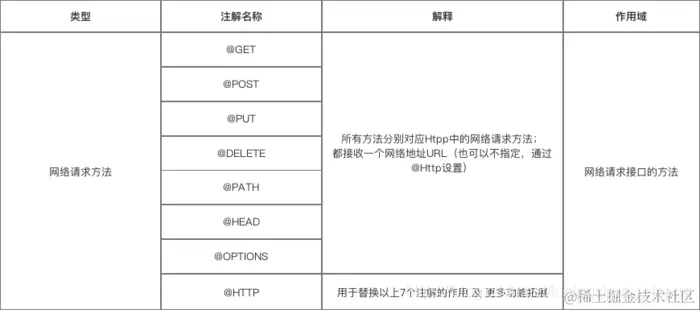

请求方法

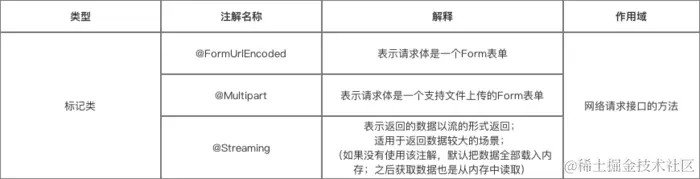

请求体编码方式

请求参数

serviceMethod

ServiceMethod<?> loadServiceMethod(Method method) {
  ServiceMethod<?> result = serviceMethodCache.get(method);
  if (result != null) return result;

  synchronized (serviceMethodCache) {
    result = serviceMethodCache.get(method);
    if (result == null) {
      result = ServiceMethod.parseAnnotations(this, method);
      serviceMethodCache.put(method, result);
    }
  }
  return result;
}

static <T> ServiceMethod<T> parseAnnotations(Retrofit retrofit, Method method) {
  RequestFactory requestFactory = RequestFactory.parseAnnotations(retrofit, method);

  Type returnType = method.getGenericReturnType();
  if (Utils.hasUnresolvableType(returnType)) {
    throw methodError(
        method,
        "Method return type must not include a type variable or wildcard: %s",
        returnType);
  }
  if (returnType == void.class) {
    throw methodError(method, "Service methods cannot return void.");
  }

  return HttpServiceMethod.parseAnnotations(retrofit, method, requestFactory);
}

RequestFactory build() {
  for (Annotation annotation : methodAnnotations) {
    parseMethodAnnotation(annotation);
  }

  if (httpMethod == null) {
    throw methodError(method, "HTTP method annotation is required (e.g., @GET, @POST, etc.).");
  }

  if (!hasBody) {
    if (isMultipart) {
      throw methodError(
          method,
          "Multipart can only be specified on HTTP methods with request body (e.g., @POST).");
    }
    if (isFormEncoded) {
      throw methodError(
          method,
          "FormUrlEncoded can only be specified on HTTP methods with "
              + "request body (e.g., @POST).");
    }
  }

  int parameterCount = parameterAnnotationsArray.length;
  parameterHandlers = new ParameterHandler<?>[parameterCount];
  for (int p = 0, lastParameter = parameterCount - 1; p < parameterCount; p++) {
    parameterHandlers[p] =
        parseParameter(p, parameterTypes[p], parameterAnnotationsArray[p], p == lastParameter);
  }

  if (relativeUrl == null && !gotUrl) {
    throw methodError(method, "Missing either @%s URL or @Url parameter.", httpMethod);
  }
  if (!isFormEncoded && !isMultipart && !hasBody && gotBody) {
    throw methodError(method, "Non-body HTTP method cannot contain @Body.");
  }
  if (isFormEncoded && !gotField) {
    throw methodError(method, "Form-encoded method must contain at least one @Field.");
  }
  if (isMultipart && !gotPart) {
    throw methodError(method, "Multipart method must contain at least one @Part.");
  }

  return new RequestFactory(this);
}

解析注解，选择retrofit里面提供的工具，请求request的一个封装。

数据适配

public <T> Converter<ResponseBody, T> nextResponseBodyConverter(
    @Nullable Converter.Factory skipPast, Type type, Annotation[] annotations) {
  Objects.requireNonNull(type, "type == null");
  Objects.requireNonNull(annotations, "annotations == null");

  int start = converterFactories.indexOf(skipPast) + 1;
  for (int i = start, count = converterFactories.size(); i < count; i++) {
    Converter<ResponseBody, ?> converter =
        converterFactories.get(i).responseBodyConverter(type, annotations, this);
    if (converter != null) {
      //noinspection unchecked
      return (Converter<ResponseBody, T>) converter;
    }
  }

  StringBuilder builder =
      new StringBuilder("Could not locate ResponseBody converter for ")
          .append(type)
          .append(".\n");
  if (skipPast != null) {
    builder.append("  Skipped:");
    for (int i = 0; i < start; i++) {
      builder.append("\n   * ").append(converterFactories.get(i).getClass().getName());
    }
    builder.append('\n');
  }
  builder.append("  Tried:");
  for (int i = start, count = converterFactories.size(); i < count; i++) {
    builder.append("\n   * ").append(converterFactories.get(i).getClass().getName());
  }
  throw new IllegalArgumentException(builder.toString());
}

线程切换

static final class Android extends Platform {
  Android() {
    super(Build.VERSION.SDK_INT >= 24);
  }

  @Override
  public Executor defaultCallbackExecutor() {
    return new MainThreadExecutor();
  }

  @Nullable
  @Override
  Object invokeDefaultMethod(
      Method method, Class<?> declaringClass, Object object, Object... args) throws Throwable {
    if (Build.VERSION.SDK_INT < 26) {
      throw new UnsupportedOperationException(
          "Calling default methods on API 24 and 25 is not supported");
    }
    return super.invokeDefaultMethod(method, declaringClass, object, args);
  }

  static final class MainThreadExecutor implements Executor {
    private final Handler handler = new Handler(Looper.getMainLooper());

    @Override
    public void execute(Runnable r) {
      handler.post(r);
    }
  }
}

入队列

@Override
public void enqueue(final Callback<T> callback) {
  Objects.requireNonNull(callback, "callback == null");

  delegate.enqueue(
      new Callback<T>() {
        @Override
        public void onResponse(Call<T> call, final Response<T> response) {
          callbackExecutor.execute(
              () -> {
                if (delegate.isCanceled()) {
                  callback.onFailure(ExecutorCallbackCall.this, new IOException("Canceled"));
                } else {
                  callback.onResponse(ExecutorCallbackCall.this, response);
                }
              });
        }

        @Override
        public void onFailure(Call<T> call, final Throwable t) {
          callbackExecutor.execute(() -> callback.onFailure(ExecutorCallbackCall.this, t));
        }
      });
}

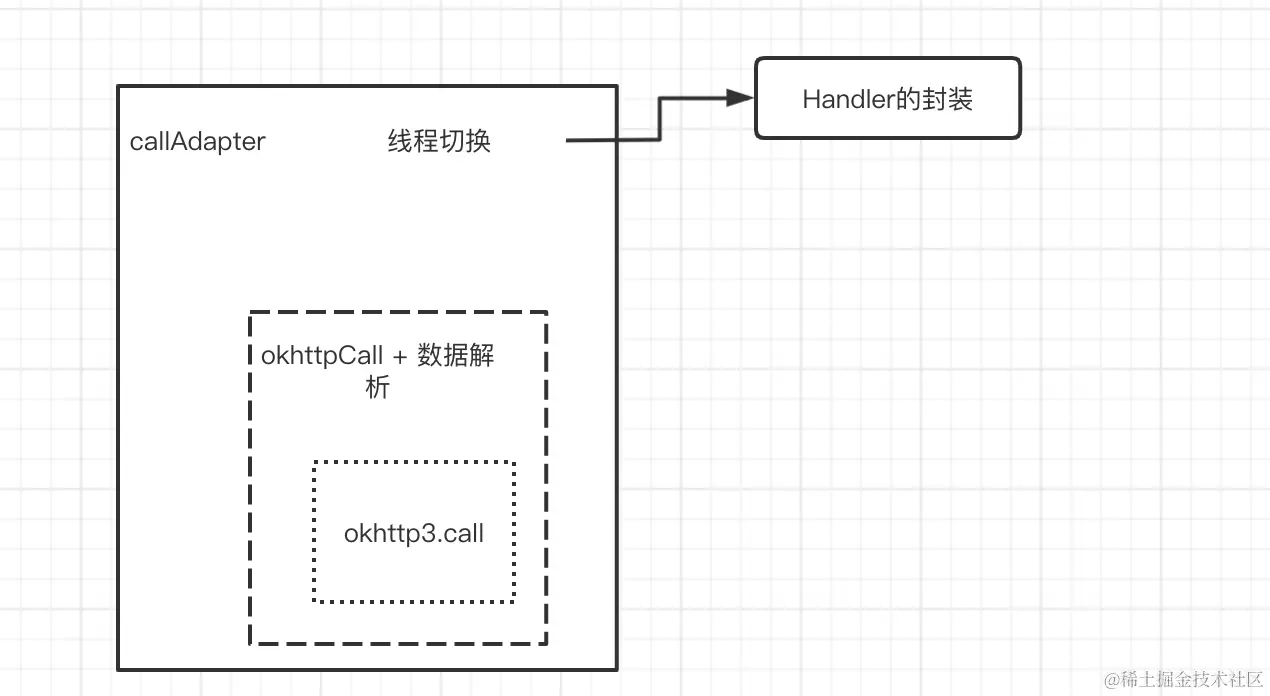

大致流程：
