okhttp - 拦截器

这是我参与11月更文挑战的第12天，活动详情查看：2021最后一次更文挑战

上一篇（juejin.cn/post/703004… 已经介绍了拦截器的相关知识，这篇主要来搞清楚拦截器相关的内容

调用

@Override public Response execute() throws IOException {
  synchronized (this) {
    if (executed) throw new IllegalStateException("Already Executed");
    executed = true;
  }
  transmitter.timeoutEnter();
  transmitter.callStart();
  try {
    client.dispatcher().executed(this);
    //计入拦截器相关的内容
    return getResponseWithInterceptorChain();
  } finally {
    client.dispatcher().finished(this);
  }
}

同步或者异步之后都会进入getResponseWithInterceptorChain这个方法

Response getResponseWithInterceptorChain() throws IOException {
  // Build a full stack of interceptors.
  List<Interceptor> interceptors = new ArrayList<>();
  interceptors.addAll(client.interceptors());
  interceptors.add(new RetryAndFollowUpInterceptor(client));
  interceptors.add(new BridgeInterceptor(client.cookieJar()));
  interceptors.add(new CacheInterceptor(client.internalCache()));
  interceptors.add(new ConnectInterceptor(client));
  if (!forWebSocket) {
    interceptors.addAll(client.networkInterceptors());
  }
  interceptors.add(new CallServerInterceptor(forWebSocket));

  Interceptor.Chain chain = new RealInterceptorChain(interceptors, transmitter, null, 0,
      originalRequest, this, client.connectTimeoutMillis(),
      client.readTimeoutMillis(), client.writeTimeoutMillis());

  boolean calledNoMoreExchanges = false;
  try {
    Response response = chain.proceed(originalRequest);
    if (transmitter.isCanceled()) {
      closeQuietly(response);
      throw new IOException("Canceled");
    }
    return response;
  } catch (IOException e) {
    calledNoMoreExchanges = true;
    throw transmitter.noMoreExchanges(e);
  } finally {
    if (!calledNoMoreExchanges) {
      transmitter.noMoreExchanges(null);
    }
  }
}

该方法中，我们依次添加了用户自定义的interceptor、retryAndFollowUpInterceptor、BridgeInterceptor、CacheInterceptor、ConnectInterceptor、 networkInterceptors、CallServerInterceptor，并将这些拦截器传递给了这个RealInterceptorChain。

进入RealInterceptorChain类的proceed方法

public Response proceed(Request request, Transmitter transmitter, @Nullable Exchange exchange)
    throws IOException {
  if (index >= interceptors.size()) throw new AssertionError();

。。。

  RealInterceptorChain next = new RealInterceptorChain(interceptors, transmitter, exchange,
      index + 1, request, call, connectTimeout, readTimeout, writeTimeout);
  Interceptor interceptor = interceptors.get(index);
  Response response = interceptor.intercept(next);

 。。。

  return response;
}

该方法最核心的代码就是中间的这几句，执行当前拦截器的Intercept方法，并调用下一个（index+1）拦截器。下一个（index+1）拦截器的调用依赖于当前拦截器的Intercept方法中，对RealInterceptorChain的proceed方法的调用。

当前拦截器的Response依赖于下一个拦截器的Intercept的Response。因此，就会沿着这条拦截器链依次调用每一个拦截器，当执行到最后一个拦截器之后，就会沿着相反的方向依次返回Response，最终得到我们需要的“终极版”Response。

RetryAndFollowUpInterceptor拦截器

@Override public Response intercept(Chain chain) throws IOException {
  Request request = chain.request();
  RealInterceptorChain realChain = (RealInterceptorChain) chain;
  Transmitter transmitter = realChain.transmitter();

  int followUpCount = 0;
  Response priorResponse = null;
  while (true) {
    transmitter.prepareToConnect(request);

    if (transmitter.isCanceled()) {
      throw new IOException("Canceled");
    }

    Response response;
    boolean success = false;
    try {
      response = realChain.proceed(request, transmitter, null);
      success = true;
    } catch (RouteException e) {
      if (!recover(e.getLastConnectException(), transmitter, false, request)) {
        throw e.getFirstConnectException();
      }
      continue;//继续重试
    } catch (IOException e) {
      boolean requestSendStarted = !(e instanceof ConnectionShutdownException);
      if (!recover(e, transmitter, requestSendStarted, request)) throw e;
      continue;//继续重试
    } finally {
      if (!success) {
        transmitter.exchangeDoneDueToException();
      }
    }
    if (priorResponse != null) {//前一个重试得到的Response
      response = response.newBuilder()
          .priorResponse(priorResponse.newBuilder()
                  .body(null)
                  .build())
          .build();
    }

    Exchange exchange = Internal.instance.exchange(response);
    Route route = exchange != null ? exchange.connection().route() : null;
   // followUpRequest方法的主要作用就是为新的重试Request添加验证头等内容
    Request followUp = followUpRequest(response, route);
    //如果一个请求得到的响应code是200，则followUp是为null的。
    if (followUp == null) {
      if (exchange != null && exchange.isDuplex()) {
        transmitter.timeoutEarlyExit();
      }
      return response;
    }

    RequestBody followUpBody = followUp.body();
    if (followUpBody != null && followUpBody.isOneShot()) {
      return response;
    }

    closeQuietly(response.body());
    if (transmitter.hasExchange()) {
      exchange.detachWithViolence();
    }

    if (++followUpCount > MAX_FOLLOW_UPS) {////超过最大的次数,抛出异常
      throw new ProtocolException("Too many follow-up requests: " + followUpCount);
    }

    request = followUp;//得到处理之后的Request，以用来继续请求
    priorResponse = response;
  }
}

该拦截器主要的作用就是重试及followup。

当一个请求由于各种原因失败了，如果是路由或者连接异常，则尝试恢复，否则，根据响应码（ResponseCode）,followup方法会对Request进行再处理以得到新的Request，然后沿着拦截器链继续新的Request。当然，如果responseCode是200的话，这些过程就结束了。

BridgeInterceptor拦截器

@Override public Response intercept(Chain chain) throws IOException {
  Request userRequest = chain.request();
  Request.Builder requestBuilder = userRequest.newBuilder();
  //-------------request-------------
  RequestBody body = userRequest.body();
  if (body != null) {
    MediaType contentType = body.contentType();
    if (contentType != null) {
      requestBuilder.header("Content-Type", contentType.toString());
    }

    long contentLength = body.contentLength();
    if (contentLength != -1) {
      requestBuilder.header("Content-Length", Long.toString(contentLength));
      requestBuilder.removeHeader("Transfer-Encoding");
    } else {
      requestBuilder.header("Transfer-Encoding", "chunked");//分块传输
      requestBuilder.removeHeader("Content-Length");
    }
  }

  if (userRequest.header("Host") == null) {
    requestBuilder.header("Host", hostHeader(userRequest.url(), false));
  }

  if (userRequest.header("Connection") == null) {
    requestBuilder.header("Connection", "Keep-Alive");
  }

  boolean transparentGzip = false;
  if (userRequest.header("Accept-Encoding") == null && userRequest.header("Range") == null) {
    transparentGzip = true;
    requestBuilder.header("Accept-Encoding", "gzip");
  }

  List<Cookie> cookies = cookieJar.loadForRequest(userRequest.url());
  if (!cookies.isEmpty()) {
    requestBuilder.header("Cookie", cookieHeader(cookies));
  }

  if (userRequest.header("User-Agent") == null) {
    requestBuilder.header("User-Agent", Version.userAgent());
  }
  //------------response-------------
  Response networkResponse = chain.proceed(requestBuilder.build());

  HttpHeaders.receiveHeaders(cookieJar, userRequest.url(), networkResponse.headers());

  Response.Builder responseBuilder = networkResponse.newBuilder()
      .request(userRequest);

  if (transparentGzip
      && "gzip".equalsIgnoreCase(networkResponse.header("Content-Encoding"))
      && HttpHeaders.hasBody(networkResponse)) {
    GzipSource responseBody = new GzipSource(networkResponse.body().source());
    Headers strippedHeaders = networkResponse.headers().newBuilder()
        .removeAll("Content-Encoding")
        .removeAll("Content-Length")
        .build();
    responseBuilder.headers(strippedHeaders);
    String contentType = networkResponse.header("Content-Type");
    responseBuilder.body(new RealResponseBody(contentType, -1L, Okio.buffer(responseBody)));
  }

  return responseBuilder.build();
}

BridgeInterceptor的主要作用就是为请求（request before）添加请求头，为响应（Response Before）添加响应头。

CacheInterceptor拦截器

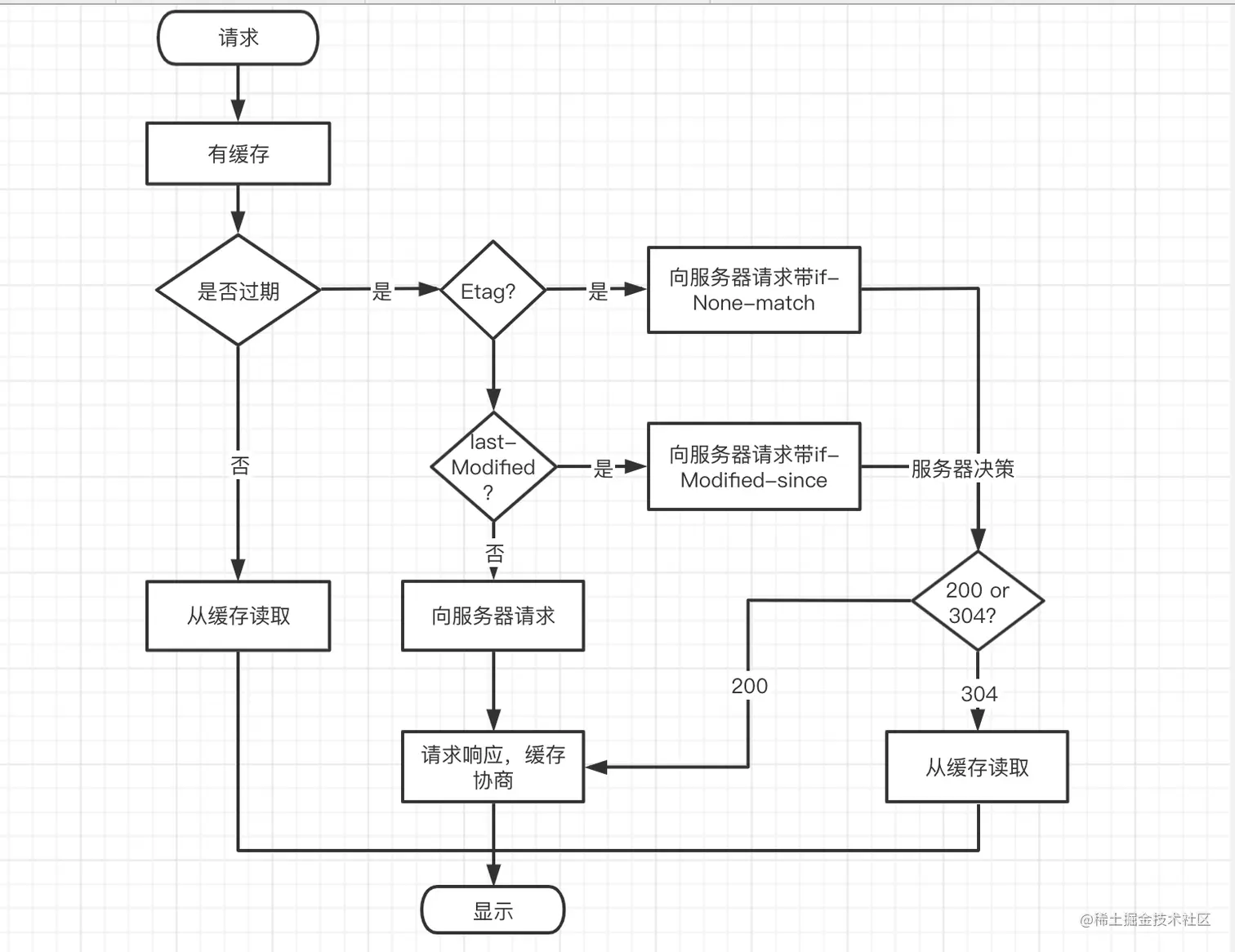

Http缓存机制

服务器收到请求时，会在200 OK中回送该资源的Last-Modified和ETag头（服务器支持缓存的情况下才会有这两个头哦），客户端将该资源保存在cache中，并记录这两个属性。当客户端需要发送相同的请求时，根据Date + Cache-control来判断是否缓存过期，如果过期了，会在请求中携带If-Modified-Since和If-None-Match两个头。两个值分别是响应中Last-Modified和ETag头的值。服务器通过这两个头判断本地资源未发生变化，客户端不需要重新下载，返回304响应。

与缓存相关的字段

• Cache-control：标明缓存的最大存活时常；
• Date：服务器告诉客户端，该资源的发送时间
• Expires：表示过期时间
• Last-Modified：服务器告诉客户端，资源的最后修改时间
• E-Tag：当前资源在服务器的唯一标识，可用于判断资源的内容是否被修改了。

@Override public Response intercept(Chain chain) throws IOException {
  Response cacheCandidate = cache != null
      ? cache.get(chain.request())
      : null;

  long now = System.currentTimeMillis();
  //缓存策略类，该类决定了是使用缓存还是进行网络请求
  CacheStrategy strategy = new CacheStrategy.Factory(now, chain.request(), cacheCandidate).get();
  //网络请求，如果为null就代表不用进行网络请求
  Request networkRequest = strategy.networkRequest;
  //缓存响应，如果为null，则代表不使用缓存
  Response cacheResponse = strategy.cacheResponse;
  //根据缓存策略，更新统计指标：请求次数、使用网络请求次数、使用缓存次数
  if (cache != null) {
    cache.trackResponse(strategy);
  }
  //缓存不可用，关闭
  if (cacheCandidate != null && cacheResponse == null) {
    closeQuietly(cacheCandidate.body());
  }
  //如果既无网络请求可用，又没有缓存，则返回504错误
  if (networkRequest == null && cacheResponse == null) {
    return new Response.Builder()
        .request(chain.request())
        .protocol(Protocol.HTTP_1_1)
        .code(504)
        .message("Unsatisfiable Request (only-if-cached)")
        .body(Util.EMPTY_RESPONSE)
        .sentRequestAtMillis(-1L)
        .receivedResponseAtMillis(System.currentTimeMillis())
        .build();
  }
  //缓存可用，直接返回缓存
  if (networkRequest == null) {
    return cacheResponse.newBuilder()
        .cacheResponse(stripBody(cacheResponse))
        .build();
  }

  Response networkResponse = null;
  try {
    //进行网络请求，得到网络响应
    networkResponse = chain.proceed(networkRequest);
  } finally {
    if (networkResponse == null && cacheCandidate != null) {
      closeQuietly(cacheCandidate.body());
    }
  }
  //HTTP_NOT_MODIFIED缓存有效，合并网络请求和缓存
  if (cacheResponse != null) {
    if (networkResponse.code() == HTTP_NOT_MODIFIED) {
      Response response = cacheResponse.newBuilder()
          .headers(combine(cacheResponse.headers(), networkResponse.headers()))
          .sentRequestAtMillis(networkResponse.sentRequestAtMillis())
          .receivedResponseAtMillis(networkResponse.receivedResponseAtMillis())
          .cacheResponse(stripBody(cacheResponse))
          .networkResponse(stripBody(networkResponse))
          .build();
      networkResponse.body().close();

      cache.trackConditionalCacheHit();
      //更新缓存
      cache.update(cacheResponse, response);
      return response;
    } else {
      closeQuietly(cacheResponse.body());
    }
  }

  Response response = networkResponse.newBuilder()
      .cacheResponse(stripBody(cacheResponse))
      .networkResponse(stripBody(networkResponse))
      .build();

  if (cache != null) {
    if (HttpHeaders.hasBody(response) && CacheStrategy.isCacheable(response, networkRequest)) {
      CacheRequest cacheRequest = cache.put(response);
      return cacheWritingResponse(cacheRequest, response);//写缓存
    }
    //判断有效性
    if (HttpMethod.invalidatesCache(networkRequest.method())) {
      try {
        cache.remove(networkRequest);
      } catch (IOException ignored) {
      }
    }
  }
  return response;
}

• 如果网络不可用并且无可用的有效缓存，则返回504错误；
• 如果不需要网络请求，则直接使用缓存；
• 如果需要网络可用，则进行网络请求；
• 如果有缓存，并且网络请求返回HTTP_NOT_MODIFIED，说明缓存还是有效的，则合并网络响应和缓存结果。同时更新缓存；
• 如果没有缓存，则写入新的缓存；

CacheStrategy是一个缓存策略类，该类告诉CacheInterceptor是使用缓存还是使用网络请求

private CacheStrategy getCandidate() {
  //没有缓存，直接网络请求
  if (cacheResponse == null) {
    return new CacheStrategy(request, null);
  }
  //https，但没有握手，直接网络请求
  if (request.isHttps() && cacheResponse.handshake() == null) {
    return new CacheStrategy(request, null);
  }
  //不可缓存，直接网络请求
  if (!isCacheable(cacheResponse, request)) {
    return new CacheStrategy(request, null);
  }

  CacheControl requestCaching = request.cacheControl();
  if (requestCaching.noCache() || hasConditions(request)) {
  //请求头nocache或者请求头包含If-Modified-Since或者If-None-Match
  //请求头包含If-Modified-Since或者If-None-Match意味着本地缓存过期，需要服务器验证
  //本地缓存是不是还能继续使用
    return new CacheStrategy(request, null);
  }

  CacheControl responseCaching = cacheResponse.cacheControl();

  long ageMillis = cacheResponseAge();
  long freshMillis = computeFreshnessLifetime();

  if (requestCaching.maxAgeSeconds() != -1) {
    freshMillis = Math.min(freshMillis, SECONDS.toMillis(requestCaching.maxAgeSeconds()));
  }

  long minFreshMillis = 0;
  if (requestCaching.minFreshSeconds() != -1) {
    minFreshMillis = SECONDS.toMillis(requestCaching.minFreshSeconds());
  }

  long maxStaleMillis = 0;
  if (!responseCaching.mustRevalidate() && requestCaching.maxStaleSeconds() != -1) {
    maxStaleMillis = SECONDS.toMillis(requestCaching.maxStaleSeconds());
  }

  if (!responseCaching.noCache() && ageMillis + minFreshMillis < freshMillis + maxStaleMillis) {
    Response.Builder builder = cacheResponse.newBuilder();
    if (ageMillis + minFreshMillis >= freshMillis) {
      builder.addHeader("Warning", "110 HttpURLConnection "Response is stale"");
    }
    long oneDayMillis = 24 * 60 * 60 * 1000L;
    if (ageMillis > oneDayMillis && isFreshnessLifetimeHeuristic()) {
      builder.addHeader("Warning", "113 HttpURLConnection "Heuristic expiration"");
    }
    return new CacheStrategy(null, builder.build());
  }

  String conditionName;
  String conditionValue;
  if (etag != null) {
    conditionName = "If-None-Match";
    conditionValue = etag;
  } else if (lastModified != null) {
    conditionName = "If-Modified-Since";
    conditionValue = lastModifiedString;
  } else if (servedDate != null) {
    conditionName = "If-Modified-Since";
    conditionValue = servedDateString;
  } else {
    return new CacheStrategy(request, null); // No condition! Make a regular request.
  }

  Headers.Builder conditionalRequestHeaders = request.headers().newBuilder();
  Internal.instance.addLenient(conditionalRequestHeaders, conditionName, conditionValue);

  Request conditionalRequest = request.newBuilder()
      .headers(conditionalRequestHeaders.build())
      .build();
  return new CacheStrategy(conditionalRequest, cacheResponse);
}

• 没有缓存，直接网络请求；
• 如果是https，但没有握手，直接网络请求；
• 不可缓存，直接网络请求；
• 请求头nocache或者请求头包含If-Modified-Since或者If-None-Match，则需要服务器验证本地缓存是不是还能继续使用，直接网络请求；
• 可缓存，并且ageMillis + minFreshMillis < freshMillis + maxStaleMillis（意味着虽过期，但可用，只是会在响应头添加warning），则使用缓存；
• 缓存已经过期，添加请求头：If-Modified-Since或者If-None-Match，进行网络请求；

ConnectInterceptor（核心，连接池）

@Override public Response intercept(Chain chain) throws IOException {
  RealInterceptorChain realChain = (RealInterceptorChain) chain;
  Request request = realChain.request();
  Transmitter transmitter = realChain.transmitter();
  //我们需要网络来满足这个请求。可能是为了验证一个条件GET请求（缓存验证等）
  boolean doExtensiveHealthChecks = !request.method().equals("GET");
  Exchange exchange = transmitter.newExchange(chain, doExtensiveHealthChecks);

  return realChain.proceed(request, transmitter, exchange);
}

• Transmitter 是 OkHttp 网络层的桥梁，我们上面说的这些概念最终都是通过 Transmitter 来融合在一起，并对外提供功能实现。
• Exchange 功能类似 ExchangeCodec，但它是对应的是单个请求，其在 ExchangeCodec 基础上担负了一些连接管理及事件分发的作用。

具体而言，Exchange 与 Request 一一对应，新建一个请求时就会创建一个 Exchange，该 Exchange 负责将这个请求发送出去并读取到响应数据，而发送与接收数据使用的是 ExchangeCodec。

进入newExchange 方法

Exchange newExchange(Interceptor.Chain chain, boolean doExtensiveHealthChecks) {
  synchronized (connectionPool) {
    if (noMoreExchanges) {
      throw new IllegalStateException("released");
    }
    if (exchange != null) {
      throw new IllegalStateException("cannot make a new request because the previous response "
          + "is still open: please call response.close()");
    }
  }

  ExchangeCodec codec = exchangeFinder.find(client, chain, doExtensiveHealthChecks);
  Exchange result = new Exchange(this, call, eventListener, exchangeFinder, codec);

  synchronized (connectionPool) {
    this.exchange = result;
    this.exchangeRequestDone = false;
    this.exchangeResponseDone = false;
    return result;
  }
}

ExchangeCodec 负责对 Request 编码及解码 Response，也就是写入请求及读取响应，我们的请求及响应数据都通过它来读写。

RealConnectionPool 用来存储 RealConnection 的池子，内部使用一个双端队列来进行存储。 在 OkHttp 中，一个连接（RealConnection）用完后不会立马被关闭并释放掉，而且是会存储到连接池（RealConnectionPool）中。

进入find方法

public ExchangeCodec find(
    OkHttpClient client, Interceptor.Chain chain, boolean doExtensiveHealthChecks) {
  int connectTimeout = chain.connectTimeoutMillis();
  int readTimeout = chain.readTimeoutMillis();
  int writeTimeout = chain.writeTimeoutMillis();
  int pingIntervalMillis = client.pingIntervalMillis();
  boolean connectionRetryEnabled = client.retryOnConnectionFailure();

  try {
    RealConnection resultConnection = findHealthyConnection(connectTimeout, readTimeout,
        writeTimeout, pingIntervalMillis, connectionRetryEnabled, doExtensiveHealthChecks);
    return resultConnection.newCodec(client, chain);
  } catch (RouteException e) {
    trackFailure();
    throw e;
  } catch (IOException e) {
    trackFailure();
    throw new RouteException(e);
  }
}

RealConnection 实现了 Connection 接口，其中使用 Socket 建立 HTTP/HTTPS 连接,并且获取 I/O 流，同一个 Connection 可能会承载多个 HTTP 的请求与响应。
其实可以大概的理解为是对 Socket 、I/O 流以及一些协议的封装。

会通过 Transmitter#newExchange 方法创建一个 Exchange 对象，并调用 Chain#process 方法。

newExchange 方法中会先通过 ExchangeFinder 尝试去 RealConnectionPool 中寻找已存在的连接，未找到则会重新创建一个 RealConnection 并开始连接，然后将其存入 RealConnectionPool，此时已经准备好了 RealConnection 对象，然后通过请求协议创建不同的 ExchangeCodec 并返回。

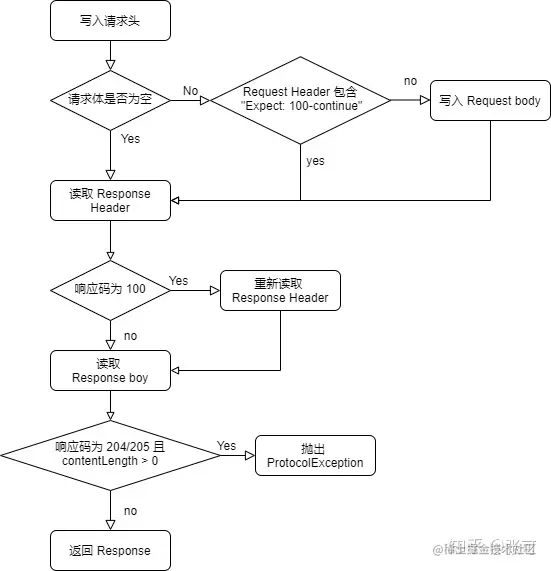

CallServerInterceptor

CallServerInterceptor 负责读写数据。
这是最后一个 interceptor 了，到了这里该准备的都准备好了，通过它，将会把 Request 中的数据发送到服务端，并获取到数据写入 Response。
